Page 1
Bestway 58497 Hmax Sand Filter manual — page 1

303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-封面 303021216270

Sand Filter

Owner’S Manual

bestwaycorp.com/support Visit Bestway YouTube channel 58497 Hmax 1.5 m

To The Store

Questions? Problems?

Missing Parts?

For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

Page 2
Bestway 58497 Hmax Sand Filter manual — page 2

303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英 2

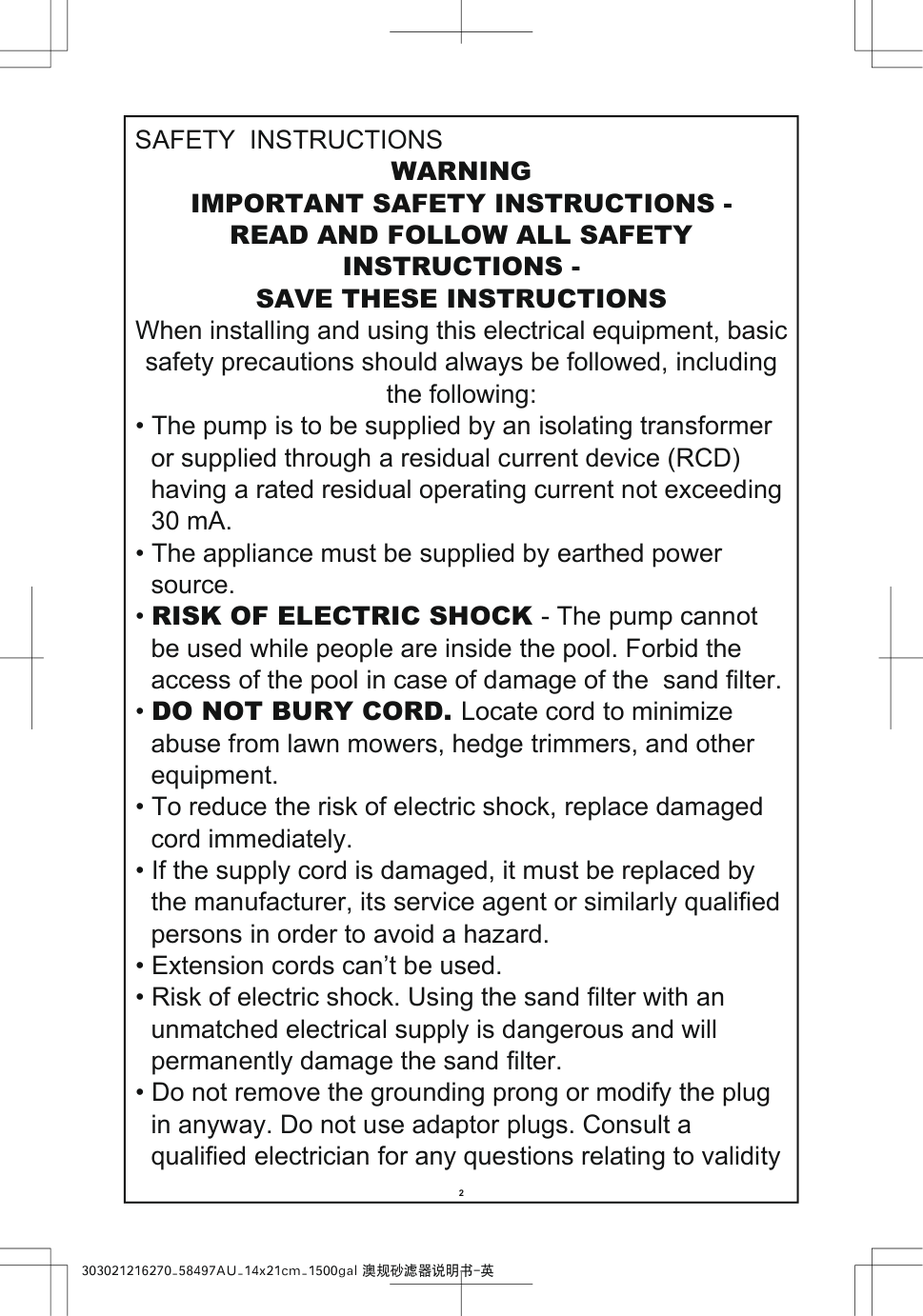

Safety Instructions

Warning

Important Safety Instructions -

Read And Follow All Safety

Instructions -

Save These Instructions

When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:
  • The pump is to be supplied by an isolating transformer
    • or supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
  • The appliance must be supplied by earthed power
    • source.
  • RISK OF ELECTRIC SHOCK - The pump cannot
    • be used while people are inside the pool. Forbid the access of the pool in case of damage of the sand filter.
  • DO NOT BURY CORD. Locate cord to minimize
    • abuse from lawn mowers, hedge trimmers, and other equipment.
  • To reduce the risk of electric shock, replace damaged
    • cord immediately.
  • If the supply cord is damaged, it must be replaced by
    • the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Extension cords can’t be used.
  • Risk of electric shock. Using the sand filter with an
    • unmatched electrical supply is dangerous and will permanently damage the sand filter.
  • Do not remove the grounding prong or modify the plug
    • in anyway. Do not use adaptor plugs. Consult a qualified electrician for any questions relating to validity

    Page 3
    Bestway 58497 Hmax Sand Filter manual — page 3

    3 303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英 of your plugs or grounding.

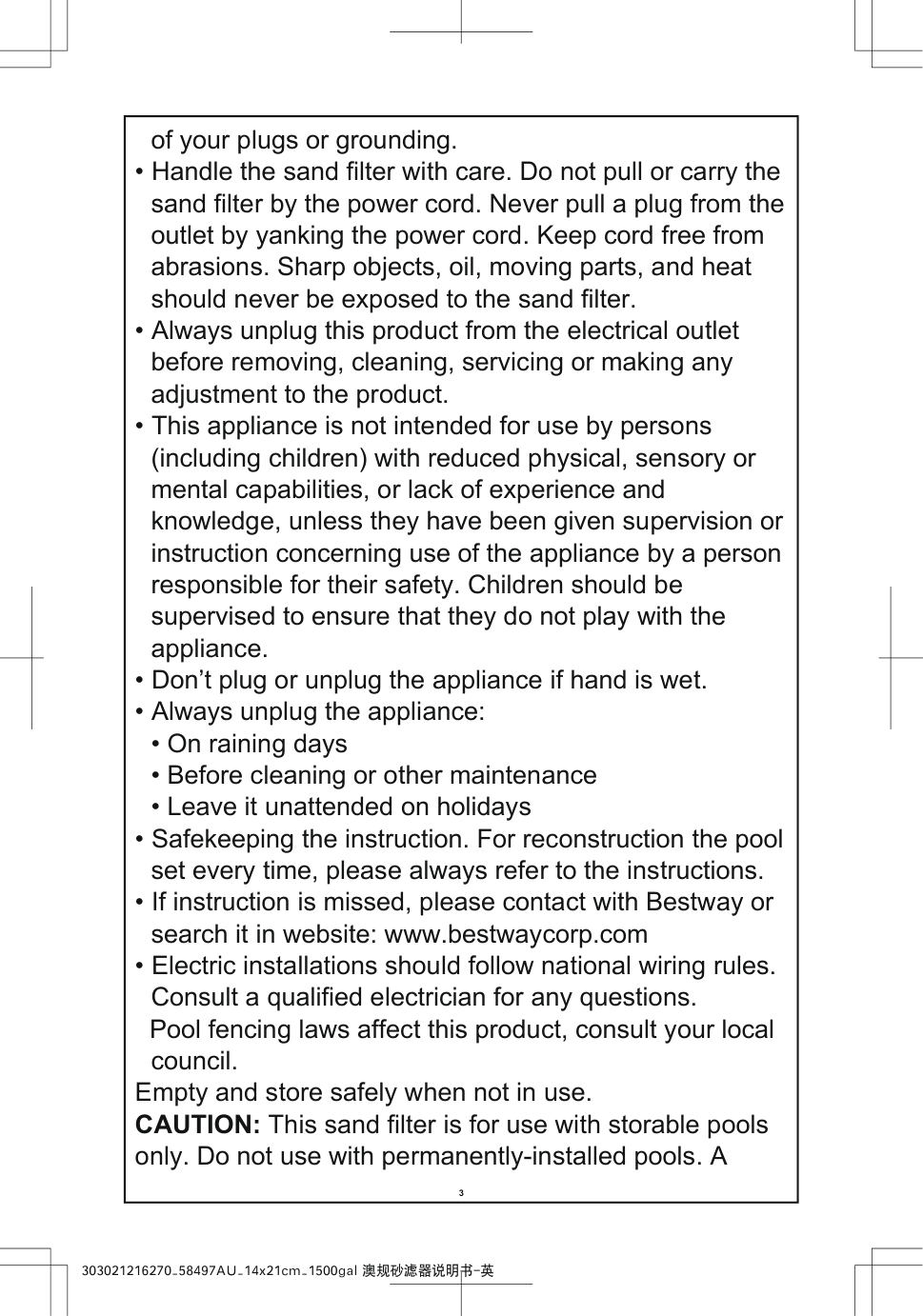

  • Handle the sand filter with care. Do not pull or carry the
    • sand filter by the power cord. Never pull a plug from the outlet by yanking the power cord. Keep cord free from abrasions. Sharp objects, oil, moving parts, and heat should never be exposed to the sand filter.
  • Always unplug this product from the electrical outlet
    • before removing, cleaning, servicing or making any adjustment to the product.
  • This appliance is not intended for use by persons
    • (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
  • Don’t plug or unplug the appliance if hand is wet.
  • Always unplug the appliance:
  • On raining days
  • Before cleaning or other maintenance
  • Leave it unattended on holidays
  • Safekeeping the instruction. For reconstruction the pool
    • set every time, please always refer to the instructions.
  • If instruction is missed, please contact with Bestway or
    • search it in website: www.bestwaycorp.com
  • Electric installations should follow national wiring rules.
    • Consult a qualified electrician for any questions. Pool fencing laws affect this product, consult your local council. Empty and store safely when not in use. CAUTION: This sand filter is for use with storable pools only. Do not use with permanently-installed pools. A

    Page 4
    Bestway 58497 Hmax Sand Filter manual — page 4

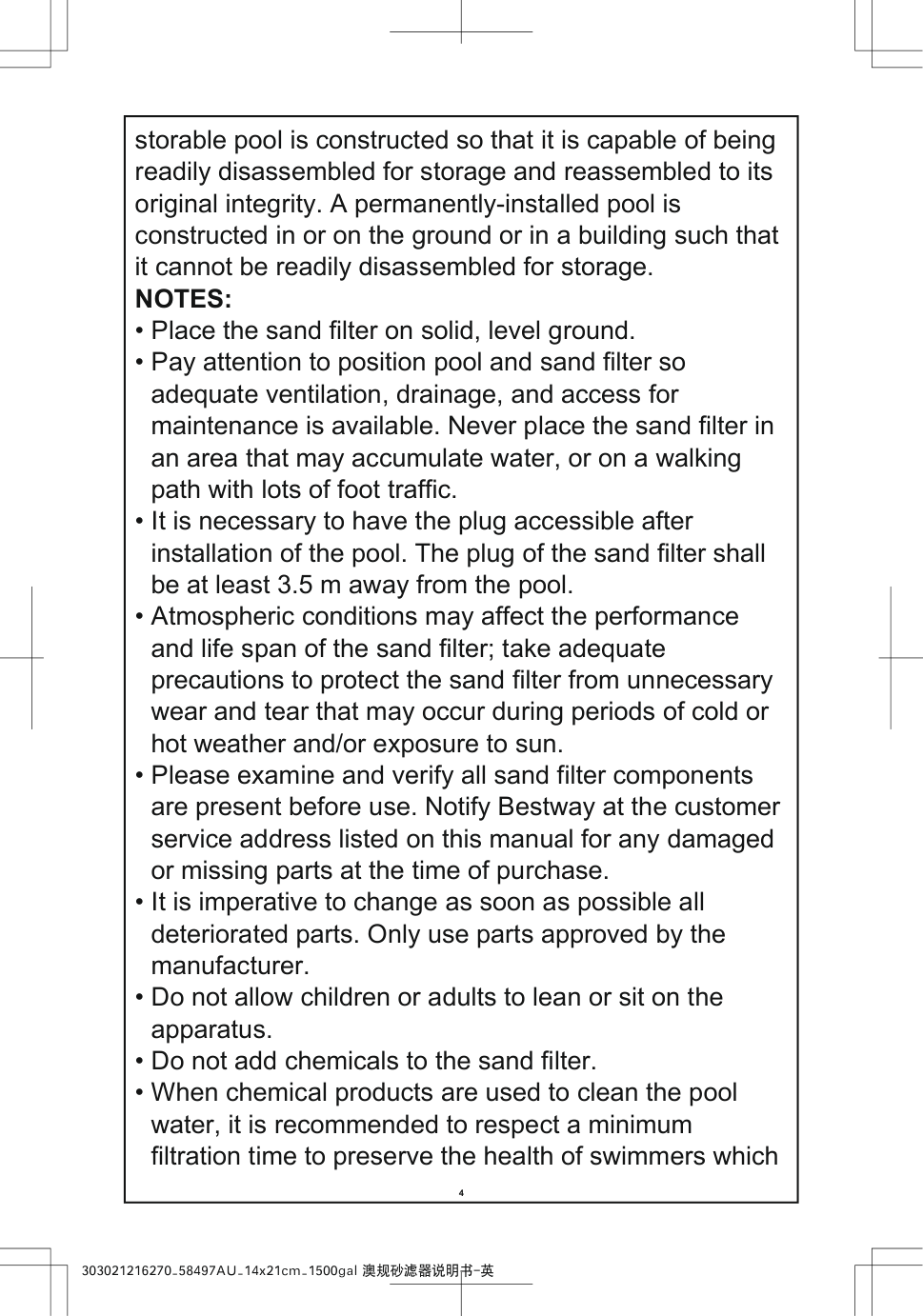

    4 303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英 storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.

    Notes:

  • Place the sand filter on solid, level ground.
  • Pay attention to position pool and sand filter so
    • adequate ventilation, drainage, and access for maintenance is available. Never place the sand filter in an area that may accumulate water, or on a walking path with lots of foot traffic.
  • It is necessary to have the plug accessible after
    • installation of the pool. The plug of the sand filter shall be at least 3.5 m away from the pool.
  • Atmospheric conditions may affect the performance
    • and life span of the sand filter; take adequate precautions to protect the sand filter from unnecessary wear and tear that may occur during periods of cold or hot weather and/or exposure to sun.
  • Please examine and verify all sand filter components
    • are present before use. Notify Bestway at the customer service address listed on this manual for any damaged or missing parts at the time of purchase.
  • It is imperative to change as soon as possible all
    • deteriorated parts. Only use parts approved by the manufacturer.
  • Do not allow children or adults to lean or sit on the
    • apparatus.
  • Do not add chemicals to the sand filter.
  • When chemical products are used to clean the pool
    • water, it is recommended to respect a minimum filtration time to preserve the health of swimmers which

    Page 5
    Bestway 58497 Hmax Sand Filter manual — page 5

    5 303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英 depends on compliance of health regulation.

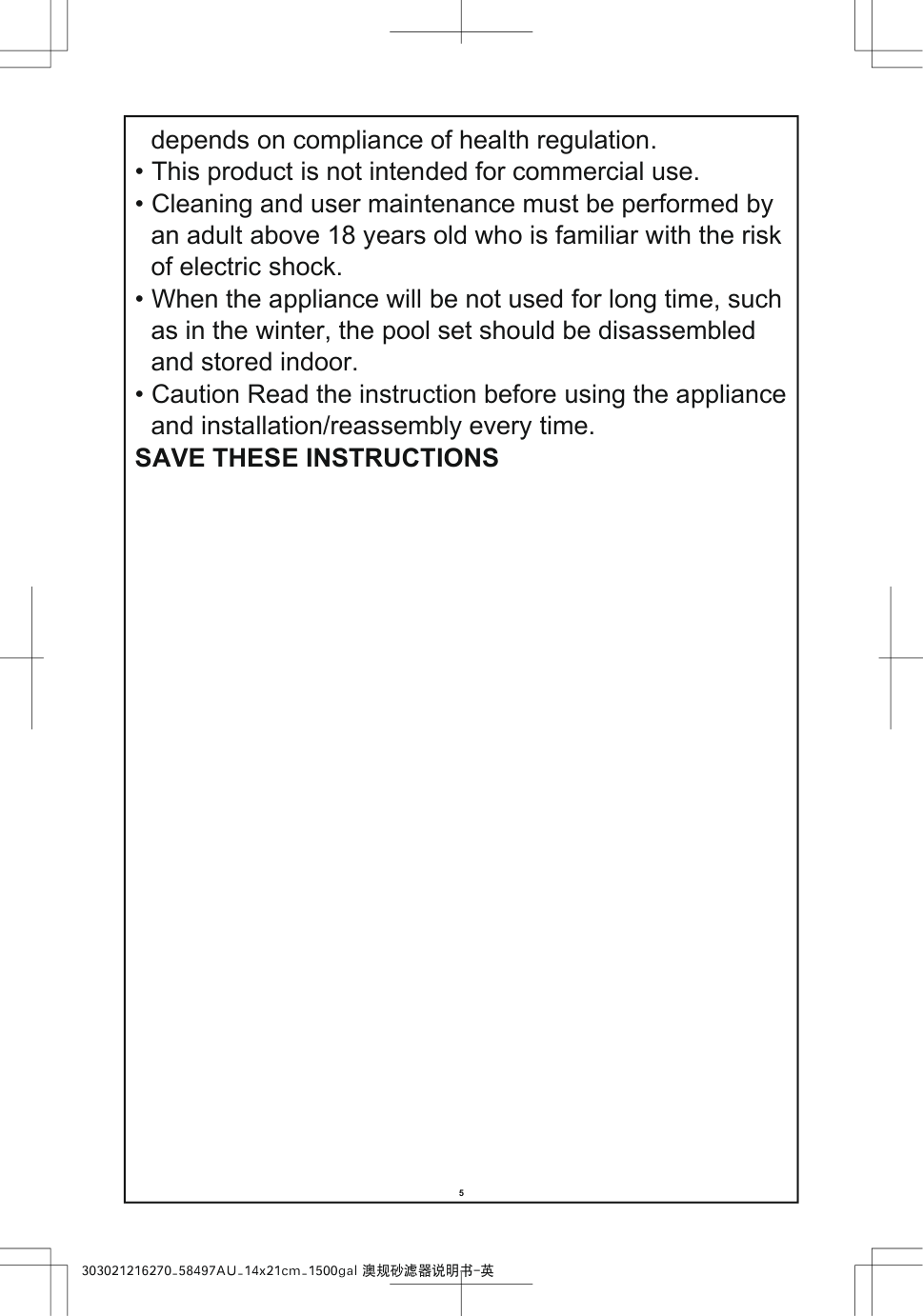

  • This product is not intended for commercial use.
  • Cleaning and user maintenance must be performed by
    • an adult above 18 years old who is familiar with the risk of electric shock.
  • When the appliance will be not used for long time, such
    • as in the winter, the pool set should be disassembled and stored indoor.
  • Caution Read the instruction before using the appliance
    • and installation/reassembly every time.

    Save These Instructions

    Page 6
    Bestway 58497 Hmax Sand Filter manual — page 6

    6 303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英

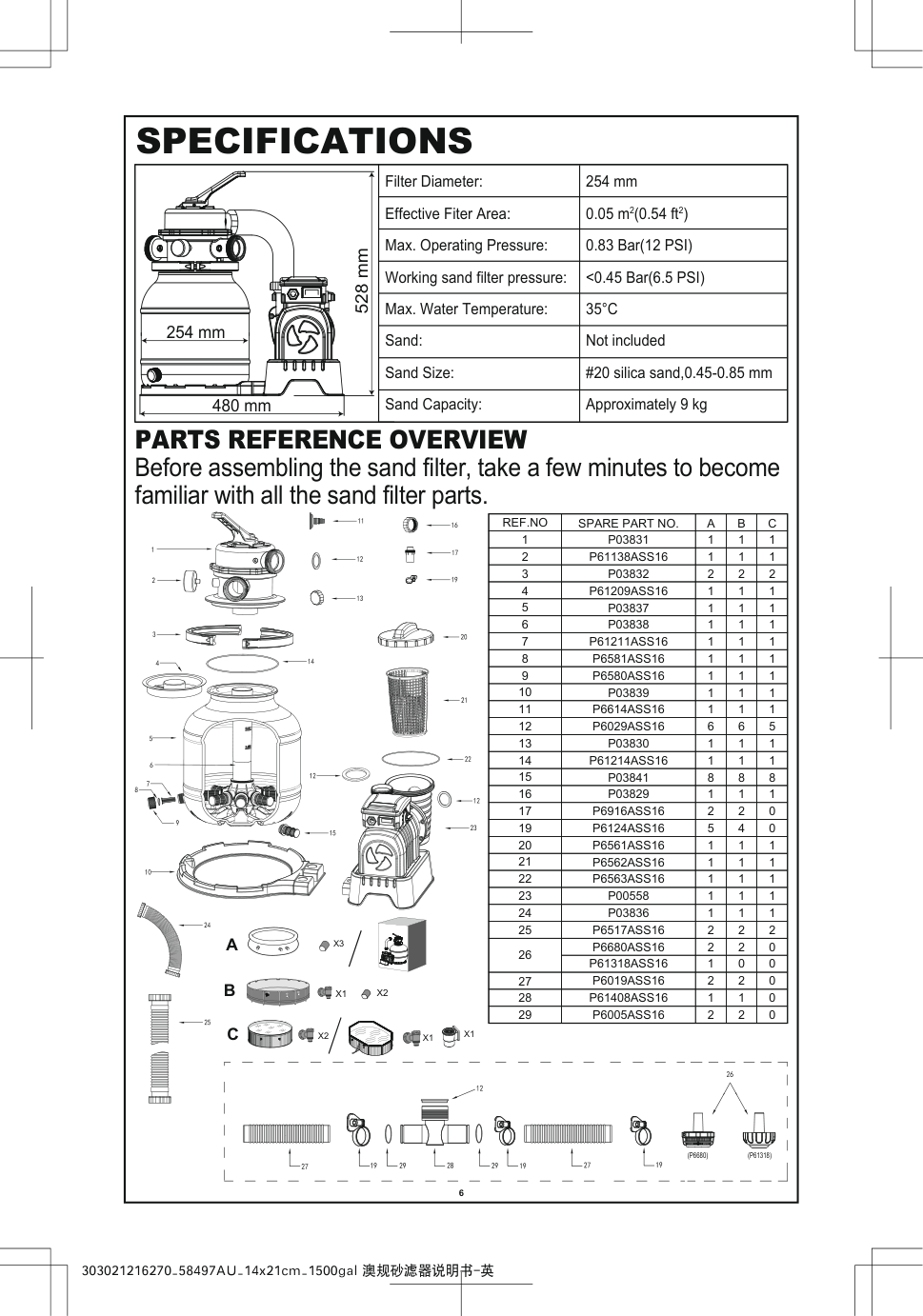

    Specifications

    528 mm 480 mm 254 mm Filter Diameter: Effective Fiter Area: Max. Operating Pressure: Working sand filter pressure: Max. Water Temperature: Sand: Sand Size: Sand Capacity: 254 mm 0.05 m2(0.54 ft2) 0.83 Bar(12 PSI) <0.45 Bar(6.5 PSI)

    35°C

    Not included #20 silica sand,0.45-0.85 mm Approximately 9 kg

    Parts Reference Overview

    Before assembling the sand filter, take a few minutes to become familiar with all the sand filter parts.

    Ref.No

    1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 19 20 21 22 23 24 25 26 27 28 29

    Spare Part No.

    P03831

    P61138Ass16

    P03832

    P61209Ass16

    P03837

    P03838

    P61211Ass16

    P6581Ass16

    P6580Ass16

    P03839

    P6614Ass16

    P6029Ass16

    P03830

    P61214Ass16

    P03841

    P03829

    P6916Ass16

    P6124Ass16

    P6561Ass16

    P6562Ass16

    P6563Ass16

    P00558

    P03836

    P6517Ass16

    P6680Ass16

    P61318Ass16

    P6019Ass16

    P61408Ass16

    P6005Ass16

    A

    1 1 2 1 1 1 1 1 1 1 1 6 1 1 8 1 2 5 1 1 1 1 1 2 2 1 2 1 2

    B

    1 1 2 1 1 1 1 1 1 1 1 6 1 1 8 1 2 4 1 1 1 1 1 2 2 0 2 1 2

    C

    1 1 2 1 1 1 1 1 1 1 1 5 1 1 8 1 0 0 1 1 1 1 1 2 0 0 0 0 0

    X3

    A

    B

    X1

    X1

    X2

    C

    X2

    X1

    A

    B

    B

    (P6680)

    (P61318)

    Page 7
    Bestway 58497 Hmax Sand Filter manual — page 7

    7 303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英 Load pool-grade filter sand/Flowclear™ Polysphere. NOTE: Use only special pool-grade filter sand, free of all limestone or clay: #20 Silica sand 0.45-0.85 mm, approximately one 9 kg bag should suffice. If you do not use the recommended size filter sand, filtering performance will be reduced and the sand filter may damaged, thereby voiding warranty. NOTE: To avoid damaging the Skimmer when adding sand, pour some water into the Bottom Tank to submerse the Skimmer on the Collector Hub. NOTE: Sand/Flowclear™ Polysphere not included. NOTE: Use 28 g (0.06 lbs) Flowclear™ Polysphere to replace 1 kg (2.20 lbs) sand. Assembly (You will need a screwdriver.)

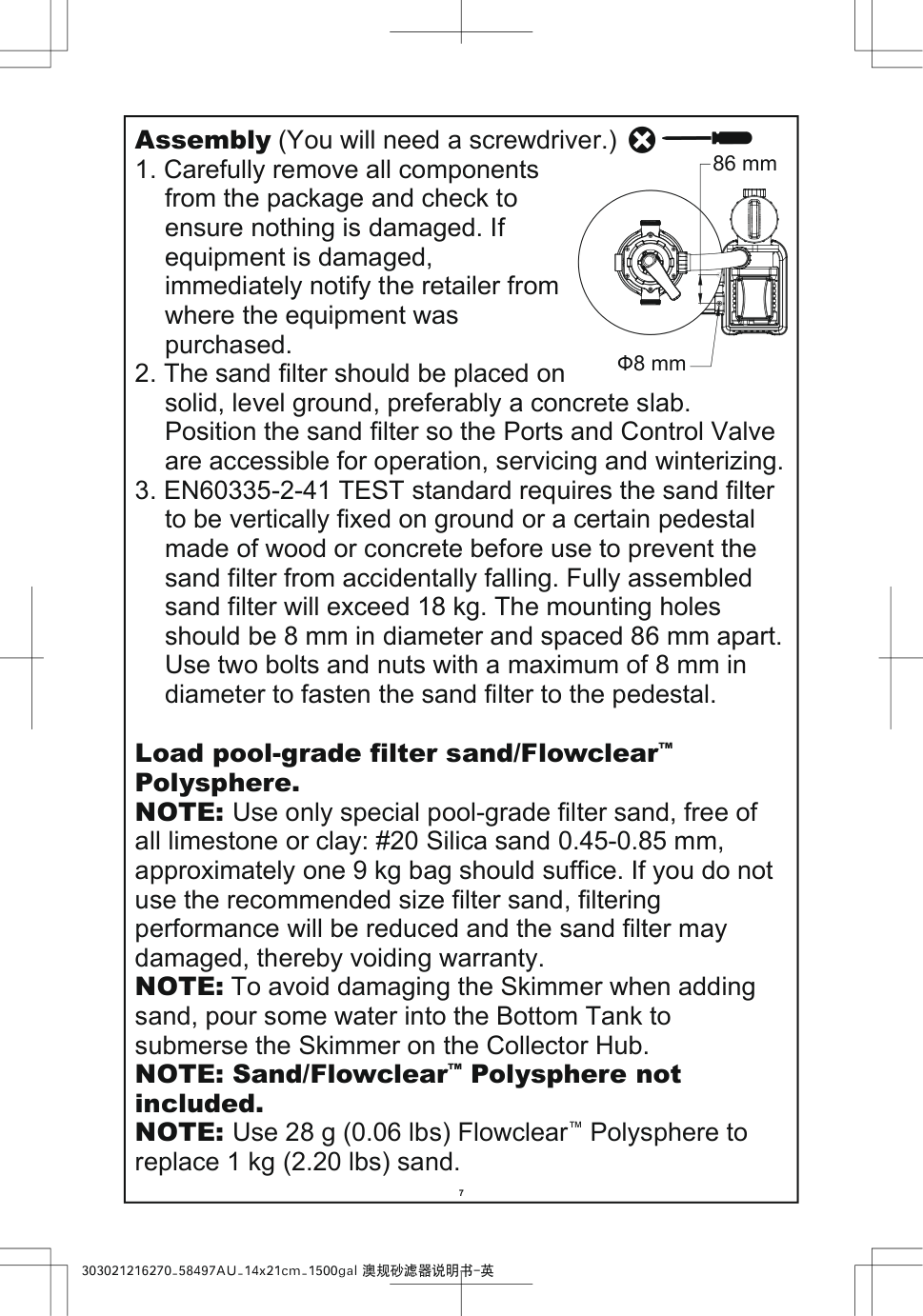

  • Carefully remove all components
    • from the package and check to ensure nothing is damaged. If equipment is damaged, immediately notify the retailer from where the equipment was purchased.
  • The sand filter should be placed on
    • solid, level ground, preferably a concrete slab. Position the sand filter so the Ports and Control Valve are accessible for operation, servicing and winterizing.
  • EN60335-2-41 TEST standard requires the sand filter
    • to be vertically fixed on ground or a certain pedestal made of wood or concrete before use to prevent the sand filter from accidentally falling. Fully assembled sand filter will exceed 18 kg. The mounting holes should be 8 mm in diameter and spaced 86 mm apart. Use two bolts and nuts with a maximum of 8 mm in diameter to fasten the sand filter to the pedestal. Ф8 mm 86 mm

    Page 8
    Bestway 58497 Hmax Sand Filter manual — page 8

    8 303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英

    C

    C

    C

    Max.

    Min .

    #20 0.45-0.85 mm 4

    Max

    Min

    1

    A

    A

    B

    B

    B

    A

    B

    A

    B

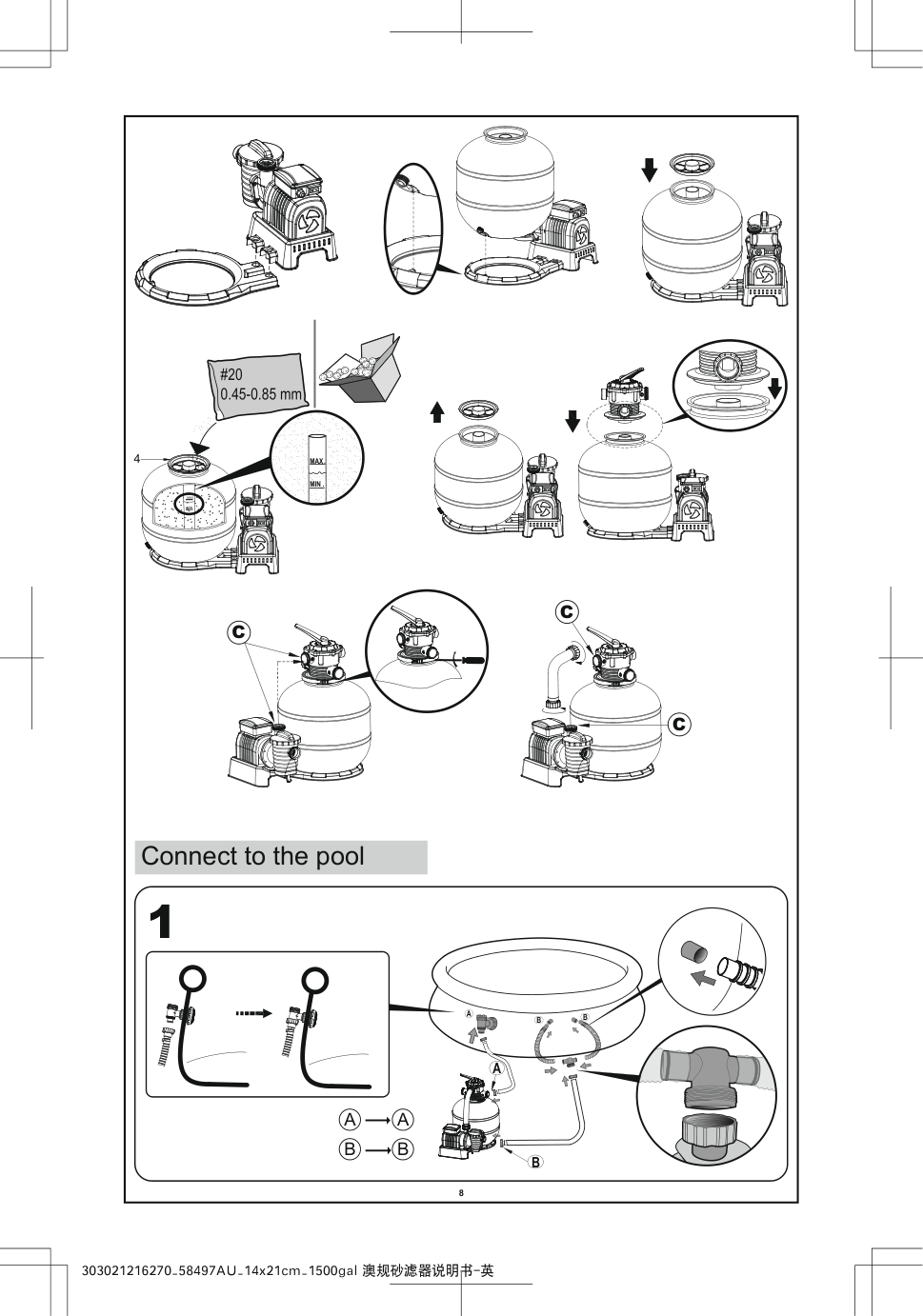

    Connect to the pool

    Page 9
    Bestway 58497 Hmax Sand Filter manual — page 9

    9 303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英 2 3 4

    D

    A

    B

    B

    2 3 1

    D

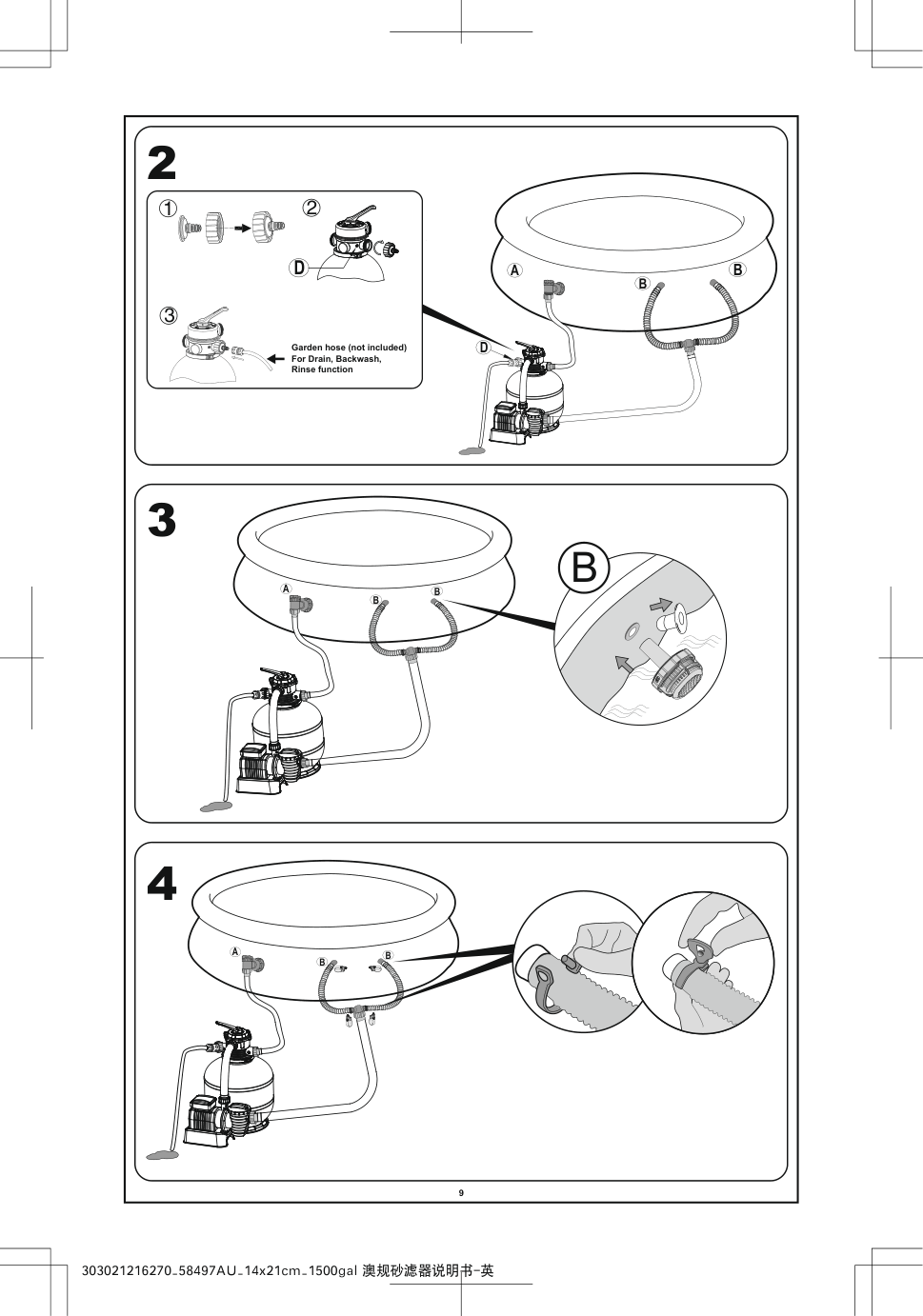

    Garden hose (not included) For Drain, Backwash, Rinse function

    A

    B

    B

    A

    B

    B

    B

    Page 10
    Bestway 58497 Hmax Sand Filter manual — page 10

    10 303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英

    Operation

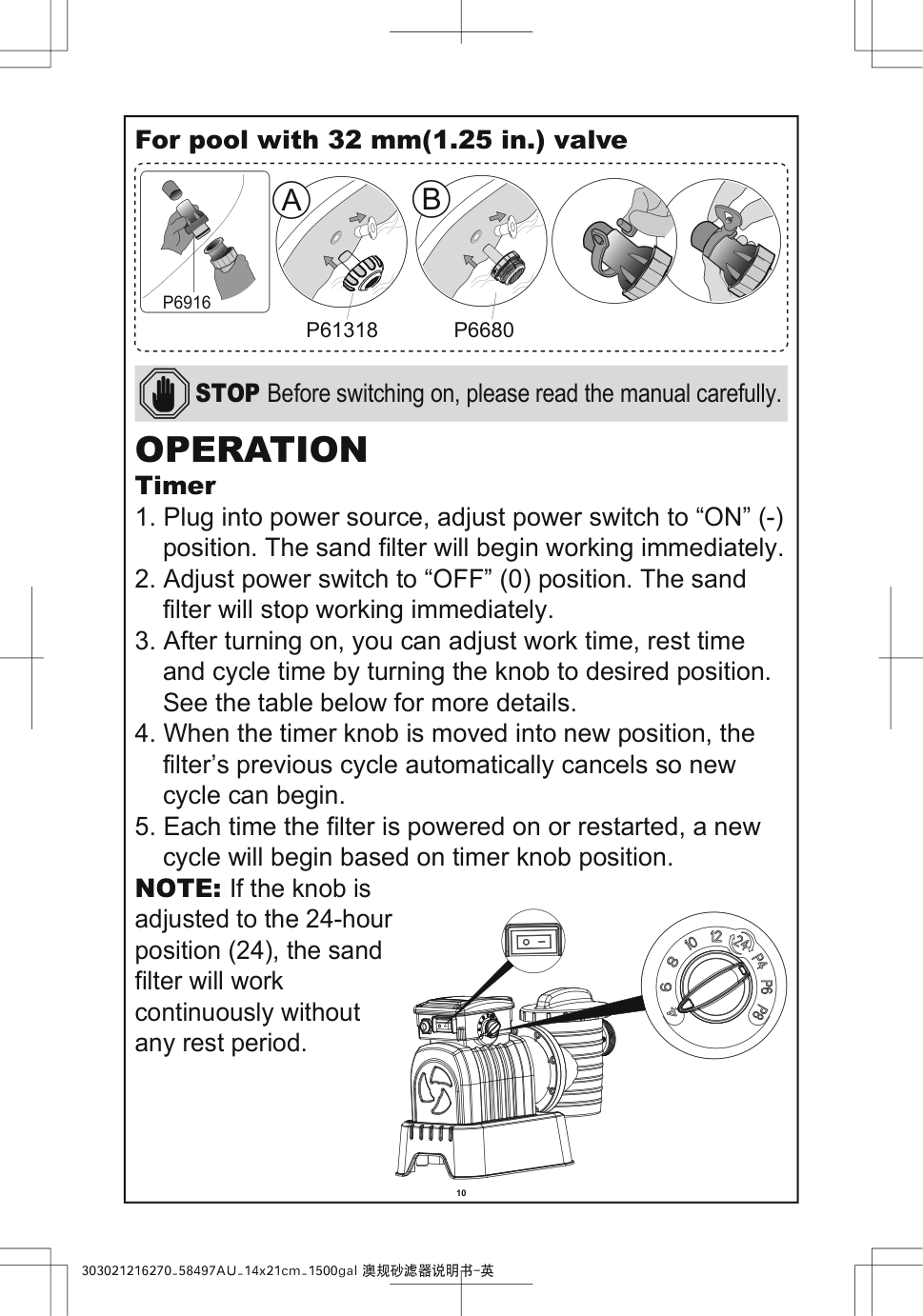

    Timer
  • Plug into power source, adjust power switch to “ON” (-)
    • position. The sand filter will begin working immediately.
  • Adjust power switch to “OFF” (0) position. The sand
    • filter will stop working immediately.
  • After turning on, you can adjust work time, rest time
    • and cycle time by turning the knob to desired position. See the table below for more details.
  • When the timer knob is moved into new position, the
    • filter’s previous cycle automatically cancels so new cycle can begin.
  • Each time the filter is powered on or restarted, a new
    • cycle will begin based on timer knob position. NOTE: If the knob is adjusted to the 24-hour position (24), the sand filter will work continuously without any rest period. For pool with 32 mm(1.25 in.) valve

    P61318

    A

    P6916

    P6680

    B

    STOP Before switching on, please read the manual carefully.

    Page 11
    Bestway 58497 Hmax Sand Filter manual — page 11

    11 303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英

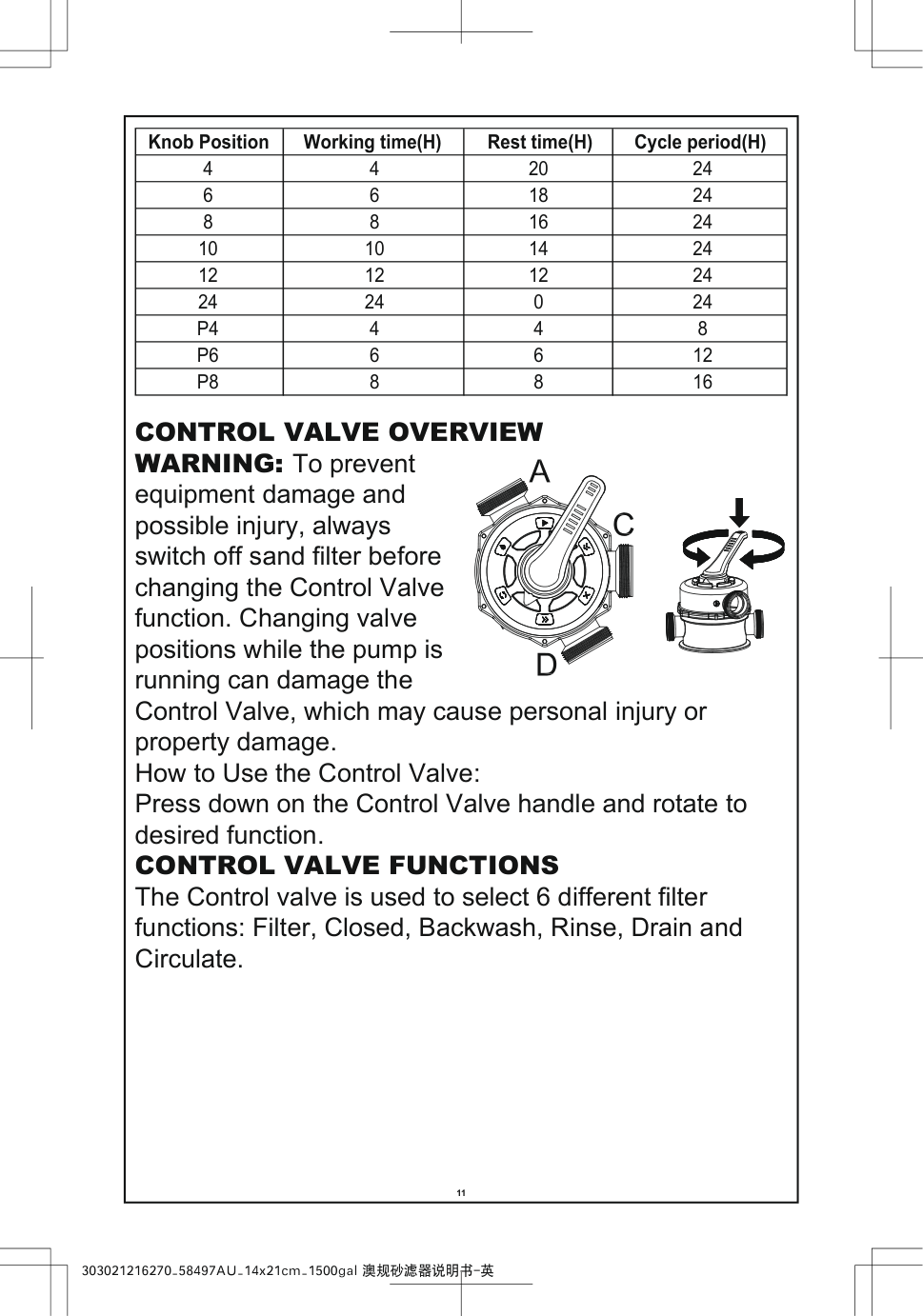

    Control Valve Overview

    WARNING: To prevent equipment damage and possible injury, always switch off sand filter before changing the Control Valve function. Changing valve positions while the pump is running can damage the Control Valve, which may cause personal injury or property damage. How to Use the Control Valve: Press down on the Control Valve handle and rotate to desired function.

    Control Valve Functions

    The Control valve is used to select 6 different filter functions: Filter, Closed, Backwash, Rinse, Drain and Circulate. Knob Position Working time(H) Rest time(H) Cycle period(H) 4 4 20 24 6 6 18 24 8 8 16 24 10 10 14 24 12 12 12 24 24 24 0 24

    P4

    4 4 8

    P6

    6 6 12

    P8

    8 8 16

    Page 12
    Bestway 58497 Hmax Sand Filter manual — page 12

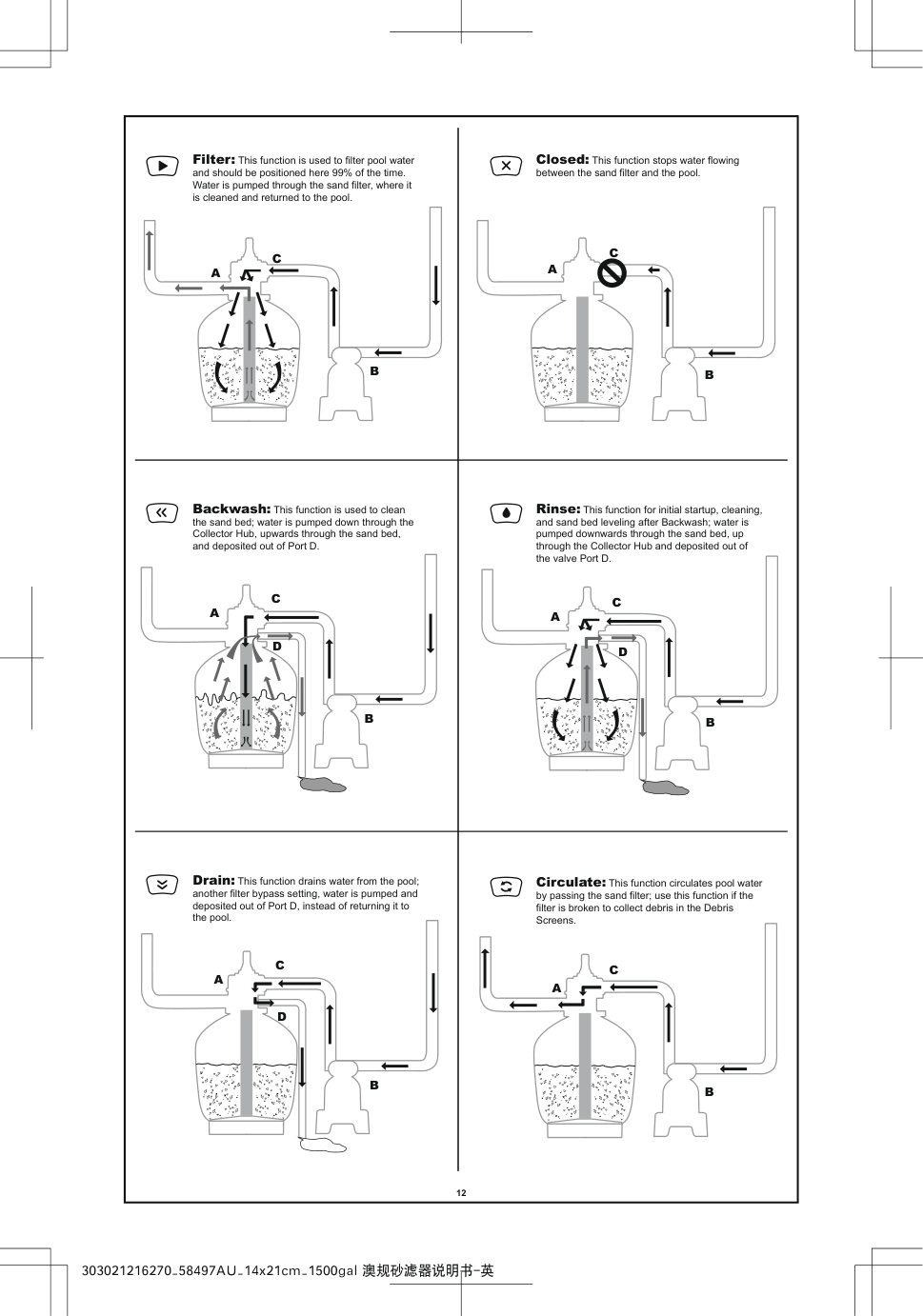

    12 303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英 Filter: This function is used to filter pool water and should be positioned here 99% of the time. Water is pumped through the sand filter, where it is cleaned and returned to the pool.

    B

    C

    A

    C

    B

    A

    Closed: This function stops water flowing between the sand filter and the pool.

    C

    B

    A

    D

    Backwash: This function is used to clean the sand bed; water is pumped down through the Collector Hub, upwards through the sand bed, and deposited out of Port D.

    C

    B

    D

    A

    Rinse: This function for initial startup, cleaning, and sand bed leveling after Backwash; water is pumped downwards through the sand bed, up through the Collector Hub and deposited out of the valve Port D.

    C

    B

    D

    A

    Drain: This function drains water from the pool; another filter bypass setting, water is pumped and deposited out of Port D, instead of returning it to the pool.

    C

    B

    A

    Circulate: This function circulates pool water by passing the sand filter; use this function if the filter is broken to collect debris in the Debris Screens.

    Page 13
    Bestway 58497 Hmax Sand Filter manual — page 13

    13 303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英

  • Now the sand filter is ready for use. Set the
    • Control Valve to the Filter function. NOTE: To prevent the risk of electrical shock dry any excess water from yourself and the sand filter.
  • Switch on the sand filter to run it.
    • NOTE: The sand filter has now started its filtering cycle. Check that water is returning to the pool and take note of the filter pressure on Pressure Gauge. Generally, the recommended sand filter pressure is less than 0.45 Bar (6.5 PSI) when it is running. Air Release Press down the control valve handle and wait untill the water flow from Port D to release the air. NOTE: It is important to repeat this operation every time you start the pump after winterizing, maintenance and backwashing the sand bed.

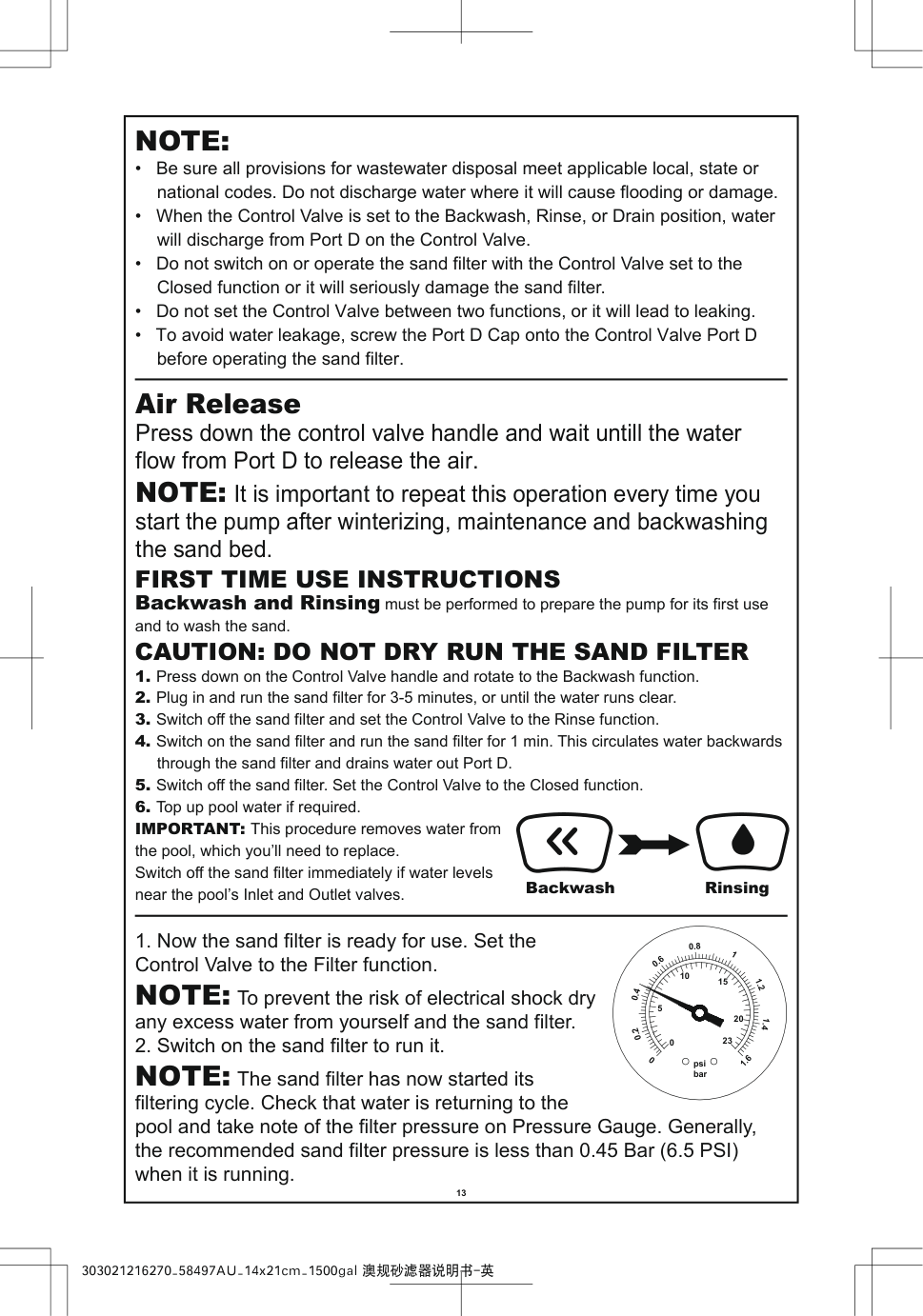

    First Time Use Instructions

    Backwash and Rinsing must be performed to prepare the pump for its first use and to wash the sand.

    Caution: Do Not Dry Run The Sand Filter

  • Press down on the Control Valve handle and rotate to the Backwash function.
  • Plug in and run the sand filter for 3-5 minutes, or until the water runs clear.
  • Switch off the sand filter and set the Control Valve to the Rinse function.
  • Switch on the sand filter and run the sand filter for 1 min. This circulates water backwards
    • through the sand filter and drains water out Port D.
  • Switch off the sand filter. Set the Control Valve to the Closed function.
  • Top up pool water if required.
    • IMPORTANT: This procedure removes water from the pool, which you’ll need to replace. Switch off the sand filter immediately if water levels near the pool’s Inlet and Outlet valves. Backwash Rinsing 1.6 0 5 10 15 20 1.4 1.2 1 0.8 0.6 0.4 0.2 0 psi bar 23

    Note:

  • Be sure all provisions for wastewater disposal meet applicable local, state or
    • national codes. Do not discharge water where it will cause flooding or damage.
  • When the Control Valve is set to the Backwash, Rinse, or Drain position, water
    • will discharge from Port D on the Control Valve.
  • Do not switch on or operate the sand filter with the Control Valve set to the
    • Closed function or it will seriously damage the sand filter.
  • Do not set the Control Valve between two functions, or it will lead to leaking.
  • To avoid water leakage, screw the Port D Cap onto the Control Valve Port D
    • before operating the sand filter.

    Page 14
    Bestway 58497 Hmax Sand Filter manual — page 14

    14 303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英 Sand Filter Maintenance CAUTION: You must ensure the sand filter is switched off and unplugged before any maintenance begins or severe risk of injury or death exists. As dirt builds up in the sand filter, the pressure reading on Pressure Gauge will increase. When the Pressure Gauge is 0.45 Bar (6.5 PSI) or higher, or water flow to the pool is too low, it is time to clean the sand. To clean the sand bed, follow all instructions outlined previously in: Backwash and Rinsing. NOTE: The Pressure Gauge is just used for measuring the water pressure, not used for precision measurement. NOTE: We recommend you clean the sand bed once a month or less regularly depending on how often the pool is used. Do not clean the sand too frequently. Cleaning the Strainer

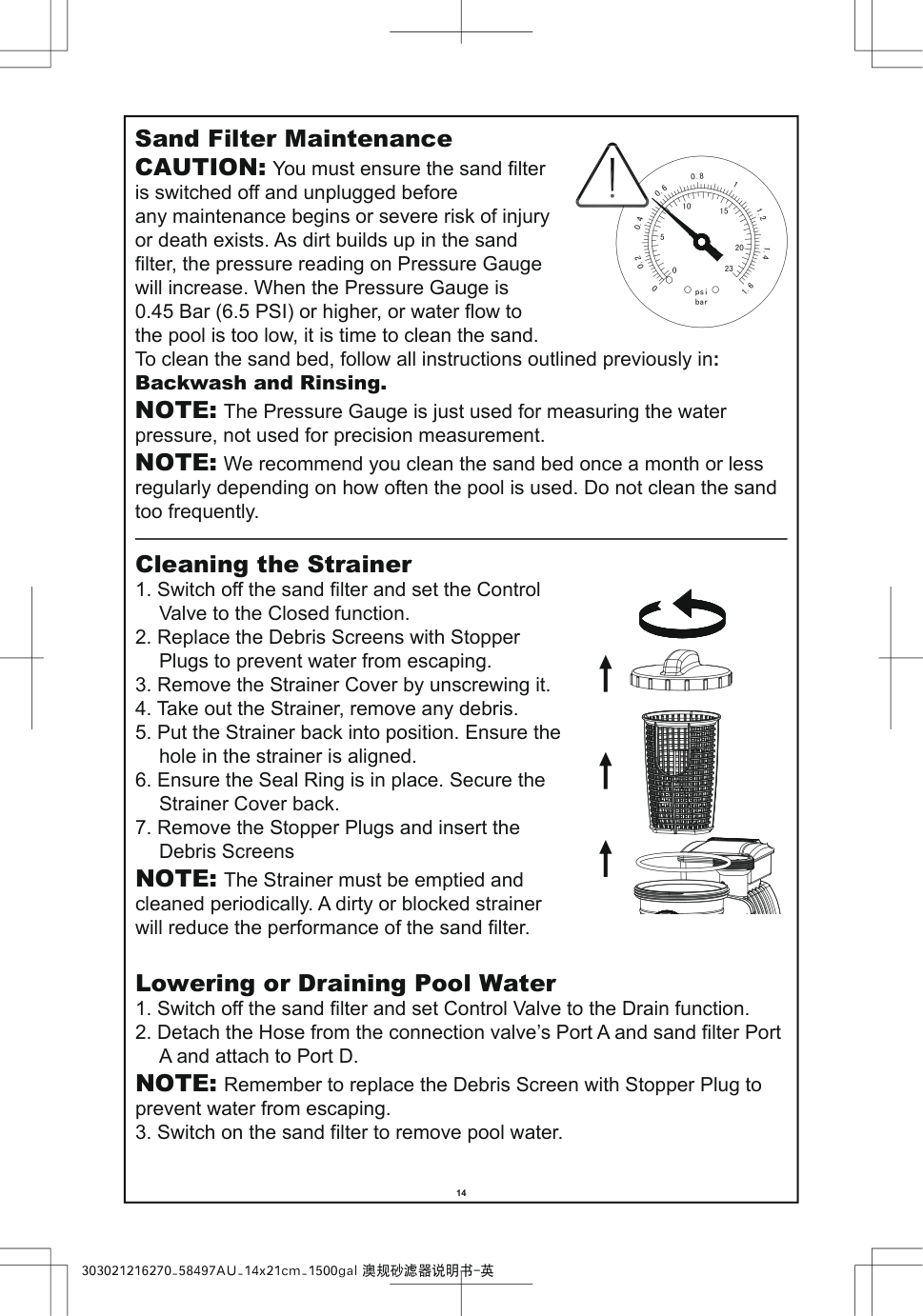

  • Switch off the sand filter and set the Control
    • Valve to the Closed function.
  • Replace the Debris Screens with Stopper
    • Plugs to prevent water from escaping.
  • Remove the Strainer Cover by unscrewing it.
  • Take out the Strainer, remove any debris.
  • Put the Strainer back into position. Ensure the
    • hole in the strainer is aligned.
  • Ensure the Seal Ring is in place. Secure the
    • Strainer Cover back.
  • Remove the Stopper Plugs and insert the
    • Debris Screens NOTE: The Strainer must be emptied and cleaned periodically. A dirty or blocked strainer will reduce the performance of the sand filter. Lowering or Draining Pool Water
  • Switch off the sand filter and set Control Valve to the Drain function.
  • Detach the Hose from the connection valve’s Port A and sand filter Port
    • A and attach to Port D. NOTE: Remember to replace the Debris Screen with Stopper Plug to prevent water from escaping.
  • Switch on the sand filter to remove pool water.

    • Page 15
    Bestway 58497 Hmax Sand Filter manual — page 15

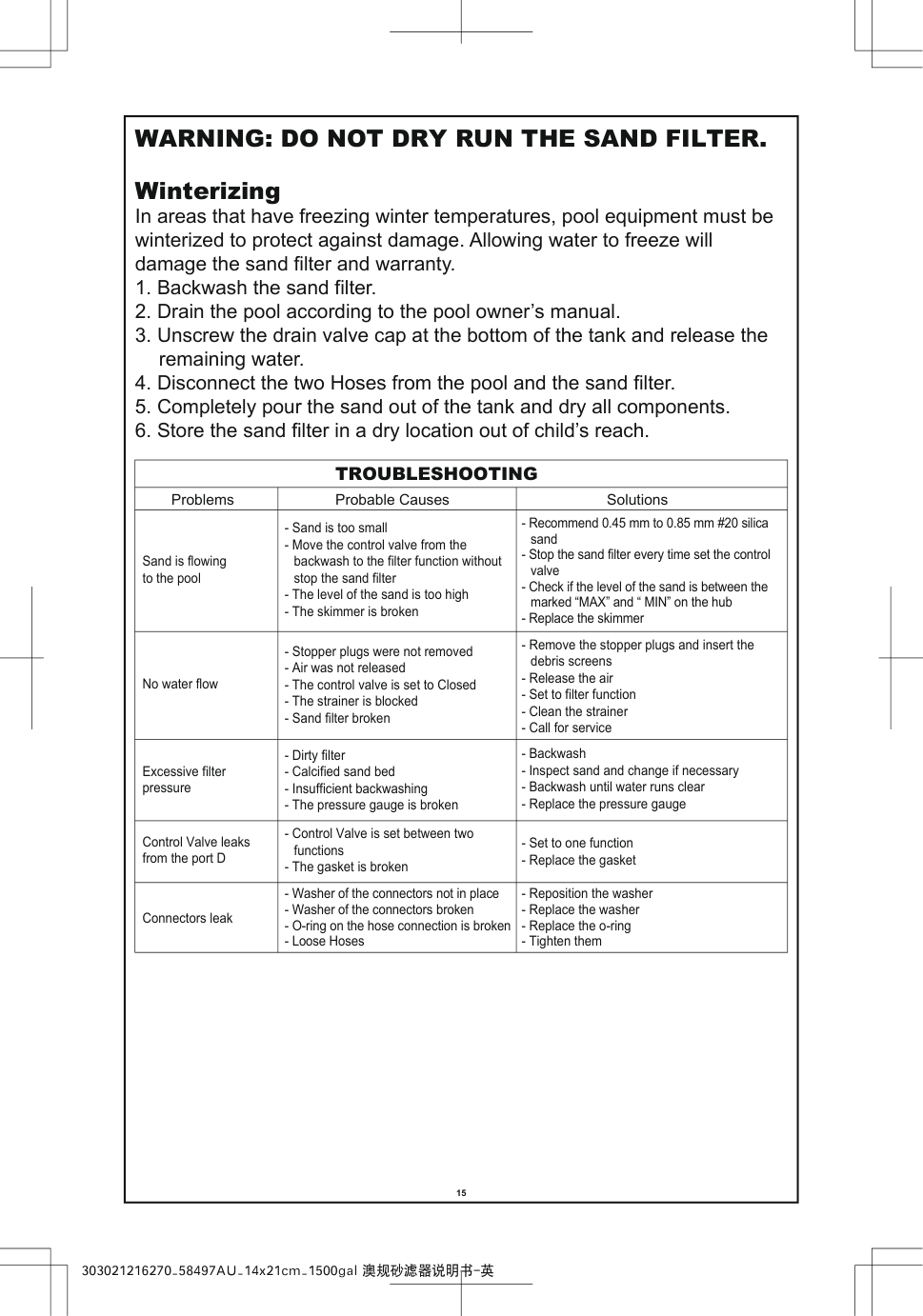

    15 303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英 Problems Probable Causes Solutions Sand is flowing to the pool No water flow Excessive filter pressure Control Valve leaks from the port D Connectors leak

    Troubleshooting

  • Sand is too small
  • Move the control valve from the
    • backwash to the filter function without stop the sand filter
  • The level of the sand is too high
  • The skimmer is broken
  • Stopper plugs were not removed
  • Air was not released
  • The control valve is set to Closed
  • The strainer is blocked
  • Sand filter broken
  • Dirty filter
  • Calcified sand bed
  • Insufficient backwashing
  • The pressure gauge is broken
  • Control Valve is set between two
    • functions
  • The gasket is broken
  • Washer of the connectors not in place
  • Washer of the connectors broken
  • O-ring on the hose connection is broken
  • Loose Hoses
  • Recommend 0.45 mm to 0.85 mm #20 silica
    • sand
  • Stop the sand filter every time set the control
    • valve
  • Check if the level of the sand is between the
    • marked “MAX” and “ MIN” on the hub
  • Replace the skimmer
  • Remove the stopper plugs and insert the
    • debris screens
  • Release the air
  • Set to filter function
  • Clean the strainer
  • Call for service
  • Backwash
  • Inspect sand and change if necessary
  • Backwash until water runs clear
  • Replace the pressure gauge
  • Set to one function
  • Replace the gasket
  • Reposition the washer
  • Replace the washer
  • Replace the o-ring
  • Tighten them

    • Warning: Do Not Dry Run The Sand Filter.

    Winterizing In areas that have freezing winter temperatures, pool equipment must be winterized to protect against damage. Allowing water to freeze will damage the sand filter and warranty.
  • Backwash the sand filter.
  • Drain the pool according to the pool owner’s manual.
  • Unscrew the drain valve cap at the bottom of the tank and release the
    • remaining water.
  • Disconnect the two Hoses from the pool and the sand filter.
  • Completely pour the sand out of the tank and dry all components.
  • Store the sand filter in a dry location out of child’s reach.

    • Page 16
    Bestway 58497 Hmax Sand Filter manual — page 16

    303021216270_58497AU_14x21cm_1500gal 澳规砂滤器说明书-英 For support please visit us at: bestwaycorp.com/support ©2019 Bestway Inflatables & Material Corp. All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati ®™ Trademarks used in some countries under license to/ Marques ®™ utilisées dans certains pays sous la licence de/ Marcas comerciales ®™ utilizadas en algunos países bajo la licencia de/ ®™ Die Warenzeichen werden in einigen Ländern verwendet unter Lizenz der/ ®™ Marchi utilizzati in alcuni paesi concessi in licenza a Bestway Inflatables & Material Corp., No.3065 Cao An Road, Shanghai, 201812, China. Manufactured,distributed and represented in the European Union by/ Fabriqués, distribués et représentés dans l’Union Européenne par/Fabricado, distribuido y representado en la Unión Europea por/ Hergestellt, vertrieben und in der Europäischen Union vertreten von/Prodotto, distribuito e rappresentato nell'Unione Europea da Bestway (Europe) S.r.l., Via Resistenza, 5, 20098 San Giuliano Milanese (Milano), Italy Distributed in North America by/Distribués en Amérique du Nord par/Distribuido en Norteamérica por Bestway (USA) Inc., 3411 E. Harbour Drive, Phoenix, Arizona 85034, United States of America Tel: +86 21 69135588 (For U.S. and Canada) Distributed in Latin America by/Distribué en Amérique latine par/Distribuido en Latinoamérica por/Distribuído na América Latina por Bestway Central & South America Ltda, Salar Ascotan 1282, Parque Enea, Pudahuel, Santiago, Chile Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, 98-104 Carnarvon Street, Silverwater, NSW 2128, Australia Tel: Australia: (+61) 29 0371 388; New Zealand: 0800 142 101 Exported by/Exporté par/Exportado por/Exportiert von/Esportato da Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong www.bestwaycorp.com Made in China/Fabriqué en Chine/Fabricado en China/Hergestellt in China/Prodotto in Cina

    More from Bestway

    Unknown

    58486 Flowclear Sand Filter Pump

    10 Q&As

     Unknown

    58515 Sand Filter Pump 3 028 L H Multi Colour

    20 Q&As

     Unknown

    Flowclear 58515 Sand Filtration Pump Flow

    30 Q&As

     Unknown

    Inflate Flocked Airbed

    13 Q&As

    Similar Unknown

    Graco

    04583 06f TS

    0 Q&As

     Della

    048 MS 12 Series Mini Split AC

    0 Q&As

     Della

    048 MS T1159k

    0 Q&As

     Chamberlain

    050dctwf

    10 Q&As
