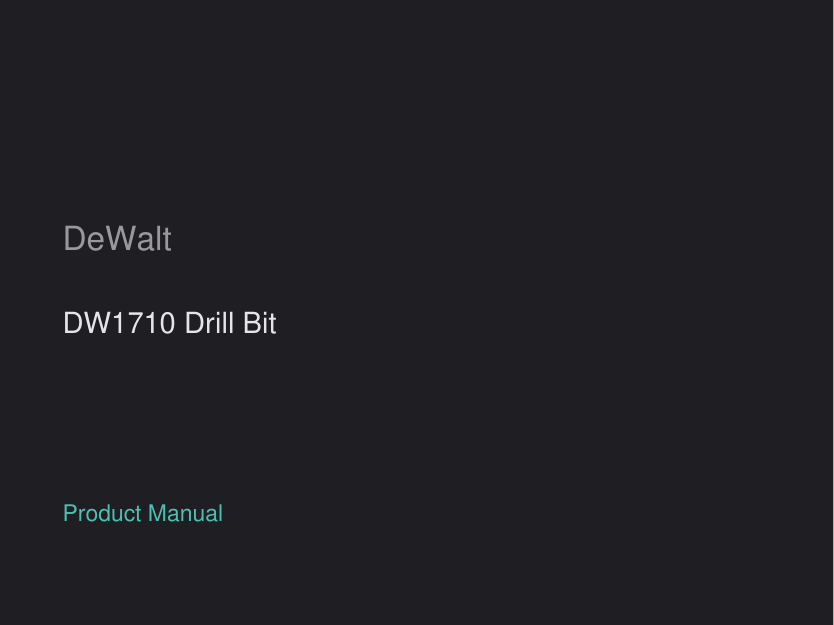

DeWalt DW1710 Drill Bit

How do I safely install the DeWalt DW1710 drill bit into my drill?

First, ensure your drill is unplugged or the battery pack is removed to prevent accidental startup. Open the drill chuck jaws by rotating the chuck collar counter-clockwise, then insert the bit shank as deeply as possible without touching the back of the chuck. Tighten the chuck jaws firmly by rotating the collar clockwise, using the chuck key to tighten all three holes on keyed chucks for maximum grip. Verify the bit is centered and securely held by gently pulling on it.

What is the brad point tip designed to do?

The brad point tip is designed to prevent the bit from wandering or 'walking' during initial contact with the material, ensuring accurate hole placement. This feature helps align the bit precisely at your marked drilling location.

What speed settings should I use when drilling with this bit?

Generally, slower speeds are recommended for larger diameter bits and harder woods, while faster speeds can be used for smaller bits and softer woods. You should start at low speed with gentle pressure and increase the speed as the bit begins to cut, maintaining consistent pressure throughout.

How do I prevent splintering when drilling?

The precise cutting edges of the DEWALT DW1710 are engineered to minimize splintering. Additionally, reduce pressure as the bit exits the material to prevent splintering on the backside of your workpiece.

What should I do when drilling deep holes?

When drilling deep holes, periodically withdraw the bit slightly to clear debris and prevent overheating. This allows the bit's flutes to clear chips effectively and maintains optimal drilling performance.

How should I prepare my workpiece before drilling?

Mark the desired drilling location on your workpiece where the brad point tip will assist in aligning the bit precisely. Secure the workpiece firmly using clamps or a vise to prevent movement during drilling.
