Name: Msi Pro B550M-VC WiFi Motherboard
Brand: Msi

Question 1

What processors are compatible with the MSI Pro B550M-VC WiFi motherboard?

Accepted Answer

The Pro B550M-VC WiFi supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors. It uses the AMD Socket AM4 and is paired with the AMD B550 Chipset. (Page 1)

Question 2

What type of memory does the Pro B550M-VC WiFi support?

Accepted Answer

The motherboard supports DDR4 memory with up to 4 DIMMs in Dual Channel configuration, running up to DDR4-4400 MHz via overclocking. This is enabled by the DDR4 Boost technology for improved stability and performance. (Page 1)

Question 3

What display outputs are available on the Pro B550M-VC WiFi?

Accepted Answer

The board offers VGA, HDMI 2.1 (supporting up to 4K@60Hz), and DisplayPort outputs. Note that all display interfaces require a processor with integrated graphics to function. (Page 1)

Question 4

How many USB ports does the Pro B550M-VC WiFi provide?

Accepted Answer

The motherboard includes 2x USB 3.2 Gen 2 10Gbps Type-A ports, 5x USB 3.2 Gen 1 5Gbps ports (4 Type-A and 1 Type-C), and 6x USB 2.0 ports. This provides a total of 13 USB ports across different speed standards. (Page 1)

Question 5

Does the Pro B550M-VC WiFi support Wi-Fi and Bluetooth?

Accepted Answer

Yes, the motherboard includes an AMD Wi-Fi 6E Module along with Bluetooth 5.2 support. A dedicated Wi-Fi/Bluetooth antenna connector is available on the rear I/O panel. (Page 1)

Question 6

What storage options are available on the Pro B550M-VC WiFi?

Accepted Answer

The board provides one M.2 Gen4 x4 slot, one M.2 Gen3 x4 slot, and 8x SATA 6Gb/s ports for storage connectivity. The M.2 slots are covered by M.2 Shield FROZR thermal solutions to prevent throttling and keep SSDs running efficiently. (Page 1)

Question 7

How do I troubleshoot boot or hardware issues on the Pro B550M-VC WiFi?

Accepted Answer

The motherboard features EZ Debug LEDs, which MSI describes as the easiest way to troubleshoot hardware issues. These LEDs help identify problems with components such as the CPU, memory, graphics card, or storage during the boot process. (Page 1)

Question 8

What PCIe expansion slots does the Pro B550M-VC WiFi offer?

Accepted Answer

The board includes one PCIe 4.0 x16 slot and three PCIe 3.0 x16 slots for expansion cards. The PCIe slots feature PCI-E Steel Armor to protect VGA cards against bending and electromagnetic interference (EMI). (Page 1)

Question 9

What audio capabilities does the Pro B550M-VC WiFi have?

Accepted Answer

The motherboard features 8-Channel (7.1) HD Audio enhanced by MSI's Audio Boost technology. An audio connector is available on the rear I/O panel for connecting speakers or headphones. (Page 1)

Question 10

What is the Flash BIOS Button on the Pro B550M-VC WiFi and where is it located?

Accepted Answer

The Flash BIOS Button is a dedicated button located on the rear I/O panel of the motherboard, listed as connection point number 7. It allows users to update the BIOS firmware without needing a CPU or memory installed. (Page 1)

Question 11

What CPU processors are compatible with the Pro B550M-VC WiFi motherboard?

Accepted Answer

The motherboard supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors. It uses the AMD Socket AM4 connection for CPU installation.

Question 12

What is the maximum memory capacity and speed supported?

Accepted Answer

The motherboard supports 4 DIMMs with Dual Channel DDR4 memory at speeds up to 4400 MHz (overclocked). This configuration provides optimal gaming performance and stability through the DDR4 Boost technology.

Question 13

How many storage devices can I connect to this motherboard?

Accepted Answer

You can connect multiple storage devices: 1x M.2 Gen4 x4 slot, 1x M.2 Gen3 x4 slot, and 8x SATA 6Gb/s ports for traditional hard drives or SSDs. The Gen4 M.2 slot supports up to 64GB/s bandwidth for maximum transfer speed.

Question 14

What wireless connectivity options are available?

Accepted Answer

The motherboard includes an AMD Wi-Fi 6E module with Bluetooth 5.2 support for modern wireless connectivity. This allows for high-speed wireless networking and compatible Bluetooth device pairing.

Question 15

How many USB ports does the Pro B550M-VC WiFi have and what types?

Accepted Answer

The motherboard features 2x USB 3.2 Gen 2 10Gbps Type-A ports, 5x USB 3.2 Gen 1 5Gbps ports (4 Type-A + 1 Type-C), and 6x USB 2.0 ports. This provides a comprehensive range of connectivity options for peripherals.

Question 16

What video output options are supported?

Accepted Answer

The motherboard supports VGA, HDMI 2.1, and DisplayPort outputs capable of 4K@60Hz resolution. All video outputs require a processor with integrated graphics.

Question 17

What is the M.2 Shield FROZR and what does it do?

Accepted Answer

The M.2 Shield FROZR is a strengthened built-in thermal solution for M.2 SSDs that keeps them safe from physical damage while preventing thermal throttling. This allows M.2 drives to run faster and more reliably.

Question 18

What is the EZ Debug LED feature?

Accepted Answer

The EZ Debug LED is a troubleshooting feature that provides visual indicators to help diagnose motherboard issues. It is described as the easiest way to troubleshoot problems.

Question 19

What network connectivity does the motherboard provide?

Accepted Answer

The motherboard includes a Realtek RTL8111GN/RTL8111HN Gigabit LAN port for wired network connections. Additionally, the AMD Wi-Fi 6E module provides wireless networking capabilities.

Question 20

Does this motherboard have audio capabilities?

Accepted Answer

Yes, the motherboard features 8-Channel (7.1) HD Audio with Audio Boost technology. This provides studio-grade sound quality for an immersive audio experience.

Msi Pro B550M-VC WiFi Motherboard

Ask AI

Common Questions

Full Manual

More from Msi

Similar Motherboards

Msi Pro B550M-VC WiFi Motherboard

Ask AI

Common Questions

Full Manual

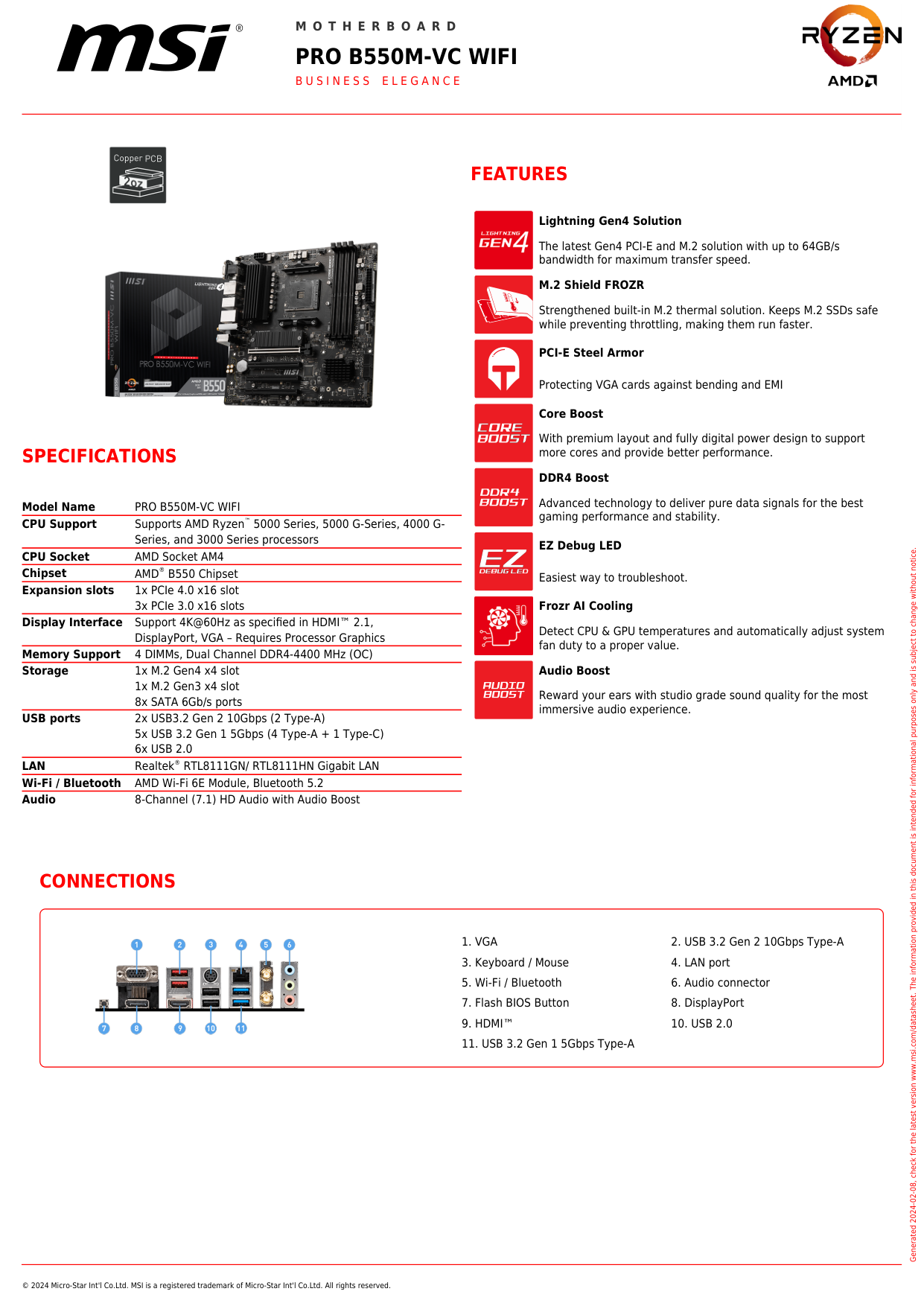

M O T H E R B O A R D

Pro B550M-Vc Wifi

B U S I N E S S E L E G A N C E

Specifications

Pro B550M-Vc Wifi

Amd

Lan

Features

Connections

1. Vga

9. Hdmi™

10. Usb 2.0
