Samsung ME16H702SES Over-the-Range Microwave
Ask AI
— answers from the official manualAI-powered answers from the official manual. Verify critical info.
Common questions
Common Questions
28 totalWhat are the power specifications for the Me16H702Ses?
The microwave has a power output of 1000W and power consumption of 1580W at 13.5 A on a 120V/60 Hz electrical source. It features 10 power levels including defrost functionality. (Page 2)
What is the oven capacity and turntable size?
The Me16H702Ses has a 1.6 cubic foot oven cavity with dimensions of 19 5/16" x 9 5/8" x 14 3/8". The glass turntable has a diameter of 11 1/2 inches. (Page 2)
How many people are recommended for installation?
Two people are recommended for easier installation and personal safety of the Me16H702Ses. It is important not to grip or use the handle during installation. (Page 2)
What ventilation options are available for this microwave?
The microwave oven is designed for three types of ventilation: Outside Top Exhaust (Vertical Duct), Recirculating (Non-Vented Ductless), or Outside Back Exhaust (Horizontal Duct). The ventilation system provides 300 CFM to eliminate food odors. (Page 2)
What cabinet dimensions are required for installation?
The space between the cabinets must be 30" wide and free of obstructions. The microwave is designed for installation over ranges up to 36" wide. (Page 2)
How should I handle the power cord during installation?
Thread the power cord through the hole in the bottom of the top cabinet and do not pinch the cord or lift the oven by pulling the cord. If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord. (Page 2)
Show 22 more questions
What is the maximum cooking time on the digital timer?
What warranty coverage is included with this microwave?
What are the weight specifications for different color options?
What should I do if my cabinet front hangs below the cabinet bottom shelf?
What is the cooking power of this Samsung microwave?
What is the maximum width of a range this microwave can be installed over?
How many people should install this microwave?
What type of turntable does this microwave use?
What are the cavity dimensions of this microwave?
What is the warranty on this microwave?
What are the three ventilation options available?
What is the ventilation capacity of this microwave?
What should I do if my cabinet front hangs below the cabinet bottom shelf?
How many power levels does this microwave have?
What are the installation dimensions and cabinet requirements?
What is the ventilation capacity of this over-the-range microwave?
What should I do if my cabinet is metal?
What is the cooking power of the Samsung ME16H702SES microwave?
What types of ventilation does this microwave support?
What is the warranty coverage for this microwave?
How many people should install this microwave and why?
What color options are available for this microwave?
Full Manual
2 pages

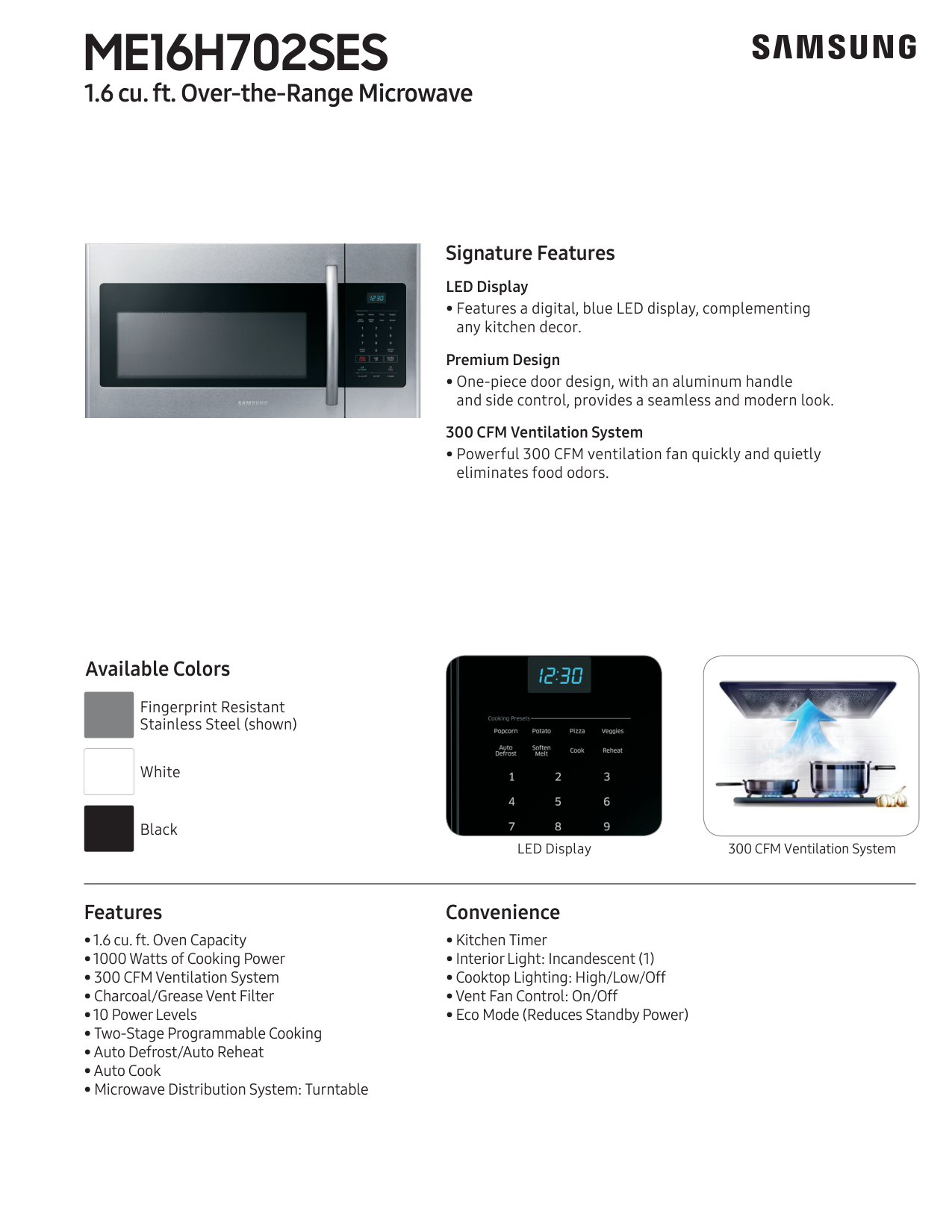

Me16H702Ses
1.6 cu. ft. Over-the-Range Microwave Features
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate. ©2019 Samsung Electronics America, Inc., 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.

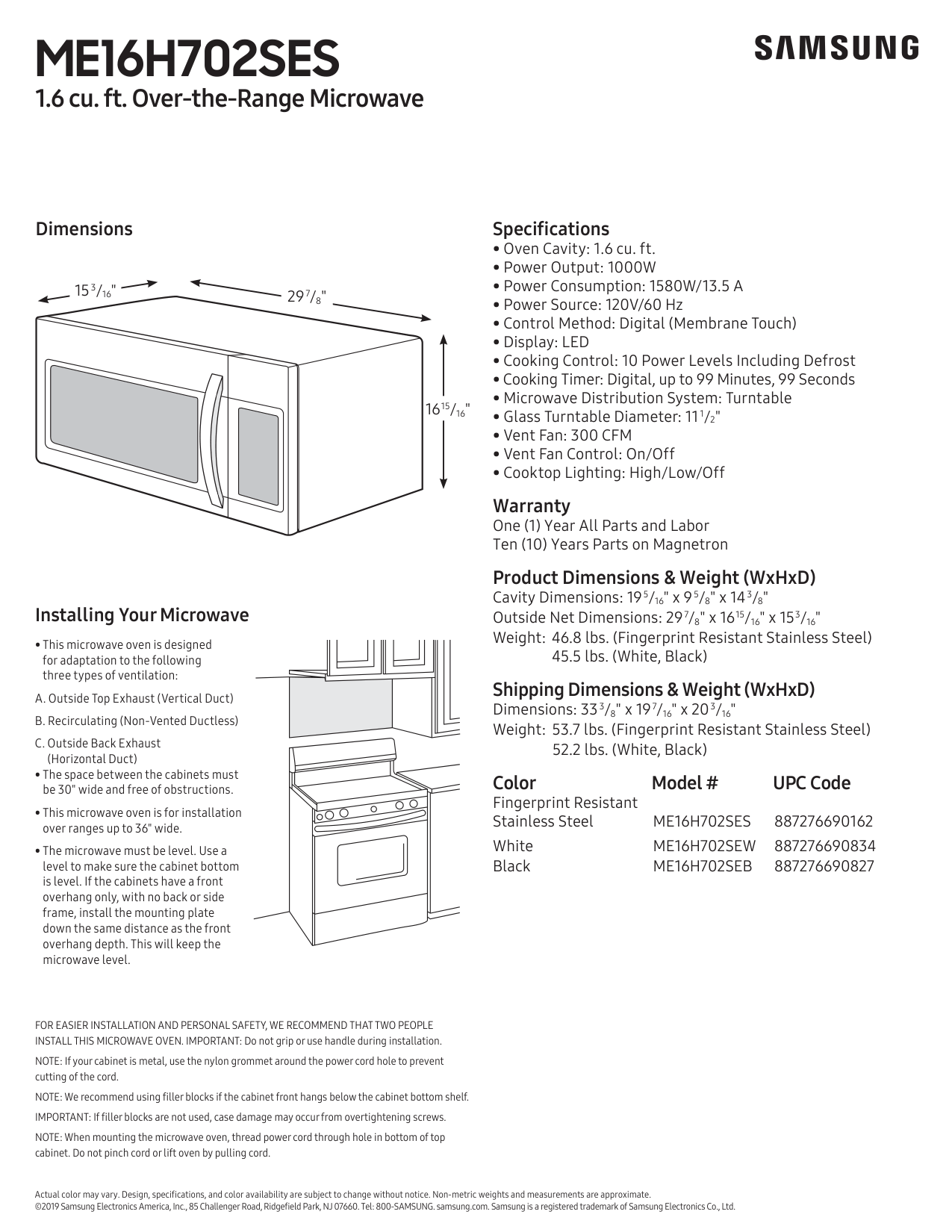

Me16H702Ses
1.6 cu. ft. Over-the-Range Microwave Specifications45.5 lbs. (White, Black) Shipping Dimensions & Weight (WxHxD) Dimensions: 33 3/8" x 19 7/16" x 20 3/16" Weight: 53.7 lbs. (Fingerprint Resistant Stainless Steel)
52.2 lbs. (White, Black) Color Model # UPC Code Fingerprint Resistant Stainless Steel
