LG Dual Inverter Air Conditioner manual
Air Conditioners · 10 Q&As

LG Dual Inverter Air Conditioner

Ask AI

— answers from the official manual

AI-powered answers from the official manual. Verify critical info.

Common questions

Common Questions

10 total
1

What is the cooling capacity and estimated cooling area for the LG Dual Inverter Air Conditioner?

The LG Dual Inverter Air Conditioner has a cooling capacity of 14,000 BTU (ASHRAE 128 STD) or 10,000 BTU (U.S. DOE STD), with an estimated cooling area of 500 square feet for a room size of approximately 20' x 25'. The unit has a dehumidification rate of 6.8 pints per hour and produces a dry air flow of 233 CFM.

2

How quiet is the LG Dual Inverter Air Conditioner during operation?

The LG Dual Inverter Air Conditioner features LoDecibel™ Quiet Operation with noise levels as low as 44 dBA on the sleep setting. On high, mid, and low fan speeds, the unit operates at 53 dBA, 50 dBA, and 47 dBA respectively.

3

What are the key features of the LG Dual Inverter Air Conditioner?

Key features include 24-hour programmable on/off timer, multiple fan speeds with auto cool mode, auto evaporation system, LCD remote control, auto swing air vent, Wi-Fi control via SmartThinQ app, auto restart function, and a washable air filter. The unit also includes an auto door open/close system and a water full indicator.

4

Can I control the LG Dual Inverter Air Conditioner remotely?

Yes, you can control the unit remotely in two ways: using the included LCD remote controller for direct control, or through the LG SmartThinQ app (available for iOS and Android) which allows you to adjust temperature, scheduling, mode, and fan speed from anywhere.

5

What is the power consumption and electrical requirements for this air conditioner?

The LG Dual Inverter Air Conditioner operates at 115 volts/60Hz with a power consumption of 1,370 watts and requires a rated amperage of 12.0 amps. Ensure your electrical outlet can support these specifications before installation.

6

What type of refrigerant does the LG Dual Inverter Air Conditioner use?

The LG Dual Inverter Air Conditioner uses R32 refrigerant, which is an environmentally friendly option designed for efficient cooling performance.

Show 4 more questions

Full Manual

1 pages

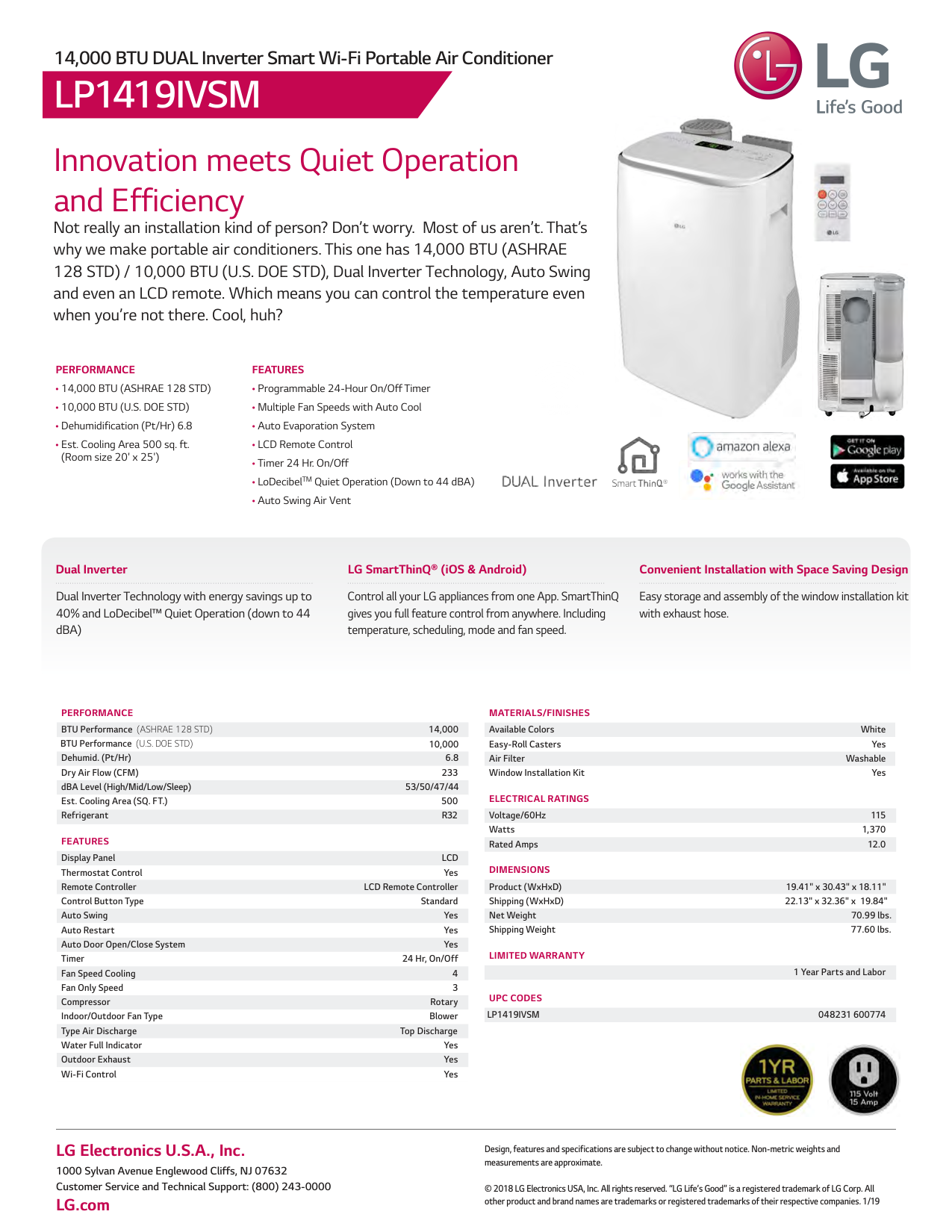

Page 1

Innovation meets Quiet Operation and Efficiency Not really an installation kind of person? Don’t worry. Most of us aren’t. That’s why we make portable air conditioners. This one has 14,000 BTU (ASHRAE 128 STD) / 10,000 BTU (U.S. DOE STD), Dual Inverter Technology, Auto Swing and even an LCD remote. Which means you can control the temperature even when you’re not there. Cool, huh?

Performance



• 14,000 Btu (Ashrae 128 Std)

• 10,000 Btu (U.S. Doe Std)

  • Dehumidification (Pt/Hr) 6.8
  • Est. Cooling Area 500 sq. ft.
  • (Room size 20' x 25')

    Features

  • Programmable 24-Hour On/Off Timer
  • Multiple Fan Speeds with Auto Cool
  • Auto Evaporation System
  • LCD Remote Control
  • Timer 24 Hr. On/Off
  • LoDecibelTM Quiet Operation (Down to 44 dBA)
  • Auto Swing Air Vent
  • Design, features and specifications are subject to change without notice. Non-metric weights and measurements are approximate. © 2018 LG Electronics USA, Inc. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp. All other product and brand names are trademarks or registered trademarks of their respective companies. 1/19 LG Electronics U.S.A., Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Customer Service and Technical Support: (800) 243-0000 LG.com 14,000 BTU DUAL Inverter Smart Wi-Fi Portable Air Conditioner

    Lp1419Ivsm

    Control all your LG appliances from one App. SmartThinQ gives you full feature control from anywhere. Including temperature, scheduling, mode and fan speed. Easy storage and assembly of the window installation kit with exhaust hose. Dual Inverter Dual Inverter Technology with energy savings up to 40% and LoDecibel™ Quiet Operation (down to 44 dBA) LG SmartThinQ® (iOS & Android) Convenient Installation with Space Saving Design

    Performance

    Dehumid. (Pt/Hr) 6.8 Dry Air Flow (CFM) 233 dBA Level (High/Mid/Low/Sleep) 53/50/47/44 Est. Cooling Area (SQ. FT.) 500 Refrigerant

    R32

    Features

    Display Panel

    Lcd

    Thermostat Control Yes Remote Controller LCD Remote Controller Control Button Type Standard Auto Swing Yes Auto Restart Yes Auto Door Open/Close System Yes Timer 24 Hr, On/Off Fan Speed Cooling 4 Fan Only Speed 3 Compressor Rotary Indoor/Outdoor Fan Type Blower Type Air Discharge Top Discharge Water Full Indicator Yes Outdoor Exhaust Yes Wi-Fi Control Yes

    Materials/Finishes

    Available Colors White Easy-Roll Casters Yes Air Filter Washable Window Installation Kit Yes

    Electrical Ratings

    Voltage/60Hz 115 Watts 1,370 Rated Amps 12.0

    Dimensions

    Product (WxHxD) 19.41" x 30.43" x 18.11" Shipping (WxHxD) 22.13" x 32.36" x 19.84" Net Weight 70.99 lbs. Shipping Weight 77.60 lbs.

    Limited Warranty

    1 Year Parts and Labor

    Upc Codes

    Lp1419Ivsm

    048231 600774 14,000 BTU Performance (ASHRAE 128 STD) BTU Performance (U.S. DOE STD) 10,000
