What is the maximum number of inverters that can be connected using FL remote communication?

Up to 64 inverters can be connected when using FL remote communication. Each inverter must be assigned a unique node address between 1 and 64 using the node address switches. (Page 2)

How do I reset the inverter when a fault occurs?

The inverter can be reset using three methods: (1) Press the reset button on the operation panel, (2) Change the error reset signal setting of the FL remote communication from 0 to 1, or (3) Switch OFF the power once, then switch it ON again after the indicator turns OFF. The inverter recovers about 1 second after reset is released. (Page 24)

What cable size should I use for the main circuit wiring?

Select the recommended cable size to ensure that a voltage drop will be 2% or less. The manual provides selection examples for wiring lengths of 20m or less, with different cable sizes recommended based on inverter model and whether HIV cables, AWG, or PVC cables are used. For longer distances, use larger diameter cables. (Pages 11)

Can I install a power factor correction capacitor on the inverter output side?

No, do not install a power factor correction capacitor, surge suppressor, or capacitor type filter on the inverter output side. These devices will cause the inverter to trip or the capacitor and surge suppressor to be damaged. If any of these devices are connected, immediately remove them. (Page 3)

What are the environmental specifications for operating the inverter?

The inverter must be used under the following environment: surrounding air temperature of -10°C to +50°C (non-freezing), ambient humidity of 90%RH or less (non-condensing), indoors free from corrosive gas, flammable gas, oil mist, dust and dirt, at altitudes not exceeding 1,000m above sea level, and with vibration of 5.9m/s² or less at 10 to 55Hz. (Page 4)

How should I connect the 24V external power supply to the inverter?

Connect the 24V external power supply across terminals +24 and SD. The input voltage must be 23.5 to 26.5VDC with input current of 0.7A or less. When the 24V external power supply is connected, FL-net communication can continue while the main power circuit is OFF, and the operation panel will display 'EV' flickering. (Page 15)

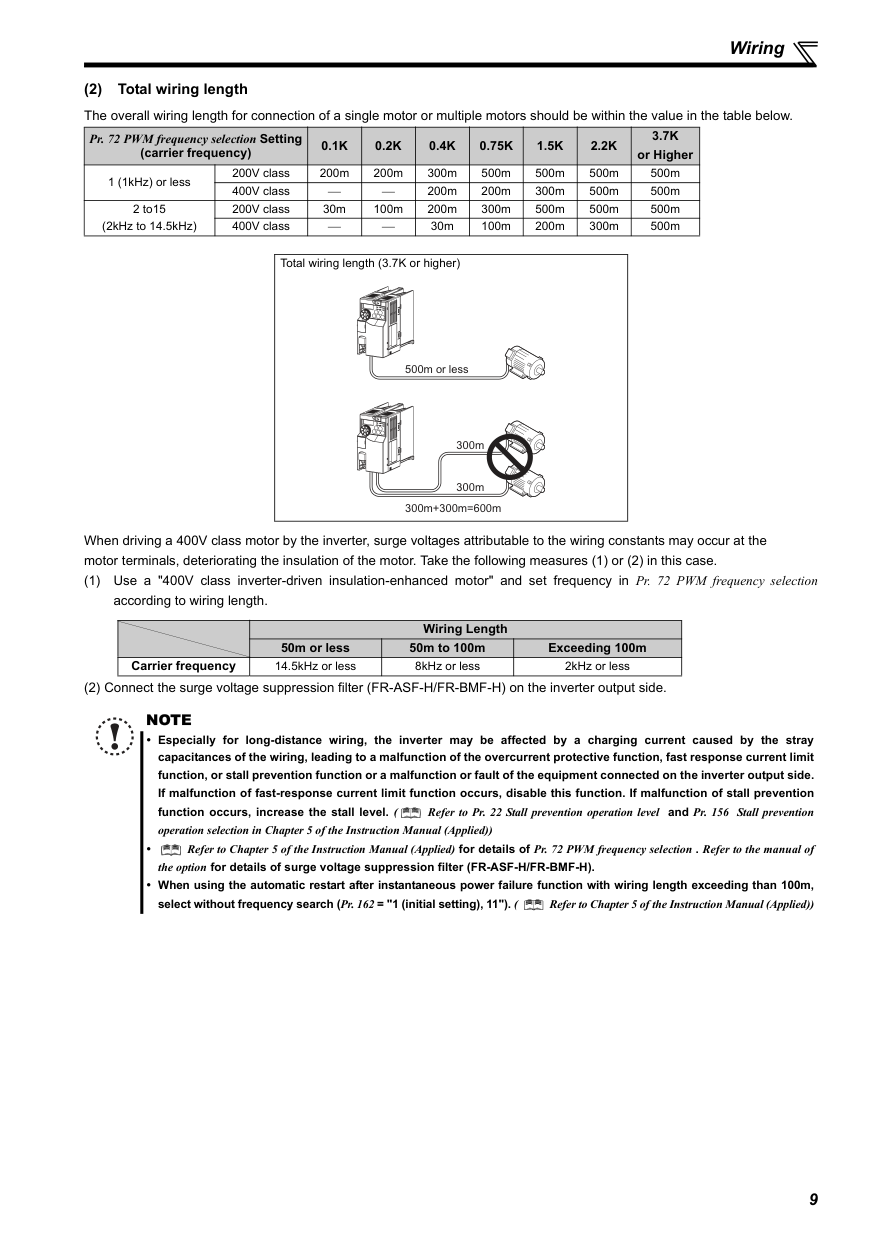

What is the maximum wiring length for the overall connection of motors to the inverter?

The overall wiring length should be 500m or less. For long-distance wiring exceeding 100m, the inverter may be affected by charging current caused by stray capacitances of the wiring, which can lead to malfunction of the overcurrent protective function or other equipment failures. When using automatic restart after instantaneous power failure with wiring exceeding 100m, select without frequency search. (Page 12)

What precaution must I take when connecting a brake resistor to the inverter?

When using a brake resistor whose capacity is 11K or higher, always install a thermal relay to prevent overheat and burnout of the brake resistor. The brake resistor cannot be connected to the 0.1K or 0.2K models. A sequence must be configured to turn OFF power when a fault signal is output. (Pages 5, 16)

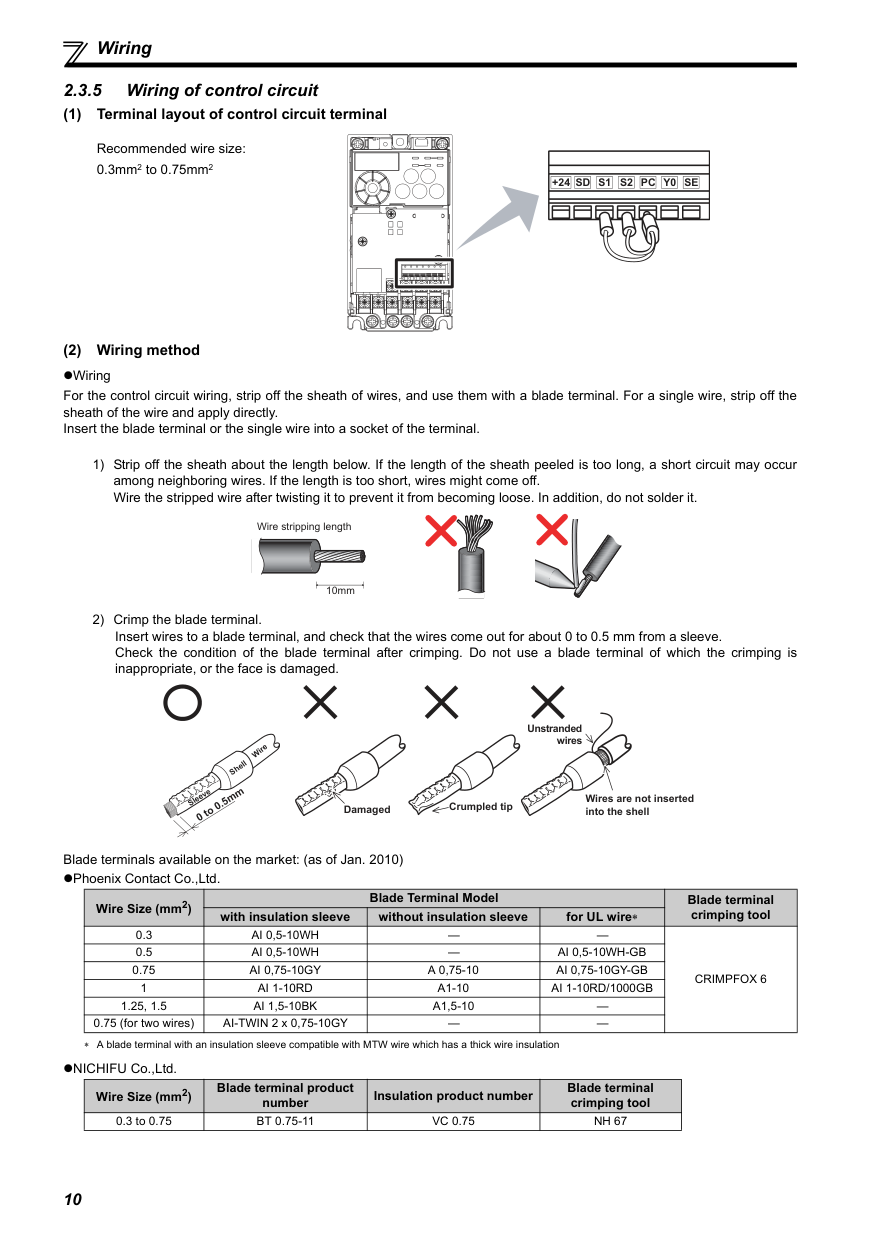

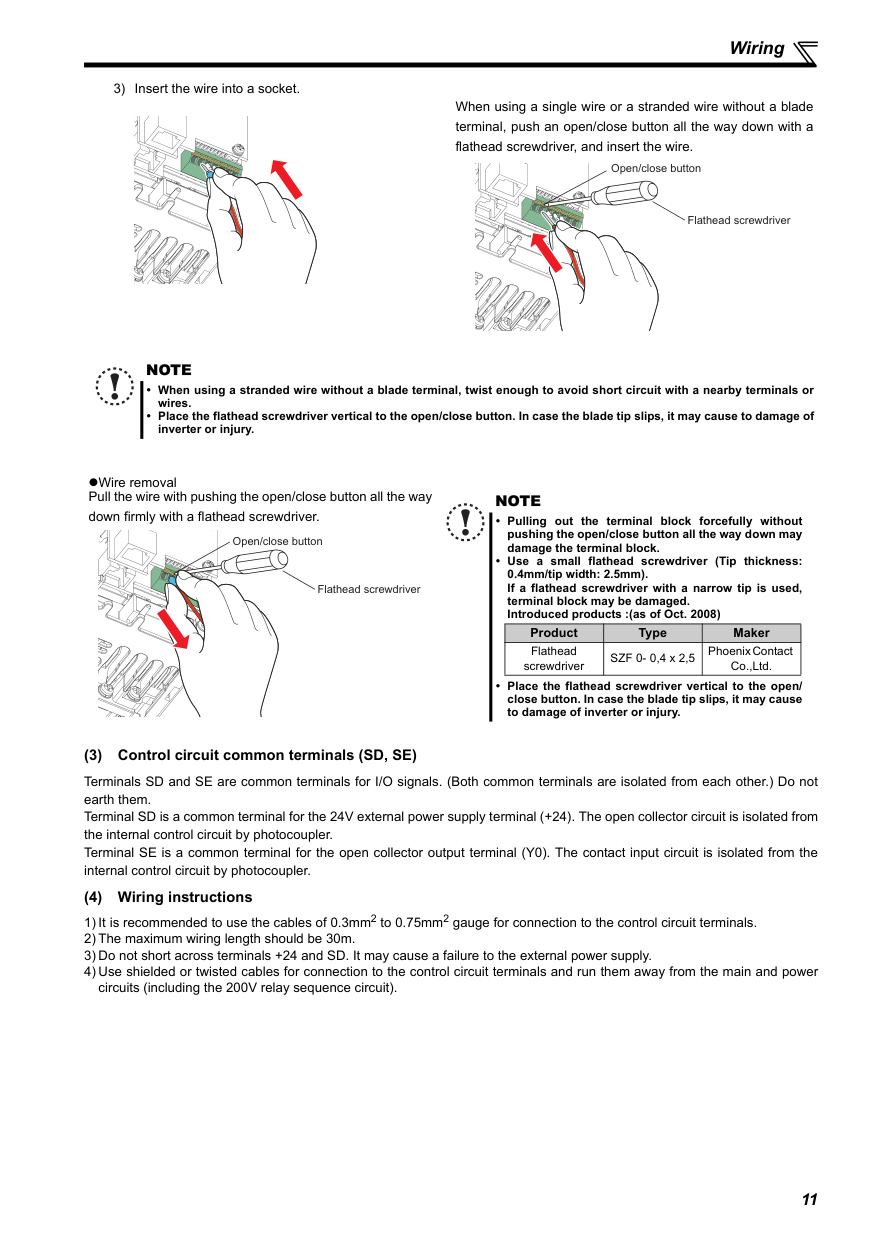

What is the correct method for wiring the control circuit terminals?

For control circuit wiring, strip off about 10mm of the wire sheath and use blade terminals or single wires inserted directly into sockets. Use recommended wire sizes of 0.3mm² to 0.75mm², with maximum wiring length of 30m. Use shielded or twisted cables and keep them away from main and power circuits. Do not solder wires, and do not short across terminals +24 and SD. (Pages 13-14)

Mitsubishi Inverter FL Remote Communication System

Name: Mitsubishi Inverter FL Remote Communication System
Brand: Mitsubishi

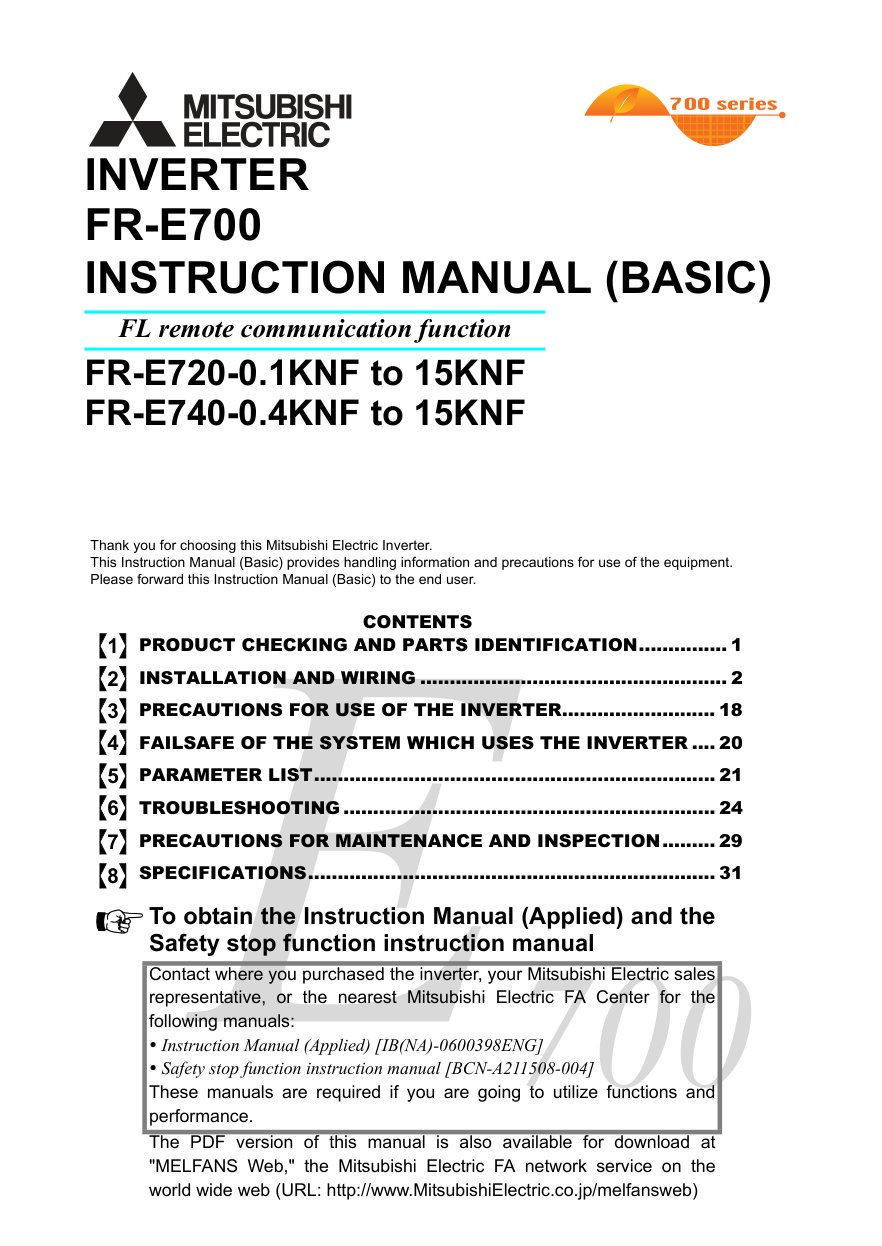

Page 1

Fr-E700

Instruction Manual (Basic)

FR-E720-0.1KNF to 15KNF FR-E740-0.4KNF to 15KNF

Inverter

FL remote communication function 700

Product Checking And Parts Identification............... 1

Installation And Wiring .................................................... 2

Precautions For Use Of The Inverter.......................... 18

Failsafe Of The System Which Uses The Inverter .... 20

PARAMETER LIST.................................................................... 21 TROUBLESHOOTING ............................................................... 24

Precautions For Maintenance And Inspection......... 29

SPECIFICATIONS..................................................................... 31 Thank you for choosing this Mitsubishi Electric Inverter. This Instruction Manual (Basic) provides handling information and precautions for use of the equipment. Please forward this Instruction Manual (Basic) to the end user. To obtain the Instruction Manual (Applied) and the Safety stop function instruction manual Contact where you purchased the inverter, your Mitsubishi Electric sales representative, or the nearest Mitsubishi Electric FA Center for the following manuals: Instruction Manual (Applied) [IB(NA)-0600398ENG] Safety stop function instruction manual [BCN-A211508-004] These manuals are required if you are going to utilize functions and performance. The PDF version of this manual is also available for download at "MELFANS Web," the Mitsubishi Electric FA network service on the world wide web (URL: http://www.MitsubishiElectric.co.jp/melfansweb) 1 2 3 4 5 6 7 8

Page 2

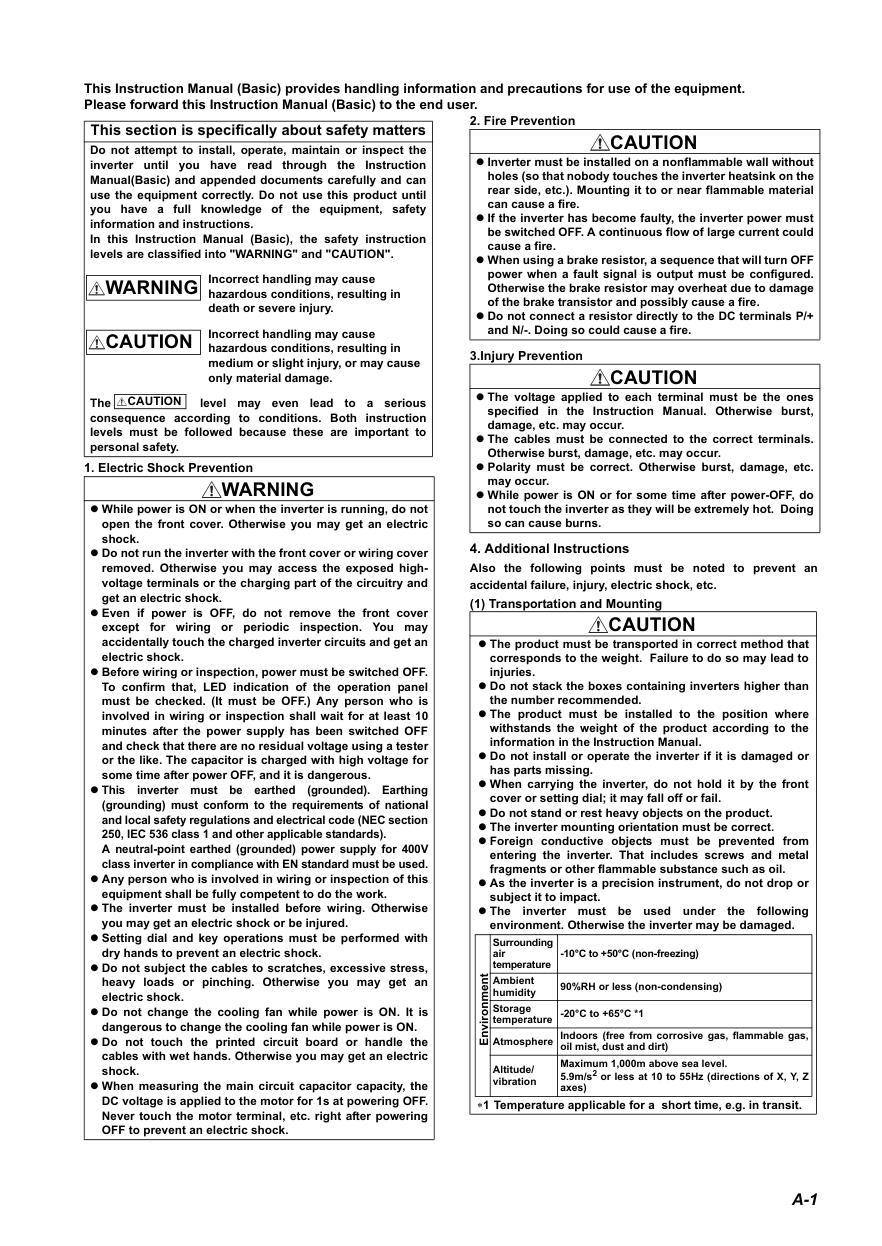

A-1

This Instruction Manual (Basic) provides handling information and precautions for use of the equipment. Please forward this Instruction Manual (Basic) to the end user.

Electric Shock Prevention

Fire Prevention

3.Injury Prevention

Additional Instructions

Also the following points must be noted to prevent an accidental failure, injury, electric shock, etc. (1) Transportation and Mounting This section is specifically about safety matters Do not attempt to install, operate, maintain or inspect the inverter until you have read through the Instruction Manual(Basic) and appended documents carefully and can use the equipment correctly. Do not use this product until you have a full knowledge of the equipment, safety information and instructions. In this Instruction Manual (Basic), the safety instruction levels are classified into "WARNING" and "CAUTION". Incorrect handling may cause hazardous conditions, resulting in death or severe injury. Incorrect handling may cause hazardous conditions, resulting in medium or slight injury, or may cause only material damage. The level may even lead to a serious consequence according to conditions. Both instruction levels must be followed because these are important to personal safety. z While power is ON or when the inverter is running, do not open the front cover. Otherwise you may get an electric shock. z Do not run the inverter with the front cover or wiring cover removed. Otherwise you may access the exposed high- voltage terminals or the charging part of the circuitry and get an electric shock. z Even if power is OFF, do not remove the front cover except for wiring or periodic inspection. You may accidentally touch the charged inverter circuits and get an electric shock. z Before wiring or inspection, power must be switched OFF. To confirm that, LED indication of the operation panel must be checked. (It must be OFF.) Any person who is involved in wiring or inspection shall wait for at least 10 minutes after the power supply has been switched OFF and check that there are no residual voltage using a tester or the like. The capacitor is charged with high voltage for some time after power OFF, and it is dangerous. z This inverter must be earthed (grounded). Earthing (grounding) must conform to the requirements of national and local safety regulations and electrical code (NEC section 250, IEC 536 class 1 and other applicable standards). A neutral-point earthed (grounded) power supply for 400V class inverter in compliance with EN standard must be used. z Any person who is involved in wiring or inspection of this equipment shall be fully competent to do the work. z The inverter must be installed before wiring. Otherwise you may get an electric shock or be injured. z Setting dial and key operations must be performed with dry hands to prevent an electric shock. z Do not subject the cables to scratches, excessive stress, heavy loads or pinching. Otherwise you may get an electric shock. z Do not change the cooling fan while power is ON. It is dangerous to change the cooling fan while power is ON. z Do not touch the printed circuit board or handle the cables with wet hands. Otherwise you may get an electric shock. z When measuring the main circuit capacitor capacity, the DC voltage is applied to the motor for 1s at powering OFF. Never touch the motor terminal, etc. right after powering OFF to prevent an electric shock.

Warning

Caution

Warning

z Inverter must be installed on a nonflammable wall without holes (so that nobody touches the inverter heatsink on the rear side, etc.). Mounting it to or near flammable material can cause a fire. z If the inverter has become faulty, the inverter power must be switched OFF. A continuous flow of large current could cause a fire. z When using a brake resistor, a sequence that will turn OFF power when a fault signal is output must be configured. Otherwise the brake resistor may overheat due to damage of the brake transistor and possibly cause a fire. z Do not connect a resistor directly to the DC terminals P/+ and N/-. Doing so could cause a fire. z The voltage applied to each terminal must be the ones specified in the Instruction Manual. Otherwise burst, damage, etc. may occur. z The cables must be connected to the correct terminals. Otherwise burst, damage, etc. may occur. z Polarity must be correct. Otherwise burst, damage, etc. may occur. z While power is ON or for some time after power-OFF, do not touch the inverter as they will be extremely hot. Doing so can cause burns. z The product must be transported in correct method that corresponds to the weight. Failure to do so may lead to injuries. z Do not stack the boxes containing inverters higher than the number recommended. z The product must be installed to the position where withstands the weight of the product according to the information in the Instruction Manual. z Do not install or operate the inverter if it is damaged or has parts missing. z When carrying the inverter, do not hold it by the front cover or setting dial; it may fall off or fail. z Do not stand or rest heavy objects on the product. z The inverter mounting orientation must be correct. z Foreign conductive objects must be prevented from entering the inverter. That includes screws and metal fragments or other flammable substance such as oil. z As the inverter is a precision instrument, do not drop or subject it to impact. z The inverter must be used under the following environment. Otherwise the inverter may be damaged. Environment Surrounding air temperature -10°C to +50°C (non-freezing) Ambient humidity 90%RH or less (non-condensing) Storage temperature -20°C to +65°C *1 Atmosphere Indoors (free from corrosive gas, flammable gas, oil mist, dust and dirt) Altitude/ vibration Maximum 1,000m above sea level. 5.9m/s2 or less at 10 to 55Hz (directions of X, Y, Z axes) ∗1 Temperature applicable for a short time, e.g. in transit.

Caution

Page 3

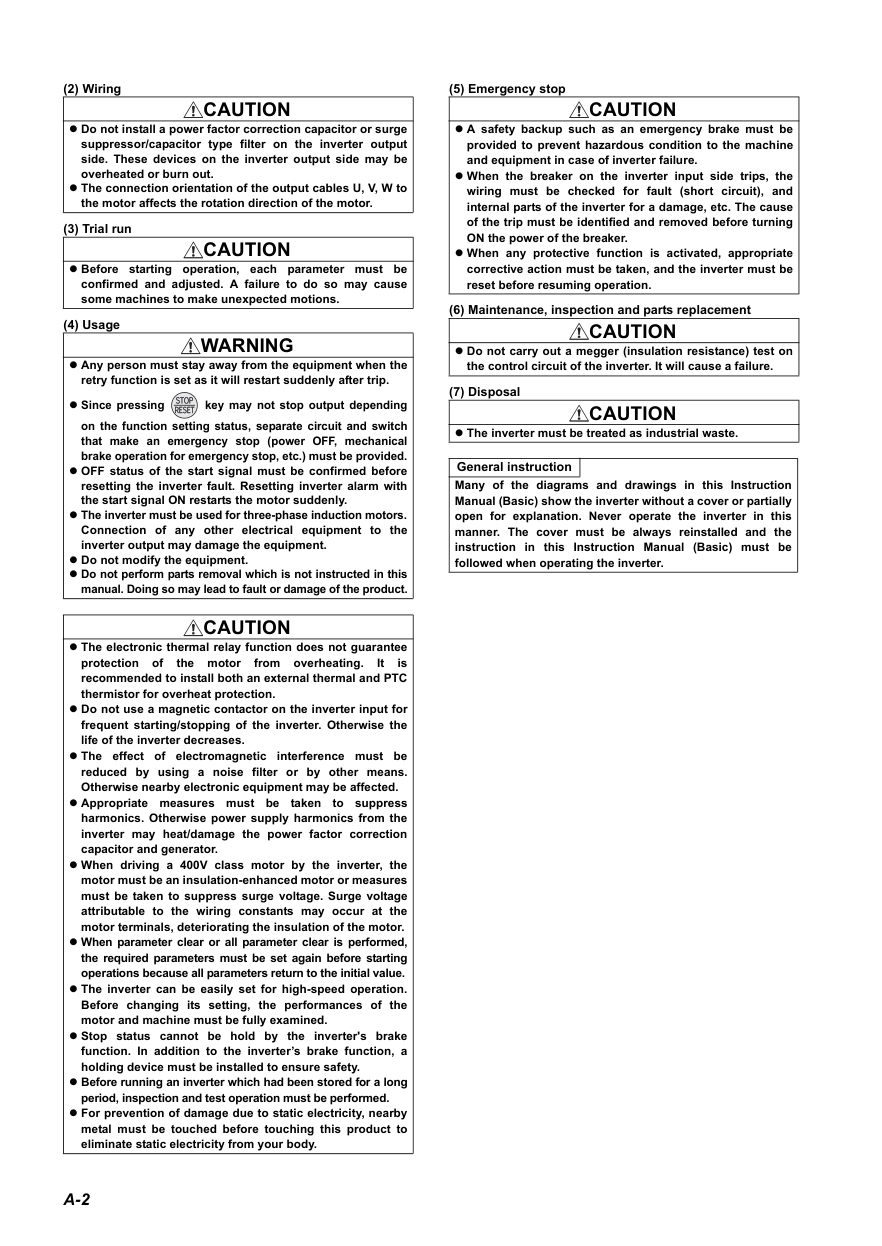

A-2

(2) Wiring (3) Trial run (4) Usage (5) Emergency stop (6) Maintenance, inspection and parts replacement (7) Disposal z Do not install a power factor correction capacitor or surge suppressor/capacitor type filter on the inverter output side. These devices on the inverter output side may be overheated or burn out. z The connection orientation of the output cables U, V, W to the motor affects the rotation direction of the motor. z Before starting operation, each parameter must be confirmed and adjusted. A failure to do so may cause some machines to make unexpected motions. z Any person must stay away from the equipment when the retry function is set as it will restart suddenly after trip. z Since pressing key may not stop output depending on the function setting status, separate circuit and switch that make an emergency stop (power OFF, mechanical brake operation for emergency stop, etc.) must be provided. z OFF status of the start signal must be confirmed before resetting the inverter fault. Resetting inverter alarm with the start signal ON restarts the motor suddenly. z The inverter must be used for three-phase induction motors. Connection of any other electrical equipment to the inverter output may damage the equipment. z Do not modify the equipment. z Do not perform parts removal which is not instructed in this manual. Doing so may lead to fault or damage of the product. z The electronic thermal relay function does not guarantee protection of the motor from overheating. It is recommended to install both an external thermal and PTC thermistor for overheat protection. z Do not use a magnetic contactor on the inverter input for frequent starting/stopping of the inverter. Otherwise the life of the inverter decreases. z The effect of electromagnetic interference must be reduced by using a noise filter or by other means. Otherwise nearby electronic equipment may be affected. z Appropriate measures must be taken to suppress harmonics. Otherwise power supply harmonics from the inverter may heat/damage the power factor correction capacitor and generator. z When driving a 400V class motor by the inverter, the motor must be an insulation-enhanced motor or measures must be taken to suppress surge voltage. Surge voltage attributable to the wiring constants may occur at the motor terminals, deteriorating the insulation of the motor. z When parameter clear or all parameter clear is performed, the required parameters must be set again before starting operations because all parameters return to the initial value. z The inverter can be easily set for high-speed operation. Before changing its setting, the performances of the motor and machine must be fully examined. z Stop status cannot be hold by the inverter's brake function. In addition to the inverter’s brake function, a holding device must be installed to ensure safety. z Before running an inverter which had been stored for a long period, inspection and test operation must be performed. z For prevention of damage due to static electricity, nearby metal must be touched before touching this product to eliminate static electricity from your body.

Caution

Warning

Caution

z A safety backup such as an emergency brake must be provided to prevent hazardous condition to the machine and equipment in case of inverter failure. z When the breaker on the inverter input side trips, the wiring must be checked for fault (short circuit), and internal parts of the inverter for a damage, etc. The cause of the trip must be identified and removed before turning ON the power of the breaker. z When any protective function is activated, appropriate corrective action must be taken, and the inverter must be reset before resuming operation. z Do not carry out a megger (insulation resistance) test on the control circuit of the inverter. It will cause a failure. z The inverter must be treated as industrial waste. General instruction Many of the diagrams and drawings in this Instruction Manual (Basic) show the inverter without a cover or partially open for explanation. Never operate the inverter in this manner. The cover must be always reinstalled and the instruction in this Instruction Manual (Basic) must be followed when operating the inverter.

Caution

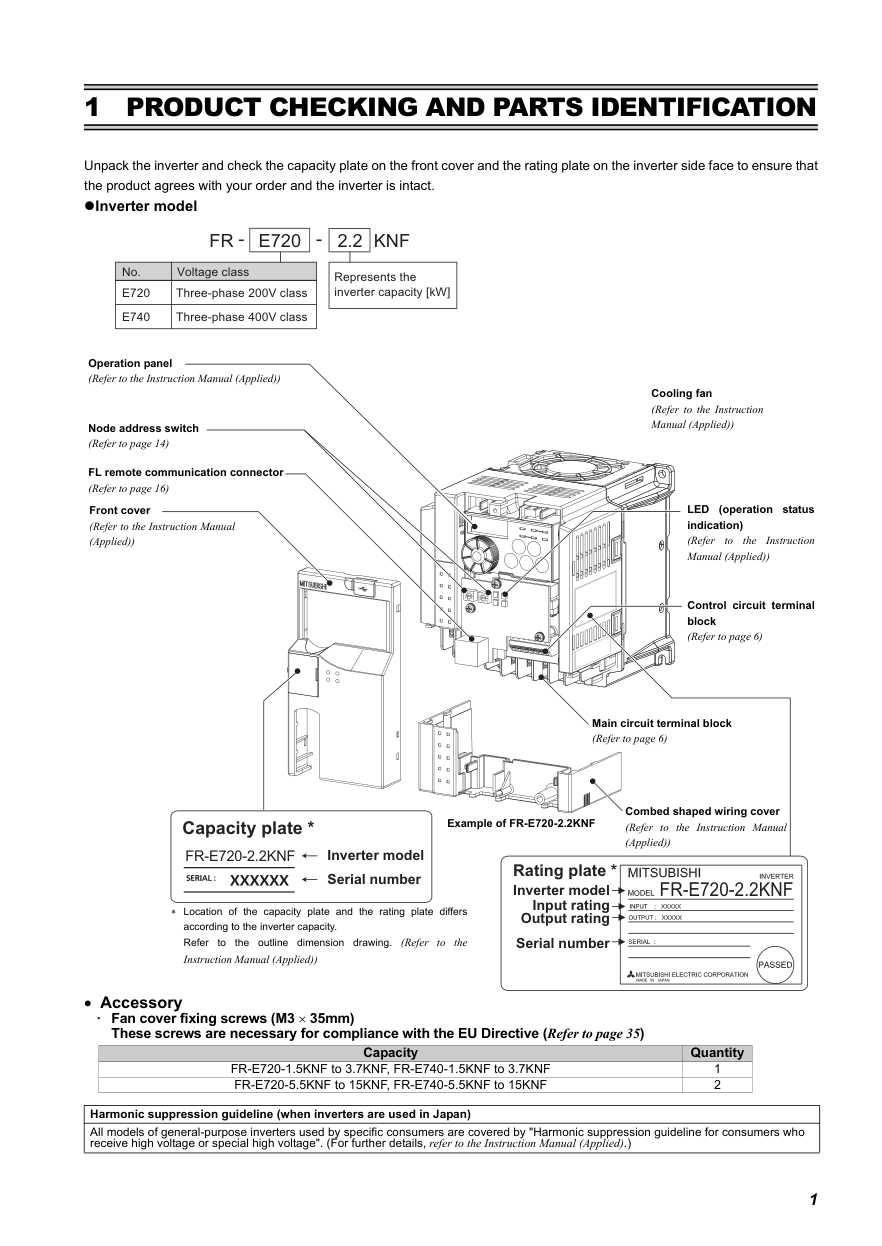

Page 4

Page 5

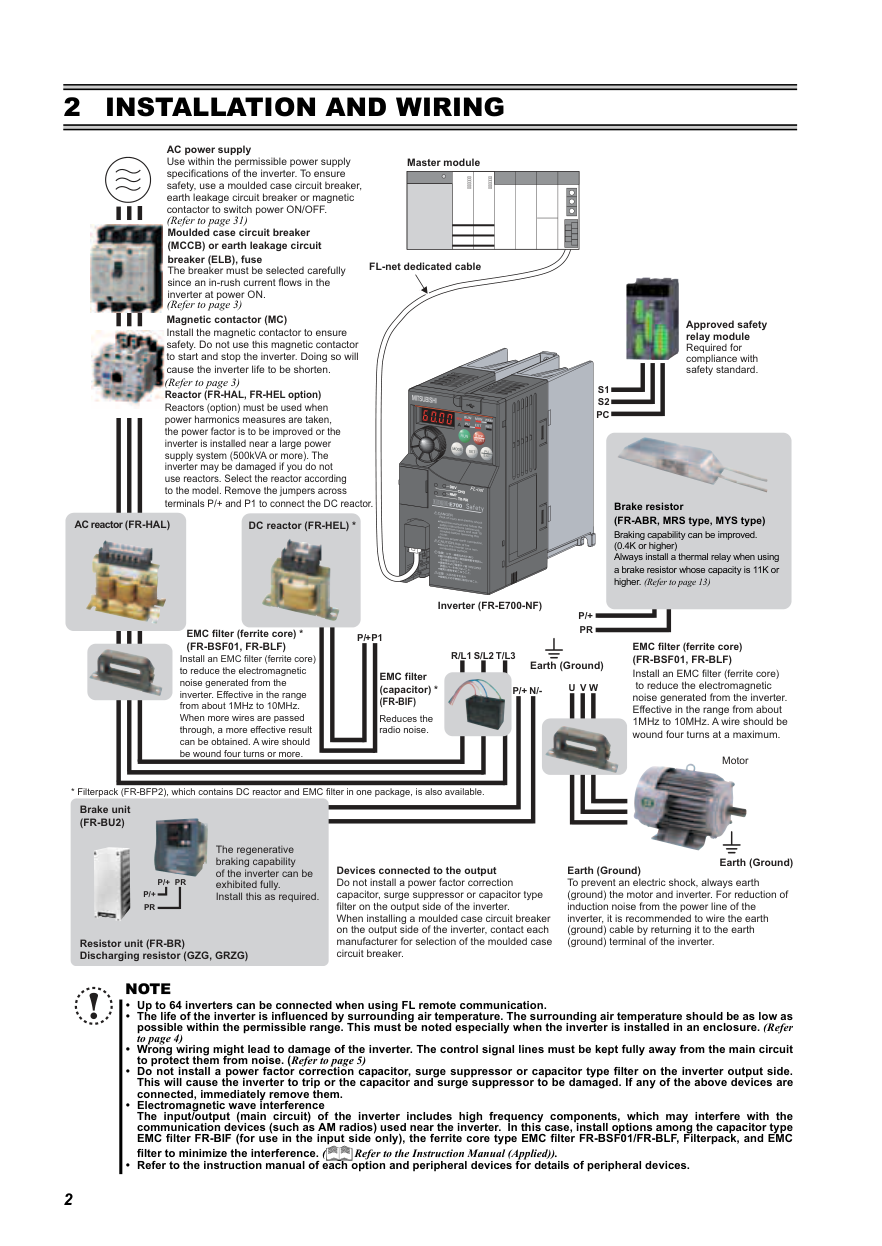

2 Installation of the inverter and instructions 2

Installation And Wiring

Note

y Up to 64 inverters can be connected when using FL remote communication. y The life of the inverter is influenced by surrounding air temperature. The surrounding air temperature should be as low as possible within the permissible range. This must be noted especially when the inverter is installed in an enclosure. (Refer to page 4) y Wrong wiring might lead to damage of the inverter. The control signal lines must be kept fully away from the main circuit to protect them from noise. (Refer to page 5) y Do not install a power factor correction capacitor, surge suppressor or capacitor type filter on the inverter output side. This will cause the inverter to trip or the capacitor and surge suppressor to be damaged. If any of the above devices are connected, immediately remove them. y Electromagnetic wave interference The input/output (main circuit) of the inverter includes high frequency components, which may interfere with the communication devices (such as AM radios) used near the inverter. In this case, install options among the capacitor type EMC filter FR-BIF (for use in the input side only), the ferrite core type EMC filter FR-BSF01/FR-BLF, Filterpack, and EMC filter to minimize the interference. ( Refer to the Instruction Manual (Applied)). y Refer to the instruction manual of each option and peripheral devices for details of peripheral devices. EMC filter (ferrite core)

(Fr-Bsf01, Fr-Blf)

Install an EMC filter (ferrite core) to reduce the electromagnetic noise generated from the inverter. Effective in the range from about 1MHz to 10MHz. A wire should be wound four turns at a maximum. Motor Earth (Ground)

R/L1 S/L2 T/L3

P1

P/+

N/-

P/+

U

W

P/+

Pr

V

EMC filter (ferrite core) *

(Fr-Bsf01, Fr-Blf)

AC power supply Use within the permissible power supply specifications of the inverter. To ensure safety, use a moulded case circuit breaker, earth leakage circuit breaker or magnetic contactor to switch power ON/OFF. Magnetic contactor (MC) Install the magnetic contactor to ensure safety. Do not use this magnetic contactor to start and stop the inverter. Doing so will cause the inverter life to be shorten. Reactor (FR-HAL, FR-HEL option) Reactors (option) must be used when power harmonics measures are taken, the power factor is to be improved or the inverter is installed near a large power supply system (500kVA or more). The inverter may be damaged if you do not use reactors. Select the reactor according to the model. Remove the jumpers across terminals P/+ and P1 to connect the DC reactor. Moulded case circuit breaker (MCCB) or earth leakage circuit breaker (ELB), fuse The breaker must be selected carefully since an in-rush current flows in the inverter at power ON. Install an EMC filter (ferrite core) to reduce the electromagnetic noise generated from the inverter. Effective in the range from about 1MHz to 10MHz. When more wires are passed through, a more effective result can be obtained. A wire should be wound four turns or more. Earth (Ground) To prevent an electric shock, always earth (ground) the motor and inverter. For reduction of induction noise from the power line of the inverter, it is recommended to wire the earth (ground) cable by returning it to the earth (ground) terminal of the inverter. AC reactor (FR-HAL) DC reactor (FR-HEL) * EMC filter (capacitor) *

(Fr-Bif)

Reduces the radio noise.

P/+

Pr

Brake unit

(Fr-Bu2)

Resistor unit (FR-BR) Discharging resistor (GZG, GRZG) Inverter (FR-E700-NF)

Filterpack (FR-BFP2), which contains DC reactor and EMC filter in one package, is also available.

S1

S2

Pc

Master module FL-net dedicated cable Approved safety relay module Required for compliance with safety standard. The regenerative braking capability of the inverter can be exhibited fully. Install this as required. Devices connected to the output Do not install a power factor correction capacitor, surge suppressor or capacitor type filter on the output side of the inverter. When installing a moulded case circuit breaker on the output side of the inverter, contact each manufacturer for selection of the moulded case circuit breaker. Earth (Ground) (Refer to page 31) (Refer to page 3) (Refer to page 3) Brake resistor (FR-ABR, MRS type, MYS type) Braking capability can be improved. (0.4K or higher) Always install a thermal relay when using a brake resistor whose capacity is 11K or higher. (Refer to page 13)

Page 6

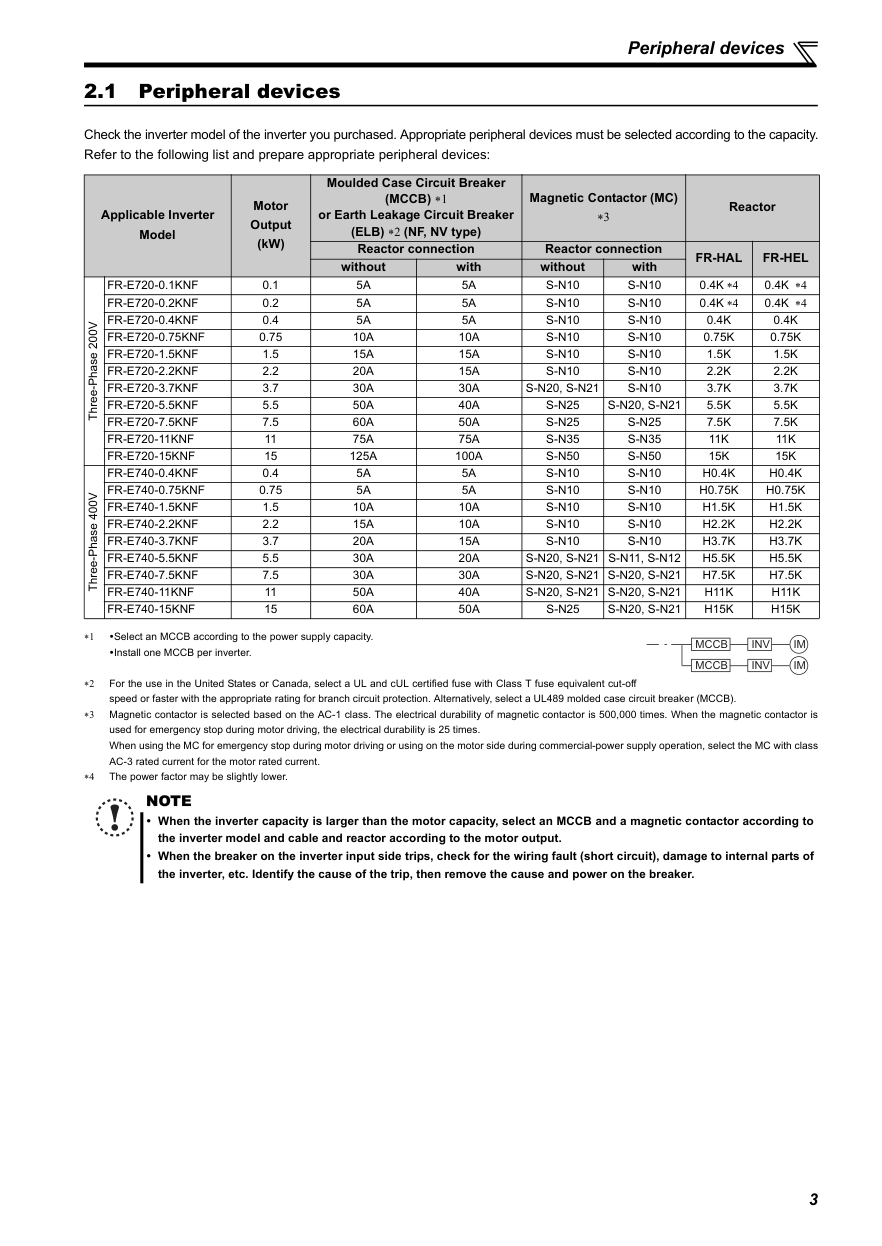

3 Peripheral devices 2.1 Peripheral devices Check the inverter model of the inverter you purchased. Appropriate peripheral devices must be selected according to the capacity. Refer to the following list and prepare appropriate peripheral devices: ∗1 ySelect an MCCB according to the power supply capacity. yInstall one MCCB per inverter. ∗2 For the use in the United States or Canada, select a UL and cUL certified fuse with Class T fuse equivalent cut-off speed or faster with the appropriate rating for branch circuit protection. Alternatively, select a UL489 molded case circuit breaker (MCCB). ∗3 Magnetic contactor is selected based on the AC-1 class. The electrical durability of magnetic contactor is 500,000 times. When the magnetic contactor is used for emergency stop during motor driving, the electrical durability is 25 times. When using the MC for emergency stop during motor driving or using on the motor side during commercial-power supply operation, select the MC with class AC-3 rated current for the motor rated current. ∗4 The power factor may be slightly lower. Applicable Inverter Model Motor Output (kW) Moulded Case Circuit Breaker

(Mccb) ∗1

or Earth Leakage Circuit Breaker (ELB) ∗2 (NF, NV type) Magnetic Contactor (MC) ∗3 Reactor Reactor connection Reactor connection

Fr-Hal

Fr-Hel

without with without with Three-Phase 200V

Fr-E720-0.1Knf

0.1

5A

S-N10

0.4K ∗4

Fr-E720-0.2Knf

0.2

5A

S-N10

0.4K ∗4

Fr-E720-0.4Knf

0.4

5A

S-N10

0.4K

Fr-E720-0.75Knf

0.75

10A

S-N10

0.75K

Fr-E720-1.5Knf

1.5

15A

S-N10

1.5K

Fr-E720-2.2Knf

2.2

20A

15A

S-N10

2.2K

Fr-E720-3.7Knf

3.7

30A

S-N20, S-N21

S-N10

3.7K

Fr-E720-5.5Knf

5.5

50A

40A

S-N25

S-N20, S-N21

5.5K

Fr-E720-7.5Knf

7.5

60A

50A

S-N25

7.5K

Fr-E720-11Knf

11

75A

S-N35

11K

Fr-E720-15Knf

15

125A

100A

S-N50

15K

Three-Phase 400V

Fr-E740-0.4Knf

0.4

5A

S-N10

H0.4K

Fr-E740-0.75Knf

0.75

5A

S-N10

H0.75K

Fr-E740-1.5Knf

1.5

10A

S-N10

H1.5K

Fr-E740-2.2Knf

2.2

15A

10A

S-N10

H2.2K

Fr-E740-3.7Knf

3.7

20A

15A

S-N10

H3.7K

Fr-E740-5.5Knf

5.5

30A

20A

S-N20, S-N21 S-N11, S-N12

H5.5K

Fr-E740-7.5Knf

7.5

30A

S-N20, S-N21 S-N20, S-N21

H7.5K

Fr-E740-11Knf

11

50A

40A

S-N20, S-N21 S-N20, S-N21

H11K

Fr-E740-15Knf

15

60A

50A

S-N25

S-N20, S-N21

H15K

Note

y When the inverter capacity is larger than the motor capacity, select an MCCB and a magnetic contactor according to the inverter model and cable and reactor according to the motor output. y When the breaker on the inverter input side trips, check for the wiring fault (short circuit), damage to internal parts of the inverter, etc. Identify the cause of the trip, then remove the cause and power on the breaker.

Mccb

Inv

Mccb

Inv

Im

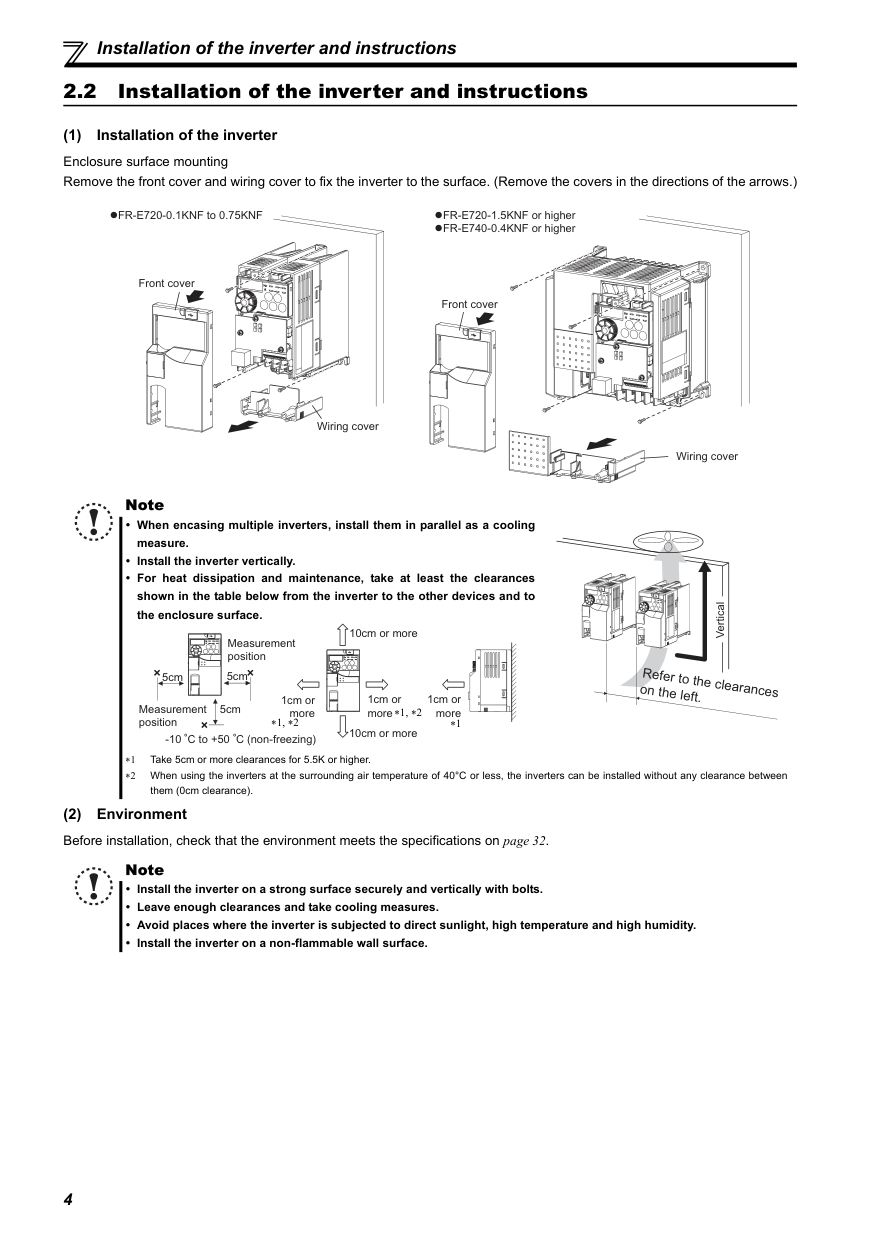

Page 7

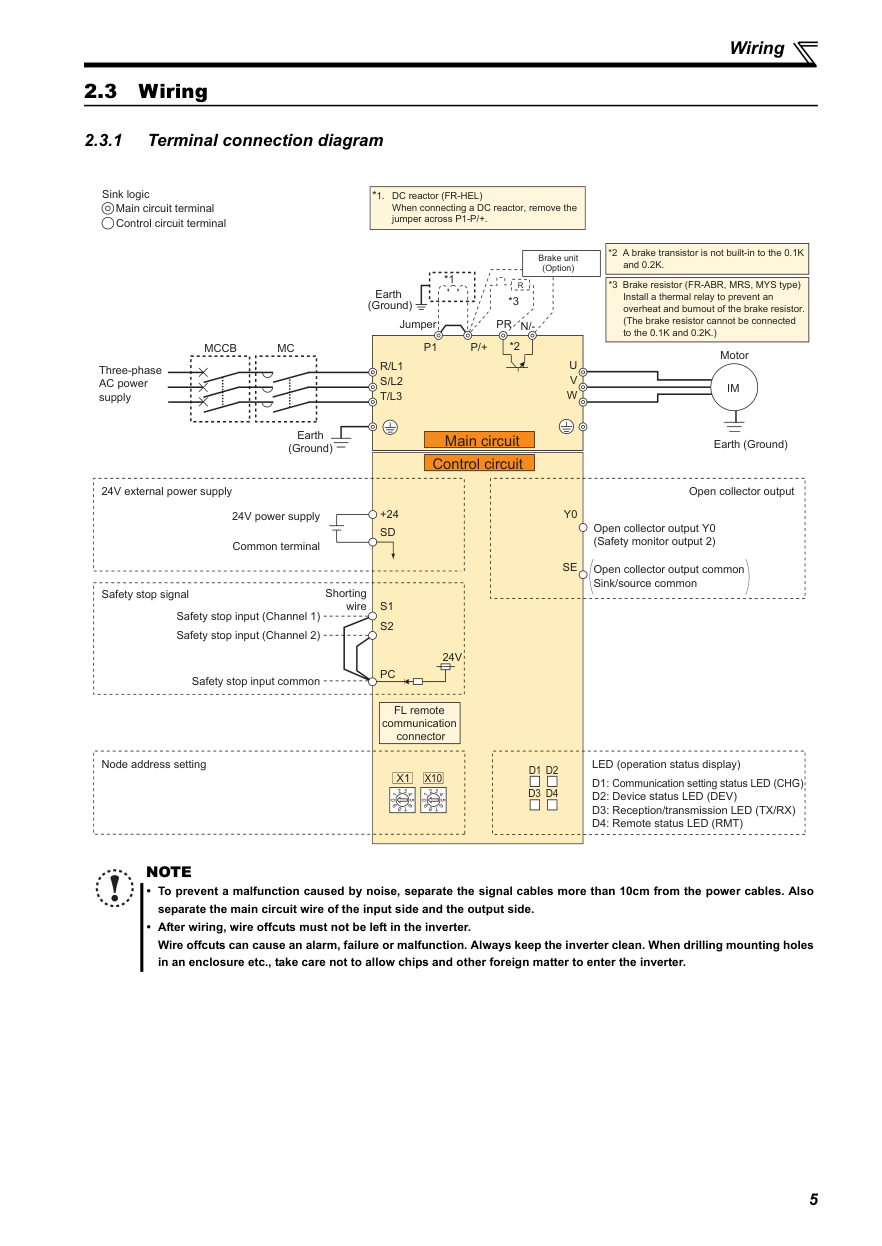

Page 8

Page 9

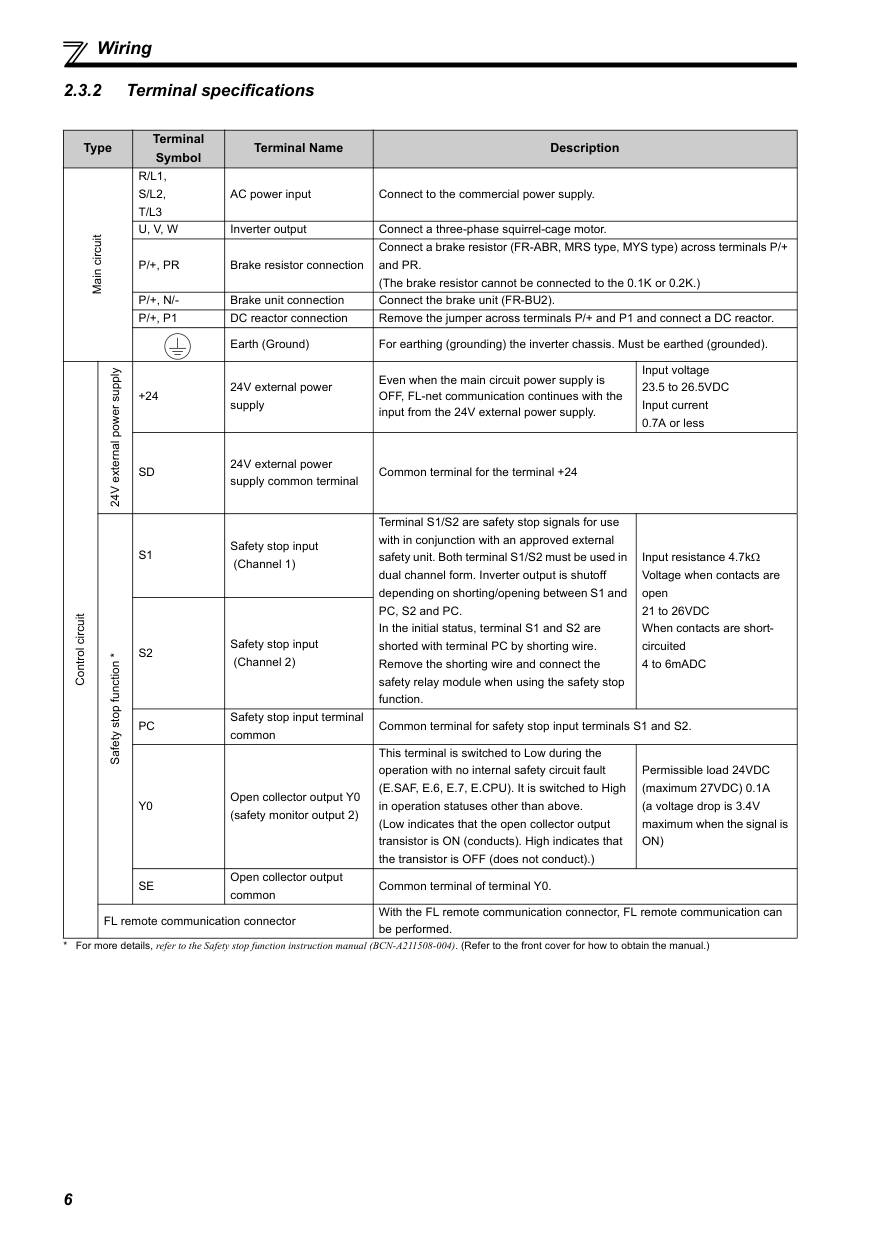

6 Wiring 2.3.2 Terminal specifications

For more details, refer to the Safety stop function instruction manual (BCN-A211508-004). (Refer to the front cover for how to obtain the manual.)

Type Terminal Symbol Terminal Name Description Main circuit

R/L1,

S/L2,

T/L3

AC power input Connect to the commercial power supply.

U, V, W

Inverter output Connect a three-phase squirrel-cage motor.

P/+, Pr

Brake resistor connection Connect a brake resistor (FR-ABR, MRS type, MYS type) across terminals P/+ and PR. (The brake resistor cannot be connected to the 0.1K or 0.2K.)

P/+, N/-

Brake unit connection Connect the brake unit (FR-BU2).

P/+, P1

DC reactor connection Remove the jumper across terminals P/+ and P1 and connect a DC reactor. Earth (Ground) For earthing (grounding) the inverter chassis. Must be earthed (grounded). Control circuit 24V external power supply +24 24V external power supply Even when the main circuit power supply is OFF, FL-net communication continues with the input from the 24V external power supply. Input voltage 23.5 to 26.5VDC Input current 0.7A or less

Sd

24V external power supply common terminal Common terminal for the terminal +24 Safety stop function *

S1

Safety stop input (Channel 1) Terminal S1/S2 are safety stop signals for use with in conjunction with an approved external safety unit. Both terminal S1/S2 must be used in dual channel form. Inverter output is shutoff depending on shorting/opening between S1 and PC, S2 and PC. In the initial status, terminal S1 and S2 are shorted with terminal PC by shorting wire. Remove the shorting wire and connect the safety relay module when using the safety stop function. Input resistance 4.7kΩ Voltage when contacts are open 21 to 26VDC When contacts are short- circuited 4 to 6mADC

S2

Safety stop input (Channel 2)

Pc

Safety stop input terminal common Common terminal for safety stop input terminals S1 and S2.

Y0

Open collector output Y0 (safety monitor output 2) This terminal is switched to Low during the operation with no internal safety circuit fault (E.SAF, E.6, E.7, E.CPU). It is switched to High in operation statuses other than above. (Low indicates that the open collector output transistor is ON (conducts). High indicates that the transistor is OFF (does not conduct).) Permissible load 24VDC (maximum 27VDC) 0.1A (a voltage drop is 3.4V maximum when the signal is

On)

Se

Open collector output common Common terminal of terminal Y0. FL remote communication connector With the FL remote communication connector, FL remote communication can be performed.

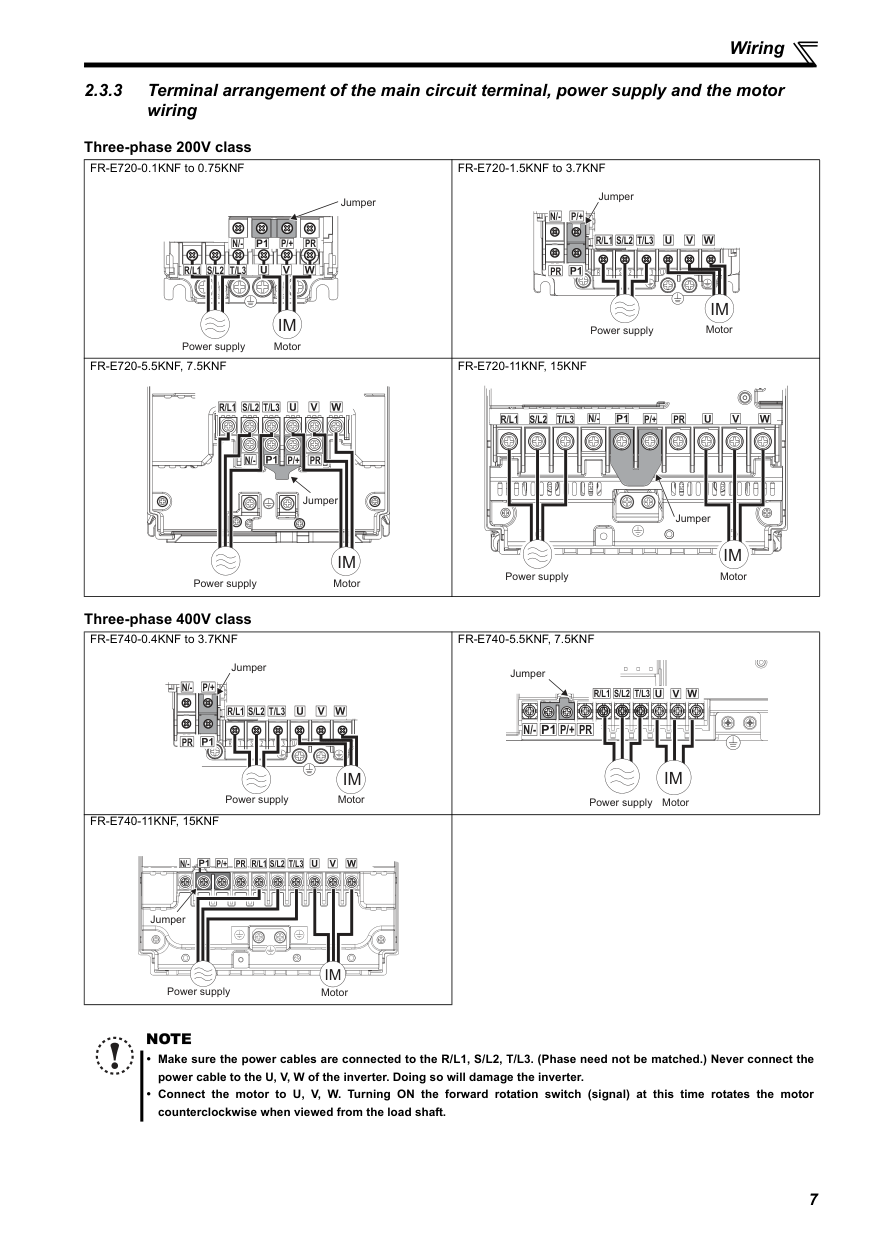

Page 10

Page 11

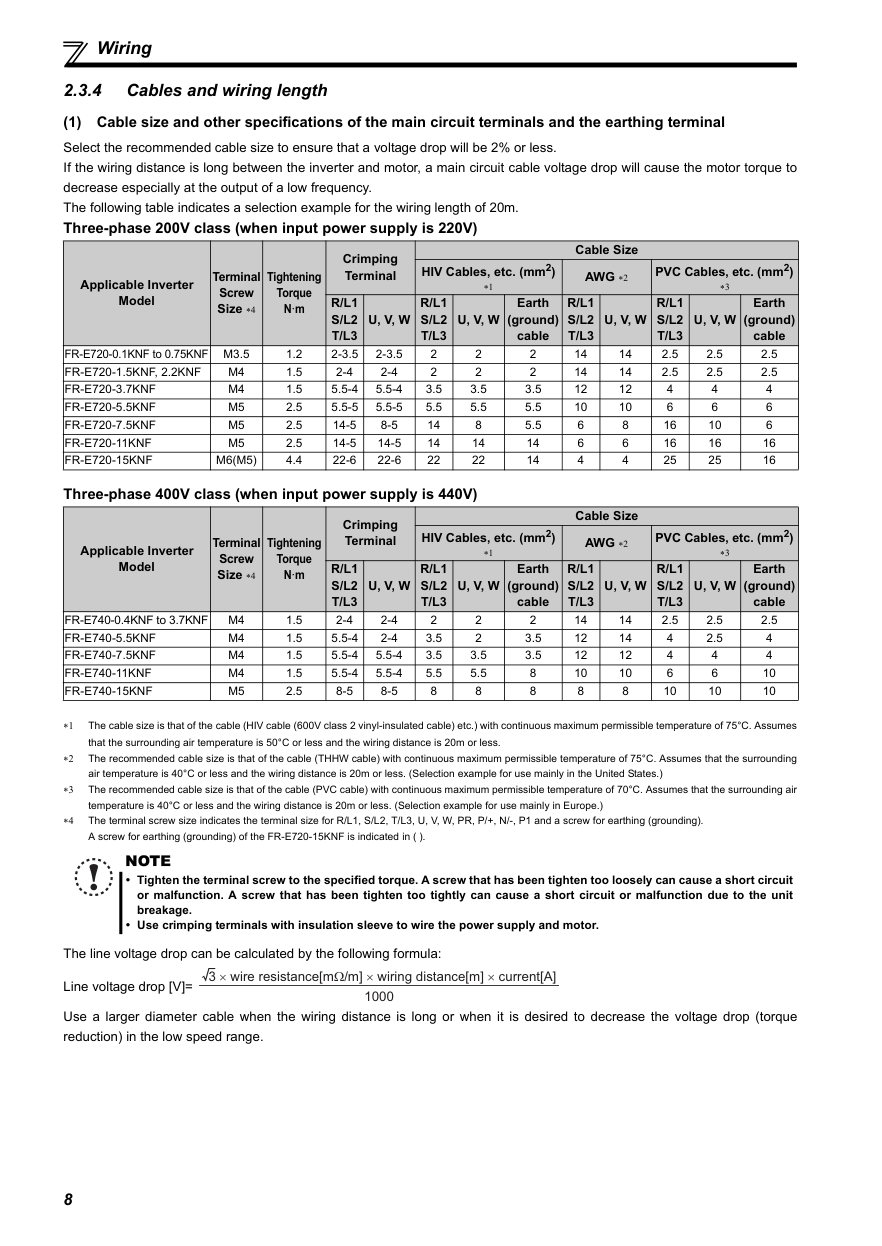

8 Wiring 2.3.4 Cables and wiring length (1) Cable size and other specifications of the main circuit terminals and the earthing terminal Select the recommended cable size to ensure that a voltage drop will be 2% or less. If the wiring distance is long between the inverter and motor, a main circuit cable voltage drop will cause the motor torque to decrease especially at the output of a low frequency. The following table indicates a selection example for the wiring length of 20m. Three-phase 200V class (when input power supply is 220V) Three-phase 400V class (when input power supply is 440V) ∗1 The cable size is that of the cable (HIV cable (600V class 2 vinyl-insulated cable) etc.) with continuous maximum permissible temperature of 75°C. Assumes that the surrounding air temperature is 50°C or less and the wiring distance is 20m or less. ∗2 The recommended cable size is that of the cable (THHW cable) with continuous maximum permissible temperature of 75°C. Assumes that the surrounding air temperature is 40°C or less and the wiring distance is 20m or less. (Selection example for use mainly in the United States.) ∗3 The recommended cable size is that of the cable (PVC cable) with continuous maximum permissible temperature of 70°C. Assumes that the surrounding air temperature is 40°C or less and the wiring distance is 20m or less. (Selection example for use mainly in Europe.) ∗4 The terminal screw size indicates the terminal size for R/L1, S/L2, T/L3, U, V, W, PR, P/+, N/-, P1 and a screw for earthing (grounding). A screw for earthing (grounding) of the FR-E720-15KNF is indicated in ( ). The line voltage drop can be calculated by the following formula: Line voltage drop [V]= Use a larger diameter cable when the wiring distance is long or when it is desired to decrease the voltage drop (torque reduction) in the low speed range. Applicable Inverter Model Terminal Screw Size ∗4 Tightening Torque N·m Crimping Terminal Cable Size HIV Cables, etc. (mm2) ∗1

Awg ∗2

PVC Cables, etc. (mm2) ∗3

R/L1

S/L2

T/L3

U, V, W

R/L1

S/L2

T/L3

U, V, W

Earth (ground) cable

R/L1

S/L2

T/L3

U, V, W

R/L1

S/L2

T/L3

U, V, W

Earth (ground) cable FR-E720-0.1KNF to 0.75KNF

M3.5

1.2 2-3.5 2-3.5 2 2 2 14 14 2.5 2.5 2.5

Fr-E720-1.5Knf, 2.2Knf

M4

1.5 2-4 2-4 2 2 2 14 14 2.5 2.5 2.5

Fr-E720-3.7Knf

M4

1.5 5.5-4 5.5-4 3.5 3.5 3.5 12 12 4 4 4

Fr-E720-5.5Knf

M5

2.5 5.5-5 5.5-5 5.5 5.5 5.5 10 10 6 6 6

Fr-E720-7.5Knf

M5

2.5 14-5 8-5 14 8 5.5 6 8 16 10 6

Fr-E720-11Knf

M5

2.5 14-5 14-5 14 14 14 6 6 16 16 16

Fr-E720-15Knf

M6(M5)

4.4 22-6 22-6 22 22 14 4 4 25 25 16 Applicable Inverter Model Terminal Screw Size ∗4 Tightening Torque N·m Crimping Terminal Cable Size HIV Cables, etc. (mm2) ∗1

Awg ∗2

PVC Cables, etc. (mm2) ∗3

R/L1

S/L2

T/L3

U, V, W

R/L1

S/L2

T/L3

U, V, W

Earth (ground) cable

R/L1

S/L2

T/L3

U, V, W

R/L1

S/L2

T/L3

U, V, W

Earth (ground) cable FR-E740-0.4KNF to 3.7KNF

M4

1.5 2-4 2-4 2 2 2 14 14 2.5 2.5 2.5

Fr-E740-5.5Knf

M4

1.5 5.5-4 2-4 3.5 2 3.5 12 14 4 2.5 4

Fr-E740-7.5Knf

M4

1.5 5.5-4 5.5-4 3.5 3.5 3.5 12 12 4 4 4

Fr-E740-11Knf

M4

1.5 5.5-4 5.5-4 5.5 5.5 8 10 10 6 6 10

Fr-E740-15Knf

M5

2.5 8-5 8-5 8 8 8 8 8 10 10 10

Note

y Tighten the terminal screw to the specified torque. A screw that has been tighten too loosely can cause a short circuit or malfunction. A screw that has been tighten too tightly can cause a short circuit or malfunction due to the unit breakage. y Use crimping terminals with insulation sleeve to wire the power supply and motor. 3 × wire resistance[mΩ/m] × wiring distance[m] × current[A] 1000

Page 12

Page 13

Page 14

Page 15

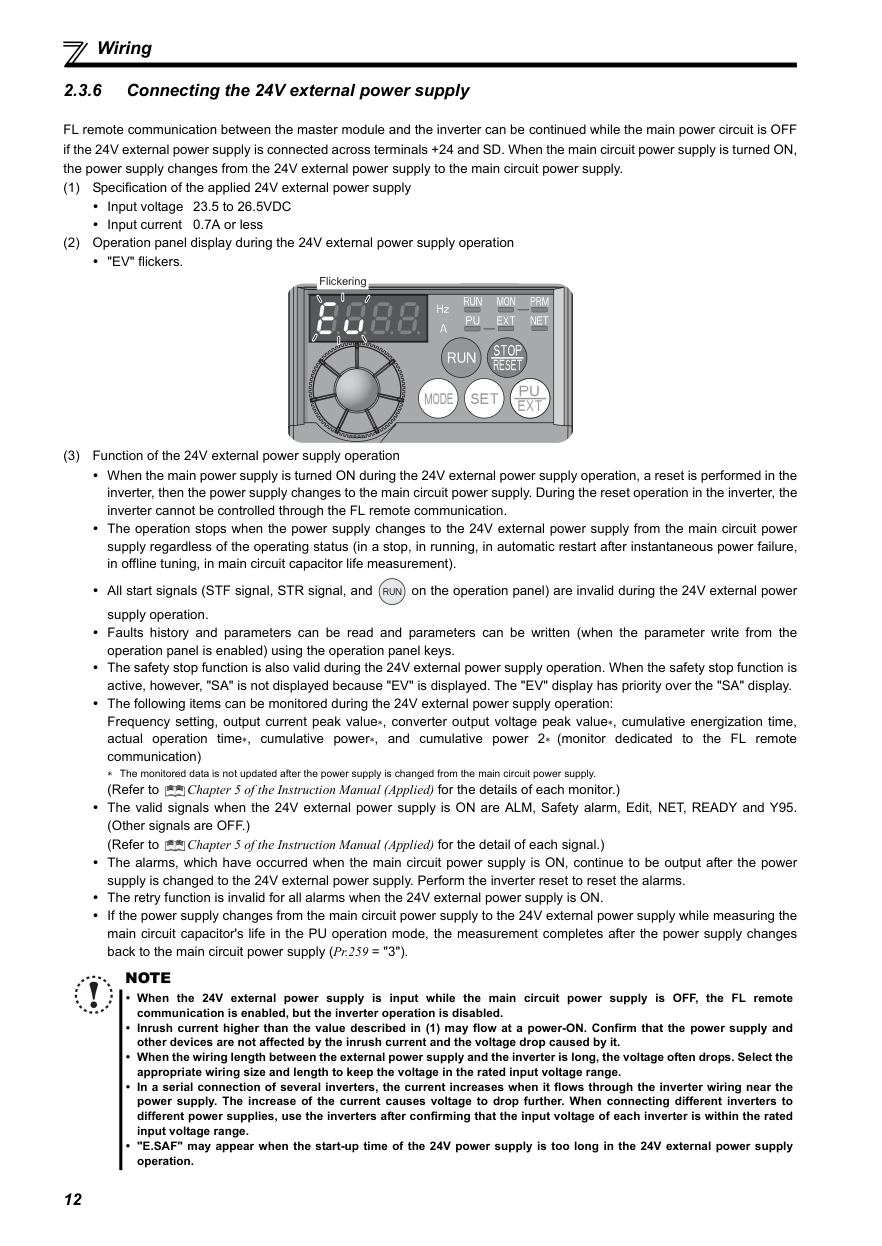

12 Wiring 2.3.6 Connecting the 24V external power supply FL remote communication between the master module and the inverter can be continued while the main power circuit is OFF if the 24V external power supply is connected across terminals +24 and SD. When the main circuit power supply is turned ON, the power supply changes from the 24V external power supply to the main circuit power supply. (1) Specification of the applied 24V external power supply y Input voltage 23.5 to 26.5VDC y Input current 0.7A or less (2) Operation panel display during the 24V external power supply operation y "EV" flickers. (3) Function of the 24V external power supply operation y When the main power supply is turned ON during the 24V external power supply operation, a reset is performed in the inverter, then the power supply changes to the main circuit power supply. During the reset operation in the inverter, the inverter cannot be controlled through the FL remote communication. y The operation stops when the power supply changes to the 24V external power supply from the main circuit power supply regardless of the operating status (in a stop, in running, in automatic restart after instantaneous power failure, in offline tuning, in main circuit capacitor life measurement). y All start signals (STF signal, STR signal, and on the operation panel) are invalid during the 24V external power supply operation. y Faults history and parameters can be read and parameters can be written (when the parameter write from the operation panel is enabled) using the operation panel keys. y The safety stop function is also valid during the 24V external power supply operation. When the safety stop function is active, however, "SA" is not displayed because "EV" is displayed. The "EV" display has priority over the "SA" display. y The following items can be monitored during the 24V external power supply operation: Frequency setting, output current peak value∗, converter output voltage peak value∗, cumulative energization time, actual operation time∗, cumulative power∗, and cumulative power 2∗ (monitor dedicated to the FL remote communication) ∗The monitored data is not updated after the power supply is changed from the main circuit power supply. (Refer to Chapter 5 of the Instruction Manual (Applied) for the details of each monitor.) y The valid signals when the 24V external power supply is ON are ALM, Safety alarm, Edit, NET, READY and Y95. (Other signals are OFF.) (Refer to Chapter 5 of the Instruction Manual (Applied) for the detail of each signal.) y The alarms, which have occurred when the main circuit power supply is ON, continue to be output after the power supply is changed to the 24V external power supply. Perform the inverter reset to reset the alarms. y The retry function is invalid for all alarms when the 24V external power supply is ON. y If the power supply changes from the main circuit power supply to the 24V external power supply while measuring the main circuit capacitor's life in the PU operation mode, the measurement completes after the power supply changes back to the main circuit power supply (Pr.259 = "3").

Note

y When the 24V external power supply is input while the main circuit power supply is OFF, the FL remote communication is enabled, but the inverter operation is disabled. y Inrush current higher than the value described in (1) may flow at a power-ON. Confirm that the power supply and other devices are not affected by the inrush current and the voltage drop caused by it. y When the wiring length between the external power supply and the inverter is long, the voltage often drops. Select the appropriate wiring size and length to keep the voltage in the rated input voltage range. y In a serial connection of several inverters, the current increases when it flows through the inverter wiring near the power supply. The increase of the current causes voltage to drop further. When connecting different inverters to different power supplies, use the inverters after confirming that the input voltage of each inverter is within the rated input voltage range. y "E.SAF" may appear when the start-up time of the 24V power supply is too long in the 24V external power supply operation. Flickering

Page 16

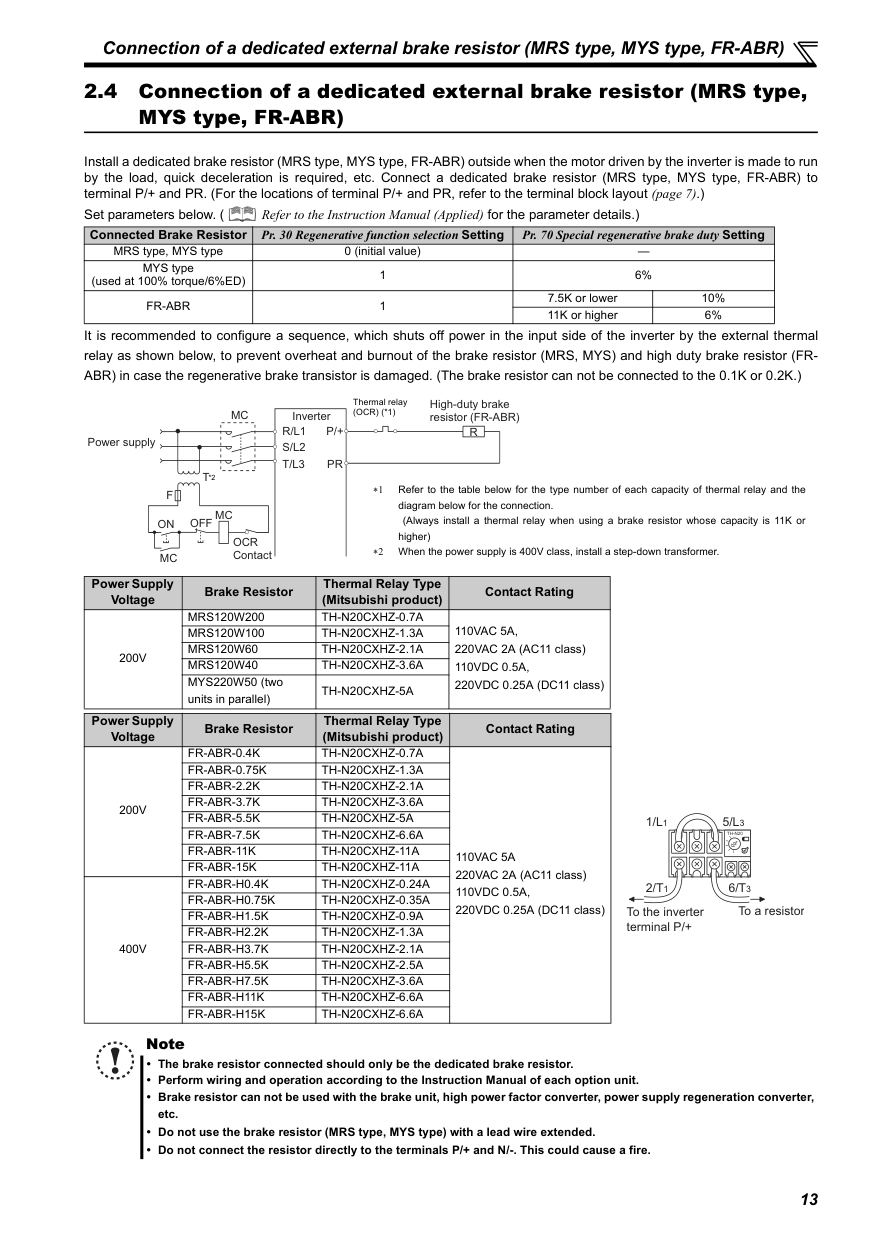

13 Connection of a dedicated external brake resistor (MRS type, MYS type, FR-ABR) 2.4 Connection of a dedicated external brake resistor (MRS type, MYS type, FR-ABR) Install a dedicated brake resistor (MRS type, MYS type, FR-ABR) outside when the motor driven by the inverter is made to run by the load, quick deceleration is required, etc. Connect a dedicated brake resistor (MRS type, MYS type, FR-ABR) to terminal P/+ and PR. (For the locations of terminal P/+ and PR, refer to the terminal block layout (page 7).) Set parameters below. ( Refer to the Instruction Manual (Applied) for the parameter details.) It is recommended to configure a sequence, which shuts off power in the input side of the inverter by the external thermal relay as shown below, to prevent overheat and burnout of the brake resistor (MRS, MYS) and high duty brake resistor (FR- ABR) in case the regenerative brake transistor is damaged. (The brake resistor can not be connected to the 0.1K or 0.2K.) Connected Brake Resistor Pr. 30 Regenerative function selection Setting Pr. 70 Special regenerative brake duty Setting MRS type, MYS type 0 (initial value) — MYS type (used at 100% torque/6%ED) 1 6%

Fr-Abr

1 7.5K or lower 10% 11K or higher 6% Power Supply Voltage Brake Resistor Thermal Relay Type (Mitsubishi product) Contact Rating

200V

Mrs120W200

Th-N20Cxhz-0.7A

110Vac 5A,

220VAC 2A (AC11 class)

110Vdc 0.5A,

220VDC 0.25A (DC11 class)

Mrs120W100

Th-N20Cxhz-1.3A

Mrs120W60

Th-N20Cxhz-2.1A

Mrs120W40

Th-N20Cxhz-3.6A

MYS220W50 (two units in parallel)

Th-N20Cxhz-5A

Power Supply Voltage Brake Resistor Thermal Relay Type (Mitsubishi product) Contact Rating

200V

Fr-Abr-0.4K

Th-N20Cxhz-0.7A

110Vac 5A

220VAC 2A (AC11 class)

110Vdc 0.5A,

220VDC 0.25A (DC11 class)

Fr-Abr-0.75K

Th-N20Cxhz-1.3A

Fr-Abr-2.2K

Th-N20Cxhz-2.1A

Fr-Abr-3.7K

Th-N20Cxhz-3.6A

Fr-Abr-5.5K

Th-N20Cxhz-5A

Fr-Abr-7.5K

Th-N20Cxhz-6.6A

Fr-Abr-11K

Th-N20Cxhz-11A

Fr-Abr-15K

Th-N20Cxhz-11A

400V

Fr-Abr-H0.4K

Th-N20Cxhz-0.24A

Fr-Abr-H0.75K

Th-N20Cxhz-0.35A

Fr-Abr-H1.5K

Th-N20Cxhz-0.9A

Fr-Abr-H2.2K

Th-N20Cxhz-1.3A

Fr-Abr-H3.7K

Th-N20Cxhz-2.1A

Fr-Abr-H5.5K

Th-N20Cxhz-2.5A

Fr-Abr-H7.5K

Th-N20Cxhz-3.6A

Fr-Abr-H11K

Th-N20Cxhz-6.6A

Fr-Abr-H15K

Th-N20Cxhz-6.6A

Note y The brake resistor connected should only be the dedicated brake resistor. y Perform wiring and operation according to the Instruction Manual of each option unit. y Brake resistor can not be used with the brake unit, high power factor converter, power supply regeneration converter, etc. y Do not use the brake resistor (MRS type, MYS type) with a lead wire extended. y Do not connect the resistor directly to the terminals P/+ and N/-. This could cause a fire.

Mc

Inverter

Mc

R

Pr

P/+

S/L2

T/L3

R/L1

On

Off

Ocr

Contact Power supply

F

High-duty brake resistor (FR-ABR)

T

Mc

Thermal relay

(Ocr) (*1)

*2 ∗1 Refer to the table below for the type number of each capacity of thermal relay and the diagram below for the connection. (Always install a thermal relay when using a brake resistor whose capacity is 11K or higher) ∗2 When the power supply is 400V class, install a step-down transformer. To the inverter terminal P/+ To a resistor

Th-N20

1/L1

5/L3

2/T1

6/T3

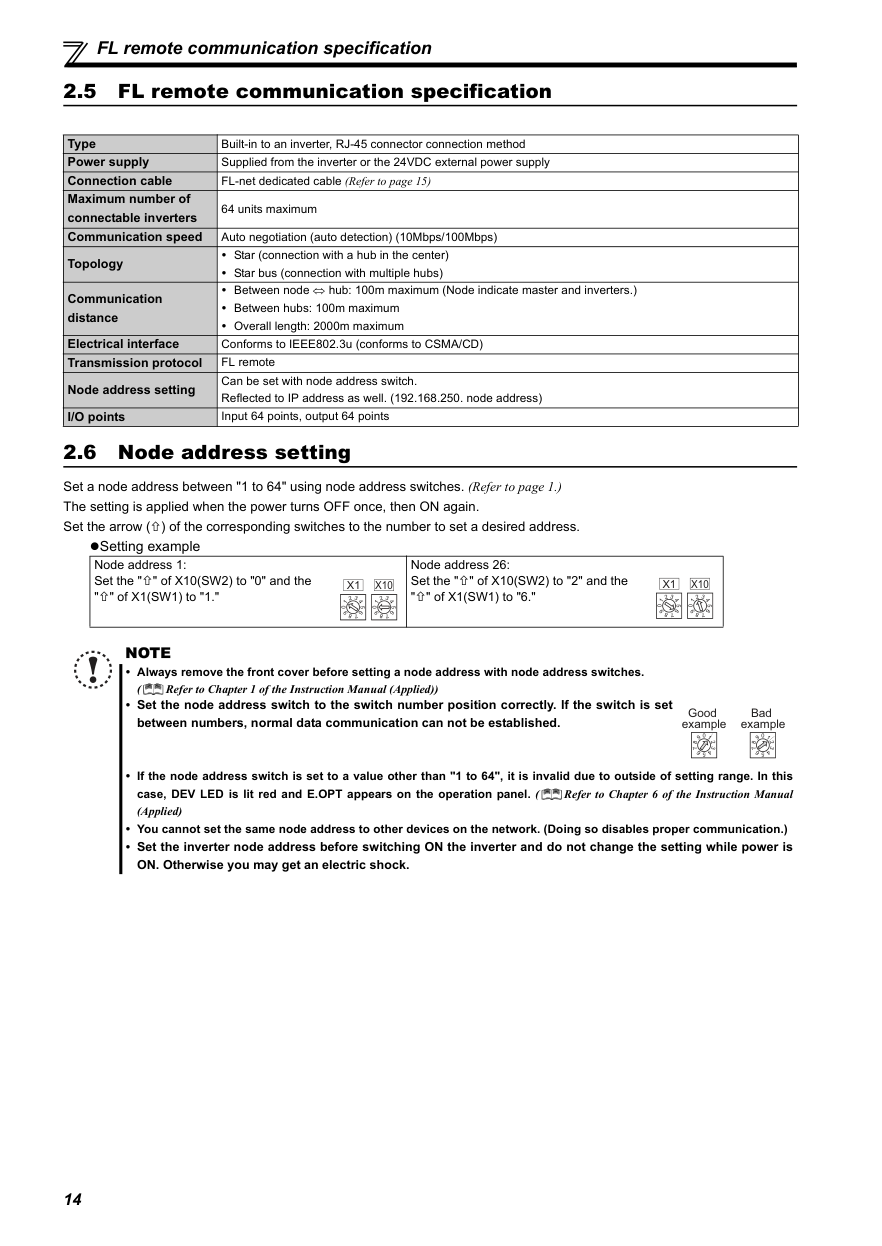

Page 17

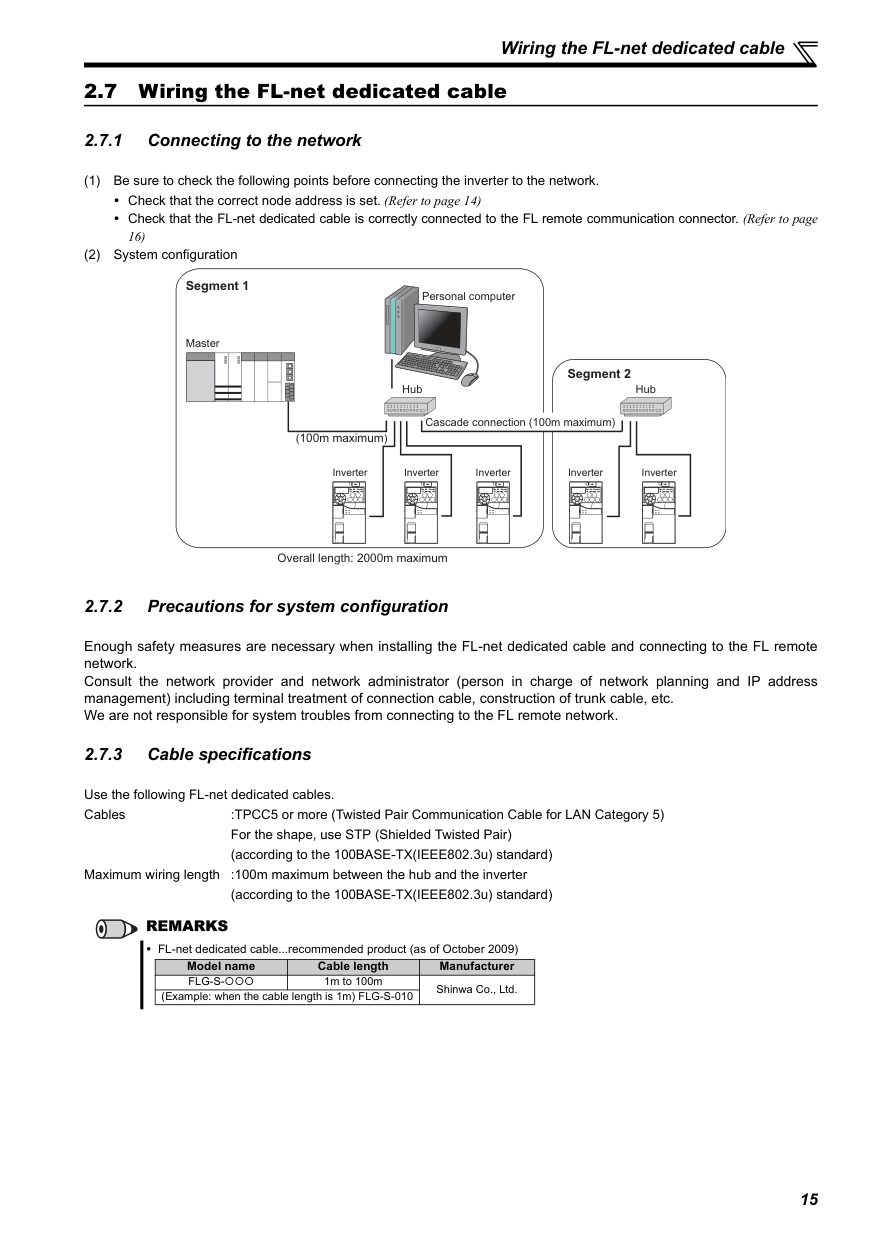

Page 18

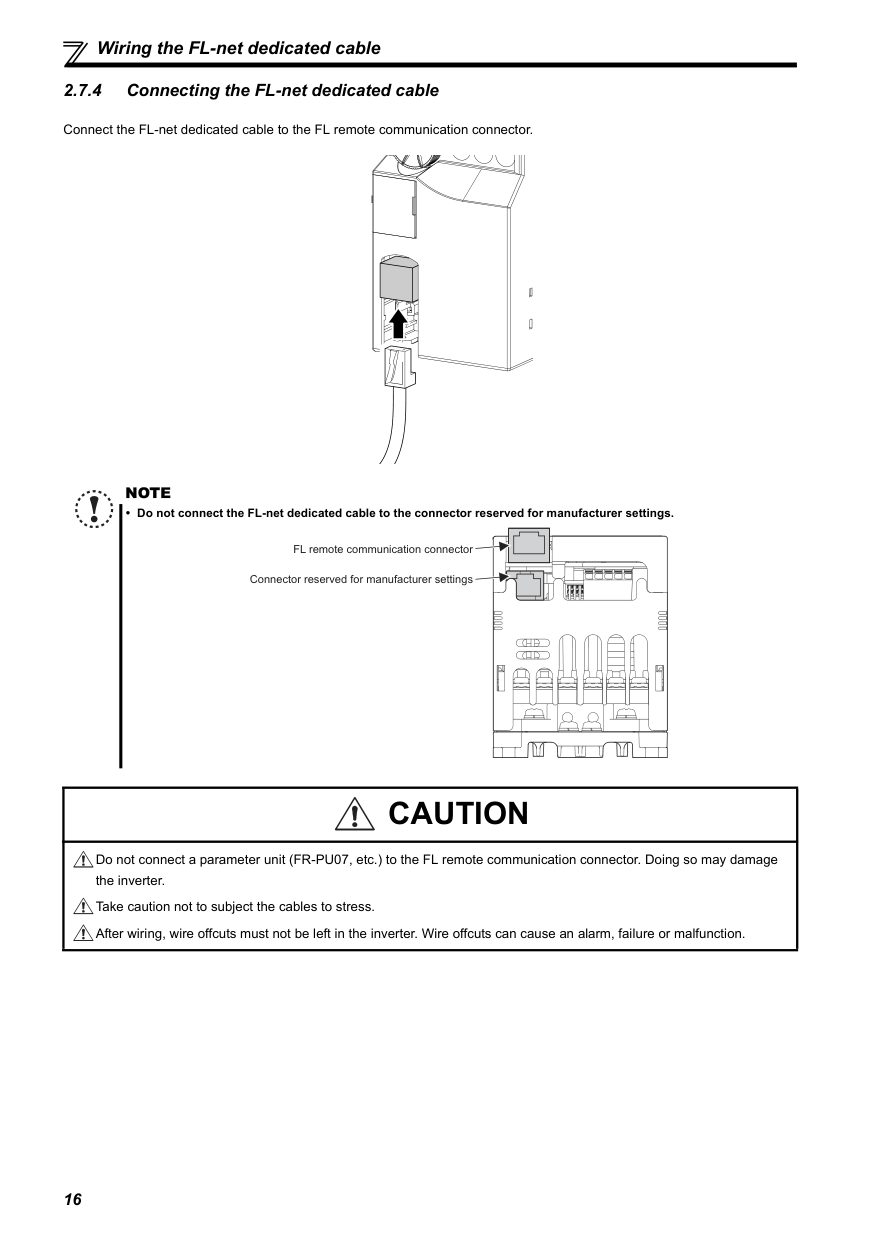

Page 19

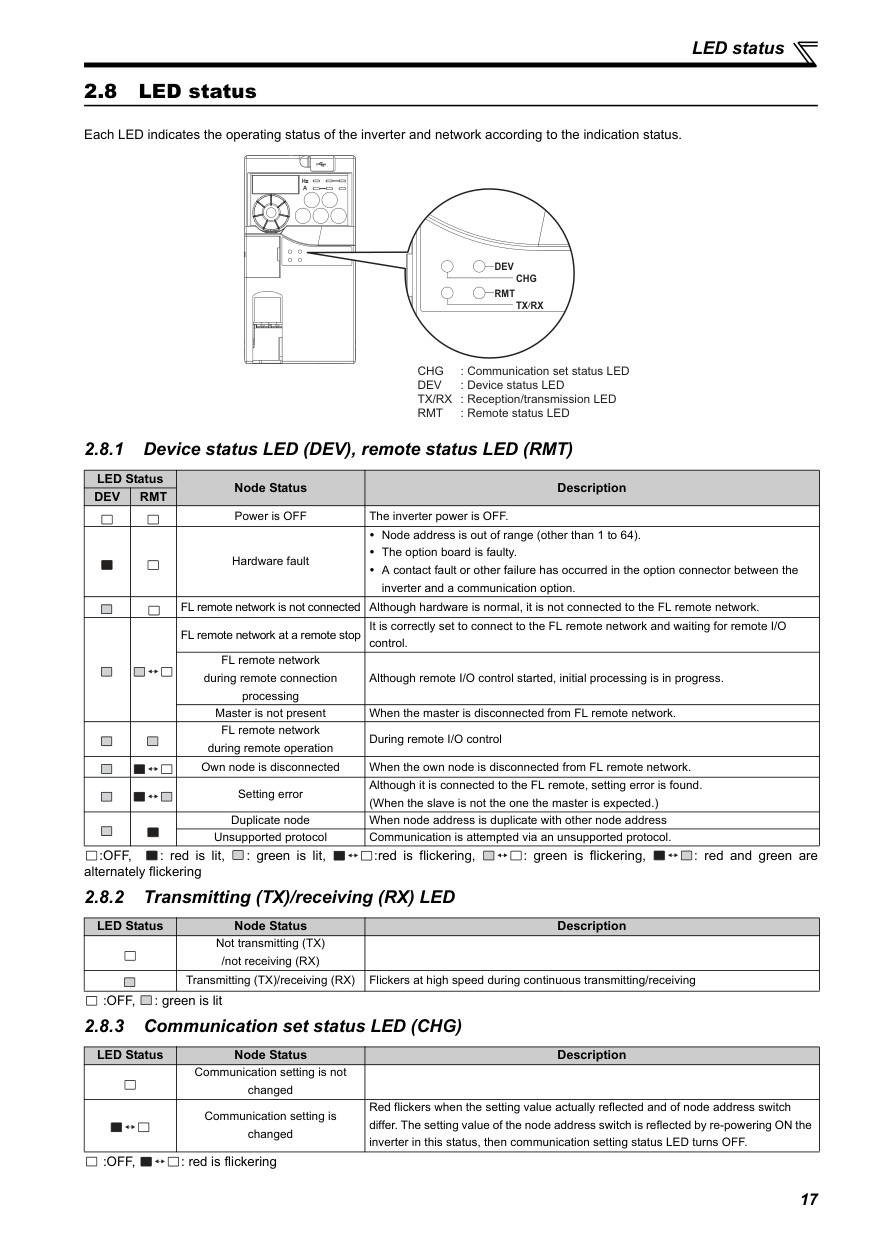

Page 20

Page 21

18

Precautions For Use Of The Inverter

3

Precautions For Use Of The Inverter

The FR-E700 series is a highly reliable product, but incorrect peripheral circuit making or operation/handling method may shorten the product life or damage the product. Before starting operation, always recheck the following items. (1) Use crimping terminals with insulation sleeve to wire the power supply and motor. (2) Application of power to the output terminals (U, V, W) of the inverter will damage the inverter. Never perform such wiring. (3) After wiring, wire offcuts must not be left in the inverter. Wire offcuts can cause an alarm, failure or malfunction. Always keep the inverter clean. When drilling mounting holes in an enclosure etc., take care not to allow chips and other foreign matter to enter the inverter. (4) Use cables of the size to make a voltage drop 2% or less. If the wiring distance is long between the inverter and motor, a main circuit cable voltage drop will cause the motor torque to decrease especially at the output of a low frequency. Refer to page 8 for the recommended wire sizes. (5) The overall wiring length should be 500m or less. Especially for long distance wiring, the fast-response current limit function may decrease or the equipment connected to the secondary side may malfunction or become faulty under the influence of a charging current due to the stray capacity of the wiring. Therefore, note the overall wiring length. (Refer to page 9) (6) Electromagnetic wave interference The input/output (main circuit) of the inverter includes high frequency components, which may interfere with the communication devices (such as AM radios) used near the inverter. In this case, install the FR-BIF optional capacitor type filter (for use in the input side only) or FR-BSF01 common mode filter to minimize interference. (7) Do not install a power factor correction capacitor, surge suppressor or capacitor type filter on the inverter output side. This will cause the inverter to trip or the capacitor and surge suppressor to be damaged. If any of the above devices are connected, immediately remove them. (8) For some short time after the power is switched OFF, a high voltage remains in the smoothing capacitor. Before wiring or inspecting inside the inverter, wait 10 minutes or longer after turning OFF the power supply, then confirm that the voltage across the main circuit terminals P/+ and N/- of the inverter is 30VDC or less using a tester, etc. The capacitor is charged with high voltage for some time after power OFF, and it is dangerous. (9) If "EV" is displayed on the operation panel, turn off the 24V external power supply before wiring and inspection. (10) A short circuit or earth (ground) fault on the inverter output side may damage the inverter modules. y Fully check the insulation resistance of the circuit prior to inverter operation since repeated short circuits caused by peripheral circuit inadequacy or an earth (ground) fault caused by wiring inadequacy or reduced motor insulation resistance may damage the inverter modules. y Fully check the to-earth (ground) insulation and phase to phase insulation of the inverter output side before power-on. Especially for an old motor or use in hostile atmosphere, securely check the motor insulation resistance etc. (11) Do not use the inverter input side magnetic contactor to start/stop the inverter. Since repeated inrush currents at power ON will shorten the life of the converter circuit (switching life is about 1,000,000 times.), frequent starts and stops of the MC must be avoided. Turn ON/OFF the inverter start controlling terminals (STF, STR) to run/stop the inverter. ( Refer to the Instruction Manual (Applied))

Page 22

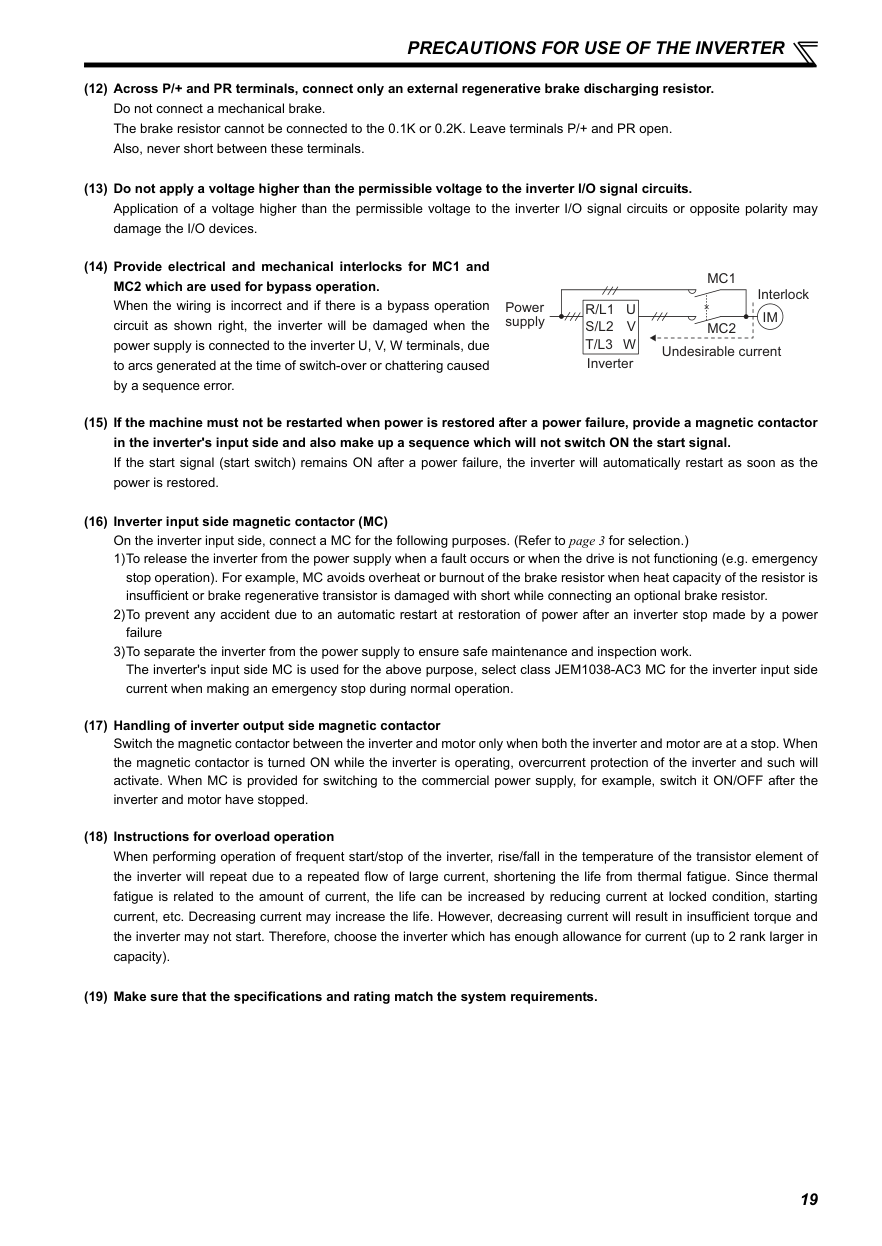

19

Precautions For Use Of The Inverter

(12) Across P/+ and PR terminals, connect only an external regenerative brake discharging resistor. Do not connect a mechanical brake. The brake resistor cannot be connected to the 0.1K or 0.2K. Leave terminals P/+ and PR open. Also, never short between these terminals. (13) Do not apply a voltage higher than the permissible voltage to the inverter I/O signal circuits. Application of a voltage higher than the permissible voltage to the inverter I/O signal circuits or opposite polarity may damage the I/O devices. (15) If the machine must not be restarted when power is restored after a power failure, provide a magnetic contactor in the inverter's input side and also make up a sequence which will not switch ON the start signal. If the start signal (start switch) remains ON after a power failure, the inverter will automatically restart as soon as the power is restored. (16) Inverter input side magnetic contactor (MC) On the inverter input side, connect a MC for the following purposes. (Refer to page 3 for selection.) 1)To release the inverter from the power supply when a fault occurs or when the drive is not functioning (e.g. emergency stop operation). For example, MC avoids overheat or burnout of the brake resistor when heat capacity of the resistor is insufficient or brake regenerative transistor is damaged with short while connecting an optional brake resistor. 2)To prevent any accident due to an automatic restart at restoration of power after an inverter stop made by a power failure 3)To separate the inverter from the power supply to ensure safe maintenance and inspection work. The inverter's input side MC is used for the above purpose, select class JEM1038-AC3 MC for the inverter input side current when making an emergency stop during normal operation. (17) Handling of inverter output side magnetic contactor Switch the magnetic contactor between the inverter and motor only when both the inverter and motor are at a stop. When the magnetic contactor is turned ON while the inverter is operating, overcurrent protection of the inverter and such will activate. When MC is provided for switching to the commercial power supply, for example, switch it ON/OFF after the inverter and motor have stopped. (18) Instructions for overload operation When performing operation of frequent start/stop of the inverter, rise/fall in the temperature of the transistor element of the inverter will repeat due to a repeated flow of large current, shortening the life from thermal fatigue. Since thermal fatigue is related to the amount of current, the life can be increased by reducing current at locked condition, starting current, etc. Decreasing current may increase the life. However, decreasing current will result in insufficient torque and the inverter may not start. Therefore, choose the inverter which has enough allowance for current (up to 2 rank larger in capacity). (19) Make sure that the specifications and rating match the system requirements. (14) Provide electrical and mechanical interlocks for MC1 and MC2 which are used for bypass operation. When the wiring is incorrect and if there is a bypass operation circuit as shown right, the inverter will be damaged when the power supply is connected to the inverter U, V, W terminals, due to arcs generated at the time of switch-over or chattering caused by a sequence error. Power supply Inverter Undesirable current

Mc2

Mc1

Interlock

U

V

W

R/L1

S/L2

T/L3

Im

Page 23

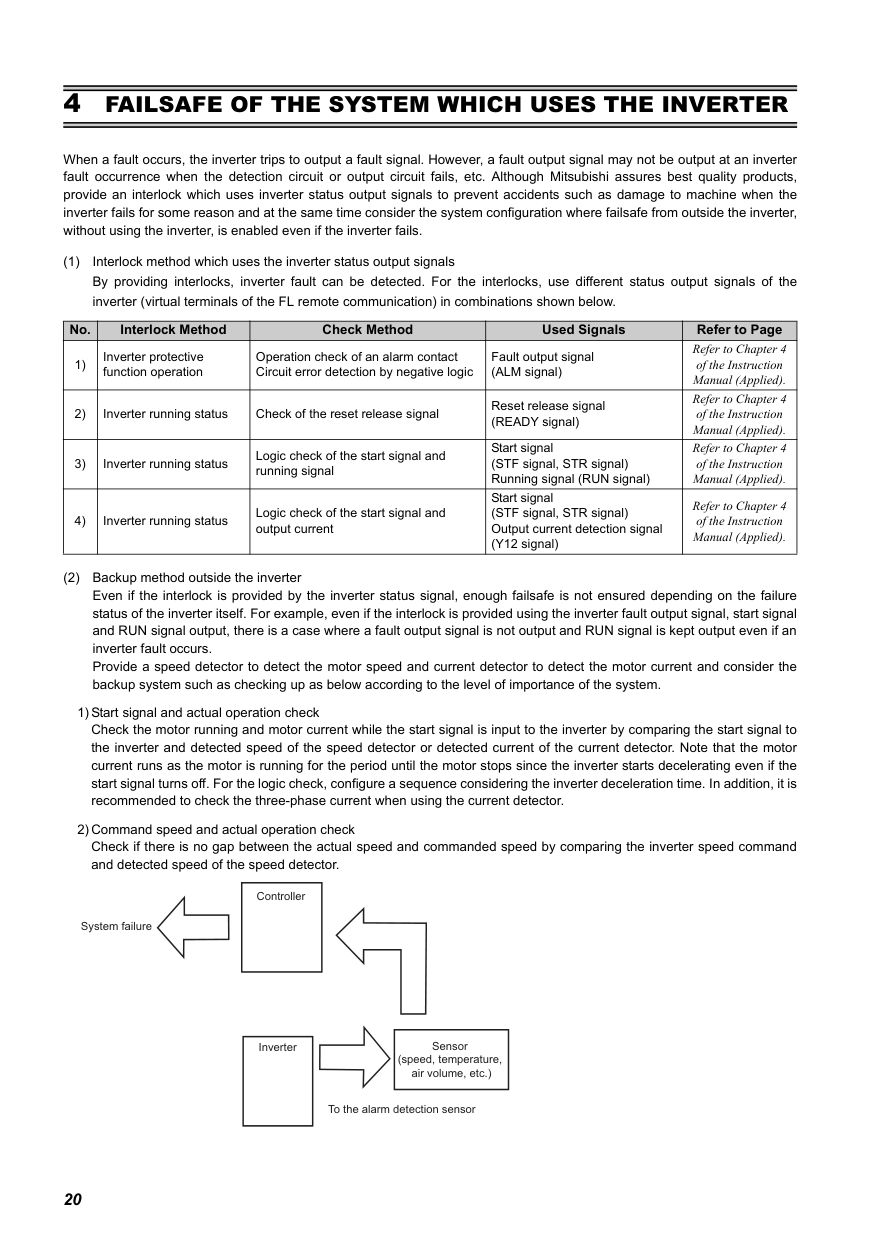

20

Failsafe Of The System Which Uses The Inverter

4

Failsafe Of The System Which Uses The Inverter

When a fault occurs, the inverter trips to output a fault signal. However, a fault output signal may not be output at an inverter fault occurrence when the detection circuit or output circuit fails, etc. Although Mitsubishi assures best quality products, provide an interlock which uses inverter status output signals to prevent accidents such as damage to machine when the inverter fails for some reason and at the same time consider the system configuration where failsafe from outside the inverter, without using the inverter, is enabled even if the inverter fails. (1) Interlock method which uses the inverter status output signals By providing interlocks, inverter fault can be detected. For the interlocks, use different status output signals of the inverter (virtual terminals of the FL remote communication) in combinations shown below. (2) Backup method outside the inverter Even if the interlock is provided by the inverter status signal, enough failsafe is not ensured depending on the failure status of the inverter itself. For example, even if the interlock is provided using the inverter fault output signal, start signal and RUN signal output, there is a case where a fault output signal is not output and RUN signal is kept output even if an inverter fault occurs. Provide a speed detector to detect the motor speed and current detector to detect the motor current and consider the backup system such as checking up as below according to the level of importance of the system. 1) Start signal and actual operation check Check the motor running and motor current while the start signal is input to the inverter by comparing the start signal to the inverter and detected speed of the speed detector or detected current of the current detector. Note that the motor current runs as the motor is running for the period until the motor stops since the inverter starts decelerating even if the start signal turns off. For the logic check, configure a sequence considering the inverter deceleration time. In addition, it is recommended to check the three-phase current when using the current detector. 2) Command speed and actual operation check Check if there is no gap between the actual speed and commanded speed by comparing the inverter speed command and detected speed of the speed detector. No. Interlock Method Check Method Used Signals Refer to Page 1) Inverter protective function operation Operation check of an alarm contact Circuit error detection by negative logic Fault output signal (ALM signal) Refer to Chapter 4 of the Instruction Manual (Applied). 2) Inverter running status Check of the reset release signal Reset release signal (READY signal) Refer to Chapter 4 of the Instruction Manual (Applied). 3) Inverter running status Logic check of the start signal and running signal Start signal (STF signal, STR signal) Running signal (RUN signal) Refer to Chapter 4 of the Instruction Manual (Applied). 4) Inverter running status Logic check of the start signal and output current Start signal (STF signal, STR signal) Output current detection signal (Y12 signal) Refer to Chapter 4 of the Instruction Manual (Applied). Inverter Controller System failure To the alarm detection sensor Sensor (speed, temperature, air volume, etc.)

Page 24

21

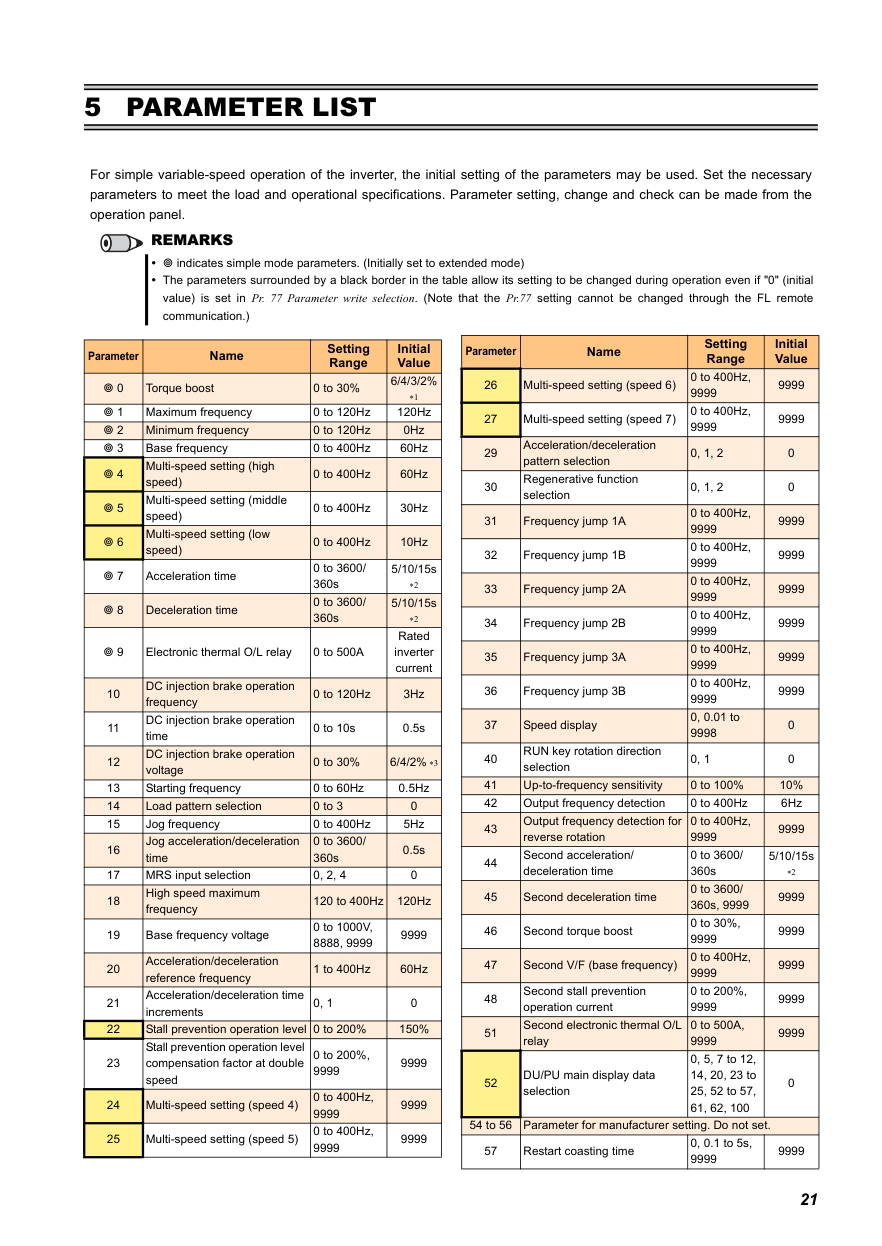

Parameter List

5

Parameter List

For simple variable-speed operation of the inverter, the initial setting of the parameters may be used. Set the necessary parameters to meet the load and operational specifications. Parameter setting, change and check can be made from the operation panel.

Remarks

y indicates simple mode parameters. (Initially set to extended mode) y The parameters surrounded by a black border in the table allow its setting to be changed during operation even if "0" (initial value) is set in Pr. 77 Parameter write selection. (Note that the Pr.77 setting cannot be changed through the FL remote communication.) Parameter Name Setting Range Initial Value 0 Torque boost 0 to 30% 6/4/3/2% ∗1 1 Maximum frequency 0 to 120Hz 120Hz 2 Minimum frequency 0 to 120Hz 0Hz 3 Base frequency 0 to 400Hz 60Hz 4 Multi-speed setting (high speed) 0 to 400Hz 60Hz 5 Multi-speed setting (middle speed) 0 to 400Hz 30Hz 6 Multi-speed setting (low speed) 0 to 400Hz 10Hz 7 Acceleration time 0 to 3600/ 360s 5/10/15s ∗2 8 Deceleration time 0 to 3600/ 360s 5/10/15s ∗2 9 Electronic thermal O/L relay 0 to 500A Rated inverter current 10 DC injection brake operation frequency 0 to 120Hz 3Hz 11 DC injection brake operation time 0 to 10s 0.5s 12 DC injection brake operation voltage 0 to 30% 6/4/2% ∗3 13 Starting frequency 0 to 60Hz 0.5Hz 14 Load pattern selection 0 to 3 0 15 Jog frequency 0 to 400Hz 5Hz 16 Jog acceleration/deceleration time 0 to 3600/ 360s 0.5s 17 MRS input selection 0, 2, 4 0 18 High speed maximum frequency 120 to 400Hz 120Hz 19 Base frequency voltage 0 to 1000V, 8888, 9999 9999 20 Acceleration/deceleration reference frequency 1 to 400Hz 60Hz 21 Acceleration/deceleration time increments 0, 1 0 22 Stall prevention operation level 0 to 200% 150% 23 Stall prevention operation level compensation factor at double speed 0 to 200%, 9999 9999 24 Multi-speed setting (speed 4) 0 to 400Hz, 9999 9999 25 Multi-speed setting (speed 5) 0 to 400Hz, 9999 9999 26 Multi-speed setting (speed 6) 0 to 400Hz, 9999 9999 27 Multi-speed setting (speed 7) 0 to 400Hz, 9999 9999 29 Acceleration/deceleration pattern selection 0, 1, 2 0 30 Regenerative function selection 0, 1, 2 0 31 Frequency jump 1A 0 to 400Hz, 9999 9999 32 Frequency jump 1B 0 to 400Hz, 9999 9999 33 Frequency jump 2A 0 to 400Hz, 9999 9999 34 Frequency jump 2B 0 to 400Hz, 9999 9999 35 Frequency jump 3A 0 to 400Hz, 9999 9999 36 Frequency jump 3B 0 to 400Hz, 9999 9999 37 Speed display 0, 0.01 to 9998 0 40 RUN key rotation direction selection 0, 1 0 41 Up-to-frequency sensitivity 0 to 100% 10% 42 Output frequency detection 0 to 400Hz 6Hz 43 Output frequency detection for reverse rotation 0 to 400Hz, 9999 9999 44 Second acceleration/ deceleration time 0 to 3600/ 360s 5/10/15s ∗2 45 Second deceleration time 0 to 3600/ 360s, 9999 9999 46 Second torque boost 0 to 30%, 9999 9999 47 Second V/F (base frequency) 0 to 400Hz, 9999 9999 48 Second stall prevention operation current 0 to 200%, 9999 9999 51 Second electronic thermal O/L relay 0 to 500A, 9999 9999 52 DU/PU main display data selection 0, 5, 7 to 12, 14, 20, 23 to 25, 52 to 57, 61, 62, 100 0 54 to 56 Parameter for manufacturer setting. Do not set. 57 Restart coasting time 0, 0.1 to 5s, 9999 9999 Parameter Name Setting Range Initial Value

Page 25

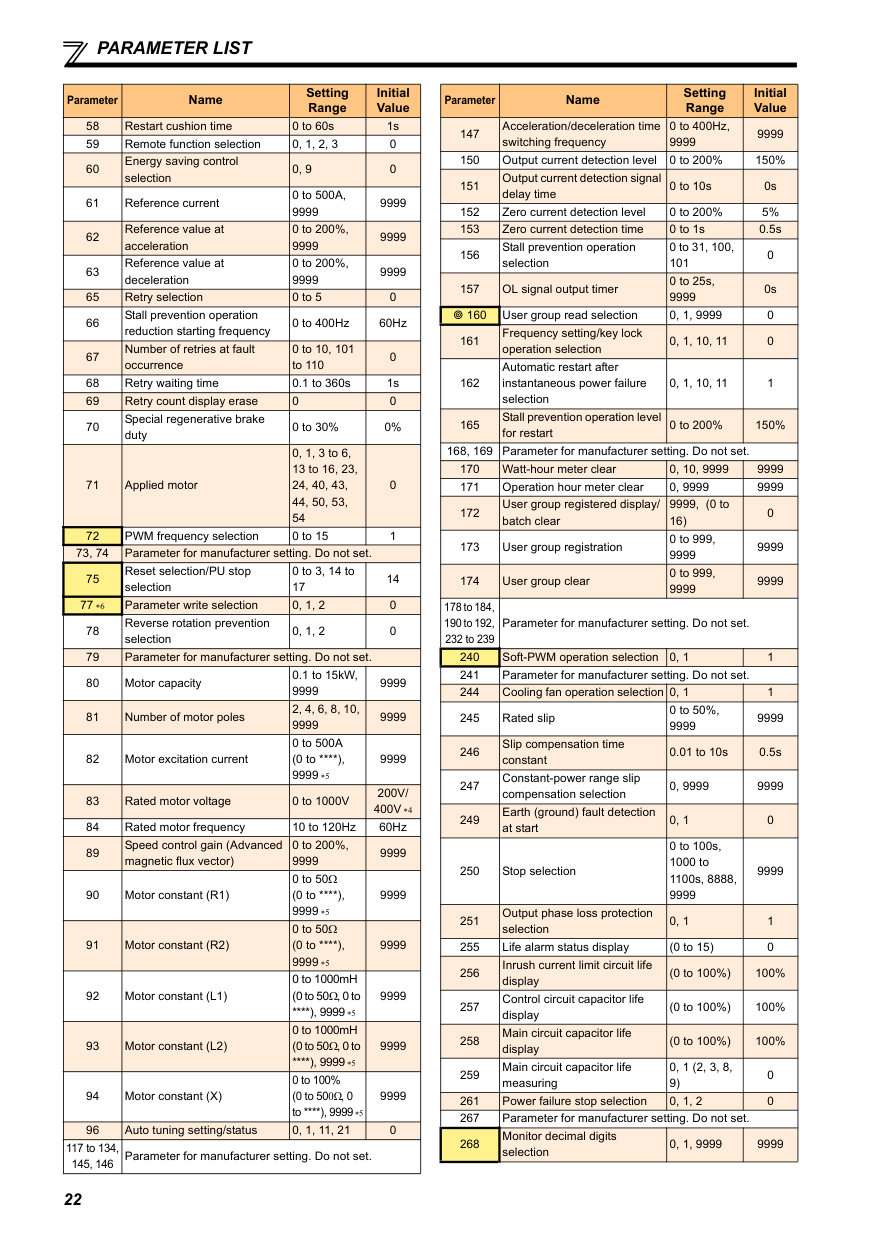

22

Parameter List

58 Restart cushion time 0 to 60s 1s 59 Remote function selection 0, 1, 2, 3 0 60 Energy saving control selection 0, 9 0 61 Reference current 0 to 500A, 9999 9999 62 Reference value at acceleration 0 to 200%, 9999 9999 63 Reference value at deceleration 0 to 200%, 9999 9999 65 Retry selection 0 to 5 0 66 Stall prevention operation reduction starting frequency 0 to 400Hz 60Hz 67 Number of retries at fault occurrence 0 to 10, 101 to 110 0 68 Retry waiting time 0.1 to 360s 1s 69 Retry count display erase 0 0 70 Special regenerative brake duty 0 to 30% 0% 71 Applied motor 0, 1, 3 to 6, 13 to 16, 23, 24, 40, 43, 44, 50, 53, 54 0 72 PWM frequency selection 0 to 15 1 73, 74 Parameter for manufacturer setting. Do not set. 75 Reset selection/PU stop selection 0 to 3, 14 to 17 14 77 ∗6 Parameter write selection 0, 1, 2 0 78 Reverse rotation prevention selection 0, 1, 2 0 79 Parameter for manufacturer setting. Do not set. 80 Motor capacity 0.1 to 15kW, 9999 9999 81 Number of motor poles 2, 4, 6, 8, 10, 9999 9999 82 Motor excitation current 0 to 500A (0 to ****), 9999 ∗5 9999 83 Rated motor voltage 0 to 1000V

200V/

400V ∗4

84 Rated motor frequency 10 to 120Hz 60Hz 89 Speed control gain (Advanced magnetic flux vector) 0 to 200%, 9999 9999 90 Motor constant (R1) 0 to 50Ω (0 to ****), 9999 ∗5 9999 91 Motor constant (R2) 0 to 50Ω (0 to ****), 9999 ∗5 9999 92 Motor constant (L1) 0 to 1000mH (0 to 50Ω, 0 to ****), 9999 ∗5 9999 93 Motor constant (L2) 0 to 1000mH (0 to 50Ω, 0 to ****), 9999 ∗5 9999 94 Motor constant (X) 0 to 100% (0 to 500Ω, 0 to ****), 9999 ∗5 9999 96 Auto tuning setting/status 0, 1, 11, 21 0 117 to 134, 145, 146 Parameter for manufacturer setting. Do not set. Parameter Name Setting Range Initial Value 147 Acceleration/deceleration time switching frequency 0 to 400Hz, 9999 9999 150 Output current detection level 0 to 200% 150% 151 Output current detection signal delay time 0 to 10s 0s 152 Zero current detection level 0 to 200% 5% 153 Zero current detection time 0 to 1s 0.5s 156 Stall prevention operation selection 0 to 31, 100, 101 0 157 OL signal output timer 0 to 25s, 9999 0s 160 User group read selection 0, 1, 9999 0 161 Frequency setting/key lock operation selection 0, 1, 10, 11 0 162 Automatic restart after instantaneous power failure selection 0, 1, 10, 11 1 165 Stall prevention operation level for restart 0 to 200% 150% 168, 169 Parameter for manufacturer setting. Do not set. 170 Watt-hour meter clear 0, 10, 9999 9999 171 Operation hour meter clear 0, 9999 9999 172 User group registered display/ batch clear 9999, (0 to 16) 0 173 User group registration 0 to 999, 9999 9999 174 User group clear 0 to 999, 9999 9999 178 to 184, 190 to 192, 232 to 239 Parameter for manufacturer setting. Do not set. 240 Soft-PWM operation selection 0, 1 1 241 Parameter for manufacturer setting. Do not set. 244 Cooling fan operation selection 0, 1 1 245 Rated slip 0 to 50%, 9999 9999 246 Slip compensation time constant 0.01 to 10s 0.5s 247 Constant-power range slip compensation selection 0, 9999 9999 249 Earth (ground) fault detection at start 0, 1 0 250 Stop selection 0 to 100s, 1000 to 1100s, 8888, 9999 9999 251 Output phase loss protection selection 0, 1 1 255 Life alarm status display (0 to 15) 0 256 Inrush current limit circuit life display (0 to 100%) 100% 257 Control circuit capacitor life display (0 to 100%) 100% 258 Main circuit capacitor life display (0 to 100%) 100% 259 Main circuit capacitor life measuring 0, 1 (2, 3, 8, 9) 0 261 Power failure stop selection 0, 1, 2 0 267 Parameter for manufacturer setting. Do not set. 268 Monitor decimal digits selection 0, 1, 9999 9999 Parameter Name Setting Range Initial Value

Page 26

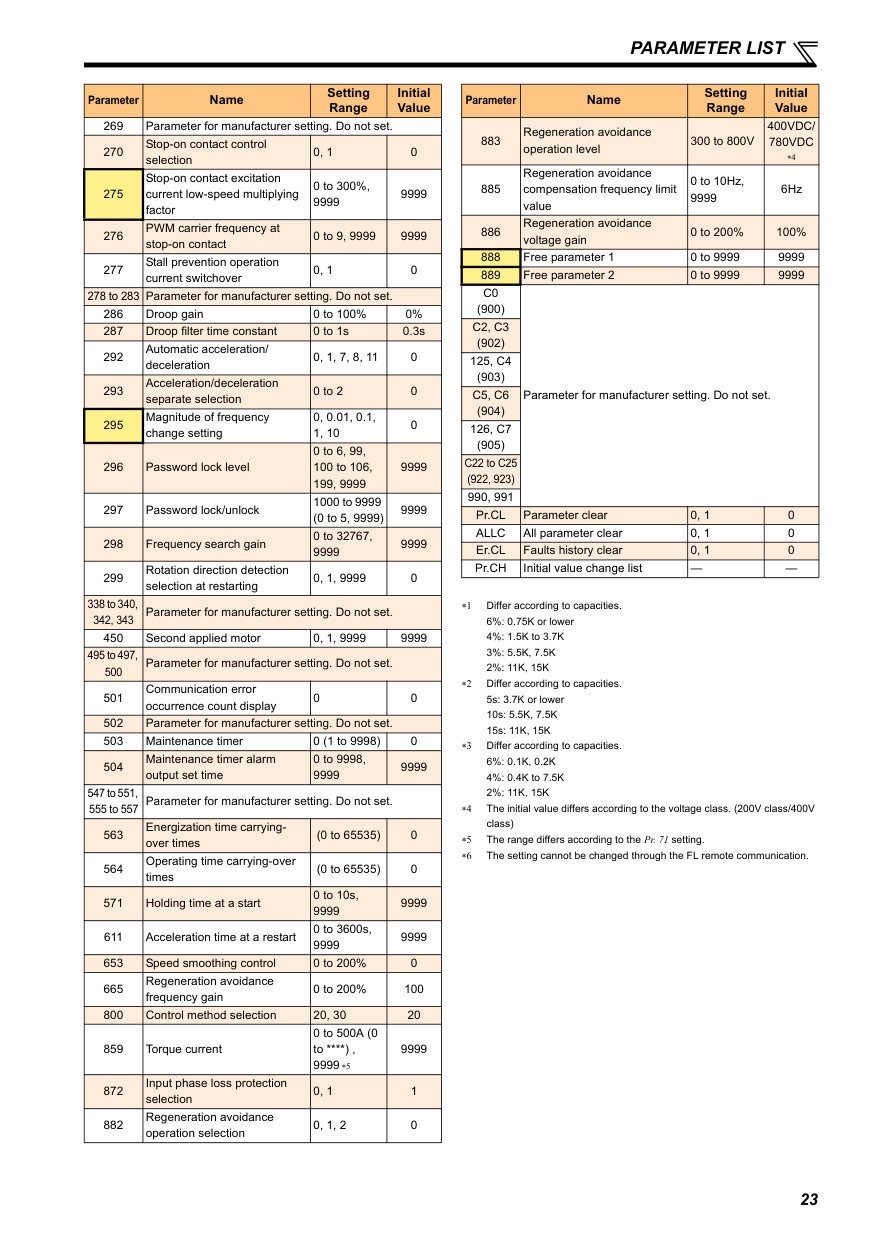

23

Parameter List

269 Parameter for manufacturer setting. Do not set. 270 Stop-on contact control selection 0, 1 0 275 Stop-on contact excitation current low-speed multiplying factor 0 to 300%, 9999 9999 276 PWM carrier frequency at stop-on contact 0 to 9, 9999 9999 277 Stall prevention operation current switchover 0, 1 0 278 to 283 Parameter for manufacturer setting. Do not set. 286 Droop gain 0 to 100% 0% 287 Droop filter time constant 0 to 1s 0.3s 292 Automatic acceleration/ deceleration 0, 1, 7, 8, 11 0 293 Acceleration/deceleration separate selection 0 to 2 0 295 Magnitude of frequency change setting 0, 0.01, 0.1, 1, 10 0 296 Password lock level 0 to 6, 99, 100 to 106, 199, 9999 9999 297 Password lock/unlock 1000 to 9999 (0 to 5, 9999) 9999 298 Frequency search gain 0 to 32767, 9999 9999 299 Rotation direction detection selection at restarting 0, 1, 9999 0 338 to 340, 342, 343 Parameter for manufacturer setting. Do not set. 450 Second applied motor 0, 1, 9999 9999 495 to 497, 500 Parameter for manufacturer setting. Do not set. 501 Communication error occurrence count display 0 0 502 Parameter for manufacturer setting. Do not set. 503 Maintenance timer 0 (1 to 9998) 0 504 Maintenance timer alarm output set time 0 to 9998, 9999 9999 547 to 551, 555 to 557 Parameter for manufacturer setting. Do not set. 563 Energization time carrying- over times (0 to 65535) 0 564 Operating time carrying-over times (0 to 65535) 0 571 Holding time at a start 0 to 10s, 9999 9999 611 Acceleration time at a restart 0 to 3600s, 9999 9999 653 Speed smoothing control 0 to 200% 0 665 Regeneration avoidance frequency gain 0 to 200% 100 800 Control method selection 20, 30 20 859 Torque current 0 to 500A (0 to ****) , 9999 ∗5 9999 872 Input phase loss protection selection 0, 1 1 882 Regeneration avoidance operation selection 0, 1, 2 0 Parameter Name Setting Range Initial Value 883 Regeneration avoidance operation level 300 to 800V

400Vdc/

780Vdc

∗4 885 Regeneration avoidance compensation frequency limit value 0 to 10Hz, 9999 6Hz 886 Regeneration avoidance voltage gain 0 to 200% 100% 888 Free parameter 1 0 to 9999 9999 889 Free parameter 2 0 to 9999 9999

C0

(900) Parameter for manufacturer setting. Do not set.

C2, C3

(902)

125, C4

(903)

C5, C6

(904)

126, C7

(905) C22 to C25 (922, 923) 990, 991 Pr.CL Parameter clear 0, 1 0

Allc

All parameter clear 0, 1 0 Er.CL Faults history clear 0, 1 0 Pr.CH Initial value change list — — ∗1 Differ according to capacities. 6%: 0.75K or lower 4%: 1.5K to 3.7K

3%: 5.5K, 7.5K

2%: 11K, 15K

∗2 Differ according to capacities. 5s: 3.7K or lower 10s: 5.5K, 7.5K 15s: 11K, 15K ∗3 Differ according to capacities.

6%: 0.1K, 0.2K

4%: 0.4K to 7.5K

2%: 11K, 15K

∗4 The initial value differs according to the voltage class. (200V class/400V class) ∗5 The range differs according to the Pr. 71 setting. ∗6 The setting cannot be changed through the FL remote communication. Parameter Name Setting Range Initial Value

Page 27

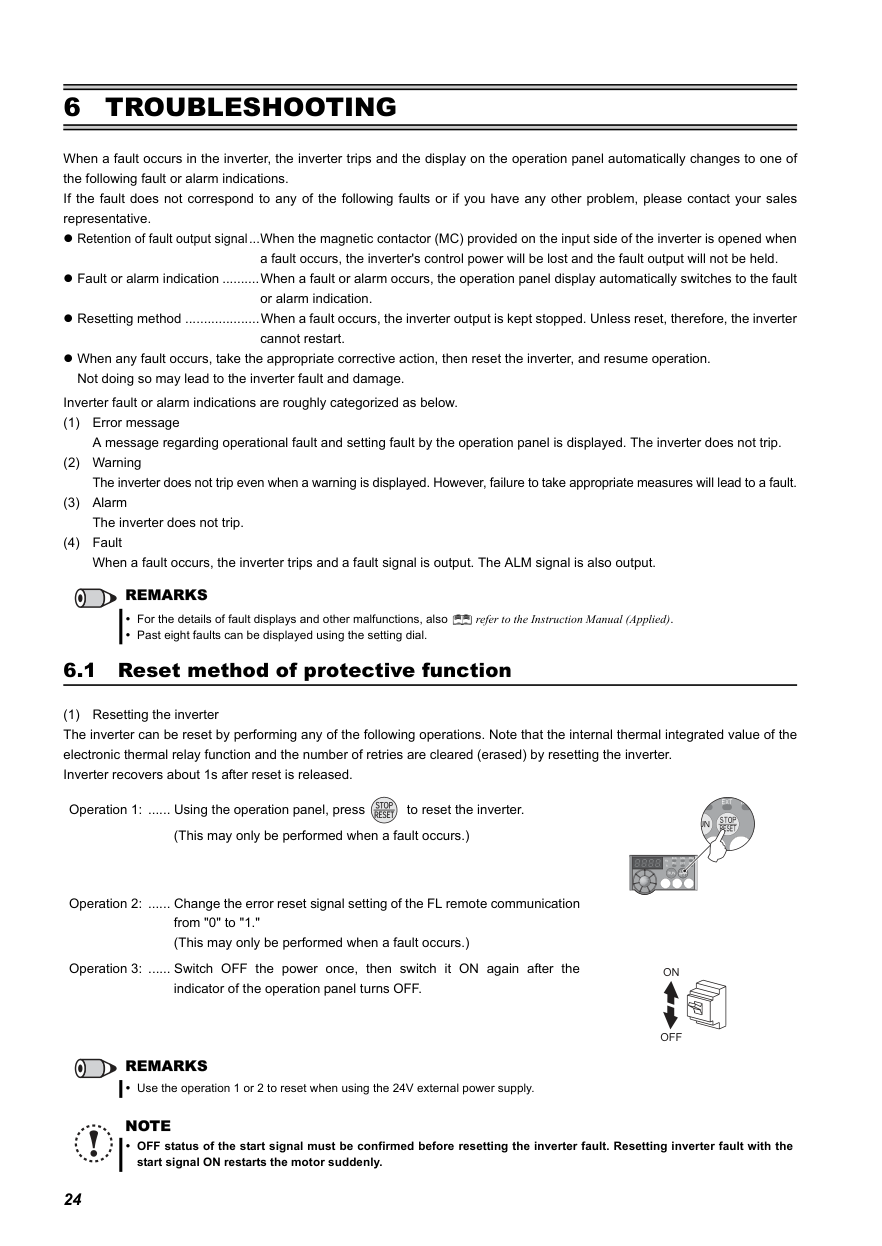

24 Reset method of protective function 6

Troubleshooting

When a fault occurs in the inverter, the inverter trips and the display on the operation panel automatically changes to one of the following fault or alarm indications. If the fault does not correspond to any of the following faults or if you have any other problem, please contact your sales representative. z Retention of fault output signal...When the magnetic contactor (MC) provided on the input side of the inverter is opened when a fault occurs, the inverter's control power will be lost and the fault output will not be held. z Fault or alarm indication ..........When a fault or alarm occurs, the operation panel display automatically switches to the fault or alarm indication. z Resetting method ....................When a fault occurs, the inverter output is kept stopped. Unless reset, therefore, the inverter cannot restart. z When any fault occurs, take the appropriate corrective action, then reset the inverter, and resume operation. Not doing so may lead to the inverter fault and damage. Inverter fault or alarm indications are roughly categorized as below. (1) Error message A message regarding operational fault and setting fault by the operation panel is displayed. The inverter does not trip. (2) Warning The inverter does not trip even when a warning is displayed. However, failure to take appropriate measures will lead to a fault. (3) Alarm The inverter does not trip. (4) Fault When a fault occurs, the inverter trips and a fault signal is output. The ALM signal is also output. 6.1 Reset method of protective function (1) Resetting the inverter The inverter can be reset by performing any of the following operations. Note that the internal thermal integrated value of the electronic thermal relay function and the number of retries are cleared (erased) by resetting the inverter. Inverter recovers about 1s after reset is released.

Remarks

y For the details of fault displays and other malfunctions, also refer to the Instruction Manual (Applied). y Past eight faults can be displayed using the setting dial. Operation 1: ...... Using the operation panel, press to reset the inverter. (This may only be performed when a fault occurs.) Operation 2: ...... Change the error reset signal setting of the FL remote communication from "0" to "1." (This may only be performed when a fault occurs.) Operation 3: ...... Switch OFF the power once, then switch it ON again after the indicator of the operation panel turns OFF.

Remarks

y Use the operation 1 or 2 to reset when using the 24V external power supply.

Note

y OFF status of the start signal must be confirmed before resetting the inverter fault. Resetting inverter fault with the start signal ON restarts the motor suddenly.

On

Off

Page 28

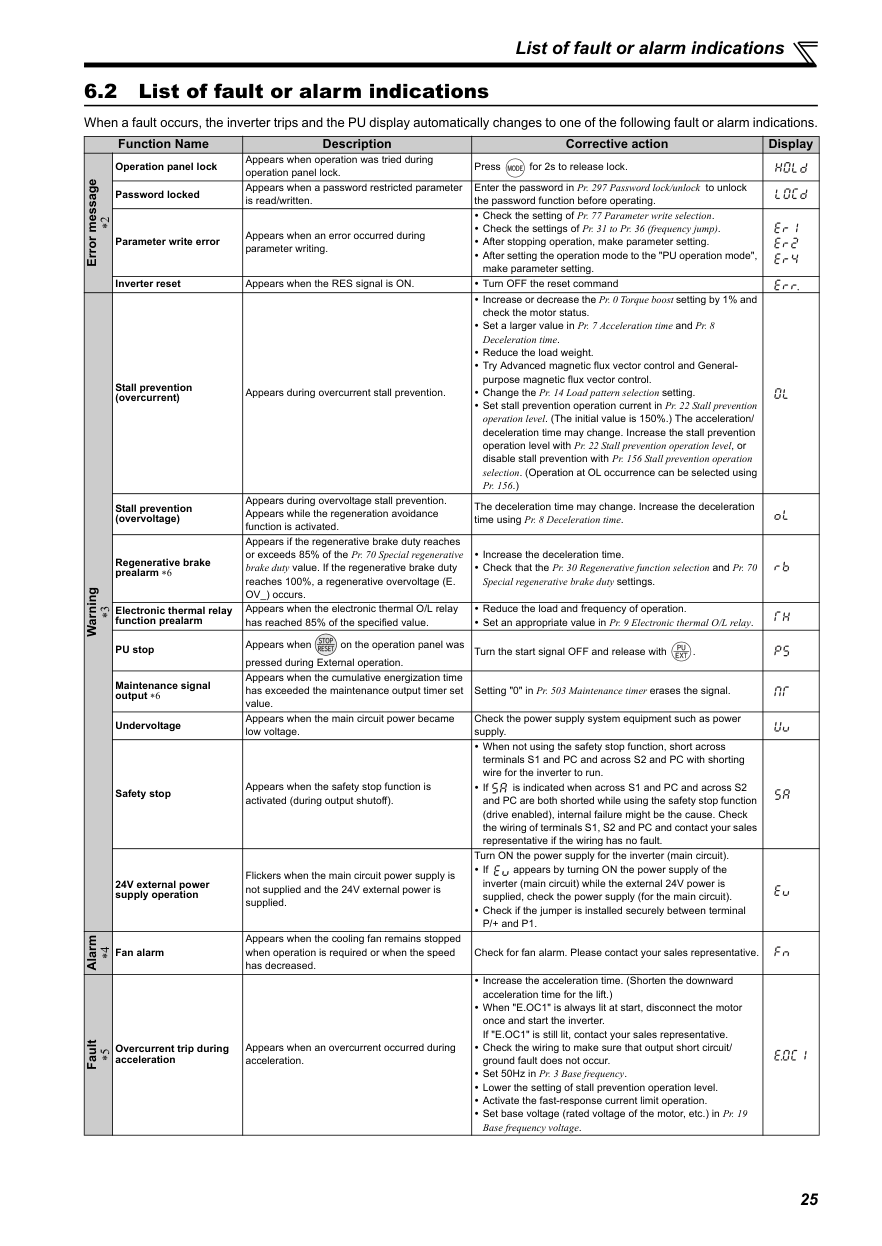

25 List of fault or alarm indications 6.2 List of fault or alarm indications When a fault occurs, the inverter trips and the PU display automatically changes to one of the following fault or alarm indications. Function Name Description Corrective action Display Error message ∗2 Operation panel lock Appears when operation was tried during operation panel lock. Press for 2s to release lock. Password locked Appears when a password restricted parameter is read/written. Enter the password in Pr. 297 Password lock/unlock to unlock the password function before operating. Parameter write error Appears when an error occurred during parameter writing. y Check the setting of Pr. 77 Parameter write selection. y Check the settings of Pr. 31 to Pr. 36 (frequency jump). y After stopping operation, make parameter setting. y After setting the operation mode to the "PU operation mode", make parameter setting. Inverter reset Appears when the RES signal is ON. y Turn OFF the reset command Warning ∗3 Stall prevention (overcurrent) Appears during overcurrent stall prevention. y Increase or decrease the Pr. 0 Torque boost setting by 1% and check the motor status. y Set a larger value in Pr. 7 Acceleration time and Pr. 8 Deceleration time. y Reduce the load weight. y Try Advanced magnetic flux vector control and General- purpose magnetic flux vector control. y Change the Pr. 14 Load pattern selection setting. y Set stall prevention operation current in Pr. 22 Stall prevention operation level. (The initial value is 150%.) The acceleration/ deceleration time may change. Increase the stall prevention operation level with Pr. 22 Stall prevention operation level, or disable stall prevention with Pr. 156 Stall prevention operation selection. (Operation at OL occurrence can be selected using Pr. 156.) Stall prevention (overvoltage) Appears during overvoltage stall prevention. Appears while the regeneration avoidance function is activated. The deceleration time may change. Increase the deceleration time using Pr. 8 Deceleration time. Regenerative brake prealarm ∗6 Appears if the regenerative brake duty reaches or exceeds 85% of the Pr. 70 Special regenerative brake duty value. If the regenerative brake duty reaches 100%, a regenerative overvoltage (E. OV_) occurs. y Increase the deceleration time. y Check that the Pr. 30 Regenerative function selection and Pr. 70 Special regenerative brake duty settings. Electronic thermal relay function prealarm Appears when the electronic thermal O/L relay has reached 85% of the specified value. y Reduce the load and frequency of operation. y Set an appropriate value in Pr. 9 Electronic thermal O/L relay. PU stop Appears when on the operation panel was pressed during External operation. Turn the start signal OFF and release with . Maintenance signal output ∗6 Appears when the cumulative energization time has exceeded the maintenance output timer set value. Setting "0" in Pr. 503 Maintenance timer erases the signal. Undervoltage Appears when the main circuit power became low voltage. Check the power supply system equipment such as power supply. Safety stop Appears when the safety stop function is activated (during output shutoff). y When not using the safety stop function, short across terminals S1 and PC and across S2 and PC with shorting wire for the inverter to run. y If is indicated when across S1 and PC and across S2 and PC are both shorted while using the safety stop function (drive enabled), internal failure might be the cause. Check the wiring of terminals S1, S2 and PC and contact your sales representative if the wiring has no fault. 24V external power supply operation Flickers when the main circuit power supply is not supplied and the 24V external power is supplied. Turn ON the power supply for the inverter (main circuit). y If appears by turning ON the power supply of the inverter (main circuit) while the external 24V power is supplied, check the power supply (for the main circuit). y Check if the jumper is installed securely between terminal P/+ and P1. Alarm ∗4 Fan alarm Appears when the cooling fan remains stopped when operation is required or when the speed has decreased. Check for fan alarm. Please contact your sales representative. Fault ∗5 Overcurrent trip during acceleration Appears when an overcurrent occurred during acceleration. y Increase the acceleration time. (Shorten the downward acceleration time for the lift.) y When "E.OC1" is always lit at start, disconnect the motor once and start the inverter. If "E.OC1" is still lit, contact your sales representative. y Check the wiring to make sure that output short circuit/ ground fault does not occur. y Set 50Hz in Pr. 3 Base frequency. y Lower the setting of stall prevention operation level. y Activate the fast-response current limit operation. y Set base voltage (rated voltage of the motor, etc.) in Pr. 19 Base frequency voltage.

Page 29

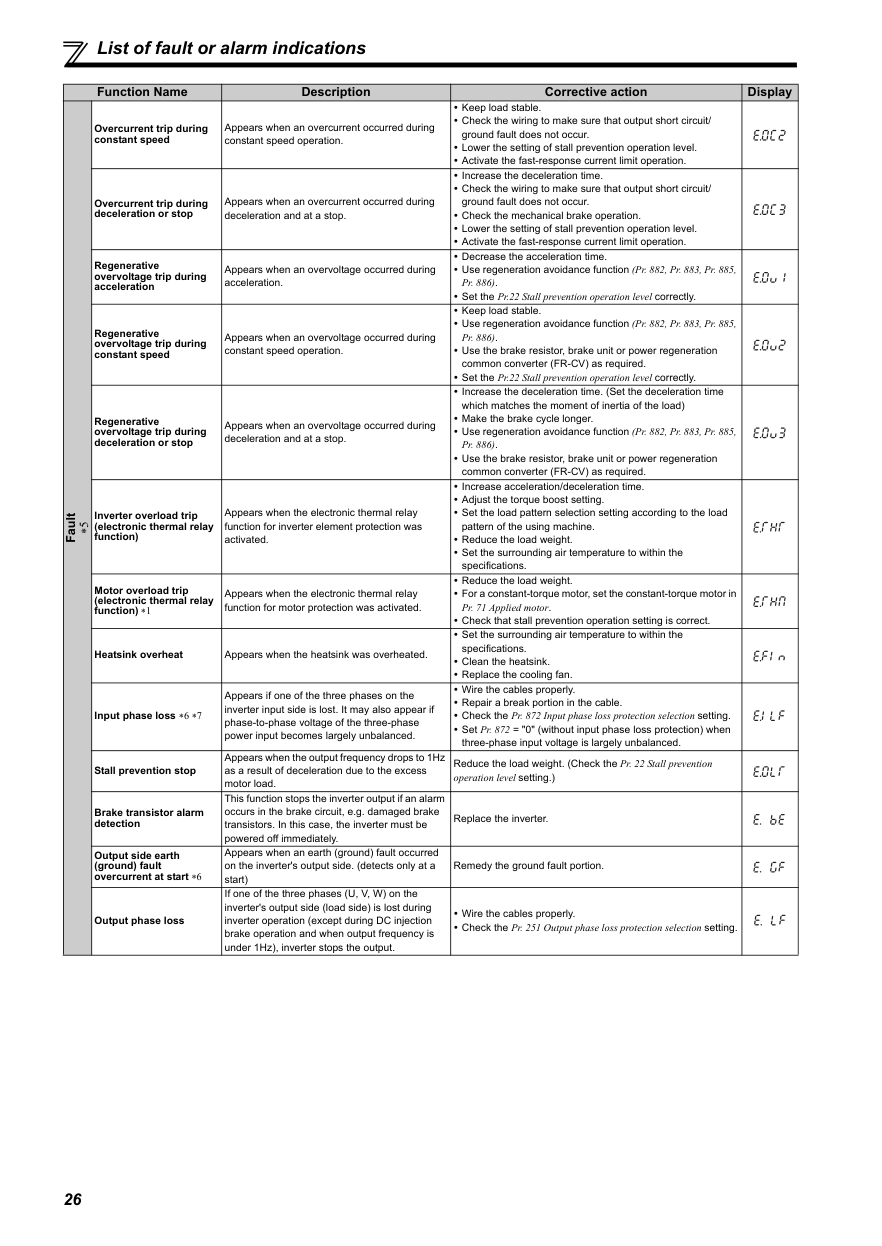

26 List of fault or alarm indications Fault ∗5 Overcurrent trip during constant speed Appears when an overcurrent occurred during constant speed operation. y Keep load stable. y Check the wiring to make sure that output short circuit/ ground fault does not occur. y Lower the setting of stall prevention operation level. y Activate the fast-response current limit operation. Overcurrent trip during deceleration or stop Appears when an overcurrent occurred during deceleration and at a stop. y Increase the deceleration time. y Check the wiring to make sure that output short circuit/ ground fault does not occur. y Check the mechanical brake operation. y Lower the setting of stall prevention operation level. y Activate the fast-response current limit operation. Regenerative overvoltage trip during acceleration Appears when an overvoltage occurred during acceleration. y Decrease the acceleration time. y Use regeneration avoidance function (Pr. 882, Pr. 883, Pr. 885, Pr. 886). y Set the Pr.22 Stall prevention operation level correctly. Regenerative overvoltage trip during constant speed Appears when an overvoltage occurred during constant speed operation. y Keep load stable. y Use regeneration avoidance function (Pr. 882, Pr. 883, Pr. 885, Pr. 886). y Use the brake resistor, brake unit or power regeneration common converter (FR-CV) as required. y Set the Pr.22 Stall prevention operation level correctly. Regenerative overvoltage trip during deceleration or stop Appears when an overvoltage occurred during deceleration and at a stop. y Increase the deceleration time. (Set the deceleration time which matches the moment of inertia of the load) y Make the brake cycle longer. y Use regeneration avoidance function (Pr. 882, Pr. 883, Pr. 885, Pr. 886). y Use the brake resistor, brake unit or power regeneration common converter (FR-CV) as required. Inverter overload trip (electronic thermal relay function) Appears when the electronic thermal relay function for inverter element protection was activated. y Increase acceleration/deceleration time. y Adjust the torque boost setting. y Set the load pattern selection setting according to the load pattern of the using machine. y Reduce the load weight. y Set the surrounding air temperature to within the specifications. Motor overload trip (electronic thermal relay function) ∗1 Appears when the electronic thermal relay function for motor protection was activated. y Reduce the load weight. y For a constant-torque motor, set the constant-torque motor in Pr. 71 Applied motor. y Check that stall prevention operation setting is correct. Heatsink overheat Appears when the heatsink was overheated. y Set the surrounding air temperature to within the specifications. y Clean the heatsink. y Replace the cooling fan. Input phase loss ∗6 ∗7 Appears if one of the three phases on the inverter input side is lost. It may also appear if phase-to-phase voltage of the three-phase power input becomes largely unbalanced. y Wire the cables properly. y Repair a break portion in the cable. y Check the Pr. 872 Input phase loss protection selection setting. y Set Pr. 872 = "0" (without input phase loss protection) when three-phase input voltage is largely unbalanced. Stall prevention stop Appears when the output frequency drops to 1Hz as a result of deceleration due to the excess motor load. Reduce the load weight. (Check the Pr. 22 Stall prevention operation level setting.) Brake transistor alarm detection This function stops the inverter output if an alarm occurs in the brake circuit, e.g. damaged brake transistors. In this case, the inverter must be powered off immediately. Replace the inverter. Output side earth (ground) fault overcurrent at start ∗6 Appears when an earth (ground) fault occurred on the inverter's output side. (detects only at a start) Remedy the ground fault portion. Output phase loss If one of the three phases (U, V, W) on the inverter's output side (load side) is lost during inverter operation (except during DC injection brake operation and when output frequency is under 1Hz), inverter stops the output. y Wire the cables properly. y Check the Pr. 251 Output phase loss protection selection setting. Function Name Description Corrective action Display

Page 30

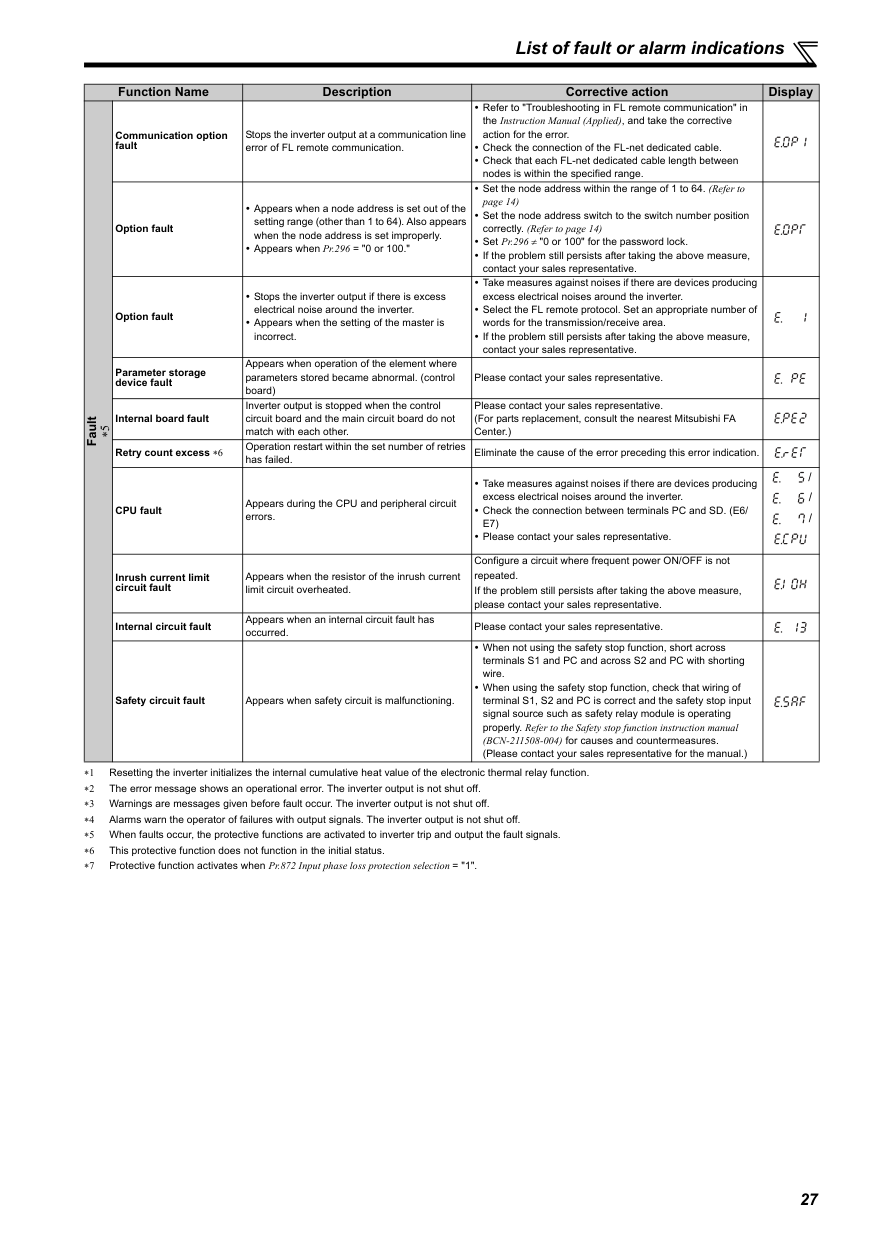

27 List of fault or alarm indications ∗1 Resetting the inverter initializes the internal cumulative heat value of the electronic thermal relay function. ∗2 The error message shows an operational error. The inverter output is not shut off. ∗3 Warnings are messages given before fault occur. The inverter output is not shut off. ∗4 Alarms warn the operator of failures with output signals. The inverter output is not shut off. ∗5 When faults occur, the protective functions are activated to inverter trip and output the fault signals. ∗6 This protective function does not function in the initial status. ∗7 Protective function activates when Pr.872 Input phase loss protection selection = "1". Fault ∗5 Communication option fault Stops the inverter output at a communication line error of FL remote communication. y Refer to "Troubleshooting in FL remote communication" in the Instruction Manual (Applied), and take the corrective action for the error. y Check the connection of the FL-net dedicated cable. y Check that each FL-net dedicated cable length between nodes is within the specified range. Option fault y Appears when a node address is set out of the setting range (other than 1 to 64). Also appears when the node address is set improperly. y Appears when Pr.296 = "0 or 100." y Set the node address within the range of 1 to 64. (Refer to page 14) y Set the node address switch to the switch number position correctly. (Refer to page 14) y Set Pr.296 ≠ "0 or 100" for the password lock. y If the problem still persists after taking the above measure, contact your sales representative. Option fault y Stops the inverter output if there is excess electrical noise around the inverter. y Appears when the setting of the master is incorrect. y Take measures against noises if there are devices producing excess electrical noises around the inverter. y Select the FL remote protocol. Set an appropriate number of words for the transmission/receive area. y If the problem still persists after taking the above measure, contact your sales representative. Parameter storage device fault Appears when operation of the element where parameters stored became abnormal. (control board) Please contact your sales representative. Internal board fault Inverter output is stopped when the control circuit board and the main circuit board do not match with each other. Please contact your sales representative. (For parts replacement, consult the nearest Mitsubishi FA Center.) Retry count excess ∗6 Operation restart within the set number of retries has failed. Eliminate the cause of the error preceding this error indication. CPU fault Appears during the CPU and peripheral circuit errors. y Take measures against noises if there are devices producing excess electrical noises around the inverter. y Check the connection between terminals PC and SD. (E6/

E7)

y Please contact your sales representative. / / / Inrush current limit circuit fault Appears when the resistor of the inrush current limit circuit overheated. Configure a circuit where frequent power ON/OFF is not repeated. If the problem still persists after taking the above measure, please contact your sales representative. Internal circuit fault Appears when an internal circuit fault has occurred. Please contact your sales representative. Safety circuit fault Appears when safety circuit is malfunctioning. y When not using the safety stop function, short across terminals S1 and PC and across S2 and PC with shorting wire. y When using the safety stop function, check that wiring of terminal S1, S2 and PC is correct and the safety stop input signal source such as safety relay module is operating properly. Refer to the Safety stop function instruction manual (BCN-211508-004) for causes and countermeasures. (Please contact your sales representative for the manual.) Function Name Description Corrective action Display

Page 31

Page 32

29 Inspection items 7

Precautions For Maintenance And Inspection

The inverter is a static unit mainly consisting of semiconductor devices. Daily inspection must be performed to prevent any fault from occurring due to the adverse effects of the operating environment, such as temperature, humidity, dust, dirt and vibration, changes in the parts with time, service life, and other factors. zPrecautions for maintenance and inspection For some short time after the power is switched OFF, a high voltage remains in the smoothing capacitor. When accessing the inverter for inspection, wait for at least 10 minutes after the power supply has been switched OFF, and then make sure that the voltage across the main circuit terminals P/+ and N/- of the inverter is not more than 30VDC using a tester, etc. If "EV" is displayed on the operation panel, turn off the 24V external power supply before inspection. 7.1 Inspection items ∗1 It is recommended to install a device to monitor voltage for checking the power supply voltage to the inverter. ∗2 One to two years of periodic inspection cycle is recommended. However, it differs according to the installation environment. Consult us for periodic inspection.

Remarks

y For the details of fault displays and other malfunctions, also refer to the Instruction Manual (Applied). Area of Inspection Inspection Item Description Interval Corrective Action at Alarm Occurrence Customer's Check Daily Periodic ∗2 General Surrounding environment Check the surrounding air temperature, humidity, dirt, corrosive gas, oil mist, etc. { Improve environment Overall unit Check for unusual vibration and noise. { Check alarm location and retighten Power supply voltage Check that the main circuit voltages are normal.∗1 { Inspect the power supply Main circuit General (1) Check with megger (across main circuit terminals and earth (ground) terminal). { Contact the manufacturer (2) Check for loose screws and bolts. { Retighten (3) Check for overheat traces on the parts. { Contact the manufacturer (4) Check for stain. { Clean Conductors, cables (1) Check conductors for distortion. (2) Check cable sheaths for breakage and deterioration (crack, discoloration, etc.). { Contact the manufacturer { Contact the manufacturer Terminal block Check for damage. { Stop the device and contact the manufacturer. Smoothing aluminum electrolytic capacitor (1) Check for liquid leakage. { Contact the manufacturer (2) Check for safety valve projection and bulge. { Contact the manufacturer (3) Visual check and judge by the life check of the main circuit capacitor ( Refer to Chapter 7 of the Instruction Manual (Applied)) { Relay Check that the operation is normal and no chatter is heard. { Contact the manufacturer Control circuit, Protective circuit Operation check (1) Check that the output voltages across phases with the inverter operated alone is balanced. { Contact the manufacturer (2) Check that no fault is found in protective and display circuits in a sequence protective operation test. { Contact the manufacturer Parts check Overall (1) Check for unusual odor and discoloration. { Stop the device and contact the manufacturer. (2) Check for serious rust development. { Contact the manufacturer Aluminum electrolytic capacitor (1) Check for liquid leakage in a capacitor and deformation trance. { Contact the manufacturer (2) Visual check and judge by the life check of the main circuit capacitor ( Refer to Chapter 7 of the Instruction Manual (Applied)) { Cooling system Cooling fan (1) Check for unusual vibration and noise. { Replace the fan (2) Check for loose screws and bolts. { Fix with the fan cover fixing screws (3) Check for stain. { Clean Heatsink (1) Check for clogging. { Clean (2) Check for stain. { Clean Display Indication (1) Check that display is normal. { Contact the manufacturer (2) Check for stain. { Clean Meter Check that reading is normal. { Stop the device and contact the manufacturer. Load motor Operation check Check for vibration and abnormal increase in operation noise. { Stop the device and contact the manufacturer.

Page 33

Page 34

31 Rating 8

Specifications

8.1 Rating z Three-phase 200V power supply z Three-phase 400V power supply ∗1 The applicable motor capacity indicated is the maximum capacity applicable for use of the Mitsubishi 4-pole standard motor. ∗2 The rated output capacity indicated assumes that the output voltage is 230V for three-phase 200V class and 440V for three-phase 400V class. ∗3 The % value of the overload current rating indicated is the ratio of the overload current to the inverter's rated output current. For repeated duty, allow time for the inverter and motor to return to or below the temperatures under 100% load. ∗4 The maximum output voltage does not exceed the power supply voltage. The maximum output voltage can be changed within the setting range. However, the pulse voltage value of the inverter output side voltage remains unchanged at about that of the power supply. ∗5 The braking torque indicated is a short-duration average torque (which varies with motor loss) when the motor alone is decelerated from 60Hz in the shortest time and is not a continuous regenerative torque. When the motor is decelerated from the frequency higher than the base frequency, the average deceleration torque will reduce. Since the inverter does not contain a brake resistor, use the optional brake resistor when regenerative energy is large. A brake unit (FR-BU2) may also be used. (Option brake resistor cannot be used for 0.1K and 0.2K.) ∗6 The power supply capacity varies with the value of the power supply side inverter impedance (including those of the input reactor and cables). ∗7 Setting 2kHz or more in Pr. 72 PWM frequency selection to perform low acoustic noise operation in the surrounding air temperature exceeding 40°C, the rated output current is the value in parenthesis. ∗8 y Connect DC power supply to terminal P/+ and N/-. Connect the plus side of the power supply to terminal P/+ and minus side to terminal N/-. y Since the voltage between P/+ and N/- may increase due to the regeneration energy from the motor and exceeds 415V temporarily, select the DC power supply which can withstand the voltage/energy during regeneration. If using the power supply which can not withstand voltage/energy during regeneration, insert diodes in series for reverse current prevention. y Although the FR-E700 series has the built-in inrush current limit circuit, select the DC power supply considering the inrush current at powering ON as the inrush current four times of the rated inverter flows at powering ON. y Since the power supply capacity depends on the output impedance of the power, select the power supply capacity which has enough allowance according to the AC power supply system capacity. Model FR-E720-KNF 0.1 0.2 0.4 0.75 1.5 2.2 3.7 5.5 7.5 11 15 Applicable motor capacity (kW) ∗1 0.1 0.2 0.4 0.75 1.5 2.2 3.7 5.5 7.5 11 15 Output Rated capacity (kVA) ∗2 0.3 0.6 1.2 2.0 3.2 4.4 7.0 9.5 13.1 18.7 23.9 Rated current (A) ∗7 0.8 (0.8) 1.5 (1.4) 3 (2.5) 5 (4.1) 8 (7) 11 (10) 17.5 (16.5) 24 (23) 33 (31) 47 (44) 60 (57) Overload current rating ∗3 150% 60s, 200% 3s (inverse-time characteristics) Rated voltage ∗4 Three-phase 200 to 240V Regenerative braking torque ∗5 150% 100% 50% 20% Power supply Rated input AC (DC) voltage/frequency Three-phase 200 to 240V 50Hz/60Hz (283 to 339VDC ∗8) Permissible AC (DC) voltage fluctuation 170 to 264V 50Hz/60Hz (240 to 373VDC ∗8) Permissible frequency fluctuation ±5% Power supply capacity (kVA) ∗6 0.4 0.8 1.5 2.5 4.5 5.5 9 12 17 20 28 Protective structure (JEM1030) Open type (IP00) Cooling system Self-cooling Forced air cooling Approximate mass (kg) 0.5 0.5 0.7 1.0 1.4 1.4 1.7 4.3 4.3 6.5 6.5 Model FR-E740-KNF 0.4 0.75 1.5 2.2 3.7 5.5 7.5 11 15 Applicable motor capacity (kW)∗1 0.4 0.75 1.5 2.2 3.7 5.5 7.5 11 15 Output Rated capacity (kVA)∗2 1.2 2.0 3.0 4.6 7.2 9.1 13.0 17.5 23.0 Rated current (A)∗7 1.6 (1.4) 2.6 (2.2) 4.0 (3.8) 6.0 (5.4) 9.5 (8.7) 12 17 23 30 Overload current rating∗3 150% 60s, 200% 3s (inverse-time characteristics) Rated voltage∗4 Three-phase 380 to 480V Regenerative braking torque ∗5 100% 50% 20% Power supply Rated input voltage/frequency Three-phase 380 to 480V 50Hz/60Hz Permissible AC voltage fluctuation 325 to 528V 50Hz/60Hz Permissible frequency fluctuation ±5% Power supply capacity (kVA)∗6 1.5 2.5 4.5 5.5 9.5 12 17 20 28 Protective structure (JEM1030) Open type (IP00) Cooling system Self-cooling Forced air cooling Approximate mass (kg) 1.4 1.4 1.9 1.9 1.9 3.2 3.2 6.0 6.0 2

Page 35

Page 36

Page 37

Page 38

35 (2) Low Voltage Directive We have self-confirmed our inverters as products compliant to the Low Voltage Directive (Conforming standard EN 61800- 5-1) and place the CE mark on the inverters. Outline of instructions ∗Do not use an earth leakage circuit breaker as an electric shock protector without connecting the equipment to the earth. Connect the equipment to the earth securely. ∗Wire the earth (ground) terminal independently. (Do not connect two or more cables to one terminal.) ∗Use the cable sizes on page 8 under the following conditions. ySurrounding air temperature: 40°C maximum If conditions are different from above, select appropriate wire according to EN60204 ANNEX C TABLE 5. ∗Use a tinned (plating should not include zinc) crimping terminal to connect the earth cable. When tightening the screw, be careful not to damage the threads. For use as a product compliant with the Low Voltage Directive, use PVC cable on page 8. ∗Use the moulded case circuit breaker and magnetic contactor which conform to the EN or IEC Standard. ∗When using an earth leakage circuit breaker, use a residual current operated protective device (RCD) of type B (breaker which can detect both AC and DC). If not, provide double or reinforced insulation between the inverter and other equipment, or put a transformer between the main power supply and inverter. ∗Use the inverter under the conditions of overvoltage category II (usable regardless of the earth (ground) condition of the power supply), overvoltage category III (usable with the earthed-neutral system power supply, 400V class only) specified in IEC664. yTo use the inverter under the conditions of pollution degree 3, install it in the enclosure of IP54 or higher. yTo use the inverter outside of an enclosure in the environment of pollution degree 2, fix a fan cover with fan cover fixing screws enclosed. Note, the protection structure of the inverter units is considered to be an IP00. ∗On the input and output of the inverter, use cables of the type and size set forth in EN60204 Appendix C. ∗Control circuit terminals on page 5 are safely isolated from the main circuit. ∗Environment 3.7K or lower Example for FR-E740-3.7KNF 5.5K or higher Example for FR-E740-5.5KNF Running In Storage During Transportation Surrounding Air Temperature -10°C to +50°C -20°C to +65°C -20°C to +65°C Humidity 90% RH or less 90% RH or less 90% RH or less Maximum Altitude 1000m 1000m 10000m Details are given in the technical information "Low Voltage Directive Conformance Guide" (BCN-A21041-203). Please contact your sales representative. Fan cover fixing screw Fan connection connector Fan Fan cover Fan connection connector Fan Fan cover Fan cover fixing screws

Page 39

36 ∗Select a UL and cUL certified fuse with Class T fuse equivalent cut-off speed or faster with the appropriate rating for branch circuit protection, or a UL489 molded case circuit breaker (MCCB) in accordance with the table below. ∗Maximum allowable rating by US National Electrical Code. Exact size must be chosen for each installation. ∗When using the electronic thermal relay function as motor overload protection, set the rated motor current to Pr. 9 Electronic thermal O/L relay. ∗Short circuit current ratings y200V class Suitable For Use in A Circuit Capable of Delivering Not More Than 5 kA rms Symmetrical Amperes, 264 V Maximum. y400V class Suitable For Use in A Circuit Capable of Delivering Not More Than 5 kA rms Symmetrical Amperes, 528 V Maximum.

Fr-E720-Knf

0.1 0.2 0.4 0.75 1.5 2.2 3.7 5.5 7.5 11 15 Rated fuse voltage(V) 240V or more Fuse Maximum allowable rating

(A)∗

Without power factor improving reactor 15 15 15 20 30 40 60 70 80 150 175 With power factor improving reactor 15 15 15 20 20 30 50 60 70 125 150 Molded case circuit breaker (MCCB) Maximum allowable rating (A)* 15 15 15 15 20 25 40 60 80 110 150

Fr-E740-Knf

0.4 0.75 1.5 2.2 3.7 5.5 7.5 11 15 Rated fuse voltage(V) 480V or more Fuse Maximum allowable rating

(A)∗

Without power factor improving reactor 6 10 15 20 30 40 70 80 90 With power factor improving reactor 6 10 10 15 25 35 60 70 90 Molded case circuit breaker (MCCB) Maximum allowable rating (A)* 15 15 15 15 20 30 40 50 70 This function detects the overload (overheat) of the motor, stops the operation of the inverter's output transistor, and stops the output. (The operation characteristic is shown on the left) When using the Mitsubishi constant-torque motor 1) Set "1" or any of "13" to "16", "50", "53", "54" in Pr. 71. (This provides a 100% continuous torque characteristic in the low-speed range.) 2) Set the rated current of the motor in Pr. 9. ∗1 When 50% of the inverter rated output current (current value) is set in Pr. 9 ∗2 The % value denotes the percentage to the inverter rated output current. It is not the percentage to the motor rated current. ∗3 When you set the electronic thermal relay function dedicated to the Mitsubishi constant- torque motor, this characteristic curve applies to operation at 6Hz or higher. Note ⋅Protective function by electronic thermal relay function is reset by inverter power reset and reset signal input. Avoid unnecessary reset and power-OFF. ⋅When multiple motors are operated by a single inverter, protection cannot be provided by the electronic thermal relay function. Install an external thermal relay to each motor. ⋅When the difference between the inverter and motor capacities is large and the setting is small, the protective characteristics of the electronic thermal relay function will be deteriorated. In this case, use an external thermal relay. ⋅A special motor cannot be protected by the electronic thermal relay function. Use the external thermal relay. ⋅Electronic thermal relay may not function when 5% or less of inverter rated current is set to electronic thermal relay setting. Operation range Range on the right of characteristic curve Non-operation range Range on the left of characteristic curve Range for transistor protection Inverter output current(%) (% to the rated inverter current) 52.5% 105% 50 100 150 60 120 180 240 50 60 70 (min) unit display in this range Operation time (min) Pr. 9 = 50% setting of inverter rating*1, 2 Pr. 9 = 100% setting of inverter rating*2 (s) unit display in this range Operation time (s) Characteristic when electronic thermal relay function for motor protection is turned off (when Pr. 9 setting is 0(A)) 6Hz 20Hz 10Hz 6Hz 0.5Hz 30Hz or more *3 30Hz or more *3 20Hz 10Hz 0.5Hz 230 Electronic thermal relay function operation characteristic

Page 40

37 (Standard to comply with: UL 508C, CSA C22.2 No. 14)

General Precaution

The bus capacitor discharge time is 10 minutes. Before starting wiring or inspection, switch power off, wait for more than 10 minutes, and check for residual voltage between terminal P/+ and N/- with a meter etc. to avoid a hazard of electrical shock.

Installation

The below types of inverter have been approved as products for use in enclosure and approval tests were conducted under the following conditions. Design the enclosure so that the surrounding air temperature, humidity and ambience of the inverter will satisfy the specifications (Refer to page 4). Wiring protection Integral solid state short circuit protection does not provide branch circuit protection. Branch circuit protection must be provided in accordance with the National Electrical Code for the U.S. or the Canadian Electrical Code for Canada and any additional codes. As specified on page 36, UL Class T fuses or any faster acting fuse with the appropriate rating or Listed UL 489 Molded Case Circuit Breaker (MCCB) must be employed.

Short circuit ratings

200V class

Suitable For Use in A Circuit Capable of Delivering Not More Than 100 kA rms Symmetrical Amperes, 264 V Maximum.

400V class

Suitable For Use in A Circuit Capable of Delivering Not More Than 100 kA rms Symmetrical Amperes, 528 V Maximum.

Wiring

For wiring the input (R/L1, S/L2, T/L3) and output (U, V, W) terminals of the inverter, use the UL Listed copper, stranded wires (rated at 75°C) and round crimping terminals. Crimp the crimping terminals with the crimping tool recommended by the terminal maker.

Motor overload protection

When using the electronic thermal relay function as motor overload protection, set the rated motor current to Pr. 9 "Electronic thermal O/L relay". (Refer to page 36) Appendix 2 Instructions for UL and cUL Note ⋅Protective function by electronic thermal relay function is reset by inverter power reset and reset signal input. Avoid unnecessary reset and power-OFF. ⋅When multiple motors are operated by a single inverter, protection cannot be provided by the electronic thermal relay function. Install an external thermal relay to each motor. ⋅When the difference between the inverter and motor capacities is large and the setting is small, the protective characteristics of the electronic thermal relay function will be deteriorated. In this case, use an external thermal relay. ⋅A special motor cannot be protected by the electronic thermal relay function. Use the external thermal relay. ⋅Electronic thermal relay may not function when 5% or less of inverter rated current is set to electronic thermal relay setting.

Remarks

y Safety stop function is not certified by the UL.

Page 41

Page 42

Page 43

Page 44

Page 45

Page 46

Page 47

39 International FA Center Korean FA Center Beijing FA Center European FA Center UK FA Center Central and Eastern Europe FA Center Tianjin FA Center Shanghai FA Center Guangzhou FA Center Hong Kong FA Center Taiwan FA Center North American FA Center ASEAN FA Center Thailand FA Center India FA Center Brazil FA Center Russian FA Center zNorth American FA Center

Mitsubishi Electric Automation, Inc.

500 Corporate Woods Parkway, Vernon Hills, IL60061 U.S.A

Tel. +1-847-478-2100 Fax. +1-847-478-0327

zKorean FA Center

Mitsubishi Electric Automation Korea Co., Ltd.

B1F,2F, 1480-6, Gayang-Dong, Gangseo-Gu, Seoul, 157-200, Korea

Tel. +82-2-3660-9607 Fax. +82-2-3664-0475

zTaiwan FA Center

Setsuyo Enterprise Co., Ltd.

6F No.105, Wu Kung 3rd RD, Wu-Ku Hsiang Taipei Hsien, 248, Taiwan

Tel. +886-2-2299-2499 Fax. +886-2-2299-2509

zBeijing FA Center

Mitsubishi Electric Automation (China) Ltd. Beijing

Office

9F Office Tower 1, Henderson Center, 18 Jianguomennei Avenue, Dongcheng District, Beijing, China 100005

Tel. +86-10-6518-8830 Fax. +86-10-6518-8030

zRussian FA Center

Mitsubishi Electric Europe B.V.

-Representative Office in St. Petersburg Sverdlovskaya Emb.,44, Bld Sch,

Bc

"Benua";195027, St.Petersburg, Russia

Tel. +7-812-633-3496 Fax. +7-812-633-3499

zTianjin FA Center

Mitsubishi Electric Automation (China) Ltd. Tianjin

Office

B-2 801/802, Youyi Building, No.50 Youyi Road, Hexi District, Tianjin, China 300061

Tel +86-22-2813-1015 Fax. +86-22-2813-1017

zShanghai FA Center

Mitsubishi Electric Automation (China) Ltd.

4/F Zhi Fu Plazz, No.80 Xin Chang Road, Shanghai, China 200003

Tel. +86-21-6121-2460 Fax. +86-21-6121-2424

zGuangzhou FA Center

Mitsubishi

Electric

Automation

(China)

Ltd.

Guangzhou Office

Rm.1609, North Tower, The Hub Center, No.1068, Xing Gang East Road, Haizhu District, Guangzhou, China 510335

Tel. +86-20-8923-6713 Fax. +86-20-8923-6715

zHong Kong FA Center MITSUBISHI ELECTRIC AUTOMATION (Hong Kong) LTD. 10th Floor, Manulife Tower, 169 Electric Road, North Point, Hong Kong

Tel.+852-2887-8870 Fax. +852-2887-7984

zIndia FA Center Mitsubishi Electric Asia Pvt. Ltd. Gurgaon Branch 2nd Floor, DLF Building No.9B, DLF Cyber City Phase , Gurgaon 122002, Haryana, India

Tel. +91-124-4630300 Fax. +91-124-4630399

zThailand FA Center

Mitsubishi Electric Automation (Thailand) Co., Ltd.

Bang-Chan Industrial Estate No.111, Soi Serithai 54, T.Kannayao, A.Kannayao, Bangkok 10230

Tel. +66-2-906-3238 Fax. +66-2-906-3239

zASEAN FA Center

Mitsubishi Electric Asia Pte, Ltd.

307 Alexandra Road #05-01/02, Mitsubishi Electric Building, Singapore 159943

Tel. +65-6470-2480 Fax. +65-6476-7439

zEuropean FA Center

Mitsubishi Electric Europe B. V. German Branch

Gothaer Strasse 8, D-40880 Ratingen, Germany

Tel. +49-2102-486-0 Fax. +49-2102-486-1120

zUK FA Center

Mitsubishi Electric Europe B. V. Uk Branch

Travellers Lane, Hatfield, Hertfordshire, AL10 8XB, UK.

Tel. +44-1707-276100 Fax. +44-1707-278695

zCentral and Eastern Europe FA Center

Mitsubishi Electric Europe B.V. Czech Branch

Avenir Business Park, Radlicka 714/113a,158 00 Praha 5, Czech Republic

Tel. +420-251-551-470 Fax. +420-251-551-471

zBrazil FA Center MELCO-TEC Representacao Comercial e Assessoria Tecnica Ltda. Av. Paulista 1439, conj.74, Bela Vista CEP: 01311-200 Sao Paulo-SP-Brazil

Tel. +55-11-3146-2202 Fax. +55-11-3146-2217

Page 48

Mitsubishi Inverter FL Remote Communication System

Ask AI

Common Questions

Full Manual

More from Mitsubishi

Mitsubishi Inverter FL Remote Communication System

Ask AI

Common Questions

Full Manual

Fr-E700

Instruction Manual (Basic)

Inverter

Contents

Product Checking And Parts Identification............... 1

Installation And Wiring .................................................... 2

Precautions For Use Of The Inverter.......................... 18

Failsafe Of The System Which Uses The Inverter .... 20

Precautions For Maintenance And Inspection......... 29

A-1

Warning

Caution

Caution

Warning

Caution

Caution

Caution

A-2

Caution

Caution

Warning

Caution

Caution

Caution

Caution

Product Checking And Parts Identification

Fr-E720-2.2Knf

E720

2.2 Knf

Fr -

E720

E740

Fr-E720-2.2Knf

Installation And Wiring

Note

(Fr-Bsf01, Fr-Blf)

R/L1 S/L2 T/L3

P1

P/+

N/-

P/+

U

W

P/+

Pr

V

(Fr-Bsf01, Fr-Blf)

(Fr-Bif)

P/+

P/+

Pr

Pr

(Fr-Bu2)

S1

S2

Pc

(Mccb) ∗1

Fr-Hal

Fr-Hel

Fr-E720-0.1Knf

5A

5A

S-N10

S-N10

0.4K ∗4

0.4K ∗4

Fr-E720-0.2Knf

5A

5A

S-N10

S-N10

0.4K ∗4

0.4K ∗4

Fr-E720-0.4Knf

5A

5A
