Mitsubishi MSZ-GL12NA Wall-Mounted Air Conditioner
Ask AI
— answers from the official manualAI-powered answers from the official manual. Verify critical info.
Common questions
Common Questions
10 totalWhat is the cooling capacity of the Msz-Gl12Na?
The Msz-Gl12Na has a cooling capacity of 12,000 Btu/H under nominal conditions (80°F dry bulb, 67°F wet bulb indoor and 95°F dry bulb, 75°F wet bulb outdoor). The actual capacity may vary based on the number of indoor units operating and the model of the multi-zone outdoor unit being used.
What heating capacity does this unit provide?
The Msz-Gl12Na provides a heating capacity of 14,400 Btu/H at nominal heating conditions (70°F dry bulb, 60°F wet bulb indoor and 47°F dry bulb, 43°F wet bulb outdoor). Like cooling capacity, heating capacity may vary based on the number of indoor units operating and the outdoor unit model.
What voltage and electrical specifications does the Msz-Gl12Na require?
The unit requires 208/230V, single phase, 60Hz power supply with a guaranteed voltage range of 187-253V AC. The short-circuit current rating (SCCR) is 5 amperes, and the blower motor full load amperage is 0.76 amperes.
What refrigerant type does the Msz-Gl12Na use?
The Msz-Gl12Na uses R410A refrigerant. The unit requires a liquid pipe with 1/4 inch O.D. (flared connection) and a gas pipe with 3/8 inch O.D. (flared connection) for proper operation.
What are the physical dimensions and weight of the indoor unit?
The Msz-Gl12Na indoor unit measures 31-7/16 inches wide, 9-1/8 inches deep, and 11-5/8 inches high, weighing 22 pounds. The package dimensions are 33-1/2 inches wide, 12 inches deep, and 14 inches high, with a package weight of 26 pounds.
What drain pipe size is required for installation?
The drain pipe size for the Msz-Gl12Na is 5/8 inch in diameter (15.88 mm). This specification is important for proper condensate drainage during cooling operation.
Full Manual
4 pages

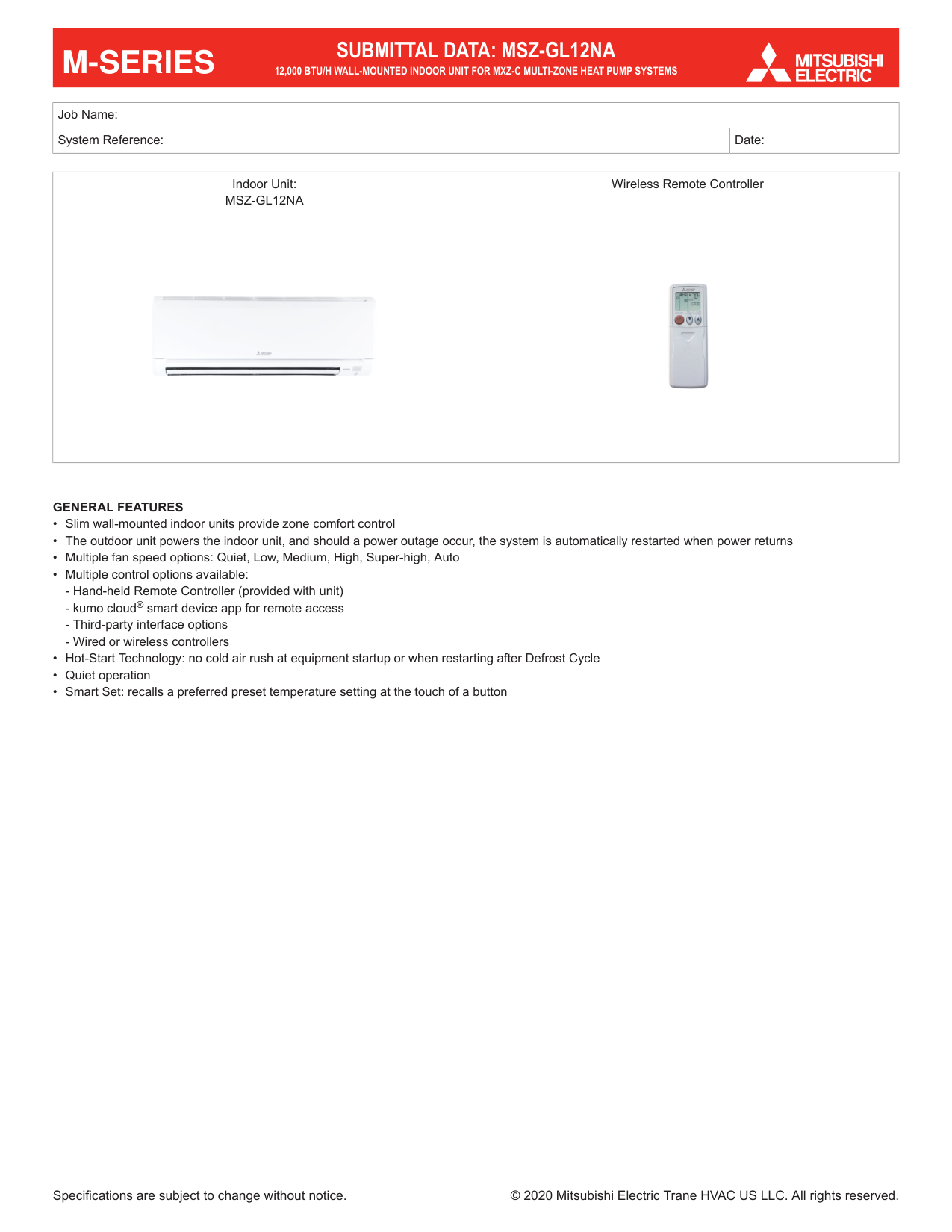

Job Name: System Reference: Date: Indoor Unit:
Msz-Gl12Na
Wireless Remote ControllerGeneral Features
Submittal Data: Msz-Gl12Na
12,000 Btu/H Wall-Mounted Indoor Unit For Mxz-C Multi-Zone Heat Pump Systems
Specifications are subject to change without notice. © 2020 Mitsubishi Electric Trane HVAC US LLC. All rights reserved.M-Series

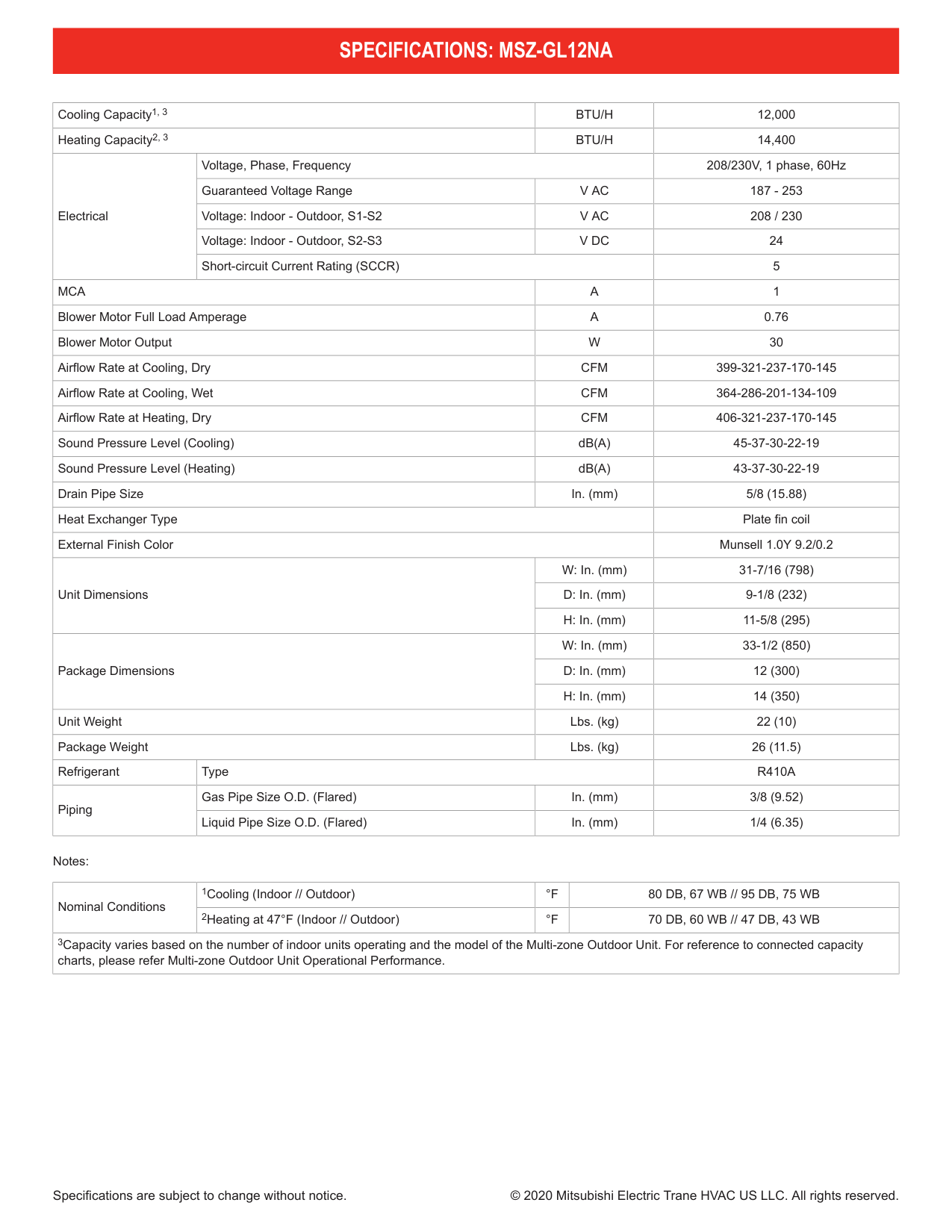

Cooling Capacity1, 3
Btu/H
12,000 Heating Capacity2, 3Btu/H
14,400 Electrical Voltage, Phase, Frequency 208/230V, 1 phase, 60Hz Guaranteed Voltage RangeV Ac
187 - 253 Voltage: Indoor - Outdoor, S1-S2V Ac
208 / 230 Voltage: Indoor - Outdoor, S2-S3V Dc
24 Short-circuit Current Rating (SCCR) 5Mca
A
1 Blower Motor Full Load AmperageA
0.76 Blower Motor OutputW
30 Airflow Rate at Cooling, DryCfm
399-321-237-170-145 Airflow Rate at Cooling, WetCfm
364-286-201-134-109 Airflow Rate at Heating, DryCfm
406-321-237-170-145 Sound Pressure Level (Cooling) dB(A) 45-37-30-22-19 Sound Pressure Level (Heating) dB(A) 43-37-30-22-19 Drain Pipe Size In. (mm) 5/8 (15.88) Heat Exchanger Type Plate fin coil External Finish Color Munsell 1.0Y 9.2/0.2 Unit Dimensions W: In. (mm) 31-7/16 (798) D: In. (mm) 9-1/8 (232) H: In. (mm) 11-5/8 (295) Package Dimensions W: In. (mm) 33-1/2 (850) D: In. (mm) 12 (300) H: In. (mm) 14 (350) Unit Weight Lbs. (kg) 22 (10) Package Weight Lbs. (kg) 26 (11.5) Refrigerant TypeR410A
Piping Gas Pipe Size O.D. (Flared) In. (mm) 3/8 (9.52) Liquid Pipe Size O.D. (Flared) In. (mm) 1/4 (6.35) Notes: Nominal Conditions 1Cooling (Indoor // Outdoor)°F
80 Db, 67 Wb // 95 Db, 75 Wb
2Heating at 47°F (Indoor // Outdoor)°F
70 Db, 60 Wb // 47 Db, 43 Wb
3Capacity varies based on the number of indoor units operating and the model of the Multi-zone Outdoor Unit. For reference to connected capacity charts, please refer Multi-zone Outdoor Unit Operational Performance.Specifications: Msz-Gl12Na
Specifications are subject to change without notice. © 2020 Mitsubishi Electric Trane HVAC US LLC. All rights reserved.

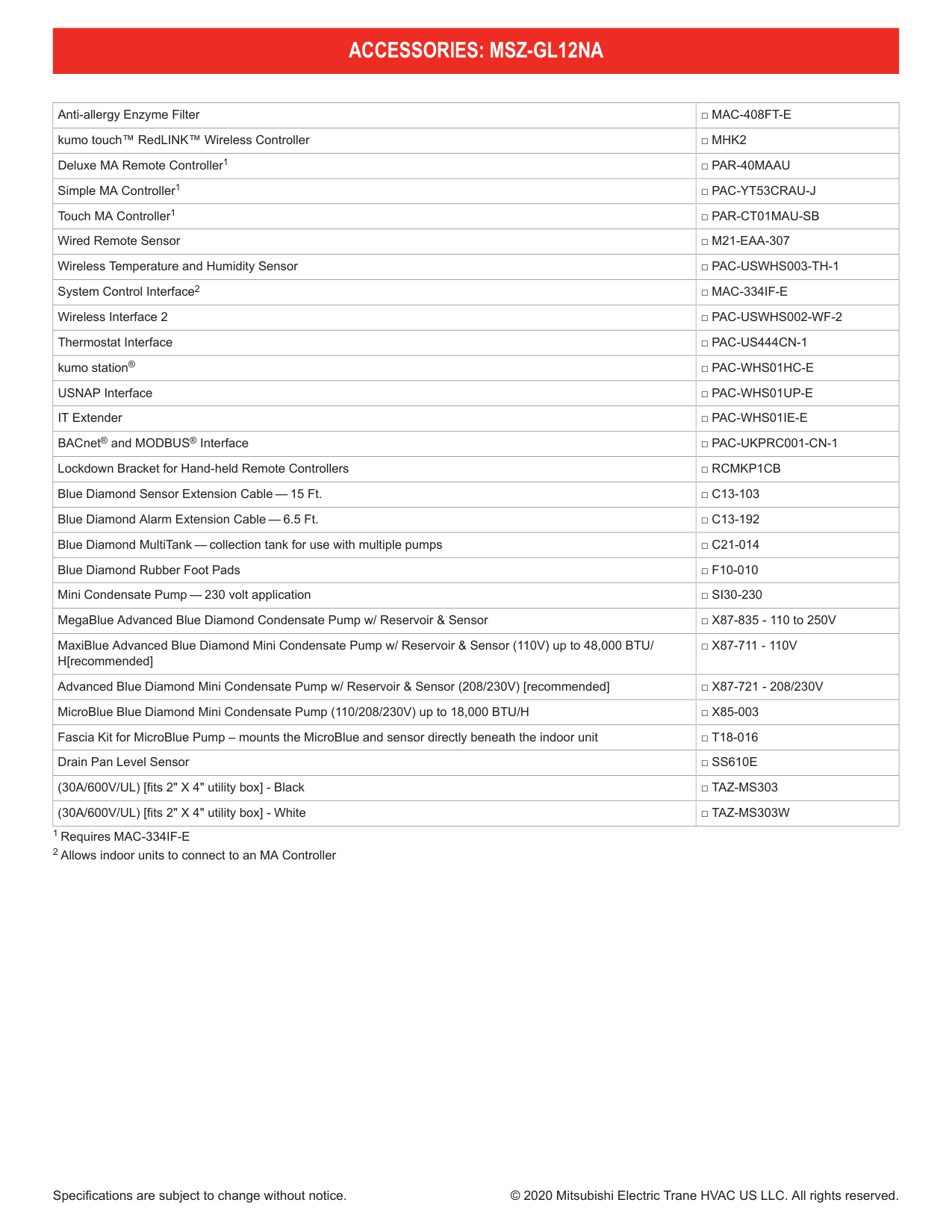

Anti-allergy Enzyme Filter
□ Mac-408Ft-E
kumo touch™ RedLINK™ Wireless Controller□ Mhk2
Deluxe MA Remote Controller1□ Par-40Maau
Simple MA Controller1□ Pac-Yt53Crau-J
Touch MA Controller1□ Par-Ct01Mau-Sb
Wired Remote Sensor□ M21-Eaa-307
Wireless Temperature and Humidity Sensor□ Pac-Uswhs003-Th-1
System Control Interface2□ Mac-334If-E
Wireless Interface 2□ Pac-Uswhs002-Wf-2
Thermostat Interface□ Pac-Us444Cn-1
kumo station®□ Pac-Whs01Hc-E
USNAP Interface□ Pac-Whs01Up-E
IT Extender□ Pac-Whs01Ie-E
BACnet® and MODBUS® Interface□ Pac-Ukprc001-Cn-1
Lockdown Bracket for Hand-held Remote Controllers□ Rcmkp1Cb
Blue Diamond Sensor Extension Cable — 15 Ft.□ C13-103
Blue Diamond Alarm Extension Cable — 6.5 Ft.□ C13-192
Blue Diamond MultiTank — collection tank for use with multiple pumps□ C21-014
Blue Diamond Rubber Foot Pads□ F10-010
Mini Condensate Pump — 230 volt application□ Si30-230
MegaBlue Advanced Blue Diamond Condensate Pump w/ Reservoir & Sensor □ X87-835 - 110 to 250V MaxiBlue Advanced Blue Diamond Mini Condensate Pump w/ Reservoir & Sensor (110V) up to 48,000 BTU/ H[recommended]□ X87-711 - 110V
Advanced Blue Diamond Mini Condensate Pump w/ Reservoir & Sensor (208/230V) [recommended]□ X87-721 - 208/230V
MicroBlue Blue Diamond Mini Condensate Pump (110/208/230V) up to 18,000 BTU/H□ X85-003
Fascia Kit for MicroBlue Pump – mounts the MicroBlue and sensor directly beneath the indoor unit□ T18-016
Drain Pan Level Sensor□ Ss610E
(30A/600V/UL) [fits 2" X 4" utility box] - Black□ Taz-Ms303
(30A/600V/UL) [fits 2" X 4" utility box] - White□ Taz-Ms303W
1 Requires MAC-334IF-E 2 Allows indoor units to connect to an MA ControllerAccessories: Msz-Gl12Na
Specifications are subject to change without notice. © 2020 Mitsubishi Electric Trane HVAC US LLC. All rights reserved.

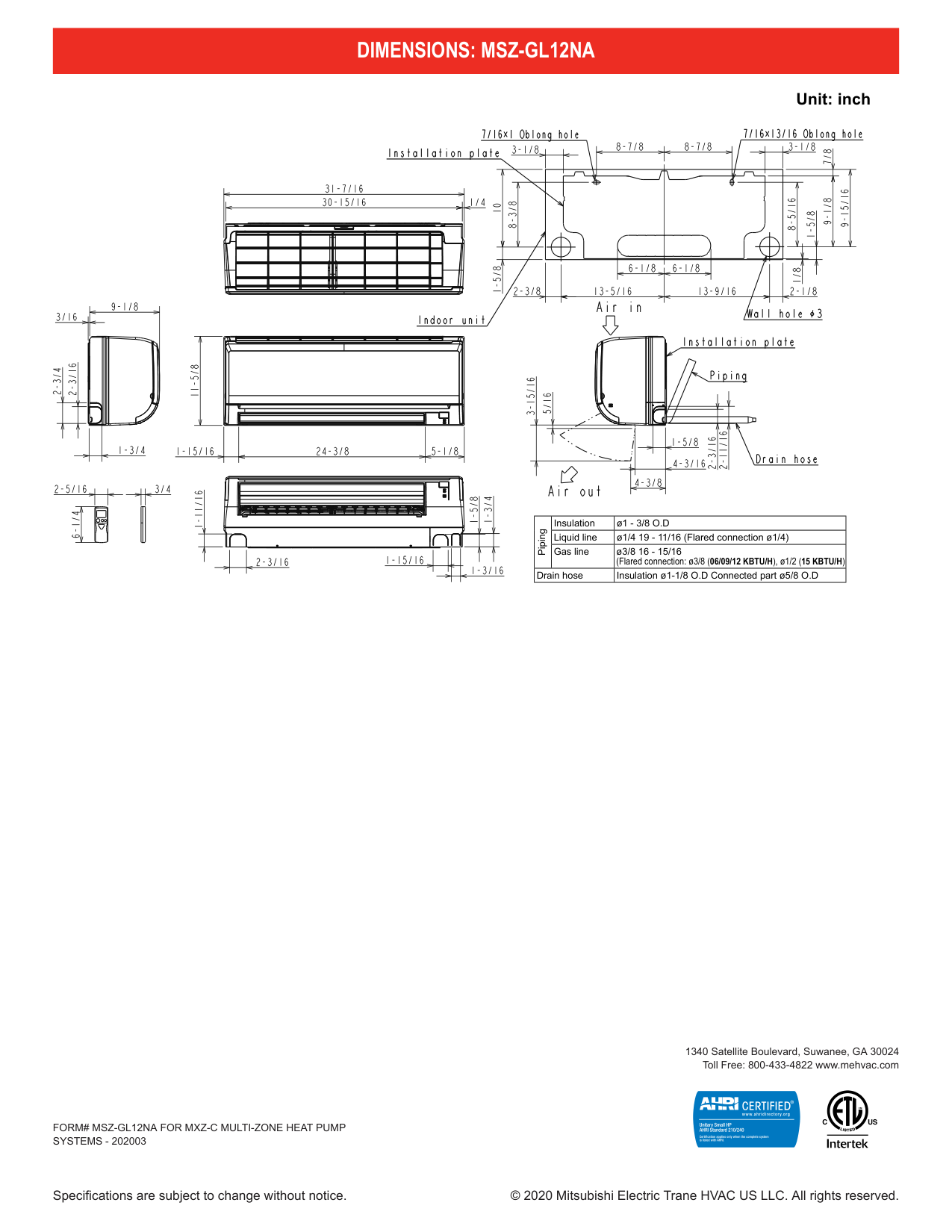

Unit: inch Piping Insulation ø1 - 3/8 O.D Liquid line ø1/4 19 - 11/16 (Flared connection ø1/4) Gas line ø3/8 16 - 15/16 (Flared connection: ø3/8 (06/09/12 KBTU/H), ø1/2 (15 KBTU/H) Drain hose Insulation ø1-1/8 O.D Connected part ø5/8 O.D
