Evenflo Maestro Sport Car Seat manual
Car Seats · 27 Q&As

Evenflo Maestro Sport Car Seat

Ask about this product

Ask AI

— answers from the official manual

AI-powered answers from the official manual. Verify critical info.

Common questions

Common Questions

27 total
1

How do I know if my child restraint is installed tightly enough?

The child restraint must not move more than 25 mm (1 in.) side-to-side or front-to-back at the belt path. If it moves more than this, the installation is not secure enough and you must tighten the lower anchor connector strap or vehicle seat belt, try again, or move the restraint to another location. Serious injury or death may result from poor installation. (Page 24–26)

2

What is the LATCH weight limit for the Maestro Sport?

You must not use the lower anchors of the LATCH system when restraining a child weighing more than 18 kg (50 lbs) with the internal harness. For children over that weight in harness mode, you must use vehicle belt installation only. (Page 13)

3

How do I clean the seat pad and harness on the Maestro Sport?

The seat pad can be machine washed separately in cold water on a delicate cycle, then tumble dried for 10 to 15 minutes on low heat. The harness straps should be wiped clean with mild soap and water and allowed to air dry. Plastic and metal parts may be wiped with mild soap and water and dried with a soft cloth — do not use abrasive cleaners or solvents. (Page 50)

4

What should I do with the child restraint after a crash?

You must replace the child restraint if it has been involved in a crash — do not continue to use it. The manual states clearly: 'DO NOT use this restraint if it has been involved in a crash. It must be replaced.' (Page 6)

5

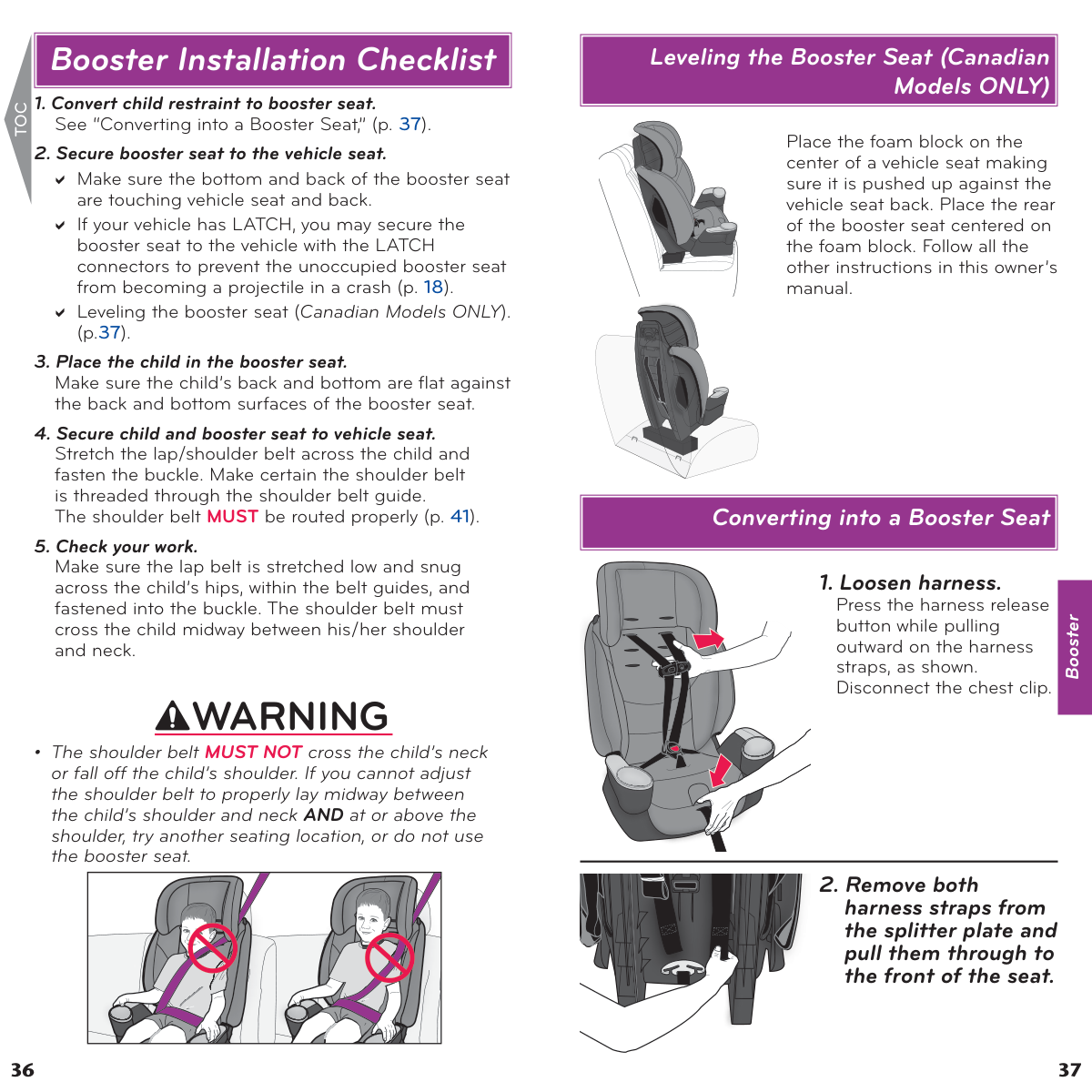

How do I convert the Maestro Sport from 5-point harness mode to booster mode?

To convert to booster mode, loosen the harness, press the harness release button, and remove both harness straps from the splitter plate and pull them through to the front. Then disconnect all elastic loops and retaining strips, remove the seat pad, remove the crotch strap, route the harness straps through the adjustment slots and reattach them to the splitter plate, then fold and tuck the harness and chest clip into the recesses on either side of the seat shell, and reinstall the seat pad. To convert back to 5-point harness mode, reverse these steps. (Page 37–40)

6

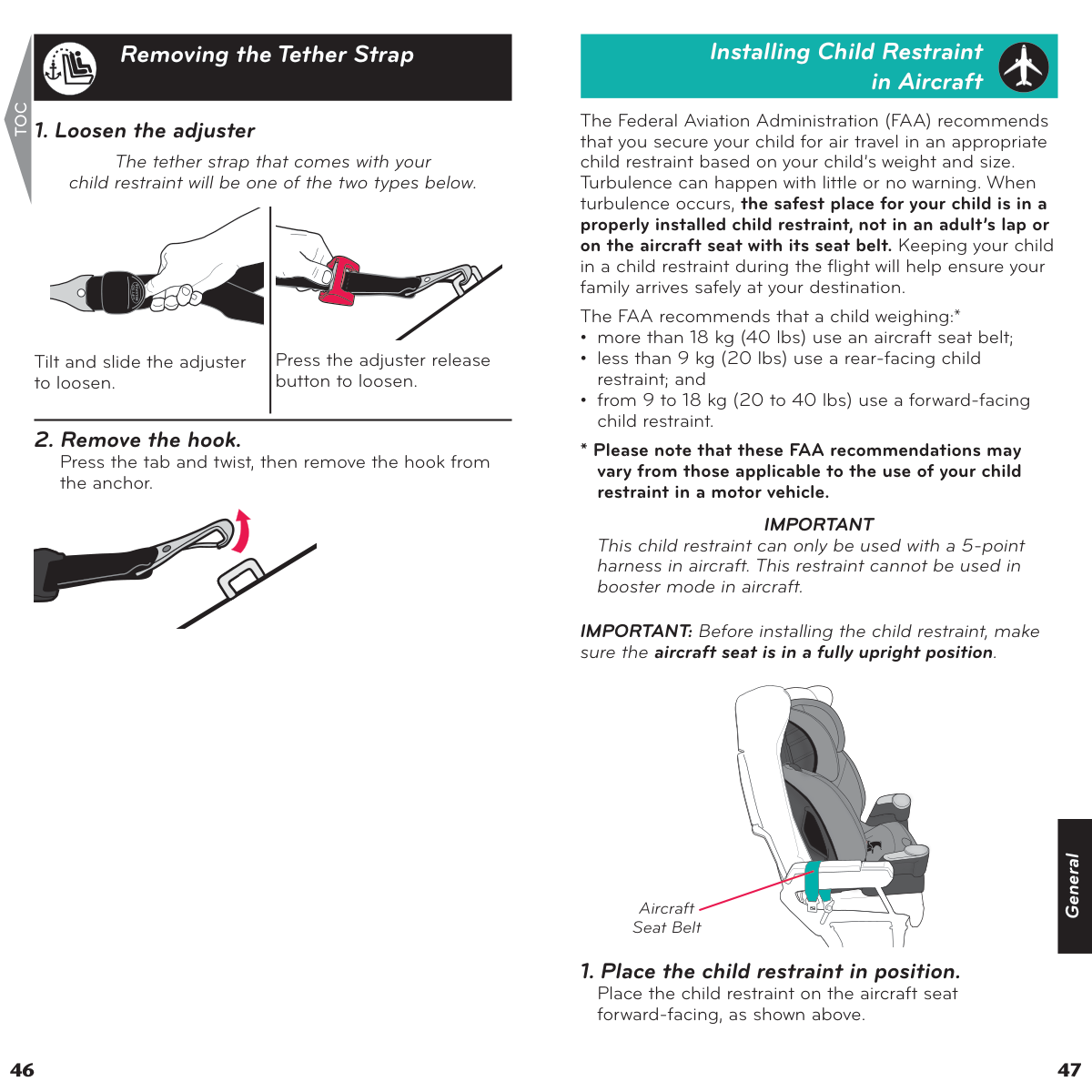

Can the Maestro Sport be used on an airplane, and are there any restrictions?

Yes, the Maestro Sport can be used on aircraft, but only with the 5-point harness — it cannot be used in booster mode on an aircraft. The FAA recommends using a forward-facing child restraint for children weighing 9 to 18 kg (20 to 40 lbs), and you should check with your airline before departure to ensure the restraint meets their requirements. (Page 17, 46–48)

Show 21 more questions

What is the warranty period for the Evenflo Maestro Sport?

What are the weight, height, and age requirements for using the Maestro Sport in 5-point harness mode?

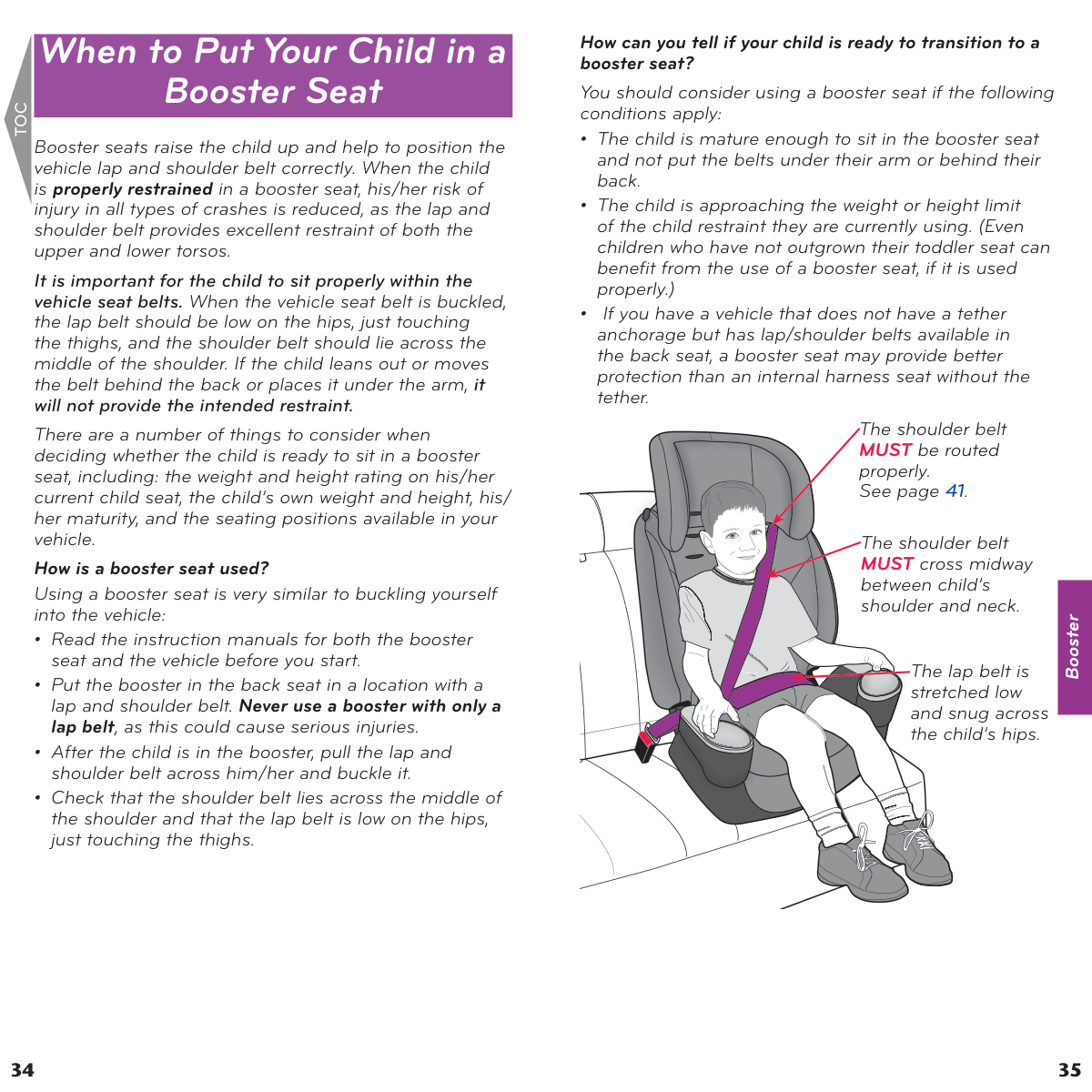

What are the requirements for using the Maestro Sport as a belt-positioning booster seat?

Can I use LATCH and the vehicle seat belt at the same time to install the Maestro Sport?

How do I know if the Maestro Sport is installed tightly enough in my vehicle?

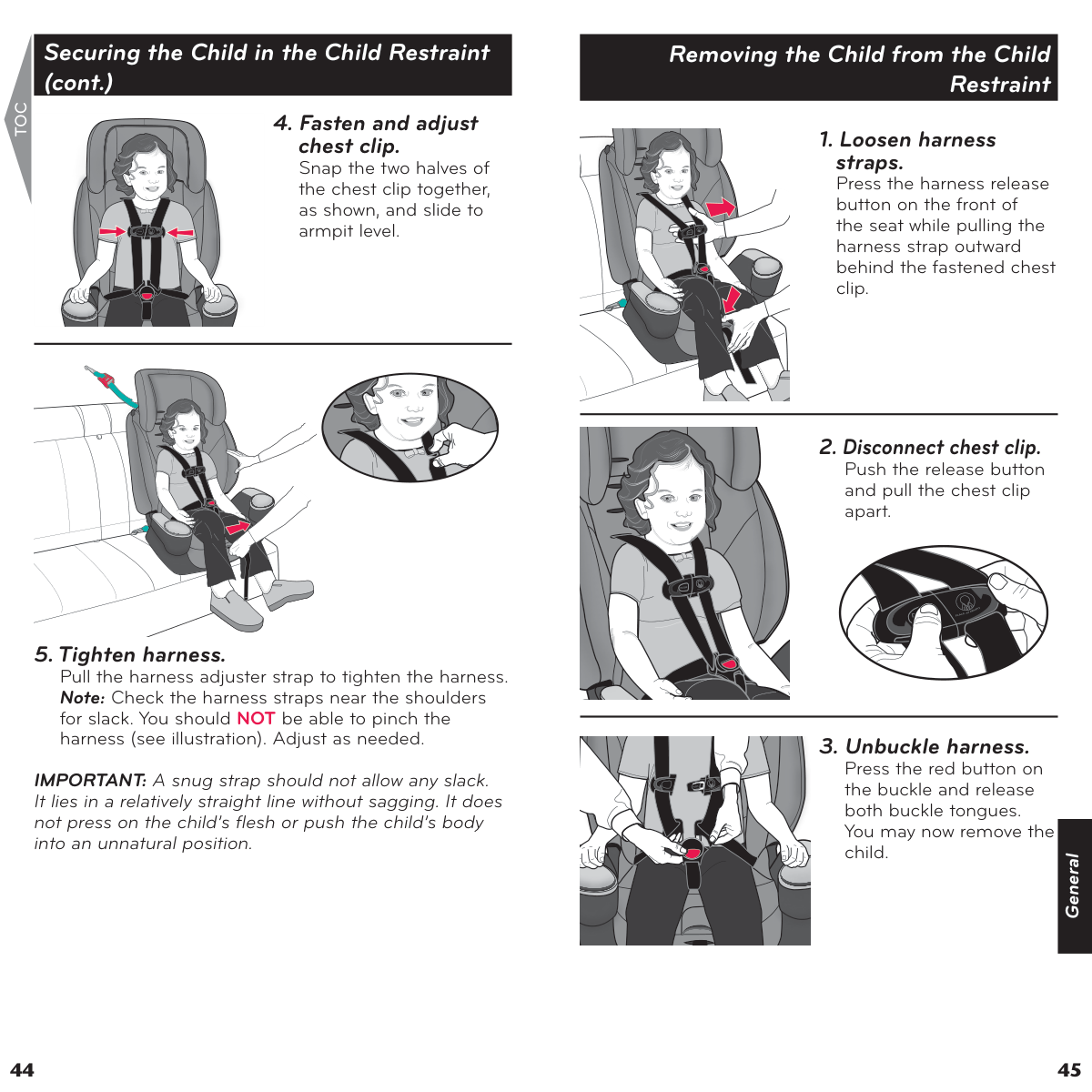

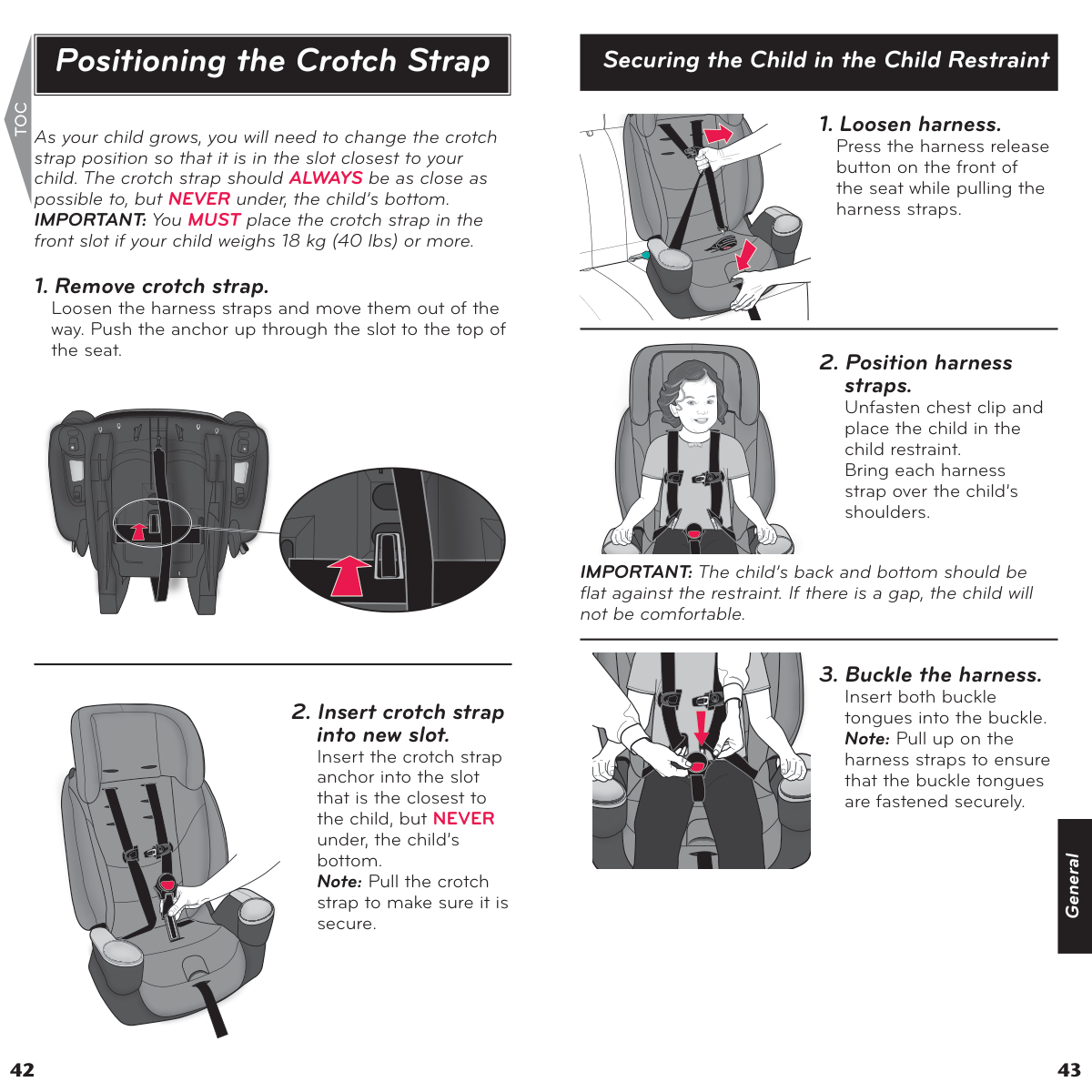

Where should the chest clip be positioned when securing my child in the harness?

How do I check if the harness straps are tight enough on my child?

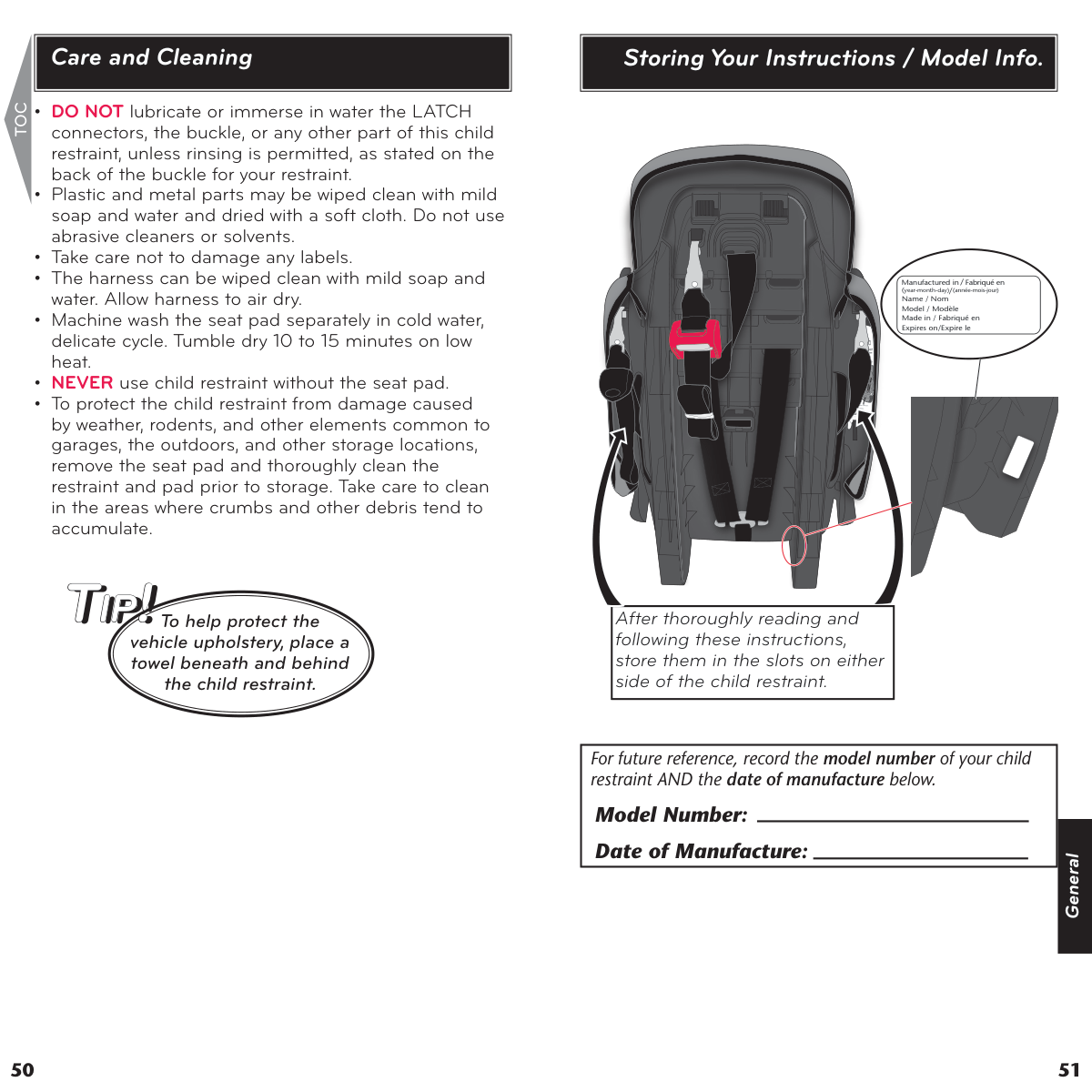

How should I clean the seat pad and harness on the Maestro Sport?

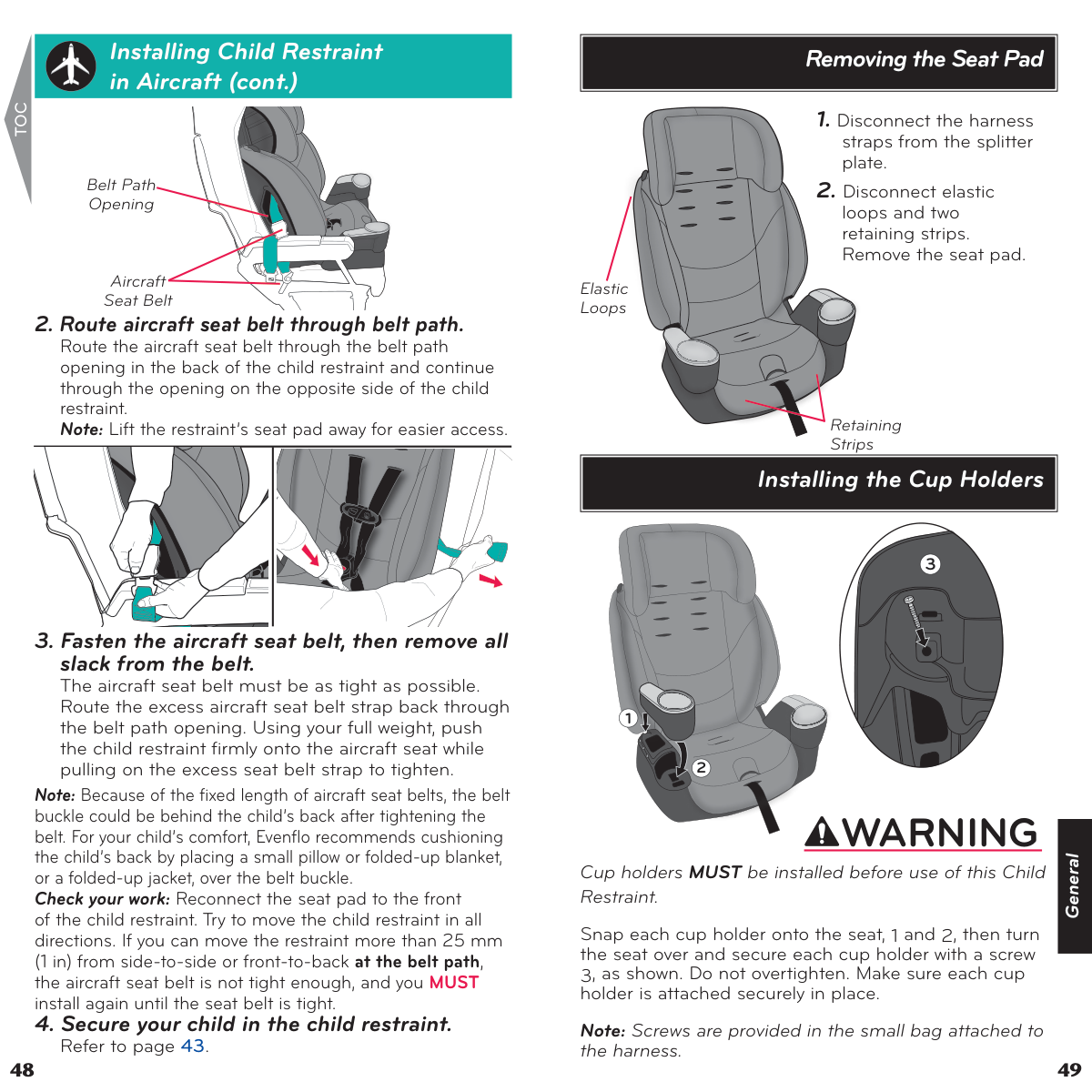

Can the Maestro Sport be used on an airplane, and if so, how?

What should I do if the child restraint has been involved in a crash?

What is the warranty on the Evenflo Maestro Sport, and how do I get service?

What are the weight and height requirements for using the 5-point harness?

How do I know if my lower anchor connector is properly installed?

Can I use both LATCH connectors and vehicle seat belts at the same time?

What should I do with the lower anchor connectors when they are not in use?

How should the harness straps be positioned on the child?

What are the requirements for using the booster seat mode?

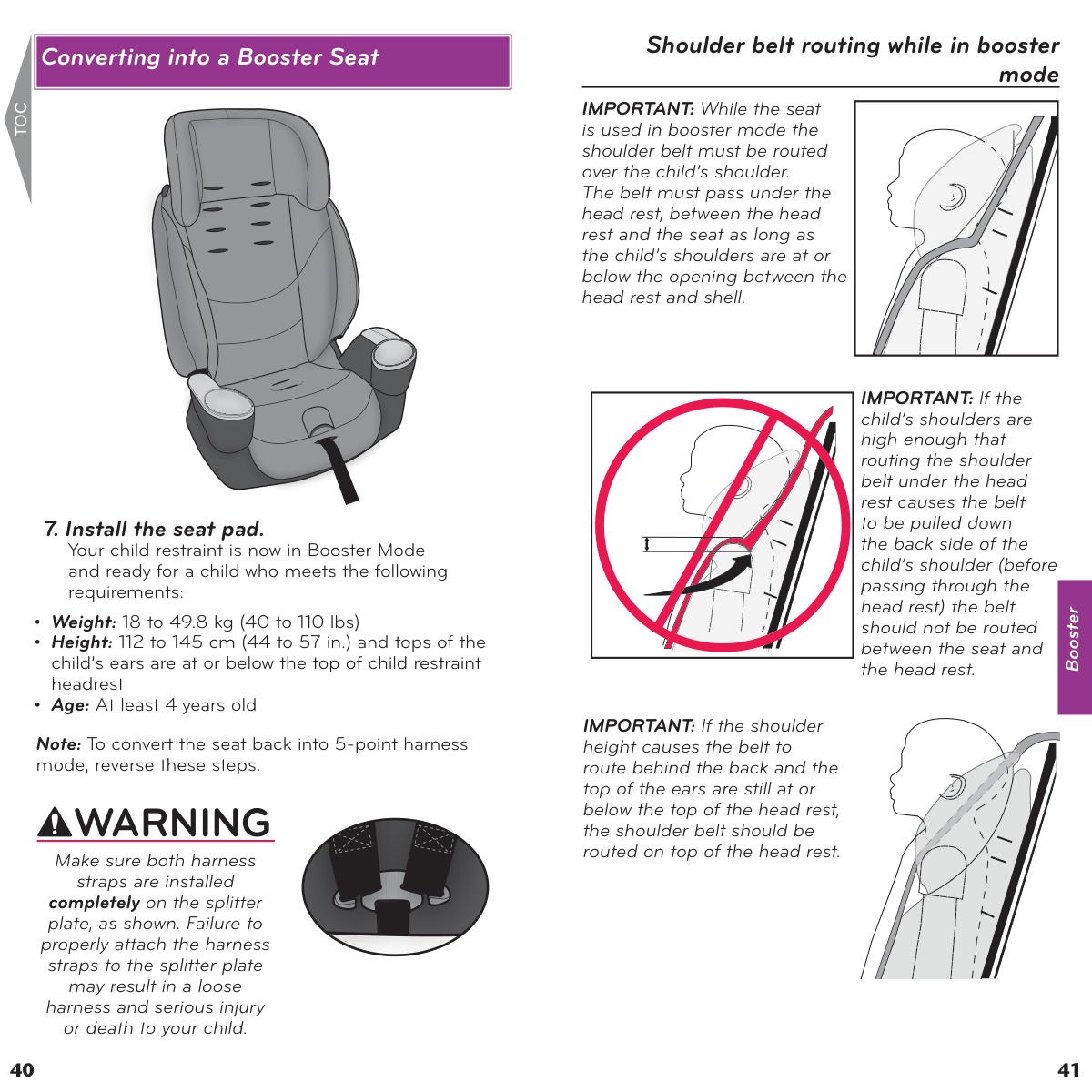

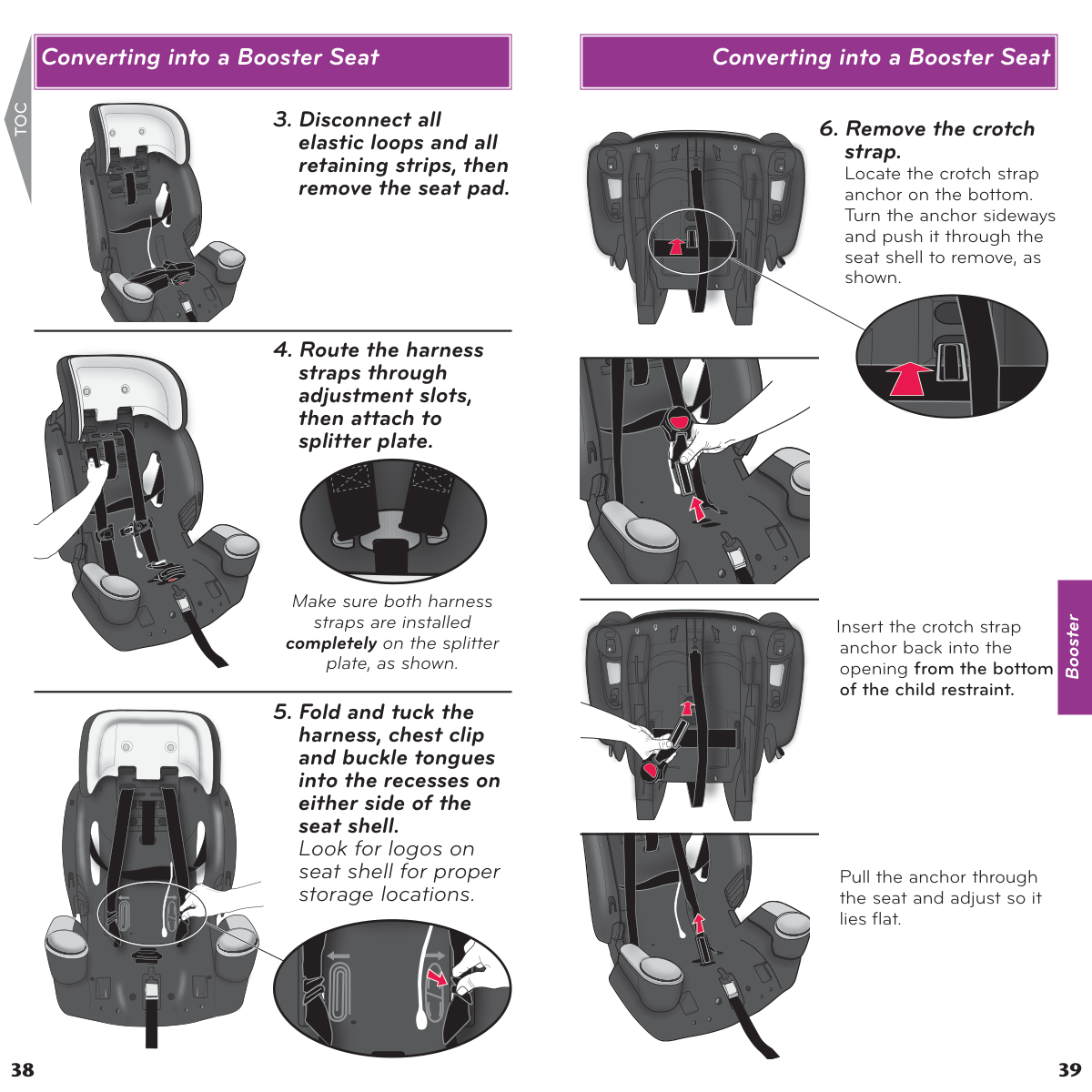

How do I convert the seat from 5-point harness to booster mode?

Can I use this child restraint in the front seat of a vehicle with an airbag?

How should the shoulder belt be routed in booster mode?

How do I clean and maintain this child restraint?

Full Manual

29 pages
Page 1

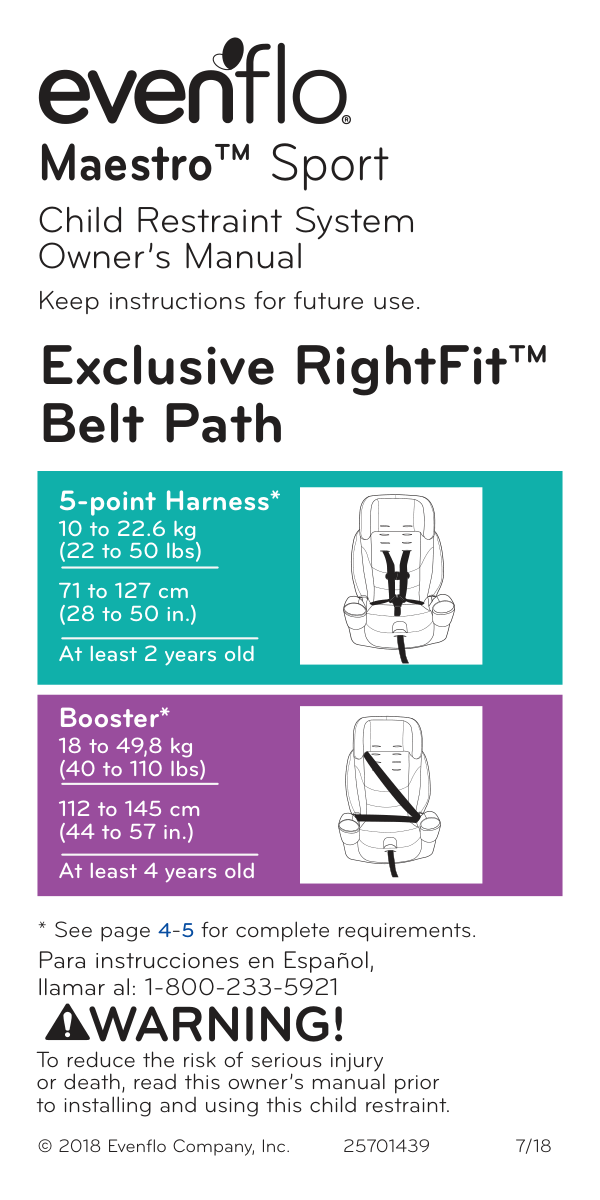

Evenflo Maestro Sport Car Seat manual — page 1

Exclusive RightFit™ Belt Path Maestro™ Sport Owner’s Manual Child Restraint System Keep instructions for future use. To reduce the risk of serious injury or death, read this owner’s manual prior to installing and using this child restraint.

Warning!

© 2018 Evenflo Company, Inc. 25701439 7/18 Para instrucciones en Español, llamar al: 1-800-233-5921 5-point Harness* 10 to 22.6 kg (22 to 50 lbs) 71 to 127 cm (28 to 50 in.) At least 2 years old Booster* 18 to 49,8 kg (40 to 110 lbs) 112 to 145 cm (44 to 57 in.) At least 4 years old
  • See page 4-5 for complete requirements.

    • Page 2

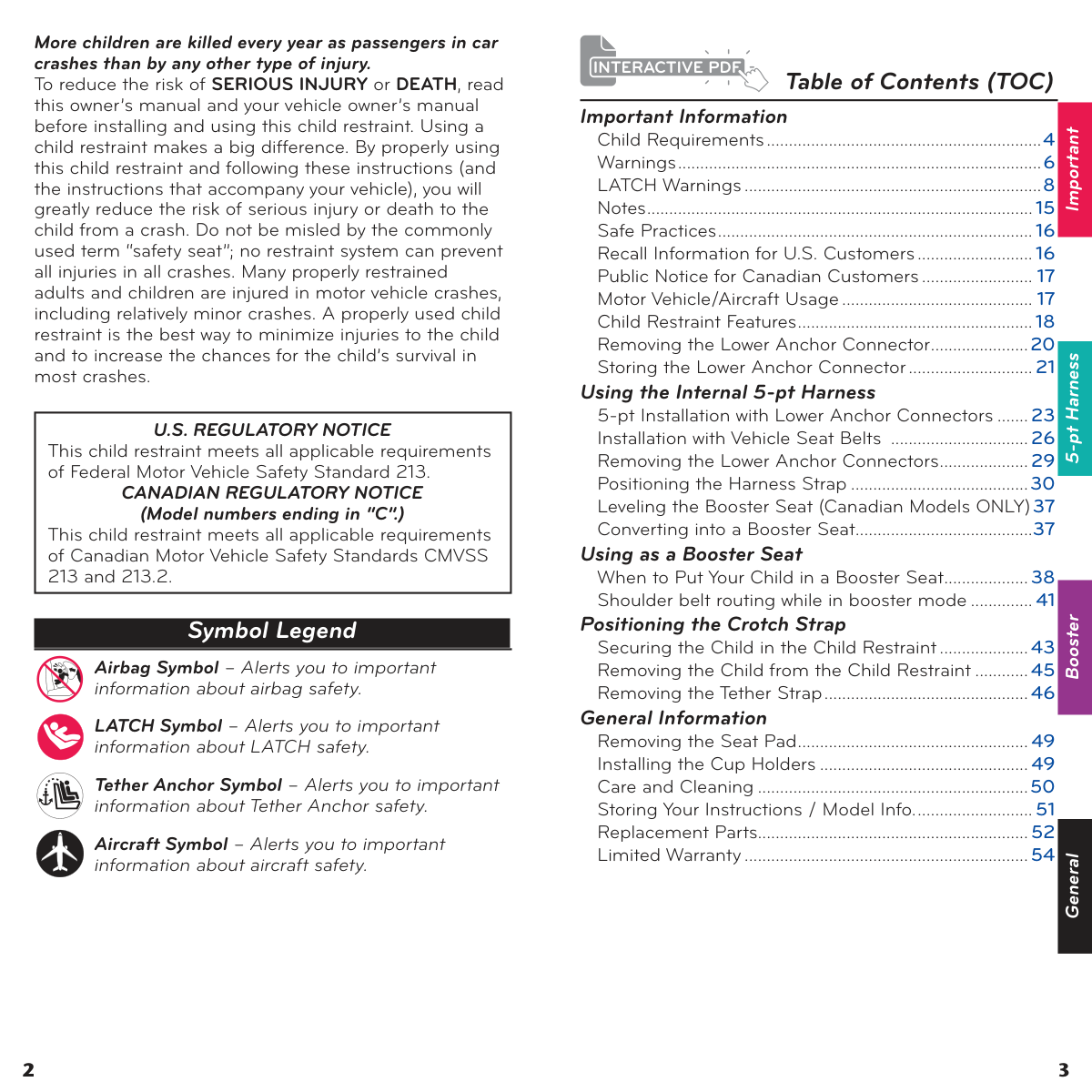

    Evenflo Maestro Sport Car Seat manual — page 2

    3 2 More children are killed every year as passengers in car crashes than by any other type of injury. To reduce the risk of SERIOUS INJURY or DEATH, read this owner’s manual and your vehicle owner’s manual before installing and using this child restraint. Using a child restraint makes a big difference. By properly using this child restraint and following these instructions (and the instructions that accompany your vehicle), you will greatly reduce the risk of serious injury or death to the child from a crash. Do not be misled by the commonly used term “safety seat”; no restraint system can prevent all injuries in all crashes. Many properly restrained adults and children are injured in motor vehicle crashes, including relatively minor crashes. A properly used child restraint is the best way to minimize injuries to the child and to increase the chances for the child’s survival in most crashes. Symbol Legend

    U.S. Regulatory Notice

    This child restraint meets all applicable requirements of Federal Motor Vehicle Safety Standard 213.

    Canadian Regulatory Notice

    (Model numbers ending in “C”.) This child restraint meets all applicable requirements of Canadian Motor Vehicle Safety Standards CMVSS 213 and 213.2. Airbag Symbol – Alerts you to important information about airbag safety. LATCH Symbol – Alerts you to important information about LATCH safety. Tether Anchor Symbol – Alerts you to important information about Tether Anchor safety. Aircraft Symbol – Alerts you to important information about aircraft safety. Table of Contents (TOC) 5-pt Harness Booster General Important Important Information Child Requirements��������������������������������������������������������������4 Warnings����������������������������������������������������������������������������������6 LATCH Warnings�������������������������������������������������������������������8 Notes���������������������������������������������������������������������������������������15 Safe Practices�����������������������������������������������������������������������16 Recall Information for U.S. Customers��������������������������16 Public Notice for Canadian Customers�������������������������17 Motor Vehicle/Aircraft Usage�������������������������������������������17 Child Restraint Features�����������������������������������������������������18 Removing the Lower Anchor Connector����������������������20 Storing the Lower Anchor Connector����������������������������21 Using the Internal 5-pt Harness 5-pt Installation with Lower Anchor Connectors�������23 Installation with Vehicle Seat Belts �������������������������������26 Removing the Lower Anchor Connectors��������������������29 Positioning the Harness Strap����������������������������������������30 Leveling the Booster Seat (Canadian Models ONLY)37 Converting into a Booster Seat����������������������������������������37 Using as a Booster Seat When to Put Your Child in a Booster Seat�������������������38 Shoulder belt routing while in booster mode��������������41 Positioning the Crotch Strap Securing the Child in the Child Restraint��������������������43 Removing the Child from the Child Restraint������������45 Removing the Tether Strap����������������������������������������������46 General Information Removing the Seat Pad����������������������������������������������������49 Installing the Cup Holders�����������������������������������������������49 Care and Cleaning�������������������������������������������������������������50 Storing Your Instructions / Model Info.��������������������������51 Replacement Parts.������������������������������������������������������������52 Limited Warranty����������������������������������������������������������������54

    Interactive Pdf

    Page 3
    Evenflo Maestro Sport Car Seat manual — page 3

    5 4

    Toc

    Important Warning: Failure to follow these Child Requirements could result in serious injury or death. This child restraint is designed for use by children in forward-facing orientation only. To use this child restraint properly, children MUST meet the size and age requirements below. In addition, Evenflo recommends consulting with your child’s physician before allowing your child to transition from a rear-facing to forward- facing child restraint. The American Academy of Pediatrics (AAP) recommends keeping children rear-facing until 2 years old or until they reach the maximum height or weight for their child restraint in rear-facing orientation. Additionally, some states’ laws require children to be rear-facing until age 2. Accordingly, you will see this guidance reflected in the Child Requirements below. Please review any applicable local, state or provincial laws related to child passenger safety before installing and using this child restraint.

    Child Requirements

    5-point Harness
  • 10 to 22.6 kg (22 to 50 lbs)
  • 71 to 127 cm (28 to 50 in.)
    • and tops of the child’s ears are at or below the top of the child restraint headrest
  • At least 2 years old
    • IMPORTANT: Once your child exceeds any of the size requirements for forward-facing use above, you MUST discontinue use of this child restraint with its internal harness and begin using it as a belt-positioning booster seat, if possible. If your child exceeds any of the size requirements for forward-facing use above and is less than 4 years old, however, you MUST discontinue use of this child restraint. Belt-Positioning Booster
  • 18 to 49.8 kg (40 to 110 lbs)
  • 112 to 145 cm (44 to 57 in.)
    • and tops of the child’s ears are at or below the top of the child restraint headrest
  • At least 4 years old
    • IMPORTANT: Once your child exceeds any of the size requirements above for belt-positioning use, you MUST discontinue use of this seat. Your child may be ready for use of the vehicle belt system only at this time.

    Place

    At

    Armpit

    Child Requirements

    Page 4
    Evenflo Maestro Sport Car Seat manual — page 4

    7 6

    Toc

  • Failure to follow the Child Requirements for
    • forward-facing and belt-positioning use of this child restraint could result in serious injury or death. (See page 4-5 for Child Requirements).
  • Failure to follow these installation instructions and the
    • instructions and warnings on the product can result in the child striking the vehicle’s interior during a sudden stop or crash. Serious injury or death may result. These instructions and the instructions in your vehicle owner’s manual must be followed carefully. If there is a conflict between the two, the vehicle owner’s manual regarding child restraint installation must be followed.
  • NEVER leave child unattended.
  • DO NOT use child restraint if it is damaged, broken, or
    • missing parts.
  • DO NOT use this restraint if it has been involved in a
    • crash. It must be replaced.
  • NEVER use this child restraint without the headrest
    • installed.
  • NEVER use this child restraint rear-facing.
  • DO NOT use this booster seat if the child’s ears are above
    • the back of the booster seat headrest. Location Warnings
  • ALWAYS read and follow exactly the instructions that
    • accompany your vehicle and child restraint.
  • According to statistics, children are safer when
    • properly restrained in a rear seating position than in the front seating position. Generally, the center rear position is safest and should be used, if available.
  • Some child restraints do not fit all vehicles or all
    • seating locations. There are many thousands of combinations of vehicle makes, models, child restraint configurations, seat belt designs, and seat cushion shapes. The easiest way to determine whether the child restraint is suitable for a particular seating position is to check for a tight installation.
  • If the child restraint cannot be properly installed, DO
    • NOT use the child restraint. Consult vehicle owner’s manual, try a different seating location, or call Evenflo.
  • ONLY use this child restraint on forward-facing vehicle
    • seats. DO NOT use this restraint with vehicle seats that face the rear or side.
  • ONLY use this child restraint on vehicle seats with
    • backs that lock into place. Important To help prevent serious injury or death:
  • DO NOT use this child restraint in the front seat of a
    • vehicle equipped with an air bag, unless the air bag has been deactivated. Interaction between a rear- facing restraint and air bags may cause serious injury or death. Air bags may cause serious injury or death to children 12 years of age and under. If your vehicle has an air bag, refer to your vehicle owner’s manual for child restraint installation.
  • If the rear seat of your vehicle is equipped with side
    • air bags, refer to the following information for proper usage: Vehicles built prior to the 2002 model year: DO NOT use this restraint in a vehicle seating position equipped with a side air bag unless authorized by the vehicle manufacturer. Model year 2002 and newer vehicles: Refer to your vehicle owner’s manual before placing this restraint in a seating position equipped with a side air bag. DO NOT place any objects between the restraint and the side air bag, as an expanding air bag may cause the items to strike your child. The forward facing back seat is the safest place for children 12 and under. Airbag Warning NE PAS placer un dispositif de retenue pour enfant en orientation face à l’arrière sur un siège avant doté d’un sac gonflable.

    Risque De Décès Ou De Graves Blessures.

    Le siège arrière offre le plus de sécurité pour les enfants âgés de 12 ans ou moins. DO NOT place rear-facing child seat on front seat with air bag.

    Death Or Serious Injury Can Occur.

    The back seat is the safest place for children 12 and under.

    Warning / Mise En Garde

    25802179 7/10

    Warning!

    DEATH or SERIOUS INJURY can occur. General Warnings

    Warning!

    DEATH or SERIOUS INJURY can occur.

    Page 5
    Evenflo Maestro Sport Car Seat manual — page 5

    9 8

    Toc

    Important
  • If the child weighs more than 22.6 kg (50 lbs) or their
    • shoulders are above the highest harness level, you MUST use this child restraint as a booster (p. 34).
  • Adjust, or remove, the vehicle headrest, in the seat
    • where the child restraint is to be fastened, so that the back of the child restraint rests against the vehicle seat back.
  • The headrest on the vehicle seat in front of the child
    • should be put in its lowest position. The vehicle seat back that the child faces must be fully padded and free of any hard objects. To help prevent serious injury or death:
  • The shoulder belt MUST NOT cross
    • the child’s neck or fall off the child’s shoulder. If you cannot adjust the shoulder belt to properly lay midway between the child’s shoulder and neck AND at or above the shoulder, try another seating location or do not use the booster seat.

    Warning!

    DEATH or SERIOUS INJURY can occur. Booster Mode ONLY Warnings Forward-Facing ONLY Warnings

    Warning!

    DEATH or SERIOUS INJURY can occur. To help prevent serious injury or death:
  • ALWAYS read your vehicle owner's manual to
    • determine what vehicle belts and retractors are used in your vehicle belt. The vehicle belt MUST lock and MUST NOT loosen after the seat belt is tightened. For 5-point Harness Use Only
  • DO NOT use this child restraint
    • if it moves more than 25 mm (1 in.) side to side or front to back at either the rear-facing or forward-facing belt path on the child restraint. Serious injury or death may result from poor installation. If you cannot tightly secure the child restraint, try again or move it to another location. For 5-point Harness and Booster Use
  • DO NOT use this child restraint in a
    • seating position with door-mounted seat belts.
  • DO NOT use this child restraint
    • in a vehicle with seat belts that automatically move along the vehicle frame when the door is opened.

  • DO NOT use this child restraint in a
    • vehicle equipped with lap belts that only lock during a sudden stop or crash (emergency locking retractor – ELR). You must use a seating location with a locking seat belt. Check your vehicle owner’s manual to see if you have lap belts with ELRs.
  • DO NOT use on vehicle seats when both
    • portions of the vehicle belts are positioned forward of the seat crease. Seat Belt Warnings Retractor

    Page 6
    Evenflo Maestro Sport Car Seat manual — page 6

    11 10

    Toc

    Warning!

    DEATH or SERIOUS INJURY can occur. Important To help prevent serious injury or death:
  • DO NOT use with lap/shoulder belts with two
    • retractors. If the vehicle seat belts are not routed and fastened correctly, the child restraint may not protect the child in a crash.
  • DO NOT use with inflatable seat belts except in booster mode.
  • Check your vehicle owner’s manual to determine how to lock
    • your seat belt for child restraint installation. The seat belt must be locked to properly secure the child restraint.
  • DO NOT allow the vehicle seat belt release button to touch
    • the child restraint. Accidental contact may cause the seat belt to release. If necessary, turn the seat belt release button away from the child restraint or move the child restraint to a different location.
  • Failure to adjust the harness or vehicle seat belts snugly around
    • the child may result in the child striking the vehicle’s interior during a sudden stop or crash. Serious injury or death may occur.
  • This child restraint must be securely belted to the vehicle, even
    • when they are unoccupied, since in a crash an unsecured child restraint system may injure other occupants. For Booster Use Only
  • Warning! Use only the vehicle’s lap and shoulder belt system
    • when restraining the child in this booster seat.
  • The shoulder belt MUST be routed properly. (p. 41).
  • DO NOT use this booster seat if the child’s ears are above
    • the back of the booster seat headrest.
  • DO NOT use Locking Clip in Booster mode.
    • Seat Belt Warnings (cont.) If your vehicle was built prior to model year 1996, and has a lap/shoulder belt that is equipped with an emergency locking retractor (ELR) AND sliding latch plate, you MUST use a Locking Clip. Check your vehicle owner’s manual to identify which vehicle belt system is in your vehicle. If your vehicle is model year 1996 or newer, it likely has a vehicle belt system that can be locked when tightened, and will not require use of a Locking Clip. Consult your vehicle owner’s manual before installing a locking clip. If your vehicle requires a Locking Clip, please call ParentLink at 1-800-233-5921 (U.S.) or 1-937-773-3971 (Canada), or 01-800-706-12-00 (Mexico) to obtain a Locking Clip and instructions on how to install and use it. Remove Locking Clip from vehicle seat belt when not used with a child restraint, or the vehicle seat belt will not properly restrain an adult or child. Serious injury could occur. Locking Clip installed properly 13 mm (0.5 in.)

    Locking Clip Use:

    Warning!

    DEATH or SERIOUS INJURY can occur. To help prevent serious injury or death: If you have any of these types of vehicle belt systems listed, these are SAFE to use to install your child restraint in the vehicle. Review vehicle owner’s manual for specific instructions on child restraint installation. LATCH can be used IN PLACE OF these vehicle belt types. Refer to the Forward-facing weight limits on LATCH use on pg. 22. Refer to your vehicle owner’s manual for LATCH locations.

    Lap Belt with Automatic Locking Retractor (ALR) The automatic locking retractor does not allow the lap belt to get longer once it is buckled. The vehicle belt is tightened by feeding seat belt webbing into retractor. Lap Belt with Locking Latch Plate Once buckled, the vehicle belt is tightened by pulling on the free end of the strap until the belt is tight. Free end Lap/Shoulder Belt with Locking Latch Plate Lap/Shoulder Belt with Sliding Latch Plate with Locking Retractor The latch plate slides freely along the lap/shoulder belt. Vehicle belts with sliding latch plates are typically locked at the shoulder belt retractor by buckling the belt and pulling all of the webbing out slowly to switch the retractor. Check vehicle owner’s manual for specific instructions. The vehicle belt is tightened after switching the retractor by pulling up on shoulder belt and feeding the webbing into the retractor. The lap portion of this belt does not loosen once the belt is buckled. The vehicle belt is tightened by pulling up hard on shoulder belt and feeding the extra webbing into the retractor. Seat Belt Warnings (cont.)

    Page 7
    Evenflo Maestro Sport Car Seat manual — page 7

    13 12

    Toc

    Warning!

    DEATH or SERIOUS INJURY can occur. Important Vehicle Lower Anchors Vehicle Top Tether Anchor Points Vehicle Seat Crease What is LATCH? LATCH is an acronym for (Lower Anchors and Tethers for CHildren) and refers to a pair of fixed Lower Anchors (or bars) and a Top Tether anchor that are built into your vehicle, in vehicles built after September 1, 2002. The lower LATCH anchors are located in the crease, or bight, between the vehicle seat back and seat cushion, and if not visible, will typically be indicated by symbols. Top tether anchors are located in various places behind the rear vehicle seat. Center installation in a non-standard LATCH position: Center installation of this child restraint is permitted using inner Lower Anchor Bars from the outside seating positions if (1) your vehicle manual allows such installation; and (2) the inner Lower Anchor Bars from the outside seating positions are 28-51 cm (11-20 in.) apart. Is it safer? LATCH typically offers an easier and more consistent installation. However, this child restraint can be safely installed using either LATCH or vehicle belts and meets the requirements of Federal Safety Standard FMVSS 213 with either installation method. Either method is safe for your child when installed correctly. When using either method, it is best practice to ALWAYS use tether when installing in the forward-facing position. DO NOT install this child restraint with LATCH and the vehicle’s seat belts at the same time. Your vehicle owner’s manual may refer to this system as ISOFIX, Universal Anchorage System (UAS), or Lower Universal Anchorage System. The LATCH system is intended to be used ONLY as described in these instructions. Serious injury or death may result from misuse. Refer to your vehicle Owner’s Manual for lower anchor bar positions in your vehicle. 28 cm 11” 28 cm 11” LATCH/UAS Warnings

    Warning!

    DEATH or SERIOUS INJURY can occur. To help prevent serious injury or death:
  • DO NOT use the lower anchors of the child restraint
    • anchorage system (LATCH system) to attach this child restraint when restraining a child weighing more than 18 kg (50 lbs) with the internal harnesses of the child restraint. ONLY USE VEHICLE BELT INSTALLATION.
  • ONLY use for securing child restraint to vehicle lower
    • anchor bars.
  • NEVER attach two lower anchor connectors to one
    • vehicle lower anchor bar.
  • NEVER use the vehicle seat belts when using the
    • lower anchor connector assembly. Using both together can cause slack in a sudden stop or crash.
  • To avoid strangulation, you must store the unused
    • LATCH straps, with all slack removed, in the storage areas on the sides of your seat. Roll or fold the excess LATCH strap and secure with a rubber band to prevent serious injury to vehicle occupants.
  • ALWAYS be sure that the lower anchor connectors are
    • attached to the vehicle lower anchor bars by pulling hard on the lower anchor connectors. If they are not attached, the lower anchor connector assembly will not secure your child restraint. Serious injury or death may result.
  • DO NOT use this child restraint if it moves more than
    • 25 mm (1 in.) side to side or front to back at either the rear-facing or forward-facing belt path on the child restraint. Serious injury or death may result from poor installation. If you cannot tightly secure the child restraint, try again or move it to another location. LATCH/UAS Warnings

    Page 8
    Evenflo Maestro Sport Car Seat manual — page 8

    15 14

    Toc

    To help prevent serious injury or death:
  • To avoid a strangulation hazard, you MUST tightly roll
    • or fold excess or unused tether strap and secure with a rubber band. Attach the tether hook to the storage clip when not in use (p. 18). This will keep an unused tether or tether hook from hitting someone during a crash. Tether Strap Warnings
  • DO NOT use the cup holder to store cans or hard cups.
    • DO NOT place any cups that contain hot liquids in the cup holder.
  • DO NOT attach additional padding, toys, or other devices
    • not made by Evenflo or described in these instructions for the child restraint. Items not tested with the child restraint could injure the child. Additional pads or pillows may interfere with the function of the harness system, or cause breathing problems if the child’s head falls forward, increasing the risk of serious injury or death.
  • In hot or sunny weather, ALWAYS check the areas of the
    • child restraint that may contact your child (e.g., buckle, buckle tongues, etc.) for hot areas before placing him/her into the child restraint. The child could be burned. Cover the child restraint with a light colored blanket when you leave the vehicle.
  • In cold weather, DO NOT dress the child in bulky clothing
    • like snowsuits if the child is riding in a child restraint. Bulky coats/snowsuits make it difficult to properly tighten the harness to the child, which may allow the child to be ejected from the restraint during a crash. If necessary, place a blanket over the harnessed child without interfering with the child restraint harness system.
  • Failure to follow installation instructions could result in
    • serious injury or death. These instructions and the instructions in your vehicle owner’s manual must be followed carefully. If there is a conflict between the two, the vehicle owner’s manual regarding child restraint installation must be followed. Additional Warnings

    Warning!

    DEATH or SERIOUS INJURY can occur. Notes

    Page 9
    Evenflo Maestro Sport Car Seat manual — page 9

    17 16

    Toc

    Important Recall Information for U.S. Customers Public Notice for Canadian Customers
  • Child restraints could be recalled for safety reasons.
    • You must register this restraint to be reached in a recall. Send your name, address, e-mail address if available, and the restraint’s model number and manufacturing date to

    Evenflo Company, Inc.,

    1801 Commerce Dr.,

    Piqua, OH 45356

    or call 1-800-233-5921

    or register online at:

    www.evenflo.com/registercarseat

  • For recall information, call the U.S. Government’s
    • Vehicle Safety Hotline at 1-888-327-4236 (TTY:1-800-424-9153), or go to: http://www.NHTSA.gov
  • To register your booster, return the
    • registration card, call 1-937-773-3971, or register online at: www.evenflo.com/registercarseatcanada
  • For recall information, call Transport
    • Canada at 1-800-333-0510 (1-613-993-9851 in Ottawa region) or Evenflo at 1-937-773-3971.
  • Everyone rides buckled up or the vehicle does not go.
    • Make no exceptions for adults or children. If someone unbuckles, stop the vehicle. Being firm and consistent from the start will mean fewer discipline problems as children get older. An unrestrained person can be thrown into and injure other passengers.
  • NEVER try to tend to a crying baby’s needs while
    • driving. NEVER take a baby out of a child restraint for comforting while the vehicle is moving.
  • DO NOT allow a child in a vehicle to have objects such
    • as lollipops or ice cream on a stick. The object can injure the child if the vehicle swerves or hits a bump.
  • DO NOT feed an infant who is riding in a child
    • restraint.
  • Put sharp or heavy items in the trunk. Anything loose
    • can be deadly in a crash. Safe Practices When used with the 5-point harness system and properly installed pursuant to these instructions, this restraint is certified for use only in passenger and multi-purpose passenger motor vehicles, buses, and trucks equipped with either lap belts only or lap/shoulder belt systems and in aircraft. Refer to pages 47 to 48 for instructions on installing your child restraint in aircraft. When used without the 5-point harness system (in booster mode) and properly installed pursuant to these instructions, this restraint is certified for use only in passenger and multi-purpose passenger motor vehicles, buses and trucks equipped with lap/shoulder belt systems only. In booster mode, this restraint is NOT certified for aircraft use. A belt-positioning booster requires the use of a lap/shoulder belt system, which is not available on aircraft. Motor Vehicle/Aircraft Usage Check with your airline before departure to make sure this restraint meets their requirements. Tip! Tip! Tear off and mail this part Consumer: Just fill in your name and address and e-mail address. Your Name

    Child Restraint Registration Card

    Your Street Address State Zip Code City E-mail Address

    Canadian Residents Only

    Domicilies Du Canada Seulement

    Product Registration Card

    Carte D'Enregistrement Du Produit

  • Name
    • Nom
  • Street Address
    • Adresse
  • City
    • Ville
  • Prov.
    • Prov
  • Postal Code
    • Code postal
  • Telephone Number (with Area Code)
    • Num. de téléphone (et indicatif régional) ( )
  • Date of Purchase
    • Date d'achat ATTENTION: This card may be important to the safety of your child. Please complete using blue or black ink and mail this card so that you can be contacted in the event of a safety defect notice on this product. The information you provide must be complete. Or register online at www.evenflo.com/registercarseatcanada. ATTENTION : Cette carte pourait être importante à la sécurité de votre enfant. Veuillez remplir cette carte à l’encre bleue ou noire et la poster afin de pouvoir être contacté en cas d’un avis de défaut lié à la sécurité de ce produit. Les informations fournies doivent être complètes. Ou enregistrez-vous en ligne à www.evenflo.com/registercarseatcanada.

    Place Date/Model # Label Here.

    Affixer L'Étiquette De La Date Et

    Du Numéro De Modèle Ici.

    26000187 8/15
  • Email Address
    • Adresse électronique

    Page 10
    Evenflo Maestro Sport Car Seat manual — page 10

    19 18

    Toc

    Place

    At

    Armpit

    Maestro™ Sport Owner’s Manual Child Restraint System Exclusive RightFit

    Belt Path Keep for future use Child Requirements 5-point Harness*

  • See page 2 for complete requirements.
    • Booster* To reduce the risk of serious injury or death, read this owner’s manual prior to installing and using this child restraint.

    Warning:

    18 to 49.8 kg (40 to 110 lbs) 112 to 145 cm (44 to 57 in) At least 4 years old 10 to 22.6 kg (22 to 50 lbs) 71 to 127 cm (28 to 50 in) At least 2 years old Para instrucciones en Español, llamar al: 1-800-233-5921

    Place At

    Armpit

    Front
  • Not all features are available on all models. Styles may vary.
    • Back Child Restraint Features 1 3 2 4 5 6 7 8 9
  • Shoulder Belt Guide
  • Harness Straps
  • Cup Holder*
  • Headrest
  • Head Pillow
  • Chest Clip
  • Buckle
  • Crotch Strap
  • Harness Release Button
  • Harness Adjust Strap
  • Tether Strap and Hook (Shown fastened to storage clip)
  • Lower Anchor Connector Assembly
  • Splitter Plate
  • Instruction Storage Area
  • Vehicle Seat Belt Path
    • Description 13 15 14 Important 10 11 12 Child Restraint Features

    Page 11
    Evenflo Maestro Sport Car Seat manual — page 11

    21 20

    Toc

    Hook Adjuster Strap SecureRight Quick Connector Clip Strap Adjuster The lower anchor connector assembly that comes with your child restraint will be one of the two types below. Refer to your vehicle owner’s manual to locate the lower anchor bars on your vehicle seat. Attach the right hook, or clip, to the right anchor bar and the left hook, or clip, to the left anchor bar. Double check that the lower anchor connector hook is fully engaged by pulling hard on the lower anchor connector strap. Make sure vehicle seat belt lies flat without twisting. Lower Anchor Connector Which Type of Lower Anchor Connector Is on Your Child Restraint? Child Restraint Features (cont.) Removing the Lower Anchor Connector Child Restraint Features (cont.) Storing the Lower Anchor Connector When the Lower Anchor Connector assembly is not in use you MUST attach the hooks to the back of the child restraint. A loose Lower Anchor Connector assembly strap and hook may injure your child. Disconnect from the back of the child restraint. Important

    Place

    At

    Armpit

    Maestro™ Sport Owner’s Manual Child Restraint System Exclusive RightFit

    Belt Path Keep for future use Child Requirements 5-point Harness*

  • See page 2 for complete requirements.
    • Booster* To reduce the risk of serious injury or death, read this owner’s manual prior to installing and using this child restraint.

    Warning:

    18 to 49.8 kg (40 to 110 lbs) 112 to 145 cm (44 to 57 in) At least 4 years old 10 to 22.6 kg (22 to 50 lbs) 71 to 127 cm (28 to 50 in) At least 2 years old Para instrucciones en Español, llamar al: 1-800-233-5921 After thoroughly reading and following these instructions, store them in the slots on either side of the child restraint.

    Page 12
    Evenflo Maestro Sport Car Seat manual — page 12

    23 22

    Toc

    Place

    At

    Armpit

    Important

    When installing this child restraint with LATCH or the vehicle seat belt, always use the top anchorage strap (tether), if a tether anchor is available. Tether Strap Child Requirements
  • Weight: 10 to 22.6 kg (22 to 50 lbs)
  • Height: 71 to 127 cm (28 to 50 in)
    • and tops of the child’s ears are at or below the top of the child restraint headrest
  • Age: At least 2 years old
    • Harness straps are at, or slightly above, the child’s shoulders. Forward-facing Belt Path Lower Anchor Connector Assembly IMPORTANT: Once your child exceeds any of the size requirements for forward-facing use above, you MUST discontinue use of this child restraint with its internal harness and begin using it as a belt-positioning booster seat, if possible. If your child exceeds any of the size requirements for forward-facing use above and is less than 4 years old, however, you MUST discontinue use of this child restraint. Using the Internal 5-pt Harness
  • Disconnect tether
    • hook and lower anchor connectors from the back of the child restraint. Tether Strap
  • Place the child restraint in position.
    • Set child restraint on vehicle seat in forward-facing position. Lay the tether strap over the back of the vehicle seat. To avoid a strangulation hazard, you MUST store the unused lower anchor connector assembly, with all slack removed, in storage area on the back of the seat (p. 30). Roll or fold excess lower anchor connector strap and secure with a rubber band to prevent serious injury to vehicle occupants.

    Warning

    LATCH is a system for attaching the child restraint to your vehicle seat. It is to be used in place of your vehicle’s seat belts and can be used in vehicles with LATCH anchors. DO NOT install this child restraint with the vehicle seat belts AND LATCH (Your vehicle owner’s manual may refer to this system as ISOFIX, Universal Anchorage System (UAS), or Lower Universal Anchorage System.) 5-pt Harness 5-pt Installation with Lower Anchor Connectors

    Page 13
    Evenflo Maestro Sport Car Seat manual — page 13

    25 24

    Toc

    Belt Path

    Warning

    5-pt Harness Hook Adjuster Strap SecureRight Quick Connector Clip Strap Adjuster Know Your Lower Anchor Connector Assembly The lower anchor connector assembly that comes with your child restraint will be one of the two types below. Refer to your vehicle owner’s manual to locate the lower anchor bars on your vehicle seat. Attach the right hook, or clip, to the right anchor bar and the left hook, or clip, to the left anchor bar. Double check that the lower anchor connector hook is fully engaged by pulling hard on the lower anchor connector strap. Make sure vehicle seat belt lies flat without twisting. DO NOT use this child restraint if it moves more than 25 mm (1 in.) side-to-side or front-to- back at the belt path. Serious injury or death may result from poor installation. If you can not tightly secure the child restraint, try again, move it to another location, or install with the vehicle seat belt.
  • Secure the child restraint.
    • Using your full weight, push the child restraint firmly into the vehicle seat, while pulling up on the lower anchor connector strap to tighten. The lower anchor connector strap must be as tight as possible. If you can move the child restraint more than 25 mm (1 in.) side-to-side or front-to-back at the belt path, the lower anchor connector strap is not tight enough. You will need to try again, find another location for your child restraint, or install with the vehicle seat belt (page 26). To remove the lower anchor connector strap, go to page 29.
  • Connect and tighten tether strap.
    • Connect the tether hook to the anchor behind the vehicle seat, as shown. (Please consult your vehicle owner’s manual, as tether anchor locations may vary.) Pull the strap and tighten the tether securely. IMPORTANT: If your tether strap is too short to reach from your child restraint to your vehicle tether anchor, you will need a Tether Extender. Please call ParentLink at 1-800-233-5921 (U.S.) or 1-937-773-3971 (Canada), or 01-800-706-12-00 (Mexico). 5-pt Installation with Lower Anchor Connectors (cont.) 5-pt Installation with Lower Anchor Connectors (cont.)

    Page 14
    Evenflo Maestro Sport Car Seat manual — page 14

    27 26

    Toc

  • Disconnect tether
    • hook from the back of the child restraint. Tether Strap
  • Place the child
    • restraint in position. Set child restraint on vehicle seat in forward-facing position. Lay the tether strap over the back of the vehicle seat.
  • Route vehicle seat
    • belt through belt path and buckle it, as shown. Note: Lift seat pad away from seat for easier access. Make sure vehicle seat belt lies flat without twisting. Belt Path IMPORTANT: If you are using the vehicle seat belt to secure the child restraint, DO NOT use the lower anchor connector assembly. 5-pt Harness Lap Belt Only Lap & Shoulder Belt
  • Buckle the vehicle seat belt.
    • Buckle the vehicle seat belt as shown depending on your type of seat belt. Note: Install locking clip on lap and shoulder belt combinations, if necessary.

    Warning

  • Secure the child restraint.
    • The vehicle seat belt must be as tight as possible. Using your full weight, push the child restraint firmly into the vehicle seat as you tighten the vehicle belt. If you can move the child restraint more than 25 mm (1 in.) side-to-side or front-to-back at the forward- facing belt path, the seat belt is not tight enough, you will need to try again, or install with the lower anchor connector assembly (page 24).
  • If vehicle seat belts are not routed and fastened correctly,
    • the child restraint may not protect your child in a crash.
  • Check your vehicle owner’s manual to determine how to
    • lock your seat belt for child restraint installation. The seat belt must be locked to properly secure the child restraint.
  • DO NOT use this child restraint if it moves more than
    • 25 mm (1 in.) side-to-side or front-to-back at the belt path. Serious injury or death may result from poor installation. If you can not tightly secure the child restraint, try again or move it to another location, or install with the lower anchor connector assembly (page 24). Belt Path Installation with Vehicle Seat Belts Installation with Vehicle Seat Belts

    Page 15
    Evenflo Maestro Sport Car Seat manual — page 15

    29 28

    Toc

  • Connect and tighten tether strap.
    • Connect the tether hook to the anchor behind the vehicle seat, as shown. (Please consult your vehicle owner’s manual, as tether anchor locations may vary.) Pull the strap and tighten the tether securely. IMPORTANT: If your tether strap is too short to reach from your child restraint to your vehicle tether anchor, you will need a Tether Extender. Please call ParentLink at 1-800-233-5921 (U.S.) or 1-937-773-3971 (Canada), or 01-800-706-12-00 (Mexico). 5-pt Harness Installation with Vehicle Seat Belts To remove the hook, press the tab and twist, then remove from anchor. Or Or To remove the clip, pull the red release strap and remove clip from anchor. The Lower Anchor Connector that comes with your child restraint will be one of the two types below. Using your full weight, push the child restraint into the vehicle seat while loosening the adjuster. Tip! Tip! Removing the Lower Anchor Connectors
  • Loosen the adjuster
  • Remove the connectors.
    • Press the adjuster release button to loosen. Tilt and slide the adjuster to loosen.

    Page 16
    Evenflo Maestro Sport Car Seat manual — page 16

    31 30

    Toc

    Removing the Lower Anchor Connectors
  • Loosen harness
    • straps. Press the harness release button on the front of the seat while pulling the harness straps.
  • Remove both
    • harness straps from the splitter plate.
  • Store lower anchor
    • connectors. When the Lower Anchor Connector assembly is not in use you MUST attach the hooks to the back of the child restraint. A loose Lower Anchor Connector assembly strap and hook may injure your child.
  • Attach harness
    • straps to splitter plate. Attach the loop at the end of each harness strap onto the splitter plate.
  • Move harness strap.
    • Remove both harness straps from the slots and feed them into the new slot, as shown. Pull the harness strap to the back of the child restraint. Note: Straps must be positioned at the child’s shoulder level or slightly above. IMPORTANT: When inserting harness straps through the slots in the seat pad, make sure you route them correctly through their corresponding slots in the seat shell.

    Place

    At

    Armpit

    Level

    Push

    Place

    At

    Armpit

    Level

    Push

    Make sure both harness straps are installed completely on the splitter plate, as shown. Failure to properly attach the harness straps to the splitter plate may result in a loose harness and serious injury or death to your child.

    Warning

    Positioning the Harness Strap Positioning the Harness Strap 5-pt Harness

    Page 17
    Evenflo Maestro Sport Car Seat manual — page 17

    33 32

    Toc

  • Secure child restraint to the vehicle seat.

    • D

    D Child restraint is securely installed with lower anchor connector assembly through belt path (p. 23)

    Or

    Child restraint is securely installed with vehicle seat belt through belt path (p. 26)

    D

    D Tether strap is attached and tightened (p. 25 or 28).

    D

    D Locking clip is installed, if necessary (p. 10).
  • Place the child in the child restraint.

    • D

    D The child’s back and bottom are flat against the back and bottom surfaces of the child restraint.

    D

    D The tops of the child’s ears MUST be at or below the top of the child restraint headrest.
  • Make necessary adjustments.

    • D

    D Harness straps are snug against the child’s shoulders, with no slack (p. 43).

    D

    D Crotch strap is properly positioned (p. 42).
  • Fasten both buckle tongues. Refer to page 43.
  • Position and connect chest clip.

    • D

    D Chest clip MUST be at armpit level (p. 44).
  • Check your work.

    • D

    D To properly protect the child, the child restraint MUST NOT move more than 25 mm (1 in) from side-to-side or from front-to-back at the belt path. Installation Checklist

    Important

    Always secure the booster seat with the LATCH connectors or vehicle seat belt when not occupied. An unsecured booster seat can fly into and injure other occupants in the event of a crash. The shoulder belt MUST cross midway between child’s shoulder and neck. The lap belt is stretched low and snug across the child’s hips. The shoulder belt MUST be routed properly. See page 41. Child Requirements
  • Weight: 18 to 49.8 kg (40 to 110 lbs)
  • Height: 112 to 145 cm (44 to 57 in)
    • and tops of the child’s ears are at or below the top of the child restraint headrest.
  • Age: At least 4 years old
    • IMPORTANT: Once your child exceeds any of the size requirements above for belt-positioning use, you MUST discontinue use of this seat. Your child may be ready for use of the vehicle belt system only at this time. DO NOT use with Lap Belt only. Using the Child Restraint in Booster Mode Booster

    Page 18
    Evenflo Maestro Sport Car Seat manual — page 18

    35 34

    Toc

    When to Put Your Child in a Booster Seat Booster seats raise the child up and help to position the vehicle lap and shoulder belt correctly. When the child is properly restrained in a booster seat, his/her risk of injury in all types of crashes is reduced, as the lap and shoulder belt provides excellent restraint of both the upper and lower torsos. It is important for the child to sit properly within the vehicle seat belts. When the vehicle seat belt is buckled, the lap belt should be low on the hips, just touching the thighs, and the shoulder belt should lie across the middle of the shoulder. If the child leans out or moves the belt behind the back or places it under the arm, it will not provide the intended restraint. There are a number of things to consider when deciding whether the child is ready to sit in a booster seat, including: the weight and height rating on his/her current child seat, the child’s own weight and height, his/ her maturity, and the seating positions available in your vehicle. How is a booster seat used? Using a booster seat is very similar to buckling yourself into the vehicle:
  • Read the instruction manuals for both the booster
    • seat and the vehicle before you start.
  • Put the booster in the back seat in a location with a
    • lap and shoulder belt. Never use a booster with only a lap belt, as this could cause serious injuries.
  • After the child is in the booster, pull the lap and
    • shoulder belt across him/her and buckle it.
  • Check that the shoulder belt lies across the middle of
    • the shoulder and that the lap belt is low on the hips, just touching the thighs. How can you tell if your child is ready to transition to a booster seat? You should consider using a booster seat if the following conditions apply:
  • The child is mature enough to sit in the booster seat
    • and not put the belts under their arm or behind their back.
  • The child is approaching the weight or height limit
    • of the child restraint they are currently using. (Even children who have not outgrown their toddler seat can benefit from the use of a booster seat, if it is used properly.)
  • If you have a vehicle that does not have a tether
    • anchorage but has lap/shoulder belts available in the back seat, a booster seat may provide better protection than an internal harness seat without the tether. The shoulder belt MUST cross midway between child’s shoulder and neck. The shoulder belt MUST be routed properly. See page 41. The lap belt is stretched low and snug across the child’s hips. Booster

    Page 19
    Evenflo Maestro Sport Car Seat manual — page 19

    37 36

    Toc

  • Convert child restraint to booster seat.
    • See “Converting into a Booster Seat,” (p. 37).
  • Secure booster seat to the vehicle seat.

    • D

    D Make sure the bottom and back of the booster seat are touching vehicle seat and back.

    D

    D If your vehicle has LATCH, you may secure the booster seat to the vehicle with the LATCH connectors to prevent the unoccupied booster seat from becoming a projectile in a crash (p. 18).

    D

    D Leveling the booster seat (Canadian Models ONLY). (p.37).
  • Place the child in the booster seat.
    • Make sure the child’s back and bottom are flat against the back and bottom surfaces of the booster seat.
  • Secure child and booster seat to vehicle seat.
    • Stretch the lap/shoulder belt across the child and fasten the buckle. Make certain the shoulder belt is threaded through the shoulder belt guide. The shoulder belt MUST be routed properly (p. 41).
  • Check your work.
    • Make sure the lap belt is stretched low and snug across the child’s hips, within the belt guides, and fastened into the buckle. The shoulder belt must cross the child midway between his/her shoulder and neck. Booster Installation Checklist
  • The shoulder belt MUST NOT cross the child’s neck
    • or fall off the child’s shoulder. If you cannot adjust the shoulder belt to properly lay midway between the child’s shoulder and neck AND at or above the shoulder, try another seating location, or do not use the booster seat.

    Warning

  • Remove both
    • harness straps from the splitter plate and pull them through to the front of the seat. Converting into a Booster Seat
  • Loosen harness.
    • Press the harness release button while pulling outward on the harness straps, as shown. Disconnect the chest clip.

    Place

    At

    Armpit

    Booster Place the foam block on the center of a vehicle seat making sure it is pushed up against the vehicle seat back. Place the rear of the booster seat centered on the foam block. Follow all the other instructions in this owner’s manual. Leveling the Booster Seat (Canadian Models ONLY)

    Page 20
    Evenflo Maestro Sport Car Seat manual — page 20

    39 38

    Toc

    Booster
  • Route the harness
    • straps through adjustment slots, then attach to splitter plate.
  • Fold and tuck the
    • harness, chest clip and buckle tongues into the recesses on either side of the seat shell. Look for logos on seat shell for proper storage locations.

    Place

    At

    Armpit

    Level

    Push

    Make sure both harness straps are installed completely on the splitter plate, as shown.
  • Remove the crotch
    • strap. Locate the crotch strap anchor on the bottom. Turn the anchor sideways and push it through the seat shell to remove, as shown. Insert the crotch strap anchor back into the opening from the bottom of the child restraint.

    Pull the anchor through the seat and adjust so it lies flat. Converting into a Booster Seat Converting into a Booster Seat

  • Disconnect all
    • elastic loops and all retaining strips, then remove the seat pad.

    Page 21
    Evenflo Maestro Sport Car Seat manual — page 21

    41 40

    Toc

    Booster Note: To convert the seat back into 5-point harness mode, reverse these steps.
  • Install the seat pad.
    • Your child restraint is now in Booster Mode and ready for a child who meets the following requirements:
  • Weight: 18 to 49.8 kg (40 to 110 lbs)
  • Height: 112 to 145 cm (44 to 57 in.) and tops of the
    • child’s ears are at or below the top of child restraint headrest
  • Age: At least 4 years old
    • Make sure both harness straps are installed completely on the splitter plate, as shown. Failure to properly attach the harness straps to the splitter plate may result in a loose harness and serious injury or death to your child.

    Warning

    Shoulder belt routing while in booster mode IMPORTANT: While the seat is used in booster mode the shoulder belt must be routed over the child’s shoulder. The belt must pass under the head rest, between the head rest and the seat as long as the child’s shoulders are at or below the opening between the head rest and shell. IMPORTANT: If the child’s shoulders are high enough that routing the shoulder belt under the head rest causes the belt to be pulled down the back side of the child’s shoulder (before passing through the head rest) the belt should not be routed between the seat and the head rest. IMPORTANT: If the shoulder height causes the belt to route behind the back and the top of the ears are still at or below the top of the head rest, the shoulder belt should be routed on top of the head rest. Converting into a Booster Seat

    Page 22
    Evenflo Maestro Sport Car Seat manual — page 22

    43 42

    Toc

    Place

    At

    Armpit

    Level

    Push

    As your child grows, you will need to change the crotch strap position so that it is in the slot closest to your child. The crotch strap should ALWAYS be as close as possible to, but NEVER under, the child’s bottom. IMPORTANT: You MUST place the crotch strap in the front slot if your child weighs 18 kg (40 lbs) or more.
  • Insert crotch strap
    • into new slot. Insert the crotch strap anchor into the slot that is the closest to the child, but NEVER under, the child’s bottom. Note: Pull the crotch strap to make sure it is secure.
  • Remove crotch strap.
    • Loosen the harness straps and move them out of the way. Push the anchor up through the slot to the top of the seat.

    Place

    At

    Armpit

    Level

    Push

    Place

    At

    Armpit

    Level

    Push

  • Position harness
    • straps. Unfasten chest clip and place the child in the child restraint. Bring each harness strap over the child’s shoulders.
  • Loosen harness.
    • Press the harness release button on the front of the seat while pulling the harness straps. IMPORTANT: The child’s back and bottom should be flat against the restraint. If there is a gap, the child will not be comfortable.
  • Buckle the harness.
    • Insert both buckle tongues into the buckle. Note: Pull up on the harness straps to ensure that the buckle tongues are fastened securely. Positioning the Crotch Strap Securing the Child in the Child Restraint General

    Page 23
    Evenflo Maestro Sport Car Seat manual — page 23

    45 44

    Toc

    Place

    At

    Armpit

    Place

    At

    Armpit

    Place

    At

    Armpit

    Level

    Push

  • Loosen harness
    • straps. Press the harness release button on the front of the seat while pulling the harness strap outward behind the fastened chest clip.
  • Disconnect chest clip.
    • Push the release button and pull the chest clip apart.
  • Unbuckle harness.
    • Press the red button on the buckle and release both buckle tongues. You may now remove the child.

    Place At

    Armpit

    Place

    At

    Armpit

    Level

    Push

  • Fasten and adjust
    • chest clip. Snap the two halves of the chest clip together, as shown, and slide to armpit level.

    Place

    At

    Armpit

  • Tighten harness.
    • Pull the harness adjuster strap to tighten the harness. Note: Check the harness straps near the shoulders for slack. You should NOT be able to pinch the harness (see illustration). Adjust as needed. IMPORTANT: A snug strap should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child’s flesh or push the child’s body into an unnatural position. General Securing the Child in the Child Restraint (cont.) Removing the Child from the Child Restraint

    Page 24
    Evenflo Maestro Sport Car Seat manual — page 24

    47 46

    Toc

    General
  • Remove the hook.
    • Press the tab and twist, then remove the hook from the anchor. The tether strap that comes with your child restraint will be one of the two types below. Press the adjuster release button to loosen. Tilt and slide the adjuster to loosen.
  • Loosen the adjuster
    • Installing Child Restraint in Aircraft The Federal Aviation Administration (FAA) recommends that you secure your child for air travel in an appropriate child restraint based on your child’s weight and size. Turbulence can happen with little or no warning. When turbulence occurs, the safest place for your child is in a properly installed child restraint, not in an adult’s lap or on the aircraft seat with its seat belt. Keeping your child in a child restraint during the flight will help ensure your family arrives safely at your destination. The FAA recommends that a child weighing:*
  • more than 18 kg (40 lbs) use an aircraft seat belt;
  • less than 9 kg (20 lbs) use a rear-facing child
    • restraint; and
  • from 9 to 18 kg (20 to 40 lbs) use a forward-facing
    • child restraint.
  • Please note that these FAA recommendations may
    • vary from those applicable to the use of your child restraint in a motor vehicle. IMPORTANT: Before installing the child restraint, make sure the aircraft seat is in a fully upright position.
  • Place the child restraint in position.
    • Place the child restraint on the aircraft seat forward-facing, as shown above. Aircraft Seat Belt

    Important

    This child restraint can only be used with a 5-point harness in aircraft. This restraint cannot be used in booster mode in aircraft. Removing the Tether Strap

    Page 25
    Evenflo Maestro Sport Car Seat manual — page 25

    49 48

    Toc

    2 1
  • Route aircraft seat belt through belt path.
    • Route the aircraft seat belt through the belt path opening in the back of the child restraint and continue through the opening on the opposite side of the child restraint. Note: Lift the restraint’s seat pad away for easier access. Aircraft Seat Belt Belt Path Opening

    Place At

    Armpit

  • Fasten the aircraft seat belt, then remove all
    • slack from the belt. The aircraft seat belt must be as tight as possible. Route the excess aircraft seat belt strap back through the belt path opening. Using your full weight, push the child restraint firmly onto the aircraft seat while pulling on the excess seat belt strap to tighten. Note: Because of the fixed length of aircraft seat belts, the belt buckle could be behind the child’s back after tightening the belt. For your child’s comfort, Evenflo recommends cushioning the child’s back by placing a small pillow or folded-up blanket, or a folded-up jacket, over the belt buckle. Check your work: Reconnect the seat pad to the front of the child restraint. Try to move the child restraint in all directions. If you can move the restraint more than 25 mm (1 in) from side-to-side or front-to-back at the belt path, the aircraft seat belt is not tight enough, and you MUST install again until the seat belt is tight.
  • Secure your child in the child restraint.
    • Refer to page 43. General Removing the Seat Pad
  • Disconnect the harness
    • straps from the splitter plate.
  • Disconnect elastic
    • loops and two retaining strips. Remove the seat pad. Retaining Strips Elastic Loops Installing Child Restraint in Aircraft (cont.)

    Warning

    Cup holders MUST be installed before use of this Child Restraint. Snap each cup holder onto the seat, 1 and 2, then turn the seat over and secure each cup holder with a screw 3, as shown. Do not overtighten. Make sure each cup holder is attached securely in place. Note: Screws are provided in the small bag attached to the harness. Installing the Cup Holders 3

    Page 26
    Evenflo Maestro Sport Car Seat manual — page 26

    51 50

    Toc

  • DO NOT lubricate or immerse in water the LATCH
    • connectors, the buckle, or any other part of this child restraint, unless rinsing is permitted, as stated on the back of the buckle for your restraint.
  • Plastic and metal parts may be wiped clean with mild
    • soap and water and dried with a soft cloth. Do not use abrasive cleaners or solvents.
  • Take care not to damage any labels.
  • The harness can be wiped clean with mild soap and
    • water. Allow harness to air dry.
  • Machine wash the seat pad separately in cold water,
    • delicate cycle. Tumble dry 10 to 15 minutes on low heat.
  • NEVER use child restraint without the seat pad.
  • To protect the child restraint from damage caused
    • by weather, rodents, and other elements common to garages, the outdoors, and other storage locations, remove the seat pad and thoroughly clean the restraint and pad prior to storage. Take care to clean in the areas where crumbs and other debris tend to accumulate. General To help protect the vehicle upholstery, place a towel beneath and behind the child restraint. Tip! Tip! For future reference, record the model number of your child restraint AND the date of manufacture below. Model Number: Date of Manufacture:

    Place

    At

    Armpit

    Maestro™ Sport Owner’s Manual Child Restraint System Exclusive RightFit

    Belt Path Keep for future use Child Requirements 5-point Harness*

  • See page 2 for complete requirements.
    • Booster* To reduce the risk of serious injury or death, read this owner’s manual prior to installing and using this child restraint.

    Warning:

    18 to 49.8 kg (40 to 110 lbs) 112 to 145 cm (44 to 57 in) At least 4 years old 10 to 22.6 kg (22 to 50 lbs) 71 to 127 cm (28 to 50 in) At least 2 years old Para instrucciones en Español, llamar al: 1-800-233-5921 Fabriqué en Manufactured in Name / Nom Model / Modèle Made in / Fabriqué en Expires on/Expire le (année-mois-jour) (year-month-day) Storing Your Instructions / Model Info. Care and Cleaning After thoroughly reading and following these instructions, store them in the slots on either side of the child restraint.

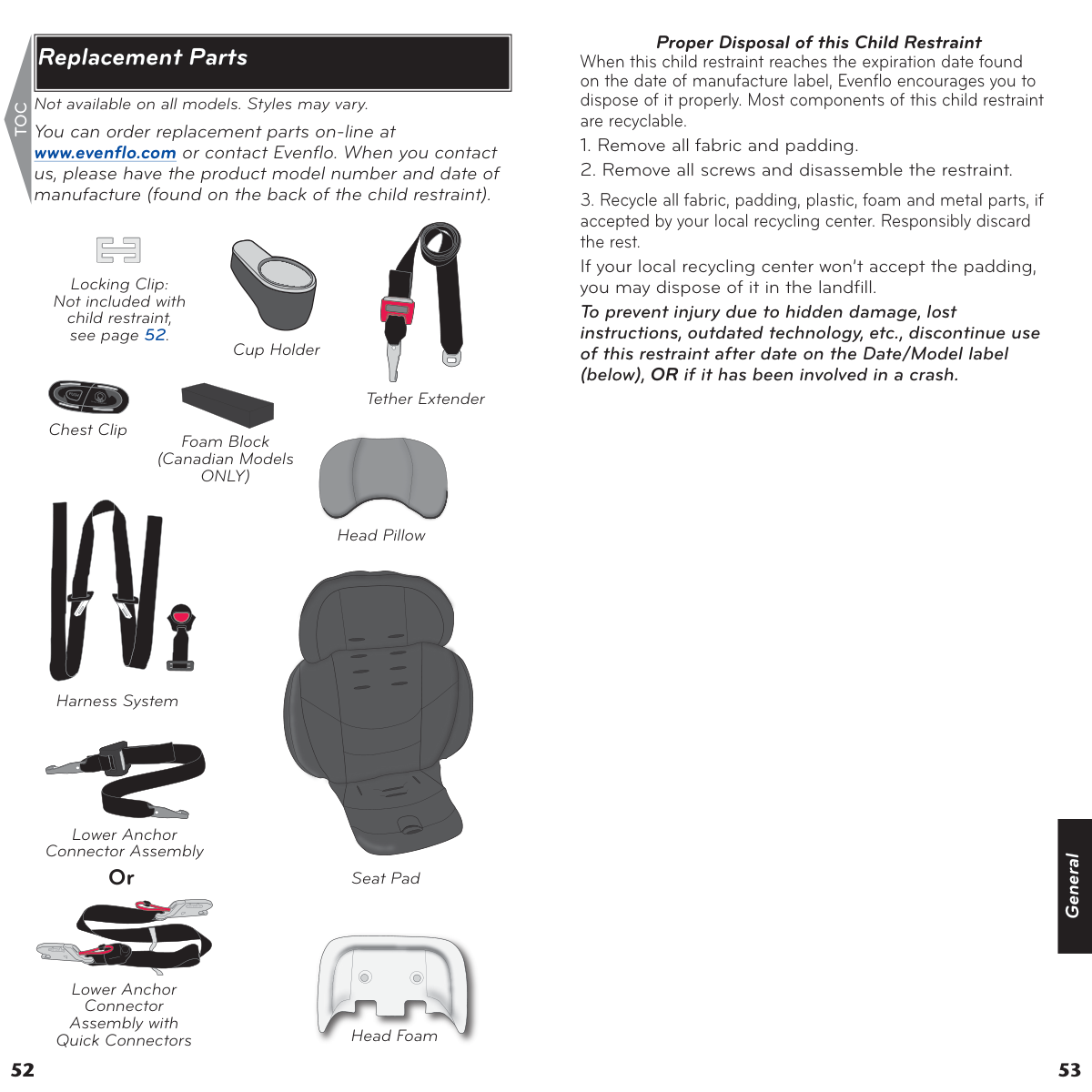

    Page 27
    Evenflo Maestro Sport Car Seat manual — page 27

    53 52

    Toc

    Proper Disposal of this Child Restraint When this child restraint reaches the expiration date found on the date of manufacture label, Evenflo encourages you to dispose of it properly. Most components of this child restraint are recyclable.
  • Remove all fabric and padding.
  • Remove all screws and disassemble the restraint.
  • Recycle all fabric, padding, plastic, foam and metal parts, if
    • accepted by your local recycling center. Responsibly discard the rest. If your local recycling center won’t accept the padding, you may dispose of it in the landfill. To prevent injury due to hidden damage, lost instructions, outdated technology, etc., discontinue use of this restraint after date on the Date/Model label (below), OR if it has been involved in a crash. General Seat Pad Not available on all models. Styles may vary. You can order replacement parts on-line at www.evenflo.com or contact Evenflo. When you contact us, please have the product model number and date of manufacture (found on the back of the child restraint). Head Pillow Tether Extender Head Foam Harness System Lower Anchor Connector Assembly Locking Clip: Not included with child restraint, see page 52. Chest Clip

    Place At

    Armpit

    Lower Anchor Connector Assembly with Quick Connectors Or Cup Holder Replacement Parts Foam Block (Canadian Models

    Only)

    Page 28
    Evenflo Maestro Sport Car Seat manual — page 28

    For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user (“Purchaser”) this Product (including any accessories) against defects in material or workmanship. Evenflo’s sole obligation under this express limited warranty shall be, at Evenflo’s option, to repair or replace any Product that is determined to be defective by Evenflo and determined to be covered by this warranty. Repair or replacement as provided under this warranty is the exclusive remedy of the Purchaser. Proof of purchase in the form of a receipted invoice or bill of sale evidencing that the Product is within the warranty period must be presented to obtain warranty service. This express limited warranty is extended by Evenflo ONLY to the original Purchaser of the Product and is not assignable or transferable to subsequent purchasers or end users of the Product. For warranty service, contact Evenflo’s ParentLink Consumer Resource Center.

    Except To The Extent Prohibited By

    Applicable Law, Any Implied Warranty

    Of Merchantability Or Fitness For A

    Particular Purpose On This Product Is

    Hereby Disclaimed. Evenflo Shall Not Be

    Liable For Any Incidental, Consequential,

    Special Or Punitive Damages Of Any Kind For

    Breach Of The Express Limited Warranty On

    This Product, Or Any Warranty Implied By

    Operation Of Law. Other Than The Express

    Limited Warranty Set Forth Above, There Are

    No Other Warranties That Accompany This

    Product And Any Oral, Written Or Any Other

    Express Representation Of Any Kind Is Hereby

    Disclaimed.

    www.evenflo.com USA: 1-800-233-5921, 8 AM to 5 PM E.T. Canada: 1-937-773-3971 Mexico: 01-800-706-12-00 Limited Warranty

    Page 29
    Evenflo Maestro Sport Car Seat manual — page 29

    www.evenflo.com USA: 1-800-233-5921, 8 AM to 5 PM E.T. Canada: 1-937-773-3971 Mexico: 01-800-706-12-00

    More from Evenflo

    Car Seats

    4-in-1 Car Seat

    10 Q&As

     Car Seats

    All-in-One Convertible Car Seat

    28 Q&As

     Car Seats

    Evenflo 12 Position Car Seat

    10 Q&As

     Car Seats

    Everyfit Car Seat

    33 Q&As

    Similar Car Seats

    Graco

    3- 1 Car Seat

    29 Q&As

     Graco

    360 Booster Seat

    29 Q&As

     Graco

    4Ever Car Seat

    26 Q&As

     Graco

    4Ever DLX 4-in-1 Car Seat

    26 Q&As
