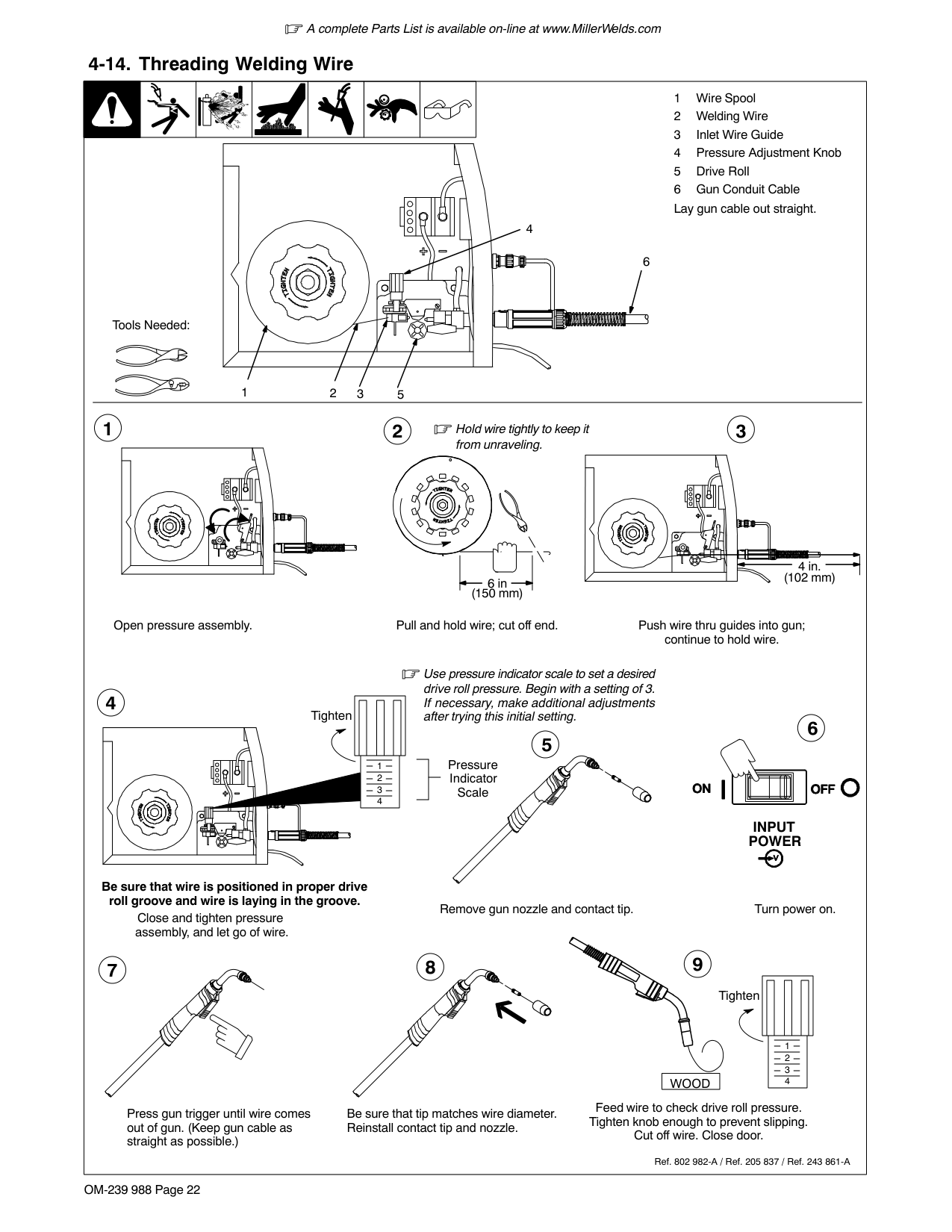

To thread welding wire, first lay the gun cable straight and pull/hold the wire while cutting off the end. Remove the gun nozzle and contact tip, then open the pressure assembly. Push wire through guides into the gun while holding it, ensuring proper drive roll positioning. Feed wire to check drive roll pressure and tighten the knob to prevent slipping. Then cut off wire, close the door, turn on power, and press the gun trigger until wire exits the gun. Finally, reinstall the contact tip and nozzle.
What should I do if the Miller Matic 211 overheats or if the over-temperature light flashes?
If the unit overheats, the thermostat opens, output stops, and the cooling fan runs. Allow the fan to run with the gun trigger switch off; the thermostat will close when the unit has cooled. The 120V model has a 20% duty cycle (3 minutes welding, 7 minutes resting) and the 230V model has a 30% duty cycle (2 minutes welding, 8 minutes resting). Wait fifteen minutes for the unit to cool and reduce amperage or duty cycle before resuming welding.
How do I set up the Auto-Set feature on the Miller Matic 211?
To use Auto-Set mode, rotate the Wire Speed control into the blue/green area corresponding to your weld wire diameter (.030 or .035), and the Auto-Set light will turn on. Then rotate the Voltage control inside the blue/green scale for the applicable material thickness (24 gauge to 3/8 inch), and the unit will automatically provide the appropriate voltage for the selected wire diameter and material thickness.
What are the proper polarity and cable connections for MIG and flux-cored welding?
For GMAW (MIG) welding with solid wire and shielding gas, use DCEP (Reverse polarity) with the gun cable connected to the positive (+) terminal and work cable to the negative (−) terminal. For FCAW (Flux-Cored) self-shielding wire with no gas, use DCEN (Straight polarity) with the gun cable connected to the negative (−) terminal and work cable to the positive (+) terminal. Always follow the wire manufacturer's recommended polarity.
Show 4 more questions
How do I properly install and adjust the gas supply for the Miller Matic 211?
What should I do if the Miller Matic 211 has no weld output but the wire feeds and fan runs?
How do I change the drive roll or wire inlet guide on the Miller Matic 211?
What safety precautions must I follow when operating the Miller Matic 211?
Full Manual
50 pages
Processes
Om-239 988J

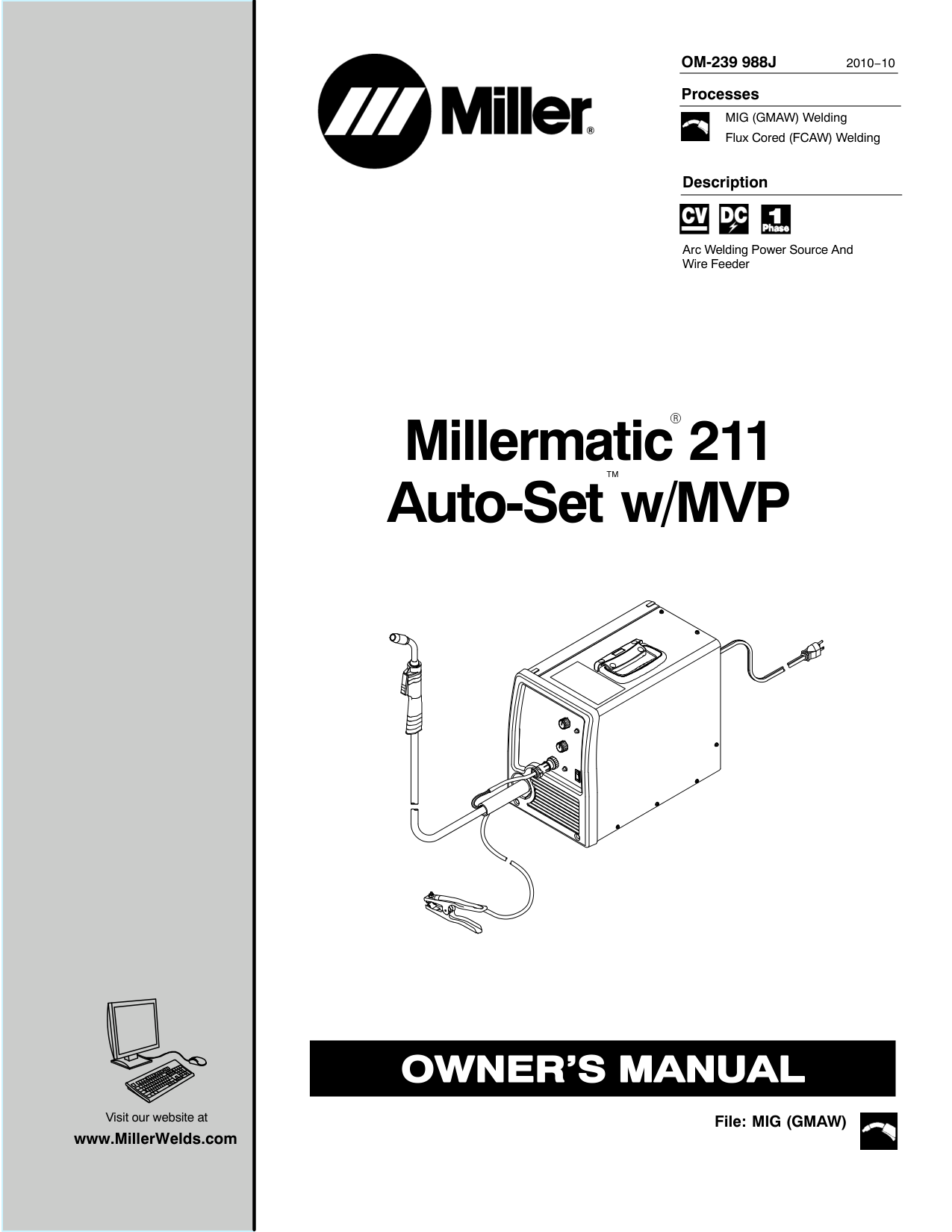

2010−10 Arc Welding Power Source And Wire Feeder Description MIG (GMAW) Welding Flux Cored (FCAW) Welding File: MIG (GMAW) Visit our website at www.MillerWelds.com Millermatic 211 Auto-Set w/MVP ™Miller Electric manufactures a full line of welders and welding related equipment. For information on other quality Miller products, contact your local Miller distributor to receive the latest full line catalog or individual specification sheets. To locate your nearest distributor or service agency call 1-800-4-A-Miller, or visit us at www.MillerWelds.com on the web. Thank you and congratulations on choosing Miller. Now you can get the job done and get it done right. We know you don’t have time to do it any other way. That’s why when Niels Miller first started building arc welders in 1929, he made sure his products offered long-lasting value and superior quality. Like you, his customers couldn’t afford anything less. Miller products had to be more than the best they could be. They had to be the best you could buy. Today, the people that build and sell Miller products continue the tradition. They’re just as committed to providing equipment and service that meets the high standards of quality and value established in 1929. This Owner’s Manual is designed to help you get the most out of your Miller products. Please take time to read the Safety precautions. They will help you protect yourself against potential hazards on the worksite. We’ve made installation and operation quick and easy. With Miller you can count on years of reliable service with proper maintenance. And if for some reason the unit needs repair, there’s a Troubleshooting section that will help you figure out what the problem is. The parts list will then help you to decide the exact part you may need to fix the problem. Warranty and service information for your particular model are also provided. Miller is the first welding equipment manufacturer in the U.S.A. to be registered to the ISO 9001 Quality System Standard. Working as hard as you do − every power source from Miller is backed by the most hassle-free warranty in the business. From Miller to You Mil_Thank 2009−09

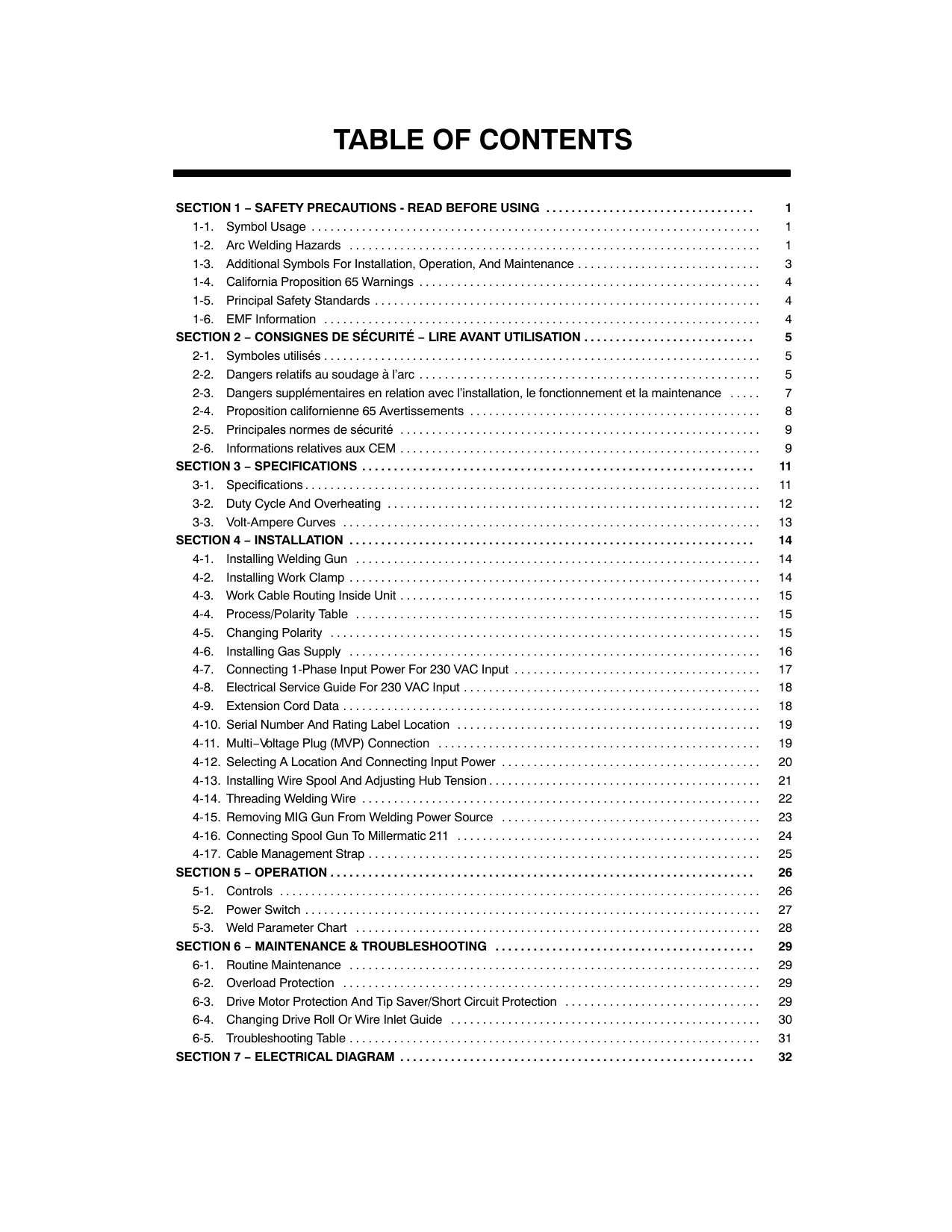

Table Of Contents
Section 1 − Safety Precautions - Read Before Using
1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1. Symbol Usage 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2. Arc Welding Hazards 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3. Additional Symbols For Installation, Operation, And Maintenance 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4. California Proposition 65 Warnings 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5. Principal Safety Standards 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6. EMF Information 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 2 − Consignes De Sécurité − Lire Avant Utilisation
5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1. Symboles utilisés 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2. Dangers relatifs au soudage à l’arc 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3. Dangers supplémentaires en relation avec l’installation, le fonctionnement et la maintenance 7 . . . . . 2-4. Proposition californienne 65 Avertissements 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5. Principales normes de sécurité 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6. Informations relatives aux CEM 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 3 − Specifications
11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1. Specifications 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2. Duty Cycle And Overheating 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3. Volt-Ampere Curves 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 4 − Installation
14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1. Installing Welding Gun 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2. Installing Work Clamp 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3. Work Cable Routing Inside Unit 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4. Process/Polarity Table 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5. Changing Polarity 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6. Installing Gas Supply 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7. Connecting 1-Phase Input Power For 230 VAC Input 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8. Electrical Service Guide For 230 VAC Input 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9. Extension Cord Data 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10. Serial Number And Rating Label Location 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11. Multi−Voltage Plug (MVP) Connection 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12. Selecting A Location And Connecting Input Power 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13. Installing Wire Spool And Adjusting Hub Tension 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14. Threading Welding Wire 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15. Removing MIG Gun From Welding Power Source 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16. Connecting Spool Gun To Millermatic 211 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17. Cable Management Strap 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 5 − Operation
26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1. Controls 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2. Power Switch 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3. Weld Parameter Chart 28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 6 − Maintenance & Troubleshooting
29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1. Routine Maintenance 29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2. Overload Protection 29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3. Drive Motor Protection And Tip Saver/Short Circuit Protection 29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4. Changing Drive Roll Or Wire Inlet Guide 30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5. Troubleshooting Table 31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 7 − Electrical Diagram
32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Table Of Contents

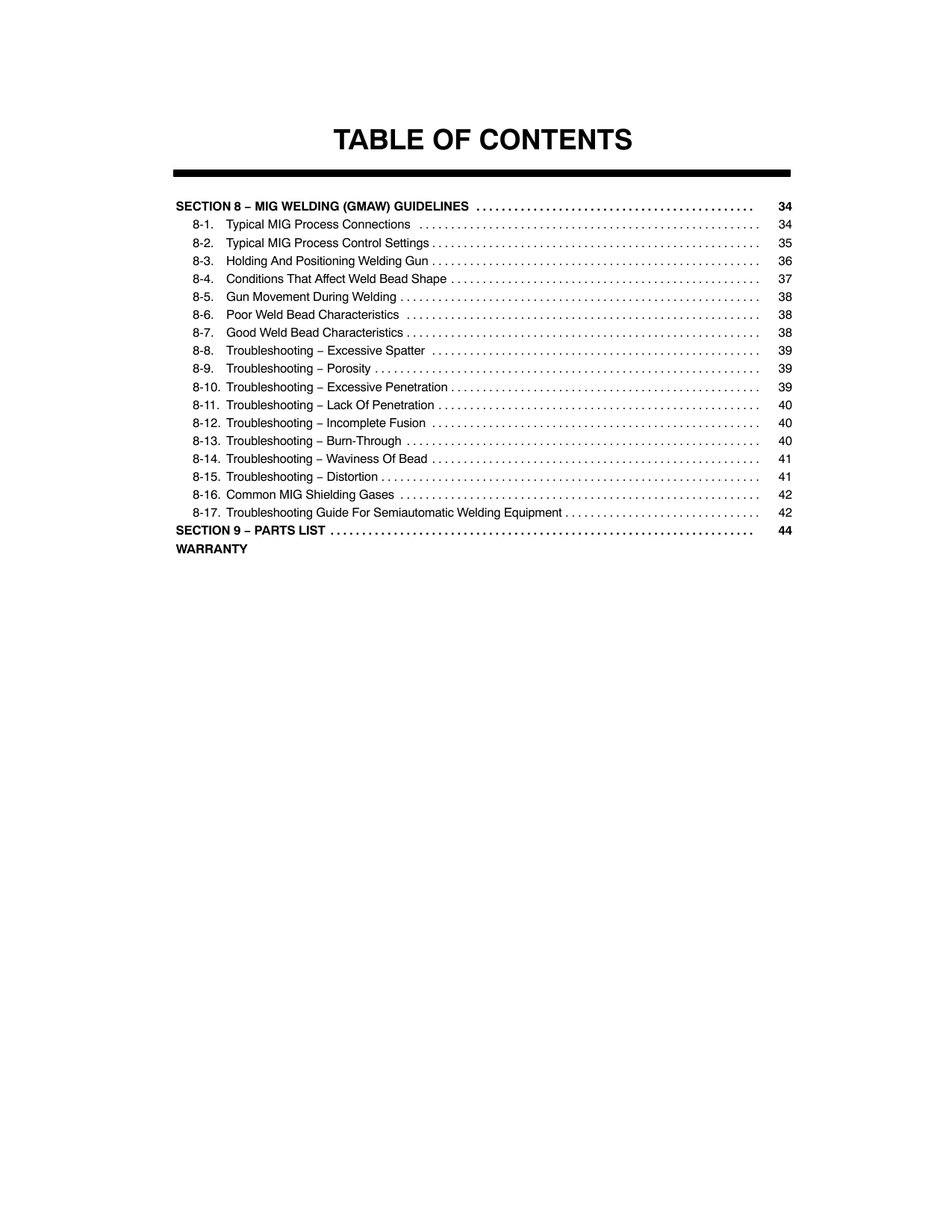

Section 8 − Mig Welding (Gmaw) Guidelines
34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1. Typical MIG Process Connections 34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2. Typical MIG Process Control Settings 35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3. Holding And Positioning Welding Gun 36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4. Conditions That Affect Weld Bead Shape 37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5. Gun Movement During Welding 38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6. Poor Weld Bead Characteristics 38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7. Good Weld Bead Characteristics 38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8. Troubleshooting − Excessive Spatter 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9. Troubleshooting − Porosity 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10. Troubleshooting − Excessive Penetration 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11. Troubleshooting − Lack Of Penetration 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12. Troubleshooting − Incomplete Fusion 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13. Troubleshooting − Burn-Through 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14. Troubleshooting − Waviness Of Bead 41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15. Troubleshooting − Distortion 41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-16. Common MIG Shielding Gases 42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17. Troubleshooting Guide For Semiautomatic Welding Equipment 42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 9 − Parts List
44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Warranty
OM-239 988 Page 1
Section 1 − Safety Precautions - Read Before Using

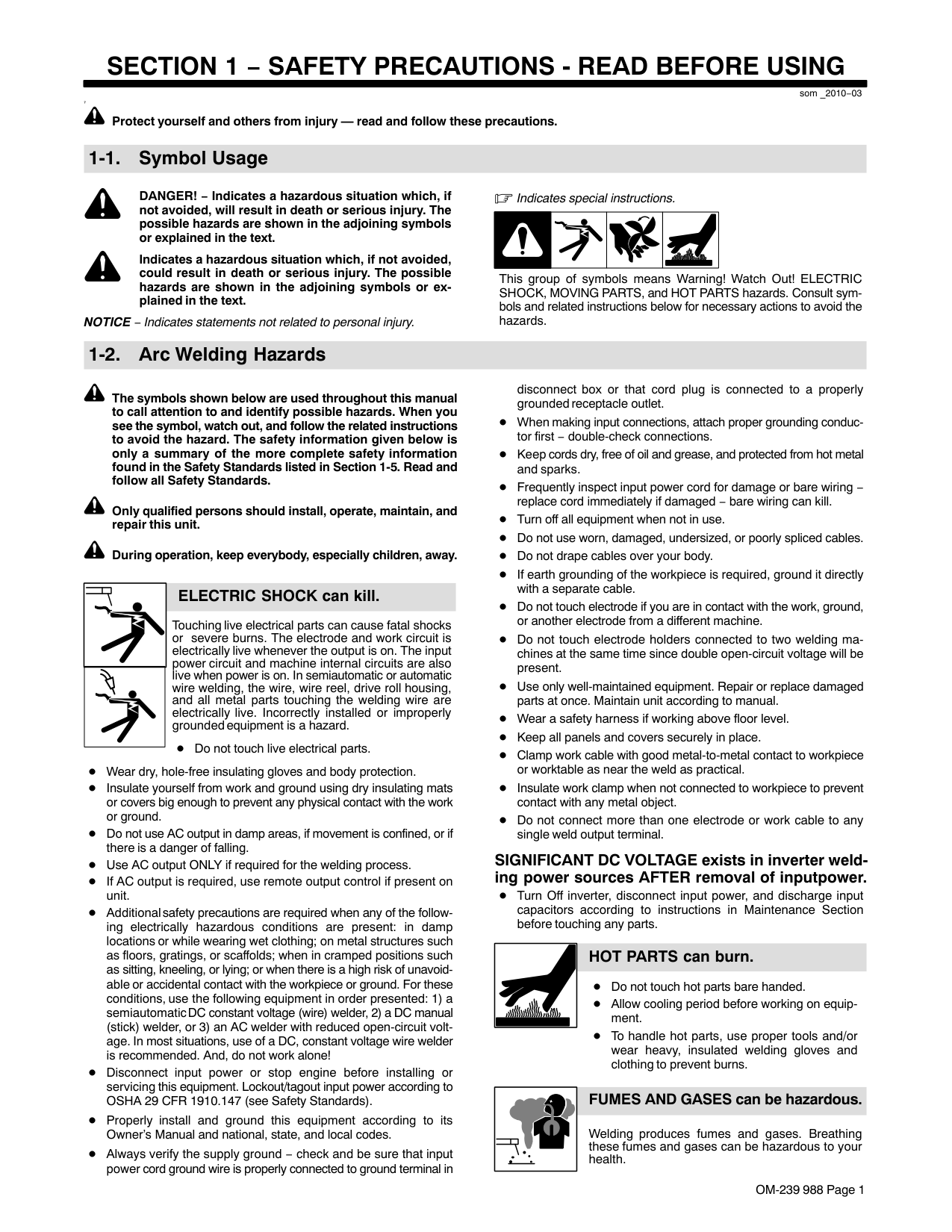

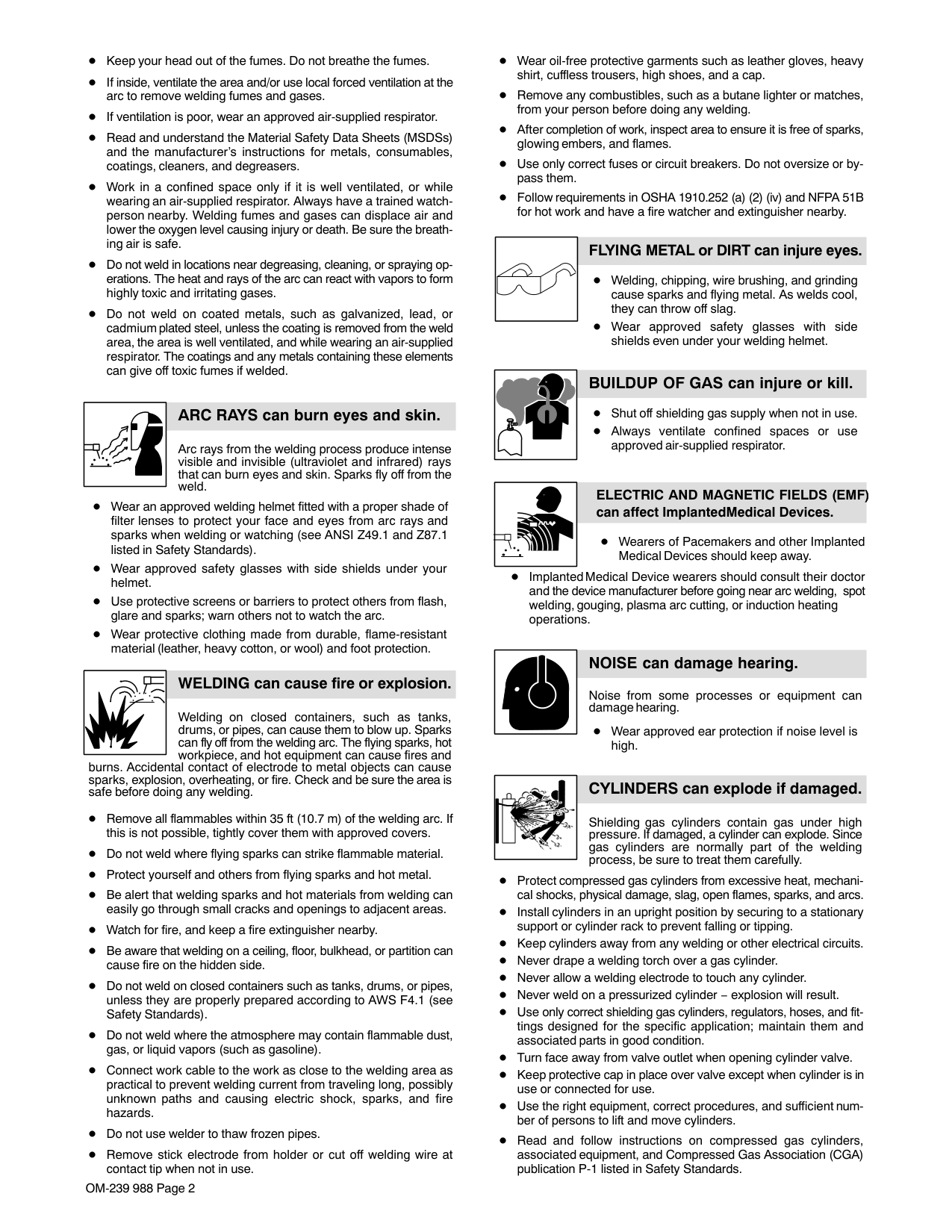

som _2010−03 7 Protect yourself and others from injury — read and follow these precautions. 1-1. Symbol Usage DANGER! − Indicates a hazardous situation which, if not avoided, will result in death or serious injury. The possible hazards are shown in the adjoining symbols or explained in the text. Indicates a hazardous situation which, if not avoided, could result in death or serious injury. The possible hazards are shown in the adjoining symbols or ex- plained in the text. NOTICE − Indicates statements not related to personal injury. Indicates special instructions. This group of symbols means Warning! Watch Out! ELECTRIC SHOCK, MOVING PARTS, and HOT PARTS hazards. Consult sym- bols and related instructions below for necessary actions to avoid the hazards. 1-2. Arc Welding Hazards The symbols shown below are used throughout this manual to call attention to and identify possible hazards. When you see the symbol, watch out, and follow the related instructions to avoid the hazard. The safety information given below is only a summary of the more complete safety information found in the Safety Standards listed in Section 1-5. Read and follow all Safety Standards. Only qualified persons should install, operate, maintain, and repair this unit. During operation, keep everybody, especially children, away. ELECTRIC SHOCK can kill. Touching live electrical parts can cause fatal shocks or severe burns. The electrode and work circuit is electrically live whenever the output is on. The input power circuit and machine internal circuits are also live when power is on. In semiautomatic or automatic wire welding, the wire, wire reel, drive roll housing, and all metal parts touching the welding wire are electrically live. Incorrectly installed or improperly grounded equipment is a hazard. Do not touch live electrical parts. Wear dry, hole-free insulating gloves and body protection. Insulate yourself from work and ground using dry insulating mats or covers big enough to prevent any physical contact with the work or ground. Do not use AC output in damp areas, if movement is confined, or if there is a danger of falling. Use AC output ONLY if required for the welding process. If AC output is required, use remote output control if present on unit. Additional safety precautions are required when any of the follow- ing electrically hazardous conditions are present: in damp locations or while wearing wet clothing; on metal structures such as floors, gratings, or scaffolds; when in cramped positions such as sitting, kneeling, or lying; or when there is a high risk of unavoid- able or accidental contact with the workpiece or ground. For these conditions, use the following equipment in order presented: 1) a semiautomatic DC constant voltage (wire) welder, 2) a DC manual (stick) welder, or 3) an AC welder with reduced open-circuit volt- age. In most situations, use of a DC, constant voltage wire welder is recommended. And, do not work alone! Disconnect input power or stop engine before installing or servicing this equipment. Lockout/tagout input power according to OSHA 29 CFR 1910.147 (see Safety Standards). Properly install and ground this equipment according to its Owner’s Manual and national, state, and local codes. Always verify the supply ground − check and be sure that input power cord ground wire is properly connected to ground terminal in disconnect box or that cord plug is connected to a properly grounded receptacle outlet. When making input connections, attach proper grounding conduc- tor first − double-check connections. Keep cords dry, free of oil and grease, and protected from hot metal and sparks. Frequently inspect input power cord for damage or bare wiring − replace cord immediately if damaged − bare wiring can kill. Turn off all equipment when not in use. Do not use worn, damaged, undersized, or poorly spliced cables. Do not drape cables over your body. If earth grounding of the workpiece is required, ground it directly with a separate cable. Do not touch electrode if you are in contact with the work, ground, or another electrode from a different machine. Do not touch electrode holders connected to two welding ma- chines at the same time since double open-circuit voltage will be present. Use only well-maintained equipment. Repair or replace damaged parts at once. Maintain unit according to manual. Wear a safety harness if working above floor level. Keep all panels and covers securely in place. Clamp work cable with good metal-to-metal contact to workpiece or worktable as near the weld as practical. Insulate work clamp when not connected to workpiece to prevent contact with any metal object. Do not connect more than one electrode or work cable to any single weld output terminal. SIGNIFICANT DC VOLTAGE exists in inverter weld- ing power sources AFTER removal of inputpower. Turn Off inverter, disconnect input power, and discharge input capacitors according to instructions in Maintenance Section before touching any parts. HOT PARTS can burn. Do not touch hot parts bare handed. Allow cooling period before working on equip- ment. To handle hot parts, use proper tools and/or wear heavy, insulated welding gloves and clothing to prevent burns. Welding produces fumes and gases. Breathing these fumes and gases can be hazardous to your health. FUMES AND GASES can be hazardous.OM-239 988 Page 2 Keep your head out of the fumes. Do not breathe the fumes. If inside, ventilate the area and/or use local forced ventilation at the arc to remove welding fumes and gases. If ventilation is poor, wear an approved air-supplied respirator. Read and understand the Material Safety Data Sheets (MSDSs) and the manufacturer’s instructions for metals, consumables, coatings, cleaners, and degreasers. Work in a confined space only if it is well ventilated, or while wearing an air-supplied respirator. Always have a trained watch- person nearby. Welding fumes and gases can displace air and lower the oxygen level causing injury or death. Be sure the breath- ing air is safe. Do not weld in locations near degreasing, cleaning, or spraying op- erations. The heat and rays of the arc can react with vapors to form highly toxic and irritating gases. Do not weld on coated metals, such as galvanized, lead, or cadmium plated steel, unless the coating is removed from the weld area, the area is well ventilated, and while wearing an air-supplied respirator. The coatings and any metals containing these elements can give off toxic fumes if welded. Arc rays from the welding process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes and skin. Sparks fly off from the weld. Wear an approved welding helmet fitted with a proper shade of filter lenses to protect your face and eyes from arc rays and sparks when welding or watching (see ANSI Z49.1 and Z87.1 listed in Safety Standards). Wear approved safety glasses with side shields under your helmet. Use protective screens or barriers to protect others from flash, glare and sparks; warn others not to watch the arc. Wear protective clothing made from durable, flame-resistant material (leather, heavy cotton, or wool) and foot protection. ARC RAYS can burn eyes and skin. Welding on closed containers, such as tanks, drums, or pipes, can cause them to blow up. Sparks can fly off from the welding arc. The flying sparks, hot workpiece, and hot equipment can cause fires and burns. Accidental contact of electrode to metal objects can cause sparks, explosion, overheating, or fire. Check and be sure the area is safe before doing any welding. WELDING can cause fire or explosion. Remove all flammables within 35 ft (10.7 m) of the welding arc. If this is not possible, tightly cover them with approved covers. Do not weld where flying sparks can strike flammable material. Protect yourself and others from flying sparks and hot metal. Be alert that welding sparks and hot materials from welding can easily go through small cracks and openings to adjacent areas. Watch for fire, and keep a fire extinguisher nearby. Be aware that welding on a ceiling, floor, bulkhead, or partition can cause fire on the hidden side. Do not weld on closed containers such as tanks, drums, or pipes, unless they are properly prepared according to AWS F4.1 (see Safety Standards). Do not weld where the atmosphere may contain flammable dust, gas, or liquid vapors (such as gasoline). Connect work cable to the work as close to the welding area as practical to prevent welding current from traveling long, possibly unknown paths and causing electric shock, sparks, and fire hazards. Do not use welder to thaw frozen pipes. Remove stick electrode from holder or cut off welding wire at contact tip when not in use. Wear oil-free protective garments such as leather gloves, heavy shirt, cuffless trousers, high shoes, and a cap. Remove any combustibles, such as a butane lighter or matches, from your person before doing any welding. After completion of work, inspect area to ensure it is free of sparks, glowing embers, and flames. Use only correct fuses or circuit breakers. Do not oversize or by- pass them. Follow requirements in OSHA 1910.252 (a) (2) (iv) and NFPA 51B for hot work and have a fire watcher and extinguisher nearby. FLYING METAL or DIRT can injure eyes. Welding, chipping, wire brushing, and grinding cause sparks and flying metal. As welds cool, they can throw off slag. Wear approved safety glasses with side shields even under your welding helmet. BUILDUP OF GAS can injure or kill. Shut off shielding gas supply when not in use. Always ventilate confined spaces or use approved air-supplied respirator.
Electric And Magnetic Fields (Emf)
can affect ImplantedMedical Devices. Wearers of Pacemakers and other Implanted Medical Devices should keep away. Implanted Medical Device wearers should consult their doctor and the device manufacturer before going near arc welding, spot welding, gouging, plasma arc cutting, or induction heating operations. NOISE can damage hearing. Noise from some processes or equipment can damage hearing. Wear approved ear protection if noise level is high. Shielding gas cylinders contain gas under high pressure. If damaged, a cylinder can explode. Since gas cylinders are normally part of the welding process, be sure to treat them carefully. CYLINDERS can explode if damaged. Protect compressed gas cylinders from excessive heat, mechani- cal shocks, physical damage, slag, open flames, sparks, and arcs. Install cylinders in an upright position by securing to a stationary support or cylinder rack to prevent falling or tipping. Keep cylinders away from any welding or other electrical circuits. Never drape a welding torch over a gas cylinder. Never allow a welding electrode to touch any cylinder. Never weld on a pressurized cylinder − explosion will result. Use only correct shielding gas cylinders, regulators, hoses, and fit- tings designed for the specific application; maintain them and associated parts in good condition. Turn face away from valve outlet when opening cylinder valve. Keep protective cap in place over valve except when cylinder is in use or connected for use. Use the right equipment, correct procedures, and sufficient num- ber of persons to lift and move cylinders. Read and follow instructions on compressed gas cylinders, associated equipment, and Compressed Gas Association (CGA) publication P-1 listed in Safety Standards.OM-239 988 Page 3 1-3. Additional Symbols For Installation, Operation, And Maintenance FIRE OR EXPLOSION hazard. Do not install or place unit on, over, or near combustible surfaces. Do not install unit near flammables. Do not overload building wiring − be sure power supply system is properly sized, rated, and protected to handle this unit. FALLING EQUIPMENT can injure. Use lifting eye to lift unit only, NOT running gear, gas cylinders, or any other accessories. Use equipment of adequate capacity to lift and support unit. If using lift forks to move unit, be sure forks are long enough to extend beyond opposite side of unit. Keep equipment (cables and cords) away from moving vehicles when working from an aerial location. Follow the guidelines in the Applications Manual for the Revised NIOSH Lifting Equation (Publication No. 94−110) when manu- ally lifting heavy parts or equipment. OVERUSE can cause OVERHEATING Allow cooling period; follow rated duty cycle. Reduce current or reduce duty cycle before starting to weld again. Do not block or filter airflow to unit. FLYING SPARKS can injure. Wear a face shield to protect eyes and face. Shape tungsten electrode only on grinder with proper guards in a safe location wearing proper face, hand, and body protection. Sparks can cause fires — keep flammables away. STATIC (ESD) can damage PC boards. Put on grounded wrist strap BEFORE handling boards or parts. Use proper static-proof bags and boxes to store, move, or ship PC boards. MOVING PARTS can injure. Keep away from moving parts. Keep away from pinch points such as drive rolls. WELDING WIRE can injure. Do not press gun trigger until instructed to do so. Do not point gun toward any part of the body, other people, or any metal when threading welding wire. MOVING PARTS can injure. Keep away from moving parts such as fans. Keep all doors, panels, covers, and guards closed and securely in place. Have only qualified persons remove doors, panels, covers, or guards for maintenance and troubleshooting as necessary. Reinstall doors, panels, covers, or guards when maintenance is finished and before reconnecting input power.

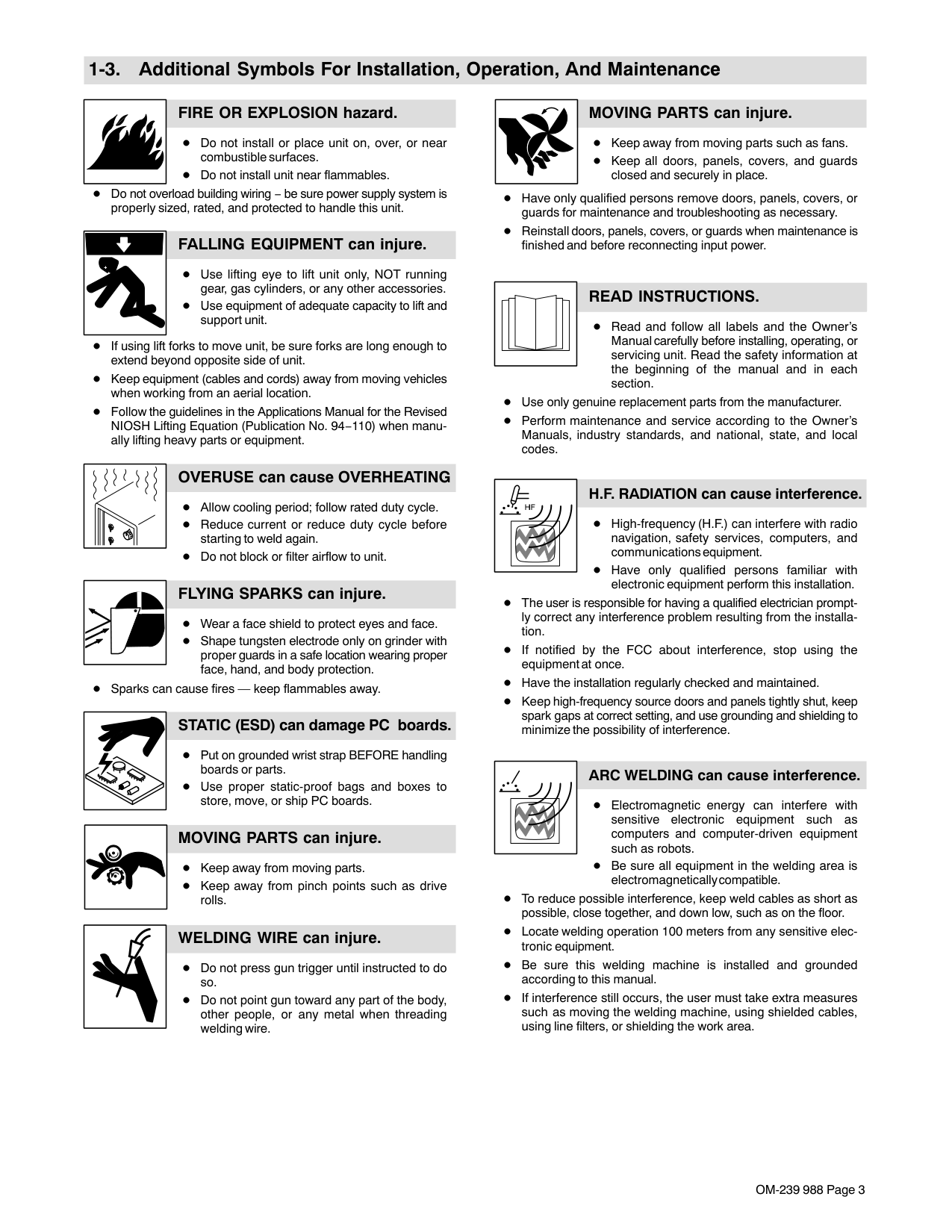

Read Instructions.
Read and follow all labels and the Owner’s Manual carefully before installing, operating, or servicing unit. Read the safety information at the beginning of the manual and in each section. Use only genuine replacement parts from the manufacturer. Perform maintenance and service according to the Owner’s Manuals, industry standards, and national, state, and local codes. H.F. RADIATION can cause interference. High-frequency (H.F.) can interfere with radio navigation, safety services, computers, and communications equipment. Have only qualified persons familiar with electronic equipment perform this installation. The user is responsible for having a qualified electrician prompt- ly correct any interference problem resulting from the installa- tion. If notified by the FCC about interference, stop using the equipment at once. Have the installation regularly checked and maintained. Keep high-frequency source doors and panels tightly shut, keep spark gaps at correct setting, and use grounding and shielding to minimize the possibility of interference. ARC WELDING can cause interference. Electromagnetic energy can interfere with sensitive electronic equipment such as computers and computer-driven equipment such as robots. Be sure all equipment in the welding area is electromagnetically compatible. To reduce possible interference, keep weld cables as short as possible, close together, and down low, such as on the floor. Locate welding operation 100 meters from any sensitive elec- tronic equipment. Be sure this welding machine is installed and grounded according to this manual. If interference still occurs, the user must take extra measures such as moving the welding machine, using shielded cables, using line filters, or shielding the work area.OM-239 988 Page 4 1-4. California Proposition 65 Warnings Welding or cutting equipment produces fumes or gases which contain chemicals known to the State of California to cause birth defects and, in some cases, cancer. (California Health & Safety Code Section 25249.5 et seq.) Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. This product contains chemicals, including lead, known to the state of California to cause cancer, birth defects, or other reproductive harm. Wash hands after use. For Gasoline Engines: Engine exhaust contains chemicals known to the State of California to cause cancer, birth defects, or other reproduc- tive harm. For Diesel Engines: Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm. 1-5. Principal Safety Standards Safety in Welding, Cutting, and Allied Processes, ANSI Standard Z49.1, from Global Engineering Documents (phone: 1-877-413-5184, website: www.global.ihs.com). Safe Practices for the Preparation of Containers and Piping for Welding and Cutting, American Welding Society Standard AWS F4.1, from Glob- al Engineering Documents (phone: 1-877-413-5184, website: www.global.ihs.com). National Electrical Code, NFPA Standard 70, from National Fire Protec- tion Association, Quincy, MA 02269 (phone: 1-800-344-3555, website: www.nfpa.org and www. sparky.org). Safe Handling of Compressed Gases in Cylinders, CGA Pamphlet P-1, from Compressed Gas Association, 4221 Walney Road, 5th Floor, Chantilly, VA 20151 (phone: 703-788-2700, website:www.cganet.com). Safety in Welding, Cutting, and Allied Processes, CSA Standard W117.2, from Canadian Standards Association, Standards Sales, 5060 Spectrum Way, Suite 100, Ontario, Canada L4W 5NS (phone: 800-463-6727, website: www.csa-international.org). Safe Practice For Occupational And Educational Eye And Face Protec- tion, ANSI Standard Z87.1, from American National Standards Institute, 25 West 43rd Street, New York, NY 10036 (phone: 212-642-4900, web- site: www.ansi.org). Standard for Fire Prevention During Welding, Cutting, and Other Hot Work, NFPA Standard 51B, from National Fire Protection Association, Quincy, MA 02269 (phone: 1-800-344-3555, website: www.nfpa.org. OSHA, Occupational Safety and Health Standards for General Indus- try, Title 29, Code of Federal Regulations (CFR), Part 1910, Subpart Q, and Part 1926, Subpart J, from U.S. Government Printing Office, Super- intendent of Documents, P.O. Box 371954, Pittsburgh, PA 15250-7954 (phone: 1-866-512-1800) (there are 10 OSHA Regional Offices— phone for Region 5, Chicago, is 312-353-2220, website: www.osha.gov). U.S. Consumer Product Safety Commission (CPSC), 4330 East West Highway, Bethesda, MD 20814 (phone: 301-504-7923, website: www.cpsc.gov). Applications Manual for the Revised NIOSH Lifting Equation, The Na- tional Institute for Occupational Safety and Health (NIOSH), 1600 Clifton Rd, Atlanta, GA 30333 (phone: 1-800-232-4636, website: www.cdc.gov/NIOSH). 1-6. EMF Information Electric current flowing through any conductor causes localized electric and magnetic fields (EMF). Welding current creates an EMF field around the welding circuit and welding equipment. EMF fields may inter- fere with some medical implants, e.g. pacemakers. Protective measures for persons wearing medical implants have to be taken. For example, access restrictions for passers−by or individual risk assess- ment for welders. All welders should use the following procedures in order to minimize exposure to EMF fields from the welding circuit:
OM-239 988 Page 5

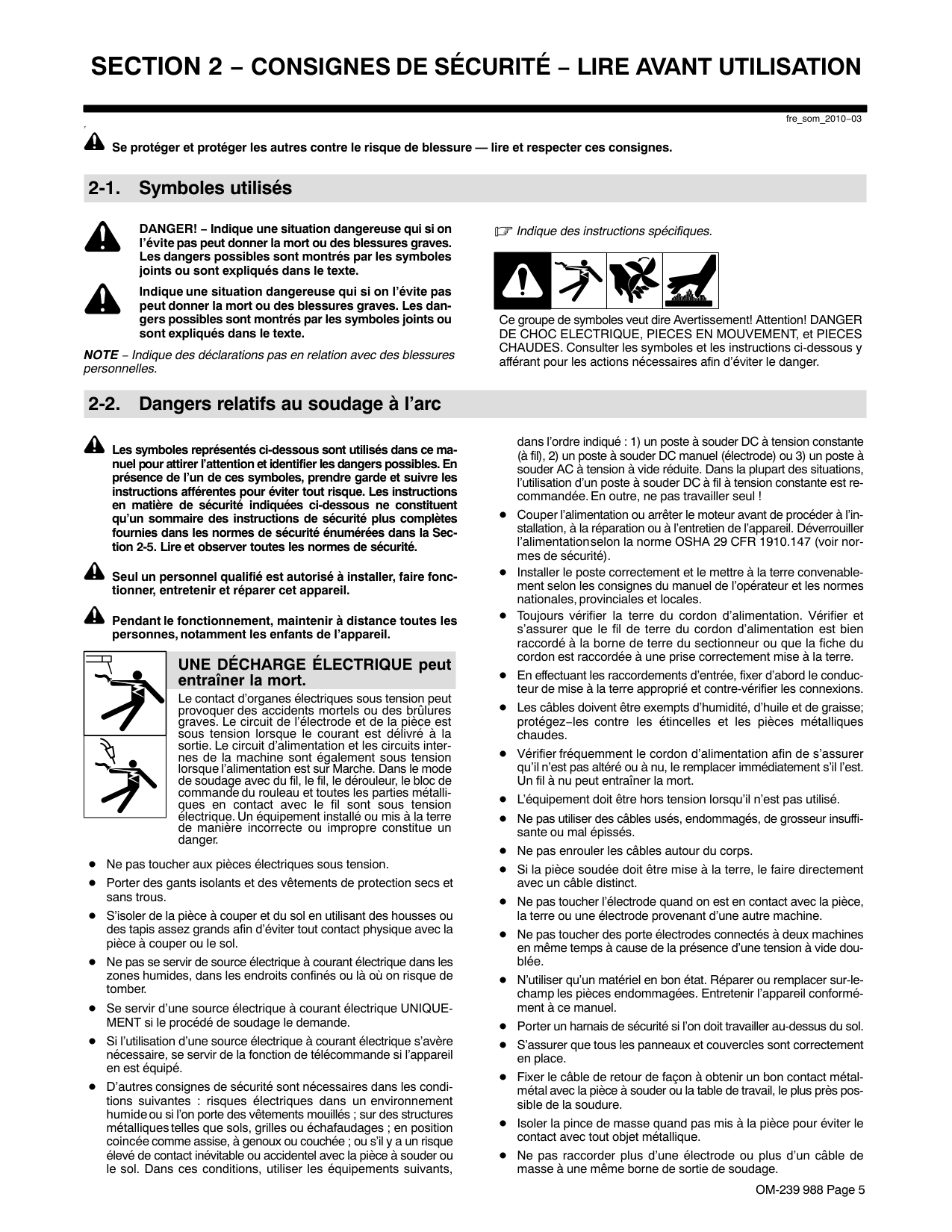

Section 2 − Consignes De Sécurité − Lire Avant Utilisation
fre_som_2010−03 7 Se protéger et protéger les autres contre le risque de blessure — lire et respecter ces consignes. 2-1. Symboles utilisés DANGER! − Indique une situation dangereuse qui si on l’évite pas peut donner la mort ou des blessures graves. Les dangers possibles sont montrés par les symboles joints ou sont expliqués dans le texte. Indique une situation dangereuse qui si on l’évite pas peut donner la mort ou des blessures graves. Les dan- gers possibles sont montrés par les symboles joints ou sont expliqués dans le texte. NOTE − Indique des déclarations pas en relation avec des blessures personnelles. Indique des instructions spécifiques. Ce groupe de symboles veut dire Avertissement! Attention! DANGER DE CHOC ELECTRIQUE, PIECES EN MOUVEMENT, et PIECES CHAUDES. Consulter les symboles et les instructions ci-dessous y afférant pour les actions nécessaires afin d’éviter le danger. 2-2. Dangers relatifs au soudage à l’arc Les symboles représentés ci-dessous sont utilisés dans ce ma- nuel pour attirer l’attention et identifier les dangers possibles. En présence de l’un de ces symboles, prendre garde et suivre les instructions afférentes pour éviter tout risque. Les instructions en matière de sécurité indiquées ci-dessous ne constituent qu’un sommaire des instructions de sécurité plus complètes fournies dans les normes de sécurité énumérées dans la Sec- tion 2-5. Lire et observer toutes les normes de sécurité. Seul un personnel qualifié est autorisé à installer, faire fonc- tionner, entretenir et réparer cet appareil. Pendant le fonctionnement, maintenir à distance toutes les personnes, notamment les enfants de l’appareil. UNE DÉCHARGE ÉLECTRIQUE peut entraîner la mort. Le contact d’organes électriques sous tension peut provoquer des accidents mortels ou des brûlures graves. Le circuit de l’électrode et de la pièce est sous tension lorsque le courant est délivré à la sortie. Le circuit d’alimentation et les circuits inter- nes de la machine sont également sous tension lorsque l’alimentation est sur Marche. Dans le mode de soudage avec du fil, le fil, le dérouleur, le bloc de commande du rouleau et toutes les parties métalli- ques en contact avec le fil sont sous tension électrique. Un équipement installé ou mis à la terre de manière incorrecte ou impropre constitue un danger. Ne pas toucher aux pièces électriques sous tension. Porter des gants isolants et des vêtements de protection secs et sans trous. S’isoler de la pièce à couper et du sol en utilisant des housses ou des tapis assez grands afin d’éviter tout contact physique avec la pièce à couper ou le sol. Ne pas se servir de source électrique à courant électrique dans les zones humides, dans les endroits confinés ou là où on risque de tomber. Se servir d’une source électrique à courant électrique UNIQUE- MENT si le procédé de soudage le demande. Si l’utilisation d’une source électrique à courant électrique s’avère nécessaire, se servir de la fonction de télécommande si l’appareil en est équipé. D’autres consignes de sécurité sont nécessaires dans les condi- tions suivantes : risques électriques dans un environnement humide ou si l’on porte des vêtements mouillés ; sur des structures métalliques telles que sols, grilles ou échafaudages ; en position coincée comme assise, à genoux ou couchée ; ou s’il y a un risque élevé de contact inévitable ou accidentel avec la pièce à souder ou le sol. Dans ces conditions, utiliser les équipements suivants, dans l’ordre indiqué : 1) un poste à souder DC à tension constante (à fil), 2) un poste à souder DC manuel (électrode) ou 3) un poste à souder AC à tension à vide réduite. Dans la plupart des situations, l’utilisation d’un poste à souder DC à fil à tension constante est re- commandée. En outre, ne pas travailler seul ! Couper l’alimentation ou arrêter le moteur avant de procéder à l’in- stallation, à la réparation ou à l’entretien de l’appareil. Déverrouiller l’alimentation selon la norme OSHA 29 CFR 1910.147 (voir nor- mes de sécurité). Installer le poste correctement et le mettre à la terre convenable- ment selon les consignes du manuel de l’opérateur et les normes nationales, provinciales et locales. Toujours vérifier la terre du cordon d’alimentation. Vérifier et s’assurer que le fil de terre du cordon d’alimentation est bien raccordé à la borne de terre du sectionneur ou que la fiche du cordon est raccordée à une prise correctement mise à la terre. En effectuant les raccordements d’entrée, fixer d’abord le conduc- teur de mise à la terre approprié et contre-vérifier les connexions. Les câbles doivent être exempts d’humidité, d’huile et de graisse; protégez−les contre les étincelles et les pièces métalliques chaudes. Vérifier fréquemment le cordon d’alimentation afin de s’assurer qu’il n’est pas altéré ou à nu, le remplacer immédiatement s’il l’est. Un fil à nu peut entraîner la mort. L’équipement doit être hors tension lorsqu’il n’est pas utilisé. Ne pas utiliser des câbles usés, endommagés, de grosseur insuffi- sante ou mal épissés. Ne pas enrouler les câbles autour du corps. Si la pièce soudée doit être mise à la terre, le faire directement avec un câble distinct. Ne pas toucher l’électrode quand on est en contact avec la pièce, la terre ou une électrode provenant d’une autre machine. Ne pas toucher des porte électrodes connectés à deux machines en même temps à cause de la présence d’une tension à vide dou- blée. N’utiliser qu’un matériel en bon état. Réparer ou remplacer sur-le- champ les pièces endommagées. Entretenir l’appareil conformé- ment à ce manuel. Porter un harnais de sécurité si l’on doit travailler au-dessus du sol. S’assurer que tous les panneaux et couvercles sont correctement en place. Fixer le câble de retour de façon à obtenir un bon contact métal- métal avec la pièce à souder ou la table de travail, le plus près pos- sible de la soudure. Isoler la pince de masse quand pas mis à la pièce pour éviter le contact avec tout objet métallique. Ne pas raccorder plus d’une électrode ou plus d’un câble de masse à une même borne de sortie de soudage.OM-239 988 Page 6 Il reste une TENSION DC NON NÉGLIGEABLE dans les sources de soudage onduleur UNE FOIS l’alimentation coupée. Arrêter les convertisseurs, débrancher le courant électrique et décharger les condensateurs d’alimentation selon les instructions indiquées dans la partie Entretien avant de toucher les pièces. LES PIÈCES CHAUDES peuvent provoquer des brûlures. Ne pas toucher à mains nues les parties chaudes. Prévoir une période de refroidissement avant de travailler à l’équipement. Ne pas toucher aux pièces chaudes, utiliser les outils recomman- dés et porter des gants de soudage et des vêtements épais pour éviter les brûlures. LES FUMÉES ET LES GAZ peuvent être dangereux. Le soudage génère des fumées et des gaz. Leur inhalation peut être dangereux pour votre santé. Eloigner votre tête des fumées. Ne pas respirer les fumées. À l’intérieur, ventiler la zone et/ou utiliser une ventilation forcée au niveau de l’arc pour l’évacuation des fumées et des gaz de soudage. Si la ventilation est médiocre, porter un respirateur anti-vapeurs approuvé. Lire et comprendre les spécifications de sécurité des matériaux (MSDS) et les instructions du fabricant concernant les métaux, les consommables, les revêtements, les nettoyants et les dégrais- seurs. Travailler dans un espace fermé seulement s’il est bien ventilé ou en portant un respirateur à alimentation d’air. Demander toujours à un surveillant dûment formé de se tenir à proximité. Des fumées et des gaz de soudage peuvent déplacer l’air et abaisser le niveau d’oxygène provoquant des blessures ou des accidents mortels. S’assurer que l’air de respiration ne présente aucun danger. Ne pas souder dans des endroits situés à proximité d’opérations de dégraissage, de nettoyage ou de pulvérisation. La chaleur et les rayons de l’arc peuvent réagir en présence de vapeurs et for- mer des gaz hautement toxiques et irritants. Ne pas souder des métaux munis d’un revêtement, tels que l’acier galvanisé, plaqué en plomb ou au cadmium à moins que le revête- ment n’ait été enlevé dans la zone de soudure, que l’endroit soit bien ventilé, et en portant un respirateur à alimentation d’air. Les revêtements et tous les métaux renfermant ces éléments peuvent dégager des fumées toxiques en cas de soudage. LES RAYONS DE L’ARC peuvent provoquer des brûlures dans les yeux et sur la peau. Le rayonnement de l’arc du procédé de soudage génère des rayons visibles et invisibles intense (ultraviolets et infrarouges) susceptibles de provoquer des brûlure dans les yeux et sur la peau. Des étincelles sont projetées pendant le soudage. Porter un casque de soudage approuvé muni de verres filtrants approprié pour protéger visage et yeux pour protéger votre visage et vos yeux pendant le soudage ou pour regarder (voir ANSI Z49.1 et Z87.1 énuméré dans les normes de sécurité). Porter des lunettes de sécurité avec écrans latéraux même sous votre casque. Avoir recours à des écrans protecteurs ou à des rideaux pour protéger les autres contre les rayonnements les éblouissements et les étincelles ; prévenir toute personne sur les lieux de ne pas regarder l’arc. Porter des vêtements confectionnés avec des matières résistan- tes et ignifuges (cuir, coton lourd ou laine) et des bottes de protection. LE SOUDAGE peut provoquer un incendie ou une explosion. Le soudage effectué sur des conteneurs fermés tels que des réservoirs, tambours ou des conduites peut provoquer leur éclatement. Des étincelles peuvent être projetées de l’arc de soudure. La projection d’étincelles, des pièces chaudes et des équipements chauds peut provoquer des incendies et des brûlures. Le contact accidentel de l’électrode avec des objets métalliques peut provoquer des étincelles, une explosion, un surchauffement ou un incendie. Avant de commencer le soudage, vérifier et s’assurer que l’endroit ne présente pas de danger. Déplacer toutes les substances inflammables à une distance de 10,7 m de l’arc de soudage. En cas d’impossibilité les recouvrir soigneusement avec des protections homologués. Ne pas souder dans un endroit là où des étincelles peuvent tomber sur des substances inflammables. Se protéger et d’autres personnes de la projection d’étincelles et de métal chaud. Des étincelles et des matériaux chauds du soudage peuvent facilement passer dans d’autres zones en traversant de petites fissures et des ouvertures. Surveiller tout déclenchement d’incendie et tenir un extincteur à proximité. Le soudage effectué sur un plafond, plancher, paroi ou séparation peut déclencher un incendie de l’autre côté. Ne pas effectuer le soudage sur des conteneurs fermés tels que des réservoirs, tambours, ou conduites, à moins qu’ils n’aient été préparés correctement conformément à AWS F4.1 (voir les nor- mes de sécurité). Ne soudez pas si l’air ambiant est chargé de particules, gaz, ou va- peurs inflammables (vapeur d’essence, par exemple). Brancher le câble de masse sur la pièce le plus près possible de la zone de soudage pour éviter le transport du courant sur une longue distance par des chemins inconnus éventuels en provo- quant des risques d’électrocution, d’étincelles et d’incendie. Ne pas utiliser le poste de soudage pour dégeler des conduites ge- lées. En cas de non utilisation, enlever la baguette d’électrode du porte- électrode ou couper le fil à la pointe de contact. Porter des vêtements de protection dépourvus d’huile tels que des gants en cuir, une chemise en matériau lourd, des pantalons sans revers, des chaussures hautes et un couvre chef. Avant de souder, retirer toute substance combustible de vos po- ches telles qu’un allumeur au butane ou des allumettes. Une fois le travail achevé, assurez−vous qu’il ne reste aucune trace d’étincelles incandescentes ni de flammes. Utiliser exclusivement des fusibles ou coupe−circuits appropriés. Ne pas augmenter leur puissance; ne pas les ponter. Une fois le travail achevé, assurez−vous qu’il ne reste aucune trace d’étincelles incandescentes ni de flammes. Utiliser exclusivement des fusibles ou coupe−circuits appropriés. Ne pas augmenter leur puissance; ne pas les ponter. Suivre les recommandations dans OSHA 1910.252(a)(2)(iv) et NFPA 51B pour les travaux à chaud et avoir de la surveillance et un extincteur à proximité. DES PIECES DE METAL ou DES SALETES peuvent provoquer des blessures dans les yeux. Le soudage, l’écaillement, le passage de la pièce à la brosse en fil de fer, et le meulage génèrent des étincelles et des particules métalliques volantes. Pendant la période de refroidissement des soudures, elles risquent de projeter du laitier. Porter des lunettes de sécurité avec écrans latéraux ou un écran facial.

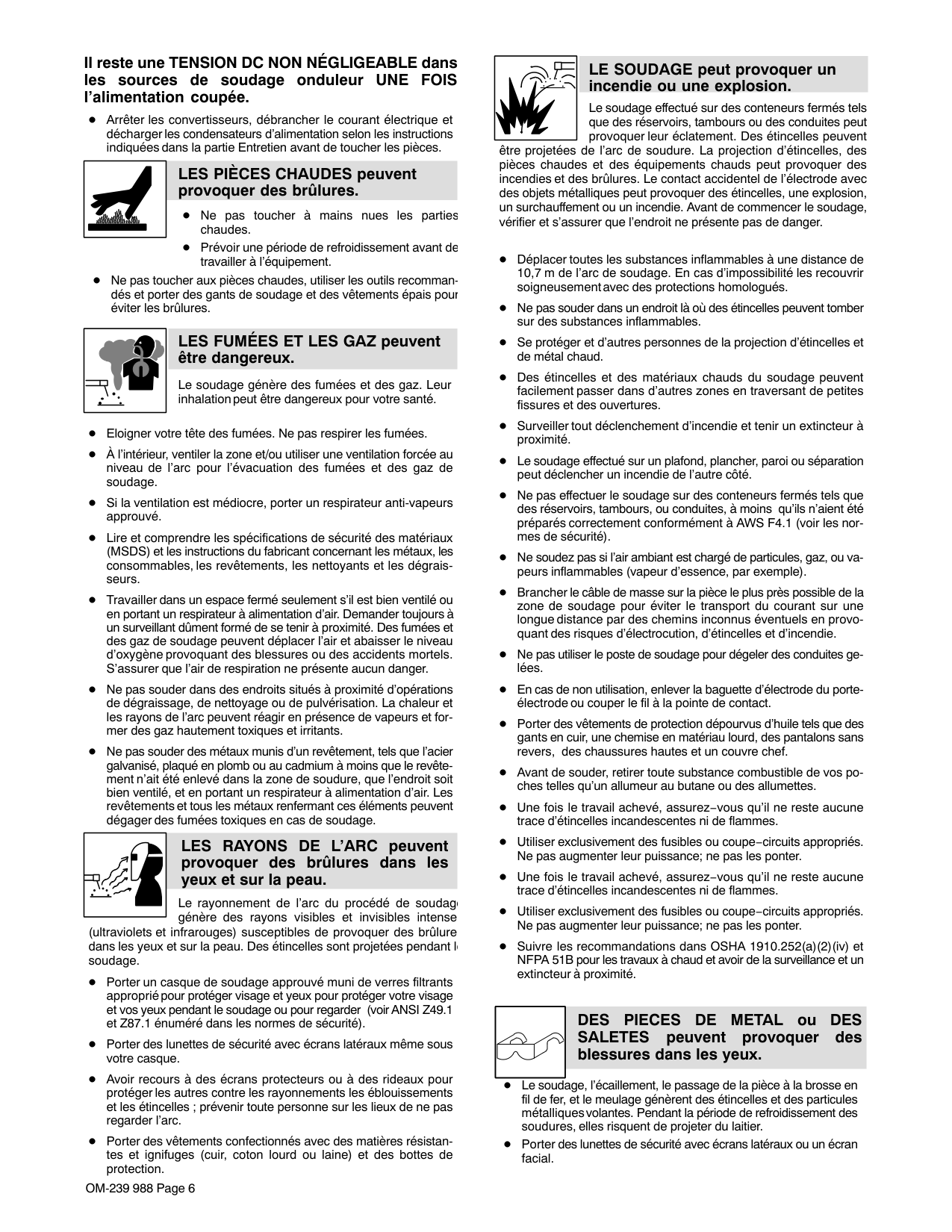

OM-239 988 Page 7

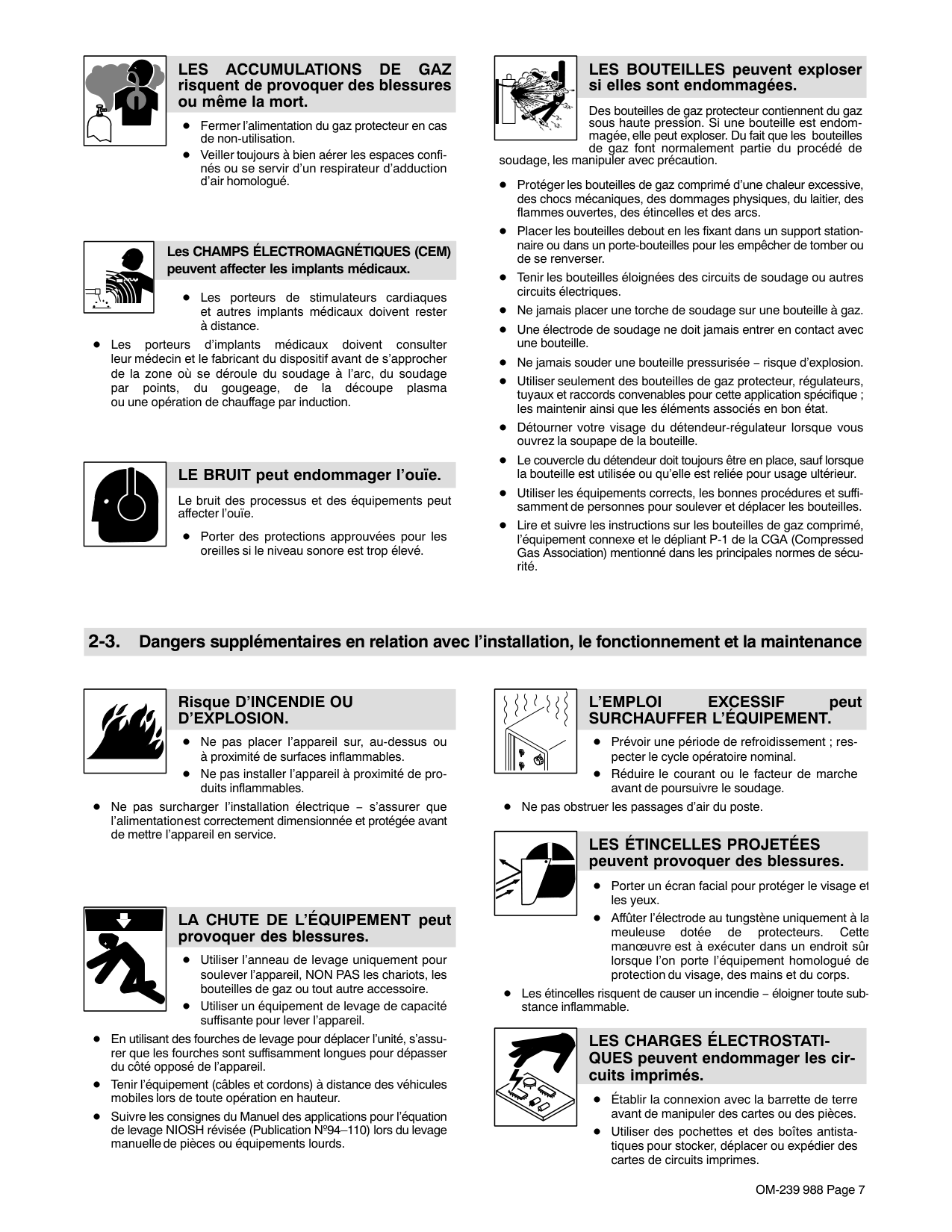

Les
Accumulations
De
Gaz
risquent de provoquer des blessures ou même la mort. Fermer l’alimentation du gaz protecteur en cas de non-utilisation. Veiller toujours à bien aérer les espaces confi- nés ou se servir d’un respirateur d’adduction d’air homologué. Les CHAMPS ÉLECTROMAGNÉTIQUES (CEM) peuvent affecter les implants médicaux. Les porteurs de stimulateurs cardiaques et autres implants médicaux doivent rester à distance. Les porteurs d’implants médicaux doivent consulter leur médecin et le fabricant du dispositif avant de s’approcher de la zone où se déroule du soudage à l’arc, du soudage par points, du gougeage, de la découpe plasma ou une opération de chauffage par induction. LE BRUIT peut endommager l’ouïe. Le bruit des processus et des équipements peut affecter l’ouïe. Porter des protections approuvées pour les oreilles si le niveau sonore est trop élevé. Des bouteilles de gaz protecteur contiennent du gaz sous haute pression. Si une bouteille est endom- magée, elle peut exploser. Du fait que les bouteilles de gaz font normalement partie du procédé de soudage, les manipuler avec précaution. LES BOUTEILLES peuvent exploser si elles sont endommagées. Protéger les bouteilles de gaz comprimé d’une chaleur excessive, des chocs mécaniques, des dommages physiques, du laitier, des flammes ouvertes, des étincelles et des arcs. Placer les bouteilles debout en les fixant dans un support station- naire ou dans un porte-bouteilles pour les empêcher de tomber ou de se renverser. Tenir les bouteilles éloignées des circuits de soudage ou autres circuits électriques. Ne jamais placer une torche de soudage sur une bouteille à gaz. Une électrode de soudage ne doit jamais entrer en contact avec une bouteille. Ne jamais souder une bouteille pressurisée − risque d’explosion. Utiliser seulement des bouteilles de gaz protecteur, régulateurs, tuyaux et raccords convenables pour cette application spécifique ; les maintenir ainsi que les éléments associés en bon état. Détourner votre visage du détendeur-régulateur lorsque vous ouvrez la soupape de la bouteille. Le couvercle du détendeur doit toujours être en place, sauf lorsque la bouteille est utilisée ou qu’elle est reliée pour usage ultérieur. Utiliser les équipements corrects, les bonnes procédures et suffi- samment de personnes pour soulever et déplacer les bouteilles. Lire et suivre les instructions sur les bouteilles de gaz comprimé, l’équipement connexe et le dépliant P-1 de la CGA (Compressed Gas Association) mentionné dans les principales normes de sécu- rité. 2-3. Dangers supplémentaires en relation avec l’installation, le fonctionnement et la maintenance Risque D’INCENDIE OUD’Explosion.
Ne pas placer l’appareil sur, au-dessus ou à proximité de surfaces inflammables. Ne pas installer l’appareil à proximité de pro- duits inflammables. Ne pas surcharger l’installation électrique − s’assurer que l’alimentation est correctement dimensionnée et protégée avant de mettre l’appareil en service. LA CHUTE DE L’ÉQUIPEMENT peut provoquer des blessures. Utiliser l’anneau de levage uniquement pour soulever l’appareil, NON PAS les chariots, les bouteilles de gaz ou tout autre accessoire. Utiliser un équipement de levage de capacité suffisante pour lever l’appareil. En utilisant des fourches de levage pour déplacer l’unité, s’assu- rer que les fourches sont suffisamment longues pour dépasser du côté opposé de l’appareil. Tenir l’équipement (câbles et cordons) à distance des véhicules mobiles lors de toute opération en hauteur. Suivre les consignes du Manuel des applications pour l’équation de levage NIOSH révisée (Publication Nº94–110) lors du levage manuelle de pièces ou équipements lourds.L’Emploi
Excessif
peutSurchauffer L’Équipement.
Prévoir une période de refroidissement ; res- pecter le cycle opératoire nominal. Réduire le courant ou le facteur de marche avant de poursuivre le soudage. Ne pas obstruer les passages d’air du poste.Les Étincelles Projetées
peuvent provoquer des blessures. Porter un écran facial pour protéger le visage et les yeux. Affûter l’électrode au tungstène uniquement à la meuleuse dotée de protecteurs. Cette manœuvre est à exécuter dans un endroit sûr lorsque l’on porte l’équipement homologué de protection du visage, des mains et du corps. Les étincelles risquent de causer un incendie − éloigner toute sub- stance inflammable.Les Charges Électrostati-

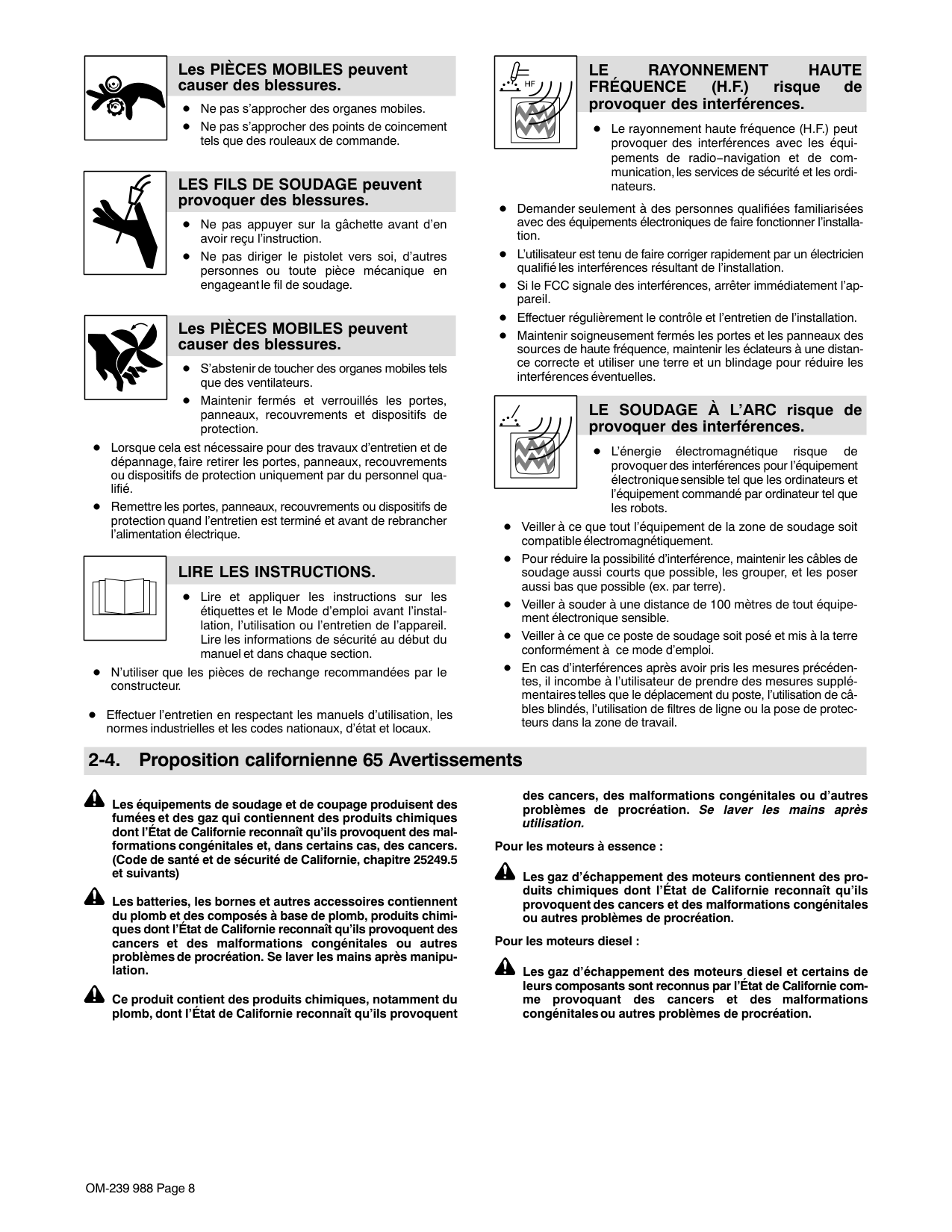

QUES peuvent endommager les cir- cuits imprimés. Établir la connexion avec la barrette de terre avant de manipuler des cartes ou des pièces. Utiliser des pochettes et des boîtes antista- tiques pour stocker, déplacer ou expédier des cartes de circuits imprimes.OM-239 988 Page 8 Les PIÈCES MOBILES peuvent causer des blessures. Ne pas s’approcher des organes mobiles. Ne pas s’approcher des points de coincement tels que des rouleaux de commande. LES FILS DE SOUDAGE peuvent provoquer des blessures. Ne pas appuyer sur la gâchette avant d’en avoir reçu l’instruction. Ne pas diriger le pistolet vers soi, d’autres personnes ou toute pièce mécanique en engageant le fil de soudage. Les PIÈCES MOBILES peuvent causer des blessures. S’abstenir de toucher des organes mobiles tels que des ventilateurs. Maintenir fermés et verrouillés les portes, panneaux, recouvrements et dispositifs de protection. Lorsque cela est nécessaire pour des travaux d’entretien et de dépannage, faire retirer les portes, panneaux, recouvrements ou dispositifs de protection uniquement par du personnel qua- lifié. Remettre les portes, panneaux, recouvrements ou dispositifs de protection quand l’entretien est terminé et avant de rebrancher l’alimentation électrique.
Lire Les Instructions.
Lire et appliquer les instructions sur les étiquettes et le Mode d’emploi avant l’instal- lation, l’utilisation ou l’entretien de l’appareil. Lire les informations de sécurité au début du manuel et dans chaque section. N’utiliser que les pièces de rechange recommandées par le constructeur. Effectuer l’entretien en respectant les manuels d’utilisation, les normes industrielles et les codes nationaux, d’état et locaux.Le
Rayonnement
Haute
Fréquence
(H.F.)
risque de provoquer des interférences. Le rayonnement haute fréquence (H.F.) peut provoquer des interférences avec les équi- pements de radio−navigation et de com- munication, les services de sécurité et les ordi- nateurs. Demander seulement à des personnes qualifiées familiarisées avec des équipements électroniques de faire fonctionner l’installa- tion. L’utilisateur est tenu de faire corriger rapidement par un électricien qualifié les interférences résultant de l’installation. Si le FCC signale des interférences, arrêter immédiatement l’ap- pareil. Effectuer régulièrement le contrôle et l’entretien de l’installation. Maintenir soigneusement fermés les portes et les panneaux des sources de haute fréquence, maintenir les éclateurs à une distan- ce correcte et utiliser une terre et un blindage pour réduire les interférences éventuelles. LE SOUDAGE À L’ARC risque de provoquer des interférences. L’énergie électromagnétique risque de provoquer des interférences pour l’équipement électronique sensible tel que les ordinateurs et l’équipement commandé par ordinateur tel que les robots. Veiller à ce que tout l’équipement de la zone de soudage soit compatible électromagnétiquement. Pour réduire la possibilité d’interférence, maintenir les câbles de soudage aussi courts que possible, les grouper, et les poser aussi bas que possible (ex. par terre). Veiller à souder à une distance de 100 mètres de tout équipe- ment électronique sensible. Veiller à ce que ce poste de soudage soit posé et mis à la terre conformément à ce mode d’emploi. En cas d’interférences après avoir pris les mesures précéden- tes, il incombe à l’utilisateur de prendre des mesures supplé- mentaires telles que le déplacement du poste, l’utilisation de câ- bles blindés, l’utilisation de filtres de ligne ou la pose de protec- teurs dans la zone de travail. 2-4. Proposition californienne 65 Avertissements Les équipements de soudage et de coupage produisent des fumées et des gaz qui contiennent des produits chimiques dont l’État de Californie reconnaît qu’ils provoquent des mal- formations congénitales et, dans certains cas, des cancers. (Code de santé et de sécurité de Californie, chapitre 25249.5 et suivants) Les batteries, les bornes et autres accessoires contiennent du plomb et des composés à base de plomb, produits chimi- ques dont l’État de Californie reconnaît qu’ils provoquent des cancers et des malformations congénitales ou autres problèmes de procréation. Se laver les mains après manipu- lation. Ce produit contient des produits chimiques, notamment du plomb, dont l’État de Californie reconnaît qu’ils provoquent des cancers, des malformations congénitales ou d’autres problèmes de procréation. Se laver les mains après utilisation. Pour les moteurs à essence : Les gaz d’échappement des moteurs contiennent des pro- duits chimiques dont l’État de Californie reconnaît qu’ils provoquent des cancers et des malformations congénitales ou autres problèmes de procréation. Pour les moteurs diesel : Les gaz d’échappement des moteurs diesel et certains de leurs composants sont reconnus par l’État de Californie com- me provoquant des cancers et des malformations congénitales ou autres problèmes de procréation.OM-239 988 Page 9 2-5. Principales normes de sécurité Safety in Welding, Cutting, and Allied Processes, ANSI Standard Z49.1, de Global Engineering Documents (téléphone : 1-877-413-5184, site Internet : www.global.ihs.com). Safe Practices for the Preparation of Containers and Piping for Welding and Cutting, American Welding Society Standard AWS F4.1, de Global Engineering Documents (téléphone : 1-877-413-5184, site internet : www.global.ihs.com). National Electrical Code, NFPA Standard 70, de National Fire Protec- tion Association, Quincy, MA 02269 (téléphone : 800-344-3555, site Internet : www.nfpa.org et www.sparky.org). Safe Handling of Compressed Gases in Cylinders, CGA Pamphlet P-1, de Compressed Gas Association, 4221 Walney Road, 5th Floor, Chan- tilly, VA 20151 (téléphone : 703-788-2700, site Internet : www.cganet.com). Safety in Welding, Cutting, and Allied Processes, CSA Standard W117.2, de Canadian Standards Association, Standards Sales, 5060 Spectrum Way, Suite 100, Ontario, Canada L4W 5NS (téléphone : 800-463-6727, site internet : www.csa-international.org). Safe Practice For Occupational And Educational Eye And Face Protec- tion, ANSI Standard Z87.1, de American National Standards Institute, 25 West 43rd Street, New York, NY 10036 (téléphone : 212-642-4900, site Internet : www.ansi.org). Standard for Fire Prevention During Welding, Cutting, and Other Hot Work, NFPA Standard 51B, de National Fire Protection Association, P.O. Box 9101, Quincy, MA 02269-9101 (téléphone : 617-770-3000, site Internet : www.nfpa.org). OSHA, Occupational Safety and Health Standards for General Industry, Title 29, Code of Federal Regulations (CFR), Part 1910, Subpart Q, and Part 1926, Subpart J, de U.S. Government Printing Office, Superintendent of Documents, P.O. Box 371954, Pittsburgh, PA 15250-7954 (téléphone : 1-866-512-1800) (il y a 10 bureaux régionaux−le téléphone de la région 5, Chicago, est 312-353-2220, site Internet : www.osha.gov). U.S. Consumer Product Safety Commission (CPSC), 4330 East West Highway, Bethesda, MD 20814 (téléphone : 301-504-7923, site inter- net : www.cpsc.gov). Applications Manual for the Revised NIOSH Lifting Equation, The National Institute for Occupational Safety and Health (NIOSH), 1600 Clifton Rd, Atlanta, GA 30333 (télé[hone : 1-800-232-4636, site internet: www.cdc.gov/NIOSH). 2-6. Informations relatives aux CEM Le courant électrique qui traverse tout conducteur génère des champs électromagnétiques (CEM) à certains endroits. Le courant de soudage crée un CEM autour du circuit et du matériel de soudage. Les CEM peuvent créer des interférences avec certains implants médicaux comme des stimulateurs cardiaques. Des mesures de protection pour les porteurs d’implants médicaux doivent être prises: par exemple, des restrictions d’accès pour les passants ou une évaluation individuelle des risques pour les soudeurs. Tous les soudeurs doivent appliquer les procédures suivantes pour minimiser l’exposition aux CEM provenant du circuit de soudage:

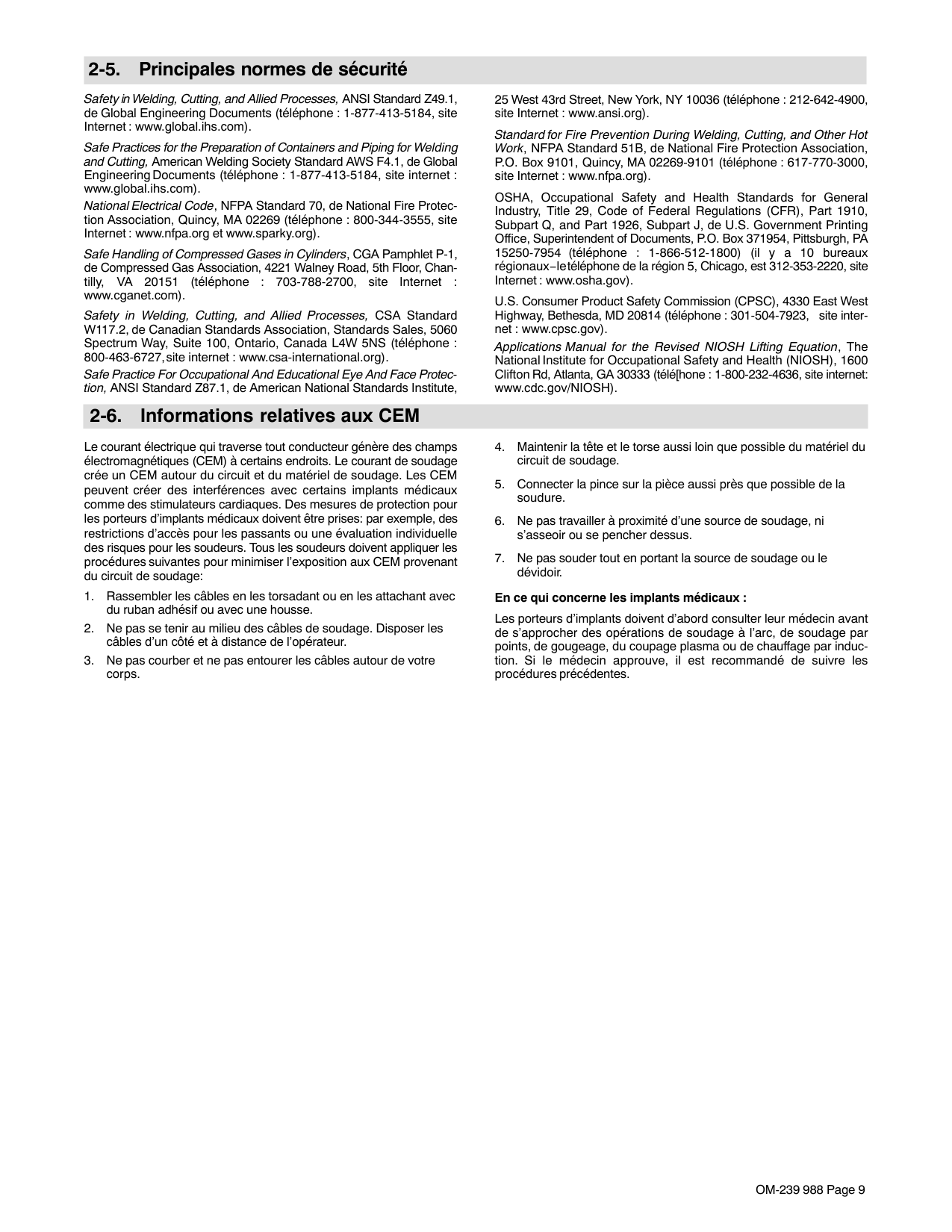

A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 11
Section 3 − Specifications

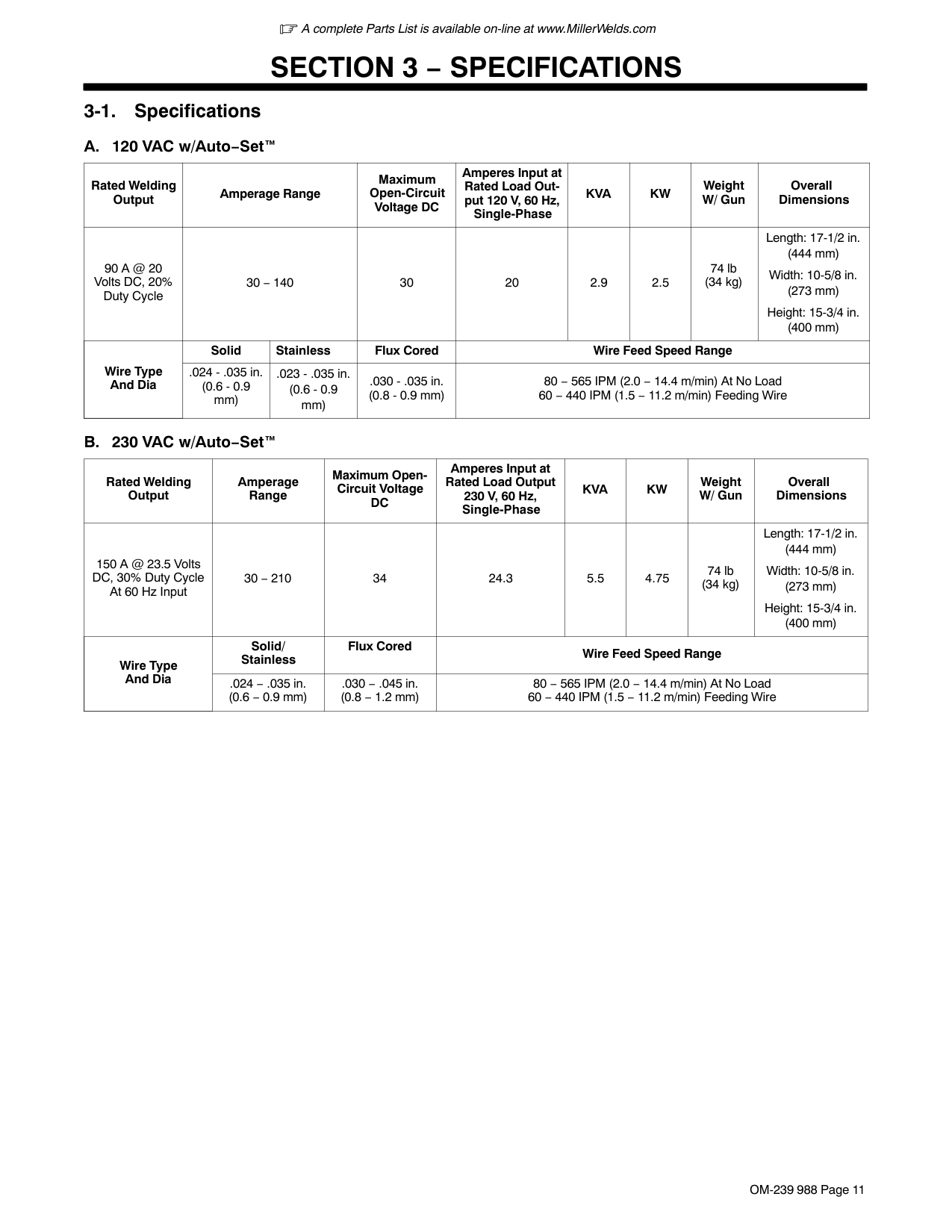

3-1. SpecificationsA.
120 VAC w/Auto−Set Rated Welding Output Amperage Range Maximum Open-Circuit Voltage DC Amperes Input at Rated Load Out- put 120 V, 60 Hz, Single-PhaseKva
Kw
Weight W/ Gun Overall Dimensions90 A @ 20
Volts DC, 20% Duty Cycle 30 − 140 30 20 2.9 2.5 74 lb (34 kg) Length: 17-1/2 in. (444 mm) Width: 10-5/8 in. (273 mm) Height: 15-3/4 in. (400 mm) Wire Type And Dia Solid Stainless Flux Cored Wire Feed Speed Range .024 - .035 in. (0.6 - 0.9 mm) .023 - .035 in. (0.6 - 0.9 mm) .030 - .035 in. (0.8 - 0.9 mm) 80 − 565 IPM (2.0 − 14.4 m/min) At No Load 60 − 440 IPM (1.5 − 11.2 m/min) Feeding WireB.
230 VAC w/Auto−Set Rated Welding Output Amperage Range Maximum Open- Circuit VoltageDc
Amperes Input at Rated Load Output 230 V, 60 Hz, Single-PhaseKva
Kw
Weight W/ Gun Overall Dimensions 150 A @ 23.5 Volts DC, 30% Duty Cycle At 60 Hz Input 30 − 210 34 24.3 5.5 4.75 74 lb (34 kg) Length: 17-1/2 in. (444 mm) Width: 10-5/8 in. (273 mm) Height: 15-3/4 in. (400 mm) Wire Type And Dia Solid/ Stainless Flux Cored Wire Feed Speed Range .024 − .035 in. (0.6 − 0.9 mm) .030 − .045 in. (0.8 − 1.2 mm) 80 − 565 IPM (2.0 − 14.4 m/min) At No Load 60 − 440 IPM (1.5 − 11.2 m/min) Feeding WireA complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 12 3-2. Duty Cycle And Overheating Duty Cycle is percentage of 10 minutes that unit can weld at rated load without overheating. If unit overheats, thermostat(s) opens, output stops, and cooling fan runs. Wait fifteen minutes for unit to cool. Reduce amperage or duty cycle before welding. NOTICE − Exceeding duty cycle can damage unit and void warranty. Overheating 0 15 A or V
Or
Reduce Duty Cycle Minutes duty1 4/95 − 284 313-AA.
120 Vac
InputB.
230 Vac

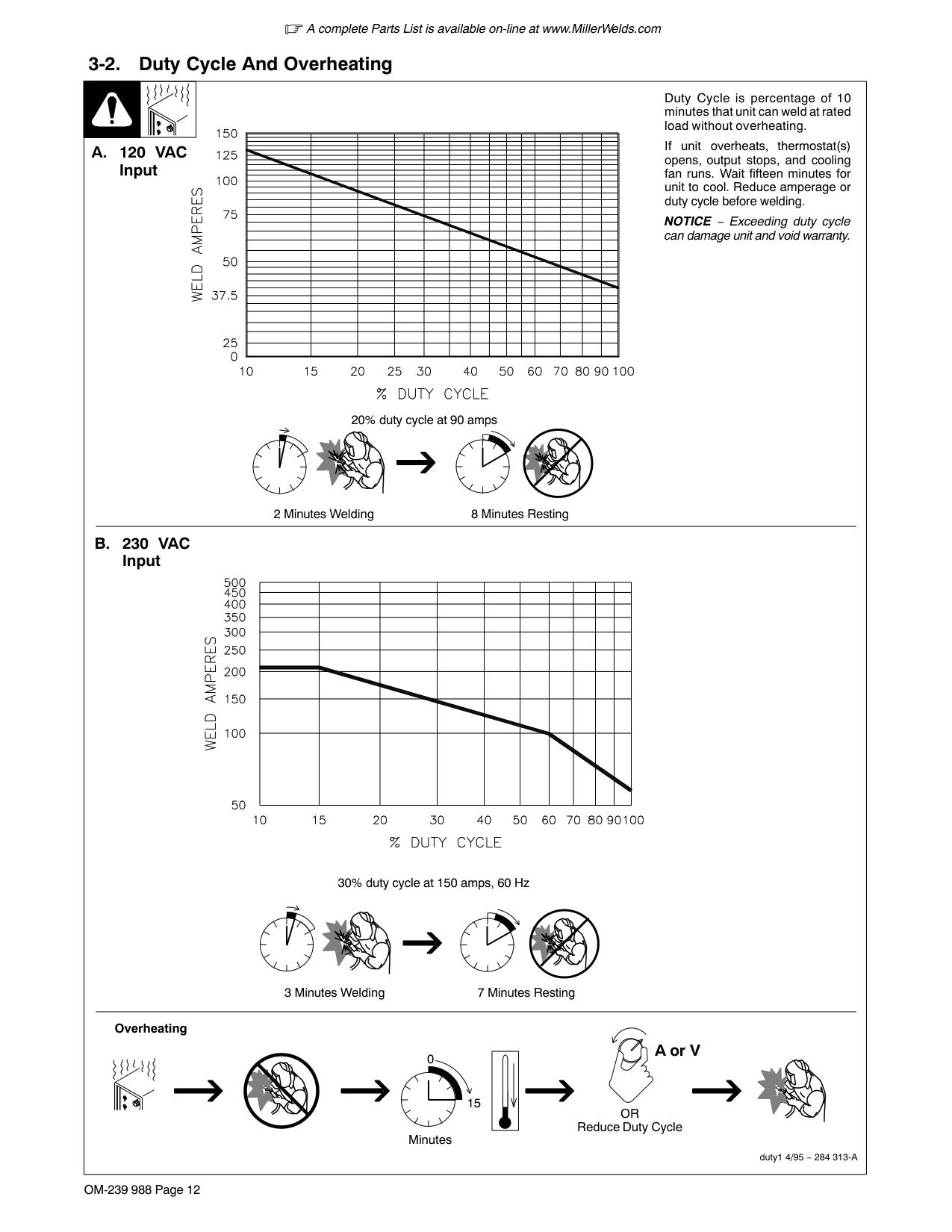

Input 3 Minutes Welding 7 Minutes Resting 20% duty cycle at 90 amps 30% duty cycle at 150 amps, 60 Hz 2 Minutes Welding 8 Minutes RestingA complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 13 3-3. Volt-Ampere Curves The volt-ampere curves show the minimum and maximum voltage and amperage output capabilities of the welding power source. Curves of other settings fall between the curves shown.
240 580-A
A.
120 VAC InputB.

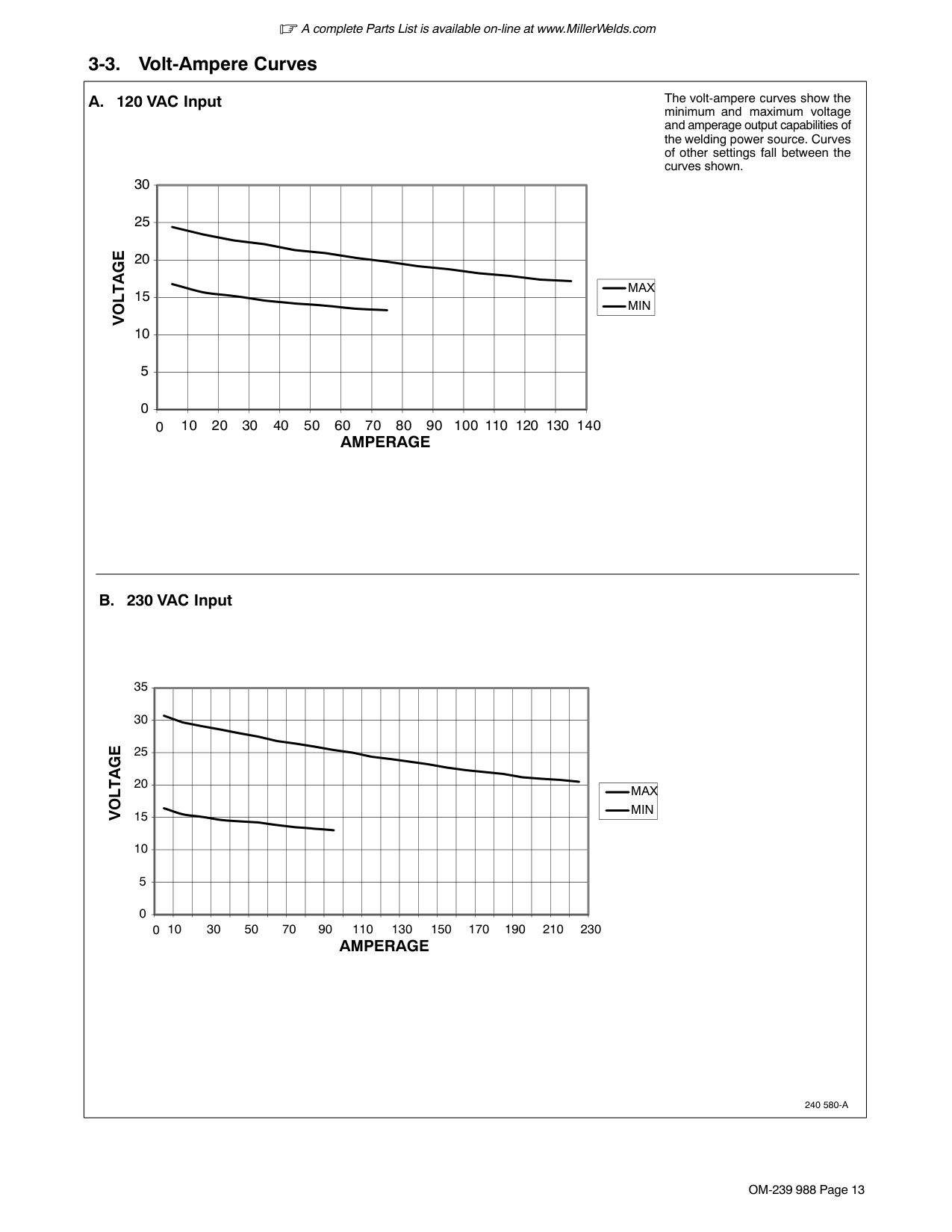

230 VAC Input 0 5 10 15 20 25 30 10 20 30 40 50 60 70 80 90 100 110 120 130 140Voltage
Amperage
Max
Min
0 5 10 15 20 25 30 35 10 30 50 70 90 110 130 150 170 190 210 230Voltage
Amperage
Max
Min
0 0A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 14
Section 4 − Installation

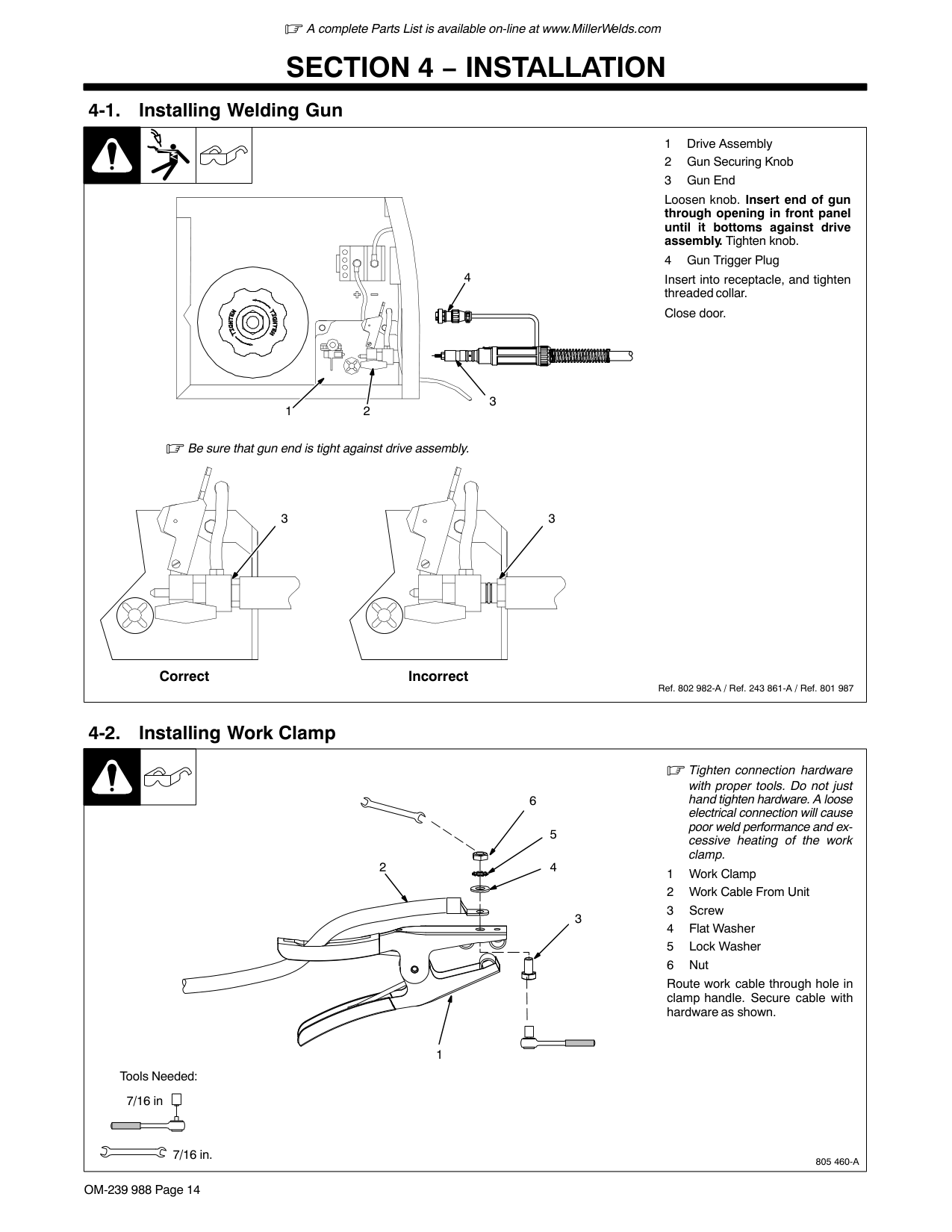

4-1. Installing Welding Gun Ref. 802 982-A / Ref. 243 861-A / Ref. 801 987 1 Drive Assembly 2 Gun Securing Knob 3 Gun End Loosen knob. Insert end of gun through opening in front panel until it bottoms against drive assembly. Tighten knob. 4 Gun Trigger Plug Insert into receptacle, and tighten threaded collar. Close door. Correct Incorrect Be sure that gun end is tight against drive assembly. 3 3 2 1 4 3 4-2. Installing Work Clamp Tighten connection hardware with proper tools. Do not just hand tighten hardware. A loose electrical connection will cause poor weld performance and ex- cessive heating of the work clamp. 1 Work Clamp 2 Work Cable From Unit 3 Screw 4 Flat Washer 5 Lock Washer 6 Nut Route work cable through hole in clamp handle. Secure cable with hardware as shown.805 460-A
2 6 1 Tools Needed: 7/16 in. 7/16 in 3 4 5A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 15 4-3. Work Cable Routing Inside Unit Ref. 802 982-A 1 Work Cable 2 Output Terminal Block Insert work cable through opening in front panel and route along back of front panel to output terminal block. Close door. 2 1 4-4. Process/Polarity Table Process Polarity Cable Connections Cable To Gun Cable To Work GMAW − Solid wire with shield- ing gas DCEP − Reverse polarity Connect to positive (+) out- put terminal Connect to negative (−) output terminal FCAW − Self-shielding wire − no shielding gas DCEN − Straight Polarity Connect to negative (−) output terminal Connect to positive (+) output terminal 4-5. Changing Polarity 1 Lead Connections For Direct Current Electrode Positive
(Dcep)

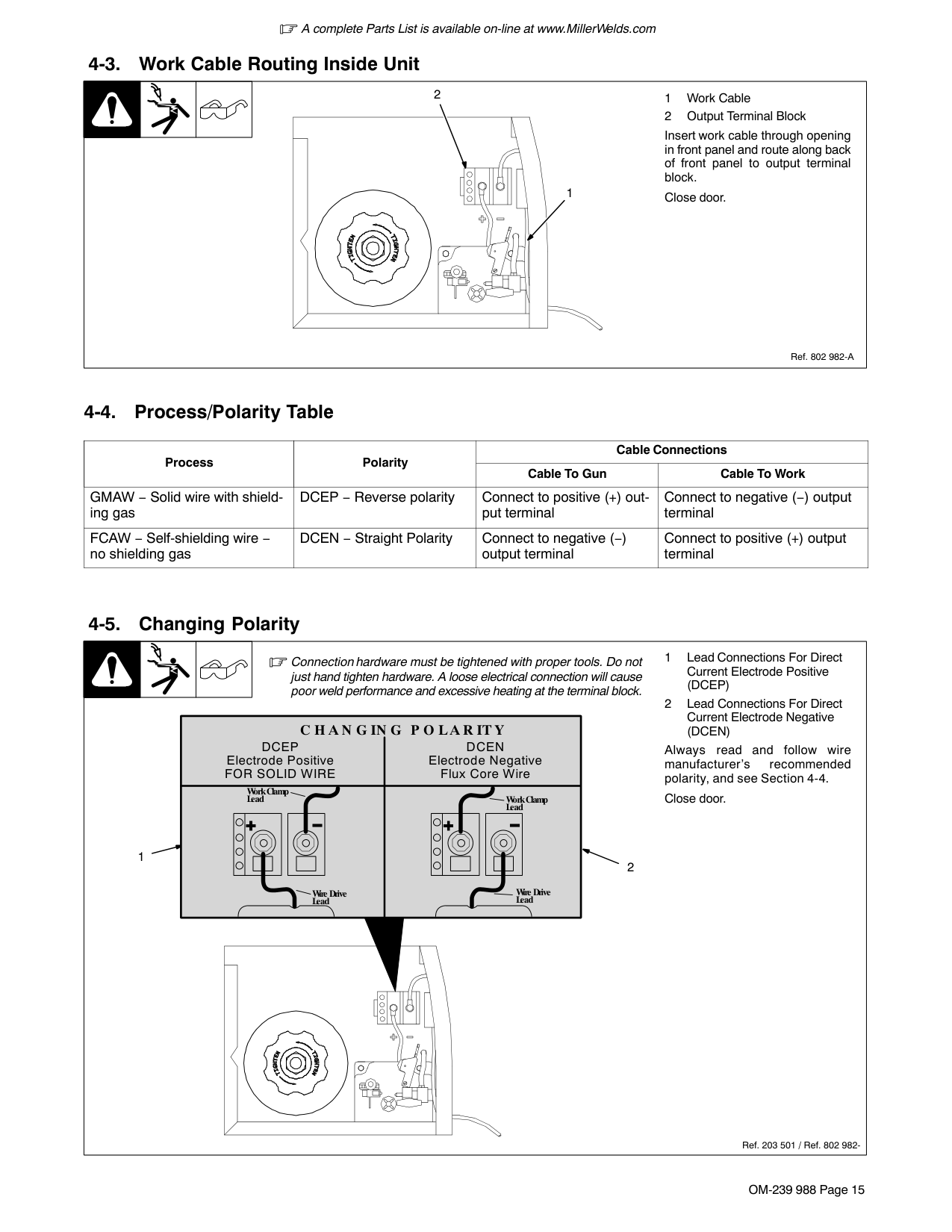

2 Lead Connections For Direct Current Electrode Negative(Dcen)
Always read and follow wire manufacturer’s recommended polarity, and see Section 4-4. Close door. 1 Ref. 203 501 / Ref. 802 982- 2C H A N G In G P O L A R It Y
Dcep
Electrode POSITIVEFor Solid Wire
Dcen
Electrode Negative Flux Core Wire WorkClamp Lead Wire Drive Lead WorkClamp Lead Wire Drive LeadC H A N G In G P O L A R It Y
Dcep
Electrode PositiveFor Solid Wire
Dcen

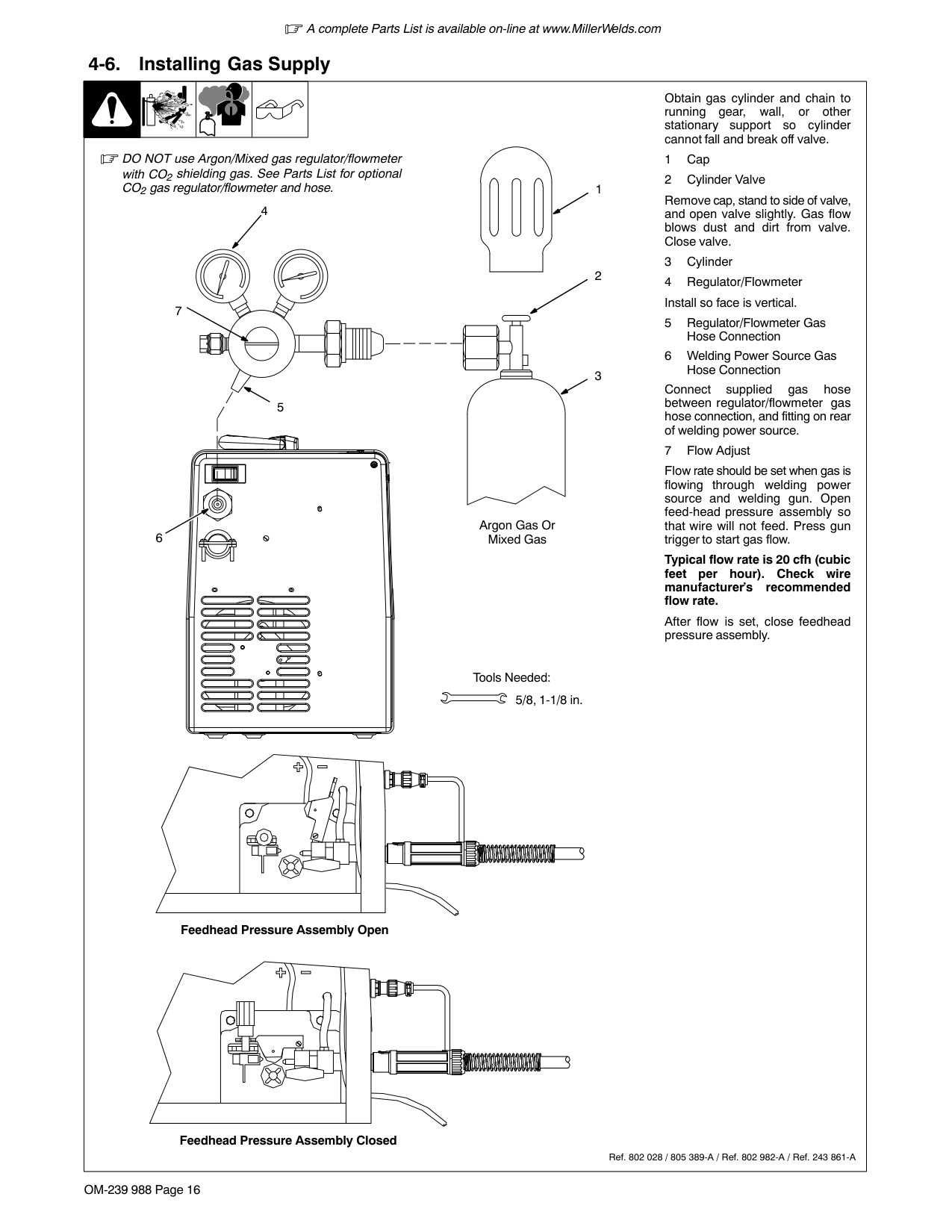

Electrode Negative Flux Core Wire WorkClamp Lead Wire Drive Lead WorkClamp Lead Wire Drive Lead Connection hardware must be tightened with proper tools. Do not just hand tighten hardware. A loose electrical connection will cause poor weld performance and excessive heating at the terminal block.A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 16 4-6. Installing Gas Supply Obtain gas cylinder and chain to running gear, wall, or other stationary support so cylinder cannot fall and break off valve. 1 Cap 2 Cylinder Valve Remove cap, stand to side of valve, and open valve slightly. Gas flow blows dust and dirt from valve. Close valve. 3 Cylinder 4 Regulator/Flowmeter Install so face is vertical. 5 Regulator/Flowmeter Gas Hose Connection 6 Welding Power Source Gas Hose Connection Connect supplied gas hose between regulator/flowmeter gas hose connection, and fitting on rear of welding power source. 7 Flow Adjust Flow rate should be set when gas is flowing through welding power source and welding gun. Open feed-head pressure assembly so that wire will not feed. Press gun trigger to start gas flow. Typical flow rate is 20 cfh (cubic feet per hour). Check wire manufacturer’s recommended flow rate. After flow is set, close feedhead pressure assembly. Tools Needed: Ref. 802 028 / 805 389-A / Ref. 802 982-A / Ref. 243 861-A 5/8, 1-1/8 in. 1 2 3 Argon Gas Or Mixed Gas 4 5 7 DO NOT use Argon/Mixed gas regulator/flowmeter with CO2 shielding gas. See Parts List for optional CO2 gas regulator/flowmeter and hose. 6 Feedhead Pressure Assembly Open Feedhead Pressure Assembly Closed
A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 17 4-7. Connecting 1-Phase Input Power For 230 VAC Input 803 766-B / Ref. 802 443-A ! Installation must meet all National and Local Codes − have only qualified persons make this installation. ! Disconnect and lockout/tagout input power before connecting input conductors from unit. ! Always connect green or green/ yellow conductor to supply grounding terminal first, and never to a line terminal. 1 Black And White Input Conductor (L1 And L2) 2 Green Or Green/Yellow Grounding Conductor 3 Input Power Cord. 4 Disconnect Device (switch shown in the OFF position) 5 Disconnect Device Grounding Terminal 6 Disconnect Device Line Terminals Connect green or green/yellow grounding conductor to disconnect device grounding terminal first. Connect input conductors L1 and L2 to disconnect device line terminals. 7 Over-Current Protection Select type and size of over-current protection using Section 4-8 (fused disconnect switch shown). 8 Receptacle (NEMA 6-50R) Customer Supplied Close and secure door on disconnect device. Remove lockout/tagout device, and place switch in the On position. 4 3
L1
L2

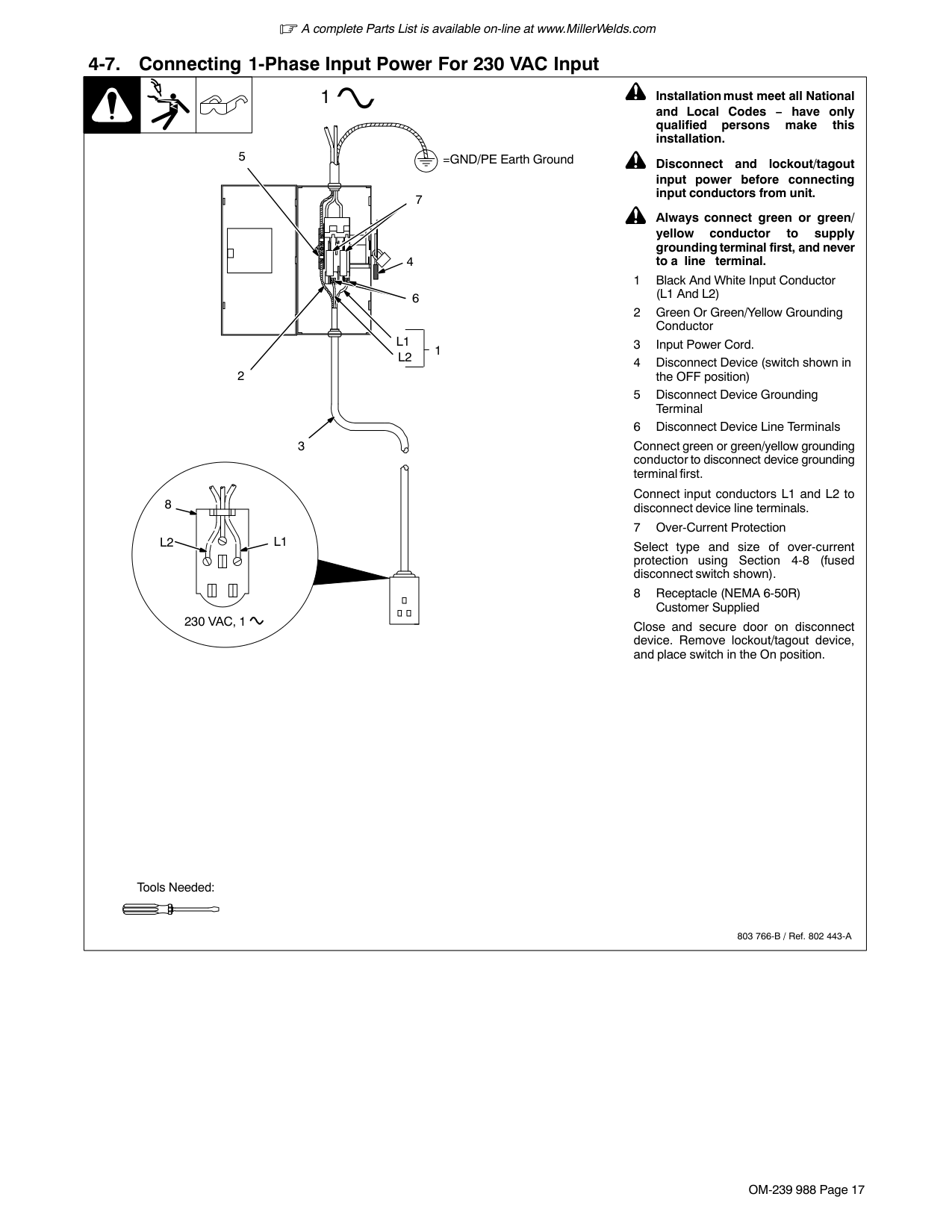

1 =GND/PE Earth Ground 2 1 5 6 7 Tools Needed:L1
L2
230 Vac, 1

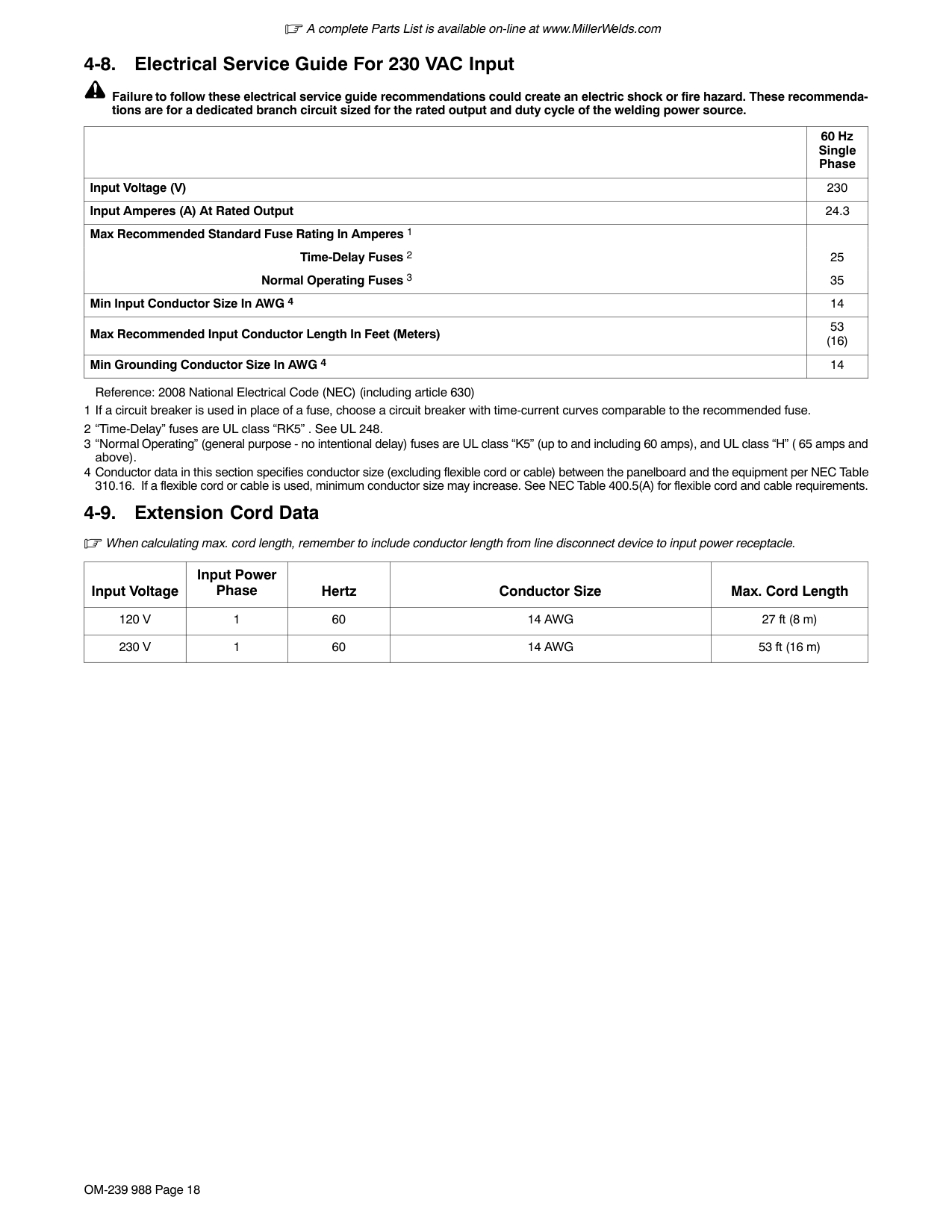

8A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 18 4-8. Electrical Service Guide For 230 VAC Input Failure to follow these electrical service guide recommendations could create an electric shock or fire hazard. These recommenda- tions are for a dedicated branch circuit sized for the rated output and duty cycle of the welding power source. 60 Hz Single Phase Input Voltage (V) 230 Input Amperes (A) At Rated Output 24.3 Max Recommended Standard Fuse Rating In Amperes 1 Time-Delay Fuses 2 25 Normal Operating Fuses 3 35 Min Input Conductor Size In AWG 4 14 Max Recommended Input Conductor Length In Feet (Meters) 53 (16) Min Grounding Conductor Size In AWG 4 14 Reference: 2008 National Electrical Code (NEC) (including article 630) 1 If a circuit breaker is used in place of a fuse, choose a circuit breaker with time-current curves comparable to the recommended fuse. 2 “Time-Delay” fuses are UL class “RK5” . See UL 248. 3 “Normal Operating” (general purpose - no intentional delay) fuses are UL class “K5” (up to and including 60 amps), and UL class “H” ( 65 amps and above). 4 Conductor data in this section specifies conductor size (excluding flexible cord or cable) between the panelboard and the equipment per NEC Table 310.16. If a flexible cord or cable is used, minimum conductor size may increase. See NEC Table 400.5(A) for flexible cord and cable requirements. 4-9. Extension Cord Data When calculating max. cord length, remember to include conductor length from line disconnect device to input power receptacle. Input Voltage Input Power Phase Hertz Conductor Size Max. Cord Length
120 V
1 6014 Awg
27 ft (8 m)230 V
1 6014 Awg

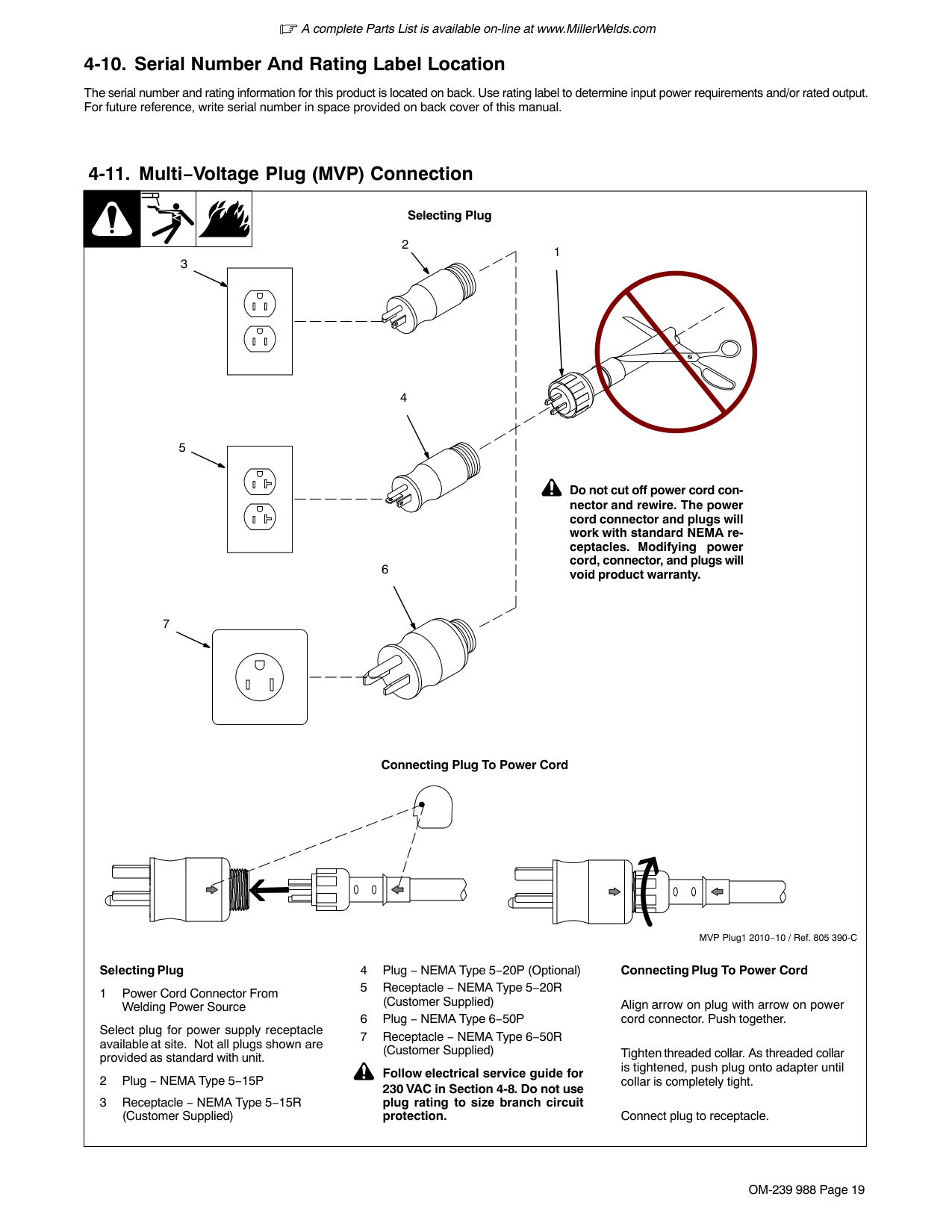

53 ft (16 m)A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 19 4-10. Serial Number And Rating Label Location The serial number and rating information for this product is located on back. Use rating label to determine input power requirements and/or rated output. For future reference, write serial number in space provided on back cover of this manual. 4-11. Multi−Voltage Plug (MVP) Connection Selecting Plug 1 Power Cord Connector From Welding Power Source Select plug for power supply receptacle available at site. Not all plugs shown are provided as standard with unit. 2 Plug − NEMA Type 5−15P 3 Receptacle − NEMA Type 5−15R (Customer Supplied) 4 Plug − NEMA Type 5−20P (Optional) 5 Receptacle − NEMA Type 5−20R (Customer Supplied) 6 Plug − NEMA Type 6−50P 7 Receptacle − NEMA Type 6−50R (Customer Supplied) ! Follow electrical service guide for 230 VAC in Section 4-8. Do not use plug rating to size branch circuit protection. Connecting Plug To Power Cord Align arrow on plug with arrow on power cord connector. Push together. Tighten threaded collar. As threaded collar is tightened, push plug onto adapter until collar is completely tight. Connect plug to receptacle. MVP Plug1 2010−10 / Ref. 805 390-C ! Do not cut off power cord con- nector and rewire. The power cord connector and plugs will work with standard NEMA re- ceptacles. Modifying power cord, connector, and plugs will void product warranty. 3 2 7 4 5 6 1 Selecting Plug Connecting Plug To Power Cord

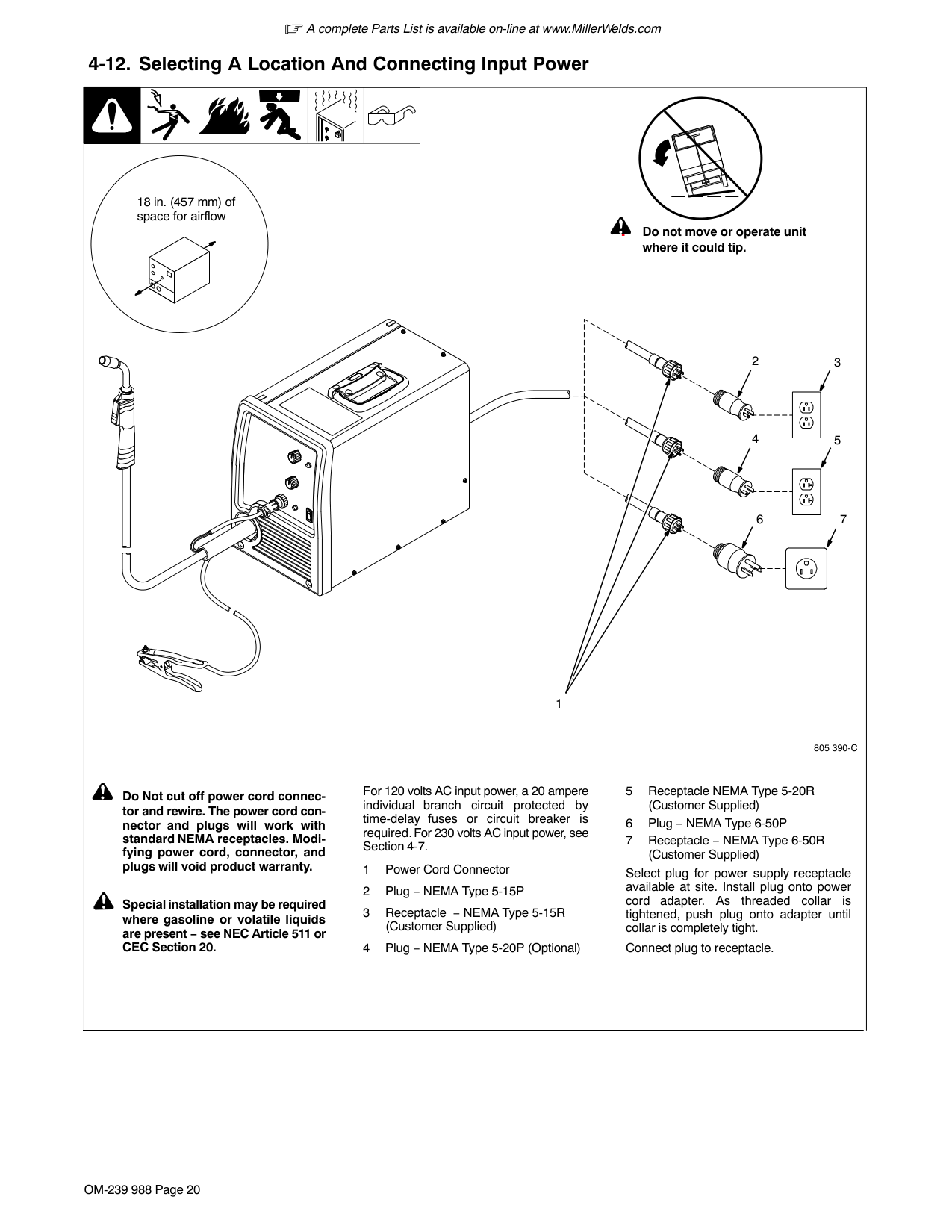

A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 20 4-12. Selecting A Location And Connecting Input Power ! Do Not cut off power cord connec- tor and rewire. The power cord con- nector and plugs will work with standard NEMA receptacles. Modi- fying power cord, connector, and plugs will void product warranty. ! Special installation may be required where gasoline or volatile liquids are present − see NEC Article 511 or CEC Section 20. For 120 volts AC input power, a 20 ampere individual branch circuit protected by time-delay fuses or circuit breaker is required. For 230 volts AC input power, see Section 4-7. 1 Power Cord Connector 2 Plug − NEMA Type 5-15P 3 Receptacle − NEMA Type 5-15R (Customer Supplied) 4 Plug − NEMA Type 5-20P (Optional) 5 Receptacle NEMA Type 5-20R (Customer Supplied) 6 Plug − NEMA Type 6-50P 7 Receptacle − NEMA Type 6-50R (Customer Supplied) Select plug for power supply receptacle available at site. Install plug onto power cord adapter. As threaded collar is tightened, push plug onto adapter until collar is completely tight. Connect plug to receptacle. 18 in. (457 mm) of space for airflow ! Do not move or operate unit where it could tip.
805 390-C
3 5 7 2 4 6 1A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 21 4-13. Installing Wire Spool And Adjusting Hub Tension When a slight force is needed to turn spool, tension is set. 1/2 in. Tools Needed: 803 012 / 803 013 -B / Ref. 802 444-C Installing 8 in. (203 mm) Wire Spool Installing 4 in. (102 mm) Wire Spool When a slight force is needed to turn spool, ten- sion is set. Retaining ring used with 8 in. (203 mm) spool only. Adapter used with 8 in. (203 mm) spool only. Align locking hole in spool with locking pin on spool hub.
A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 22 4-14. Threading Welding Wire 1 Wire Spool 2 Welding Wire 3 Inlet Wire Guide 4 Pressure Adjustment Knob 5 Drive Roll 6 Gun Conduit Cable Lay gun cable out straight. Tools Needed: Pull and hold wire; cut off end. Remove gun nozzle and contact tip. Open pressure assembly. Push wire thru guides into gun; continue to hold wire. Be sure that wire is positioned in proper drive roll groove and wire is laying in the groove. Hold wire tightly to keep it from unraveling. Ref. 802 982-A / Ref. 205 837 / Ref. 243 861-A
Wood
Feed wire to check drive roll pressure. Tighten knob enough to prevent slipping. Cut off wire. Close door. Press gun trigger until wire comes out of gun. (Keep gun cable as straight as possible.) Be sure that tip matches wire diameter. Reinstall contact tip and nozzle. Turn power on.Input
Power
Tighten 1 2 3 4 Use pressure indicator scale to set a desired drive roll pressure. Begin with a setting of 3. If necessary, make additional adjustments after trying this initial setting. Pressure Indicator Scale Tighten 1 2 3 4 6 in (150 mm) Close and tighten pressure assembly, and let go of wire. 1 2 3 4 5 6 7 8 9 6 1 3 4 5 2 4 in. (102 mm)A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 23 4-15. Removing MIG Gun From Welding Power Source Open Pressure Assembly Hold wire tightly to keep it from unraveling. Rewind Wire Onto Spool, Fasten End Of Wire To Spool Cut Off End Of Wire Loosen Knob, Disconnect Gun Trigger Plug, And Pull Gun From Unit Ref. 802 982-A / Ref. 243 861-A Knob
A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 24 4-16. Connecting Spool Gun To Millermatic 211 Ref. 804 984-A / Ref. 805 390-A / Ref. 801 987 1 Drive Assembly 2 Spool Gun 3 Gun Securing Knob 4 Gun End Loosen thumbscrew. Insert end through opening until it bottoms against drive assembly. Tighten gun securing knob. Spool gun must be inserted completely to prevent leakage of shielding gas. 5 Gun Trigger Plug Insert plug into receptacle, and tighten threaded collar. 6 Polarity Changeover Terminal Block To make proper polarity connection, see Section 4-5. 7 MIG Gun/Spool Gun Switch Place switch in Spool Gun position. Close door. Incorrect Gun Fully Seated Gun Not Seated Correct Be sure that gun end is tight against drive assembly. 4 4 Exposed O-rings will cause shielding gas leakage. 5 6 1 3 2 4 7
A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 25 4-17. Cable Management Strap
805 392-B

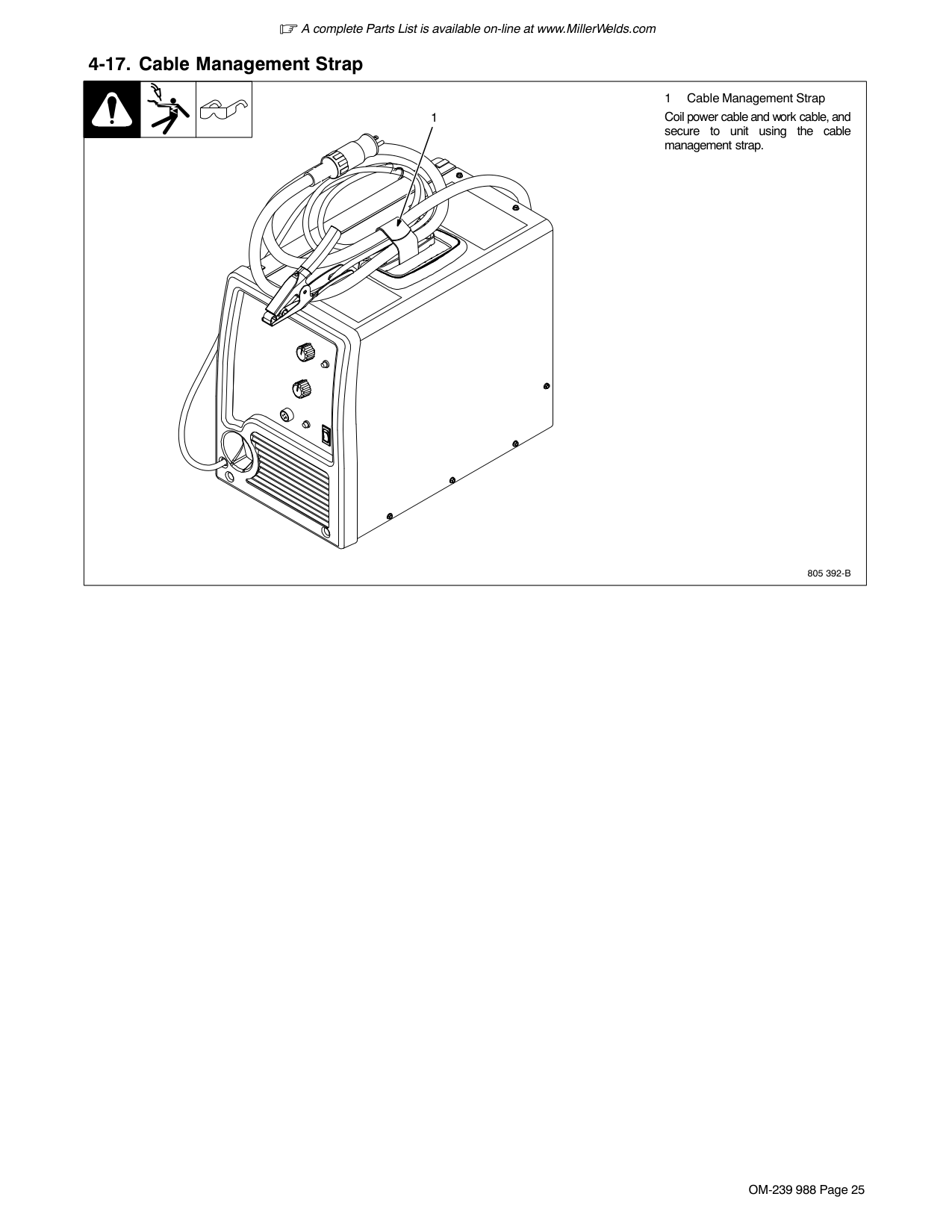

1 Cable Management Strap Coil power cable and work cable, and secure to unit using the cable management strap. 1A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 26
Section 5 − Operation

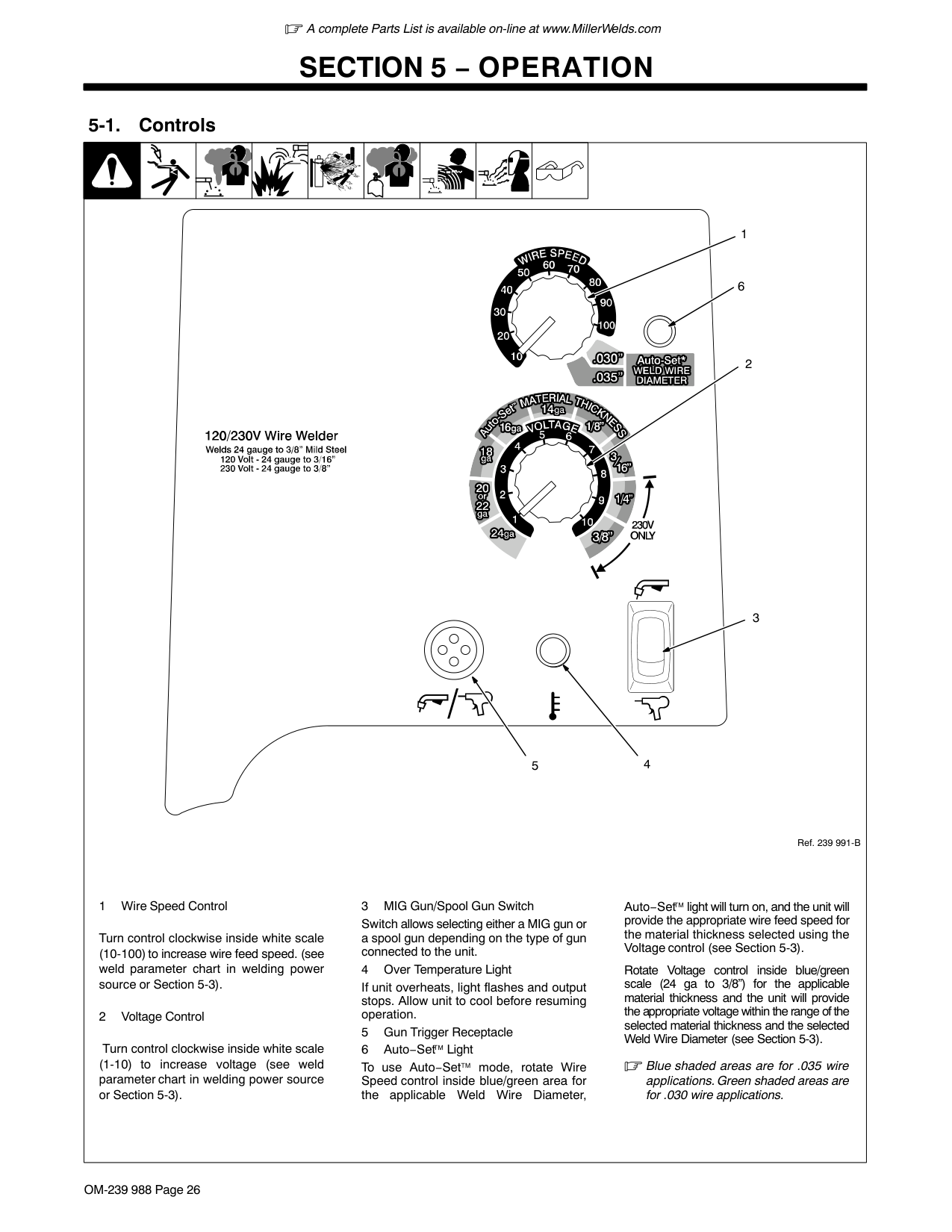

5-1. Controls 1 Wire Speed Control Turn control clockwise inside white scale (10-100) to increase wire feed speed. (see weld parameter chart in welding power source or Section 5-3). 2 Voltage Control Turn control clockwise inside white scale (1-10) to increase voltage (see weld parameter chart in welding power source or Section 5-3). 3 MIG Gun/Spool Gun Switch Switch allows selecting either a MIG gun or a spool gun depending on the type of gun connected to the unit. 4 Over Temperature Light If unit overheats, light flashes and output stops. Allow unit to cool before resuming operation. 5 Gun Trigger Receptacle 6 Auto−Set™ Light To use Auto−Set™ mode, rotate Wire Speed control inside blue/green area for the applicable Weld Wire Diameter, Auto−Set™ light will turn on, and the unit will provide the appropriate wire feed speed for the material thickness selected using the Voltage control (see Section 5-3). Rotate Voltage control inside blue/green scale (24 ga to 3/8”) for the applicable material thickness and the unit will provide the appropriate voltage within the range of the selected material thickness and the selected Weld Wire Diameter (see Section 5-3). Blue shaded areas are for .035 wire applications. Green shaded areas are for .030 wire applications. Ref. 239 991-B 1 2 3 4 5 6A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 27 5-2. Power Switch
805 389-A

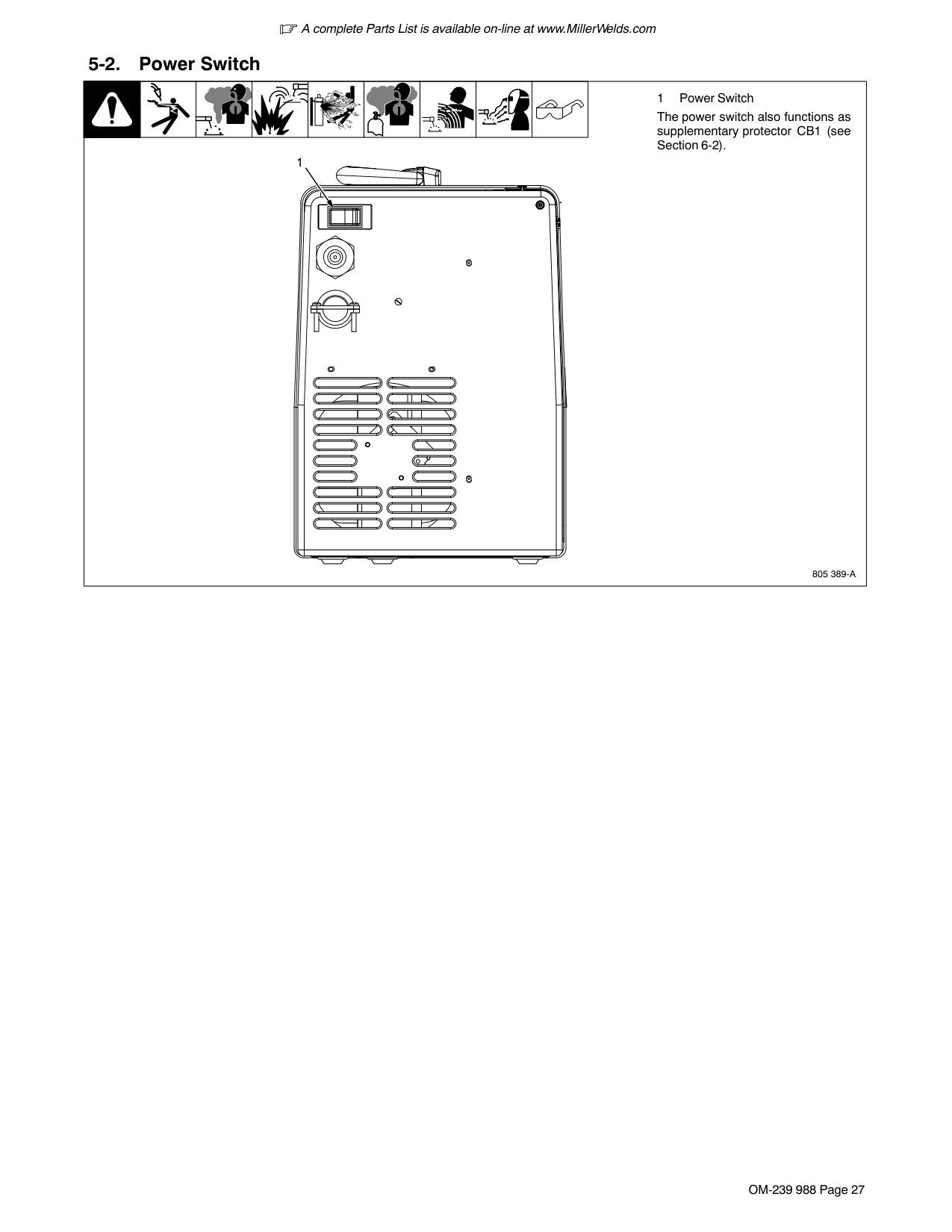

1 Power Switch The power switch also functions as supplementary protector CB1 (see Section 6-2). 1A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 28 5-3. Weld Parameter Chart
239 992-C
A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 29
Section 6 − Maintenance & Troubleshooting

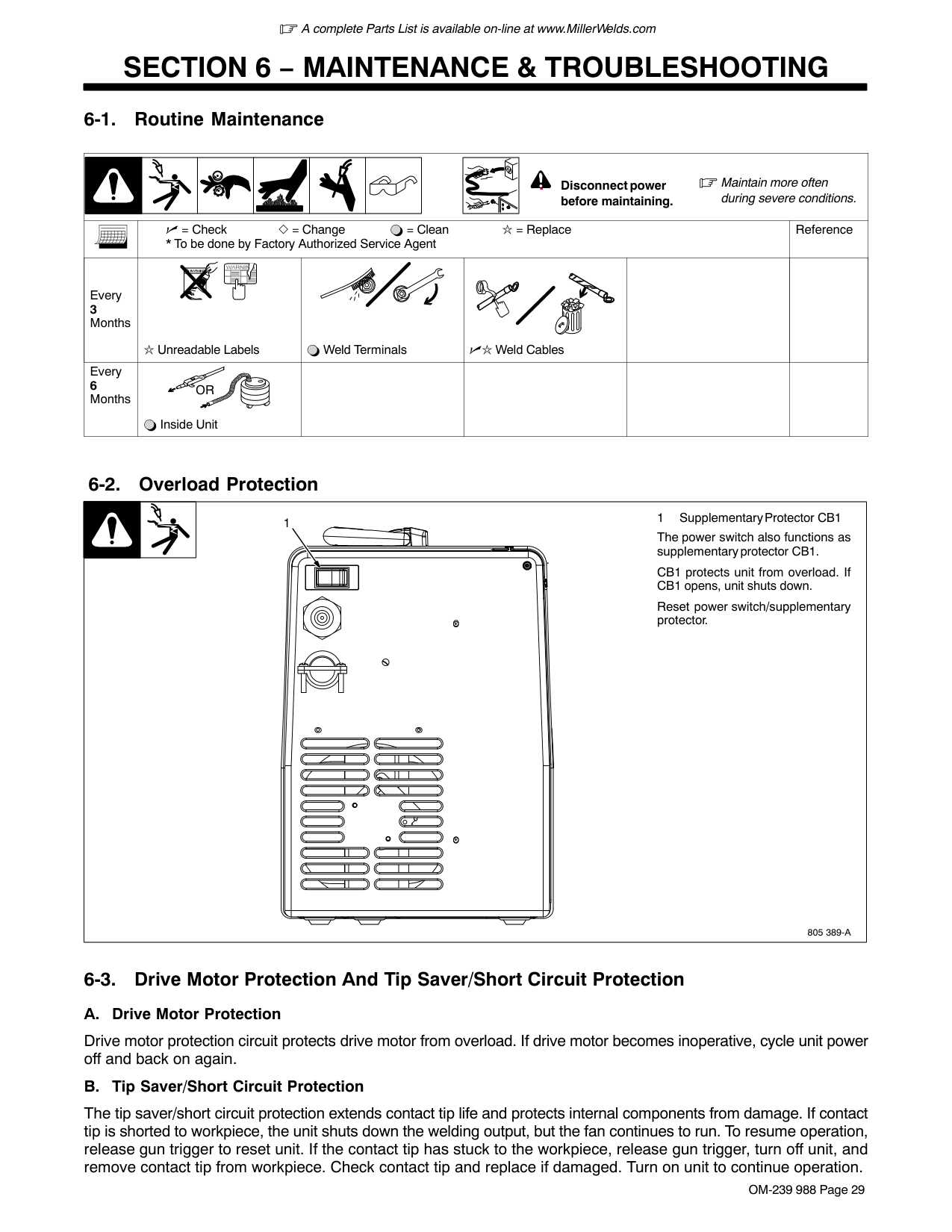

6-1. Routine Maintenance ! Disconnect power before maintaining. Maintain more often during severe conditions. = Check = Change = Clean = ReplaceOr
Inside Unit 6-2. Overload Protection805 389-A
1 Supplementary Protector CB1 The power switch also functions as supplementary protector CB1. CB1 protects unit from overload. If CB1 opens, unit shuts down. Reset power switch/supplementary protector. 1 6-3. Drive Motor Protection And Tip Saver/Short Circuit ProtectionA.
Drive Motor Protection Drive motor protection circuit protects drive motor from overload. If drive motor becomes inoperative, cycle unit power off and back on again.B.
Tip Saver/Short Circuit Protection The tip saver/short circuit protection extends contact tip life and protects internal components from damage. If contact tip is shorted to workpiece, the unit shuts down the welding output, but the fan continues to run. To resume operation, release gun trigger to reset unit. If the contact tip has stuck to the workpiece, release gun trigger, turn off unit, and remove contact tip from workpiece. Check contact tip and replace if damaged. Turn on unit to continue operation.A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 30 6-4. Changing Drive Roll Or Wire Inlet Guide 1 Inlet Wire Guide Remove guide by pressing on barbed area or cutting off one end near housing and pulling it out of hole. Push new guide into hole from rear until it snaps in place. 2 Drive Roll The drive roll consists of two differ- ent sized grooves. The stamped markings on the end surface of the drive roll refers to the groove on the opposite side of the drive roll. The groove closest to the motor shaft is the proper groove to thread (see Section 4-14). 3 Retaining Pin To secure drive roll, locate open slot and push drive roll completely over retaining pin, then rotate drive roll 1/4 turn to closed slot. 2 1 3 802 984 .024 Groove .030/.035 Groove Stamped .024 Stamped .030/.035

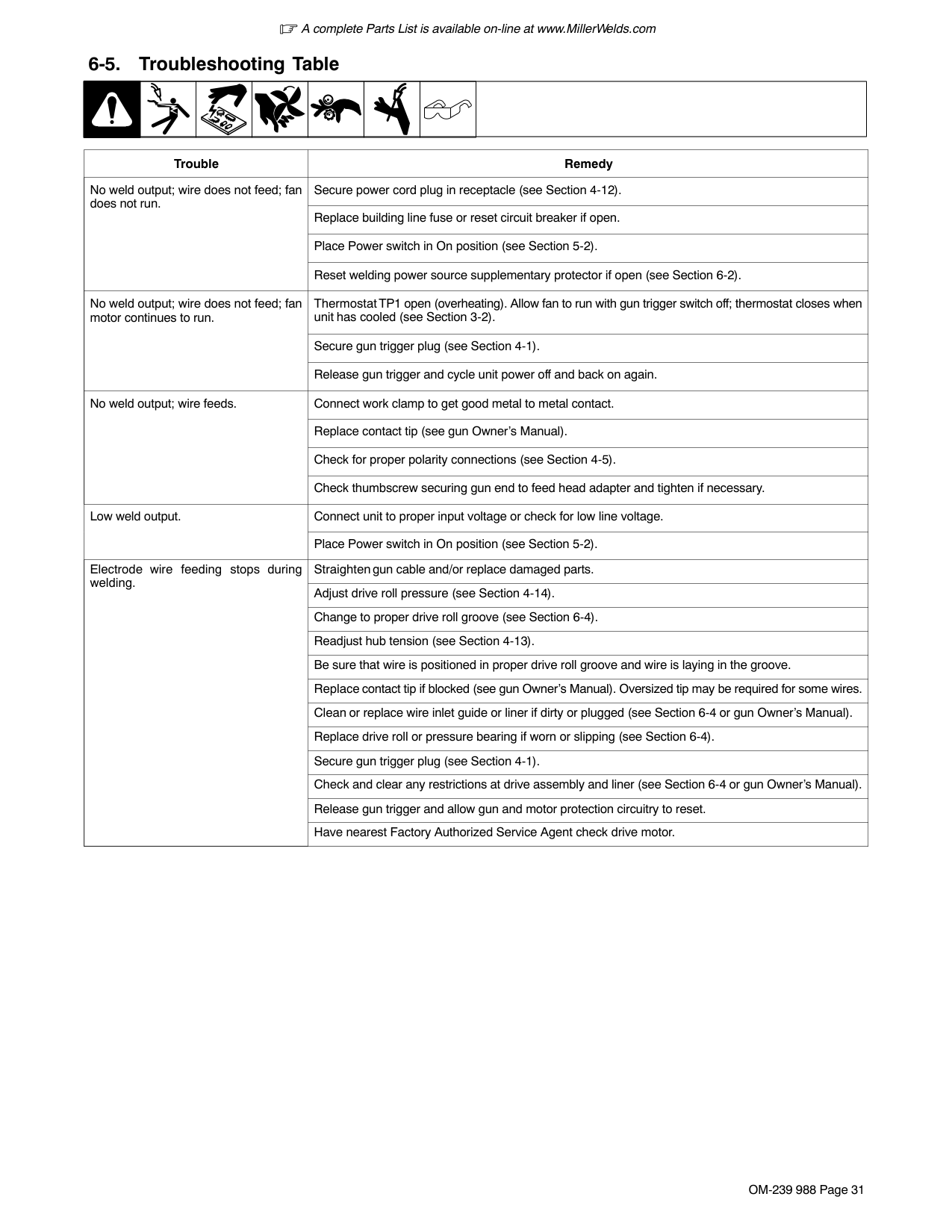

A complete Parts List is available on-line at www.MillerWelds.com OM-239 988 Page 31 6-5. Troubleshooting Table Trouble Remedy No weld output; wire does not feed; fan does not run. Secure power cord plug in receptacle (see Section 4-12). Replace building line fuse or reset circuit breaker if open. Place Power switch in On position (see Section 5-2). Reset welding power source supplementary protector if open (see Section 6-2). No weld output; wire does not feed; fan motor continues to run. Thermostat TP1 open (overheating). Allow fan to run with gun trigger switch off; thermostat closes when unit has cooled (see Section 3-2). Secure gun trigger plug (see Section 4-1). Release gun trigger and cycle unit power off and back on again. No weld output; wire feeds. Connect work clamp to get good metal to metal contact. Replace contact tip (see gun Owner’s Manual). Check for proper polarity connections (see Section 4-5). Check thumbscrew securing gun end to feed head adapter and tighten if necessary. Low weld output. Connect unit to proper input voltage or check for low line voltage. Place Power switch in On position (see Section 5-2). Electrode wire feeding stops during welding. Straighten gun cable and/or replace damaged parts. Adjust drive roll pressure (see Section 4-14). Change to proper drive roll groove (see Section 6-4). Readjust hub tension (see Section 4-13). Be sure that wire is positioned in proper drive roll groove and wire is laying in the groove. Replace contact tip if blocked (see gun Owner’s Manual). Oversized tip may be required for some wires. Clean or replace wire inlet guide or liner if dirty or plugged (see Section 6-4 or gun Owner’s Manual). Replace drive roll or pressure bearing if worn or slipping (see Section 6-4). Secure gun trigger plug (see Section 4-1). Check and clear any restrictions at drive assembly and liner (see Section 6-4 or gun Owner’s Manual). Release gun trigger and allow gun and motor protection circuitry to reset. Have nearest Factory Authorized Service Agent check drive motor.
OM-239 988 Page 34
Section 8 − Mig Welding (Gmaw) Guidelines
mig1 2009−12 Wire Feeder/ Power Source Workpiece Gun Regulator/ Flowmeter Gas Shielding Gas Work Clamp 8-1. Typical MIG Process Connections ! Weld current can damage electronic parts in vehicles. Disconnect both battery cables before welding on a vehicle. Place work clamp as close to the weld as possible. Ref. 801 909-AOM-239 988 Page 35 8-2. Typical MIG Process Control Settings These settings are guidelines only. Material and wire type, joint design, fitup, position, shielding gas, etc. affect settings. Test welds to be sure they comply to specifications. 3.5 x 125 A = 437 ipm 2 x 125 A = 250 ipm 1.6 x 125 A = 200 ipm
30 − 90 A
40 − 145 A
50 − 180 A
Convert Material Thickness to Amperage (A) Material thickness determines weld parameters. .035 in Recommendation Wire Speed (Approx.) 1/8 or 0.125 in. (0.001 in. = 1 ampere) 0.125 in. = 125 A Wire Size Amperage Range 0.023 in. 0.030 in. 0.035 in. Select Wire Size Wire Size 0.023 in. 0.030 in. 0.035 in. 3.5 in. per ampere 2 in. per ampere 1.6 in. per ampere Select Wire Speed (Amperage) 125 A based on 1/8 in. material thickness ipm = inches per minute Low voltage: wire stubs into work High voltage: arc is unstable (spatter) Set voltage midway between high/low voltage Select Voltage Voltage controls height and width of weld bead. Wire speed (amperage) controls weld penetration (wire speed = burn-off rate)OM-239 988 Page 36 8-3. Holding And Positioning Welding Gun Welding wire is energized when gun trigger is pressed. Before lowering helmet and pressing trigger, be sure wire is no more than 1/2 in. (13 mm) past end of nozzle, and tip of wire is positioned correctly on seam. 1 Hold Gun and Control Gun Trigger 2 Workpiece 3 Work Clamp 4 Electrode Extension (Stickout) 1/4 to 1/2 in. (6 To 13 mm) 5 Cradle Gun and Rest Hand on Workpiece 2 3 5 4 90° 90° 0°-15° 45° 45° 1 0°-15°
S-0421-A
End View of Work Angle Side View of Gun AngleGroove Welds
End View of Work Angle Side View of Gun AngleFillet Welds
OM-239 988 Page 37 8-4. Conditions That Affect Weld Bead Shape Weld bead shape depends on gun angle, direction of travel, electrode extension (stickout), travel speed, thickness of base metal, wire feed speed (weld current), and voltage. Slow
Fillet Weld Electode Extensions (Stickout)
Electrode Extensions (Stickout)
Gun Angles And Weld Bead Profiles
10° 10°Gun Travel Speed
S-0634
Push Perpendicular Drag Short Normal Long Short Normal Long Normal FastOM-239 988 Page 38 8-5. Gun Movement During Welding Normally, a single stringer bead is satisfactory for most narrow groove weld joints; however, for wide groove weld joints or bridging across gaps, a weave bead or multiple stringer beads works better. 1 Stringer Bead − Steady Movement Along Seam 2 Weave Bead − Side To Side Movement Along Seam 3 Weave Patterns Use weave patterns to cover a wide area in one pass of the electrode.
S-0054-A
3 1 2 8-6. Poor Weld Bead Characteristics 1 Large Spatter Deposits 2 Rough, Uneven Bead 3 Slight Crater During Welding 4 Bad Overlap 5 Poor Penetration 5 4 2 3 1S-0053-A
8-7. Good Weld Bead Characteristics 1 Fine Spatter 2 Uniform Bead 3 Moderate Crater During Welding Weld a new bead or layer for each 1/8 in. (3.2 mm) thickness in metals being welded. 4 No Overlap 5 Good Penetration into Base MetalS-0052-B
2 3 1 4 5OM-239 988 Page 39 8-8. Troubleshooting − Excessive Spatter Excessive Spatter − scattering of molten metal particles that cool to solid form near weld bead.
S-0636
Possible Causes Corrective Actions Wire feed speed too high. Select lower wire feed speed. Voltage too high. Select lower voltage range. Electrode extension (stickout) too long. Use shorter electrode extension (stickout). Workpiece dirty. Remove all grease, oil, moisture, rust, paint, undercoating, and dirt from work surface before welding. Insufficient shielding gas at welding arc. Increase flow of shielding gas at regulator/flowmeter and/or prevent drafts near welding arc. Dirty welding wire. Use clean, dry welding wire. Eliminate pickup of oil or lubricant on welding wire from feeder or liner. Incorrect polarity. Check polarity required by welding wire, and change to correct polarity at welding power source. 8-9. Troubleshooting − Porosity Porosity − small cavities or holes resulting from gas pockets in weld metal.S-0635
Possible Causes Corrective Actions Insufficient shielding gas at welding arc. Increase flow of shielding gas at regulator/flowmeter and/or prevent drafts near welding arc. Remove spatter from gun nozzle. Check gas hoses for leaks. Place nozzle 1/4 to 1/2 in. (6-13 mm) from workpiece. Hold gun near bead at end of weld until molten metal solidifies. Wrong gas. Use welding grade shielding gas; change to different gas. Dirty welding wire. Use clean, dry welding wire. Eliminate pick up of oil or lubricant on welding wire from feeder or liner. Workpiece dirty. Remove all grease, oil, moisture, rust, paint, coatings, and dirt from work surface before welding. Use a more highly deoxidizing welding wire (contact supplier). Welding wire extends too far out of nozzle. Be sure welding wire extends not more than 1/2 in. (13 mm) beyond nozzle. 8-10. Troubleshooting − Excessive Penetration Good Penetration Excessive Penetration − weld metal melting through base metal and hanging underneath weld. Excessive PenetrationS-0639
Possible Causes Corrective Actions Excessive heat input. Select lower voltage range and reduce wire feed speed. Increase travel speed.OM-239 988 Page 40 8-11. Troubleshooting − Lack Of Penetration Lack Of Penetration − shallow fusion between weld metal and base metal. Lack of Penetration Good Penetration
S-0638
Possible Causes Corrective Actions Improper joint preparation. Material too thick. Joint preparation and design must provide access to bottom of groove while maintaining proper welding wire extension and arc characteristics. Improper weld technique. Maintain normal gun angle of 0 to 15 degrees to achieve maximum penetration. Keep arc on leading edge of weld puddle. Be sure welding wire extends not more than 1/2 in. (13 mm) beyond nozzle. Insufficient heat input. Select higher wire feed speed and/or select higher voltage range. Reduce travel speed. Incorrect polarity. Check polarity required by welding wire, and change to correct polarity at welding power source. 8-12. Troubleshooting − Incomplete Fusion Incomplete Fusion − failure of weld metal to fuse completely with base metal or a preceeding weld bead.S-0637
Possible Causes Corrective Actions Workpiece dirty. Remove all grease, oil, moisture, rust, paint, undercoating, and dirt from work surface before welding. Insufficient heat input. Select higher voltage range and/or adjust wire feed speed. Improper welding technique. Place stringer bead in proper location(s) at joint during welding. Adjust work angle or widen groove to access bottom during welding. Momentarily hold arc on groove side walls when using weaving technique. Keep arc on leading edge of weld puddle. Use correct gun angle of 0 to 15 degrees. 8-13. Troubleshooting − Burn-Through Burn-Through − weld metal melting completely through base metal resulting in holes where no metal remains.S-0640
Possible Causes Corrective Actions Excessive heat input. Select lower voltage range and reduce wire feed speed. Increase and/or maintain steady travel speed.OM-239 988 Page 41 8-14. Troubleshooting − Waviness Of Bead Waviness Of Bead − weld metal that is not parallel and does not cover joint formed by base metal.
S-0641
Possible Causes Corrective Actions Welding wire extends too far out of nozzle. Be sure welding wire extends not more than 1/2 in. (13 mm) beyond nozzle. Unsteady hand. Support hand on solid surface or use two hands. 8-15. Troubleshooting − Distortion Distortion − contraction of weld metal during welding that forces base metal to move. Base metal moves in the direction of the weld bead.S-0642
Possible Causes Corrective Actions Excessive heat input. Use restraint (clamp) to hold base metal in position. Make tack welds along joint before starting welding operation. Select lower voltage range and/or reduce wire feed speed. Increase travel speed. Weld in small segments and allow cooling between welds.OM-239 988 Page 42 8-16. Common MIG Shielding Gases This is a general chart for common gases and where they are used. Many different combinations (mixtures) of shielding gases have been developed over the years. The most commonly used shielding gases are listed in the following table. Application Gas Spray Arc Steel Short Circuiting Steel Short Circuiting Stainless Steel Aluminum Argon
X
Argon + 25% CO2X
80% or greater Argon + balance CO2 or OxygenX
X1
100% Co2
X
Tri-Mix2X
1 Limited short circuiting use 290% He + 7-1/2% Ar + 2-1/2% Co2
8-17. Troubleshooting Guide For Semiautomatic Welding Equipment Problem Probable Cause Remedy Wire feed motor operates, but wire does not feed. Too little pressure on wire feed rolls. Increase pressure setting on wire feed rolls. Incorrect wire feed rolls. Check size stamped on wire feed rolls, replace to match wire size and type if necessary. Wire spool brake pressure too high. Decrease brake pressure on wire spool. Restriction in the gun and/or assembly. Check and replace cable, gun, and contact tip if damaged. Check size of contact tip and cable liner, replace if necessary. Wire curling up in front of the wire feed rolls (bird nesting). Too much pressure on wire feed rolls. Decrease pressure setting on wire feed rolls. Incorrect cable liner or gun contact tip size. Check size of contact tip and check cable liner length and diameter, replace if necessary. Gun end not inserted into drive housing properly. Loosen gun securing bolt in drive housing and push gun end into housing just enough so it does not touch wire feed rolls. Dirty or damaged (kinked) liner. Replace liner. Wire feeds, but no gas flows. Gas cylinder empty. Replace empty gas cylinder. Gas nozzle plugged. Clean or replace gas nozzle. Gas cylinder valve not open or flowmeter not adjusted. Open gas valve at cylinder and adjust flow rate. Restriction in gas line. Check gas hose between flowmeter and wire feeder, and gas hose in gun and cable assembly. Loose or broken wires to gas solenoid. Have Factory Authorized Service Agent repair wiring. Gas solenoid valve not operating. Have Factory Authorized Service Agent replace gas solenoid valve. Incorrect primary voltage connected to welding power source. Check primary voltage and relink welding power source for correct voltage.OM-239 988 Page 43 Problem Remedy Probable Cause Welding arc not stable. Wire slipping in drive rolls. Adjust pressure setting on wire feed rolls. Replace worn drive rolls if necessary. Wrong size gun liner or contact tip. Match liner and contact tip to wire size and type. Incorrect voltage setting for selected wire feed speed on welding power source. Readjust welding parameters. Loose connections at the gun weld cable or work cable. Check and tighten all connections. Gun in poor shape or loose connection inside gun. Repair or replace gun as necessary.
OM-239 988 Page 44
Section 9 − Parts List
9-1. Recommended Spare Parts Quantity Description Part No. Item No. 246 372 NOZZLE, slip type .500 orf flush 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ♦087 299 TIP, contact scr .023 wire x 1.125 . . . . . . . . . . . . . . . . . . . . . ♦000 067 TIP, contact scr .030 wire x 1.125 . . . . . . . . . . . . . . . . . . . . . ♦000 068 TIP, contact scr .035 wire x 1.125 . . . . . . . . . . . . . . . . . . . . . ♦000 069 TIP, contact scr .045 wire x 1.125 . . . . . . . . . . . . . . . . . . . . . ♦194 010 LINER, monocoil .023/.025 wire x 15ft (consisting of) 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ♦194 011 LINER, monocoil .030/.035 wire x 15ft (consisting of) 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ♦194 012 LINER, monocoil .035/.045 wire x 15ft (consisting of) 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 079 975 O-RING, .187 ID x .103CS rbr 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .♦Optional
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested Replacement Parts. Model and serial number required when ordering parts from your local distributor. 9-2. Optional Drive Rolls For All Feed Head AssembliesPart No.
WIRE DIAMETER INCHES (mm) 220 179 .024 (.6) and .030 − .035 (.8 and .9) 202 926 .030/.035 (.8 and .9) and .045 (1.2 VK Groove) 9-3. OptionsPart No.
Description
Remarks
248 282 M-100 Replacement Gun 10 ft length/.030-.035 wire size A complete Parts List is available on-line at www.MillerWelds.comWarranty Questions? Call
1-800-4-A-Miller
for your local Miller distributor. miller_warr 2010−01 Your distributor also gives you ... Service You always get the fast, reliable response you need. Most replacement parts can be in your hands in 24 hours. Support Need fast answers to the tough welding questions? Contact your distributor. The expertise of the distributor and Miller is there to help you, every step of the way. Effective January 1, 2010 (Equipment with a serial number preface of MA or newer) This limited warranty supersedes all previous Miller warranties and is exclusive with no other guarantees or warranties expressed or implied. LIMITED WARRANTY − Subject to the terms and conditions below, Miller Electric Mfg. Co., Appleton, Wisconsin, warrants to its original retail purchaser that new Miller equipment sold after the effective date of this limited warranty is free of defects in material and workmanship at the time it is shipped by Miller. THISWarranty Is Expressly In Lieu Of All Other
Warranties, Express Or Implied, Including The
Warranties Of Merchantability And Fitness.
Within the warranty periods listed below, Miller will repair or replace any warranted parts or components that fail due to such defects in material or workmanship. Miller must be notified in writing within thirty (30) days of such defect or failure, at which time Miller will provide instructions on the warranty claim procedures to be followed. Miller shall honor warranty claims on warranted equipment listed below in the event of such a failure within the warranty time periods. All warranty time periods start on the delivery date of the equipment to the original end-user purchaser, and not to exceed one year after the equipment is shipped to a North American distributor or eighteen months after the equipment is shipped to an International distributor.Miller Products Are Intended For Purchase And
Use By Commercial/Industrial Users And Persons
Trained
And
Experienced
In
The
Use
And
Maintenance Of Welding Equipment.
In the event of a warranty claim covered by this warranty, the exclusive remedies shall be, at Miller’s option: (1) repair; or (2) replacement; or, where authorized in writing by Miller in appropriate cases, (3) the reasonable cost of repair or replacement at an authorized Miller service station; or (4) payment of or credit for the purchase price (less reasonable depreciation based upon actual use) upon return of the goods at customer’s risk and expense. Miller’s option of repair or replacement will be F.O.B., Factory at Appleton, Wisconsin, or F.O.B. at a Miller authorized service facility as determined by Miller. Therefore no compensation or reimbursement for transportation costs of any kind will be allowed.To The Extent Permitted By Law, The Remedies
Provided Herein Are The Sole And Exclusive
Remedies. In No Event Shall Miller Be Liable For
Direct,
Indirect,
Special,
Incidental
Or
Consequential
Damages
(Including
Loss
Of
Profit), Whether Based On Contract, Tort Or Any
Other Legal Theory.
Any Express Warranty Not Provided Herein And
Any
Implied
Warranty,
Guaranty
Or
Representation As To Performance, And Any
Remedy For Breach Of Contract Tort Or Any
Other Legal Theory Which, But For This Provision,
Might Arise By Implication, Operation Of Law,
Custom Of Trade Or Course Of Dealing, Including
Any Implied Warranty Of Merchantability Or
Fitness For Particular Purpose, With Respect To
Any And All Equipment Furnished By Miller Is
Excluded And Disclaimed By Miller.
Some states in the U.S.A. do not allow limitations of how long an implied warranty lasts, or the exclusion of incidental, indirect, special or consequential damages, so the above limitation or exclusion may not apply to you. This warranty provides specific legal rights, and other rights may be available, but may vary from state to state. In Canada, legislation in some provinces provides for certain additional warranties or remedies other than as stated herein, and to the extent that they may not be waived, the limitations and exclusions set out above may not apply. This Limited Warranty provides specific legal rights, and other rights may be available, but may vary from province to province.Original Instructions − Printed In Usa
© 2010 Miller Electric Mfg. Co. 2010−01 Miller Electric Mfg. Co. An Illinois Tool Works Company 1635 West Spencer Street Appleton, WI 54914 USA International Headquarters−USA USA Phone: 920-735-4505 Auto-Attended USA & Canada FAX: 920-735-4134 International FAX: 920-735-4125 For International Locations Visit www.MillerWelds.com Model Name Serial/Style Number Purchase Date (Date which equipment was delivered to original customer.) Distributor Address City State Zip Please complete and retain with your personal records. Always provide Model Name and Serial/Style Number. Contact a DISTRIBUTOR or SERVICE AGENCY near you. Welding Supplies and Consumables Options and Accessories Personal Safety Equipment Service and Repair Replacement Parts Training (Schools, Videos, Books) Technical Manuals (Servicing Information and Parts) Circuit Diagrams Welding Process Handbooks Contact the Delivering Carrier to: For Service Owner’s Record File a claim for loss or damage during shipment. For assistance in filing or settling claims, contact your distributor and/or equipment manufacturer’s Transportation Department. Contact your Distributor for:To locate a Distributor or Service Agency visit www.millerwelds.com or call 1-800-4-A-Miller
