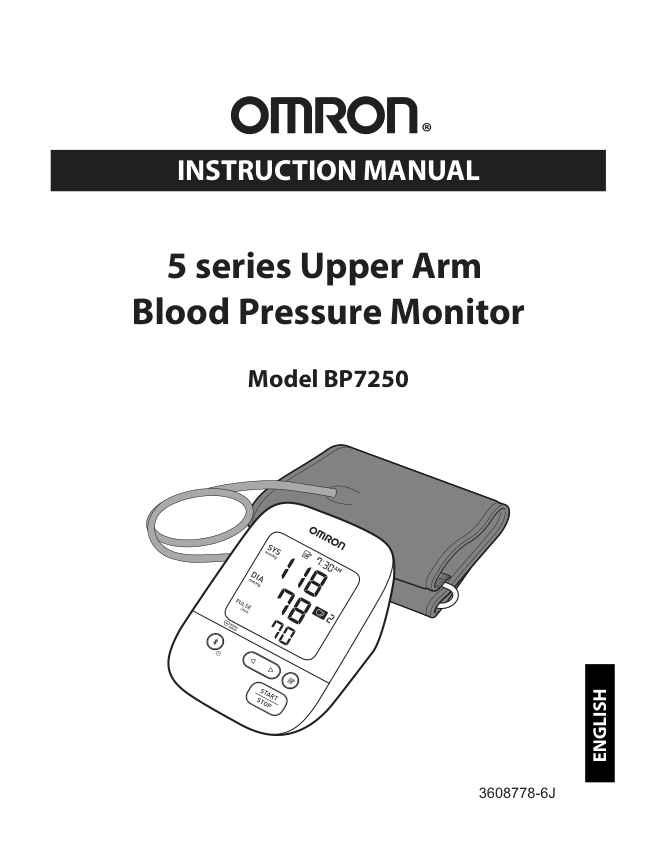

Omron BP7250 Blood Pressure Monitor

®

INSTRUCTION MANUAL

5 series Upper Arm Blood Pressure Monitor

Model BP7250

3608778-6J

##### ENGLISH

Table of Contents

Introduction ..................................................................................................3 Important Safety Information........................................................................5

Introduction

Thank you for purchasing the OMRON BP7250 Blood Pressure Monitor. This monitor can be used by multiple users. This blood pressure monitor uses the oscillometric method of blood pressure measurement. This means this monitor detects your blood movement through your brachial artery and converts the movements into a digital reading.

Safety Instructions This instruction manual provides you with important information about the OMRON BP7250 Blood Pressure Monitor. To ensure the safe and proper use of this monitor, READ and UNDERSTAND all of these instructions. If you do not understand these instructions or have any questions, contact 1-800-634-4350 before attempting to use this monitor. For specific information about your own blood pressure, consult with your physician.

Intended Use This device is a digital monitor intended for use in measuring blood pressure and pulse rate in adult patient population. The device detects the appearance of irregular heartbeats during measurement and gives a warning signal with readings.

Environments of Use: Home Patient Population: Adult

Receiving and Inspection Remove this monitor and other components from the packaging and inspect for damage. If this monitor or any other components is damaged, DO NOT USE and contact 1-800-634-4350.

Symbols Glossary For symbol information, visit: OmronHealthcare.com/symbols-glossary

Contraindications

Important Safety Information

Read the Important Safety Information in this instruction manual before using this monitor. Follow this instruction manual thoroughly for your safety. Keep for future reference. For specific information about your own blood pressure, CONSULT WITH YOUR PHYSICIAN.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Warning

Data Transmission

•This product emits radio frequencies (RF) in the 2.4 GHz band. DO NOT use this product in locations where RF is restricted, such as on an aircraft or in hospitals. Turn off the Bluetooth® feature in this monitor, remove batteries and/or unplug the AC adapter when in RF restricted areas. For further information on potential restrictions refer to documentation on the Bluetooth usage by the FCC.

AC Adapter (optional accessory) Handling and Usage

Battery Handling and Usage

Caution

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient, or cause damage to the equipment or other property.

Data Transmission

•DO NOT replace batteries or unplug the AC adapter while your readings are being transferred to your smart device. This may result in incorrect operation of this monitor and failure to transfer your blood pressure data.

AC Adapter (optional accessory) Handling and Usage

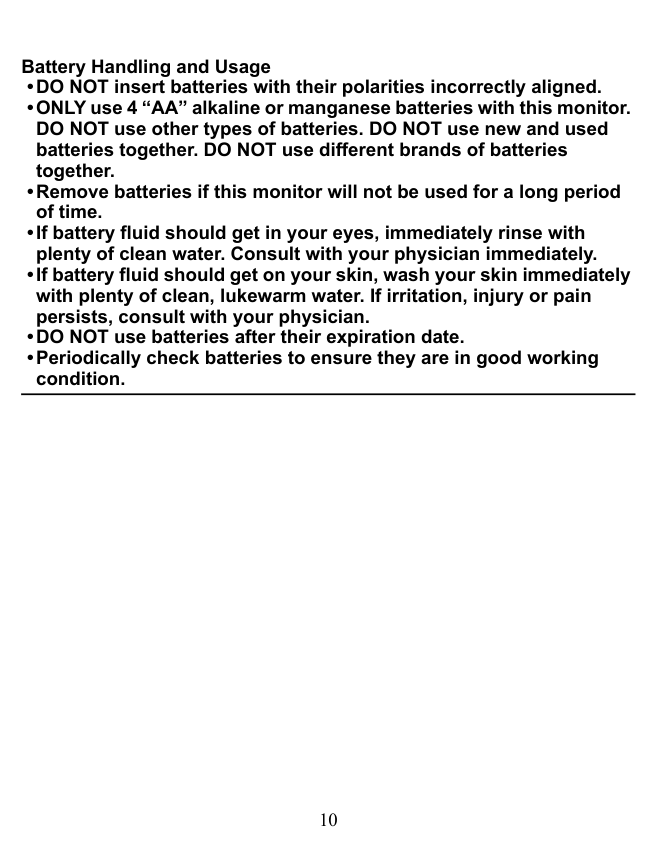

Battery Handling and Usage

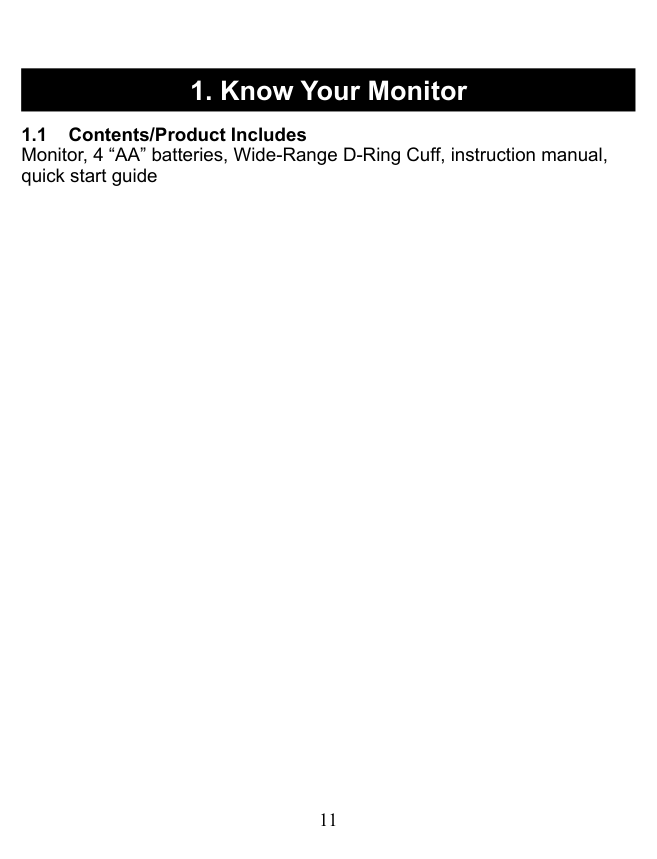

1. Know Your Monitor

###### 1.2 Monitor and Arm CuffFront of the monitor

c

Display [Forward/Backward] buttons [Connection] button (Date/Time) [Memory] button [START/STOP] button

d

e

###### Left side, back and bottom of the monitor

f

| | | |---|---| | | |

Air jack AC adapter jack (for optional AC adapter) Battery compartment

Arm cuff (Upper arm circumference: 9" - 17" (22 - 42 cm))

Air plug Air tube

A

H

| | | |---|---| | | | | | | | | | | | |

I

O

|A| |Memory symbol Appears when viewing readings stored in the memory.| |---|---|---| |B| |Average value symbol Flashes when viewing the average of the latest 2 or 3 readings taken within the most recent 10 minute timeframe.| |C| |Sync symbol Flashes/appears when your data needs to be transferred because the stored memory is either almost, or completely full. Once you pair your monitor with your smart device, transfer your readings immediately before the monitor deletes the oldest reading. Up to 60 readings can be stored in the internal memory of your monitor.| |D|Systolic blood pressure reading|Systolic blood pressure reading| |E|Diastolic blood pressure reading|Diastolic blood pressure reading| |F| |Deflation symbol Appears during cuff deflation.|

|G| |Heartbeat symbol Flashes while taking a measurement.| |H|Date / Time display|Date / Time display| |I| |Bluetooth ON symbol Appears when your readings are being transferred.| |I| |Bluetooth OFF symbol Appears when Bluetooth is disabled.|

|J| |High symbol Appears if your systolic blood pressure is ≥ 130 mmHg or the diastolic blood pressure is ≥ 80 mmHg. Refer to subsection 1.4 for more information.| |---|---|---| |K|or

|Irregular heartbeat symbol Appears when irregular rhythm is detected 2 or more times during a measurement. The symbol with the number appears as below:

Irregular heartbeat is detected 2 times:
Irregular heartbeat is detected 3 times or more:


An irregular heartbeat rhythm is defined as a rhythm that is 25 % less or 25 % more than the average rhythm detected while your monitor is measuring blood pressure.

Irregular heartbeat symbol may be displayed when the monitor detects arm movements. Refer to section 7 for more information. If it continues to appear, we recommend you to consult with and follow the directions of your physician.

Short Long Irregular Heartbeat

Normal Heartbeat| |L| |Movement error symbol Appears with your reading when your body is moving during a measurement. If it appears, remove the arm cuff and wait for 2 to 3 minutes. Then, reapply the cuff, remain still and take another measurement.|

|M| |OK symbol Flashes when your monitor is connected to your smart device or readings are transferred successfully.| |---|---|---| |N| |Low battery symbol Flashes when batteries are low.| |N| |Depleted battery symbol Appears when batteries are depleted.| |O|Pulse display / Memory number Pulse rate appears after the measurement.

When pressing the button, the memory number will also appear for approximately 1.5 seconds before the pulse rate shows again on the display.

|Pulse display / Memory number Pulse rate appears after the measurement.

When pressing the button, the memory number will also appear for approximately 1.5 seconds before the pulse rate shows again on the display.

|

|BP Category|Systolic BP|Diastolic BP| |---|---|---| |Normal|< 120 mmHg and < 80 mmHg|< 120 mmHg and < 80 mmHg| |Elevated|120 - 129 mmHg and < 80 mmHg|120 - 129 mmHg and < 80 mmHg| |Hypertension

Stage 1
Stage 2
|130 - 139 mmHg or 80 - 89 mmHg ≥ 140 mmHg or ≥ 90 mmHg|130 - 139 mmHg or 80 - 89 mmHg ≥ 140 mmHg or ≥ 90 mmHg|

designated to the higher BP category. BP indicates blood pressure (based on an average of ≥ 2 careful readings obtained on ≥ 2 occasions). Source: ACC/AHA 2017 High Blood Pressure Clinical Practice Guideline

###### Warning

•NEVER diagnose or treat yourself based on your readings. ALWAYS consult with your physician.

2. Preparation

Note

Press and hold the button to quickly go backwards through the years.

Year

Month

Day

Hour

Minute

###### Note

Caution

Caution

Click

###### Note

•The bottom edge of the arm cuff should be 0.5 inch (1 to 2 cm) above the inside elbow. The air tube is on the inside of your arm and aligned with your middle finger.

0.5 inch (1 to 2 cm)

Bottom edge

To take a measurement on your right arm When you take a measurement on your right arm, the air tube should run along the side of your elbow, along the bottom of your arm. Be careful not to rest your arm on the air tube.

###### 2.5 Sitting Correctly

To take a measurement, you need to be relaxed and comfortably seated in a room with a comfortable temperature. Place your arm on the table.

3. Using Your Monitor without a Smart Device

Caution

#### 2. Remain still and do not talk until the entire measurementprocess is complete.

The “ ” symbol flashes at every heartbeat. After your monitor has detected your blood pressure and pulse rate, the cuff automatically deflates. Your blood pressure and pulse rate are displayed. If either the systolic or the diastolic reading is high (refer to subsection 1.3), the “ ” symbol appears.

INFLATINGSTART COMPLETED

#### 3. Press the [START/STOP] button to turn your monitor off.Note

 Using the Guest Mode The guest mode can be used to take a single measurement for another user. Note

•No readings are stored in the memory.

| | | |---|---| |elease the [START/STOP] button when the date/ turns off.|ime display|

 If your systolic pressure is more than 210 mmHg If your systolic pressure is more than 210 mmHg, take a measurement manually. After the arm cuff starts to inflate, press and hold the [START/STOP] button until the monitor inflates 30 to 40 mmHg higher than your expected systolic pressure.

###### Note

Caution

4. Using Your Monitor with a Smart Device

|Review the list of compatible smart devices at OmronHealthcare.com/connect| |---|

#### 5. Confirm that your monitor is connected successfully.

When your monitor is connected successfully to your smart device, the OK symbol appears.

#### 6. Press the [START/STOP] button to turn your monitor off.Note

###### Note

•Make sure that your monitor is within 16 ft. (5m) of your smart device.

######  Transferring Data Automatically/Manually

Warning

•This product emits radio frequencies (RF) in the 2.4 GHz band. DO NOT use this product in locations where RF is restricted, such as on an aircraft or in hospitals. Turn off the Bluetooth feature in this monitor and remove batteries when in RF restricted areas. For further information on potential restrictions refer to documentation on the Bluetooth usage by the FCC.

Bluetooth is enabled as default.

“oFF” flashes 3 times.

•This monitor can be used by multiple users. When you use memory function with other users, track (or manage) your own readings appropriately.

Alternating date/time display

The Memory number appears for 1.5 seconds before the pulse rate is displayed. The most recent reading stored in the memory will be numbered as “1”.

###### Note

: To view the older readings : To view the more recent readings

###### Note

•Set your monitor to the correct date and time before taking a measurement to view the average readings.

button for more than 2 seconds. The “ ” symbol flashes.

Note

6. Other Settings

###### 6.1 Deleting All Readings Stored in Memory

and hold the [START/ STOP] button for more than 3 seconds.

The display to the right flashes.

press and hold the [START/STOP] button for more than 3 seconds.

The display stops flashing, then your monitor is restored to the default settings.

7. Error Messages and Troubleshooting

If any of the below problems occur during measurement, check to make sure that no other electrical device is within 12 inches (30 cm). If the

problem persists, refer to the table below.

|Display/Problem|Possible Cause|Solution| |---|---|---|

|appears or the arm cuff does not inflate.

|The [START/STOP] button was pressed while the arm cuff is not applied.|Press the [START/ STOP] button again to turn the monitor off. After inserting the air plug securely and applying the arm cuff correctly, press the [START/STOP] button.| |appears or the arm cuff does not inflate.

|Air plug is not completely plugged into the monitor.|Insert the air plug securely. Refer to subsection 2.4.| |appears or the arm cuff does not inflate.

|The arm cuff is not applied correctly.|Apply the arm cuff correctly, then take another measurement. Refer to sub-section 2.4.| |appears or the arm cuff does not inflate.

|Air is leaking from the arm cuff.|Replace the arm cuff with a new one. Refer to section 9.|

|Display/Problem|Possible Cause|Solution| |---|---|---| |appears or a measurement cannot be complete after the arm cuff inflates.

|You move or talk during a measurement and the arm cuff does not inflate sufficiently.|Remain still and do not talk during a measurement. If “E2” appears repeatedly, inflate the arm cuff manually until the systolic pressure is 30 to 40 mmHg above your previous readings. Refer to sub-section 3.1.| |appears or a measurement cannot be complete after the arm cuff inflates.

|The systolic pressure is above 210 mmHg and a measurement cannot be taken.|Inflate the arm cuff manually until the systolic pressure is 30 to 40 mmHg above your previous readings. Refer to sub-section 3.1.| |appears

|The arm cuff is inflated exceeding the maximum allowable pressure.|Do not touch the arm cuff and/or bend the air tube while taking a measurement. If inflating the arm cuff manually, refer to the end of sub-section 3.1.| |appears

|You move or talk during a measurement. Vibrations disrupt a measurement.|Remain still and do not talk during a measurement.|

|Display/Problem|Possible Cause|Solution| |---|---|---| |appears

|The pulse rate is not detected correctly.|Apply the arm cuff correctly, then take another measurement. Refer to sub-section 2.4. Remain still and sit correctly during a measurement. If the “ ” symbol continues to appear, we recommend you to consult with your physician.

|

|/ appears

|The pulse rate is not detected correctly.|Apply the arm cuff correctly, then take another measurement. Refer to sub-section 2.4. Remain still and sit correctly during a measurement. If the “ ” symbol continues to appear, we recommend you to consult with your physician.

| |does not flash during a measurement

|The pulse rate is not detected correctly.|Apply the arm cuff correctly, then take another measurement. Refer to sub-section 2.4. Remain still and sit correctly during a measurement. If the “ ” symbol continues to appear, we recommend you to consult with your physician.

| |appears

|The monitor has malfunctioned.|Press the [START/ STOP] button again. If “Er” still appears, contact customer service. Refer to section 12.| |appears

|The monitor cannot connect to a smart device or transmit data correctly.|Follow the instructions shown in the app. If the “Err” symbol still appears after checking the app, contact customer service. Refer to section 12.|

|Display/Problem|Possible Cause|Solution| |---|---|---| |flashes

|The monitor is waiting for pairing with the smart device.|Refer to sub-section 4.1 for pairing your monitor with your smart device, or press the [START/ STOP] button to cancel pairing and turn your monitor off.| |flashes

|The monitor is ready to transfer your readings to the smart device.|Open the app to transfer your readings.| |flashes

|There are more than 48 readings in memory to be transferred.|Pair or transfer your readings to the app so you can keep them in memory in the app, and this error symbol disappears.| |flashes

|The date and time is not set.|Pair or transfer your readings to the app so you can keep them in memory in the app, and this error symbol disappears.| |appears

|There are 60 readings in memory to be transferred.|Pair or transfer your readings to the app so you can keep them in memory in the app, and this error symbol disappears.| |flashes

|Batteries are low.|Replacing all 4 batteries with new ones is recommended. Refer to sub-section 2.1.|

|Display/Problem|Possible Cause|Solution|

|---|---|---| |appears or the monitor is turned off unexpectedly during a measurement.

|Batteries are depleted.|Immediately replace all 4 batteries with new ones. Refer to sub-section 2.1.| |Nothing appears on the display of the monitor.|Batteries are depleted.|Immediately replace all 4 batteries with new ones. Refer to sub-section 2.1.| |Nothing appears on the display of the monitor.|Battery polarities are not properly aligned.|Check the battery installation for proper placement. Refer to subsection 2.1.| |Readings appear too high or too low.|Blood pressure varies constantly. Many factors including stress, time of day, and/or how you apply the arm cuff, may affect your blood pressure. Review sub-sections 2.3 - 2.5 and section 3.|Blood pressure varies constantly. Many factors including stress, time of day, and/or how you apply the arm cuff, may affect your blood pressure. Review sub-sections 2.3 - 2.5 and section 3.| |Any other communication issue occurs.|Follow the instructions shown in the smart device, or visit the “Help” section in the app for further help. If the problem still persists, contact customer service. Refer to section 12.|Follow the instructions shown in the smart device, or visit the “Help” section in the app for further help. If the problem still persists, contact customer service. Refer to section 12.| |Any other problems occur.|Press the [START/STOP] button to turn the monitor off, then press it again to take a measurement. If the problem continues, remove all batteries and wait for 30 seconds. Then re-install batteries. If the problem still persists, contact customer service. Refer to section 12.|Press the [START/STOP] button to turn the monitor off, then press it again to take a measurement. If the problem continues, remove all batteries and wait for 30 seconds. Then re-install batteries. If the problem still persists, contact customer service. Refer to section 12.|

8. Maintenance

Caution

•DO NOT disassemble or attempt to repair this monitor or other components. This may cause an inaccurate reading.

Caution

•To unplug the air plug, pull on the plastic air plug at the base of the tube, not the tube itself.

Note

Do not store your monitor and other components:

9. Optional Accessories

###### Small D-Ring Cuff Wide-Range D-Ring Cuff

Arm circumference 7" - 9" (17 - 22 cm)

Arm circumference 9" - 17" (22 - 42 cm)

Model: HEM-CS24-B HEM-CS24-BZ

Model: HEM-RML31-B HEM-RML31-BZ

•Same as the arm cuff provided with the product.

###### Note

•Do not throw the air plug away. The air plug can be applicable to the optional cuff.

###### AC Adapter

Model: HEM-ADPTW5

For further information, visit our website at OmronHealthcare.com

Using the AC Adapter (optional accessory) Note

###### Caution

•ONLY use the AC adapter, arm cuff, batteries and accessories specified

for this monitor. Use of unsupported AC adapters, arm cuffs and batteries may damage and/or may be hazardous to this monitor.

10. Specifications

Model BP7250 HEM-7150T-Z Display LCD digital display Cuff pressure range 0 to 299 mmHg Blood pressure measurement range

SYS: 60 to 260 mmHg DIA: 40 to 215 mmHg

Pulse measurement range

40 to 180 beats / min.

Pressure: ±3 mmHg Pulse: ±5 % of display reading

Accuracy

Inflation Automatic by electric pump Deflation Automatic pressure release valve Measurement method Oscillometric method Transmission method Bluetooth® Low Energy

Frequency range: 2.4 GHz (2400 - 2483.5 MHz) Modulation: GFSK Effective radiated power: < 20 dBm

Wireless communication

Operation mode Continuous operation IP classification

Monitor: IP20 Optional AC adapter: IP21

Rating DC6 V 4.0 W

4 “AA” batteries 1.5 V or optional AC adapter (INPUT AC100 - 240 V 50 - 60 Hz 0.12 - 0.065 A)

Power source

Approximately 1000 measurements (using new alkaline batteries)

Battery life

Monitor: 5 years Arm cuff: 5 years Optional AC adapter: 5 years

Durable period (Service life)

+50 °F to +104 °F (+10 °C to +40 °C) / 15 to 90 % RH (non-condensing) / 800 to 1060 hPa

Operating conditions

Storage / Transport conditions

-4 °F to +140 °F (-20 °C to +60 °C) / 10 to 90 % RH (non-condensing)

Monitor: Approximately 12.0 oz. (340 g) not including batteries Arm cuff: Approximately 6 oz. (170 g)

Weight

Monitor: Approximately 4.2" (w) × 3.4" (h) × 6.0" (l) (105 mm × 85 mm × 152 mm) Arm cuff: Approximately 5.7" × 23.4" (air tube: 29.5") (145 mm × 594 mm (air tube: 750 mm))

Dimensions

Cuff circumference applicable to the monitor

7" to 17" (17 to 42 cm) (included arm cuff: 9" to 17" (220 to 420 mm))

Memory Stores up to 60 readings Contents

Monitor, Wide-Range D-Ring Cuff, 4 “AA” batteries, instruction manual, quick start guide

Internally powered ME equipment (When using only batteries) Class II ME equipment (Optional AC adapter)

Protection against electric shock

Applied part Type BF (arm cuff)

###### Note

•IP classification is degrees of protection provided by enclosures in accordance with IEC 60529. This monitor and optional AC adapter are protected against solid foreign objects of 0.5 inch (12.5 mm) diameter and greater such as a finger. The optional AC adapter is protected against vertically falling water drops which may cause issues during a normal operation.

|About a wireless communication interference This product operates in an unlicensed ISM band at 2.4 GHz. In the event this product is used near other wireless devices such as microwave and wireless LAN, which operate on the same frequency band as this product, there is a possibility that interference may occur. If interference occurs, stop the operation of the other devices or relocate this product away from other wireless devices before attempting to use it.| |---|

Pictogram on the Product

|or

|Types of marks used to indicate the correct positioning of the artery for the upper arm| |---|---| | |Identifies the type of cuff that is compatible with the blood pressure monitor|

11. FCC Statement

FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

###### Note

•This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

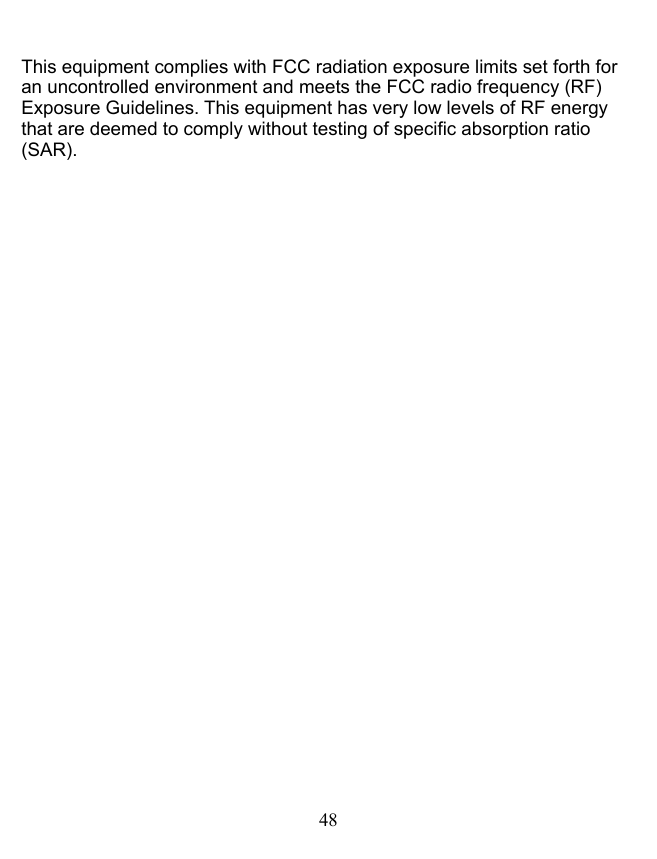

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

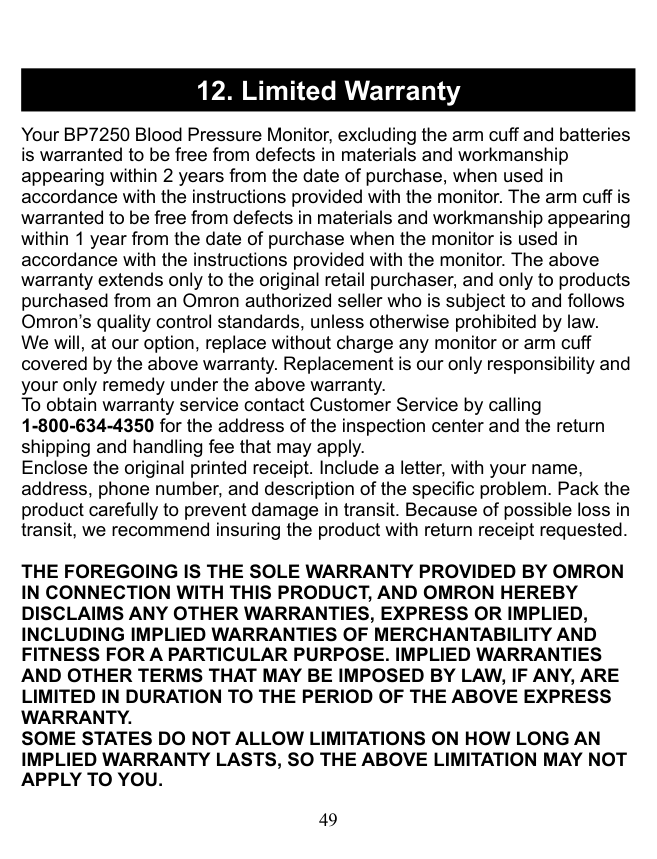

12. Limited Warranty

Your BP7250 Blood Pressure Monitor, excluding the arm cuff and batteries is warranted to be free from defects in materials and workmanship appearing within 2 years from the date of purchase, when used in accordance with the instructions provided with the monitor. The arm cuff is warranted to be free from defects in materials and workmanship appearing within 1 year from the date of purchase when the monitor is used in accordance with the instructions provided with the monitor. The above warranty extends only to the original retail purchaser, and only to products purchased from an Omron authorized seller who is subject to and follows Omron’s quality control standards, unless otherwise prohibited by law. We will, at our option, replace without charge any monitor or arm cuff covered by the above warranty. Replacement is our only responsibility and your only remedy under the above warranty. To obtain warranty service contact Customer Service by calling 1-800-634-4350 for the address of the inspection center and the return shipping and handling fee that may apply. Enclose the original printed receipt. Include a letter, with your name, address, phone number, and description of the specific problem. Pack the product carefully to prevent damage in transit. Because of possible loss in transit, we recommend insuring the product with return receipt requested.

THE FOREGOING IS THE SOLE WARRANTY PROVIDED BY OMRON IN CONNECTION WITH THIS PRODUCT, AND OMRON HEREBY DISCLAIMS ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IMPLIED WARRANTIES AND OTHER TERMS THAT MAY BE IMPOSED BY LAW, IF ANY, ARE LIMITED IN DURATION TO THE PERIOD OF THE ABOVE EXPRESS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY OTHER SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT COSTS, EXPENSES OR DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

This warranty provides you with specific legal rights, and you may have other rights that vary by jurisdiction. Because of special local requirements, some of the above limitations and exclusions may not apply to you.

|FOR CUSTOMER SERVICE Visit our web site at: OmronHealthcare.com Call toll free: 1-800-634-4350| |---|

13. Guidance and Manufacturer’s Declaration

OMRON Battery-operated / AC Adapter-operated Blood Pressure Monitor Information for Accompanying Documents in the Scope of IEC60601-1-2:2014

Important information regarding Electromagnetic Compatibility (EMC)

|BP7250 conforms to IEC60601-1-2:2014 Electromagnetic Compatibility (EMC) standard. Further documentation in accordance with this EMC standard is available at OmronHealthcare.com/emc. Refer to the EMC information for BP7250 on the website.| |---|

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OMRON HEALTHCARE Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

OMRON HEALTHCARE Co., Ltd 53, Kunotsubo, Terado-cho, Muko, Kyoto, 617-0002 JAPAN

Distributed by: OMRON HEALTHCARE, INC. 2895 Greenspoint Pkwy. Hoffman Estates, IL 60169 USA

OmronHealthcare.com © 2021 OMRON HEALTHCARE, INC.

Made in Vietnam
