Common questions
Common Questions
27 totalWhat do the error codes E1, E5, E6, and E7 mean on my Frigidaire refrigerator?
These error codes indicate specific malfunctions: E1 means a refrigerator temperature sensor error, E5 indicates a defrost sensor error, E6 signals a communication failure, and E7 means an ambient temperature sensor error. The appliance may continue to operate despite these errors. Contact Frigidaire at 1-800-374-4432 if service is needed. (Page 12)
What triggers the High Temperature Alarm, and how do I stop it?
In Refrigerator mode, the High Temperature Alarm activates when the interior temperature stays above 59°F (15°C) for 36 hours; in Freezer mode, it activates when the temperature stays above 18°F (-8°C) for 36 hours. Press any button to stop the alarm. Check that the appliance is in a well-ventilated room, the door closes and seals properly, and the room temperature is not too high. (Pages 8–9)
What should I do if the door is left open too long?
If the door stays open for more than 5 minutes, the Door Open Alarm indicator lights up and an alarm sounds. Closing the door will stop the alarm. Make sure no items are blocking the door from closing completely and that the appliance stands level. (Pages 8–9)
How do I lock the control panel to prevent accidental setting changes?
Press and hold the Lock button for 3 seconds to lock or unlock the control panel. When the control panel is locked, you cannot change the appliance settings, and the Lock indicator will light up. To unlock it, press and hold the Lock button again for 3 seconds. (Pages 8–9)
What clearances are required around the refrigerator for proper installation?
Allow at least 3/8 inch (9.5 mm) on the top and sides, and 1 inch (25.4 mm) at the back for proper air circulation, plumbing, and electrical connections. Sufficient air circulation is essential for proper operation of the appliance. If the door hinge side is placed against a wall, additional space may be needed for the door to open wider. (Page 7)
How do I properly clean my Frigidaire refrigerator?
Always unplug the appliance from the power source before cleaning to avoid electrical hazard. Clean the interior and accessories regularly with a cloth and lukewarm water, avoiding abrasive cleaners, organic solvents, bleach, or steam cleaners. After cleaning, rinse with fresh water and dry thoroughly with a clean cloth. (Pages 10–11)
Show 21 more questions
What should I do with my refrigerator if I'm going on a long vacation?
What is the temperature range for operating the Cold Boost or Chill Boost function?
What should I do if I'm going on a long vacation?
What clearances are required when installing the refrigerator?
How long should I wait before turning on my refrigerator after installation?
How do I lock the control panel to prevent accidental changes?
What should I do if the door open alarm keeps going off?
What temperature ranges are supported for refrigerator and freezer modes?
What are the electrical requirements for this refrigerator?
How do I clean the inside of my Frigidaire refrigerator?
What does the High Temperature Alarm mean and how do I stop it?
How long should I wait before turning on the refrigerator after installation?
What does the High Temperature Alarm indicate and when does it activate?
What electrical requirements does this refrigerator have?
How do I convert the appliance between refrigerator and freezer modes?
What should I do if the door stays open too long?
What temperature ranges should I maintain for fresh and frozen food storage?
What error codes might appear on the display and what do they mean?
How should I clean the appliance and what should I avoid using?
What are the proper clearances needed around the appliance for installation?
How do I lock the control panel and what does this prevent?
Full Manual
15 pages

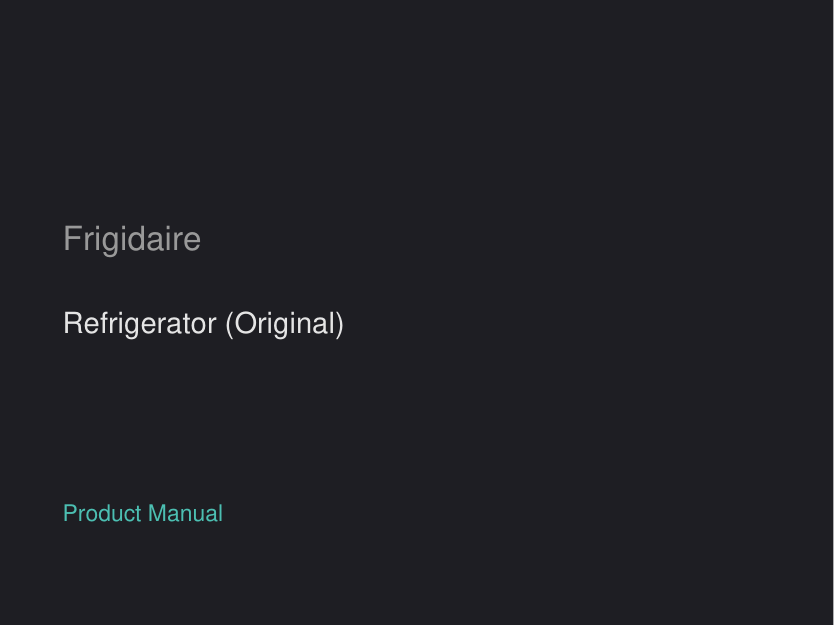

EN User Manual | Refrigerator
Welcome to our family Thank you for bringing Frigidaire into your home! We see your purchase as the beginning of a long relationship together. This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference. If something doesn’t seem right, the troubleshooting section will help you with common issues. FAQ, helpful tips and videos, cleaning products, and kitchen and home accessories are available at http://www.frigidaire.com. We are here for you! Visit our website, chat with an agent, or call us if you need help. We may be able to help you avoid a service visit. If you do need service, we can get that started for you. Let’s make it official! Be sure to register your product.
Contents
7. Storing Food And Saving Energy.......................................... 10
1. Important Safety
Information
1.1 Keep a record for quick reference Model number .......................................................... Serial number .......................................................... Purchase date .......................................................... 1.2 Serial number location 2English
Warning!
You must follow these guidelines to ensure that your appliance’s safety mechanisms are operating correctly. 1.3 Safety definitions This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.Danger
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.Warning!
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.Caution!
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.Important
IMPORTANT indicates installation, operation or maintenance information which is important but not hazard- related. 1.4 Child safety This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the appliance is unpacked. Children should never use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation. 1.5 Important safety instructionsDanger
DANGER Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost the appliance. Do not puncture refrigerant tubing. DANGER Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Use only manufacturer-authorized service parts. Any repair equipment used must be designed for flammable refrigerants. Follow all manufacturer repair instructions. Do not puncture refrigerant tubing.Caution!
CAUTION Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used. This appliance is for storage only and should not be used for any other purpose. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.English
3
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Do not operate the appliance in the presence of explosive fumes Avoid contact with any moving parts of automatic ice maker. Remove all staples from the carton. Staples can cause severe cuts, and also destroy finishes if they come in contact with other appliances or furniture.
Warning!
Do not use electrical appliances inside the food storage compartments of the appliance unless they are of the type recommended by the manufacturer.Warning!
California Residents Only
WARNING! Cancer and Reproductive Harm http://www.P65Warnings.ca.gov 1.6 Proper disposal of your applianceCaution!
CAUTION Risk of fire or explosion. Dispose of the appliance properly in accordance with the applicable federal or local regulations. Flammable refrigerant used. Risk of child entrapment Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous – even if they will sit for “just a few days”. If you are getting rid of your old appliance, follow the instructions below to help prevent accidents. We strongly encourage responsible appliance recycling/disposal methods. Check with your utility company or visit http:// www.energystar.gov/recycle for more information on recycling your old appliance. Before you throw away your old appliance:Warning!
Avoid fire hazard or electric shock.English
receptacle to prevent damaging the power cord.
Warning!
When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not locate multiple portable socket- outlets or portable power supplies at the rear of the appliance.Warning!
Do not, under any circumstances, cut, remove, or bypass the grounding prong (A). Always use the power cord with a three-prong grounded plug and grounding type wall receptacle.2. Features
Table title .Important
Features may vary by model. Accessories are available for your appliance and may be purchased at Frigidaire.com or by calling toll-free 1-800-374-4432. 2.1 Product overviewImportant
Depending on the model, the appliance can have either an internal or an external control panel. Refer to the Control Panel section to identify your controls. 1 2 3 1 Drawer(s) - varies by model 2 Shelf 3 Door binEnglish
5
3. Installation
This User Manual provides general installation and operating instructions for your model. We recommend using a service or kitchen contracting professional to install your appliance. Use the appliance only as instructed in this User Manual. Before starting the appliance, follow these important first steps. 3.1 Installation Checklist Doors ❐Door seals completely the cabinet on all sides ❐Freezer door is level from side to side across the top Leveling ❐Appliance is level side-to-side and tilted 1/4" (6 mm) front-to-back ❐Cabinet is setting solid on all corners ❐Anti-tip bracket set in front on both sides Electrical Power ❐House power is turned on ❐Appliance is plugged in Final Checks ❐Shipping material is removed ❐Registration card is sent in 3.2 Moving the applianceImportant
The appliance is heavy. Always move the appliance with two people. When moving it for cleaning or service, remove all food, unplug the appliance, secure the power cord, and tape the movable parts. Cover the floor with cardboard or hardboard to prevent damage. Always pull the appliance straight out. Do not wiggle or "walk" the appliance, because this can damage the floor. 3.3 Connecting the appliance After installation, wait at least 2 hours before switching on the power. Switching on the appliance too soon can reduce cooling performance or cause damage.Important
Let the appliance run empty for 24 hours to cool the compartment to the correct temperature. 3.4 Cleaning the applianceImportant
Remove tape and glue residue from surfaces before turning the appliance on. Rub a small amount of liquid dish soap over the adhesive with your fingers. Rinse with warm water and dry with a soft cloth. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of the appliance. After you remove all of the package materials, clean the inside of the appliance before using it. Refer to Care and Cleaning. See important information about cleaning glass shelves and covers in the Storage Features section. 3.5 Dimensions 135°B
F
A
E
C
D
A. Width: 2' 8.8" (832 mm) B. Overall height: 5' 5.0" (1650 mm) C. Depth: 2' 5.3" (745 mm) D. Depth of the cabinet: 2' 2.0" (660 mm) E. Width with door open at 135°: 4' 7.9" (1420 mm) 6English
F.
Depth with door open at 135°: 4' 3.8" (1315 mm) 3.6 LocationWarning!
This appliance is intended for use in residential household and similar interior applications such as:Important
This appliance is garage-ready. It is designed to operate in ambient temperatures between 38°F (3°C) and110 °F (43 °C).
Caution!
This appliance is convertible and can operate as a refrigerator or a freezer. Do not install the appliance where the temperature:Note
Sufficient air circulation is essential for the proper operation of the appliance.Warning!
Allow the following clearances for ease of installation, proper air circulation, plumbing, and electrical connections:Note
The exterior walls of the appliance may become warm as the compressor transfers heat from the inside. The temperatures may be even 30°F higher than the room temperature. In hotter climates it is important to allow enough space for air circulation around the appliance.Note
If you place the appliance with the door hinge side against a wall, you may have to allow additional space so the door can be open wider. 3.7 Cabinet leveling and door alignment Guidelines for final positioning of appliance:Note
The front of the appliance should be slightly higher than the rear to help the doors close properly.English
7
4. Control Panel: Convertible
1 3 5 2 4 6 9 10 7 8 1 Freezer/Refrigerator Switch button Press the button to set the appliance to Refrigerator or Freezer mode. The Freezer/Refrigerator indicator lights up: the upper dot for the Freezer mode and the lower dot for the Refrigerator mode.Important
Before you change the mode:– 46 °F (2 – 8 °C).
Temperature range for freezer: -11 –10 °F (-24 – -12 °C).
8 Temperature regulation buttons Press to increase or decrease the temperature. 9 High Temperature Alarm indicator If the temperature inside the appliance is too high, the indicator lights up and the alarm sounds. Press any button to stop the alarm. The alarm activates when:English
5. Control Panel: Refrigerator
1 2 4 3 5 8 9 6 7 1 °F/°C button Press the button to toggle between °F and °C units. 2 Lock button Press and hold the button for 3 seconds to lock or unlock the control panel. When the control panel is locked, you cannot change the appliance setting. 3 Lock indicator Lights up when Lock is active. 4 Chill Boost button Press the button to turn the function on or off. When the function is on, the Chill Boost indicator lights up. Use this function to quickly chill food. 5 Chill Boost indicator Lights up when the function is active. 6 Temperature indicator Temperature range: 35 – 46 °F (2 – 8°C).
7 Temperature regulation buttons Press to increase or decrease the temperature. 8 High Temperature Alarm indicator If the temperature inside the appliance is too high, the indicator lights up and the alarm sounds. Press any button to stop the alarm. The alarm activates when the interior temperature stays above 59 °F (15 °C) for 36 hours. Check that the appliance is in a well- ventilated room, the appliance door close and seal properly, and the room temperature is not too high. 9 Door Open Alarm indicator If the door stays open for more than 5 minutes, the indicator lights up and the alarm sounds. Close the door to stop the alarm. Make sure no items block the door from closing completely and that the appliance stands level.6. Storage Features
Equipment varies by model. 6.1 Door Bins To remove the door bin:English
9
6.3 Removing/Installing crisper drawers Use the crisper to keep produce fresh for longer. You can remove the drawer for cleaning. To remove the drawer:
7. Storing Food And Saving Energy
7.1 Saving Energy For optimal appliance performance and food quality:8. Care And Cleaning
8.1 Protecting your investment Keeping your appliance clean maintains its appearance and prevents odor build-up. Wipe up any spills immediately and clean the appliance and fresh food compartments at least twice a year. When cleaning, take the following precautions:English
Caution!
Pull the appliance straight out to move it. Shifting it from side to side may damage flooring.Caution!
Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands. Some upright freezers are frost-free and defrost automatically, but should be cleaned occasionally. 8.2 Cleaning Before cleaning remove food from the appliance and store it well covered. Clean the appliance interior and accessories regularly with a cloth and lukewarm water. Do not use abrasive cleaners. After cleaning rinse with fresh water and dry thoroughly with a clean cloth.Caution!
Unplug the appliance from the power source before cleaning to avoid electrical hazard. Never clean the appliance with a steam cleaner. Allow the appliance to dry before using it.Important
Do not use organic solvents, such as lemon juice, juice from an orange peel, butyric acid, or cleaners containing acetic acid. 8.3 Vacation and moving tips Short vacations9. Troubleshooting
Table title . Let us help you troubleshoot your concern! This section will help you with common issues. If you need us, visit our website, chat with an agent, or call us. We may be able to help you avoid a service visit. If you do need service, we can get that started for you! Visit Frigidaire.com or call toll-free 1-800-374-4432.English
11
9.1 Common occurrences Table title . The appliance does not run. • Ensure the plug is tightly pushed into an electri cal outlet. • Check/replace the fuse with a 15amp time-delay fuse. Reset the circuit breaker. • The appliance may be in defrost cycle. Wait 20 minutes and check again. The appliance temperature is unsatisfactory. • Set the appliance control to a warmer or colder setting until the temperature is satisfactory. Al low 24 hours for the temperature to stabilize. The appliance is noisy or vibrates. • The cabinet is not level. • Floor is weak. Odors in the appliance. • The interior needs to be cleaned. • Cover or wrap the foods that produce odors. Cabinet light is not working. • Ensure the plug is tightly pushed into an electri cal outlet. 9.2 Errors The following error codes might appear on the display indicating the malfunction of the appliance. The appliance may operate despite the following errors. Table title Error Code Description
E1
Refrigerator temperature sensor error. Error Code DescriptionE5
Defrost sensor error.E6
Communication failure.E7
Ambient temperature sensor er ror.10. Limited Warranty
Your appliance is covered by a one year limited warranty. For one year from your date of delivery, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions. Exclusions This warranty does not cover the following:English
filters, other consumables, or knobs, handles, or other cosmetic parts.
Disclaimer Of Implied
Warranties; Limitation Of
Remedies
Customer’S Sole And Exclusive
Remedy Under This Limited
Warranty Shall Be Product
Repair Or Replacement As
Provided Herein. Claims Based
On Implied Warranties, Including
Warranties Of Merchantability
Or Fitness For A Particular
Purpose, Are Limited To One Year
Or The Shortest Period Allowed
By Law, But Not Less Than One
Year. Electrolux Shall Not Be
Liable For Consequential Or
Incidental Damages Such As
Property Damage And Incidental
Expenses Resulting From Any
Breach Of This Written Limited
Warranty Or Any Implied
Warranty. Some States And
Provinces Do Not Allow The
Exclusion Or Limitation Of
Incidental Or Consequential
Damages, Or Limitations On The
Duration Of Implied Warranties,
So These Limitations Or
Exclusions May Not Apply To
You. This Written Warranty
Gives You Specific Legal Rights.
You May Also Have Other Rights
That Vary From State To State.
If You Need Service Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below. This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted by Electrolux Consumer Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.Usa
1-800-374-4432 Electrolux Consumer Products, Inc. 10200 David Taylor Drive Charlotte, NC 28262 Canada 1-800-265-8352 Electrolux Canada Corp. 5855 Terry Fox Way Mississauga, Ontario, Canada L5V 3E411. Quebec Right To Repair
Though Frigidaire makes every effort to make replacement parts, repair services and information necessary to maintain or repair our products available to consumers, parts, service and information are not guaranteed, pursuant to section 39 of the Consumer Protection Act, CQLR, c. P-40.1 and sections 79.18 to 79.20 of the Regulation respecting the application of the Consumer Protection Act, CQLR, c P-40.1, r. 3. If you need replacement parts, you may call us at 1 (800) 265-8352English
13
for service in French or English, or purchase online at Frigidaire Parts | Shop Frigidaire Replacement Parts & Accessories - Frigidaire Appliance Parts. You may book repair services online at information | Book a service | Frigidaire. Alternatively, our resource library is available at Resource Library | Frigidaire to help you diagnose and resolve issues which may arise during the lifetime of your appliance. Though most parts are available for purchase, subject to short-term availability constraints, the following appliances and parts are not serviceable. Legend Availability of replacement parts, repair services, and information for mainte nance or repair. Partially Available Availability of replacement parts, repair services, and information for mainte nance or repair. Not Available Available Table title . Refrigerators Cabinet, 14cu ft and less no sealed system parts Freezer 9 cu. ft and less no sealed system parts. Beverage Centers Only cosmetic parts available 14
English
*
A31472601 (November 2025)
