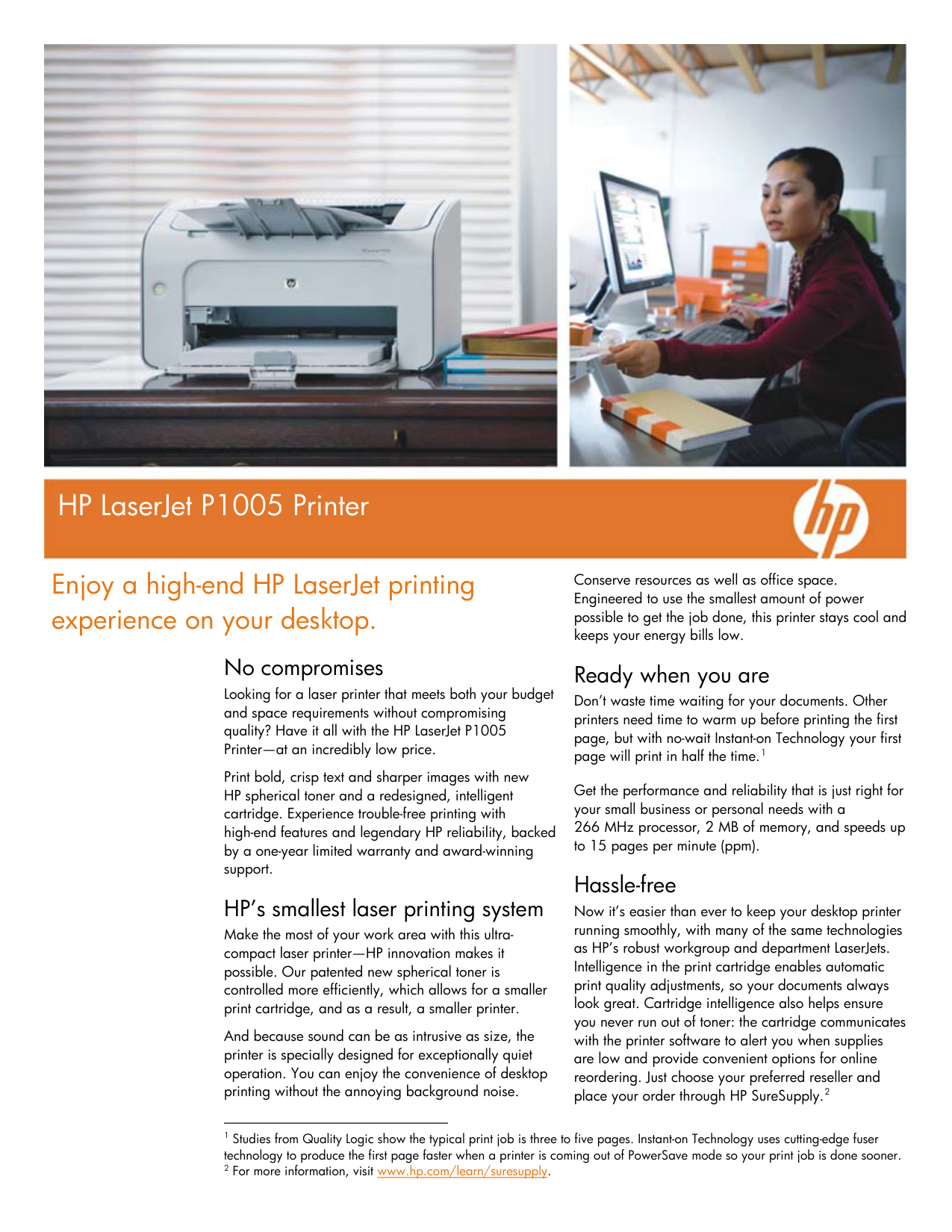

HP Laserjet P1005 Printer

No compromises Looking for a laser printer that meets both your budget and space requirements without compromising quality? Have it all with the HP LaserJet P1005 Printer—at an incredibly low price. Print bold, crisp text and sharper images with new HP spherical toner and a redesigned, intelligent cartridge. Experience trouble-free printing with high-end features and legendary HP reliability, backed by a one-year limited warranty and award-winning support. HP’s smallest laser printing system Make the most of your work area with this ultra- compact laser printer—HP innovation makes it possible. Our patented new spherical toner is controlled more efficiently, which allows for a smaller print cartridge, and as a result, a smaller printer. And because sound can be as intrusive as size, the printer is specially designed for exceptionally quiet operation. You can enjoy the convenience of desktop printing without the annoying background noise. Conserve resources as well as office space. Engineered to use the smallest amount of power possible to get the job done, this printer stays cool and keeps your energy bills low. Ready when you are Don’t waste time waiting for your documents. Other printers need time to warm up before printing the first page, but with no-wait Instant-on Technology your first page will print in half the time.1 Get the performance and reliability that is just right for your small business or personal needs with a 266 MHz processor, 2 MB of memory, and speeds up to 15 pages per minute (ppm). Hassle-free Now it’s easier than ever to keep your desktop printer running smoothly, with many of the same technologies as HP’s robust workgroup and department LaserJets. Intelligence in the print cartridge enables automatic print quality adjustments, so your documents always look great. Cartridge intelligence also helps ensure you never run out of toner: the cartridge communicates with the printer software to alert you when supplies are low and provide convenient options for online reordering. Just choose your preferred reseller and place your order through HP SureSupply.2

1 Studies from Quality Logic show the typical print job is three to five pages. Instant-on Technology uses cutting-edge fuser technology to produce the first page faster when a printer is coming out of PowerSave mode so your print job is done sooner. 2 For more information, visit www.hp.com/learn/suresupply. Enjoy a high-end HP LaserJet printing experience on your desktop. HP LaserJet P1005 Printer

HP LaserJet P1005 Printer

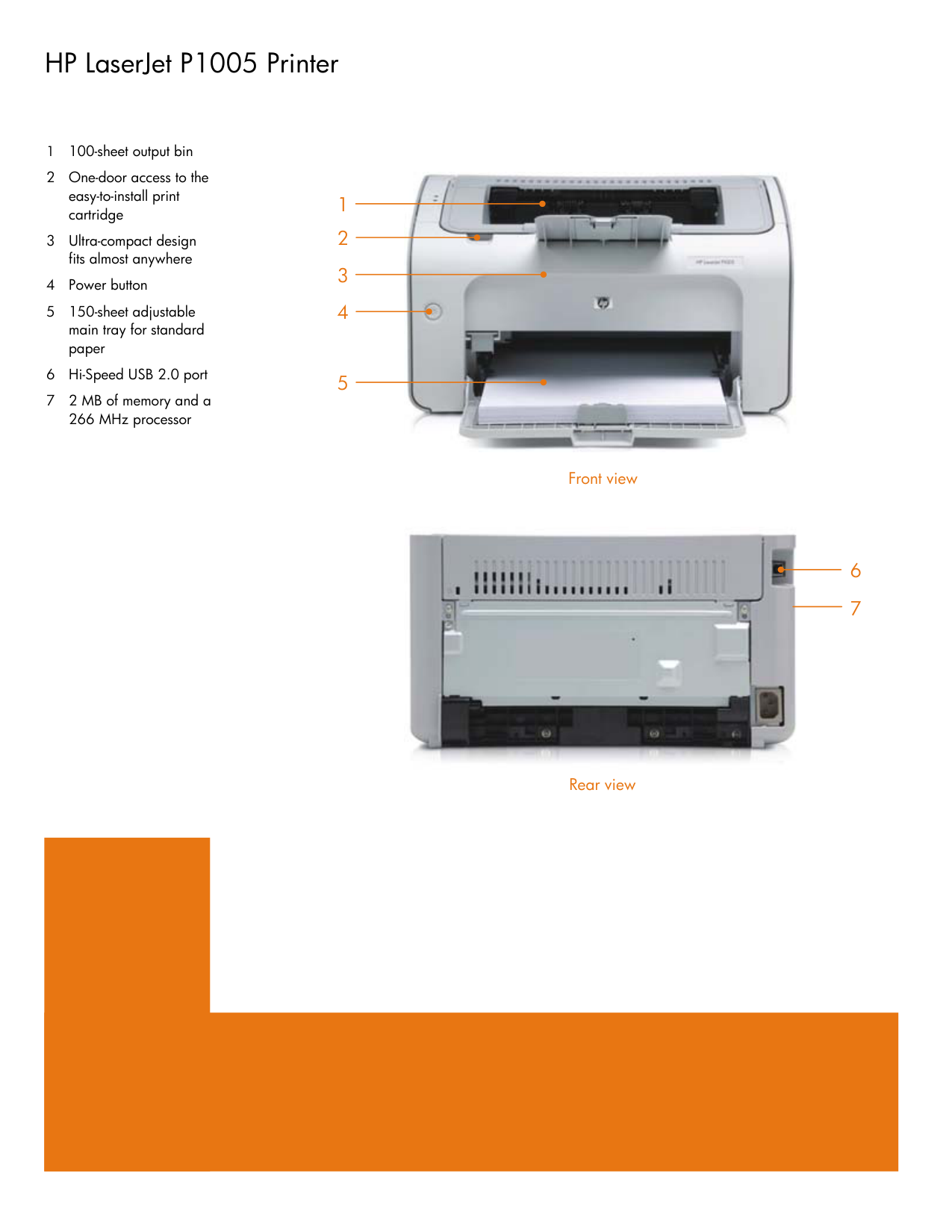

1 100-sheet output bin 2 One-door access to the easy-to-install print cartridge 3 Ultra-compact design fits almost anywhere 4 Power button 5 150-sheet adjustable main tray for standard paper 6 Hi-Speed USB 2.0 port 7 2 MB of memory and a 266 MHz processor

1 2 3 6 7 Front view Rear view 5 4

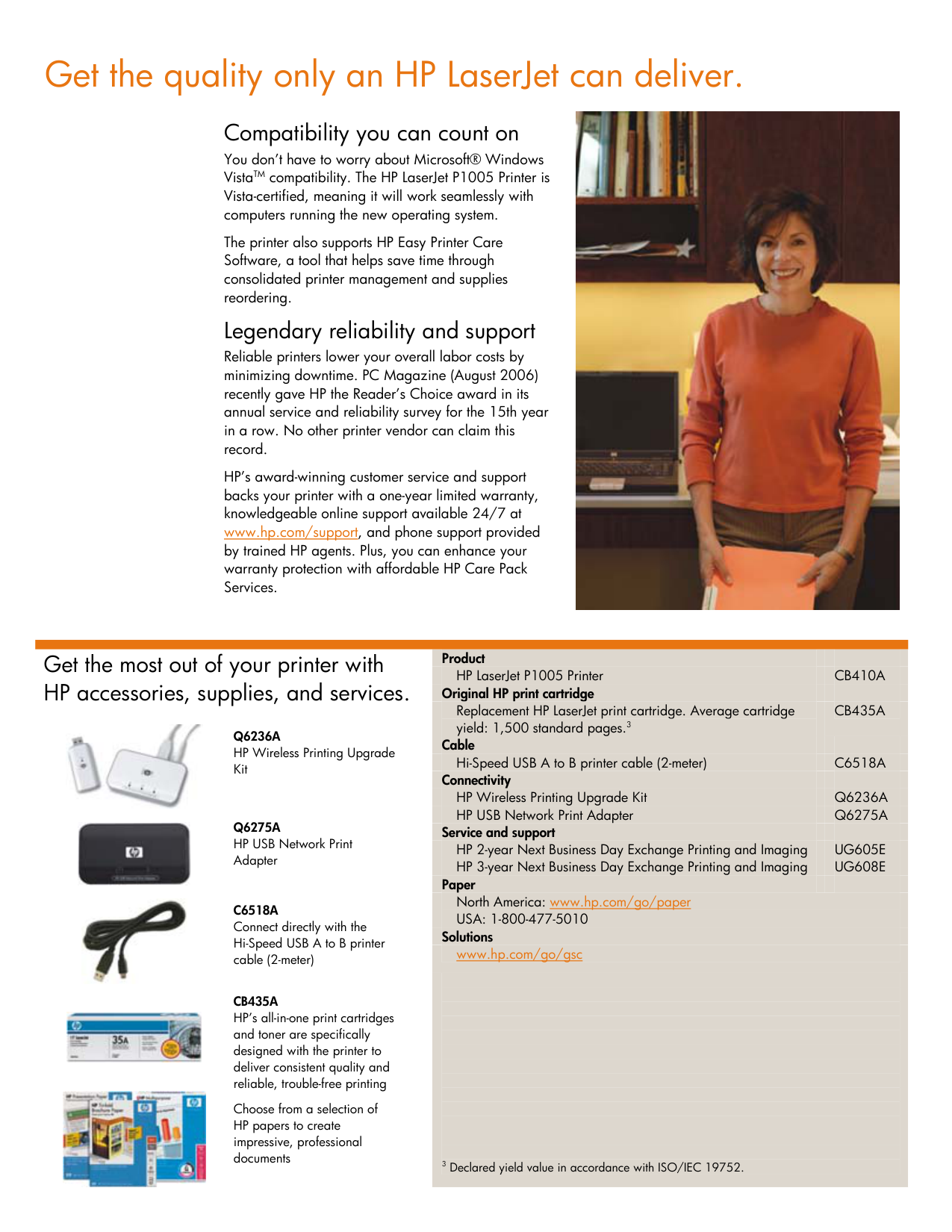

Get the quality only an HP LaserJet can deliver.

Compatibility you can count on You don’t have to worry about Microsoft® Windows VistaTM compatibility. The HP LaserJet P1005 Printer is Vista-certified, meaning it will work seamlessly with computers running the new operating system. The printer also supports HP Easy Printer Care Software, a tool that helps save time through consolidated printer management and supplies reordering. Legendary reliability and support Reliable printers lower your overall labor costs by minimizing downtime. PC Magazine (August 2006) recently gave HP the Reader’s Choice award in its annual service and reliability survey for the 15th year in a row. No other printer vendor can claim this record. HP’s award-winning customer service and support backs your printer with a one-year limited warranty, knowledgeable online support available 24/7 at www.hp.com/support, and phone support provided by trained HP agents. Plus, you can enhance your warranty protection with affordable HP Care Pack Services.

Product

HP LaserJet P1005 Printer

Cb410A

Replacement HP LaserJet print cartridge. Average cartridge yield: 1,500 standard pages.3

Cb435A

Hi-Speed USB A to B printer cable (2-meter)

C6518A

HP Wireless Printing Upgrade Kit

Q6236A

Q6275A

HP 2-year Next Business Day Exchange Printing and Imaging HP 3-year Next Business Day Exchange Printing and Imaging

Ug605E

Ug608E

North America: www.hp.com/go/paper

Usa: 1-800-477-5010

Q6236A

Q6275A

C6518A

Cb435A

3 Declared yield value in accordance with ISO/IEC 19752.

HP LaserJet P1005 Printer

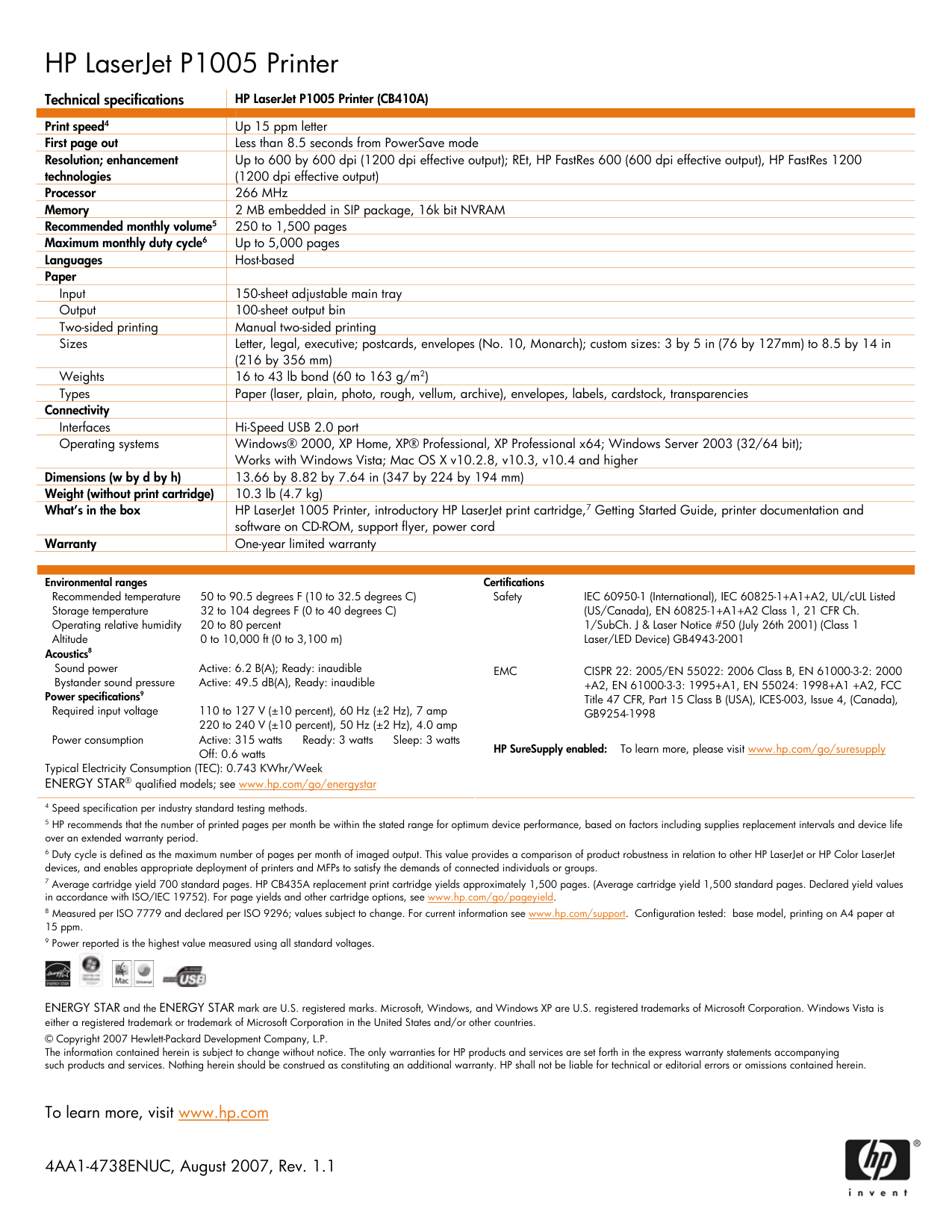

Technical specifications HP LaserJet P1005 Printer (CB410A) Print speed4 Up 15 ppm letter First page out Less than 8.5 seconds from PowerSave mode Resolution; enhancement technologies Up to 600 by 600 dpi (1200 dpi effective output); REt, HP FastRes 600 (600 dpi effective output), HP FastRes 1200 (1200 dpi effective output) Processor 266 MHz Memory 2 MB embedded in SIP package, 16k bit NVRAM Recommended monthly volume5 250 to 1,500 pages Maximum monthly duty cycle6 Up to 5,000 pages Languages Host-based Paper

Input 150-sheet adjustable main tray Output 100-sheet output bin Two-sided printing Manual two-sided printing Sizes Letter, legal, executive; postcards, envelopes (No. 10, Monarch); custom sizes: 3 by 5 in (76 by 127mm) to 8.5 by 14 in (216 by 356 mm) Weights 16 to 43 lb bond (60 to 163 g/m2) Types Paper (laser, plain, photo, rough, vellum, archive), envelopes, labels, cardstock, transparencies Connectivity

Interfaces Hi-Speed USB 2.0 port Operating systems Windows® 2000, XP Home, XP® Professional, XP Professional x64; Windows Server 2003 (32/64 bit); Works with Windows Vista; Mac OS X v10.2.8, v10.3, v10.4 and higher Dimensions (w by d by h) 13.66 by 8.82 by 7.64 in (347 by 224 by 194 mm) Weight (without print cartridge) 10.3 lb (4.7 kg) What’s in the box HP LaserJet 1005 Printer, introductory HP LaserJet print cartridge,7 Getting Started Guide, printer documentation and software on CD-ROM, support flyer, power cord Warranty One-year limited warranty

Environmental ranges Recommended temperature 50 to 90.5 degrees F (10 to 32.5 degrees C) Storage temperature 32 to 104 degrees F (0 to 40 degrees C) Operating relative humidity 20 to 80 percent Altitude 0 to 10,000 ft (0 to 3,100 m) Acoustics8 Sound power Active: 6.2 B(A); Ready: inaudible Bystander sound pressure Active: 49.5 dB(A), Ready: inaudible Power specifications9 Required input voltage 110 to 127 V (±10 percent), 60 Hz (±2 Hz), 7 amp

220 to 240 V (±10 percent), 50 Hz (±2 Hz), 4.0 amp Power consumption Active: 315 watts Ready: 3 watts Sleep: 3 watts

Off: 0.6 watts Typical Electricity Consumption (TEC): 0.743 KWhr/Week ENERGY STAR® qualified models; see www.hp.com/go/energystar Certifications Safety IEC 60950-1 (International), IEC 60825-1+A1+A2, UL/cUL Listed (US/Canada), EN 60825-1+A1+A2 Class 1, 21 CFR Ch. 1/SubCh. J & Laser Notice #50 (July 26th 2001) (Class 1 Laser/LED Device) GB4943-2001

Emc

+A2, En 61000-3-3: 1995+A1, En 55024: 1998+A1 +A2, Fcc

Gb9254-1998

HP SureSupply enabled: To learn more, please visit www.hp.com/go/suresupply 4 Speed specification per industry standard testing methods. 5 HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period. 6 Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups. 7 Average cartridge yield 700 standard pages. HP CB435A replacement print cartridge yields approximately 1,500 pages. (Average cartridge yield 1,500 standard pages. Declared yield values in accordance with ISO/IEC 19752). For page yields and other cartridge options, see www.hp.com/go/pageyield. 8 Measured per ISO 7779 and declared per ISO 9296; values subject to change. For current information see www.hp.com/support. Configuration tested: base model, printing on A4 paper at 15 ppm. 9 Power reported is the highest value measured using all standard voltages.

ENERGY STAR and the ENERGY STAR mark are U.S. registered marks. Microsoft, Windows, and Windows XP are U.S. registered trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. © Copyright 2007 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

To learn more, visit www.hp.com

4AA1-4738ENUC, August 2007, Rev. 1.1
