Miller Spectrum 375 Plasma Cutter
Ask AI
— answers from the official manualAI-powered answers from the official manual. Verify critical info.
Common questions
Common Questions
10 totalWhat are the specifications and features of the Miller Spectrum 375 X-TREME?
The Spectrum 375 X-TREME is a portable air plasma cutting system with rated output of 30 amps DC at 92 volts with 240 VAC input power. It features a 400 volts DC open circuit voltage, constant current output characteristic, and operates at a 35% duty cycle at 30 amps with 240 VAC input. The unit includes an XT30 torch designed for handheld use, safety interlock devices, and a rated cutting capacity of 3/8 inch at 18 ipm (457 mm/min) for edge start cuts. (Page 11-13)
How do I properly connect the air/gas supply to the Spectrum 375?
Use only clean, dry air with 90 to 120 psi (621 to 827 kPa) pressure. Obtain a hose with 1/4 NPT right-hand thread fitting, wrap the threads with teflon tape or apply pipe sealant, and install the fitting in the gas/air inlet opening. Route the hose to your gas/air supply. Ensure that all connections are properly assigned and tightened, and verify that correct air pressure and airflow are set to prevent torch overheating. (Page 15)
What electrical input power requirements does the Miller Spectrum 375 need?
The Spectrum 375 accepts either 120 VAC or 240 VAC single-phase input power at 50/60 Hz. For 120 VAC input with 20 amps capacity, it requires 25.6 volts AC RMS with 11.4 amps RMS input current. For 240 VAC input, it requires 13.6 volts AC RMS with 8.1 amps RMS input current. A 15 or 20 ampere individual branch circuit protected by time-delay fuses or circuit breaker is required for 120 VAC input. (Page 11, 15)
What should I do if the Spectrum 375 overheats during operation?
If the unit overheats, the thermostat opens, output stops, the Temperature trouble light turns on, and the cooling fan runs. You must wait fifteen minutes for the unit to cool or until the temperature light goes off before continuing. To prevent overheating, reduce amperage or duty cycle before starting to cut again. Exceeding the duty cycle can damage the unit and void the warranty. (Page 13)
How do I interpret the status and trouble lights on the Spectrum 375?
The Power light indicates input power status. The Pressure, Cup, and Temperature lights indicate system conditions. A steady Power light means input power is okay and the system is normal if Pressure/Cup/Temp lights are off. When the Pressure light is on, it indicates no or low (below 40 psi) input pressure. When the Cup light is on, the torch cup is loose or off. When the Temperature light is on, the power source has overheated and needs to cool down. Flashing lights indicate specific fault conditions that require checking consumables, torch, or input pressure. (Page 27)
What are the recommended cutting speeds for the Spectrum 375 at different amperages?
At 30 amperes output on mild steel, cutting speeds range from 104.8 ipm for 12 gauge to 6.4 ipm for 5/8 inch thickness. At 27 amperes, speeds range from 115.0 ipm for 12 gauge to 4.8 ipm for 5/8 inch. At 20 amperes, speeds range from 158.4 ipm for 1/16 inch to 6.4 ipm for 3/8 inch thickness. These recommended speeds are approximately 80% of maximum, and aluminum and stainless steel cutting speeds may be reduced as much as 20%. (Page 20)
Show 4 more questions
What is the proper procedure for cutting with the Spectrum 375 torch?
How do I check and replace the torch consumables (tip, electrode, and shield cup)?
What routine maintenance schedule should I follow for the Spectrum 375?
What safety precautions must I take when operating the Spectrum 375 plasma cutter?
Full Manual
43 pages

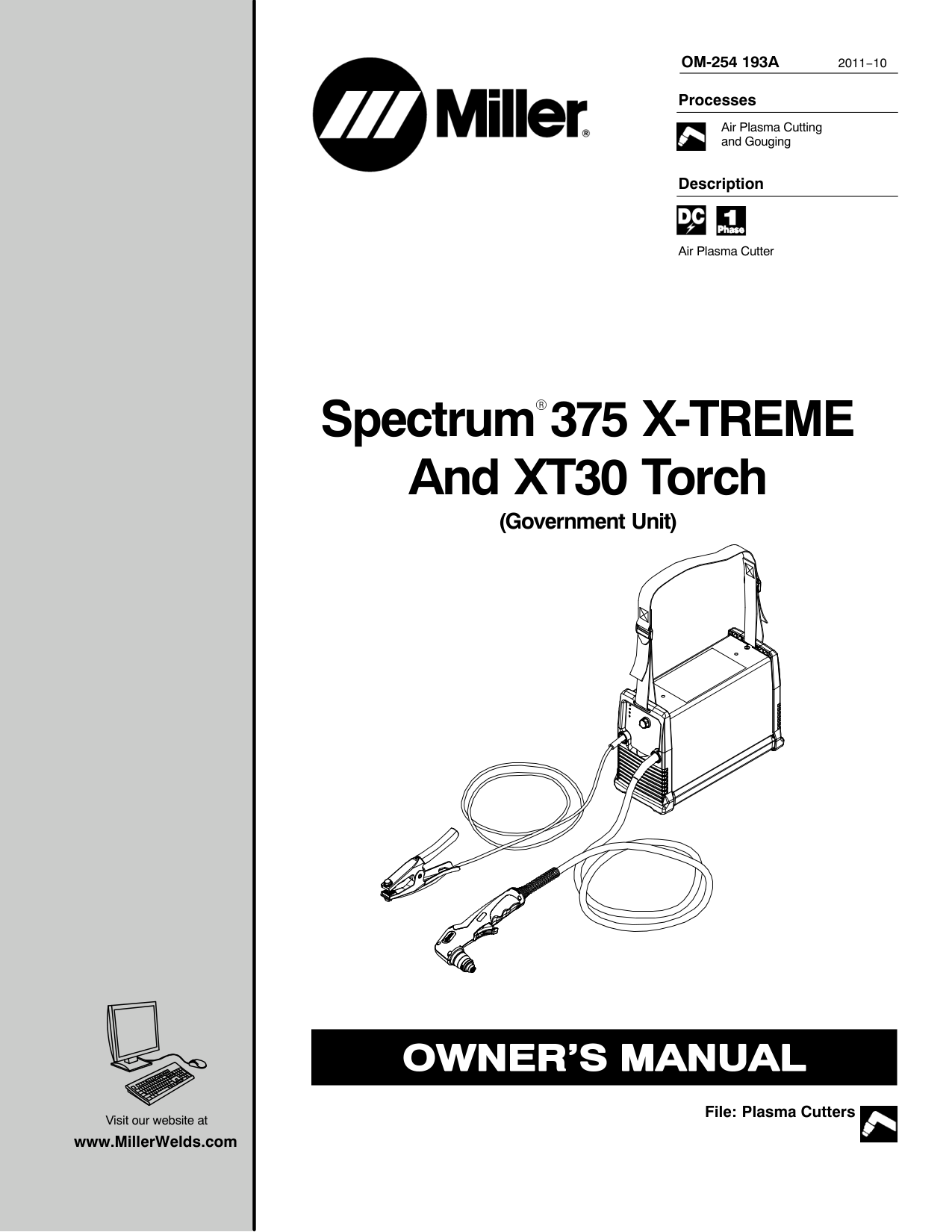

Processes Description Air Plasma Cutting and Gouging Air Plasma Cutter
Om-254 193A
2011−10 Spectrum 375 X-TREME And XT30 Torch (Government Unit) File: Plasma Cutters Visit our website at www.MillerWelds.com
Miller Electric manufactures a full line of welders and welding related equipment. For information on other quality Miller products, contact your local Miller distributor to receive the latest full line catalog or individual specification sheets. To locate your nearest distributor or service agency call 1-800-4-A-Miller, or visit us at www.MillerWelds.com on the web. Thank you and congratulations on choosing Miller. Now you can get the job done and get it done right. We know you don’t have time to do it any other way. That’s why when Niels Miller first started building arc welders in 1929, he made sure his products offered long-lasting value and superior quality. Like you, his customers couldn’t afford anything less. Miller products had to be more than the best they could be. They had to be the best you could buy. Today, the people that build and sell Miller products continue the tradition. They’re just as committed to providing equipment and service that meets the high standards of quality and value established in 1929. This Owner’s Manual is designed to help you get the most out of your Miller products. Please take time to read the Safety precautions. They will help you protect yourself against potential hazards on the worksite. We’ve made installation and operation quick and easy. With Miller you can count on years of reliable service with proper maintenance. And if for some reason the unit needs repair, there’s a Troubleshooting section that will help you figure out what the problem is. The parts list will then help you to decide the exact part you may need to fix the problem. Warranty and service information for your particular model are also provided. Miller is the first welding equipment manufacturer in the U.S.A. to be registered to the ISO 9001 Quality System Standard. Working as hard as you do − every power source from Miller is backed by the most hassle-free warranty in the business. From Miller to You Mil_Thank 2009−09

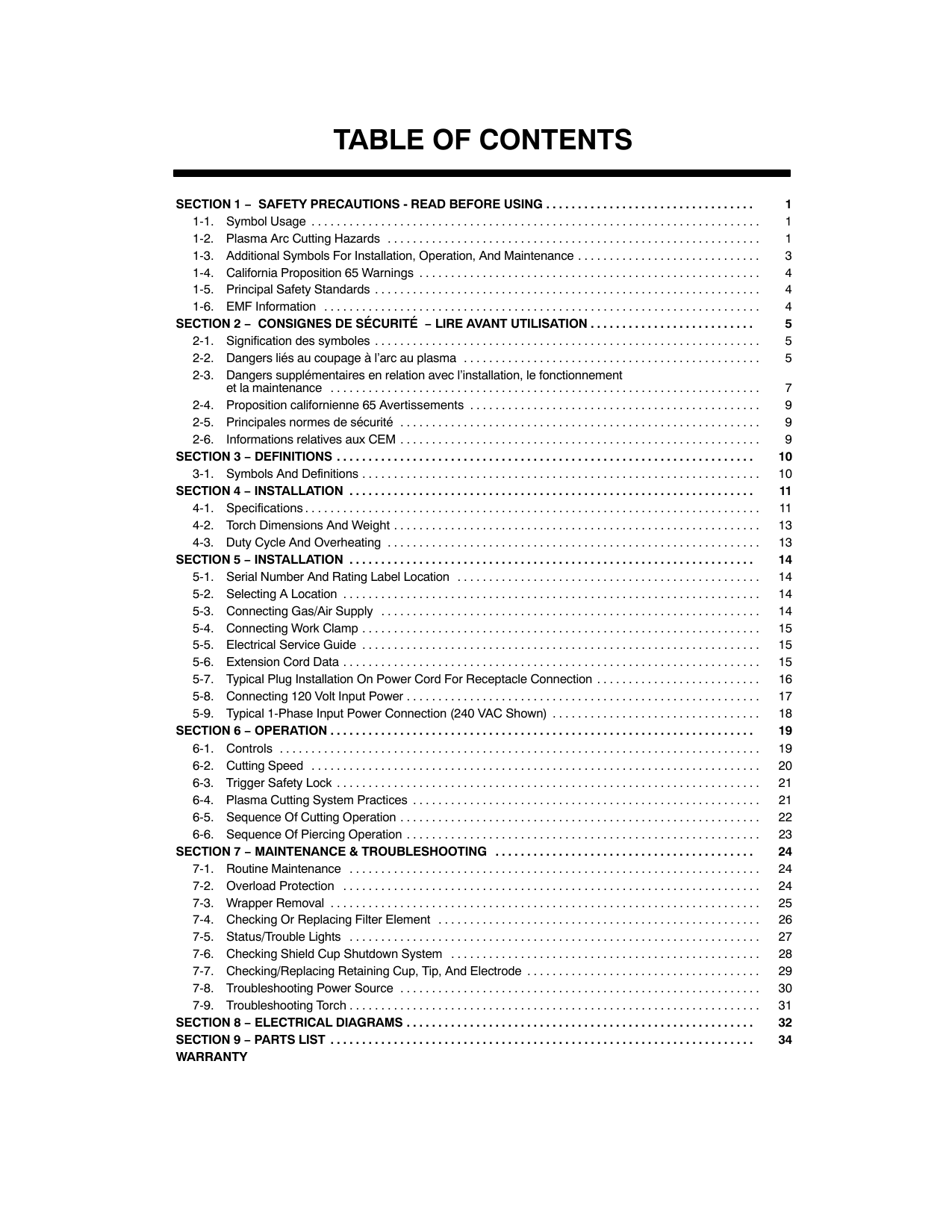

Table Of Contents
Section 1 − Safety Precautions - Read Before Using
1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1. Symbol Usage 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2. Plasma Arc Cutting Hazards 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3. Additional Symbols For Installation, Operation, And Maintenance 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4. California Proposition 65 Warnings 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5. Principal Safety Standards 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6. EMF Information 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 2 − Consignes De Sécurité − Lire Avant Utilisation
5 . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1. Signification des symboles 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2. Dangers liés au coupage à l’arc au plasma 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3. Dangers supplémentaires en relation avec l’installation, le fonctionnement et la maintenance 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4. Proposition californienne 65 Avertissements 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5. Principales normes de sécurité 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6. Informations relatives aux CEM 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 3 − Definitions
10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1. Symbols And Definitions 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 4 − Installation
11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1. Specifications 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2. Torch Dimensions And Weight 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3. Duty Cycle And Overheating 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 5 − Installation
14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1. Serial Number And Rating Label Location 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2. Selecting A Location 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3. Connecting Gas/Air Supply 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4. Connecting Work Clamp 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5. Electrical Service Guide 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6. Extension Cord Data 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7. Typical Plug Installation On Power Cord For Receptacle Connection 16 . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8. Connecting 120 Volt Input Power 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9. Typical 1-Phase Input Power Connection (240 VAC Shown) 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 6 − Operation
19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1. Controls 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2. Cutting Speed 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3. Trigger Safety Lock 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4. Plasma Cutting System Practices 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5. Sequence Of Cutting Operation 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6. Sequence Of Piercing Operation 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 7 − Maintenance & Troubleshooting
24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1. Routine Maintenance 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2. Overload Protection 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3. Wrapper Removal 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4. Checking Or Replacing Filter Element 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5. Status/Trouble Lights 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6. Checking Shield Cup Shutdown System 28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7. Checking/Replacing Retaining Cup, Tip, And Electrode 29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8. Troubleshooting Power Source 30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9. Troubleshooting Torch 31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 8 − Electrical Diagrams
32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Section 9 − Parts List
34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Warranty
OM-254 193 Page 1

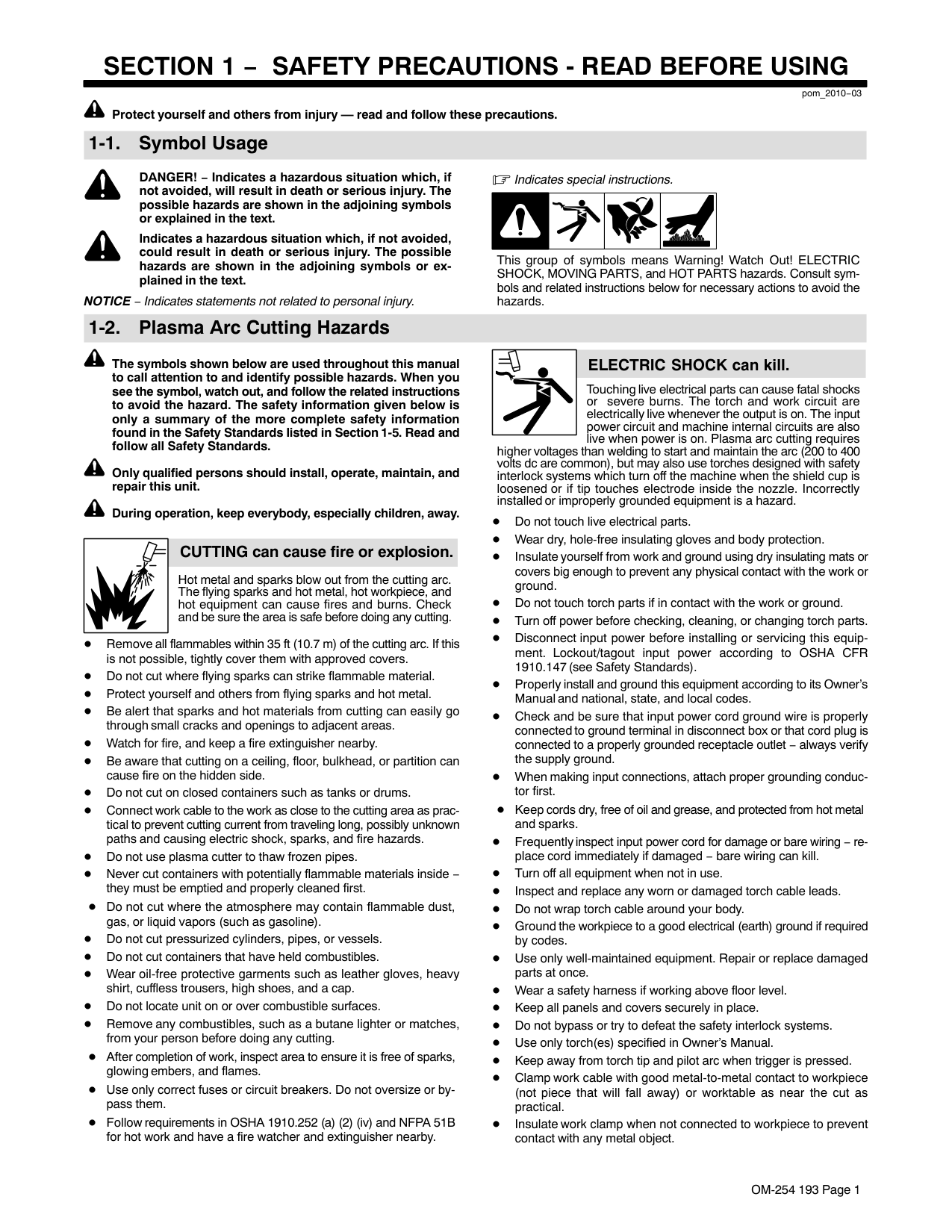

Section 1 − Safety Precautions - Read Before Using
pom_2010−03 Protect yourself and others from injury — read and follow these precautions. 1-1. Symbol Usage DANGER! − Indicates a hazardous situation which, if not avoided, will result in death or serious injury. The possible hazards are shown in the adjoining symbols or explained in the text. Indicates a hazardous situation which, if not avoided, could result in death or serious injury. The possible hazards are shown in the adjoining symbols or ex- plained in the text. NOTICE − Indicates statements not related to personal injury. Indicates special instructions. This group of symbols means Warning! Watch Out! ELECTRIC SHOCK, MOVING PARTS, and HOT PARTS hazards. Consult sym- bols and related instructions below for necessary actions to avoid the hazards. 1-2. Plasma Arc Cutting Hazards The symbols shown below are used throughout this manual to call attention to and identify possible hazards. When you see the symbol, watch out, and follow the related instructions to avoid the hazard. The safety information given below is only a summary of the more complete safety information found in the Safety Standards listed in Section 1-5. Read and follow all Safety Standards. Only qualified persons should install, operate, maintain, and repair this unit. During operation, keep everybody, especially children, away. CUTTING can cause fire or explosion. Hot metal and sparks blow out from the cutting arc. The flying sparks and hot metal, hot workpiece, and hot equipment can cause fires and burns. Check and be sure the area is safe before doing any cutting. Remove all flammables within 35 ft (10.7 m) of the cutting arc. If this is not possible, tightly cover them with approved covers. Do not cut where flying sparks can strike flammable material. Protect yourself and others from flying sparks and hot metal. Be alert that sparks and hot materials from cutting can easily go through small cracks and openings to adjacent areas. Watch for fire, and keep a fire extinguisher nearby. Be aware that cutting on a ceiling, floor, bulkhead, or partition can cause fire on the hidden side. Do not cut on closed containers such as tanks or drums. Connect work cable to the work as close to the cutting area as prac- tical to prevent cutting current from traveling long, possibly unknown paths and causing electric shock, sparks, and fire hazards. Do not use plasma cutter to thaw frozen pipes. Never cut containers with potentially flammable materials inside − they must be emptied and properly cleaned first. Do not cut where the atmosphere may contain flammable dust, gas, or liquid vapors (such as gasoline). Do not cut pressurized cylinders, pipes, or vessels. Do not cut containers that have held combustibles. Wear oil-free protective garments such as leather gloves, heavy shirt, cuffless trousers, high shoes, and a cap. Do not locate unit on or over combustible surfaces. Remove any combustibles, such as a butane lighter or matches, from your person before doing any cutting. After completion of work, inspect area to ensure it is free of sparks, glowing embers, and flames. Use only correct fuses or circuit breakers. Do not oversize or by- pass them. Follow requirements in OSHA 1910.252 (a) (2) (iv) and NFPA 51B for hot work and have a fire watcher and extinguisher nearby. Touching live electrical parts can cause fatal shocks or severe burns. The torch and work circuit are electrically live whenever the output is on. The input power circuit and machine internal circuits are also live when power is on. Plasma arc cutting requires higher voltages than welding to start and maintain the arc (200 to 400 volts dc are common), but may also use torches designed with safety interlock systems which turn off the machine when the shield cup is loosened or if tip touches electrode inside the nozzle. Incorrectly installed or improperly grounded equipment is a hazard. ELECTRIC SHOCK can kill. Do not touch live electrical parts. Wear dry, hole-free insulating gloves and body protection. Insulate yourself from work and ground using dry insulating mats or covers big enough to prevent any physical contact with the work or ground. Do not touch torch parts if in contact with the work or ground. Turn off power before checking, cleaning, or changing torch parts. Disconnect input power before installing or servicing this equip- ment. Lockout/tagout input power according to OSHA CFR 1910.147 (see Safety Standards). Properly install and ground this equipment according to its Owner’s Manual and national, state, and local codes. Check and be sure that input power cord ground wire is properly connected to ground terminal in disconnect box or that cord plug is connected to a properly grounded receptacle outlet − always verify the supply ground. When making input connections, attach proper grounding conduc- tor first. Keep cords dry, free of oil and grease, and protected from hot metal and sparks. Frequently inspect input power cord for damage or bare wiring − re- place cord immediately if damaged − bare wiring can kill. Turn off all equipment when not in use. Inspect and replace any worn or damaged torch cable leads. Do not wrap torch cable around your body. Ground the workpiece to a good electrical (earth) ground if required by codes. Use only well-maintained equipment. Repair or replace damaged parts at once. Wear a safety harness if working above floor level. Keep all panels and covers securely in place. Do not bypass or try to defeat the safety interlock systems. Use only torch(es) specified in Owner’s Manual. Keep away from torch tip and pilot arc when trigger is pressed. Clamp work cable with good metal-to-metal contact to workpiece (not piece that will fall away) or worktable as near the cut as practical. Insulate work clamp when not connected to workpiece to prevent contact with any metal object.

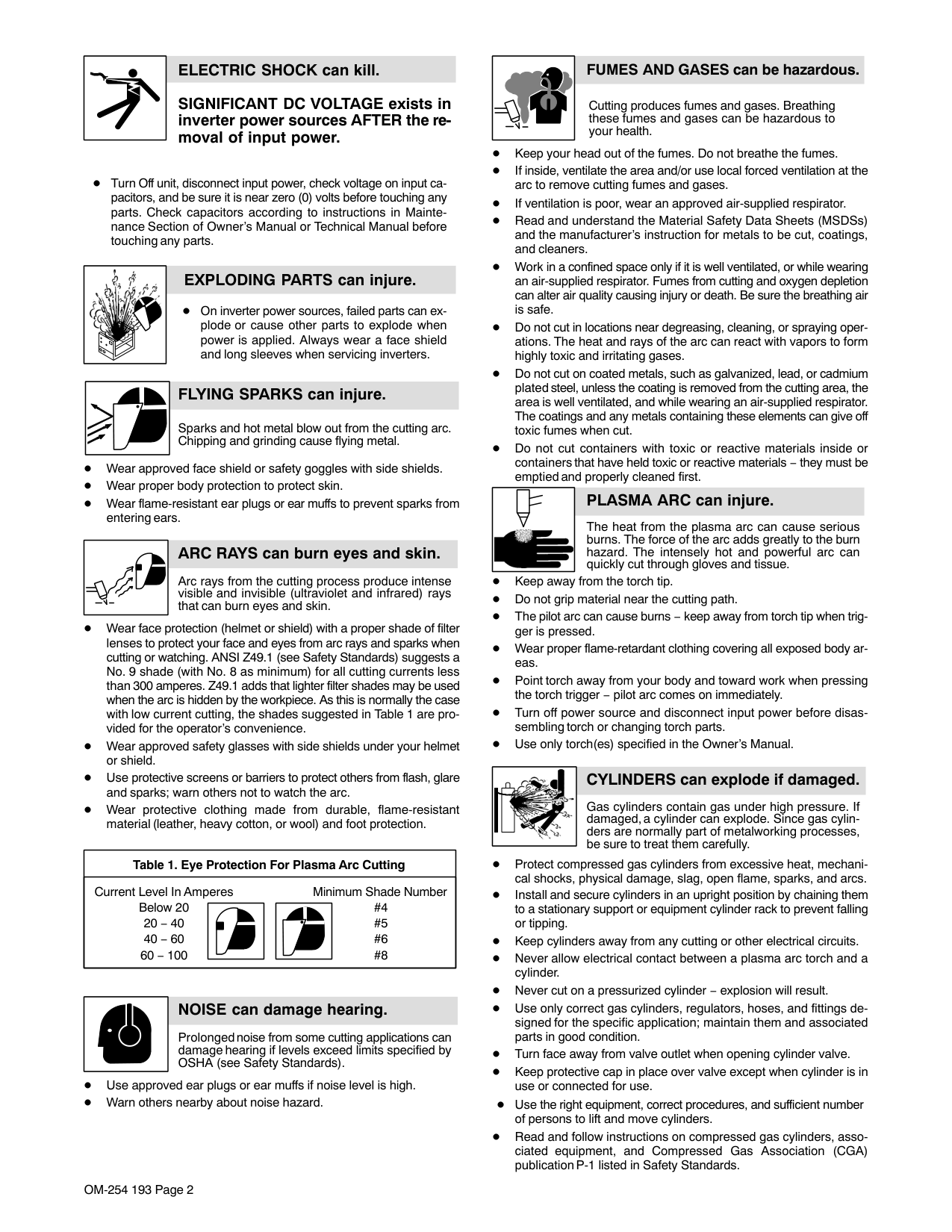

OM-254 193 Page 2 SIGNIFICANT DC VOLTAGE exists in inverter power sources AFTER the re- moval of input power. Turn Off unit, disconnect input power, check voltage on input ca- pacitors, and be sure it is near zero (0) volts before touching any parts. Check capacitors according to instructions in Mainte- nance Section of Owner’s Manual or Technical Manual before touching any parts. ELECTRIC SHOCK can kill. On inverter power sources, failed parts can ex- plode or cause other parts to explode when power is applied. Always wear a face shield and long sleeves when servicing inverters. EXPLODING PARTS can injure. Sparks and hot metal blow out from the cutting arc. Chipping and grinding cause flying metal. FLYING SPARKS can injure. Wear approved face shield or safety goggles with side shields. Wear proper body protection to protect skin. Wear flame-resistant ear plugs or ear muffs to prevent sparks from entering ears. Arc rays from the cutting process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes and skin. ARC RAYS can burn eyes and skin. Wear face protection (helmet or shield) with a proper shade of filter lenses to protect your face and eyes from arc rays and sparks when cutting or watching. ANSI Z49.1 (see Safety Standards) suggests a No. 9 shade (with No. 8 as minimum) for all cutting currents less than 300 amperes. Z49.1 adds that lighter filter shades may be used when the arc is hidden by the workpiece. As this is normally the case with low current cutting, the shades suggested in Table 1 are pro- vided for the operator’s convenience. Wear approved safety glasses with side shields under your helmet or shield. Use protective screens or barriers to protect others from flash, glare and sparks; warn others not to watch the arc. Wear protective clothing made from durable, flame-resistant material (leather, heavy cotton, or wool) and foot protection. Table 1. Eye Protection For Plasma Arc Cutting Current Level In Amperes Minimum Shade Number Below 20 20 − 40 40 − 60 60 − 100 #4 #5 #6 #8 Prolonged noise from some cutting applications can damage hearing if levels exceed limits specified by OSHA (see Safety Standards). NOISE can damage hearing. Use approved ear plugs or ear muffs if noise level is high. Warn others nearby about noise hazard. FUMES AND GASES can be hazardous. Cutting produces fumes and gases. Breathing these fumes and gases can be hazardous to your health. Keep your head out of the fumes. Do not breathe the fumes. If inside, ventilate the area and/or use local forced ventilation at the arc to remove cutting fumes and gases. If ventilation is poor, wear an approved air-supplied respirator. Read and understand the Material Safety Data Sheets (MSDSs) and the manufacturer’s instruction for metals to be cut, coatings, and cleaners. Work in a confined space only if it is well ventilated, or while wearing an air-supplied respirator. Fumes from cutting and oxygen depletion can alter air quality causing injury or death. Be sure the breathing air is safe. Do not cut in locations near degreasing, cleaning, or spraying oper- ations. The heat and rays of the arc can react with vapors to form highly toxic and irritating gases. Do not cut on coated metals, such as galvanized, lead, or cadmium plated steel, unless the coating is removed from the cutting area, the area is well ventilated, and while wearing an air-supplied respirator. The coatings and any metals containing these elements can give off toxic fumes when cut. Do not cut containers with toxic or reactive materials inside or containers that have held toxic or reactive materials − they must be emptied and properly cleaned first. PLASMA ARC can injure. The heat from the plasma arc can cause serious burns. The force of the arc adds greatly to the burn hazard. The intensely hot and powerful arc can quickly cut through gloves and tissue. Keep away from the torch tip. Do not grip material near the cutting path. The pilot arc can cause burns − keep away from torch tip when trig- ger is pressed. Wear proper flame-retardant clothing covering all exposed body ar- eas. Point torch away from your body and toward work when pressing the torch trigger − pilot arc comes on immediately. Turn off power source and disconnect input power before disas- sembling torch or changing torch parts. Use only torch(es) specified in the Owner’s Manual. Gas cylinders contain gas under high pressure. If damaged, a cylinder can explode. Since gas cylin- ders are normally part of metalworking processes, be sure to treat them carefully. CYLINDERS can explode if damaged. Protect compressed gas cylinders from excessive heat, mechani- cal shocks, physical damage, slag, open flame, sparks, and arcs. Install and secure cylinders in an upright position by chaining them to a stationary support or equipment cylinder rack to prevent falling or tipping. Keep cylinders away from any cutting or other electrical circuits. Never allow electrical contact between a plasma arc torch and a cylinder. Never cut on a pressurized cylinder − explosion will result. Use only correct gas cylinders, regulators, hoses, and fittings de- signed for the specific application; maintain them and associated parts in good condition. Turn face away from valve outlet when opening cylinder valve. Keep protective cap in place over valve except when cylinder is in use or connected for use. Use the right equipment, correct procedures, and sufficient number of persons to lift and move cylinders. Read and follow instructions on compressed gas cylinders, asso- ciated equipment, and Compressed Gas Association (CGA) publication P-1 listed in Safety Standards.

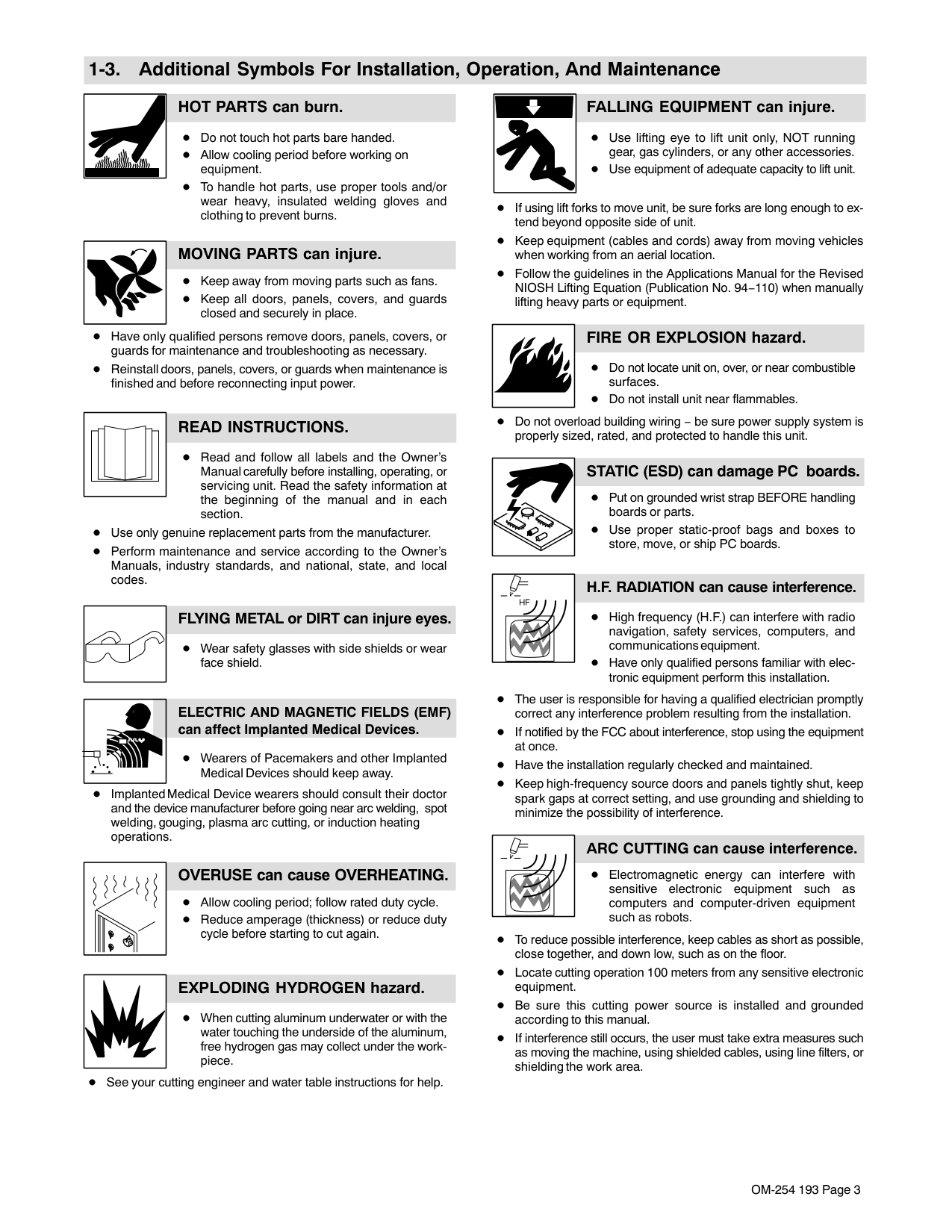

OM-254 193 Page 3 1-3. Additional Symbols For Installation, Operation, And Maintenance HOT PARTS can burn. Do not touch hot parts bare handed. Allow cooling period before working on equipment. To handle hot parts, use proper tools and/or wear heavy, insulated welding gloves and clothing to prevent burns. MOVING PARTS can injure. Keep away from moving parts such as fans. Keep all doors, panels, covers, and guards closed and securely in place. Have only qualified persons remove doors, panels, covers, or guards for maintenance and troubleshooting as necessary. Reinstall doors, panels, covers, or guards when maintenance is finished and before reconnecting input power.
Read Instructions.
Read and follow all labels and the Owner’s Manual carefully before installing, operating, or servicing unit. Read the safety information at the beginning of the manual and in each section. Use only genuine replacement parts from the manufacturer. Perform maintenance and service according to the Owner’s Manuals, industry standards, and national, state, and local codes. FLYING METAL or DIRT can injure eyes. Wear safety glasses with side shields or wear face shield.Electric And Magnetic Fields (Emf)
can affect Implanted Medical Devices. Wearers of Pacemakers and other Implanted Medical Devices should keep away. Implanted Medical Device wearers should consult their doctor and the device manufacturer before going near arc welding, spot welding, gouging, plasma arc cutting, or induction heating operations. OVERUSE can cause OVERHEATING. Allow cooling period; follow rated duty cycle. Reduce amperage (thickness) or reduce duty cycle before starting to cut again. EXPLODING HYDROGEN hazard. When cutting aluminum underwater or with the water touching the underside of the aluminum, free hydrogen gas may collect under the work- piece. See your cutting engineer and water table instructions for help. FALLING EQUIPMENT can injure. Use lifting eye to lift unit only, NOT running gear, gas cylinders, or any other accessories. Use equipment of adequate capacity to lift unit. If using lift forks to move unit, be sure forks are long enough to ex- tend beyond opposite side of unit. Keep equipment (cables and cords) away from moving vehicles when working from an aerial location. Follow the guidelines in the Applications Manual for the Revised NIOSH Lifting Equation (Publication No. 94−110) when manually lifting heavy parts or equipment. FIRE OR EXPLOSION hazard. Do not locate unit on, over, or near combustible surfaces. Do not install unit near flammables. Do not overload building wiring − be sure power supply system is properly sized, rated, and protected to handle this unit. STATIC (ESD) can damage PC boards. Put on grounded wrist strap BEFORE handling boards or parts. Use proper static-proof bags and boxes to store, move, or ship PC boards. H.F. RADIATION can cause interference. High frequency (H.F.) can interfere with radio navigation, safety services, computers, and communications equipment. Have only qualified persons familiar with elec- tronic equipment perform this installation. The user is responsible for having a qualified electrician promptly correct any interference problem resulting from the installation. If notified by the FCC about interference, stop using the equipment at once. Have the installation regularly checked and maintained. Keep high-frequency source doors and panels tightly shut, keep spark gaps at correct setting, and use grounding and shielding to minimize the possibility of interference. ARC CUTTING can cause interference. Electromagnetic energy can interfere with sensitive electronic equipment such as computers and computer-driven equipment such as robots. To reduce possible interference, keep cables as short as possible, close together, and down low, such as on the floor. Locate cutting operation 100 meters from any sensitive electronic equipment. Be sure this cutting power source is installed and grounded according to this manual. If interference still occurs, the user must take extra measures such as moving the machine, using shielded cables, using line filters, or shielding the work area.

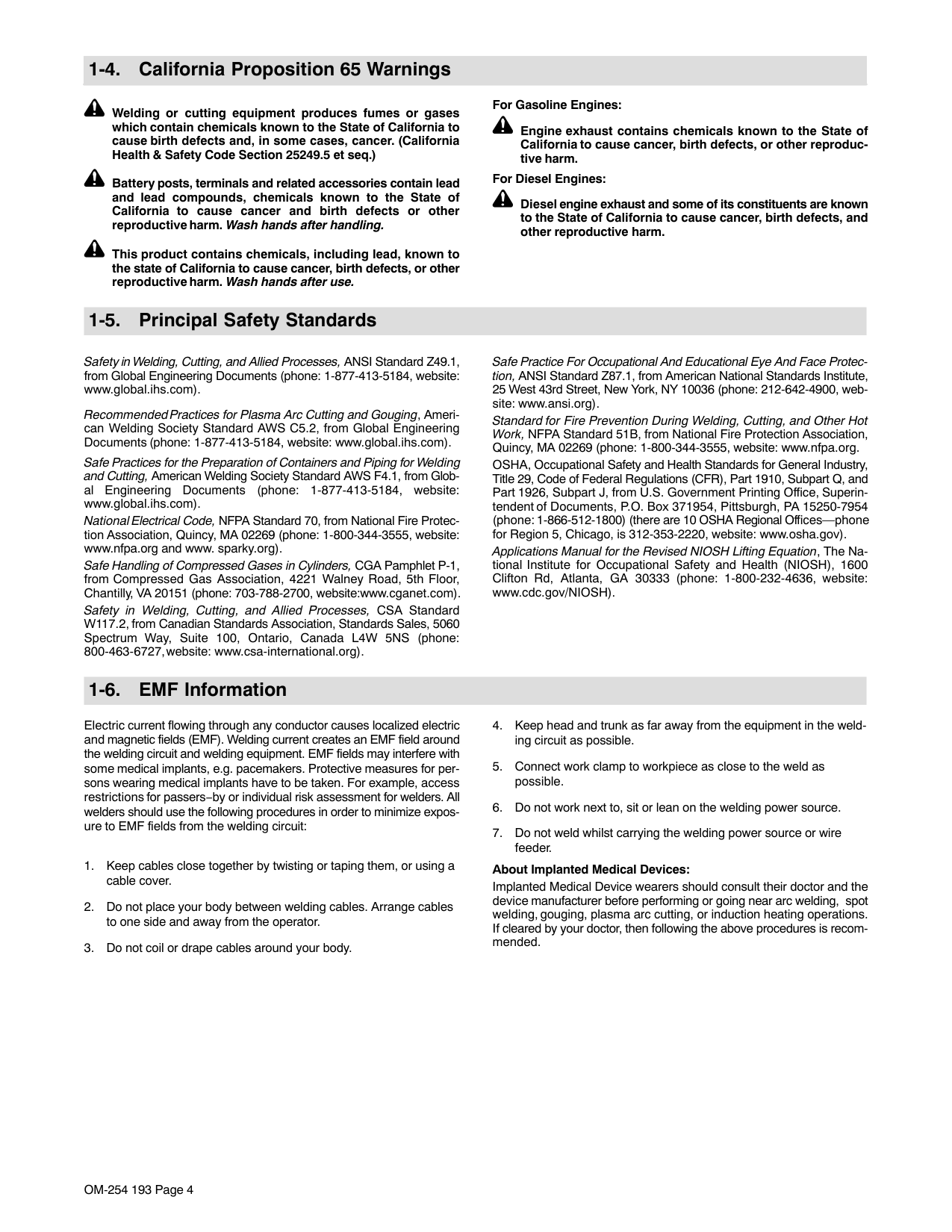

OM-254 193 Page 4 1-4. California Proposition 65 Warnings Welding or cutting equipment produces fumes or gases which contain chemicals known to the State of California to cause birth defects and, in some cases, cancer. (California Health & Safety Code Section 25249.5 et seq.) Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. This product contains chemicals, including lead, known to the state of California to cause cancer, birth defects, or other reproductive harm. Wash hands after use. For Gasoline Engines: Engine exhaust contains chemicals known to the State of California to cause cancer, birth defects, or other reproduc- tive harm. For Diesel Engines: Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm. 1-5. Principal Safety Standards Safety in Welding, Cutting, and Allied Processes, ANSI Standard Z49.1, from Global Engineering Documents (phone: 1-877-413-5184, website: www.global.ihs.com). Recommended Practices for Plasma Arc Cutting and Gouging, Ameri- can Welding Society Standard AWS C5.2, from Global Engineering Documents (phone: 1-877-413-5184, website: www.global.ihs.com). Safe Practices for the Preparation of Containers and Piping for Welding and Cutting, American Welding Society Standard AWS F4.1, from Glob- al Engineering Documents (phone: 1-877-413-5184, website: www.global.ihs.com). National Electrical Code, NFPA Standard 70, from National Fire Protec- tion Association, Quincy, MA 02269 (phone: 1-800-344-3555, website: www.nfpa.org and www. sparky.org). Safe Handling of Compressed Gases in Cylinders, CGA Pamphlet P-1, from Compressed Gas Association, 4221 Walney Road, 5th Floor, Chantilly, VA 20151 (phone: 703-788-2700, website:www.cganet.com). Safety in Welding, Cutting, and Allied Processes, CSA Standard W117.2, from Canadian Standards Association, Standards Sales, 5060 Spectrum Way, Suite 100, Ontario, Canada L4W 5NS (phone: 800-463-6727, website: www.csa-international.org). Safe Practice For Occupational And Educational Eye And Face Protec- tion, ANSI Standard Z87.1, from American National Standards Institute, 25 West 43rd Street, New York, NY 10036 (phone: 212-642-4900, web- site: www.ansi.org). Standard for Fire Prevention During Welding, Cutting, and Other Hot Work, NFPA Standard 51B, from National Fire Protection Association, Quincy, MA 02269 (phone: 1-800-344-3555, website: www.nfpa.org. OSHA, Occupational Safety and Health Standards for General Industry, Title 29, Code of Federal Regulations (CFR), Part 1910, Subpart Q, and Part 1926, Subpart J, from U.S. Government Printing Office, Superin- tendent of Documents, P.O. Box 371954, Pittsburgh, PA 15250-7954 (phone: 1-866-512-1800) (there are 10 OSHA Regional Offices—phone for Region 5, Chicago, is 312-353-2220, website: www.osha.gov). Applications Manual for the Revised NIOSH Lifting Equation, The Na- tional Institute for Occupational Safety and Health (NIOSH), 1600 Clifton Rd, Atlanta, GA 30333 (phone: 1-800-232-4636, website: www.cdc.gov/NIOSH). 1-6. EMF Information Electric current flowing through any conductor causes localized electric and magnetic fields (EMF). Welding current creates an EMF field around the welding circuit and welding equipment. EMF fields may interfere with some medical implants, e.g. pacemakers. Protective measures for per- sons wearing medical implants have to be taken. For example, access restrictions for passers−by or individual risk assessment for welders. All welders should use the following procedures in order to minimize expos- ure to EMF fields from the welding circuit:
OM-254 193 Page 5

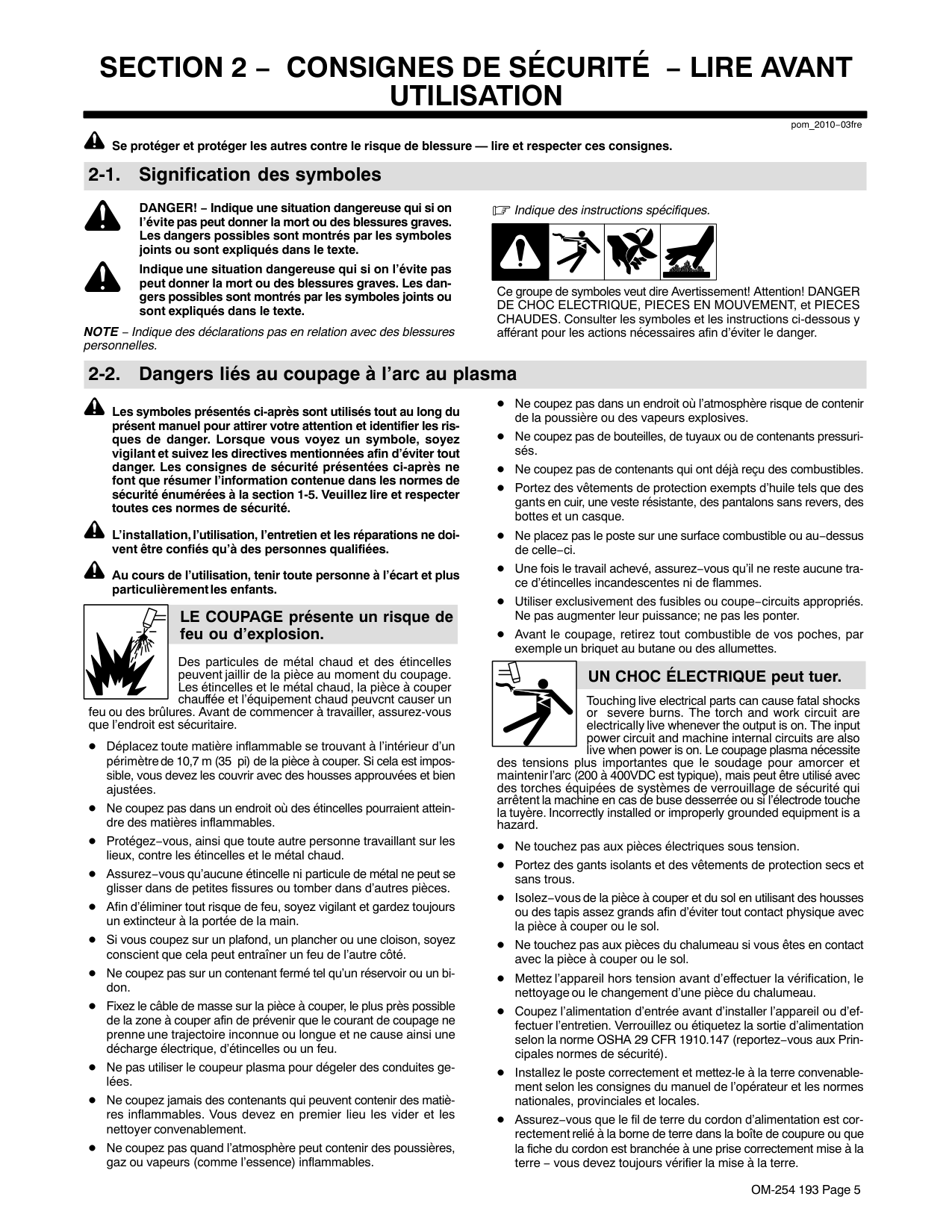

Section 2 − Consignes De Sécurité − Lire Avant
Utilisation
pom_2010−03fre Se protéger et protéger les autres contre le risque de blessure — lire et respecter ces consignes. 2-1. Signification des symboles DANGER! − Indique une situation dangereuse qui si on l’évite pas peut donner la mort ou des blessures graves. Les dangers possibles sont montrés par les symboles joints ou sont expliqués dans le texte. Indique une situation dangereuse qui si on l’évite pas peut donner la mort ou des blessures graves. Les dan- gers possibles sont montrés par les symboles joints ou sont expliqués dans le texte. NOTE − Indique des déclarations pas en relation avec des blessures personnelles. Indique des instructions spécifiques. Ce groupe de symboles veut dire Avertissement! Attention! DANGER DE CHOC ELECTRIQUE, PIECES EN MOUVEMENT, et PIECES CHAUDES. Consulter les symboles et les instructions ci-dessous y afférant pour les actions nécessaires afin d’éviter le danger. 2-2. Dangers liés au coupage à l’arc au plasma Les symboles présentés ci-après sont utilisés tout au long du présent manuel pour attirer votre attention et identifier les ris- ques de danger. Lorsque vous voyez un symbole, soyez vigilant et suivez les directives mentionnées afin d’éviter tout danger. Les consignes de sécurité présentées ci-après ne font que résumer l’information contenue dans les normes de sécurité énumérées à la section 1-5. Veuillez lire et respecter toutes ces normes de sécurité. L’installation, l’utilisation, l’entretien et les réparations ne doi- vent être confiés qu’à des personnes qualifiées. Au cours de l’utilisation, tenir toute personne à l’écart et plus particulièrement les enfants. LE COUPAGE présente un risque de feu ou d’explosion. Des particules de métal chaud et des étincelles peuvent jaillir de la pièce au moment du coupage. Les étincelles et le métal chaud, la pièce à couper chauffée et l’équipement chaud peuvcnt causer un feu ou des brûlures. Avant de commencer à travailler, assurez-vous que l’endroit est sécuritaire. Déplacez toute matière inflammable se trouvant à l’intérieur d’un périmètre de 10,7 m (35 pi) de la pièce à couper. Si cela est impos- sible, vous devez les couvrir avec des housses approuvées et bien ajustées. Ne coupez pas dans un endroit où des étincelles pourraient attein- dre des matières inflammables. Protégez−vous, ainsi que toute autre personne travaillant sur les lieux, contre les étincelles et le métal chaud. Assurez−vous qu’aucune étincelle ni particule de métal ne peut se glisser dans de petites fissures ou tomber dans d’autres pièces. Afin d’éliminer tout risque de feu, soyez vigilant et gardez toujours un extincteur à la portée de la main. Si vous coupez sur un plafond, un plancher ou une cloison, soyez conscient que cela peut entraîner un feu de l’autre côté. Ne coupez pas sur un contenant fermé tel qu’un réservoir ou un bi- don. Fixez le câble de masse sur la pièce à couper, le plus près possible de la zone à couper afin de prévenir que le courant de coupage ne prenne une trajectoire inconnue ou longue et ne cause ainsi une décharge électrique, d’étincelles ou un feu. Ne pas utiliser le coupeur plasma pour dégeler des conduites ge- lées. Ne coupez jamais des contenants qui peuvent contenir des matiè- res inflammables. Vous devez en premier lieu les vider et les nettoyer convenablement. Ne coupez pas quand l’atmosphère peut contenir des poussières, gaz ou vapeurs (comme l’essence) inflammables. Ne coupez pas dans un endroit où l’atmosphère risque de contenir de la poussière ou des vapeurs explosives. Ne coupez pas de bouteilles, de tuyaux ou de contenants pressuri- sés. Ne coupez pas de contenants qui ont déjà reçu des combustibles. Portez des vêtements de protection exempts d’huile tels que des gants en cuir, une veste résistante, des pantalons sans revers, des bottes et un casque. Ne placez pas le poste sur une surface combustible ou au−dessus de celle−ci. Une fois le travail achevé, assurez−vous qu’il ne reste aucune tra- ce d’étincelles incandescentes ni de flammes. Utiliser exclusivement des fusibles ou coupe−circuits appropriés. Ne pas augmenter leur puissance; ne pas les ponter. Avant le coupage, retirez tout combustible de vos poches, par exemple un briquet au butane ou des allumettes. Touching live electrical parts can cause fatal shocks or severe burns. The torch and work circuit are electrically live whenever the output is on. The input power circuit and machine internal circuits are also live when power is on. Le coupage plasma nécessite des tensions plus importantes que le soudage pour amorcer et maintenir l’arc (200 à 400VDC est typique), mais peut être utilisé avec des torches équipées de systèmes de verrouillage de sécurité qui arrêtent la machine en cas de buse desserrée ou si l’électrode touche la tuyère. Incorrectly installed or improperly grounded equipment is a hazard. UN CHOC ÉLECTRIQUE peut tuer. Ne touchez pas aux pièces électriques sous tension. Portez des gants isolants et des vêtements de protection secs et sans trous. Isolez−vous de la pièce à couper et du sol en utilisant des housses ou des tapis assez grands afin d’éviter tout contact physique avec la pièce à couper ou le sol. Ne touchez pas aux pièces du chalumeau si vous êtes en contact avec la pièce à couper ou le sol. Mettez l’appareil hors tension avant d’effectuer la vérification, le nettoyage ou le changement d’une pièce du chalumeau. Coupez l’alimentation d’entrée avant d’installer l’appareil ou d’ef- fectuer l’entretien. Verrouillez ou étiquetez la sortie d’alimentation selon la norme OSHA 29 CFR 1910.147 (reportez−vous aux Prin- cipales normes de sécurité). Installez le poste correctement et mettez-le à la terre convenable- ment selon les consignes du manuel de l’opérateur et les normes nationales, provinciales et locales. Assurez−vous que le fil de terre du cordon d’alimentation est cor- rectement relié à la borne de terre dans la boîte de coupure ou que la fiche du cordon est branchée à une prise correctement mise à la terre − vous devez toujours vérifier la mise à la terre.

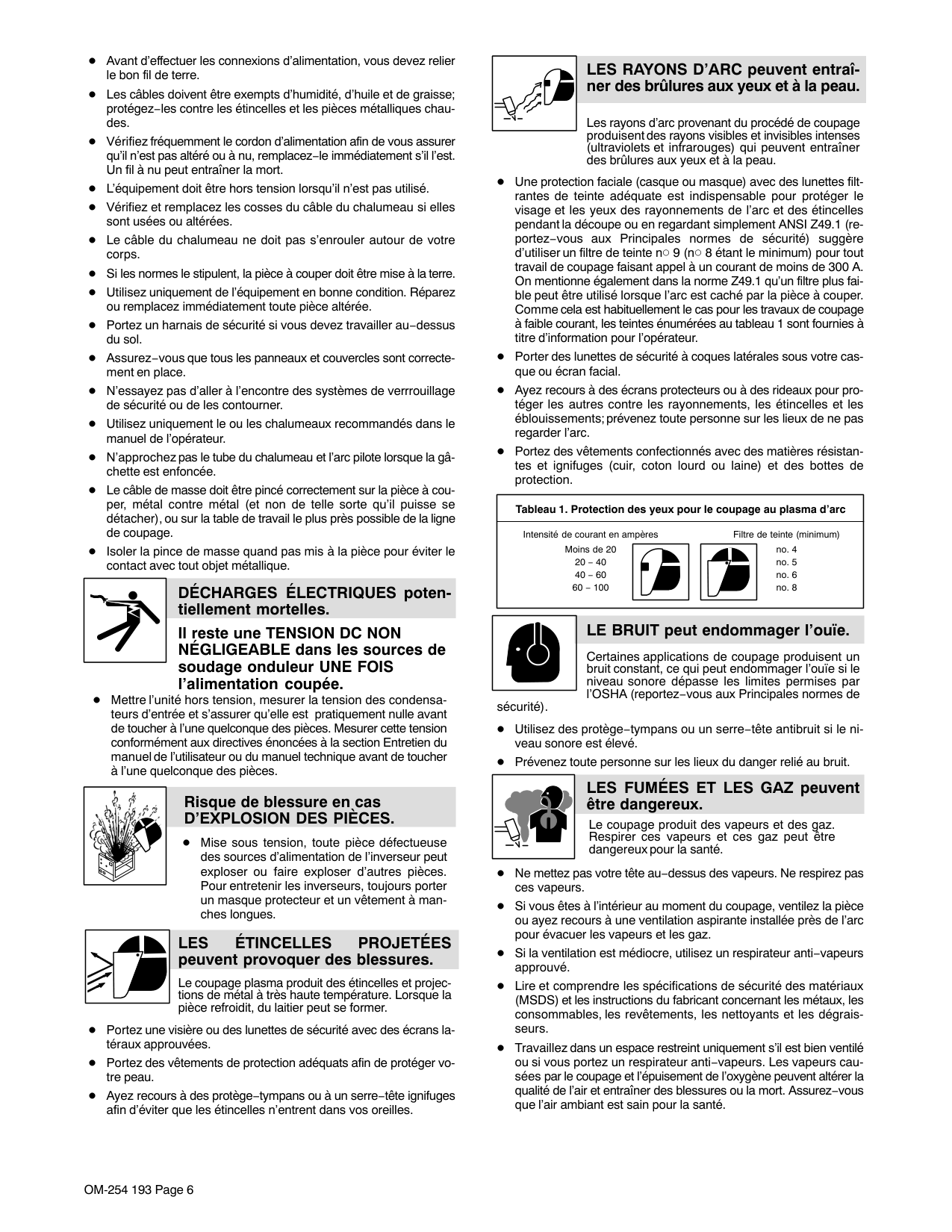

OM-254 193 Page 6 Avant d’effectuer les connexions d’alimentation, vous devez relier le bon fil de terre. Les câbles doivent être exempts d’humidité, d’huile et de graisse; protégez−les contre les étincelles et les pièces métalliques chau- des. Vérifiez fréquemment le cordon d’alimentation afin de vous assurer qu’il n’est pas altéré ou à nu, remplacez−le immédiatement s’il l’est. Un fil à nu peut entraîner la mort. L’équipement doit être hors tension lorsqu’il n’est pas utilisé. Vérifiez et remplacez les cosses du câble du chalumeau si elles sont usées ou altérées. Le câble du chalumeau ne doit pas s’enrouler autour de votre corps. Si les normes le stipulent, la pièce à couper doit être mise à la terre. Utilisez uniquement de l’équipement en bonne condition. Réparez ou remplacez immédiatement toute pièce altérée. Portez un harnais de sécurité si vous devez travailler au−dessus du sol. Assurez−vous que tous les panneaux et couvercles sont correcte- ment en place. N’essayez pas d’aller à l’encontre des systèmes de verrrouillage de sécurité ou de les contourner. Utilisez uniquement le ou les chalumeaux recommandés dans le manuel de l’opérateur. N’approchez pas le tube du chalumeau et l’arc pilote lorsque la gâ- chette est enfoncée. Le câble de masse doit être pincé correctement sur la pièce à cou- per, métal contre métal (et non de telle sorte qu’il puisse se détacher), ou sur la table de travail le plus près possible de la ligne de coupage. Isoler la pince de masse quand pas mis à la pièce pour éviter le contact avec tout objet métallique. DÉCHARGES ÉLECTRIQUES poten- tiellement mortelles. Il reste une TENSION DC NON NÉGLIGEABLE dans les sources de soudage onduleur UNE FOIS l’alimentation coupée. Mettre l’unité hors tension, mesurer la tension des condensa- teurs d’entrée et s’assurer qu’elle est pratiquement nulle avant de toucher à l’une quelconque des pièces. Mesurer cette tension conformément aux directives énoncées à la section Entretien du manuel de l’utilisateur ou du manuel technique avant de toucher à l’une quelconque des pièces. Risque de blessure en cas
D’Explosion Des Pièces.
Mise sous tension, toute pièce défectueuse des sources d’alimentation de l’inverseur peut exploser ou faire exploser d’autres pièces. Pour entretenir les inverseurs, toujours porter un masque protecteur et un vêtement à man- ches longues. Le coupage plasma produit des étincelles et projec- tions de métal à très haute température. Lorsque la pièce refroidit, du laitier peut se former.Les
Étincelles
Projetées
peuvent provoquer des blessures. Portez une visière ou des lunettes de sécurité avec des écrans la- téraux approuvées. Portez des vêtements de protection adéquats afin de protéger vo- tre peau. Ayez recours à des protège−tympans ou à un serre−tête ignifuges afin d’éviter que les étincelles n’entrent dans vos oreilles. Les rayons d’arc provenant du procédé de coupage produisent des rayons visibles et invisibles intenses (ultraviolets et infrarouges) qui peuvent entraîner des brûlures aux yeux et à la peau. LES RAYONS D’ARC peuvent entraî- ner des brûlures aux yeux et à la peau. Une protection faciale (casque ou masque) avec des lunettes filt- rantes de teinte adéquate est indispensable pour protéger le visage et les yeux des rayonnements de l’arc et des étincelles pendant la découpe ou en regardant simplement ANSI Z49.1 (re- portez−vous aux Principales normes de sécurité) suggère d’utiliser un filtre de teinte n 9 (n 8 étant le minimum) pour tout travail de coupage faisant appel à un courant de moins de 300 A. On mentionne également dans la norme Z49.1 qu’un filtre plus fai- ble peut être utilisé lorsque l’arc est caché par la pièce à couper. Comme cela est habituellement le cas pour les travaux de coupage à faible courant, les teintes énumérées au tableau 1 sont fournies à titre d’information pour l’opérateur. Porter des lunettes de sécurité à coques latérales sous votre cas- que ou écran facial. Ayez recours à des écrans protecteurs ou à des rideaux pour pro- téger les autres contre les rayonnements, les étincelles et les éblouissements; prévenez toute personne sur les lieux de ne pas regarder l’arc. Portez des vêtements confectionnés avec des matières résistan- tes et ignifuges (cuir, coton lourd ou laine) et des bottes de protection. Tableau 1. Protection des yeux pour le coupage au plasma d’arc Intensité de courant en ampères Filtre de teinte (minimum) Moins de 20 no. 4 20 − 40 no. 5 40 − 60 no. 6 60 − 100 no. 8 Certaines applications de coupage produisent un bruit constant, ce qui peut endommager l’ouïe si le niveau sonore dépasse les limites permises par l’OSHA (reportez−vous aux Principales normes de sécurité). LE BRUIT peut endommager l’ouïe. Utilisez des protège−tympans ou un serre−tête antibruit si le ni- veau sonore est élevé. Prévenez toute personne sur les lieux du danger relié au bruit. LES FUMÉES ET LES GAZ peuvent être dangereux. Le coupage produit des vapeurs et des gaz. Respirer ces vapeurs et ces gaz peut être dangereux pour la santé. Ne mettez pas votre tête au−dessus des vapeurs. Ne respirez pas ces vapeurs. Si vous êtes à l’intérieur au moment du coupage, ventilez la pièce ou ayez recours à une ventilation aspirante installée près de l’arc pour évacuer les vapeurs et les gaz. Si la ventilation est médiocre, utilisez un respirateur anti−vapeurs approuvé. Lire et comprendre les spécifications de sécurité des matériaux (MSDS) et les instructions du fabricant concernant les métaux, les consommables, les revêtements, les nettoyants et les dégrais- seurs. Travaillez dans un espace restreint uniquement s’il est bien ventilé ou si vous portez un respirateur anti−vapeurs. Les vapeurs cau- sées par le coupage et l’épuisement de l’oxygène peuvent altérer la qualité de l’air et entraîner des blessures ou la mort. Assurez−vous que l’air ambiant est sain pour la santé.

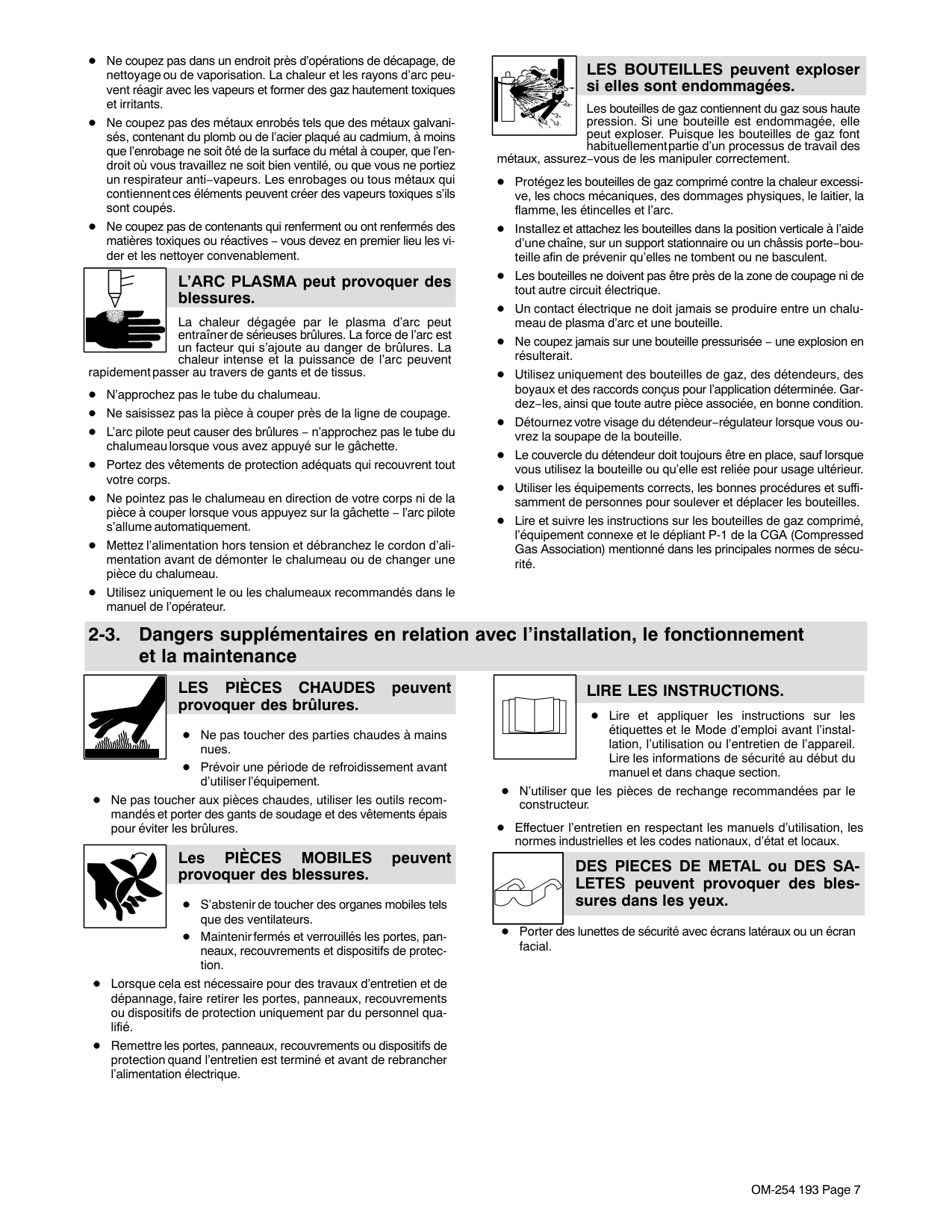

OM-254 193 Page 7 Ne coupez pas dans un endroit près d’opérations de décapage, de nettoyage ou de vaporisation. La chaleur et les rayons d’arc peu- vent réagir avec les vapeurs et former des gaz hautement toxiques et irritants. Ne coupez pas des métaux enrobés tels que des métaux galvani- sés, contenant du plomb ou de l’acier plaqué au cadmium, à moins que l’enrobage ne soit ôté de la surface du métal à couper, que l’en- droit où vous travaillez ne soit bien ventilé, ou que vous ne portiez un respirateur anti−vapeurs. Les enrobages ou tous métaux qui contiennent ces éléments peuvent créer des vapeurs toxiques s’ils sont coupés. Ne coupez pas de contenants qui renferment ou ont renfermés des matières toxiques ou réactives − vous devez en premier lieu les vi- der et les nettoyer convenablement. L’ARC PLASMA peut provoquer des blessures. La chaleur dégagée par le plasma d’arc peut entraîner de sérieuses brûlures. La force de l’arc est un facteur qui s’ajoute au danger de brûlures. La chaleur intense et la puissance de l’arc peuvent rapidement passer au travers de gants et de tissus. N’approchez pas le tube du chalumeau. Ne saisissez pas la pièce à couper près de la ligne de coupage. L’arc pilote peut causer des brûlures − n’approchez pas le tube du chalumeau lorsque vous avez appuyé sur le gâchette. Portez des vêtements de protection adéquats qui recouvrent tout votre corps. Ne pointez pas le chalumeau en direction de votre corps ni de la pièce à couper lorsque vous appuyez sur la gâchette − l’arc pilote s’allume automatiquement. Mettez l’alimentation hors tension et débranchez le cordon d’ali- mentation avant de démonter le chalumeau ou de changer une pièce du chalumeau. Utilisez uniquement le ou les chalumeaux recommandés dans le manuel de l’opérateur. Les bouteilles de gaz contiennent du gaz sous haute pression. Si une bouteille est endommagée, elle peut exploser. Puisque les bouteilles de gaz font habituellement partie d’un processus de travail des métaux, assurez−vous de les manipuler correctement. LES BOUTEILLES peuvent exploser si elles sont endommagées. Protégez les bouteilles de gaz comprimé contre la chaleur excessi- ve, les chocs mécaniques, des dommages physiques, le laitier, la flamme, les étincelles et l’arc. Installez et attachez les bouteilles dans la position verticale à l’aide d’une chaîne, sur un support stationnaire ou un châssis porte−bou- teille afin de prévenir qu’elles ne tombent ou ne basculent. Les bouteilles ne doivent pas être près de la zone de coupage ni de tout autre circuit électrique. Un contact électrique ne doit jamais se produire entre un chalu- meau de plasma d’arc et une bouteille. Ne coupez jamais sur une bouteille pressurisée − une explosion en résulterait. Utilisez uniquement des bouteilles de gaz, des détendeurs, des boyaux et des raccords conçus pour l’application déterminée. Gar- dez−les, ainsi que toute autre pièce associée, en bonne condition. Détournez votre visage du détendeur−régulateur lorsque vous ou- vrez la soupape de la bouteille. Le couvercle du détendeur doit toujours être en place, sauf lorsque vous utilisez la bouteille ou qu’elle est reliée pour usage ultérieur. Utiliser les équipements corrects, les bonnes procédures et suffi- samment de personnes pour soulever et déplacer les bouteilles. Lire et suivre les instructions sur les bouteilles de gaz comprimé, l’équipement connexe et le dépliant P-1 de la CGA (Compressed Gas Association) mentionné dans les principales normes de sécu- rité. 2-3. Dangers supplémentaires en relation avec l’installation, le fonctionnement et la maintenance LES PIÈCES CHAUDES peuvent provoquer des brûlures. Ne pas toucher des parties chaudes à mains nues. Prévoir une période de refroidissement avant d’utiliser l’équipement. Ne pas toucher aux pièces chaudes, utiliser les outils recom- mandés et porter des gants de soudage et des vêtements épais pour éviter les brûlures. Les
Pièces
Mobiles
peuvent provoquer des blessures. S’abstenir de toucher des organes mobiles tels que des ventilateurs. Maintenir fermés et verrouillés les portes, pan- neaux, recouvrements et dispositifs de protec- tion. Lorsque cela est nécessaire pour des travaux d’entretien et de dépannage, faire retirer les portes, panneaux, recouvrements ou dispositifs de protection uniquement par du personnel qua- lifié. Remettre les portes, panneaux, recouvrements ou dispositifs de protection quand l’entretien est terminé et avant de rebrancher l’alimentation électrique.Lire Les Instructions.
Lire et appliquer les instructions sur les étiquettes et le Mode d’emploi avant l’instal- lation, l’utilisation ou l’entretien de l’appareil. Lire les informations de sécurité au début du manuel et dans chaque section. N’utiliser que les pièces de rechange recommandées par le constructeur. Effectuer l’entretien en respectant les manuels d’utilisation, les normes industrielles et les codes nationaux, d’état et locaux. DES PIECES DE METAL ou DES SA- LETES peuvent provoquer des bles- sures dans les yeux. Porter des lunettes de sécurité avec écrans latéraux ou un écran facial.

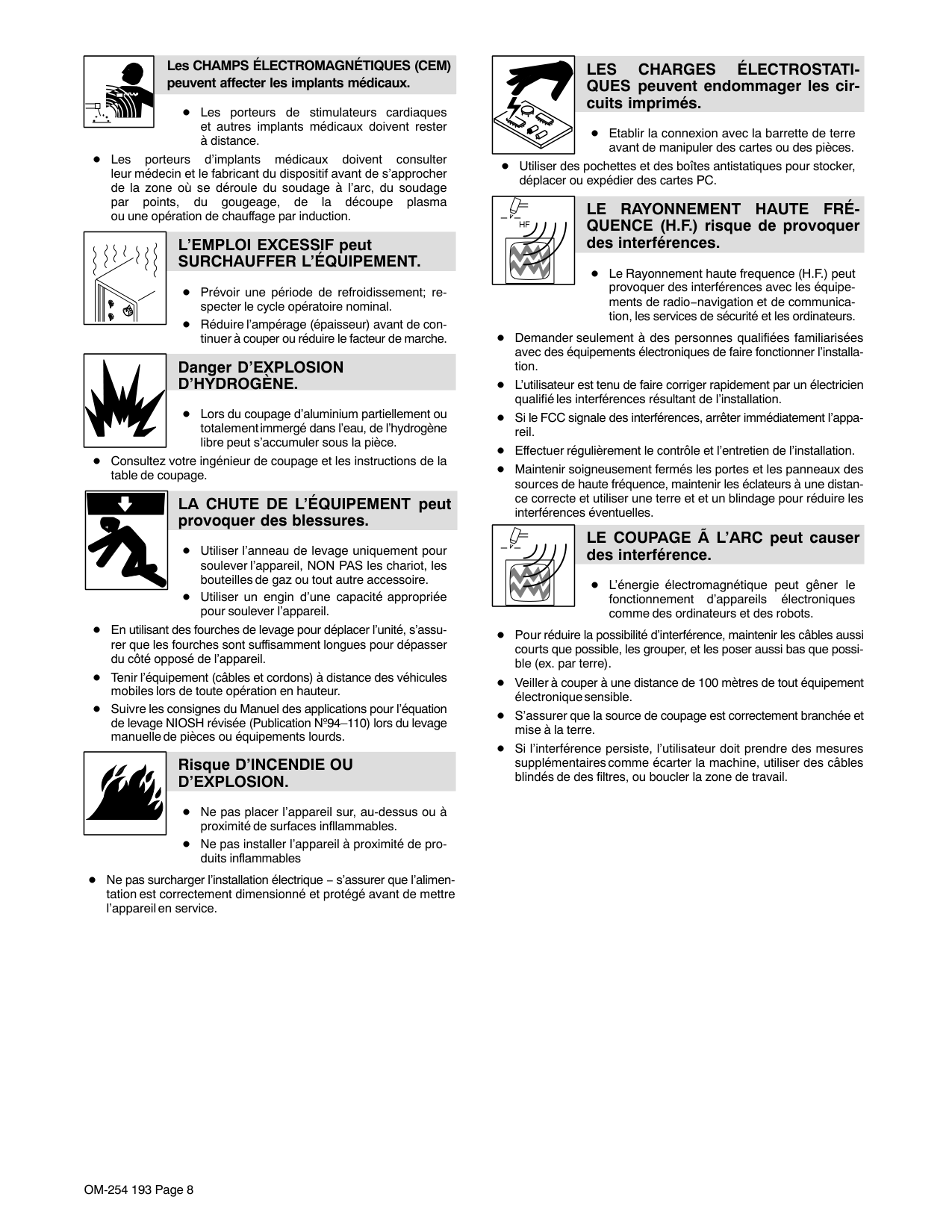

OM-254 193 Page 8 Les CHAMPS ÉLECTROMAGNÉTIQUES (CEM) peuvent affecter les implants médicaux. Les porteurs de stimulateurs cardiaques et autres implants médicaux doivent rester à distance. Les porteurs d’implants médicaux doivent consulter leur médecin et le fabricant du dispositif avant de s’approcher de la zone où se déroule du soudage à l’arc, du soudage par points, du gougeage, de la découpe plasma ou une opération de chauffage par induction. L’EMPLOI EXCESSIF peut
Surchauffer L’Équipement.
Prévoir une période de refroidissement; re- specter le cycle opératoire nominal. Réduire l’ampérage (épaisseur) avant de con- tinuer à couper ou réduire le facteur de marche. Danger D’EXPLOSIOND’Hydrogène.
Lors du coupage d’aluminium partiellement ou totalement immergé dans l’eau, de l’hydrogène libre peut s’accumuler sous la pièce. Consultez votre ingénieur de coupage et les instructions de la table de coupage. LA CHUTE DE L’ÉQUIPEMENT peut provoquer des blessures. Utiliser l’anneau de levage uniquement pour soulever l’appareil, NON PAS les chariot, les bouteilles de gaz ou tout autre accessoire. Utiliser un engin d’une capacité appropriée pour soulever l’appareil. En utilisant des fourches de levage pour déplacer l’unité, s’assu- rer que les fourches sont suffisamment longues pour dépasser du côté opposé de l’appareil. Tenir l’équipement (câbles et cordons) à distance des véhicules mobiles lors de toute opération en hauteur. Suivre les consignes du Manuel des applications pour l’équation de levage NIOSH révisée (Publication Nº94–110) lors du levage manuelle de pièces ou équipements lourds. Risque D’INCENDIE OUD’Explosion.
Ne pas placer l’appareil sur, au-dessus ou à proximité de surfaces infllammables. Ne pas installer l’appareil à proximité de pro- duits inflammables Ne pas surcharger l’installation électrique − s’assurer que l’alimen- tation est correctement dimensionné et protégé avant de mettre l’appareil en service.Les
Charges
Électrostati-
QUES peuvent endommager les cir- cuits imprimés. Etablir la connexion avec la barrette de terre avant de manipuler des cartes ou des pièces. Utiliser des pochettes et des boîtes antistatiques pour stocker, déplacer ou expédier des cartes PC.Le Rayonnement Haute Fré-
QUENCE (H.F.) risque de provoquer des interférences. Le Rayonnement haute frequence (H.F.) peut provoquer des interférences avec les équipe- ments de radio−navigation et de communica- tion, les services de sécurité et les ordinateurs. Demander seulement à des personnes qualifiées familiarisées avec des équipements électroniques de faire fonctionner l’installa- tion. L’utilisateur est tenu de faire corriger rapidement par un électricien qualifié les interférences résultant de l’installation. Si le FCC signale des interférences, arrêter immédiatement l’appa- reil. Effectuer régulièrement le contrôle et l’entretien de l’installation. Maintenir soigneusement fermés les portes et les panneaux des sources de haute fréquence, maintenir les éclateurs à une distan- ce correcte et utiliser une terre et et un blindage pour réduire les interférences éventuelles. LE COUPAGE Ã L’ARC peut causer des interférence. L’énergie électromagnétique peut gêner le fonctionnement d’appareils électroniques comme des ordinateurs et des robots. Pour réduire la possibilité d’interférence, maintenir les câbles aussi courts que possible, les grouper, et les poser aussi bas que possi- ble (ex. par terre). Veiller à couper à une distance de 100 mètres de tout équipement électronique sensible. S’assurer que la source de coupage est correctement branchée et mise à la terre. Si l’interférence persiste, l’utilisateur doit prendre des mesures supplémentaires comme écarter la machine, utiliser des câbles blindés de des filtres, ou boucler la zone de travail.
OM-254 193 Page 9 2-4. Proposition californienne 65 Avertissements Les équipements de soudage et de coupage produisent des fumées et des gaz qui contiennent des produits chimiques dont l’État de Californie reconnaît qu’ils provoquent des mal- formations congénitales et, dans certains cas, des cancers. (Code de santé et de sécurité de Californie, chapitre 25249.5 et suivants) Ce produit contient des produits chimiques, compris du plomb, dont l’État de Californie reconnaît qu’ils provoquent des cancers et des malformations congénitales ou autres problèmes de procréation. Se laver les mains après manipulation. Ce produit contient des éléments chimiques, dont le plomb, reconnus par l’État de Californie pour leur caractère cancérogène ainsi que provoquant des malformations congénitales ou autres problèmes de procréation. Se laver les mains après toute manipulation. Pour les moteurs à essence : Les gaz d’échappement des moteurs contiennent des pro- duits chimiques dont l’État de Californie reconnaît qu’ils provoquent des cancers et des malformations congénitales ou autres problèmes de procréation. Pour les moteurs diesel : Les gaz d’échappement des moteurs diesel et certains de leurs composants sont reconnus par l’État de Californie com- me provoquant des cancers et des malformations congénitales ou autres problèmes de procréation. 2-5. Principales normes de sécurité Safety in Welding, Cutting, and Allied Processes, ANSI Standard Z49.1, de Global Engineering Documents (téléphone : 1-877-413-5184, site In- ternet : www.global.ihs.com). Recommended Practices for Plasma Arc Cutting and Gouging, Ameri- can Welding Society Standard AWS C5.2, de Global Engineering Documents (téléphone : 1-877-413-5184, site internet : www.global.ihs.com). Safe Practices for the Preparation of Containers and Piping for Welding and Cutting, American Welding Society Standard AWS F4.1, de Global Engineering Documents (téléphone: 1-877-413-5184, site internet : www.global.ihs.com). National Electrical Code, NFPA Standard 70, de National Fire Protection Association, Quincy, MA 02269 (téléphone : 1-800-344-3555, site Inter- net : www.nfpa.org et www.sparky.org). Safe Handling of Compressed Gases in Cylinders, CGA Pamphlet P-1, de Compressed Gas Association, 4221 Walney Road, 5th Floor, Chan- tilly, VA 20151 (téléphone : 703-788-2700, site Internet : www.cganet.com). Safety in Welding, Cutting, and Allied Processes, CSA Standard W117.2, de Canadian Standards Association, Standards Sales, 5060 Spectrum Way, Suite 100, Ontario, Canada L4W 5NS (téléphone : 800-463-6727, site internet : www.csa-international.org). Safe Practice For Occupational And Educational Eye And Face Protec- tion, ANSI Standard Z87.1, de American National Standards Institute, 25 West 43rd Street, New York, NY 10036 (téléphone : 212-642-4900, site Internet : www.ansi.org). Standard for Fire Prevention During Welding, Cutting, and Other Hot Work, NFPA Standard 51B, de National Fire Protection Association, Quincy, MA 02269 (téléphone : 1-800-344-3555, site Internet : www.nfpa.org). OSHA, Occupational Safety and Health Standards for General Industry, Title 29, Code of Federal Regulations (CFR), Part 1910, Subpart Q, and Part 1926, Subpart J, de U.S. Government Printing Office, Superinten- dent of Documents, P.O. Box 371954, Pittsburgh, PA 15250-7954 (téléphone : 1-866-512-1800) (il y a 10 bureaux régionaux −le téléphone de la région 5, Chicago, est 312-353-2220, site Internet : www.osha.gov). Applications Manual for the Revised NIOSH Lifting Equation, The Na- tional Institute for Occupational Safety and Health (NIOSH), 1600 Clifton Rd, Atlanta, GA 30333 (téléphone: 1-800-232-4636, site internet : www.cdc.gov/NIOSH). 2-6. Informations relatives aux CEM Le courant électrique qui traverse tout conducteur génère des champs électromagnétiques (CEM) à certains endroits. Le courant de soudage crée un CEM autour du circuit et du matériel de soudage. Les CEM peuvent créer des interférences avec certains implants médicaux comme des stimulateurs cardiaques. Des mesures de protection pour les porteurs d’implants médicaux doivent être prises: par exemple, des restrictions d’accès pour les passants ou une évaluation individuelle des risques pour les soudeurs. Tous les soudeurs doivent appliquer les procédures suivantes pour minimiser l’exposition aux CEM provenant du circuit de soudage:
OM-254 193 Page 10

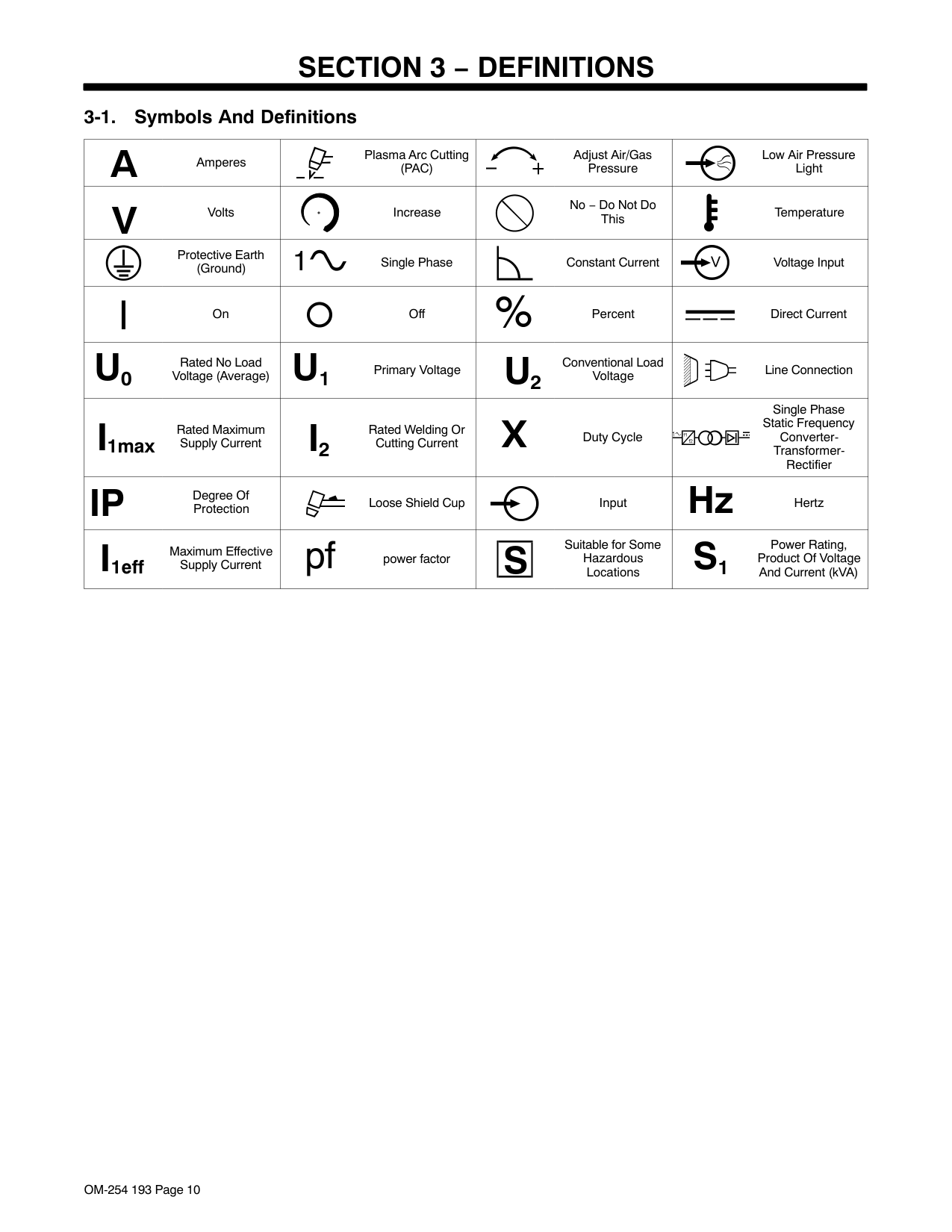

Section 3 − Definitions
3-1. Symbols And DefinitionsA
Amperes Plasma Arc Cutting(Pac)
Adjust Air/Gas Pressure Low Air Pressure LightV
Volts Increase No − Do Not Do This Temperature Protective Earth (Ground) Single Phase Constant Current Voltage Input On Off Percent Direct CurrentU0
Rated No Load Voltage (Average) U1 Primary VoltageU2
Conventional Load Voltage Line Connection I1max Rated Maximum Supply CurrentI2
Rated Welding Or Cutting CurrentX
Duty Cycle Single Phase Static Frequency Converter- Transformer- RectifierIp
Degree Of Protection Loose Shield Cup Input Hz Hertz I1eff Maximum Effective Supply Current pf power factorS
Suitable for Some Hazardous LocationsS1
Power Rating, Product Of Voltage And Current (kVA)
OM-254 193 Page 11

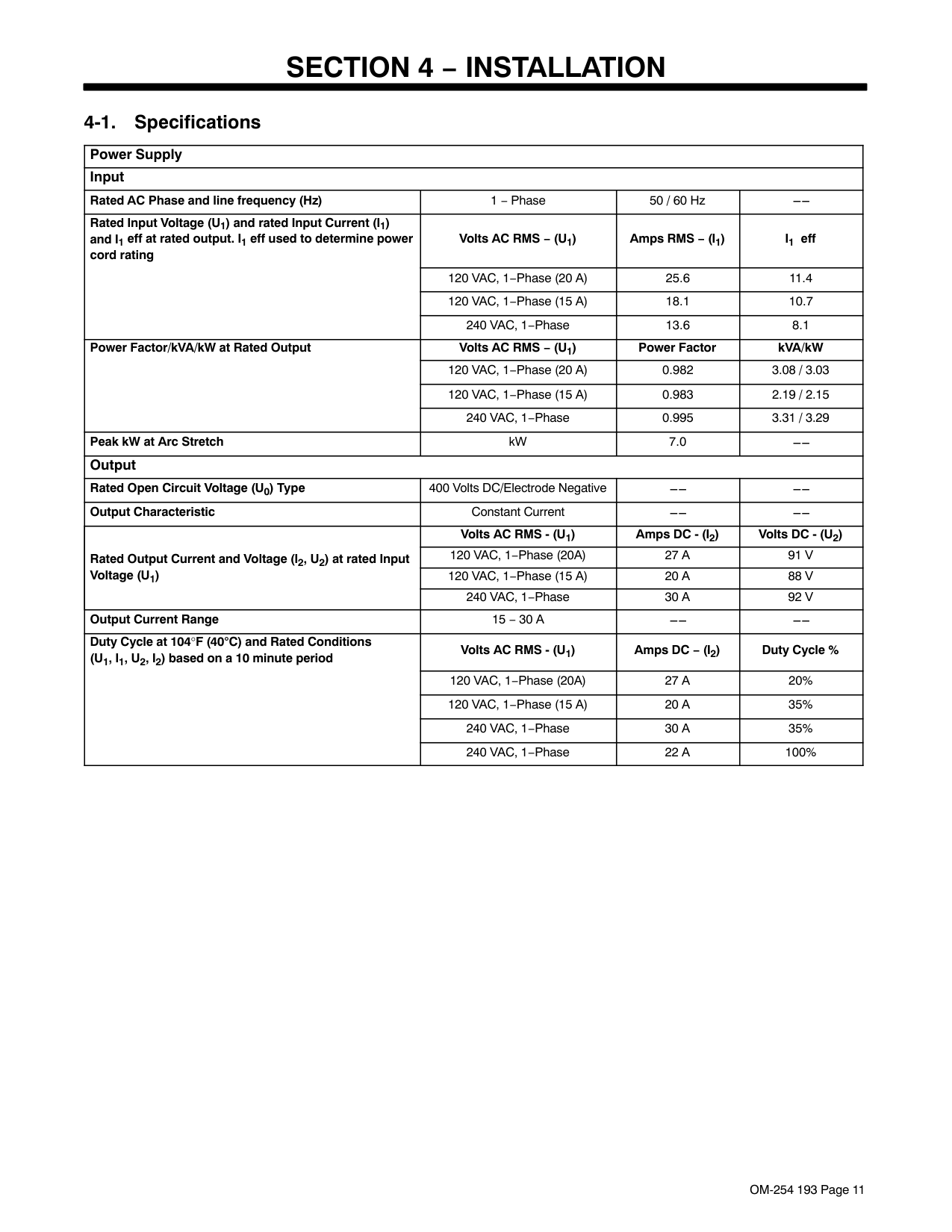

Section 4 − Installation
4-1. Specifications Power Supply Input Rated AC Phase and line frequency (Hz) 1 − Phase 50 / 60 Hz −− Rated Input Voltage (U1) and rated Input Current (I1) and I1 eff at rated output. I1 eff used to determine power cord rating Volts AC RMS − (U1) Amps RMS − (I1) I1 eff 120 VAC, 1−Phase (20 A) 25.6 11.4 120 VAC, 1−Phase (15 A) 18.1 10.7 240 VAC, 1−Phase 13.6 8.1 Power Factor/kVA/kW at Rated Output Volts AC RMS − (U1) Power Factor kVA/kW 120 VAC, 1−Phase (20 A) 0.982 3.08 / 3.03 120 VAC, 1−Phase (15 A) 0.983 2.19 / 2.15 240 VAC, 1−Phase 0.995 3.31 / 3.29 Peak kW at Arc Stretch kW 7.0 −− Output Rated Open Circuit Voltage (U0) Type 400 Volts DC/Electrode Negative −− −− Output Characteristic Constant Current −− −− Rated Output Current and Voltage (I2, U2) at rated Input Voltage (U1) Volts AC RMS - (U1) Amps DC - (I2) Volts DC - (U2) 120 VAC, 1−Phase (20A)27 A
91 V
120 VAC, 1−Phase (15 A)20 A
88 V
240 VAC, 1−Phase30 A
92 V
Output Current Range15 − 30 A
−− −− Duty Cycle at 104°F (40C) and Rated Conditions (U1, I1, U2, I2) based on a 10 minute period Volts AC RMS - (U1) Amps DC − (I2) Duty Cycle % 120 VAC, 1−Phase (20A)27 A
20% 120 VAC, 1−Phase (15 A)20 A
35% 240 VAC, 1−Phase30 A
35% 240 VAC, 1−Phase22 A
100%

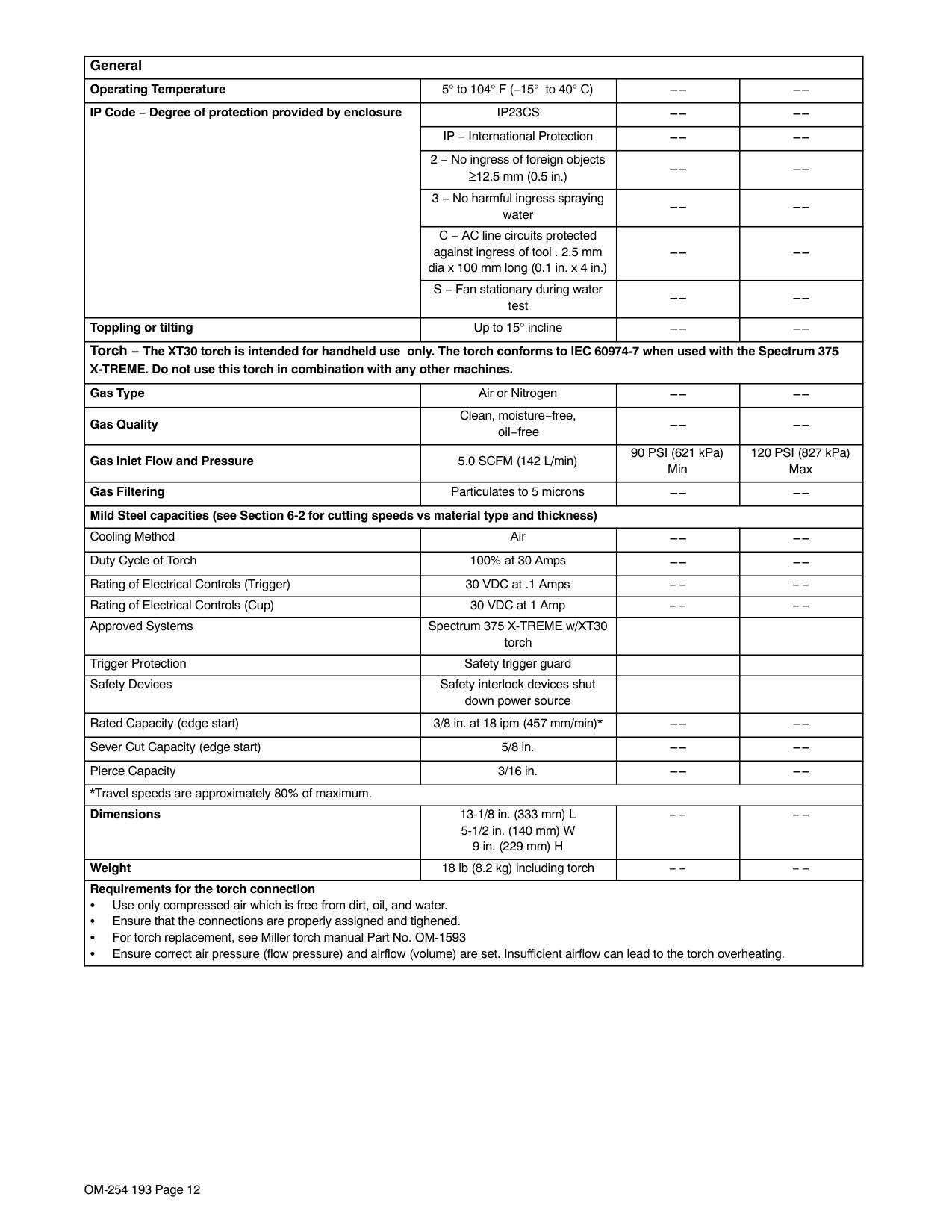

OM-254 193 Page 12 General Operating Temperature 5° to 104° F (−15° to 40° C) −− −− IP Code − Degree of protection provided by enclosure
Ip23Cs
−− −− IP − International Protection −− −− 2 − No ingress of foreign objects ≥12.5 mm (0.5 in.) −− −− 3 − No harmful ingress spraying water −− −− C − AC line circuits protected against ingress of tool . 2.5 mm dia x 100 mm long (0.1 in. x 4 in.) −− −− S − Fan stationary during water test −− −− Toppling or tilting Up to 15° incline −− −− Torch − The XT30 torch is intended for handheld use only. The torch conforms to IEC 60974-7 when used with the Spectrum 375 X-TREME. Do not use this torch in combination with any other machines. Gas Type Air or Nitrogen −− −− Gas Quality Clean, moisture−free, oil−free −− −− Gas Inlet Flow and Pressure 5.0 SCFM (142 L/min) 90 PSI (621 kPa) Min 120 PSI (827 kPa) Max Gas Filtering Particulates to 5 microns −− −− Mild Steel capacities (see Section 6-2 for cutting speeds vs material type and thickness) Cooling Method Air −− −− Duty Cycle of Torch 100% at 30 Amps −− −− Rating of Electrical Controls (Trigger) 30 VDC at .1 Amps − − − − Rating of Electrical Controls (Cup) 30 VDC at 1 Amp − − − − Approved Systems Spectrum 375 X-TREME w/XT30 torch Trigger Protection Safety trigger guard Safety Devices Safety interlock devices shut down power source Rated Capacity (edge start) 3/8 in. at 18 ipm (457 mm/min)* −− −− Sever Cut Capacity (edge start) 5/8 in. −− −− Pierce Capacity 3/16 in. −− −− *Travel speeds are approximately 80% of maximum. Dimensions 13-1/8 in. (333 mm) L 5-1/2 in. (140 mm) W 9 in. (229 mm) H − − − − Weight 18 lb (8.2 kg) including torch − − − − Requirements for the torch connection Use only compressed air which is free from dirt, oil, and water. Ensure that the connections are properly assigned and tighened. For torch replacement, see Miller torch manual Part No. OM-1593 Ensure correct air pressure (flow pressure) and airflow (volume) are set. Insufficient airflow can lead to the torch overheating.

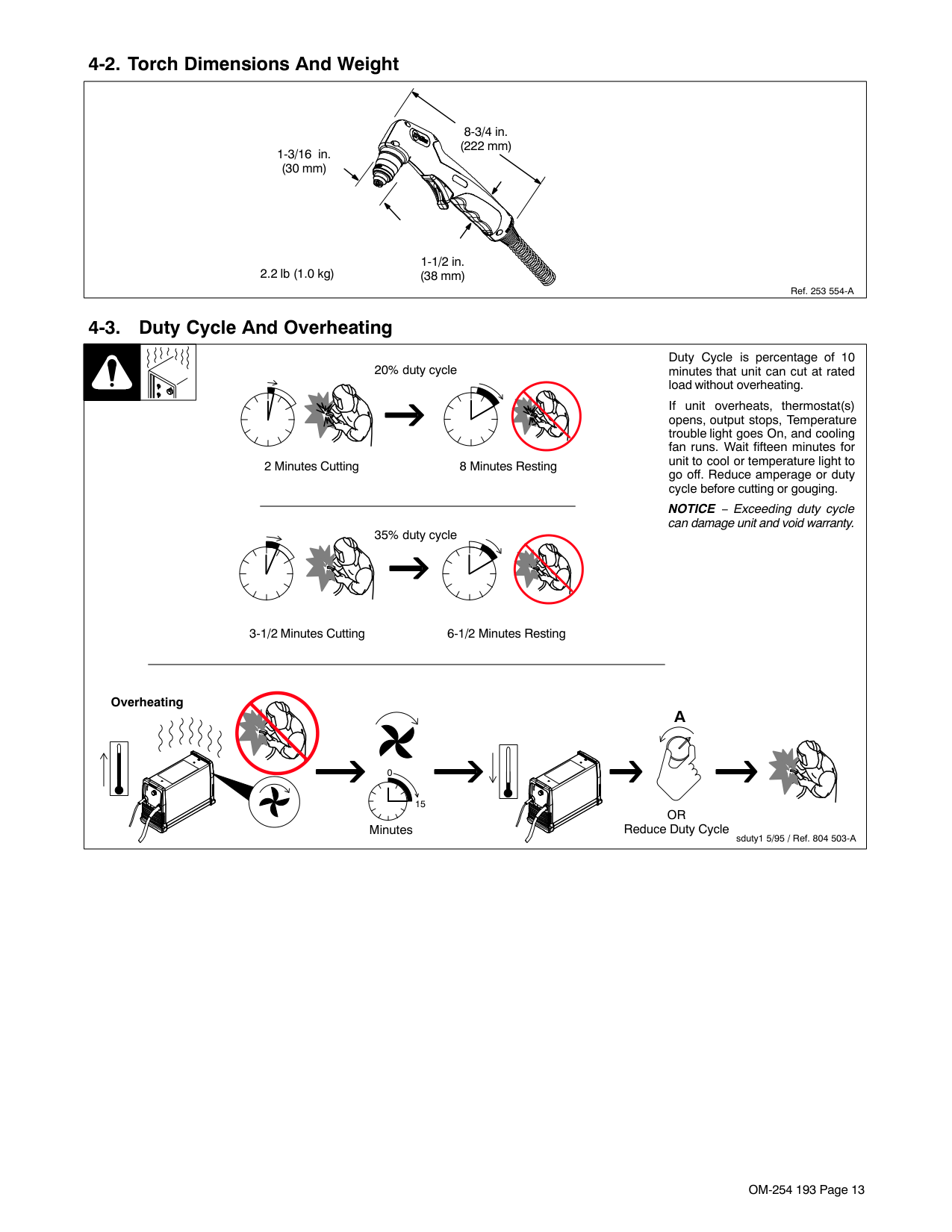

OM-254 193 Page 13 4-2. Torch Dimensions And Weight Ref. 253 554-A 2.2 lb (1.0 kg) 1-3/16 in. (30 mm) 8-3/4 in. (222 mm) 1-1/2 in. (38 mm) 4-3. Duty Cycle And Overheating Duty Cycle is percentage of 10 minutes that unit can cut at rated load without overheating. If unit overheats, thermostat(s) opens, output stops, Temperature trouble light goes On, and cooling fan runs. Wait fifteen minutes for unit to cool or temperature light to go off. Reduce amperage or duty cycle before cutting or gouging. NOTICE − Exceeding duty cycle can damage unit and void warranty. Overheating sduty1 5/95 / Ref. 804 503-A 3-1/2 Minutes Cutting 6-1/2 Minutes Resting 35% duty cycle 0 15 Minutes
A
Or
Reduce Duty Cycle 2 Minutes Cutting 8 Minutes Resting 20% duty cycle
OM-254 193 Page 14
Section 5 − Installation

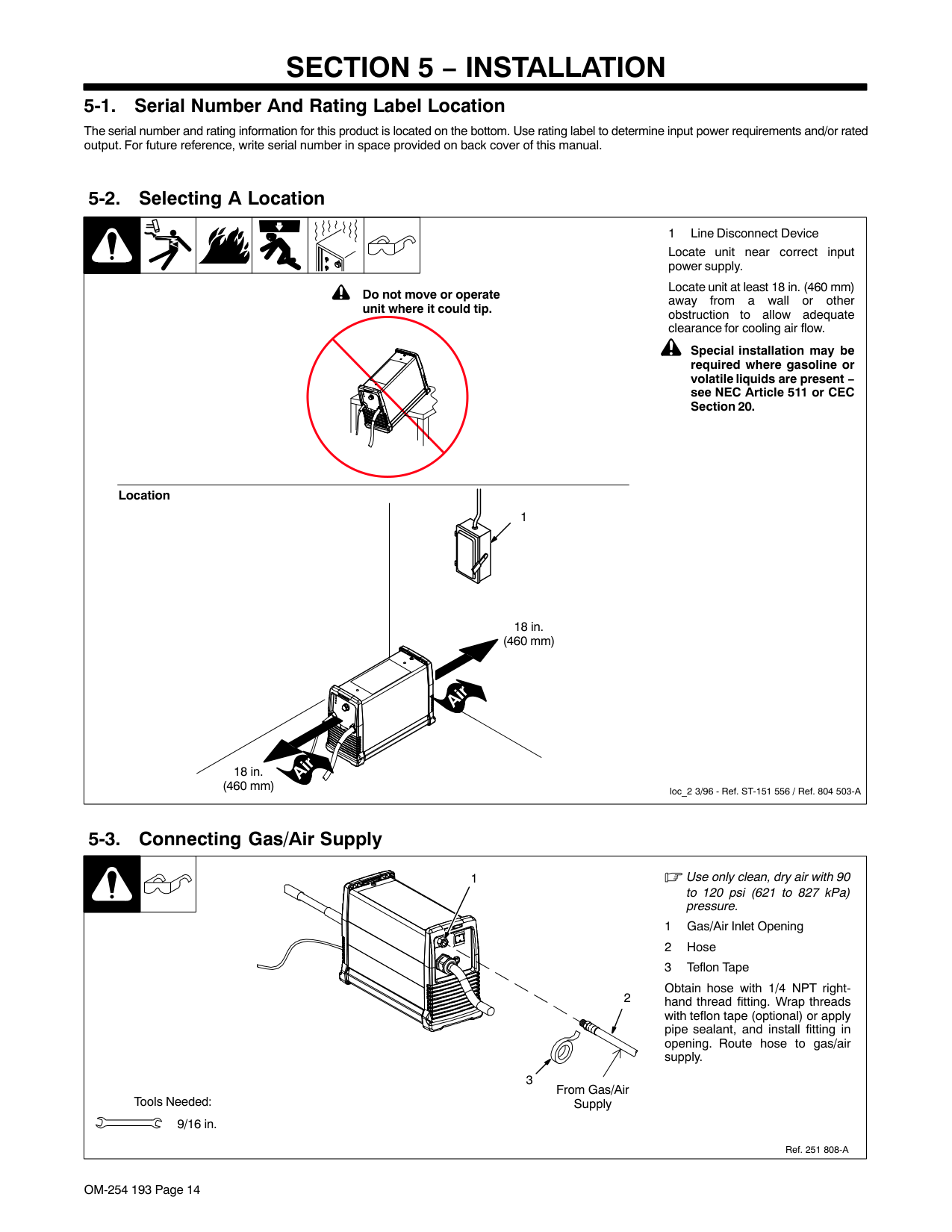

5-1. Serial Number And Rating Label Location The serial number and rating information for this product is located on the bottom. Use rating label to determine input power requirements and/or rated output. For future reference, write serial number in space provided on back cover of this manual. 5-2. Selecting A Location loc_2 3/96 - Ref. ST-151 556 / Ref. 804 503-A 1 Line Disconnect Device Locate unit near correct input power supply. Locate unit at least 18 in. (460 mm) away from a wall or other obstruction to allow adequate clearance for cooling air flow. ! Special installation may be required where gasoline or volatile liquids are present − see NEC Article 511 or CEC Section 20. Location 1 18 in. (460 mm) 18 in. (460 mm) ! Do not move or operate unit where it could tip. 5-3. Connecting Gas/Air Supply Ref. 251 808-A Use only clean, dry air with 90 to 120 psi (621 to 827 kPa) pressure. 1 Gas/Air Inlet Opening 2 Hose 3 Teflon Tape Obtain hose with 1/4 NPT right- hand thread fitting. Wrap threads with teflon tape (optional) or apply pipe sealant, and install fitting in opening. Route hose to gas/air supply. Tools Needed: 9/16 in. 3 From Gas/Air Supply 1 2

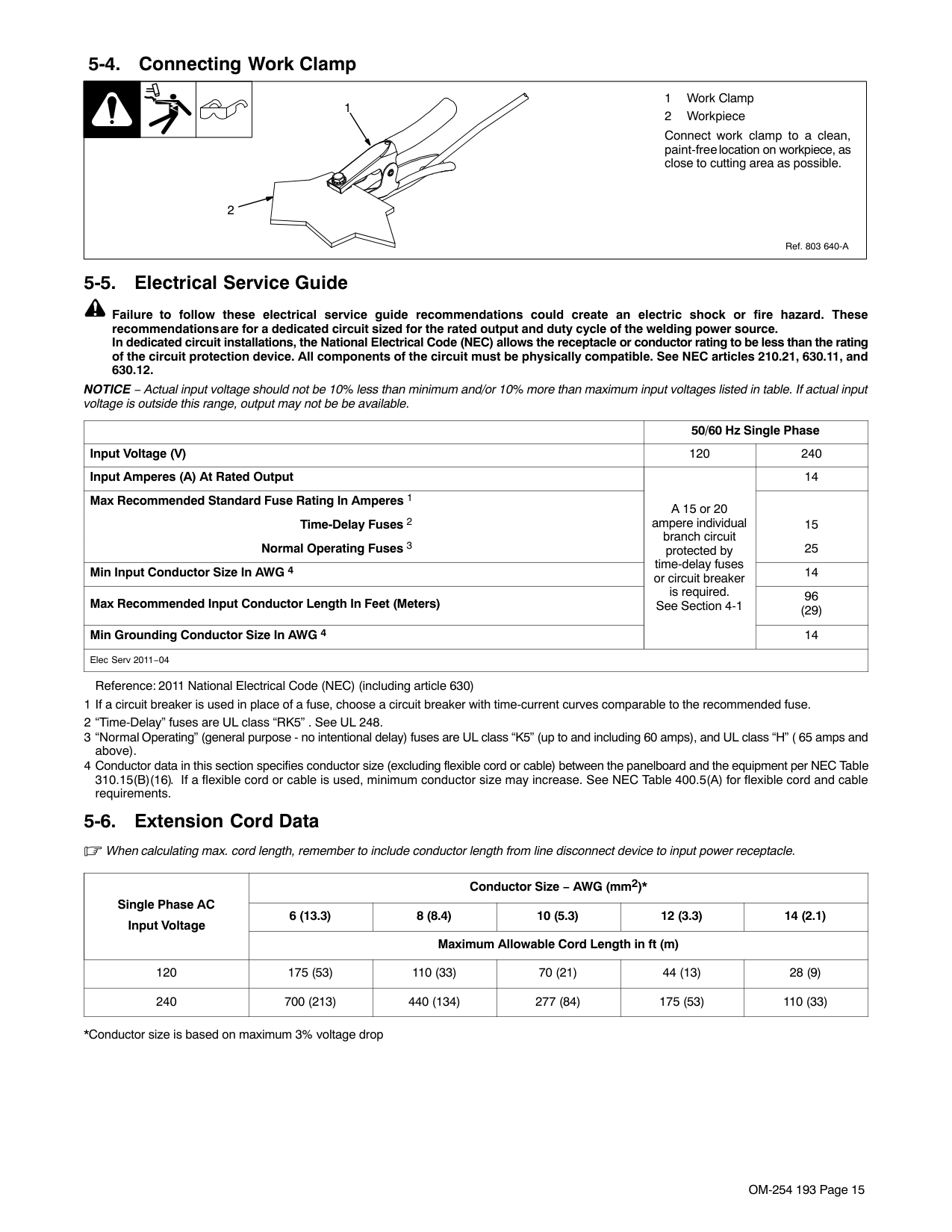

OM-254 193 Page 15 5-4. Connecting Work Clamp Ref. 803 640-A 1 Work Clamp 2 Workpiece Connect work clamp to a clean, paint-free location on workpiece, as close to cutting area as possible. 1 2 5-5. Electrical Service Guide Failure to follow these electrical service guide recommendations could create an electric shock or fire hazard. These recommendations are for a dedicated circuit sized for the rated output and duty cycle of the welding power source. In dedicated circuit installations, the National Electrical Code (NEC) allows the receptacle or conductor rating to be less than the rating of the circuit protection device. All components of the circuit must be physically compatible. See NEC articles 210.21, 630.11, and 630.12. NOTICE − Actual input voltage should not be 10% less than minimum and/or 10% more than maximum input voltages listed in table. If actual input voltage is outside this range, output may not be be available. 50/60 Hz Single Phase Input Voltage (V) 120 240 Input Amperes (A) At Rated Output A 15 or 20 ampere individual branch circuit protected by time-delay fuses or circuit breaker is required. See Section 4-1 14 Max Recommended Standard Fuse Rating In Amperes 1 Time-Delay Fuses 2 15 Normal Operating Fuses 3 25 Min Input Conductor Size In AWG 4 14 Max Recommended Input Conductor Length In Feet (Meters) 96 (29) Min Grounding Conductor Size In AWG 4 14 Elec Serv 2011−04 Reference: 2011 National Electrical Code (NEC) (including article 630) 1 If a circuit breaker is used in place of a fuse, choose a circuit breaker with time-current curves comparable to the recommended fuse. 2 “Time-Delay” fuses are UL class “RK5” . See UL 248. 3 “Normal Operating” (general purpose - no intentional delay) fuses are UL class “K5” (up to and including 60 amps), and UL class “H” ( 65 amps and above). 4 Conductor data in this section specifies conductor size (excluding flexible cord or cable) between the panelboard and the equipment per NEC Table 310.15(B)(16). If a flexible cord or cable is used, minimum conductor size may increase. See NEC Table 400.5(A) for flexible cord and cable requirements. 5-6. Extension Cord Data When calculating max. cord length, remember to include conductor length from line disconnect device to input power receptacle. Single Phase AC Input Voltage Conductor Size − AWG (mm2)* 6 (13.3) 8 (8.4) 10 (5.3) 12 (3.3) 14 (2.1) Maximum Allowable Cord Length in ft (m) 120 175 (53) 110 (33) 70 (21) 44 (13) 28 (9) 240 700 (213) 440 (134) 277 (84) 175 (53) 110 (33) *Conductor size is based on maximum 3% voltage drop

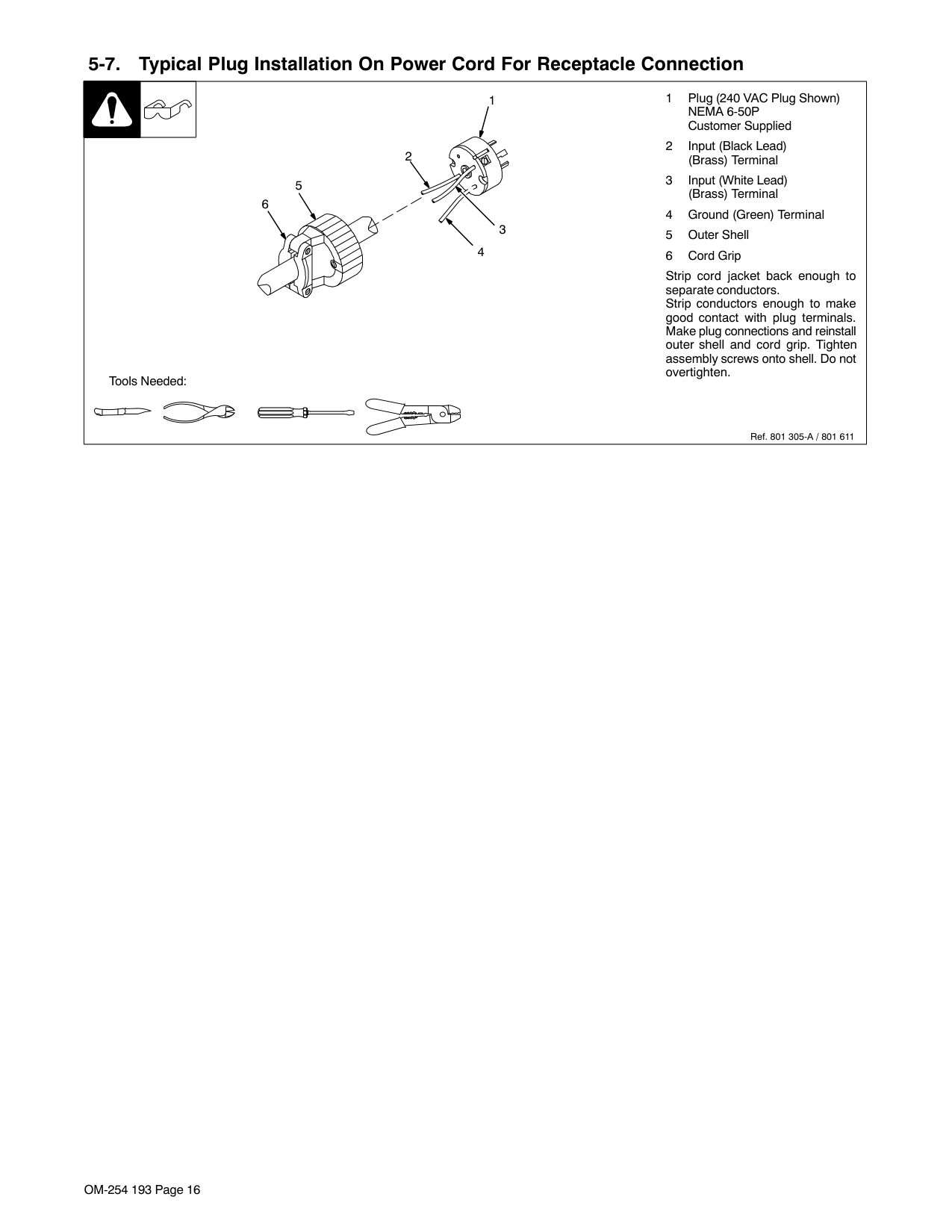

OM-254 193 Page 16 5-7. Typical Plug Installation On Power Cord For Receptacle Connection 1 Plug (240 VAC Plug Shown)
Nema 6-50P
Customer Supplied 2 Input (Black Lead) (Brass) Terminal 3 Input (White Lead) (Brass) Terminal 4 Ground (Green) Terminal 5 Outer Shell 6 Cord Grip Strip cord jacket back enough to separate conductors. Strip conductors enough to make good contact with plug terminals. Make plug connections and reinstall outer shell and cord grip. Tighten assembly screws onto shell. Do not overtighten. Ref. 801 305-A / 801 611 Tools Needed: 1 6 2 3 4 5

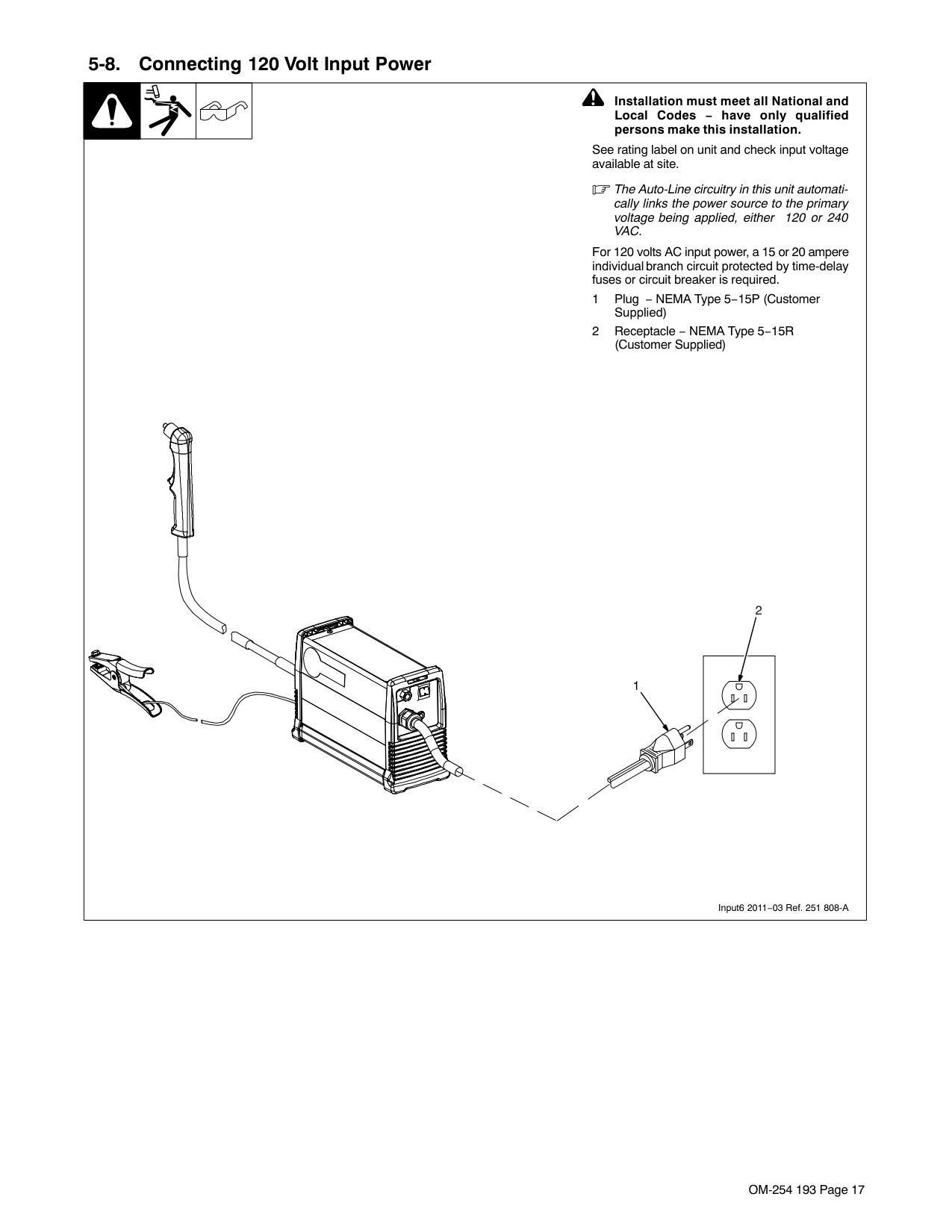

OM-254 193 Page 17 Input6 2011−03 Ref. 251 808-A 5-8. Connecting 120 Volt Input Power 1 ! Installation must meet all National and Local Codes − have only qualified persons make this installation. See rating label on unit and check input voltage available at site. The Auto-Line circuitry in this unit automati- cally links the power source to the primary voltage being applied, either 120 or 240
Vac.
For 120 volts AC input power, a 15 or 20 ampere individual branch circuit protected by time-delay fuses or circuit breaker is required. 1 Plug − NEMA Type 5−15P (Customer Supplied) 2 Receptacle − NEMA Type 5−15R (Customer Supplied) 2

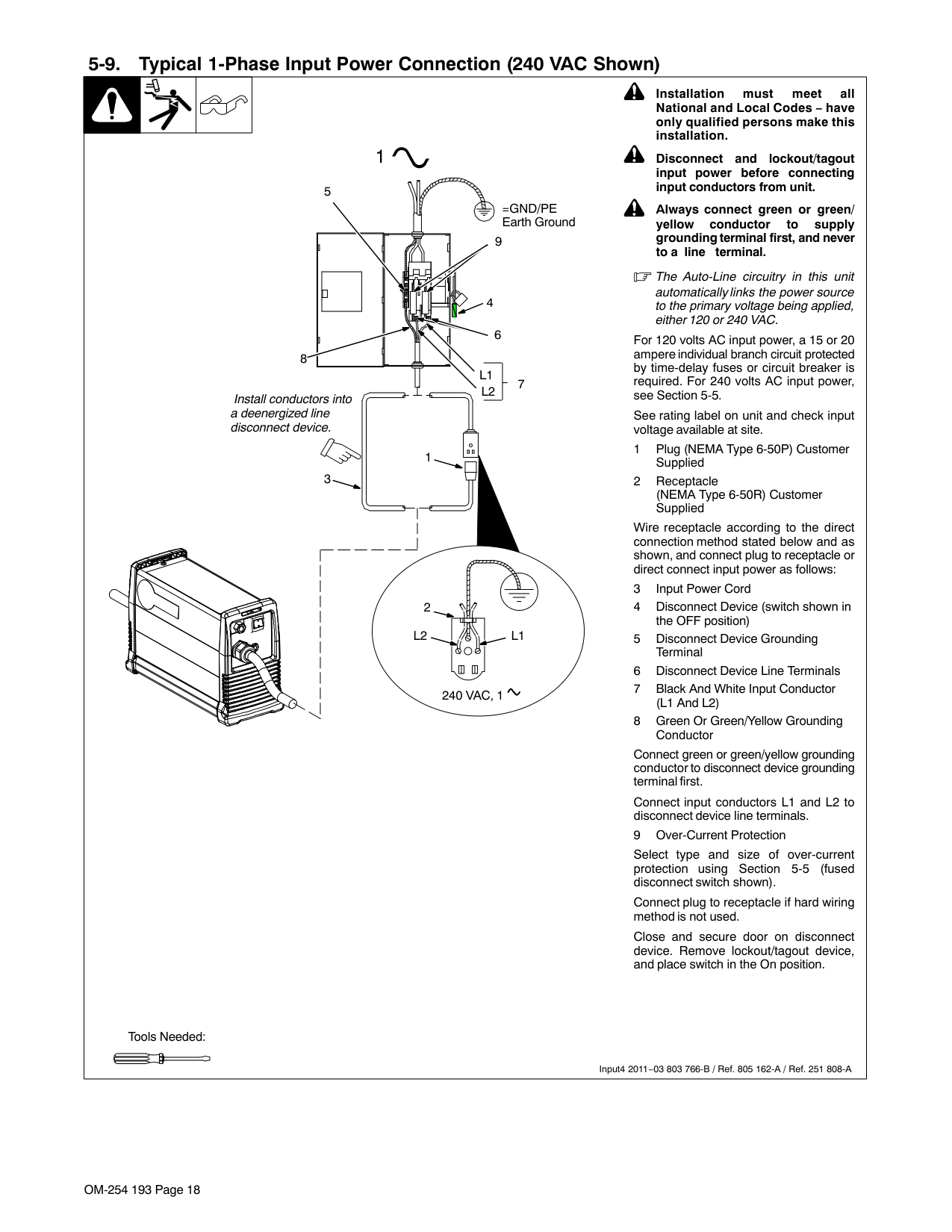

OM-254 193 Page 18 5-9. Typical 1-Phase Input Power Connection (240 VAC Shown) Input4 2011−03 803 766-B / Ref. 805 162-A / Ref. 251 808-A ! Installation must meet all National and Local Codes − have only qualified persons make this installation. ! Disconnect and lockout/tagout input power before connecting input conductors from unit. ! Always connect green or green/ yellow conductor to supply grounding terminal first, and never to a line terminal. The Auto-Line circuitry in this unit automatically links the power source to the primary voltage being applied, either 120 or 240 VAC. For 120 volts AC input power, a 15 or 20 ampere individual branch circuit protected by time-delay fuses or circuit breaker is required. For 240 volts AC input power, see Section 5-5. See rating label on unit and check input voltage available at site. 1 Plug (NEMA Type 6-50P) Customer Supplied 2 Receptacle (NEMA Type 6-50R) Customer Supplied Wire receptacle according to the direct connection method stated below and as shown, and connect plug to receptacle or direct connect input power as follows: 3 Input Power Cord 4 Disconnect Device (switch shown in the OFF position) 5 Disconnect Device Grounding Terminal 6 Disconnect Device Line Terminals 7 Black And White Input Conductor (L1 And L2) 8 Green Or Green/Yellow Grounding Conductor Connect green or green/yellow grounding conductor to disconnect device grounding terminal first. Connect input conductors L1 and L2 to disconnect device line terminals. 9 Over-Current Protection Select type and size of over-current protection using Section 5-5 (fused disconnect switch shown). Connect plug to receptacle if hard wiring method is not used. Close and secure door on disconnect device. Remove lockout/tagout device, and place switch in the On position. Tools Needed:
L1
L2
240 Vac, 1
2 1 Install conductors into a deenergized line disconnect device.=Gnd/Pe
Earth Ground 9 1L1
L2
7 8 3 4 5 6
OM-254 193 Page 19

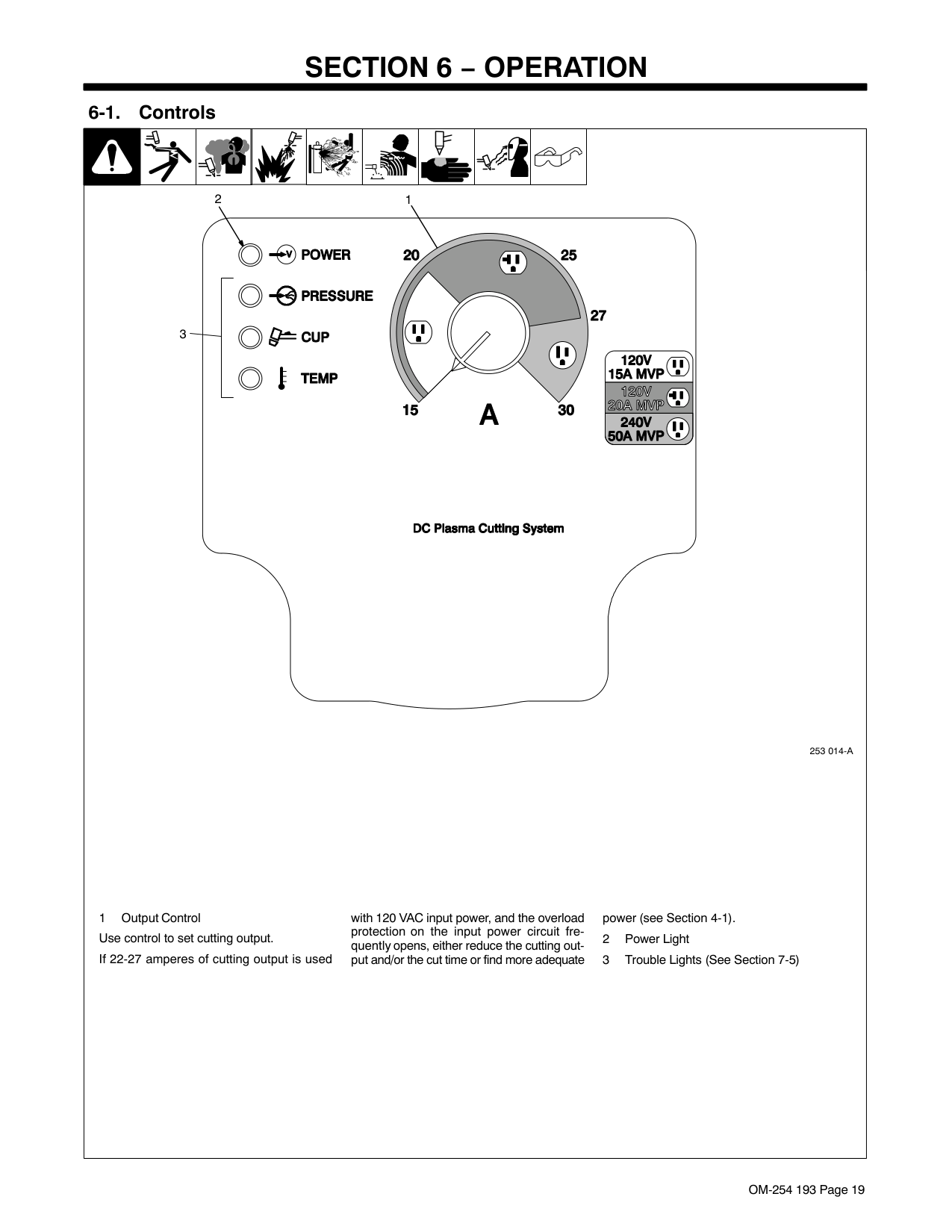

Section 6 − Operation
6-1. Controls 1 Output Control Use control to set cutting output. If 22-27 amperes of cutting output is used with 120 VAC input power, and the overload protection on the input power circuit fre- quently opens, either reduce the cutting out- put and/or the cut time or find more adequate power (see Section 4-1). 2 Power Light 3 Trouble Lights (See Section 7-5)253 014-A
3 1 2
OM-254 193 Page 20 6-2. Cutting Speed Recommended Cut Speeds At 30 Amperes Output Mild Steel Thickness Recommended Cut Speeds* Inches mm ipm mm/min 12 ga 2.8 104.8 2,662 1/8 3.2 98.4 2,499 3/16 4.8 63.2 1,605 1/4 6.4 36.0 914 3/8 9.5 18.4 467 1/2 12.7 10.4 264 5/8 15.9 6.4 163 *Recommended Cut Speed is approximately 80% of maximum. Aluminum and Stainless Steel cut speeds at these thicknesses may be reduced as much as 20%. Recommended Cut Speeds At 27 Amperes Output Mild Steel Thickness Recommended Cut Speeds* Inches mm ipm mm/min 12 ga 2.8 115.0 2,921 1/8 3.2 88.0 2,235 3/16 4.8 50.4 1,280 1/4 6.4 28.0 711 3/8 9.5 15.2 386 1/2 12.7 8.0 203 5/8 15.9 4.8 123 *Recommended Cut Speed is approximately 80% of maximum. Aluminum and Stainless Steel cut speeds at these thicknesses may be reduced as much as 20%. Recommended Cut Speeds At 20 Amperes Output Mild Steel Thickness Recommended Cut Speeds* Inches mm ipm mm/min 1/16 1.6 158.4 4,014 1/8 3.2 49.6 1,260 3/16 4.8 32.8 833 1/4 6.4 16.8 427 5/16 7.9 8.0 203 3/8 9.5 6.4 163 *Recommended Cut Speed is approximately 80% of maximum. Aluminum and Stainless Steel cut speeds at these thicknesses may be reduced as much as 20%.

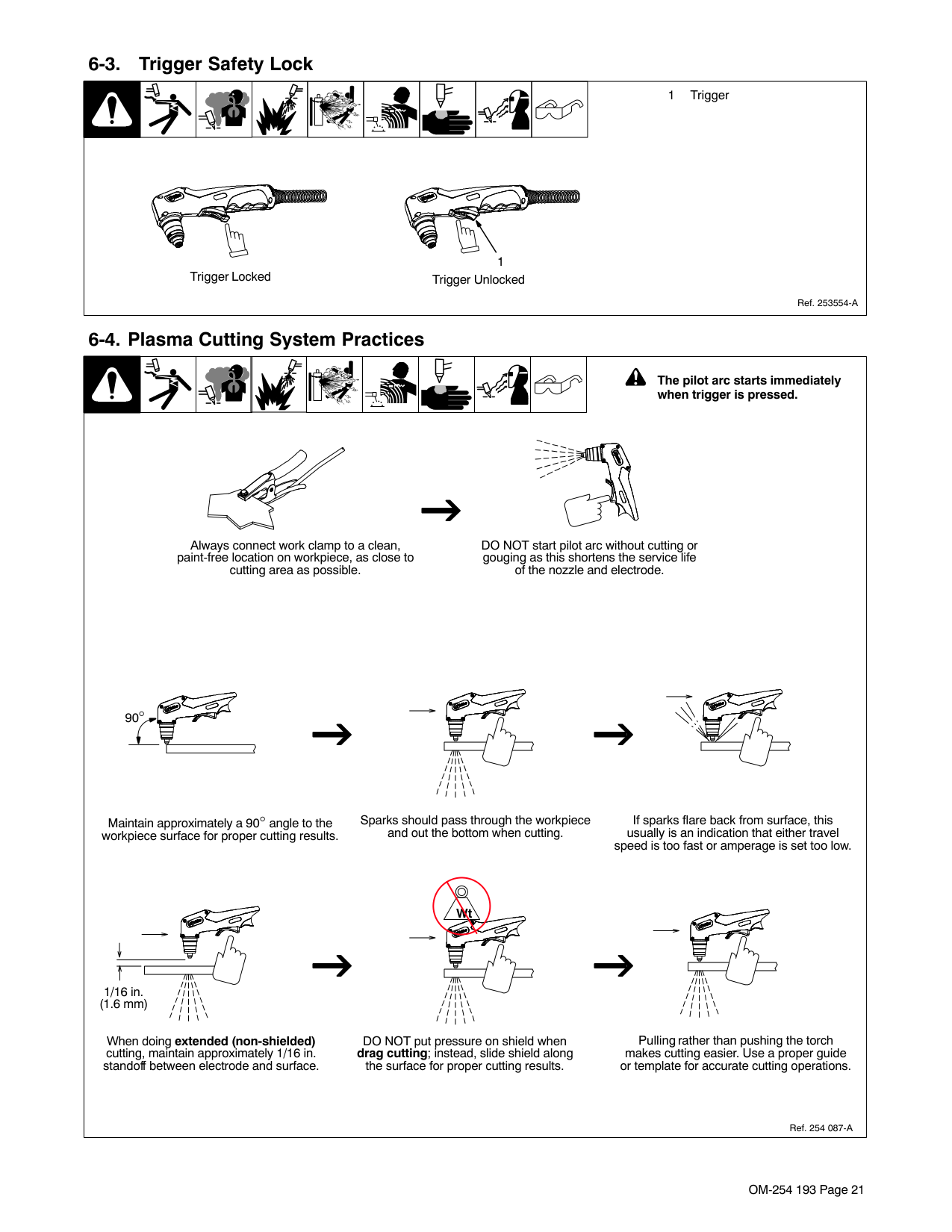

OM-254 193 Page 21 6-3. Trigger Safety Lock Trigger Locked Trigger Unlocked 1 Trigger Ref. 253554-A 1 Ref. 254 087-A 6-4. Plasma Cutting System Practices Pulling rather than pushing the torch makes cutting easier. Use a proper guide or template for accurate cutting operations. ! The pilot arc starts immediately when trigger is pressed. Maintain approximately a 90° angle to the workpiece surface for proper cutting results. Always connect work clamp to a clean, paint-free location on workpiece, as close to cutting area as possible. 90° DO NOT start pilot arc without cutting or gouging as this shortens the service life of the nozzle and electrode. Sparks should pass through the workpiece and out the bottom when cutting. If sparks flare back from surface, this usually is an indication that either travel speed is too fast or amperage is set too low. When doing extended (non-shielded) cutting, maintain approximately 1/16 in. standoff between electrode and surface. 1/16 in. (1.6 mm) DO NOT put pressure on shield when drag cutting; instead, slide shield along the surface for proper cutting results. Wt

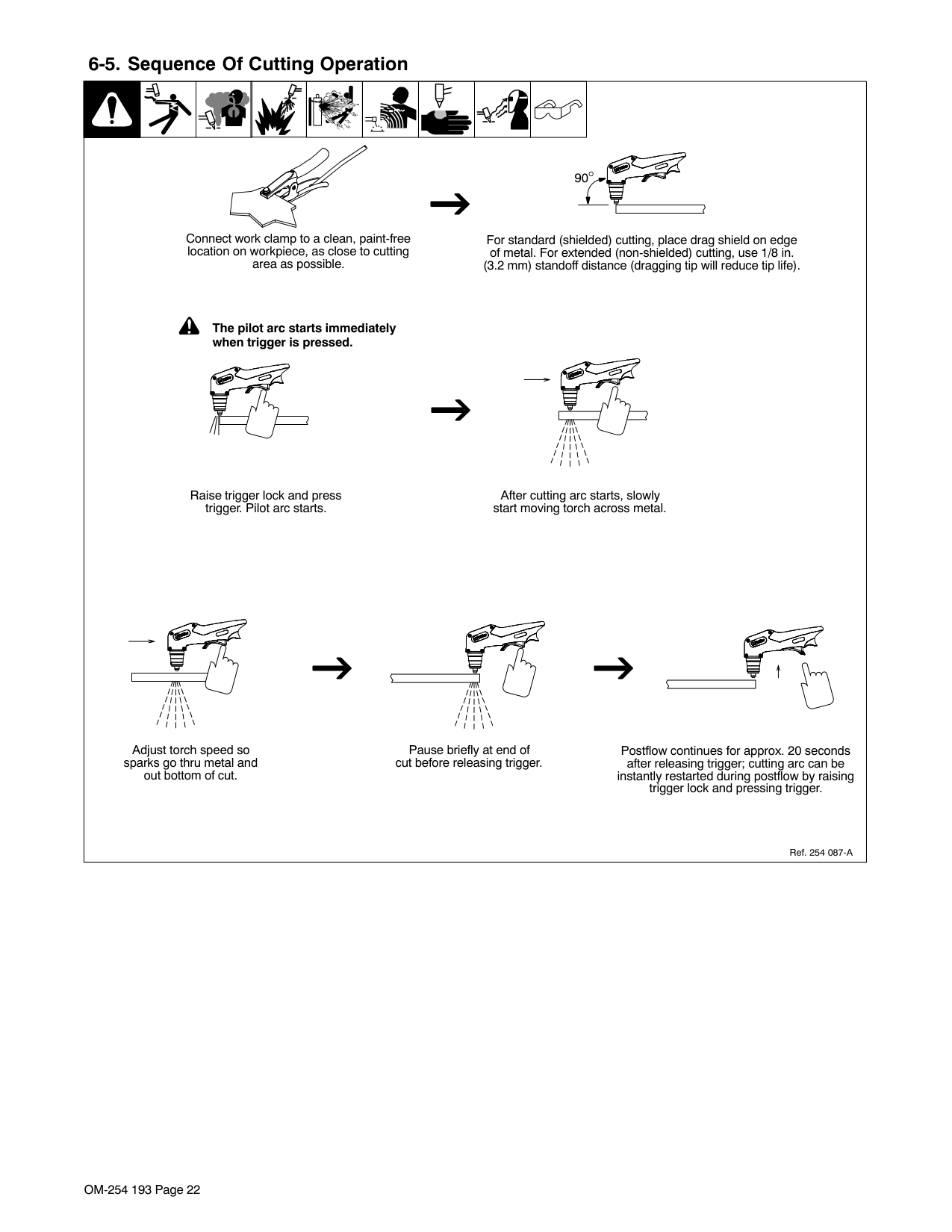

OM-254 193 Page 22 out bottom of cut. Ref. 254 087-A 6-5. Sequence Of Cutting Operation After cutting arc starts, slowly start moving torch across metal. Adjust torch speed so sparks go thru metal and Pause briefly at end of cut before releasing trigger. Raise trigger lock and press trigger. Pilot arc starts. Postflow continues for approx. 20 seconds after releasing trigger; cutting arc can be instantly restarted during postflow by raising trigger lock and pressing trigger. ! The pilot arc starts immediately when trigger is pressed. For standard (shielded) cutting, place drag shield on edge of metal. For extended (non-shielded) cutting, use 1/8 in. (3.2 mm) standoff distance (dragging tip will reduce tip life). Connect work clamp to a clean, paint-free location on workpiece, as close to cutting area as possible. 90°
OM-254 193 Page 23 Ref. 254 087-A 6-6. Sequence Of Piercing Operation Maintain approximately 90° torch position to surface, and continue cutting. Release trigger. Postflow continues for approx. 20 seconds after releasing trigger; arc can be instantly restarted during postflow by raising trigger lock and pressing trigger. ! The pilot arc starts immediately when trigger is pressed. Hold torch at approximately 45° to the workpiece. Raise trigger lock and press trigger. Pilot arc starts. Connect work clamp to a clean, paint-free location on workpiece, as close to cutting area as possible. Rotate torch to upright position approximately 90° to surface. When arc has pierced through workpiece, start cutting. 90° 90° 45°
OM-254 193 Page 24

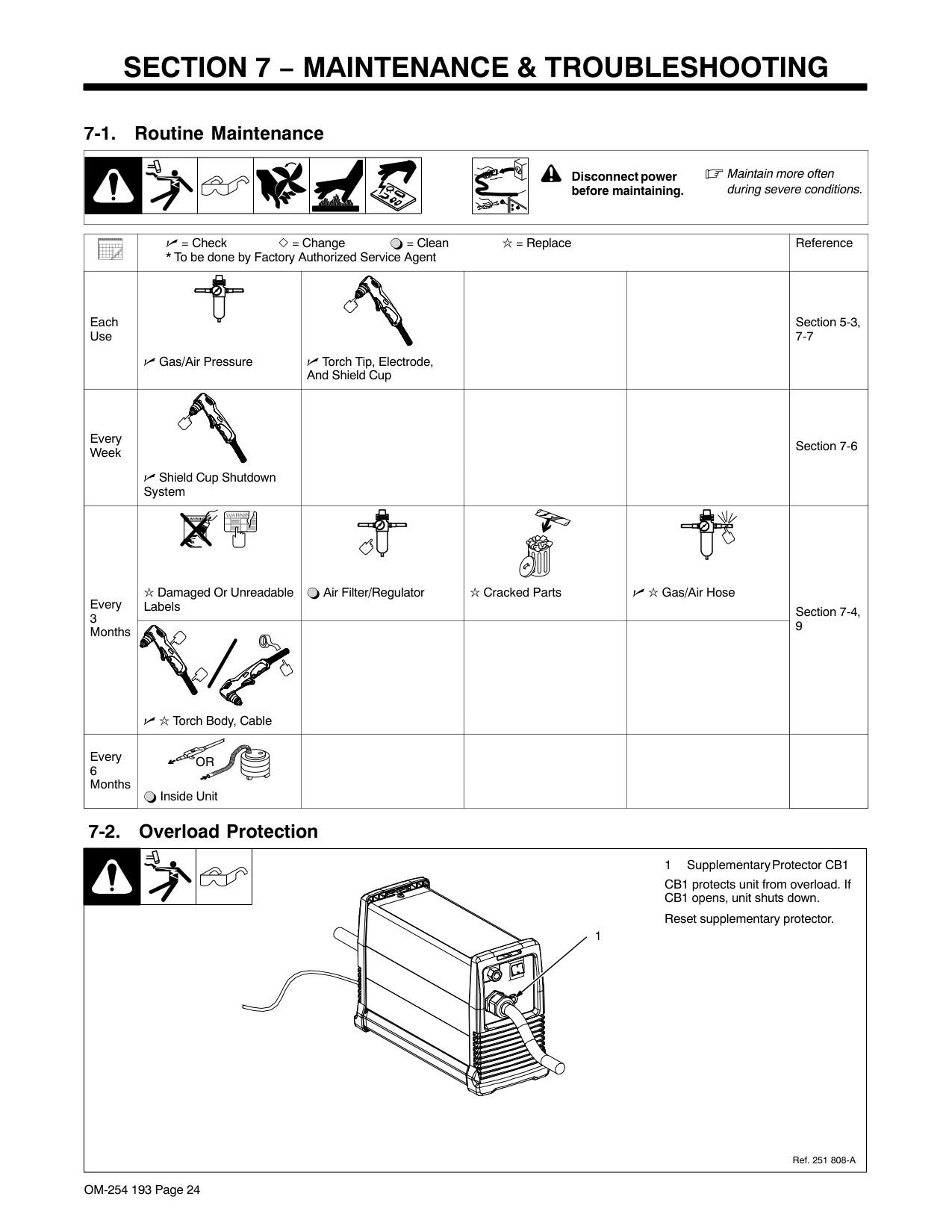

Section 7 − Maintenance & Troubleshooting
7-1. Routine Maintenance ! Disconnect power before maintaining. Maintain more often during severe conditions. = Check = Change = Clean= Replace
Damaged Or Unreadable Labels Air Filter/Regulator
Cracked Parts Gas/Air Hose Torch Body, Cable Every 6 Months
Or
Inside Unit 7-2. Overload Protection Ref. 251 808-A 1 Supplementary Protector CB1 CB1 protects unit from overload. If CB1 opens, unit shuts down. Reset supplementary protector. 1

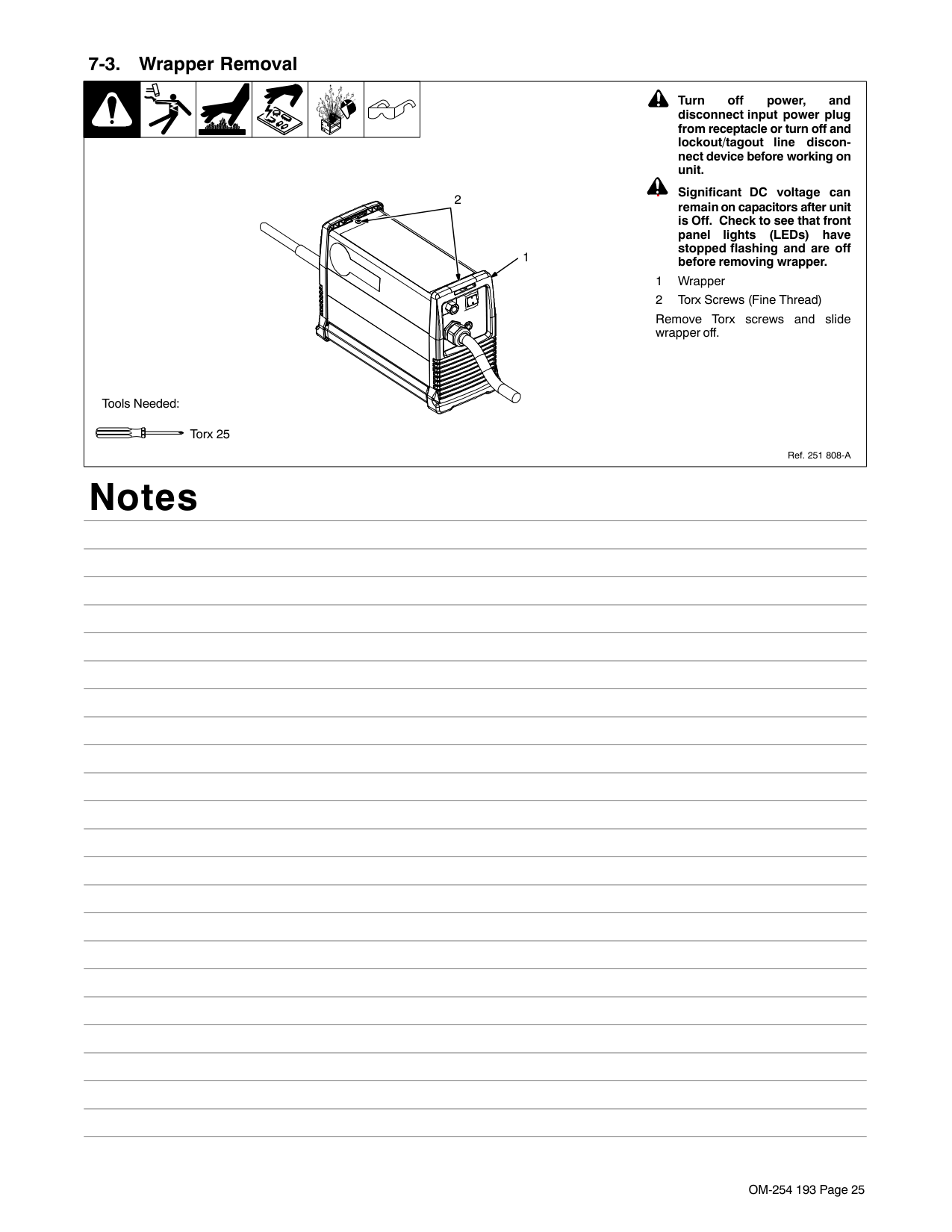

OM-254 193 Page 25 7-3. Wrapper Removal Ref. 251 808-A ! Turn off power, and disconnect input power plug from receptacle or turn off and lockout/tagout line discon- nect device before working on unit. ! Significant DC voltage can remain on capacitors after unit is Off. Check to see that front panel lights (LEDs) have stopped flashing and are off before removing wrapper. 1 Wrapper 2 Torx Screws (Fine Thread) Remove Torx screws and slide wrapper off. Torx 25 Tools Needed: 1 2 Notes

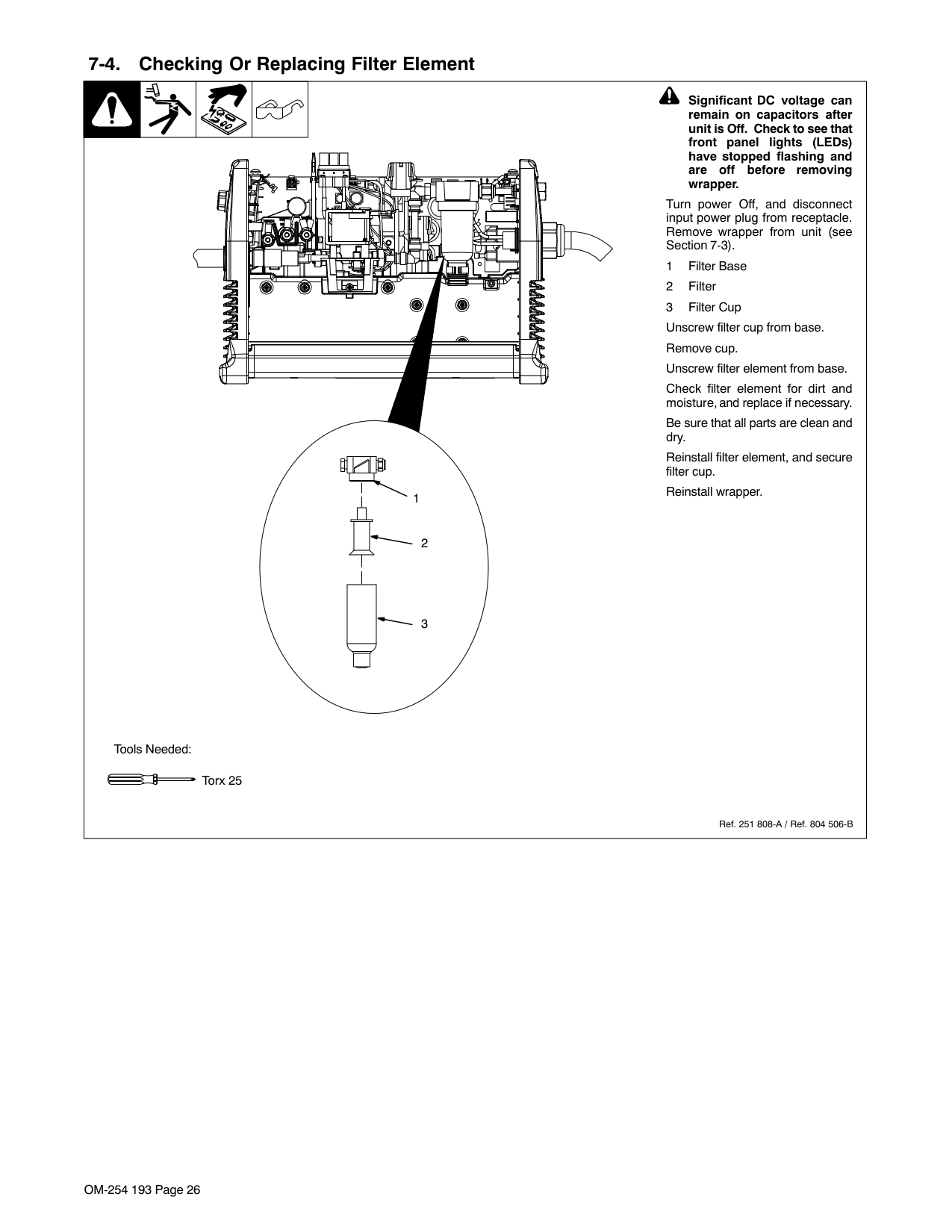

OM-254 193 Page 26 7-4. Checking Or Replacing Filter Element ! Significant DC voltage can remain on capacitors after unit is Off. Check to see that front panel lights (LEDs) have stopped flashing and are off before removing wrapper. Turn power Off, and disconnect input power plug from receptacle. Remove wrapper from unit (see Section 7-3). 1 Filter Base 2 Filter 3 Filter Cup Unscrew filter cup from base. Remove cup. Unscrew filter element from base. Check filter element for dirt and moisture, and replace if necessary. Be sure that all parts are clean and dry. Reinstall filter element, and secure filter cup. Reinstall wrapper. Ref. 251 808-A / Ref. 804 506-B 1 2 3 Torx 25 Tools Needed:

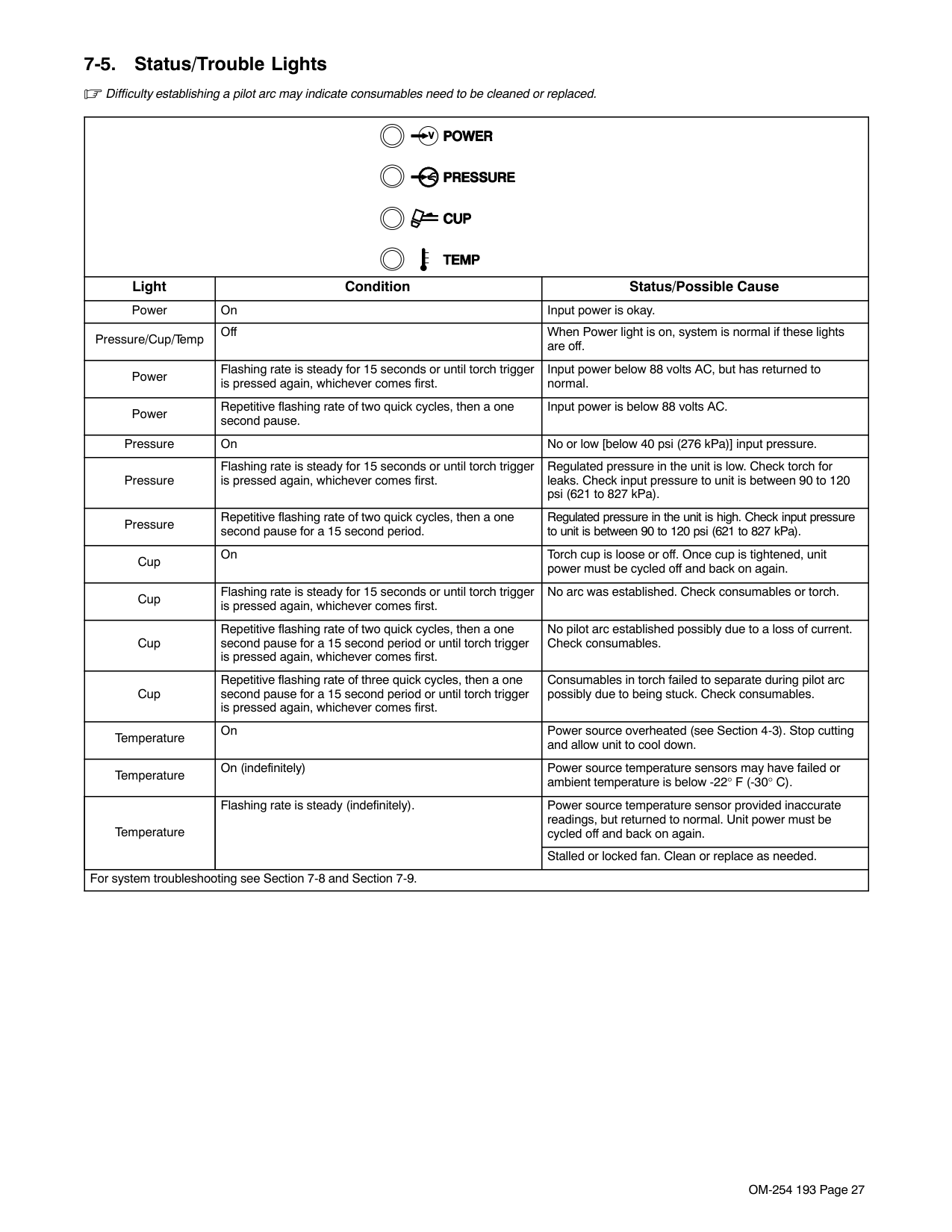

OM-254 193 Page 27 7-5. Status/Trouble Lights Difficulty establishing a pilot arc may indicate consumables need to be cleaned or replaced. Light Condition Status/Possible Cause Power On Input power is okay. Pressure/Cup/Temp Off When Power light is on, system is normal if these lights are off. Power Flashing rate is steady for 15 seconds or until torch trigger is pressed again, whichever comes first. Input power below 88 volts AC, but has returned to normal. Power Repetitive flashing rate of two quick cycles, then a one second pause. Input power is below 88 volts AC. Pressure On No or low [below 40 psi (276 kPa)] input pressure. Pressure Flashing rate is steady for 15 seconds or until torch trigger is pressed again, whichever comes first. Regulated pressure in the unit is low. Check torch for leaks. Check input pressure to unit is between 90 to 120 psi (621 to 827 kPa). Pressure Repetitive flashing rate of two quick cycles, then a one second pause for a 15 second period. Regulated pressure in the unit is high. Check input pressure to unit is between 90 to 120 psi (621 to 827 kPa). Cup On Torch cup is loose or off. Once cup is tightened, unit power must be cycled off and back on again. Cup Flashing rate is steady for 15 seconds or until torch trigger is pressed again, whichever comes first. No arc was established. Check consumables or torch. Cup Repetitive flashing rate of two quick cycles, then a one second pause for a 15 second period or until torch trigger is pressed again, whichever comes first. No pilot arc established possibly due to a loss of current. Check consumables. Cup Repetitive flashing rate of three quick cycles, then a one second pause for a 15 second period or until torch trigger is pressed again, whichever comes first. Consumables in torch failed to separate during pilot arc possibly due to being stuck. Check consumables. Temperature On Power source overheated (see Section 4-3). Stop cutting and allow unit to cool down. Temperature On (indefinitely) Power source temperature sensors may have failed or ambient temperature is below -22° F (-30° C). Temperature Flashing rate is steady (indefinitely). Power source temperature sensor provided inaccurate readings, but returned to normal. Unit power must be cycled off and back on again. Stalled or locked fan. Clean or replace as needed. For system troubleshooting see Section 7-8 and Section 7-9.
OM-254 193 Page 28 7-6. Checking Shield Cup Shutdown System Ref. 253 554-A 1 Torch Shield Cup Turn Power On and loosen shield cup. If shutdown system works properly, Cup light comes on. If not, immediately turn Off power and have Factory Authorized Service Agent check unit. If system works properly, retighten cup and reset power. 1 Power must be reset whenever the cup shutdown system is activated. Always turn Off power when changing or checking consumables. Do NOT overtighten torch shield cup. Gently finger tighten cup onto torch. Notes
OM-254 193 Page 29 7-7. Checking/Replacing Retaining Cup, Tip, And Electrode ! Overtightening will strip threads. Do not overtighten retaining cup during assembly. Do not cross-thread parts causing stripping. Use care during torch assembly and parts replacement. ! Inspect shield cup, tip, and electrode for wear before cutting or whenever cutting speed has been signifi- cantly reduced. Do not operate torch without a tip or electrode in place. Be sure to use genuine replacement parts. A good practice is to replace both the tip and electrode at the same time. Ref. 253554-A Turn Off power source. 1 Shield Cup Remove shield cup. Check cup for cracks, and replace if necessary. 2 Tip 3 Opening Remove tip. Check tip, and replace if open- ing is deformed or 50% oversize. If inside of tip is not clean and bright, clean with steel wool. Be sure to remove any pieces of steel wool afterwards. 4 Electrode Check electrode. If center has a pit more than a 1/16 in. (2 mm) deep, remove and re- place electrode. 5 Swirl Ring Remove swirl ring. Check ring, and replace if side holes are plugged. 6 O-Ring Check O-ring for cracks or worn spots, and replace if necessary. Carefully reassemble parts in reverse order. Make sure this area is clean of any debris. Make sure swirl ring is clean of any debris and no holes are obstructed. ! Turn Off power source before checking torch parts. New Worn 3 2 5 1 6 New Worn 4 1/32 in. (1 mm) to 1/16 in. (2 mm) maximum pit depth depending on acceptable cut quality

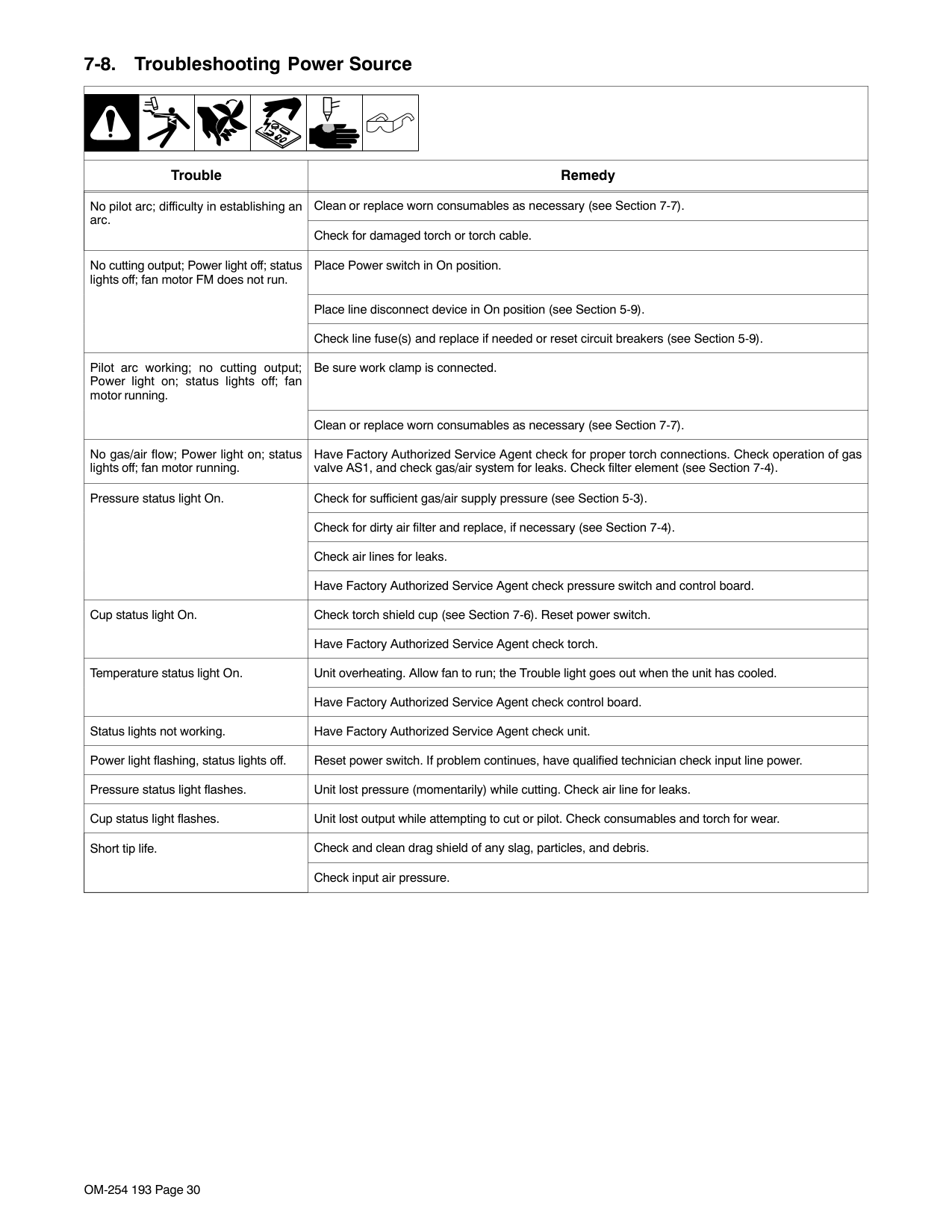

OM-254 193 Page 30 7-8. Troubleshooting Power Source Trouble Remedy No pilot arc; difficulty in establishing an arc. Clean or replace worn consumables as necessary (see Section 7-7). Check for damaged torch or torch cable. No cutting output; Power light off; status lights off; fan motor FM does not run. Place Power switch in On position. Place line disconnect device in On position (see Section 5-9). Check line fuse(s) and replace if needed or reset circuit breakers (see Section 5-9). Pilot arc working; no cutting output; Power light on; status lights off; fan motor running. Be sure work clamp is connected. Clean or replace worn consumables as necessary (see Section 7-7). No gas/air flow; Power light on; status lights off; fan motor running. Have Factory Authorized Service Agent check for proper torch connections. Check operation of gas valve AS1, and check gas/air system for leaks. Check filter element (see Section 7-4). Pressure status light On. Check for sufficient gas/air supply pressure (see Section 5-3). Check for dirty air filter and replace, if necessary (see Section 7-4). Check air lines for leaks. Have Factory Authorized Service Agent check pressure switch and control board. Cup status light On. Check torch shield cup (see Section 7-6). Reset power switch. Have Factory Authorized Service Agent check torch. Temperature status light On. Unit overheating. Allow fan to run; the Trouble light goes out when the unit has cooled. Have Factory Authorized Service Agent check control board. Status lights not working. Have Factory Authorized Service Agent check unit. Power light flashing, status lights off. Reset power switch. If problem continues, have qualified technician check input line power. Pressure status light flashes. Unit lost pressure (momentarily) while cutting. Check air line for leaks. Cup status light flashes. Unit lost output while attempting to cut or pilot. Check consumables and torch for wear. Short tip life. Check and clean drag shield of any slag, particles, and debris. Check input air pressure.
OM-254 193 Page 31 7-9. Troubleshooting Torch Trouble Remedy Arc goes on and off while cutting. Torch travel speed too slow; increase travel speed (see Section 6-2). Clean or replace torch consumables as necessary (see Section 7-7). Be sure work clamp is securely attached to workpiece. Arc goes out while cutting. Be sure work clamp is securely attached to workpiece. Make sure tip is on or near [1/16 in. (1.6 mm) to 1/8 in. (3.2 mm)] workpiece (see Section 5-4). Clean or replace torch consumables as necessary (see Section 7-7). Sparks come out top of cut or cut is not clean. Torch travel speed too fast; reduce travel speed (see Section 6-2). Clean or replace torch consumables as necessary (see Section 7-7). Be sure work clamp is securely attached to workpiece. Unit not capable of cutting metals thicker than rating (see Section 6-2). Trouble lights are on; unit has no cutting output. Check torch consumables. Check for gas/air flow at torch. Check air supply connection and pressure to unit and torch. Reset unit Power switch. Have Factory Authorized Service Agent check torch and connections inside unit. Notes
OM-254 193 Page 32
Section 8 − Electrical Diagrams
Figure 8-1. Circuit Diagram
OM-254 193 Page 33
254 176-A
OM-254 193 Page 34
Section 9 − Parts List
Hardware is common and not available unless listed.254 347-A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 28 29 31 30 32 33 34 35 36 37 38 39 40 27 Figure 9-1. Main Assembly
OM-254 193 Page 35 Description Part No. Dia. Mkgs. Item No. Figure 9-1. Main Assembly Quantity 1 232373 Cable,Power 20 ft 6 in. 14ga 3C 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 208548 Strap, Shoulder Double Buckle 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 237131 Filter, Air W/Fittings & Tubing 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238486 Filter, Air Element 5 Micron 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 241300 Kit, Valve Assy Replacement W/Pressure Switch 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 241301 Kit, Replacement Circuit Card Assy Pressure Switch 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 +208545 Base 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 249949 XT30, 12 ft Hand Held Torch (Replacement) 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 253014 Nameplate, Front 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 174992 Knob, Pointer .840 Dia X .250 ID w/Spring Clip−.21 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 225916 Cable, Work 12 ft 12 ga w/Clamp . . . . . . . . . . . . . . . . . . Strain Rlf & Term (Includes) 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213619 Clamp, Work 300 Amp Stl Chrome Pld . . . . . . . . . . . . . . . . . . . . . . . . W/Cop Contacts (Includes) 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213620 Contact Tip, Work Clamp 300 Amp Copper 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 251196 Panel, Front 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pc2
249976 Circuit Card Assy, LED/POT 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 238517 Clip, Filter Holder 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 250823 Magnetics/Windtunnel Assy (includes) 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Vr2
229878 Varistor, 360v 122 Joule W/Terminals 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 236937 Magnetics/Windtunnel 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17L2
250744 Inductor, Output 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18T1
250705 Xfmr, Hf Litz 10:13 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19L1
237753 Inductor, Input 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Fm1
250462 Fan, Muffin 24VDC 6500 RPM 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Pc1
254296 Kit, Replacement Circuit Card Assy Wndtnl Htsnk W/C 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 146549 Rivet, Plastic .122 Hole X .039−.079 Grip Push 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 208556 Insulator, Heat Sink 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 +238520 Insulator, Wrapper 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 208622 Label, Warn Elect Shock/Explod Parts/Do Not Remove 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Circuit Card Assy, Wndtnl 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 255201 Wrapper w/Labels (including) 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 +208532 Wrapper 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 230530 Label, Caution/Warning English/Spanish 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 254117 Ckt, Label 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239404 Label, Miller Logo 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240123 Label, Side Spectrum 375 X-TREME 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 237130 Clip, Grd 250x032 Frict Term Male w/.575 Mtg Hole 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 251274 Panel, Rear 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 251179 Nameplate, Rear 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34S 1
177396 Switch, Rocker Dpst 16a 250vac On−Off Blk Panel Mtg 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 208558 Term, Frict 250x032 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 238141 Ftg, Air Bulkhead Panel Mtg Qdisc 1/4nptf X .250tbg 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 201155 Bushing, Strain Relief .450/.709 Id X1.068 Mtg Hole 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 225805 Bracket, Strain Relief 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39Cb 1
225844 Supplementary Protector, Man Reset 1p 30a 250vac 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40Ps1
236003 Sensor, Pressure 0−100mV DC/0−100psi 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250102 Harness, Wrg 7 Posn LED Brd To Main 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +When ordering a component originally displaying a precautionary label, the label should also be ordered. To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested Replacement Parts. Model and serial number required when ordering parts from your local distributor.
OM-254 193 Page 36 9-1. Recommended Spare Parts Description Part No. Dia. Mkgs. Item No. Recommended Spare Parts Quantity 238486 Element, Filter Air 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249949 XT30, 12FT Hand Held (Replacement) 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225916 Cable, Work 12 FT 8 GA W/Clamp Strain RLF & TERM 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253524 Label, XT30 Consumables 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested Replacement Parts. Model and serial number required when ordering parts from your local distributor.
253 524-A
253524-A
Caution
Xt30 Consumables
Plug Configurations
To Use With The Branch
Circuits Shown.
15A Mvp 120V
219 26120A Mvp 120V
219 25950A Mvp 240V
219 258Failure To Replace Worn Tip Or
Electrode Will Damage Torch
And Void Warranty.
Turn off power before checking torch parts. Check before each use and hourly during operation. Drag Shield 249930 Extended Consumable Shield Deflector 249933 Retaining Cup 249932 Tip 249927 Electrode 249926 Swirl Ring 249931 O-Ring 249969 Figure 9-2. Consumable Parts For XT30 To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested Replacement Parts. Model and serial number required when ordering parts from your local distributor.
OM-254 193 Page 37 1 249 970 Torch Handle Kit (1) 2 249 971 Torch Trigger Microswitch (1) . . . . . . . . . . . . . . . 3 249 957 Leads, 12 ft (1) 4 252 938 Torch Body Kit (1) 5 249 972 Torch Trigger Assembly w/Spring (1) 252 951 Grease, Silicone (1) 249 949 Torch, Replacement 12 ft (1) See NO TAG for additional consumable parts. 1 1 2 3 4 5 Item No. Part No. Description Figure 9-3. Torch, XT30
Notes Work like a Pro! Pros weld and cut safely. Read the safety rules at the beginning of this manual.
Warranty Questions? Call
1-800-4-A-Miller
for your local Miller distributor. miller_warr 2011−01 Your distributor also gives you ... Service You always get the fast, reliable response you need. Most replacement parts can be in your hands in 24 hours. Support Need fast answers to the tough welding questions? Contact your distributor. The expertise of the distributor and Miller is there to help you, every step of the way. Effective January 1, 2011 (Equipment with a serial number preface of MB or newer) This limited warranty supersedes all previous Miller warranties and is exclusive with no other guarantees or warranties expressed or implied. LIMITED WARRANTY − Subject to the terms and conditions below, Miller Electric Mfg. Co., Appleton, Wisconsin, warrants to its original retail purchaser that new Miller equipment sold after the effective date of this limited warranty is free of defects in material and workmanship at the time it is shipped by Miller. THISWarranty Is Expressly In Lieu Of All Other
Warranties, Express Or Implied, Including The
Warranties Of Merchantability And Fitness.
Within the warranty periods listed below, Miller will repair or replace any warranted parts or components that fail due to such defects in material or workmanship. Miller must be notified in writing within thirty (30) days of such defect or failure, at which time Miller will provide instructions on the warranty claim procedures to be followed. Miller shall honor warranty claims on warranted equipment listed below in the event of such a failure within the warranty time periods. All warranty time periods start on the delivery date of the equipment to the original end-user purchaser, and not to exceed one year after the equipment is shipped to a North American distributor or eighteen months after the equipment is shipped to an International distributor.Miller Products Are Intended For Purchase And
Use By Commercial/Industrial Users And Persons
Trained
And
Experienced
In
The
Use
And
Maintenance Of Welding Equipment.
In the event of a warranty claim covered by this warranty, the exclusive remedies shall be, at Miller’s option: (1) repair; or (2) replacement; or, where authorized in writing by Miller in appropriate cases, (3) the reasonable cost of repair or replacement at an authorized Miller service station; or (4) payment of or credit for the purchase price (less reasonable depreciation based upon actual use) upon return of the goods at customer’s risk and expense. Miller’s option of repair or replacement will be F.O.B., Factory at Appleton, Wisconsin, or F.O.B. at a Miller authorized service facility as determined by Miller. Therefore no compensation or reimbursement for transportation costs of any kind will be allowed.To The Extent Permitted By Law, The Remedies
Provided Herein Are The Sole And Exclusive
Remedies. In No Event Shall Miller Be Liable For
Direct,
Indirect,
Special,
Incidental
Or
Consequential
Damages
(Including
Loss
Of
Profit), Whether Based On Contract, Tort Or Any
Other Legal Theory.
Any Express Warranty Not Provided Herein And
Any
Implied
Warranty,
Guaranty
Or
Representation As To Performance, And Any
Remedy For Breach Of Contract Tort Or Any
Other Legal Theory Which, But For This Provision,
Might Arise By Implication, Operation Of Law,
Custom Of Trade Or Course Of Dealing, Including
Any Implied Warranty Of Merchantability Or
Fitness For Particular Purpose, With Respect To
Any And All Equipment Furnished By Miller Is
Excluded And Disclaimed By Miller.
Some states in the U.S.A. do not allow limitations of how long an implied warranty lasts, or the exclusion of incidental, indirect, special or consequential damages, so the above limitation or exclusion may not apply to you. This warranty provides specific legal rights, and other rights may be available, but may vary from state to state. In Canada, legislation in some provinces provides for certain additional warranties or remedies other than as stated herein, and to the extent that they may not be waived, the limitations and exclusions set out above may not apply. This Limited Warranty provides specific legal rights, and other rights may be available, but may vary from province to province.
Original Instructions − Printed In Usa
© 2011 Miller Electric Mfg. Co. 2011−01 Miller Electric Mfg. Co. An Illinois Tool Works Company 1635 West Spencer Street Appleton, WI 54914 USA International Headquarters−USA USA Phone: 920-735-4505 Auto-Attended USA & Canada FAX: 920-735-4134 International FAX: 920-735-4125 For International Locations Visit www.MillerWelds.com Model Name Serial/Style Number Purchase Date (Date which equipment was delivered to original customer.) Distributor Address City State Zip Please complete and retain with your personal records. Always provide Model Name and Serial/Style Number. Contact a DISTRIBUTOR or SERVICE AGENCY near you. Welding Supplies and Consumables Options and Accessories Personal Safety Equipment Service and Repair Replacement Parts Training (Schools, Videos, Books) Technical Manuals (Servicing Information and Parts) Circuit Diagrams Welding Process Handbooks Contact the Delivering Carrier to: For Service Owner’s Record File a claim for loss or damage during shipment. For assistance in filing or settling claims, contact your distributor and/or equipment manufacturer’s Transportation Department. Contact your Distributor for:To locate a Distributor or Service Agency visit www.millerwelds.com or call 1-800-4-A-Miller
