Stanley Battery Charger

Sfmcstb933

B

1 Fig. A Fig. B Fig. C 12 13 11 14 1 6 8 9 10 5 4 7 3 2 23 10 24 25 22 23 18

2 Fig. D 15 5 Fig. E 15 9 Fig. F 29 4 6 30 31 Fig. G 13 12 Fig. H 4 14 Fig. I 32

3 Fig. J Minimum 610 mm Fig. K 18 20 21 Fig. L 21 20 Fig. M 28 20 Fig. N 27

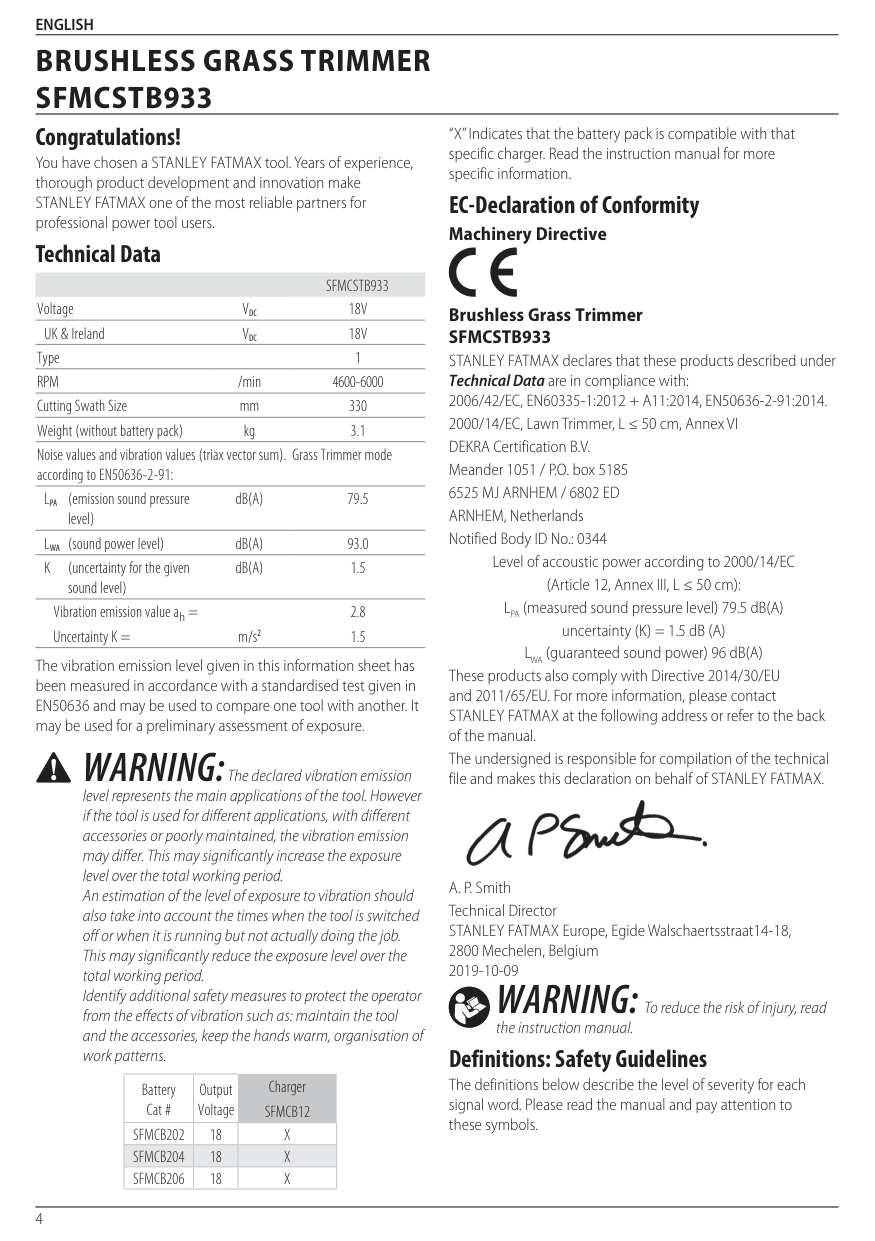

4 English “X” Indicates that the battery pack is compatible with that specific charger. Read the instruction manual for more specific information. EC-Declaration of Conformity Machinery Directive Brushless Grass Trimmer

Sfmcstb933

2006/42/Ec, En60335-1:2012 + A11:2014, En50636-2-91:2014.

6525 Mj Arnhem / 6802 Ed

Sfmcstb933

Vdc

18V

Vdc

18V

Rpm

K

Sfmcb12

Sfmcb202

X

Sfmcb204

X

Sfmcb206

X

Brushless Grass Trimmer

Sfmcstb933

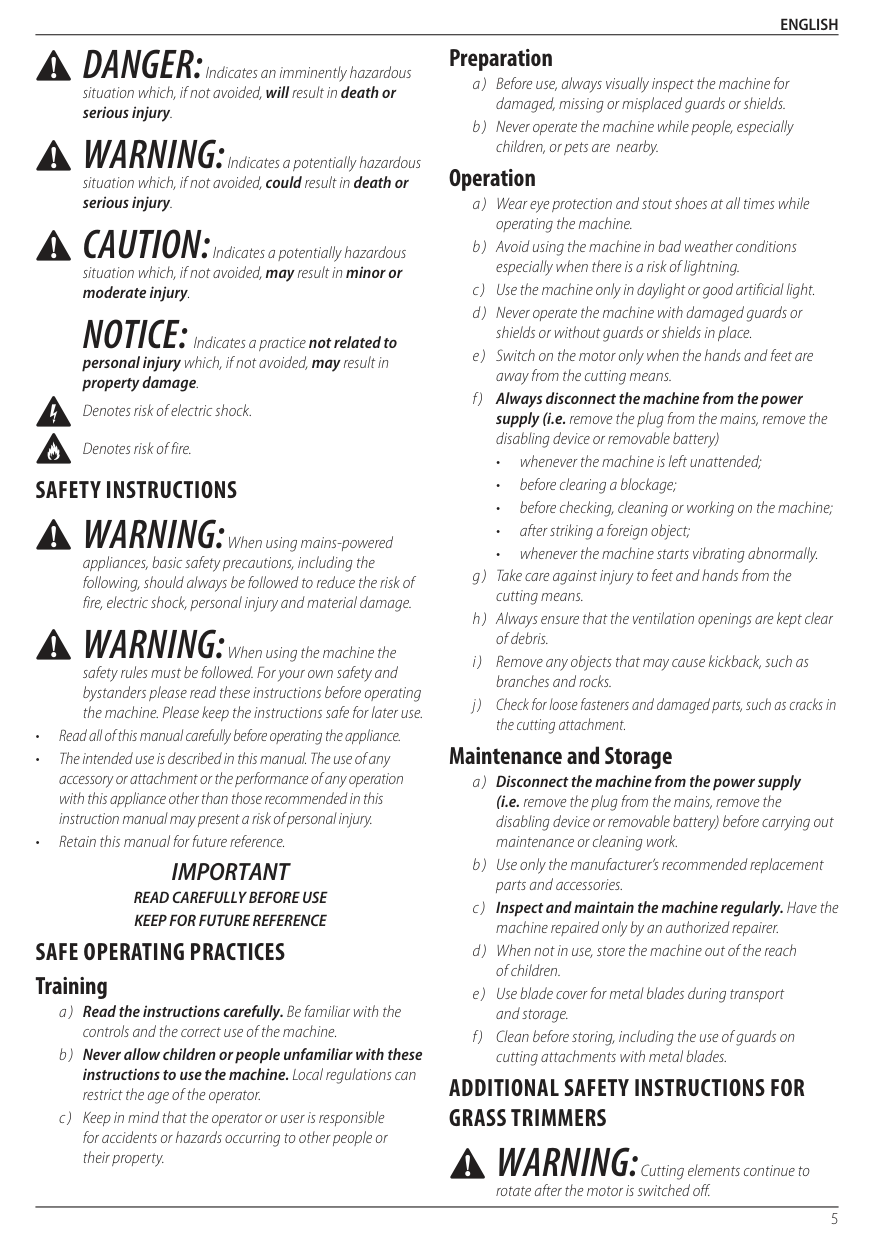

5 English  DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.  WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.  CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.  Denotes risk of electric shock.  Denotes risk of fire.

Safety Instructions

Important

Read Carefully Before Use

Keep For Future Reference

Safe Operating Practices

Additional Safety Instructions For

Grass Trimmers

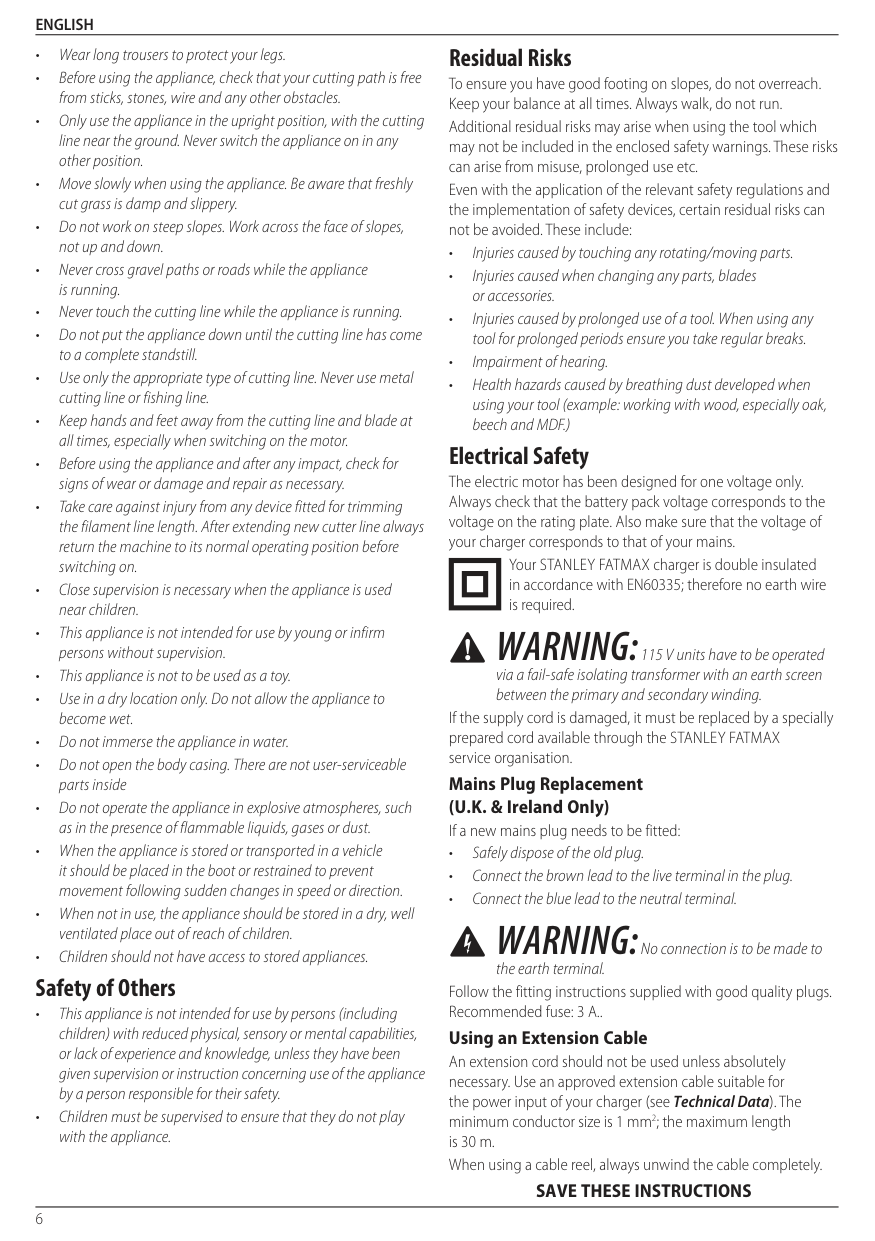

6 English • Wear long trousers to protect your legs. • Before using the appliance, check that your cutting path is free from sticks, stones, wire and any other obstacles. • Only use the appliance in the upright position, with the cutting line near the ground. Never switch the appliance on in any other position. • Move slowly when using the appliance. Be aware that freshly cut grass is damp and slippery. • Do not work on steep slopes. Work across the face of slopes, not up and down. • Never cross gravel paths or roads while the appliance is running. • Never touch the cutting line while the appliance is running. • Do not put the appliance down until the cutting line has come to a complete standstill. • Use only the appropriate type of cutting line. Never use metal cutting line or fishing line. • Keep hands and feet away from the cutting line and blade at all times, especially when switching on the motor. • Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary. • Take care against injury from any device fitted for trimming the filament line length. After extending new cutter line always return the machine to its normal operating position before switching on. • Close supervision is necessary when the appliance is used near children. • This appliance is not intended for use by young or infirm persons without supervision. • This appliance is not to be used as a toy. • Use in a dry location only. Do not allow the appliance to become wet. • Do not immerse the appliance in water. • Do not open the body casing. There are not user-serviceable parts inside • Do not operate the appliance in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. • When the appliance is stored or transported in a vehicle it should be placed in the boot or restrained to prevent movement following sudden changes in speed or direction. • When not in use, the appliance should be stored in a dry, well ventilated place out of reach of children. • Children should not have access to stored appliances. Safety of Others • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • Children must be supervised to ensure that they do not play with the appliance. Residual Risks To ensure you have good footing on slopes, do not overreach. Keep your balance at all times. Always walk, do not run. Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc. Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include: • Injuries caused by touching any rotating/moving parts. • Injuries caused when changing any parts, blades or accessories. • Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks. • Impairment of hearing. • Health hazards caused by breathing dust developed when using your tool (example: working with wood, especially oak, beech and MDF.) Electrical Safety The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains. Your STANLEY FATMAX charger is double insulated in accordance with EN60335; therefore no earth wire is required.  WARNING: 115 V units have to be operated via a fail-safe isolating transformer with an earth screen between the primary and secondary winding. If the supply cord is damaged, it must be replaced by a specially prepared cord available through the STANLEY FATMAX service organisation. Mains Plug Replacement (U.K. & Ireland Only) If a new mains plug needs to be fitted: • Safely dispose of the old plug. • Connect the brown lead to the live terminal in the plug. • Connect the blue lead to the neutral terminal.  WARNING: No connection is to be made to the earth terminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3 A.. Using an Extension Cable An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see Technical Data). The minimum conductor size is 1 mm2; the maximum length is 30 m. When using a cable reel, always unwind the cable completely.

Save These Instructions

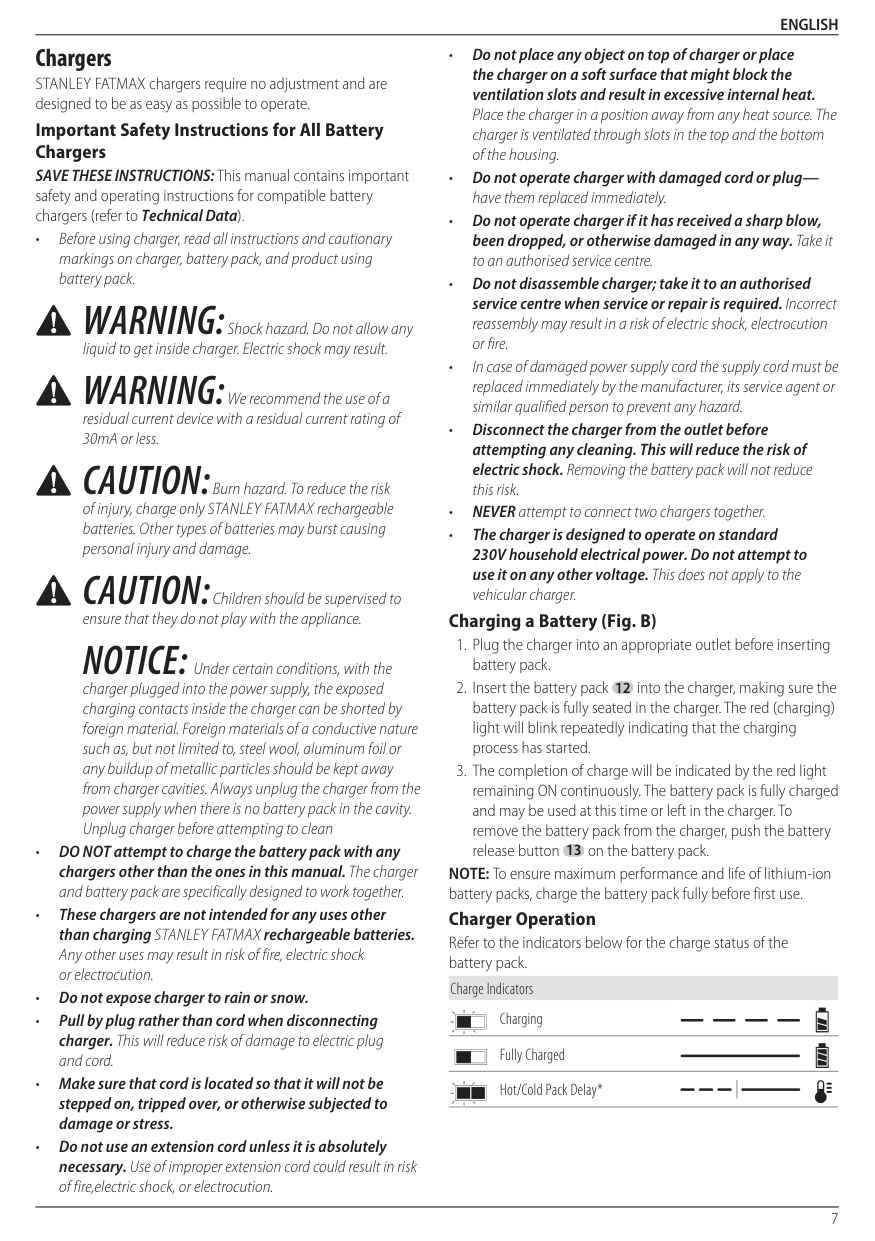

7 English Chargers STANLEY FATMAX chargers require no adjustment and are designed to be as easy as possible to operate. Important Safety Instructions for All Battery Chargers SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for compatible battery chargers (refer to Technical Data). • Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using battery pack.  WARNING: Shock hazard. Do not allow any liquid to get inside charger. Electric shock may result.  WARNING: We recommend the use of a residual current device with a residual current rating of 30mA or less.  CAUTION: Burn hazard. To reduce the risk of injury, charge only STANLEY FATMAX rechargeable batteries. Other types of batteries may burst causing personal injury and damage.  CAUTION: Children should be supervised to ensure that they do not play with the appliance. NOTICE: Under certain conditions, with the charger plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean • DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together. • These chargers are not intended for any uses other than charging STANLEY FATMAX rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution. • Do not expose charger to rain or snow. • Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord. • Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress. • Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire,electric shock, or electrocution. • Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing. • Do not operate charger with damaged cord or plug— have them replaced immediately. • Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorised service centre. • Do not disassemble charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire. • In case of damaged power supply cord the supply cord must be replaced immediately by the manufacturer, its service agent or similar qualified person to prevent any hazard. • Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk. • NEVER attempt to connect two chargers together. • The charger is designed to operate on standard 230V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger. Charging a Battery (Fig. B)

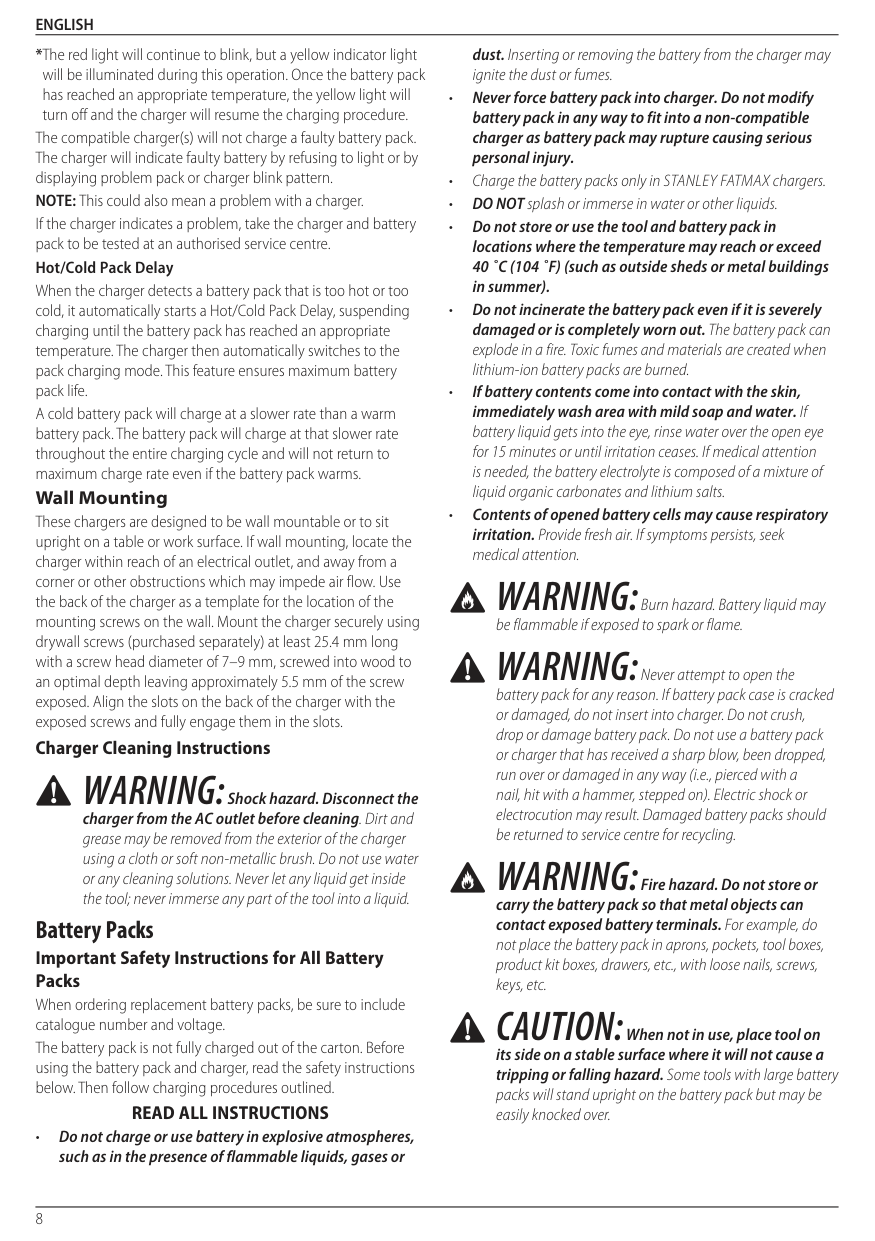

8 English *The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the charging procedure. The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery by refusing to light or by displaying problem pack or charger blink pattern. NOTE: This could also mean a problem with a charger. If the charger indicates a problem, take the charger and battery pack to be tested at an authorised service centre. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life. A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery pack warms. Wall Mounting These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 25.4 mm long with a screw head diameter of 7–9 mm, screwed into wood to an optimal depth leaving approximately 5.5 mm of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots. Charger Cleaning Instructions  WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid. Battery Packs Important Safety Instructions for All Battery Packs When ordering replacement battery packs, be sure to include catalogue number and voltage. The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging procedures outlined.

Read All Instructions

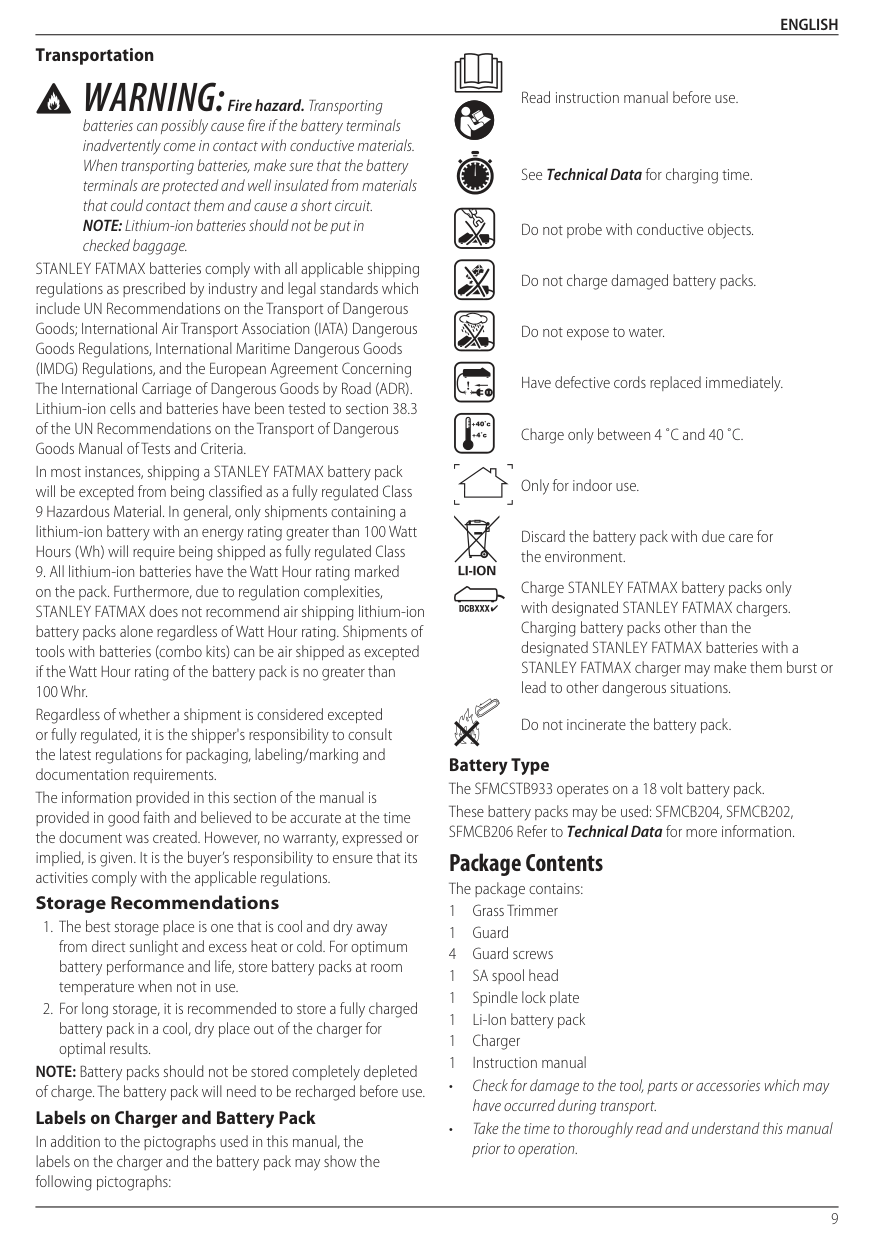

9 English Transportation  WARNING: Fire hazard. Transporting batteries can possibly cause fire if the battery terminals inadvertently come in contact with conductive materials. When transporting batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Lithium-ion batteries should not be put in checked baggage. STANLEY FATMAX batteries comply with all applicable shipping regulations as prescribed by industry and legal standards which include UN Recommendations on the Transport of Dangerous Goods; International Air Transport Association (IATA) Dangerous Goods Regulations, International Maritime Dangerous Goods (IMDG) Regulations, and the European Agreement Concerning The International Carriage of Dangerous Goods by Road (ADR). Lithium-ion cells and batteries have been tested to section 38.3 of the UN Recommendations on the Transport of Dangerous Goods Manual of Tests and Criteria. In most instances, shipping a STANLEY FATMAX battery pack will be excepted from being classified as a fully regulated Class 9 Hazardous Material. In general, only shipments containing a lithium-ion battery with an energy rating greater than 100 Watt Hours (Wh) will require being shipped as fully regulated Class

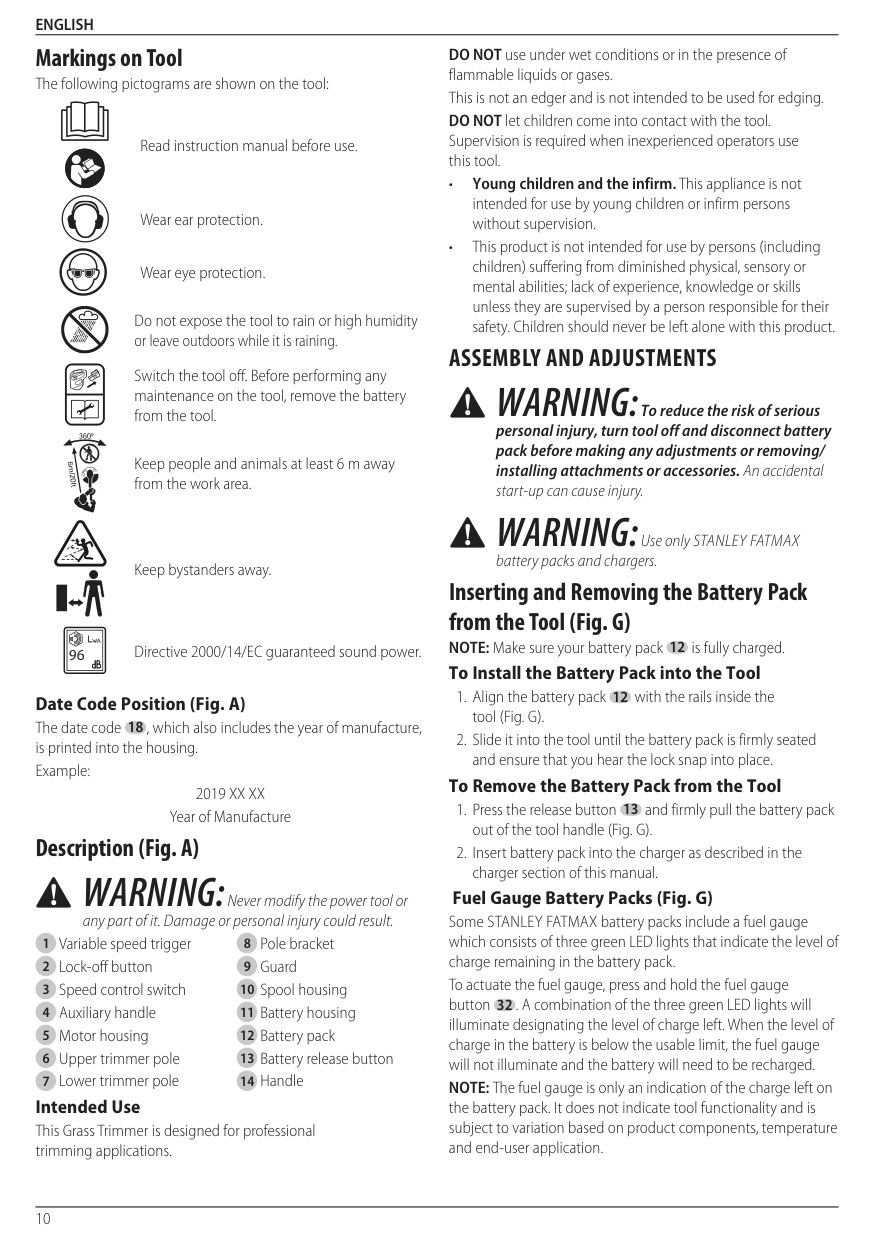

10 English Markings on Tool The following pictograms are shown on the tool: Read instruction manual before use. Wear ear protection. Wear eye protection. Do not expose the tool to rain or high humidity or leave outdoors while it is raining. Switch the tool off. Before performing any maintenance on the tool, remove the battery from the tool. Keep people and animals at least 6 m away from the work area. Keep bystanders away. 96 Directive 2000/14/EC guaranteed sound power. Date Code Position (Fig. A) The date code  18 , which also includes the year of manufacture, is printed into the housing. Example:

2019 Xx Xx

Assembly And Adjustments

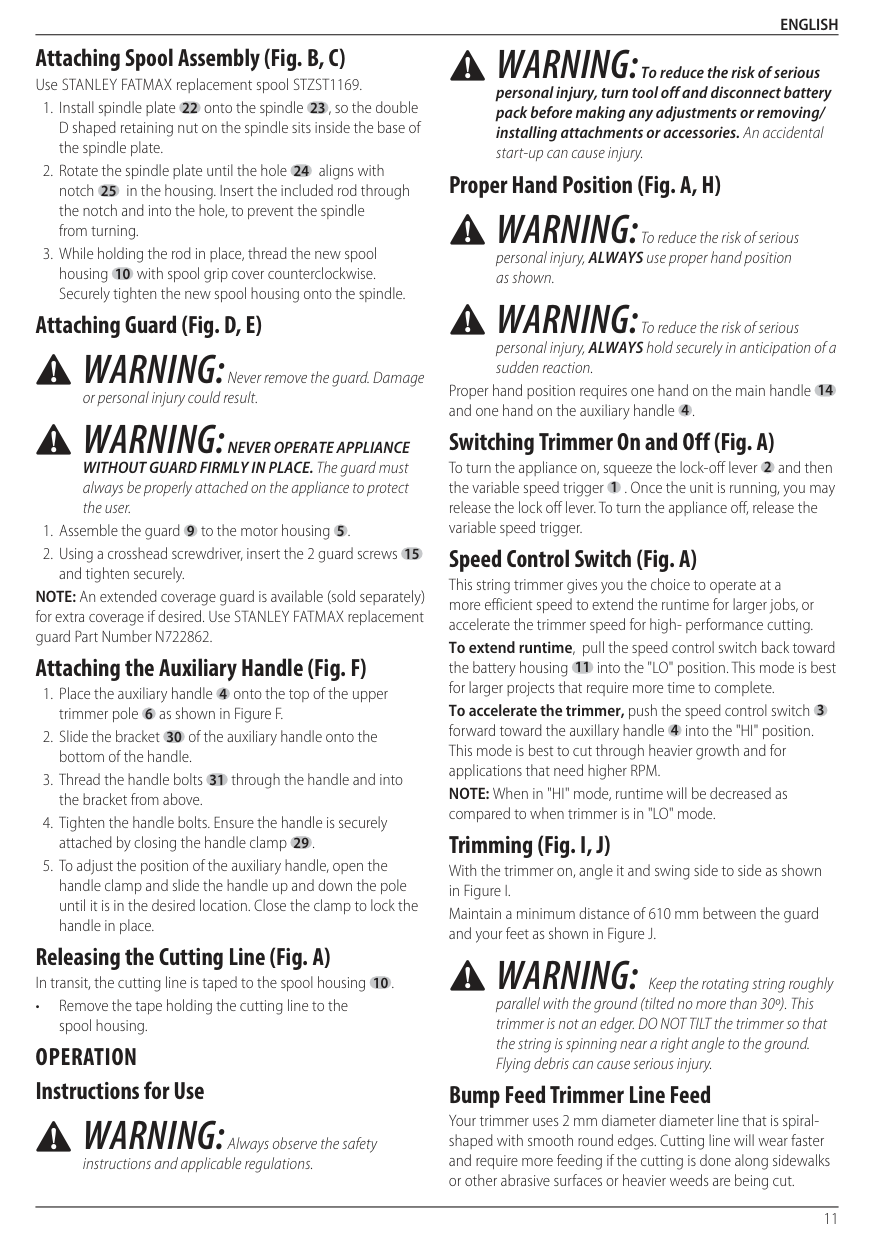

11 English Attaching Spool Assembly (Fig. B, C) Use STANLEY FATMAX replacement spool STZST1169.

 Warning: Never Operate Appliance

Operation

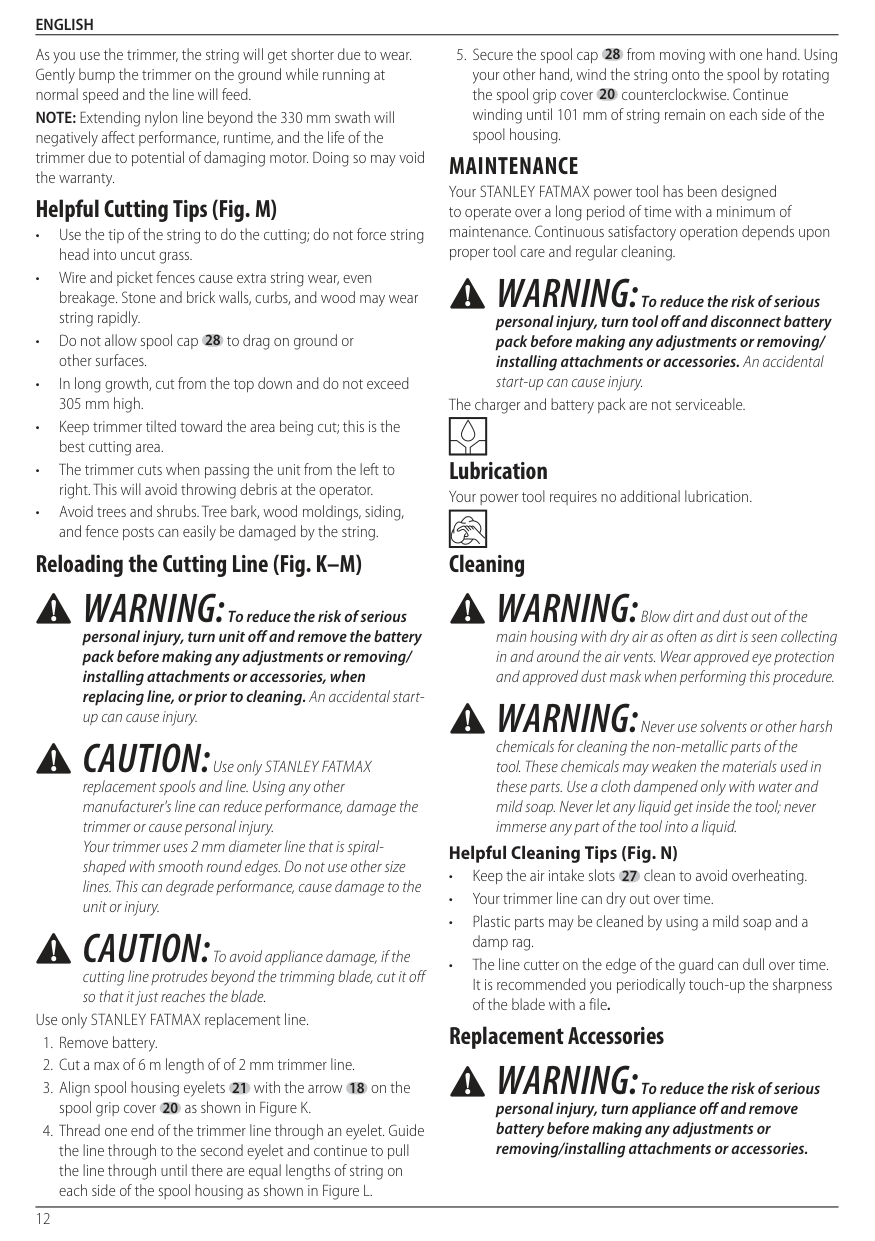

12 English As you use the trimmer, the string will get shorter due to wear. Gently bump the trimmer on the ground while running at normal speed and the line will feed. NOTE: Extending nylon line beyond the 330 mm swath will negatively affect performance, runtime, and the life of the trimmer due to potential of damaging motor. Doing so may void the warranty. Helpful Cutting Tips (Fig. M) • Use the tip of the string to do the cutting; do not force string head into uncut grass. • Wire and picket fences cause extra string wear, even breakage. Stone and brick walls, curbs, and wood may wear string rapidly. • Do not allow spool cap  28 to drag on ground or other surfaces. • In long growth, cut from the top down and do not exceed 305 mm high. • Keep trimmer tilted toward the area being cut; this is the best cutting area. • The trimmer cuts when passing the unit from the left to right. This will avoid throwing debris at the operator. • Avoid trees and shrubs. Tree bark, wood moldings, siding, and fence posts can easily be damaged by the string. Reloading the Cutting Line (Fig. K–M)  WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories, when replacing line, or prior to cleaning. An accidental start- up can cause injury.  CAUTION: Use only STANLEY FATMAX replacement spools and line. Using any other manufacturer's line can reduce performance, damage the trimmer or cause personal injury. Your trimmer uses 2 mm diameter line that is spiral- shaped with smooth round edges. Do not use other size lines. This can degrade performance, cause damage to the unit or injury.  CAUTION: To avoid appliance damage, if the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade. Use only STANLEY FATMAX replacement line.

Maintenance

13 English  WARNING: The use of any accessory not recommended by STANLEY FATMAX for use with this appliance could be hazardous.  WARNING: Do not use any blades, or any accessory or attachment other than those recommended by STANLEY FATMAX on this trimmer. Serious injury or product damage may result. When replacing the line, use 2 mm diameter line. Use STANLEY FATMAX replacement line Model No. STZST1226. Other sizes may degrade performance or cause damage to the trimmer. Optional Accessories  WARNING: Since accessories, other than those offered by STANLEY FATMAX, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only STANLEY FATMAX recommended accessories should be used with this product. Consult your dealer for further information on the appropriate accessories. Protecting the Environment Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste. Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com. Rechargeable Battery Pack This long life battery pack must be recharged when it fails to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for our environment: • Run the battery pack down completely, then remove it from the tool. • Li-Ion cells are recyclable. Take them to your dealer or a local recycling station. The collected battery packs will be recycled or disposed of properly. Guarantee 1 Year Guarantee All STANLEY FATMAX power tool products include a 1 year guarantee as standard. In the unlikely event that your powertool becomes defective due to faulty materials or worksmanship within 1 year of purchase, STANLEY guarantees to replace or repair all defective parts free of charge, or – at our discretion – replace the item free of charge. 3 Year Guarantee Register your STANLEY FATMAX power tool within 4 weeks of purchase and qualify for an additional 2 year guarantee. Having registered your power tool, in the unlikely event that your powertool becomes defective due to faulty materials or worksmanship, STANLEY guarantees to replace or repair all defective parts free of charge, or – at our discretion – replace the item free of charge.

N732900
