10 totalHow do I set up and assemble the NuWave OxyPure air purifier?
With the OxyPure unplugged, turn the Filter Access Lid at the bottom to open it, remove the new HEPA/Carbon Filter, remove the plastic wrapping from the filter, fully insert the filter into the Filter Holder, replace and lock the Filter Access Lid, attach the Power Supply cord, and plug in the unit. It is critical to remove the plastic wrapping before using the filter, as failing to do so may damage the motor and void your warranty. (Page 7)
How do I operate the one-button control panel on the OxyPure?
Plug in the unit (it will beep once), then press the Power icon to cycle through fan speeds: first press activates low speed (400 RPM), second press increases to medium speed (800 RPM), third press increases to high speed (2450 RPM), and fourth press turns the unit off. The LED lights indicate which speed level is active. (Page 8)
When should I replace the HEPA/Carbon filter and how do I do it?
The Replace Filter light (Fan Speed 1 light) glows yellow after 6 months as a reminder to change the filter, and turns red after 1 year when you must change it. To replace: turn off and unplug the unit, take it outside or to a well-ventilated area, wear a mask and rubber gloves, open the Filter Access Lid, remove the old filter into a garbage bag, unwrap and insert the new filter, close the lid, and press and hold Power for 2 short beeps to reset the light to white. (Page 9)
What maintenance and cleaning does the OxyPure require?
Remove the dirty filter and place it in a garbage bag, wash the vented body with warm soapy water and dry thoroughly before inserting a clean filter, clean the Motor housing using a vacuum brush attachment or damp cloth, ensure vents are free of obstruction, and do not immerse the Motor housing in water. Clean more frequently depending on your environment to maintain finish and function. (Page 9)
What should I do if the OxyPure won't turn on?
Check that the unit is plugged into an appropriate wall outlet and that the Power button on the control panel is turned on. Press the Power button to activate the unit. If the problem persists, contact NuWave Customer Service at 1-877-689-2838 (Monday-Friday, 7:30am-4:30pm CST) or email [email protected]. (Page 9)
What are the key safety precautions I need to follow when using the OxyPure?
Never immerse the cord, plug, or any part in water; do not run the cord under carpeting or furniture; do not plug into an outlet used by other appliances; always set on a flat, stable surface with 2-3 feet of space from vents to walls; do not operate on its side, place objects on top, sit or stand on it; unplug before assembling, cleaning, or changing filters; and never operate without the filter installed. (Pages 4-5)
Show 4 more questions
Full Manual
16 pages
Owner’s Manual Model 47501 / 47502 Questions or Concerns? Toll Free: 1-877-689-2838 • [email protected] (Mon–Fri 7:30am–4:30pm CST)
Oxypure Hepa Air Purifier
300Sq.Ft.
2 | nuwavenow.com
Thank You
for purchasing the NuWave OxyPure HEPA 300 Air PurifierRegister Your Purchase
Record This Information
Model Number: __________________________________________Serial Number: ___________________________________________
Date of Purchase:_________________________________________ (Keep receipt)
Store of Purchase:________________________________________
Technical Specifications
Voltage: DC12V/1.0A Wattage: 12W TIP: You can locate the model and serial numbers, as well as the QR code, on the label on the back of the unit.Customer Service
Phone: 1-877-689-2838 (Mon–Fri 7:30am–4:30pm CST) Email: [email protected]. Welcome to the NuWave® Family! Congratulations on getting your new NuWave OxyPure HEPA 300 Air Purifier! We are incredibly excited for you to enjoy pure, clean air in your home and want to make sure you get the most out of your OxyPure® experience. That’s what this manual is all about. In it, we have provided detailed operating and care instructions covering every aspect of your new air purifier to make sure the OxyPure is meeting your needs. Here at NuWave, the relationship we have with our customers only begins with the purchase. We are with you every step of the way because we are dedicated to making your experience as easy and rewarding as possible. So, if you have any questions, comments, or concerns, please don’t hesitate to contact Customer Service by calling 1-877-689-2838 (Mon–Fri 7:30am–4:30pm CST) or emailing us at [email protected]. We’re glad you’re with us, and we know that you will be, too! Connect with Us! #nuwavenow Visit nuwavenow.com to see other great products and accessories. Trademark & Copyright Notice NuWave, NuWaveNow, and OxyPure are registerd trademarks of NuWave, LLC. All Rights Reserved.
nuwavenow.com | 3
Contents
Important Safeguards......................................................................4–5 Electrical Information.......................................................................5 Parts & Accessories........................................................................6 Assembly.........................................................................................7 Operating the OxyPure....................................................................8 Maintaining the OxyPure.................................................................9 OxyPure Efficiency..........................................................................10 Pollutant Removal...........................................................................11–12 Limited Warranty.............................................................................13–15 U.S Environmental Protection Agency Meets California ozone emissions limit. CARB certified Para la versión en español de este manual, visita www.nuwavenow.com
4 | nuwavenow.com
Always Keep This Manual Handy For Future Reference.
READ ALL INSTRUCTIONS and WARNINGS: The failure to follow any of the important safe- guards, warnings, or instructions for safe use is a misuse of the OxyPure that can void your warranty and create the risk of serious injury. When using the OxyPure, basic safety precautions should always be followed.Important Safeguards
Household Use Only • Read All Instructions Before Use
nuwavenow.com | 5
Filter Changing Precautions
Electrical Information
These servicing instructions are for use by qualified personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Power-Supply Cords A short, detachable power-supply cord is provided to reduce the risk of becoming entangled in, or trip- ping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a longer, detachable power-supply cord or extension cord is used:Important Safeguards
Household Use Only • Read All Instructions Before Use
6 | nuwavenow.com
Parts & Accessories
OxyPure HEPA 300 Air Purifier Model #: 47501 Ordering Parts Keeping your OxyPure up and running with new filters is a breeze.Top
Bottom
nuwavenow.com | 7 Assembling the OxyPure Before using your OxyPure, you need to make sure that the filter is properly installed. With the OxyPure unplugged:
Assembly
8 | nuwavenow.com
Operating The Oxypure
Clean Air At The Touch Of A Button
Off
0Off
One Button Does it All Simplicity. That is the secret of the OxyPure HEPA 300 Air Purifier. With only one button, it is simple to operate. With its revolutionary HEPA/Carbon filter, it is as easy to relax knowing that your air is as clean as the unit is simple to maintain. With its lightweight design and construction, it is easy to take almost anywhere. Simplicity and peace of mind at the touch of a button. EnergySTAR Certification The U.S. Environmental Protection Agency (EPA) has published specifications for energy efficiency using a Clean Air Delivery Rate (CADR) to Watt ratio. The unit being tested must produce a CADR of at least 50 for smoke. Minimum performance is 2.0 CADR/Watt with 2.0 Watts standby power. The OxyPure passed the test handily. Criteria Standard Measured Smoke CADR (ft³/min.) >50 84 Total Energy Conumed (Watts) -- 13.3 Smoke CADR/Watt (ft³/min./W) >2.9 6.3 Standby Power (Watts) <1 0.55 Electrical Safety Along with energy efficiency comes safety. The California Air Resources Board (CARB) ensures that every air purifier sold in California meets certain standards for electrical safety and performance. The OxyPure was tested for electrical safety against the ANSI/UL507 electrical safety standard, and was found to be fully compliant. Test Standard Measured Electrical SafetyAnsi/Ul507
Compliant Low Speed Fan Speed 1 Fan Speed 2 Fan Speed 3 Medium Speed High Speed
nuwavenow.com | 9 Changing the HEPA/Carbon Filter It is important to change the HEPA/Carbon Filter regularly. The Replace Filter light, which is the Fan Speed 1 light, will glow yellow after 6 months, letting you know that you SHOULD change the filter. When it turns red after a year, you MUST change the filter.
Maintaining The Oxypure
The OxyPure Does Not Turn On.The Fan Speed Doesn’t Change. There may be an issue with the control panel button. Contact Customer Service for assistance. Airflow From the Top Vent is Weak. The HEPA/Carbon filter is dirty. Change the filter. The Unit Produces Smoke or Odor. The HEPA/Carbon filter is dirty. Change the filter. If any of these problems persist, contact NuWave’s friendly and knowledgeable Customer Service Team at 1-877-689-2838, Monday through Friday from 7:30am to 4:30pm,(CST) or via email at [email protected].
Troubleshooting Guide
Turn Unit Upside Down
Open The Lid To Change The Filter
After 6 Months With in 6 Months After 12 Months
10 | nuwavenow.com
Oxypure Efficiency
Clean Air Delivery Rate and Removal Efficiency An air purifier’s Clean Air Delivery Rate (CADR) measures clean air flow out of the unit against different air pollutants, in this case smoke, dust and pollen. There are a number of factors that go into CADR from particle size and composition to fan speed to filter cleanliness. You can see this in the following chart: Notice that while the particle size for each is the same, the CADR for each kind of particle is markedly different, with dust having the lowest CADR while pollen has the highest by a wide margin. Smoke, dust and pollen are not the only particle pollutants that can find in your home. The table on page 12 will introduce you to some of them and put their size into perspective for you. Particulate Matter (Size in microns)Cadr
(Ft³/Min.) Removal Efficiency Smoke (0.1µm-1µm) 84 100% in 100 minutes Dust (0.1µm-1µm) 104 100% in 100 minutes Pollen (0.1µm-1µm) 114 100% in 30 minutes Allergies and Sleep When you react to any allergen, it is your body’s immune system working to clear away the harmful or irritating substance by generating antibodies to hunt down the intruder while releasing histimine and other substances that cause the typical symp- toms of an allergic reaction. The OxyPure can help with allergens such as pollen, dust, dustmites, mold spores, wood and coal ash, and any other particle that might be floating around in your home’s air, eliminating them so that you breathe easier day and night. Sleep is Important Allergies can do more than just make you itch and sneeze. They can keep you up, or keep your spouse up as you snore and choke your way through the night, robbing you of rest and leaving you dragging through the day and even leading to things like weight gain, headaches, and even cognitive changes and confusion. It could even be a sign of something even more dangerous, sleep apnea. If allergies are your problem, instead of relying entirely on pills that can make things worse (never just stop any prescription medication without your doctor’s advice), do something about the allergens in your air with a good air purifier with a high CADR and good HEPA/Carbon filters like the OxyPure. The cleaner the air, the less your allergies will bother you. It’s that simple with OxyPure. Did you know... When you cough, you expell enough air to fill a 1.5 liter container in a plume that ex- tends several feet and carries some 3,000 droplets of mucus, saliva and other materi- al at speeds up to 50 miles per hour! When you sneeze, as many as 40,000 droplets are expelled at speeds over 200 miles per hour. They can travel over 8 feet and up to 20 feet into the air, high enough to get into ventilation systems. This is why an good air purifier is so im- portant, especially during cold and flu season. Clean air is the first step to good health, and with the OxyPure, you will know your air is pure and healthy. www.livescience.com/3686-gross-science-cough-sneeze.html www.self.com/story/germs-sneezing-coughing.

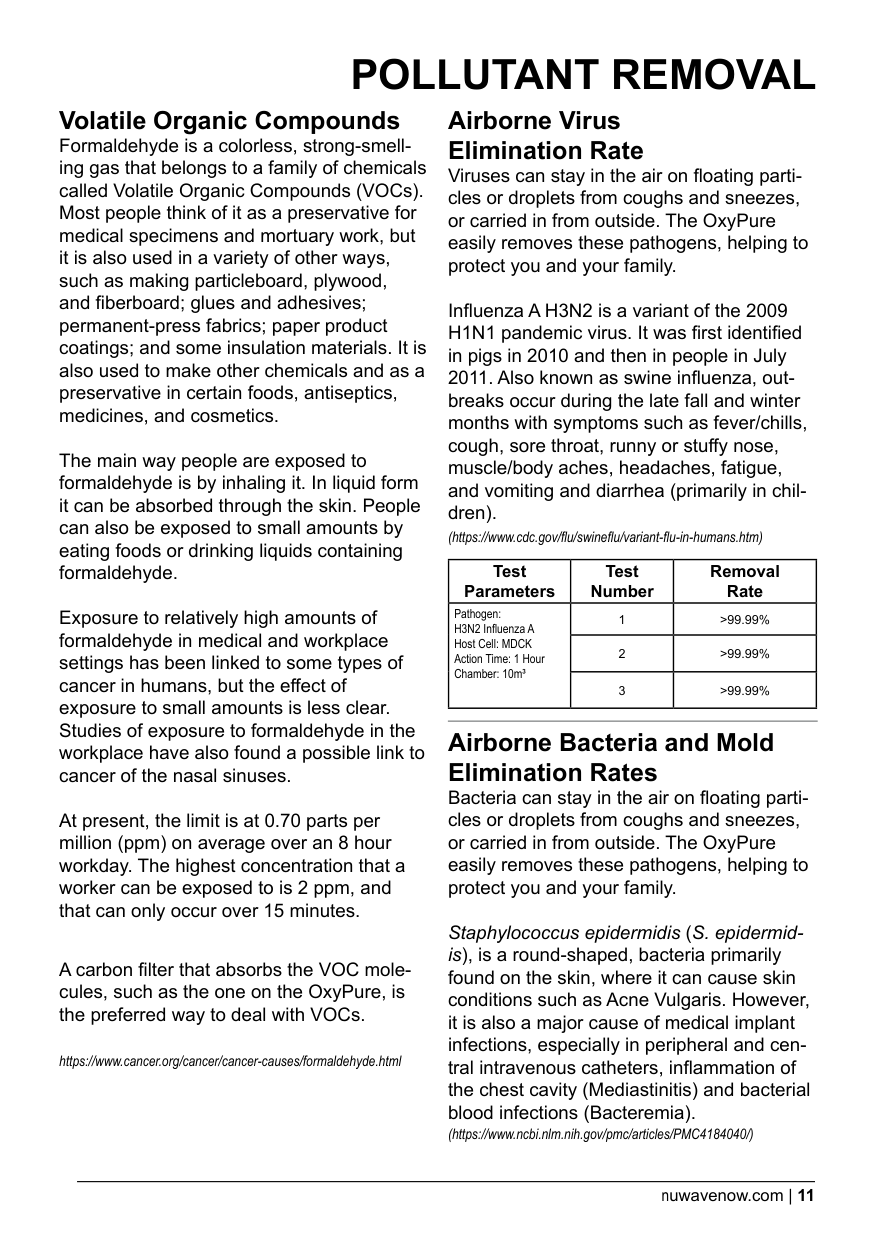

nuwavenow.com | 11 Volatile Organic Compounds Formaldehyde is a colorless, strong-smell- ing gas that belongs to a family of chemicals called Volatile Organic Compounds (VOCs). Most people think of it as a preservative for medical specimens and mortuary work, but it is also used in a variety of other ways, such as making particleboard, plywood, and fiberboard; glues and adhesives; permanent-press fabrics; paper product coatings; and some insulation materials. It is also used to make other chemicals and as a preservative in certain foods, antiseptics, medicines, and cosmetics. The main way people are exposed to formaldehyde is by inhaling it. In liquid form it can be absorbed through the skin. People can also be exposed to small amounts by eating foods or drinking liquids containing formaldehyde. Exposure to relatively high amounts of formaldehyde in medical and workplace settings has been linked to some types of cancer in humans, but the effect of exposure to small amounts is less clear. Studies of exposure to formaldehyde in the workplace have also found a possible link to cancer of the nasal sinuses. At present, the limit is at 0.70 parts per million (ppm) on average over an 8 hour workday. The highest concentration that a worker can be exposed to is 2 ppm, and that can only occur over 15 minutes. A carbon filter that absorbs the VOC mole- cules, such as the one on the OxyPure, is the preferred way to deal with VOCs. https://www.cancer.org/cancer/cancer-causes/formaldehyde.html
Pollutant Removal
Airborne Virus Elimination Rate Viruses can stay in the air on floating parti- cles or droplets from coughs and sneezes, or carried in from outside. The OxyPure easily removes these pathogens, helping to protect you and your family. Influenza A H3N2 is a variant of the 2009 H1N1 pandemic virus. It was first identified in pigs in 2010 and then in people in July

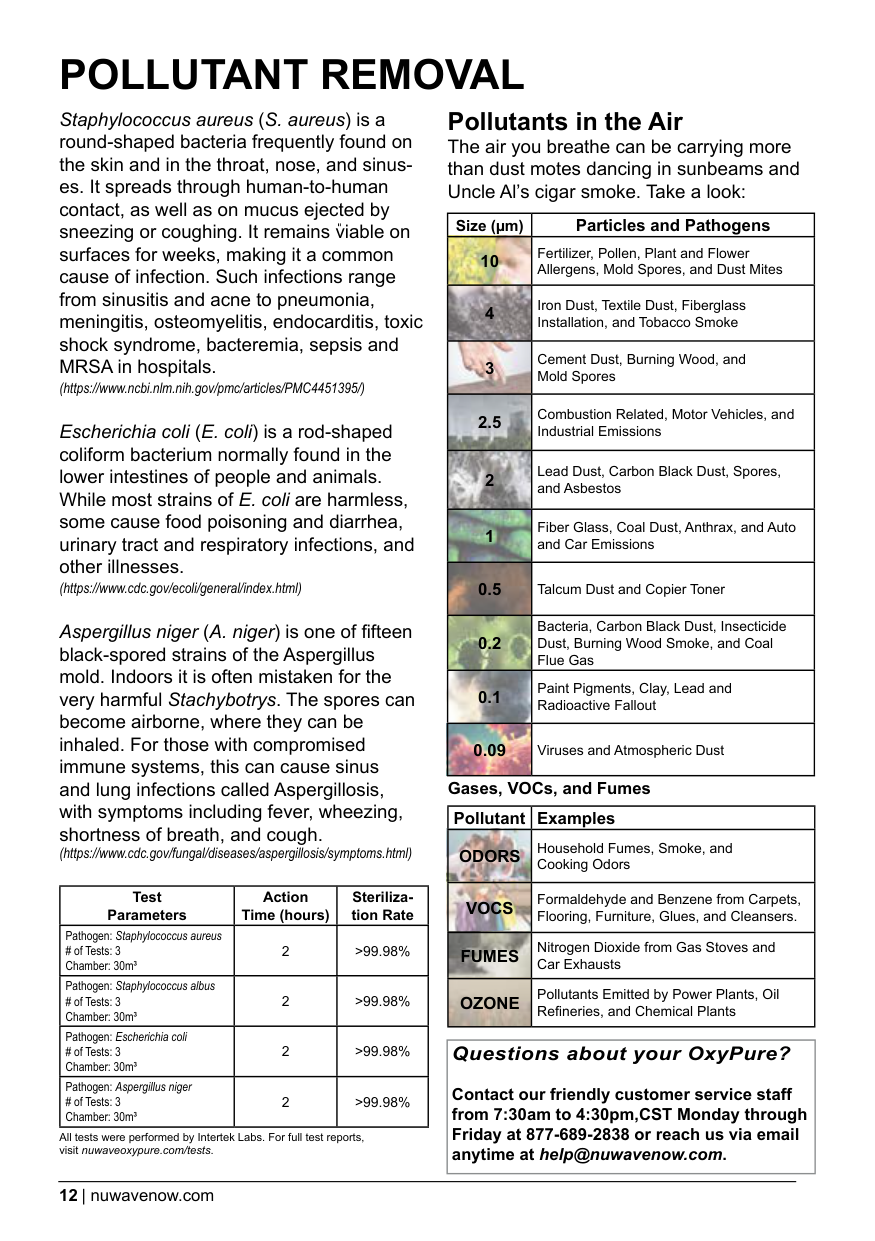

12 | nuwavenow.com
Staphylococcus aureus (S. aureus) is a round-shaped bacteria frequently found on the skin and in the throat, nose, and sinus- es. It spreads through human-to-human contact, as well as on mucus ejected by sneezing or coughing. It remains viable on surfaces for weeks, making it a common cause of infection. Such infections range from sinusitis and acne to pneumonia, meningitis, osteomyelitis, endocarditis, toxic shock syndrome, bacteremia, sepsis and MRSA in hospitals. (https://www.ncbi.nlm.nih.gov/pmc/articles/PMC4451395/) Escherichia coli (E. coli) is a rod-shaped coliform bacterium normally found in the lower intestines of people and animals. While most strains of E. coli are harmless, some cause food poisoning and diarrhea, urinary tract and respiratory infections, and other illnesses. (https://www.cdc.gov/ecoli/general/index.html) Aspergillus niger (A. niger) is one of fifteen black-spored strains of the Aspergillus mold. Indoors it is often mistaken for the very harmful Stachybotrys. The spores can become airborne, where they can be inhaled. For those with compromised immune systems, this can cause sinus and lung infections called Aspergillosis, with symptoms including fever, wheezing, shortness of breath, and cough. (https://www.cdc.gov/fungal/diseases/aspergillosis/symptoms.html) Test Parameters Action Time (hours) Steriliza- tion Rate Pathogen: Staphylococcus aureus
of Tests: 3
Chamber: 30m³ 2 >99.98% Pathogen: Staphylococcus albusof Tests: 3
Chamber: 30m³ 2 >99.98% Pathogen: Escherichia coliof Tests: 3
Chamber: 30m³ 2 >99.98% Pathogen: Aspergillus nigerof Tests: 3
Chamber: 30m³ 2 >99.98%Pollutant Removal
All tests were performed by Intertek Labs. For full test reports, visit nuwaveoxypure.com/tests. Gases, VOCs, and Fumes Size (µm) Particles and Pathogens 10 Fertilizer, Pollen, Plant and Flower Allergens, Mold Spores, and Dust Mites 4 Iron Dust, Textile Dust, Fiberglass Installation, and Tobacco Smoke 3 Cement Dust, Burning Wood, and Mold Spores 2.5 Combustion Related, Motor Vehicles, and Industrial Emissions 2 Lead Dust, Carbon Black Dust, Spores, and Asbestos 1 Fiber Glass, Coal Dust, Anthrax, and Auto and Car Emissions 0.5 Talcum Dust and Copier Toner 0.2 Bacteria, Carbon Black Dust, Insecticide Dust, Burning Wood Smoke, and Coal Flue Gas 0.1 Paint Pigments, Clay, Lead and Radioactive Fallout 0.09 Viruses and Atmospheric Dust Pollutant ExamplesOdors
Household Fumes, Smoke, and Cooking OdorsVocs
Formaldehyde and Benzene from Carpets, Flooring, Furniture, Glues, and Cleansers.Fumes
Nitrogen Dioxide from Gas Stoves and Car ExhaustsOzone
Pollutants Emitted by Power Plants, Oil Refineries, and Chemical Plants Pollutants in the Air The air you breathe can be carrying more than dust motes dancing in sunbeams and Uncle Al’s cigar smoke. Take a look: Questions about your OxyPure? Contact our friendly customer service staff from 7:30am to 4:30pm,CST Monday through Friday at 877-689-2838 or reach us via email anytime at [email protected].

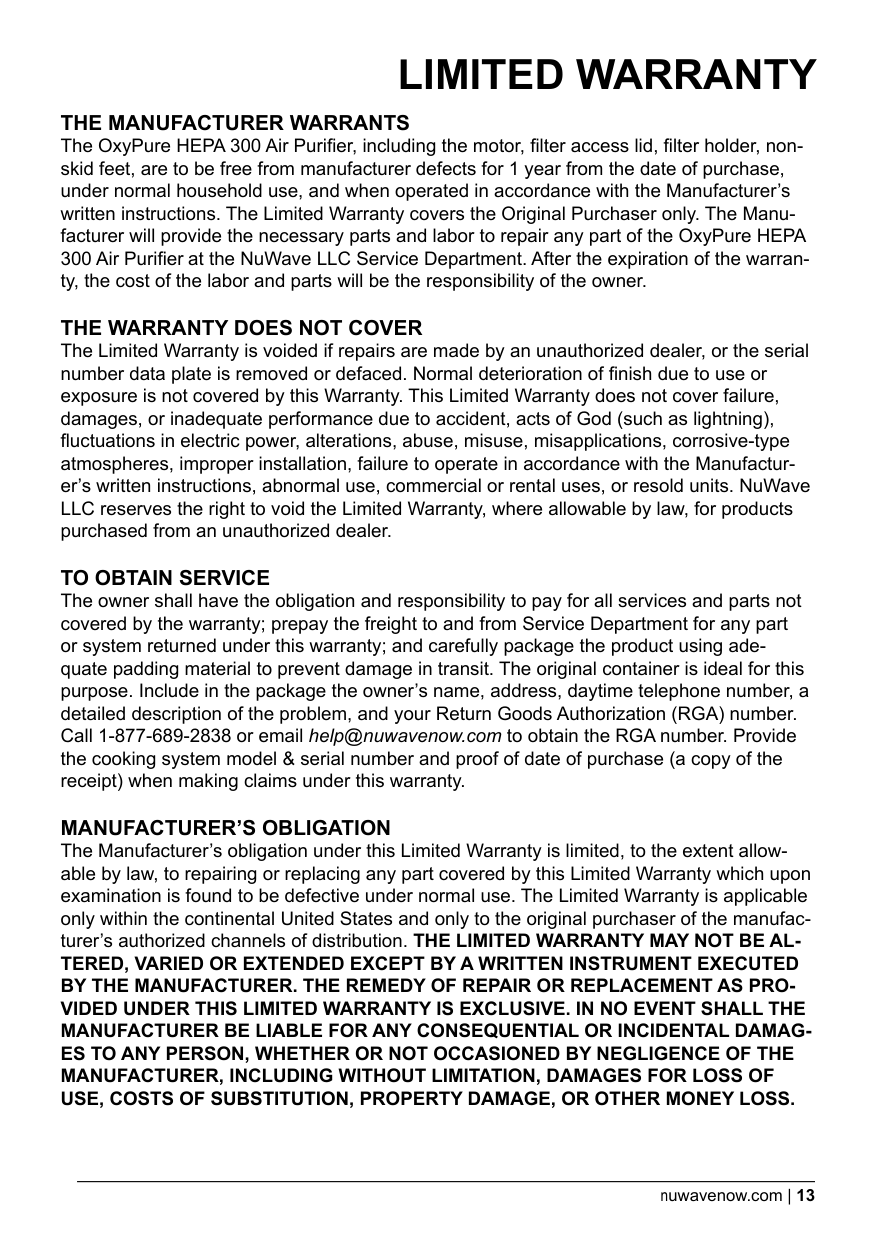

nuwavenow.com | 13
Limited Warranty
The Manufacturer Warrants
The OxyPure HEPA 300 Air Purifier, including the motor, filter access lid, filter holder, non- skid feet, are to be free from manufacturer defects for 1 year from the date of purchase, under normal household use, and when operated in accordance with the Manufacturer’s written instructions. The Limited Warranty covers the Original Purchaser only. The Manu- facturer will provide the necessary parts and labor to repair any part of the OxyPure HEPA 300 Air Purifier at the NuWave LLC Service Department. After the expiration of the warran- ty, the cost of the labor and parts will be the responsibility of the owner.The Warranty Does Not Cover
The Limited Warranty is voided if repairs are made by an unauthorized dealer, or the serial number data plate is removed or defaced. Normal deterioration of finish due to use or exposure is not covered by this Warranty. This Limited Warranty does not cover failure, damages, or inadequate performance due to accident, acts of God (such as lightning), fluctuations in electric power, alterations, abuse, misuse, misapplications, corrosive-type atmospheres, improper installation, failure to operate in accordance with the Manufactur- er’s written instructions, abnormal use, commercial or rental uses, or resold units. NuWave LLC reserves the right to void the Limited Warranty, where allowable by law, for products purchased from an unauthorized dealer.To Obtain Service
The owner shall have the obligation and responsibility to pay for all services and parts not covered by the warranty; prepay the freight to and from Service Department for any part or system returned under this warranty; and carefully package the product using ade- quate padding material to prevent damage in transit. The original container is ideal for this purpose. Include in the package the owner’s name, address, daytime telephone number, a detailed description of the problem, and your Return Goods Authorization (RGA) number. Call 1-877-689-2838 or email [email protected] to obtain the RGA number. Provide the cooking system model & serial number and proof of date of purchase (a copy of the receipt) when making claims under this warranty.Manufacturer’S Obligation
The Manufacturer’s obligation under this Limited Warranty is limited, to the extent allow- able by law, to repairing or replacing any part covered by this Limited Warranty which upon examination is found to be defective under normal use. The Limited Warranty is applicable only within the continental United States and only to the original purchaser of the manufac- turer’s authorized channels of distribution. THE LIMITED WARRANTY MAY NOT BE AL-Tered, Varied Or Extended Except By A Written Instrument Executed
By The Manufacturer. The Remedy Of Repair Or Replacement As Pro-
Vided Under This Limited Warranty Is Exclusive. In No Event Shall The
Manufacturer Be Liable For Any Consequential Or Incidental Damag-
Es To Any Person, Whether Or Not Occasioned By Negligence Of The
Manufacturer, Including Without Limitation, Damages For Loss Of
Use, Costs Of Substitution, Property Damage, Or Other Money Loss.

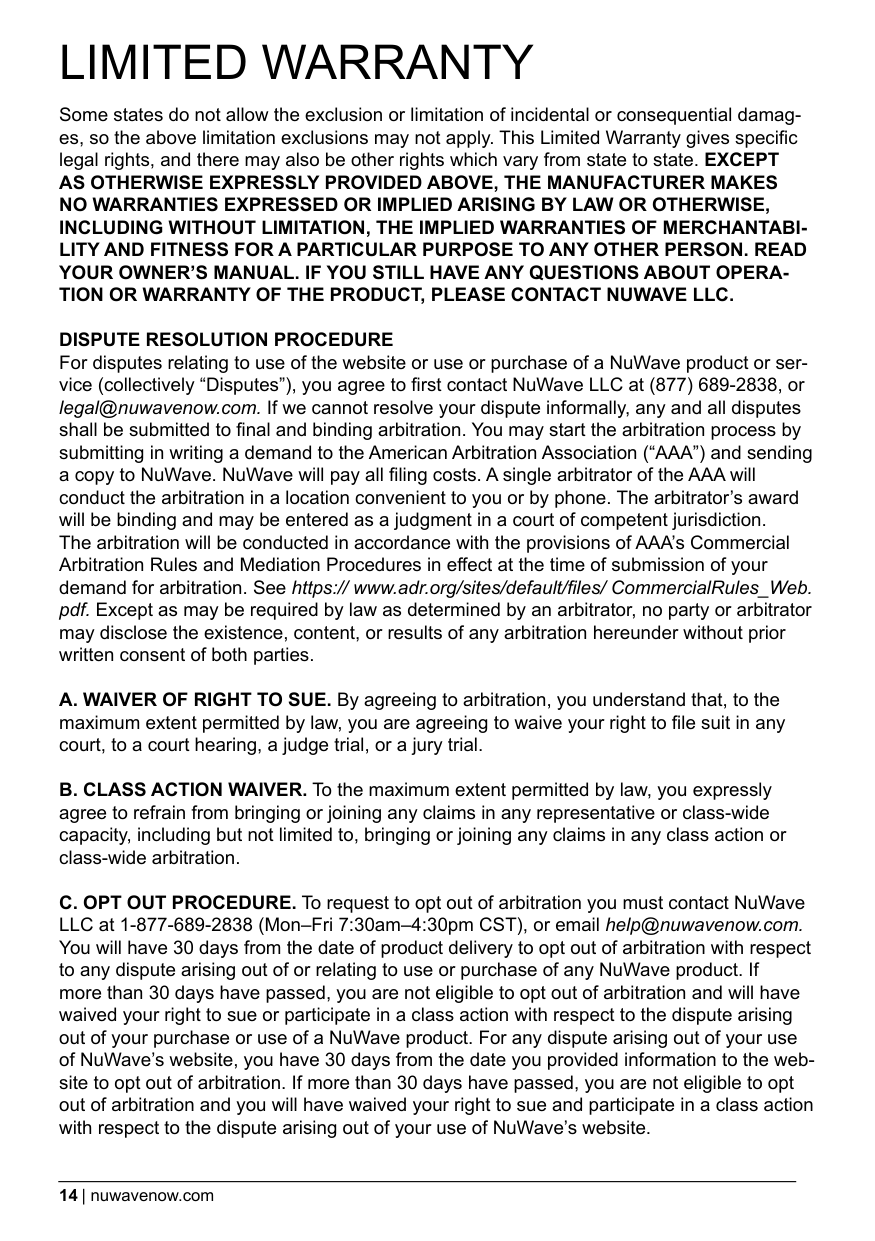

14 | nuwavenow.com
Limited Warranty
Some states do not allow the exclusion or limitation of incidental or consequential damag- es, so the above limitation exclusions may not apply. This Limited Warranty gives specific legal rights, and there may also be other rights which vary from state to state. EXCEPTAs Otherwise Expressly Provided Above, The Manufacturer Makes
No Warranties Expressed Or Implied Arising By Law Or Otherwise,
Including Without Limitation, The Implied Warranties Of Merchantabi-
Lity And Fitness For A Particular Purpose To Any Other Person. Read
Your Owner’S Manual. If You Still Have Any Questions About Opera-
Tion Or Warranty Of The Product, Please Contact Nuwave Llc.
Dispute Resolution Procedure
For disputes relating to use of the website or use or purchase of a NuWave product or ser- vice (collectively “Disputes”), you agree to first contact NuWave LLC at (877) 689-2838, or [email protected]. If we cannot resolve your dispute informally, any and all disputes shall be submitted to final and binding arbitration. You may start the arbitration process by submitting in writing a demand to the American Arbitration Association (“AAA”) and sending a copy to NuWave. NuWave will pay all filing costs. A single arbitrator of the AAA will conduct the arbitration in a location convenient to you or by phone. The arbitrator’s award will be binding and may be entered as a judgment in a court of competent jurisdiction. The arbitration will be conducted in accordance with the provisions of AAA’s Commercial Arbitration Rules and Mediation Procedures in effect at the time of submission of your demand for arbitration. See https:// www.adr.org/sites/default/files/ CommercialRules_Web. pdf. Except as may be required by law as determined by an arbitrator, no party or arbitrator may disclose the existence, content, or results of any arbitration hereunder without prior written consent of both parties. A. WAIVER OF RIGHT TO SUE. By agreeing to arbitration, you understand that, to the maximum extent permitted by law, you are agreeing to waive your right to file suit in any court, to a court hearing, a judge trial, or a jury trial. B. CLASS ACTION WAIVER. To the maximum extent permitted by law, you expressly agree to refrain from bringing or joining any claims in any representative or class-wide capacity, including but not limited to, bringing or joining any claims in any class action or class-wide arbitration. C. OPT OUT PROCEDURE. To request to opt out of arbitration you must contact NuWave LLC at 1-877-689-2838 (Mon–Fri 7:30am–4:30pm CST), or email [email protected]. You will have 30 days from the date of product delivery to opt out of arbitration with respect to any dispute arising out of or relating to use or purchase of any NuWave product. If more than 30 days have passed, you are not eligible to opt out of arbitration and will have waived your right to sue or participate in a class action with respect to the dispute arising out of your purchase or use of a NuWave product. For any dispute arising out of your use of NuWave’s website, you have 30 days from the date you provided information to the web- site to opt out of arbitration. If more than 30 days have passed, you are not eligible to opt out of arbitration and you will have waived your right to sue and participate in a class action with respect to the dispute arising out of your use of NuWave’s website.

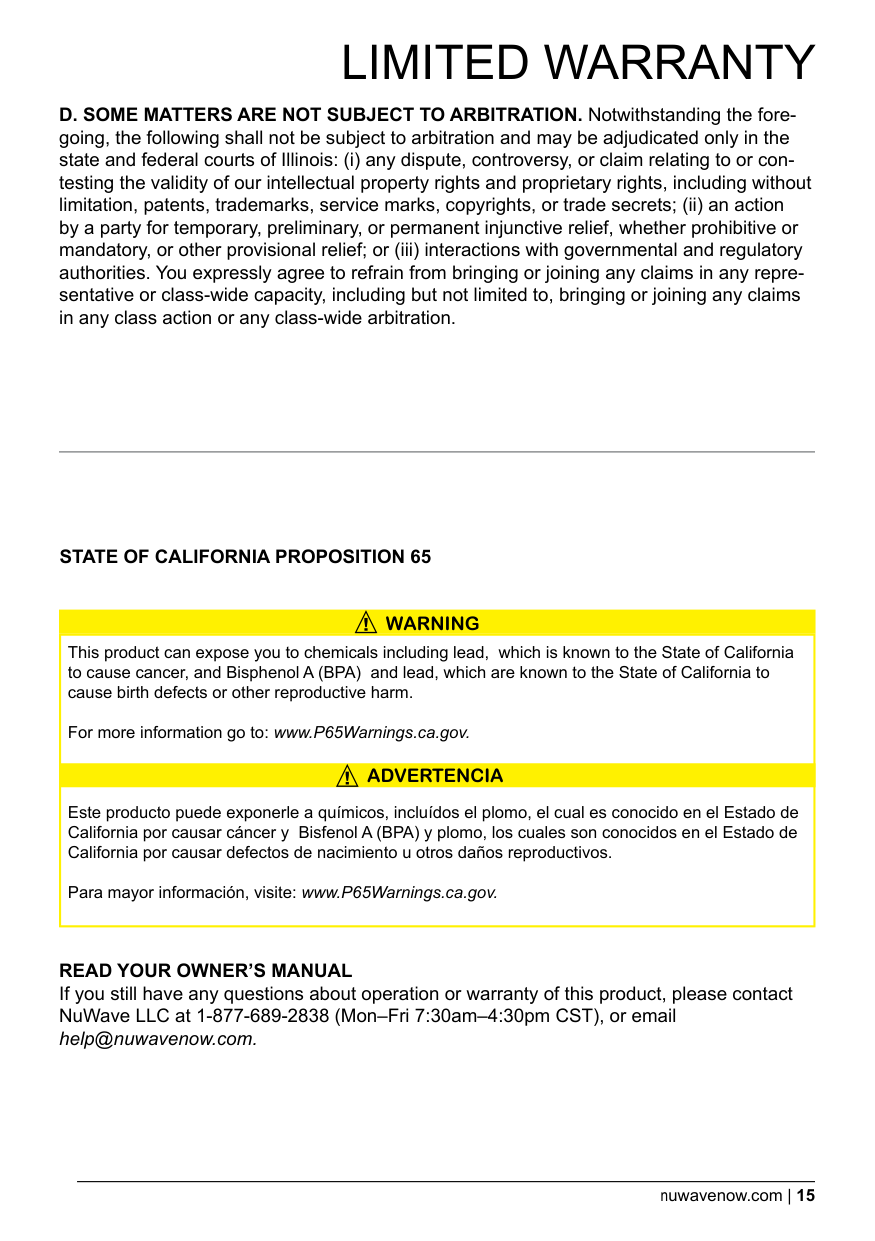

nuwavenow.com | 15
Limited Warranty
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and Bisphenol A (BPA) and lead, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov. Este producto puede exponerle a químicos, incluídos el plomo, el cual es conocido en el Estado de California por causar cáncer y Bisfenol A (BPA) y plomo, los cuales son conocidos en el Estado de California por causar defectos de nacimiento u otros daños reproductivos. Para mayor información, visite: www.P65Warnings.ca.gov.Warning
Advertencia
D. SOME MATTERS ARE NOT SUBJECT TO ARBITRATION. Notwithstanding the fore- going, the following shall not be subject to arbitration and may be adjudicated only in the state and federal courts of Illinois: (i) any dispute, controversy, or claim relating to or con- testing the validity of our intellectual property rights and proprietary rights, including without limitation, patents, trademarks, service marks, copyrights, or trade secrets; (ii) an action by a party for temporary, preliminary, or permanent injunctive relief, whether prohibitive or mandatory, or other provisional relief; or (iii) interactions with governmental and regulatory authorities. You expressly agree to refrain from bringing or joining any claims in any repre- sentative or class-wide capacity, including but not limited to, bringing or joining any claims in any class action or any class-wide arbitration.Read Your Owner’S Manual
If you still have any questions about operation or warranty of this product, please contact NuWave LLC at 1-877-689-2838 (Mon–Fri 7:30am–4:30pm CST), or email [email protected].State Of California Proposition 65
