Common questions
Common Questions
42 total 1
How long should I wait before putting food in my new refrigerator?
Allow your refrigerator to operate with the doors closed for at least 8 to 12 hours before placing food inside. During this cooling period, you do not need to adjust the controls, which are preset at the factory. (Page 12)
2
What does 'HI' flashing on the control panel display mean?
The 'HI' display indicates a high temperature condition — the freezer temperature is above 26°F or the fresh food temperature is above 55°F. Press any key on the control panel to disable the alarm, after which the control panel will show the display temperature. Contact a customer service representative if the high temp alarm continues. (Page 13)
3
What does it mean if 'OP' or 'SH' is flashing on the display?
If 'OP' or 'SH' is flashing, it may indicate that the control system has detected a performance problem. You should call your service representative, who can interpret the flashing message. (Page 14)
4
How do I mute the refrigerator alarms?
Alarms can be muted (except the 'power fail' alarm) by pressing and holding the 'freezer temperature up' key while simultaneously pressing the 'fresh food temperature down' key three times. This sequence must be completed within 5 seconds, and once muted, alarms will stay muted even if the refrigerator is powered down. To turn alarms back on, use the same key combination. (Page 13)
5
How much ice should my ice maker produce in 24 hours?
A side mounted ice maker will produce 4 to 4.5 pounds of ice every 24 hours, while a rear mounted ice maker will produce 3 to 4 pounds every 24 hours. Ice is produced at a rate of 8 cubes every 75 to 90 minutes for both types. (Page 21)
6
What electrical requirements does this refrigerator need?
The refrigerator must be plugged into its own dedicated 115 Volt, 60 Hz., 15 Amp, AC only electrical outlet. It must be plugged directly into a properly grounded three-prong receptacle, and you should avoid connecting it to a Ground Fault Interrupter (GFI) circuit or using an extension cord or adapter plug. (Page 4)
Show 36 more questions
What should I use to clean the interior and exterior of my refrigerator?
What should I do if the ice dispenser is jammed and won't dispense ice?
How long should I wait before putting food in the refrigerator after first setting it up?
What does the 'HI' display on the control panel mean?
How do I turn off the cooling system without unplugging the refrigerator?
How often should I replace the water filter, and how do I reset the filter status?
How do I replace the PureSource 3 water filter?
What are the electrical requirements for the refrigerator?
How much ice should the ice maker produce in 24 hours?
How long should I wait before putting food in my new refrigerator after installation?
What should I do if the ice maker is making a loud chattering noise?
How do I prime the water supply system after connecting water to the refrigerator?
What is the correct electrical outlet requirement for the WRF736SDAM10?
How much ice will the ice maker produce in 24 hours?
What should I do if the water filter light turns red?
How do I level the refrigerator after installation?
What should I do if the ice dispenser is jammed?
How often should I replace the water filter?
What clearances are required for proper installation of the refrigerator?
What temperature range is safe for operating this refrigerator?
What electrical outlet requirements does the Whirlpool WRF736SDAM need?
What should I do before cleaning the refrigerator or replacing the light bulb?
How should I level my new refrigerator during installation?
What precautions should I take with the tempered glass shelves?
What should I check before using the ice maker?
What safety warning applies to the automatic ice maker?
How do I properly disconnect power to the refrigerator?
How do I safely dispose of my old refrigerator?
Can I use an extension cord or adapter plug with this refrigerator?
What should I check during the installation process?
Is there a water supply connection required for this model?
What are the electrical requirements for the Whirlpool WRF736SDAM refrigerator?
How should I unplug the refrigerator safely?
How do I properly dispose of an old refrigerator?
What should I do with the carton and packaging materials?
What happens if I turn off the cooling system using the controls?
Full Manual
31 pages
Page 1
This Owner's Manual is provided and hosted by Appliance Factory Parts.

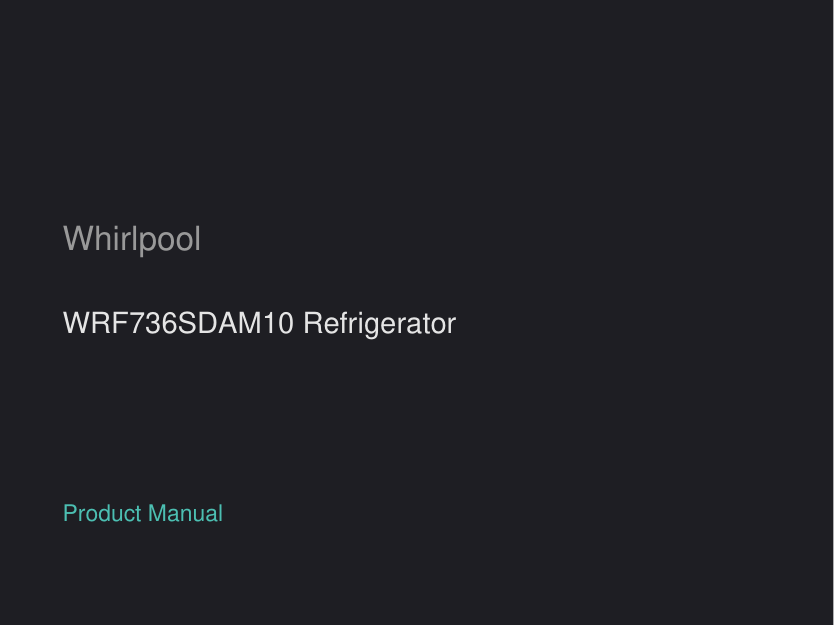

Whirlpool Wrf736Sdam10
Owner's Manual Shop genuine replacement parts for WHIRLPOOLWrf736Sdam10
Find Your WHIRLPOOL Refrigerator Parts - Select From 8647 Models -------- Manual continues below -------- Page 2
Table Of Contents
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352 All about the Use & Care of your Refrigerator Important Safety Instructions.......................2 Features at a Glance....................................4 Installation.................................................5 Door Removal Instructions...........................7 Handle Installation......................................9 Connecting Water Supply...........................10 Controls....................................................12 808353502 (July 2013) Storage Features.......................................16 Automatic Ice & Water Dispenser...............18 Changing the Filter....................................23 Normal Operating Sounds and Sights..........24 Care and Cleaning.....................................25 Before you Call..........................................27 Major Appliance Warranty..........................30 Page 3
2
Warning
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.Important
IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.Danger
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Definitions This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Doors Handles are secure and tight Door seals completely to cabinet on all sides Freezer door is level across the top Leveling Refrigerator is level, side-to-side and tilted ¼” (6mm) front-to-back Toe grille is properly attached to refrigerator Cabinet is setting solid on all corners Electrical Power House power turned on Refrigerator plugged in Ice Maker House water supply connected to refrigerator No water leaks present at all connectionsCaution
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.Important Safety Instructions
For your SafetyWarning
Please read all instructions before using this refrigerator. Child Safety Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation. Proper Disposal of your Refrigerator or Freezer Risk of child entrapment Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous – even if they will sit for “just a few days”. If you are getting rid of your old refrigerator or Page 4
3
Important Safety Instructions
Grounding type wall receptacle Do not, under any circumstances, cut, remove, or bypass the grounding prong. Power cord with 3-prong gounded plug Electrical informationWarning
These guidelines must be followed to ensure that safety mechanisms in this refrigerator will operate properly.Important
Pressing and holding the On/Off button for three seconds, located on the temperature control panel (Electronic controls), or turning the Freezer and Fresh Food controls to “0” (Mechanical controls) will disable your refrigerator’s cooling system, but does not disconnect the power to the light bulb and other electrical components. To turn off power to your refrigerator you must unplug the power cord from the electrical outlet.Caution
To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. Avoid connecting refrigerator to a Ground Fault Interrupter (GFI) circuit. Do not use an extension cord or adapter plug.Important
CFC/HCFC Disposal Your old refrigerator may have a cooling system that used CFCs or HCFCs (chlorofluorocarbons or hydrochlorofluorocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere. If you are throwing away your old refrigerator, make sure the refrigerant is removed for proper disposal by a qualified technician. If you intentionally release refrigerant, you may be subject to fines and imprisonment under provisions of environmental legislation. Page 5
4
Features At A Glance
Features may vary according to modelCaution:
Do Not Remove Magnet Behind Dairy Compartment Dairy Compartment Door Bin SpillProof™ Sliding Shelf Door Bin Tall Bottle Retainer Wine Rack Door Bin Special Item Rack Meat Keeper and Cover Can Rack Crisper Pan and Cover Fixed Door Bin Toe Grille Fixed Door Bin Ice Container Shelf Shelf Tilt Out Door Bin Small Basket Large Glide Out Basket Tilt Out Door Bin Large Basket Door Bin SpillProof™ Aspect Shelf Water Filter Ice Cream Shelf Ice MakerImportant
Features not included with your refrigerator can be purchased at www.frigidaire.com or by calling 1-800-944-9044. Page 6
Note
If your refrigerator is placed with the door hinge side against a wall, you may have to allow additional space so the door can be opened wider. 5Installation
Caution
Do Not install the refrigerator where the temperature will drop below 55°F (13°C) or rise above 110°F (43°C). The compressor will not be able to maintain proper temperatures inside the refrigerator. Do Not block the toe grille on the lower front of your refrigerator. Sufficient air circulation is essential for the proper operation of your refrigerator. This Use & Care Guide provides general operating instructions for your model. Use the refrigerator only as instructed in this Use & Care Guide. Before starting the refrigerator, follow these important first steps. LocationSides & Top 3/8 inch
Back
1 inch Toe Grille Installation and Removal To install toe grille 1 Open both doors. Slide left and right sides of toe grille over lower hinges of refrigerator. 2 While pushing toe grille firmly against cabinet, fasten bottom clips of toe grille to cabinet. 3 Fasten top clips to cabinet. 4 Close the doors. Fasten right and left side clips into groove of bottom hinge. To remove toe grille 1 With both doors closed, unfasten right and left side clips of toe grille from bottom hinge groove. 2 Open both doors. Press firmly on top of toe grille until top of toe grille pops off. 3 Pull toe grille outward toward your body and off of lower hinges. 1 2 3 2 3 1 4 4 Installing Toe Grille 1 2 3 2 3 1 Removing Toe Grille
Page 7
6
Installation
Note
The refrigerator doors are designed to shut by themselves within a 20 degree opening. Raise Door Opening Your refrigerator should be positioned to allow easy access to a counter or table when removing food. For best use of drawers and freezer baskets, the refrigerator should be in a position where both the refrigerator and freezer doors can be fully opened. Guidelines for final positioning of your refrigerator:Note
Some models will not have a set screw. For those models follow steps 2 through 4. 1 Before leveling either door, remove set screw that locks door height into position. (The door cannot be adjusted without set screw removed). 2 If the refrigerator door is lower than the freezer door, raise the refrigerator door by turning the adjustment screw clockwise using a 7/16 inch wrench. (See illustration.) 3 If the freezer door is lower than the refrigerator door, raise the freezer door by turning the adjustment screw clockwise using a 7/16 inch wrench. (See illustration.) Page 8
7
Door Removal Instructions
To prepare for removing the doors: 1 Make sure the electrical power cord is unplugged from the wall outlet. 2 Open both doors and remove the toe Socket Wrench Set Adjustable Wrench 3/8" Fixed Wrench Top Hinge Cover Front Screw Top Hinge Screw Bottom Hinge Screw Top Hinge Cover Rear Screw Phillips™ Head Tools Necessary: or or To remove the refrigerator door: 1 Trace lightly around the door’s top hinge with a pencil. This makes reinstallation easier. grille (as explained in the Installation Instructions that came with your appliance). 3 Remove any food from the door shelves. 4 Close the doors. To remove the refrigerator top hinge cover: 1 Remove the three screws from each cover over the top door hinges. 2 Lift hinge cover straight up and off. Rear Cover Screw Front Cover Screws Top Hinge Cover Hinge Screws Top Hinge 2 Remove the two screws from the top hinge. Lift the door off of the bottom hinge and set it aside. Page 9
8
Door Removal Instructions
Door Hinge Assembly Closer Pin Hinge ScrewsCaution
Be sure doors are set aside in a secure position where they cannot fall and cause personal injury. Door Hinge Assembly Screws Water Line Tubing Non-Adjusting Hinge (some models) Closer Pin Hinge Door Water Line Tubing Screws Hinge Assembly Adjustable Hinge (some models) Front Cover Screws Rear Cover Screw Top Hinge Cover Hinge Screws Multi-Wire Cable Top Hinge To Disconnect Page 10
9
Handle Installation
Important
To ensure proper installation of handles, please review these instructions and illustrations thoroughly prior to installing the handles.Caution
Wear gloves and safety goggles and use extreme CAUTION when installing these handles. The rounded end of the handles may be sharp (some models). Ensure Handle Set Screws are Facing Each Other with Doors Closed Freezer Upper End Cap Refrigerator Lower End Cap Refrigerator Upper End Cap Freezer Lower End Cap Frigidaire Professional® 1 Remove handles from carton and any other protective packaging. 2 Position freezer handle end caps over upper and lower pre-installed shoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing towards the refrigerator door. 3 While holding handle firmly against door, fasten upper and lower Allen set screws (B) with supplied Allen wrench. 4 Repeat steps 2 and 3 to install refrigerator handle. Ensure the holes for the set screws are facing towards the freezer door.Note
All set screws should be tightened and sub-flush (Allen set screw should be seated just below the surface of the end cap) of handle end cap. The end caps should be drawn tight to freezer and refrigerator doors with no gaps. Freezer Upper End Cap Refrigerator Upper End Cap Frigidaire Gallery® Refrigerator Lower End Cap Freezer Lower End Cap Page 11
10
Warning
To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before connecting a water supply line to the refrigerator.Note
Check with your local building authority for recommendations on water lines and associated materials prior to installing your new refrigerator. Depending on your local/ state building codes, Frigidaire recommends for homes with existing valves its Smart Choice® water line kit 5305513409 (with a 6 ft. Stainless Steel Water Line) and for homes without an existing valve, Frigidaire recommends its Smart Choice® water line kit 5305510264 (with a 20 ft. copper water line with self-tapping saddle valve). Please refer to www.frigidaire.com/store for more information.Caution
To Avoid Property Damage:Important
Ensure that your water supply line connections comply with all local plumbing codes.Connecting The Water Supply
Before Installing The Water Supply Line, You Will Need:If you use stainless steel tubing - The nut and ferrule are already assembled on the tubing. Slide compression nut onto valve inlet and finger tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT over tighten. See Figure 2.
Page 12
11
Important
After connecting the water supply, refer to “How to Prime the Water Supply System” for important information about priming an empty water supply system. Your refrigerator’s water supply system includes several tubing lines, a water filter, a water valve, and a water tank. To ensure that your water dispenser works properly, this system must be completely filled with water when your refrigerator is first connected to the household water supply line. Steel Clamp Stainless Steel water line Water Valve Bracket Valve Inlet Water Valve Plastic Water Tubing to Ice Maker Fill Tube 6 ft. Stainless Steel water line from household water supply Figure 2 Figure 1 Plastic Water Tubing to Ice Maker Fill Tube Steel Clamp Brass Compression Nut Ferrule (Sleeve) Copper water line Water Valve Bracket Valve Inlet Water Valve Copper water line from household water supply (Include enough tubing in loop to allow moving refrigerator out for cleaning.)Connecting The Water Supply
5 With steel clamp and screw, secure water supply line (copper tubing only) to rear panel of refrigerator as shown. 6 Coil excess water supply line (copper tubing only), about 2½ turns, behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface. 7 Turn ON water supply at shutoff valve and tighten any connections that leak. 8 Reconnect refrigerator to electrical power source. 9 To turn ice maker on, lower wire signal arm (side mounted) or set the ice maker’s On/Off power switch to the “I” position (rear mounted). Page 13
Note
When changing control settings, wait 24 hours for the temperature to stabilize before making additional changes. 12 Allowing Cooling Time Before Use To ensure safe food storage, allow your refrigerator to operate with the doors closed for at least 8 to 12 hours before placing food inside. During this cooling period, you do not need to adjust the controls, which are preset at the factory. Setting Cooling Temperatures (Single Digit Display - Features may vary.)Temperature Adjustment
To adjust the temperature to a higher or lower setting, press the Up (Cold) or Down (Colder) button closest to the display. The first time you press the button, the display shows current setting you entered. Each press of the button after that changes the setting by one. The display shows your new setting momentarily, then changes back to the current temperature.Controls
Your refrigerator comes with a state-of-the-art electronic digital control system. The system’s control panel is located at the top of the fresh food compartment. The two digital displays on the left half of the control panel indicate the current settings or temperatures of your freezer and fresh food compartments. The models with a two-digit temperature display are for reference only, and do not display the current accurate compartment temperature. Should you desire to see what the current accurate temperature is, place a separate thermometer inside the freezer or fresh food compartment in the desired location. Page 14
13
Alarms
Power Fail In the event of a power failure, the ‘power fail’ alarm will sound three times. The ‘power fail’ alarm is an audible alarm only and does not display in the control panel. High Temperature When a warm refrigerator is first powered on, the ‘power fail’ alarm will sound and the current set points will be displayed for a few seconds. After 20 minutes the ‘high temp’ alarm will sound if the freezer temperature is above 26°F or if the fresh food temperature is above 55°F (or both are above). If the unit is above the temperatures mentioned in the paragraph above, the affected compartment temperature display (fresh food, freezer or both) on the control panel will display ‘HI’ and an alarm will sound. To disable the alarm press any key on the control panel. After which the control panel will then show the display temperature. The unit will continue to monitor the product temperatures for ‘high temp’ condition every 20 minutes. If the ‘high temp’ condition persists, the alarm will sound again and can be reset again. Contact a customer service representative if the high temp alarm continues. The audible portion of the alarm will silence itself once the product temperature is below 26°F for the freezer temperature and 55°F for the fresh food temperature. The control panel will still show ‘HI’ until it is acknowledged by the user by pressing any key on the control panel. After which the control panel will then show the display temperature. Door Ajar If the door has been left open for an extended period of time an alarm will sound. (Some models will have a ‘door ajar’ indicator on the control panel). The alarm will continue to sound until the door is closed. Alarm Mute Alarms can be muted (except ‘power fail’) by pressing a key combination on the control panel. Press and hold the ‘freezer temperature up’ key while at the same time pressing the ‘fresh food temperature down’ key three times. This sequence must be completed within 5 seconds for the alarms to be muted. Once the alarms have been muted, they will stay muted even if the refrigerator is powered down. To turn the alarm sounds back on, use the same key combination that was used to mute alarms.Controls
Page 15
14
Controls
If Temperature Displays Flash...
If ever you see “OP” or “SH” flashing, it may indicate that the control system has detected a performance problem. Call your service representative, who can interpret the flashing message. To maintain temperatures, a fan circulates air in the refrigerator and freezer compartments. For good circulation, do not block cold air vents with food items. Numeric Display Freezer Fresh Food Warmest 1 1 Factory Setting 6 6 Coldest 9 9 Temperature Control Range Freezer Fresh Food Fahrenheit Centigrade Fahrenheit Centigrade Warmest 6º -14º 47º 8º Warmer Factory Setting Midpoint 0º -18º 37º 3º Colder Coldest -6º -21º 33º 1º Page 16
15
Note
The advanced electronic control system in your refrigerator includes additional display modes that service professionals can use to rapidly diagnose performance issues. Turning the Cooling system on and off You can disable the cooling system in your refrigerator by pressing the On/Off button located on the left side of the temperature control panel. To ensure that you do not accidentally turn off the cooling system, the button does not work unless you press and hold it for three seconds. Once you disable the cooling system, all refrigeration to the freezer and fresh food compartments stops. To turn the cooling system back on, you must again press and hold the On/Off button for three more seconds. Controls will display OF°F/OF°F when turned off. Cooling System On/Off ButtonControls
Note
Pressing the On/Off button on the control panel disables your refrigerator’s cooling system but does not disconnect power to lights and other electrical components. To turn off power to your refrigerator you must unplug the power cord from the wall outlet. Each time you make settings on the control panel, a single audible tone acknowledges your input. Temperature Adjustment If Fresh Food compartment is too warm Adjust Fresh Food control one degree colder by pressing Down (Colder) button. If Fresh Food compartment is too cold Adjust Fresh Food control one degree warmer by pressing the Up (Cold) button. If Freezer compartment is too warm Adjust Freezer control one degree colder by pressing Down (Colder) button. If Freezer compartment is too cold Adjust Freezer control one degree warmer by pressing the Up (Cold) button. Page 17
Caution
To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in dishwasher. 16Storage Features
Cantilever Sliding Glass Shelf 1 2 Cantilever Glass Shelf 1 2 Cantilever Shelf Adjustment Refrigerator shelves are easily adjusted to suit individual needs. Before adjusting the shelves, remove all food. Cantilever shelves are supported at the back of the refrigerator. To adjust cantilever shelves: 1 Lift front edge up. 2 Pull shelf out. Replace the shelf by inserting the hooks at rear of the shelf into the wall bracket. Lower the shelf into the desired slots and lock into position. SpillSafeTM glass shelves (some models) catch and hold accidental spills. In some models, the SpillSafeTM shelves slide out for easy access to food and for fast cleaning. The shelves slide out independently of their mounting brackets. Just pull the front of the shelf forward. Shelves can be extended as far as the stopper will allow but are not removable from their mounting brackets. Door storage Door bins and shelves are provided for convenient storage of jars, bottles, and cans. Frequently used items can be quickly selected. Some models have door bins that can accommodate gallon-sized plastic drink containers and economy-sized jars and containers. Some bins are adjustable for maximum storage capacity. The dairy compartment, which is warmer than the general food storage section, is intended for short term storage of cheese, spreads, or butter. Crisper Drawer Crisper Humidity Control Higher Humidity Lower HumidityNote
Leafy vegetables keep best when stored with the humidity control set on Higher Humidity, or in a drawer without a Humidity Control. This keeps incoming air to a minimum and maintains maximum moisture content. Crispers Crispers allow you the flexibility to store any manner of items including fruits, vegetables, nuts, etc. Crispers do not feature humidity controls. Fresh Drawers with Humidity Control (some models) The fresh drawers, located under the bottom refrigerator shelf, are designed for storing fruits, vegetables, and other fresh produce. The fresh drawers feature humidity control which allows you to adjust the humidity within the drawer. This can extend the life of fresh vegetables that keep best in high humidity. Wash items in clear water and remove excess water before placing them in the crispers. Items with strong odors or high moisture content should be wrapped before storing. Page 18
17 Cool Drawer (some models) Some models are equipped with a Cool Drawer for storage of luncheon meats, spreads, cheeses, and other deli items. This drawer does not have a separate temperature control. Chill Drawer (some models) Some models are equipped with a Chill Drawer. Chill Drawer temperatures can be adjusted by sliding the Chill Drawer Temperature Control in either direction. Use this pan for short term storage of bulk meat items. If meats are to be kept longer than one or two days, they should be frozen. The Chill Drawer is fixed and cannot be moved up or down. If fruits or vegetables are to be stored in the Chill Drawer, set the Chill Drawer Temperature Control to a warmer setting to prevent freezing. Colder Warmer Chill Drawer with Temperature Control
Storage Features
Page 19
18
Extreme
Freeze
To freeze food at a faster rate to preserve freshness, push the Touch Pad for 3-5 seconds to activate this feature. A green light will appear above the Touch Pad. Push the Touch Pad again for 3-5 seconds to deactivate.Extra Ice
To increase ice production for special occasions, such as parties, push the Touch Pad for 3-5 seconds to activate this feature. A green light will appear above the Touch Pad. Push the Touch Pad again for 3-5 seconds to deactivate. EXTRA ICE should produce 25 percent to 50 percent more ice every 24 hours.Cube
Press the CUBE Touch Pad to get cubed ice. A green light will appear above the Touch Pad. Press glass against ICE dispensing paddle as far up as possible to catch all ice.Crush
Press the CRUSH Touch Pad to get crushed ice. A green light will appear above the Touch Pad. Press glass against ICE dispensing paddle as far up as possible to catch all ice.Light
Press the LIGHT Touch Pad to turn on dispenser light. Press again to turn the light off. The light also turns on automatically when ice and/or water is dispensed. Replace light bulb with an appliance bulb of the same wattage.Filter
Status
The FILTER STATUS indicator light above the Touch Pad will light up each time the dispenser is used. The following filter light indications are: Green The filter is still operating within its specified life cycle. Amber The filter has reached approximately 80 percent of its useful life. This is the recommended time to purchase a replacement filter. Red The filter is 100 percent used up. Change the filter as soon as possible. After the filter cartridge has been changed, press and hold the FILTER RESET Touch Pad for 10-15 seconds. NOTE: The Green, Amber and Red lights will flash when reset is completed.Lock
The Ice & Water Dispenser can be locked out to prevent unwanted use. To Lock Out Press the LOCK Touch Pad for 3-5 seconds. A red light will appear above the Touch Pad. To Unlock Press the LOCK Touch Pad for 3-5 seconds until the red light above the Touch Pad goes out.Water
To operate the water dispenser, press a glass against the WATER dispensing paddle. To stop dispensing water, pull the glass away from the dispensing paddle. Dispensed water is not cold. For colder water, add crushed ice or cubes before dispensing water. A drip tray located at the base of the dispenser catches small spills and allows them to evaporate. This drip tray is removable and dishwasher safe. Do not pour water and excess ice in this area because there is no drain.Automatic Ice & Water Dispenser
Note
Your refrigerator may have some or all of the features listed below. Become familiar with these features and their use and care. Page 20
19
Automatic Ice & Water Dispenser
light off light on ice water crush cube Crushed Press the Crushed Touch Pad to get crushed ice. A red indicator will appear above the Touch Pad. Press glass against ICE dispensing paddle as far up as possible to catch all ice. Cubed Press the Cubed Touch Pad to get cubed ice. A red indicator will appear above the Touch Pad. Press glass against ICE dispensing paddle as far up as possible to catch all ice. Light On Press the Light On Touch Pad to turn on dispenser light. A red indicator will appear above the Touch Pad. Light Off Press the Light Off Touch Pad to turn off dispenser light. A red indicator will appear above the Touch Pad. Water To operate the water dispenser, press a glass against the WATER dispensing paddle. To stop dispensing water, pull the glass away from the dispensing paddle. Dispensed water is not cold. For colder water, add crushed ice or cubes before dispensing water. A drip tray located at the base of the dispenser catches small spills and allows them to evaporate. This drip tray is removable and dishwasher safe. Do not pour water and excess ice in this area because there is no drain.Note
Your refrigerator may have some or all of the features listed below. Become familiar with these features and their use and care. Page 21
Important
Your ice maker is shipped from the factory with the wire signal arm in the ON position (side mounted) or with the switch turned ON (rear mounted). To ensure proper function of your ice maker, hook up water supply immediately or turn ice maker OFF by lifting the wire signal arm until it clicks and locks in the UP position (side mounted) or turn the On/Off switch to the Off (0) position (rear mounted). If the ice maker is not turned off and the water supply is not connected, the water valve will make a loud chattering noise. 20Automatic Ice & Water Dispenser
Priming the Water Supply System Your refrigerator’s water supply system includes several tubing lines, an advanced water filter, a distribution valve bank, and a reserve tank to ensure ample supply to the ice and water dispenser at all times. This system needs to be completely filled with water when first connected to an external supply line. To prime the water supply system: 1 Begin filling the tank by pressing and holding a drinking glass against the water dispenser paddle. 2 Keep the glass in this position until water comes out of the dispenser. It may take about 1½ minutes. 3 Continue dispensing water for about four minutes to flush the system and plumbing connections of any impurities (stopping to empty the glass as necessary). Ice Maker Operation & Care The ice maker, ice bin, and dispenser feeding mechanism are located in the top of the freezer compartment. After the refrigerator is installed properly and has cooled for several hours, the ice maker can produce ice within 24 hours. It can completely fill an ice bin in about two days. Using the Ice Maker after Installation Before making ice for the first time, be sure to prime the water supply system. Air in new plumbing lines can result in two or three empty ice maker cycles. Furthermore, if the system is not flushed, the first ice cubes may be discolored or have an odd flavor.Note
The water dispenser has a built-in device that shuts off the water flow after three minutes of continuous use. To reset this shutoff device, simply release the dispenser paddle.Caution
For proper dispenser operation, recommended water supply pressure should fall between 30 psi and 100 psi. Excessive pressure may cause water filter to malfunction. Ice Production: What to Expect How Much Ice Will a Side Mounted Ice Maker Produce in 24 Hours? A side mounted ice maker will produce 4 to 4.5 pounds of ice every 24 hours, depending on usage conditions. Ice is produced at a rate of 8 cubes every 75 to 90 minutes. How Much Ice Will a Rear Mounted Ice Maker Produce in 24 Hours? A rear mounted ice maker will produce 3 to 4 pounds of ice every 24 hours, depending on usage conditions. Ice is produced at a rate of 8 cubes every 75 to 90 minutes. Page 22
Important
Small ice cubes or ice chips jamming in the ice maker may be a sign that your water filter needs changing. If you have a side mounted ice maker you may also experience hollow cubes partially frozen cubes with water inside. When these cubes are harvested, they break open and spill water over the other ice cubes in the ice container, forming a solid mass of ice. As the water filter nears the end of its useful life and becomes clogged with particles, less water is delivered to the ice maker during each cycle. The ice maker can’t fill every cube in the ice maker mold, leading to small cubes or chips that can get caught between the ice ejector blades and the stripper. Remember, if your ice maker is jamming with small ice cubes or it’s been six months or longer since you last changed your water filter replace the water filter with a new one. Poor quality household water may require the filter to be changed more frequently. 21 Wire Signal Arm Off OnOn
Off
Wire Signal Arm Turning the SIDE MOUNTED Ice Maker On and Off To begin ice production, lower the wire signal arm to the DOWN or ON position. The ice maker turns off automatically when the ice container becomes full. To stop the ice maker, raise the wire signal arm until it clicks and locks in the UP or OFF position. Turning the REAR MOUNTED Ice Maker On and Off Ice production is controlled by the ice maker’s ON/OFF power switch. To gain access to the ice maker, pull the ice cream shelf out. Press the switch to the “O” position to turn it Off and press it to the “I” position to turn it On. The ice maker also has a built-in wire signal arm, which automatically stops ice production when the ice bin is full. DO NOT use this signal arm to manually stop the ice maker.Automatic Ice & Water Dispenser
Ice Maker/Dispenser Tips Page 23
Caution
Chemicals from a malfunctioning water softener can damage the ice maker. If the water supply to your refrigerator is softened, be sure the softener is maintained to work properly.Caution
NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice storage bin and dispenser mechanism.Important
When removing or replacing the ice bin, DO NOT rotate the auger in the ice bin. If the auger is accidentally rotated, you must realign the auger by turning it in 90 degree turns (see below) until the ice bin fits into place with the drive mechanism. If the auger is not properly aligned when replacing the ice bin, the refrigerator will only dispense Crushed Ice. The freezer door may also not close properly causing warm air to leak into the freezer. 22Automatic Ice & Water Dispenser
Cleaning the Ice Maker Clean the ice maker and ice bin at regular intervals, particularly before you take a vacation or move. To clean the ice maker: 1 Turn Off the ice maker. 2 Remove the ice bin by lifting up and out. 3 Empty and carefully clean the ice bin with mild detergent. Rinse with clear water. Do not use harsh or abrasive cleaners. 4 Allow the ice bin to dry completely before replacing in the freezer. 5 Remove ice chips and clean the ice bin shelf and the freezer door chute. 6 Replace the ice bin. Turn On the ice maker to resume ice production. Remove and empty the ice storage bin if: Page 24
23 Locating the Filter Your refrigerator is equipped with a water filtering system. The water filter system filters all dispensed drinking water, as well as the water used to produce ice. Water Filter The water filter is located at the top right side of the fresh food compartment. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. Test & certification results:
PureSource UltraTM Water Filter
Part# ULTRAWF
PureSource 3TM Water Filter
Part #WF3CB Replacing the Water Filter In general, you should change the water filter every six months to ensure the highest possible water quality. Water Filter Status on the user interface prompts you to replace the filter after a standard amount of water (200 gallons/757 liters for PureSource UltraTM andPureSource 3TM) has flowed through the system. If your refrigerator has not been used for a period of time (during moving for example), change the filter before reinstalling the refrigerator. Filter Cartridge The PureSource 3TM ice and water filter system is tested and certified to NSF/ANSI Standards 42 and 53 for the reduction of claims specified on the performance data sheet. More about your Advanced Water Filter
Note
If your refrigerator is equipped with a PureSource 3TM water filter, it can be replaced with a PureSource UltraTM water filter. Replacing your PureSource 3TM water filter with a PureSource UltraTM water filter removes more potential contaminants as tested by NSF. The contaminants or other substances removed or reduced by this water filter are not necessarily in all users’ water.Changing The Filter
Note
If your refrigerator is equipped with a PureSource UltraTM water filter, it must be replaced with PureSource UltraTM water filter ULTRAWF. The PureSource UltraTM ice and water filter system is tested and certified to NSF/ANSI Standards 42 and 53 for the reduction of claims specified on the performance data sheet. Page 25
Note
Energy efficient foam in your refrigerator is not a sound insulator. Understanding the Sounds you may Hear Your new, high-efficiency refrigerator may introduce unfamiliar sounds. These sounds normally indicate your refrigerator is operating correctly. Some surfaces on floors, walls, and kitchen cabinets may make these sounds more noticeable. Following is a list of major components in your refrigerator and the sounds they can cause: A Evaporator Refrigerant through the evaporator may create a boiling or gurgling sound. B Evaporator fan You may hear air being forced through the refrigerator by the evaporator fan. C Defrost heater During defrost cycles, water dripping onto the defrost heater may cause a hissing or sizzling sound. After defrosting, a popping sound may occur. D Automatic ice maker When ice has been produced, you will hear ice cubes falling into the ice bin. E Electronic control & automatic defrost control These parts can produce a snapping or clicking sound when turning the cooling system on and off. F Condenser fan You may hear air being forced through the condenser. G Compressor Modern, high-efficiency compressors run much faster than in the past. The compressor may have a high- pitched hum or pulsating sound. H Water valve Makes a buzzing sound each time it opens to fill the ice maker. I Drain pan (not removable) You may hear water dripping into the drain pan during the defrost cycle. J Condenser May create minimal sounds from forced air. K Motorized damper May produce a light humming during operation. L Ice chute When dispensing ice, you will hear a snapping or clicking sound when the solenoid opens and closes the ice chute.Note
During automatic defrost cycle, a red glow in the back wall vents of your freezer compartment is normal.D
Or
24Normal Operating Sounds And Sights
Page 26
Important
If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a service representative to perform this operation.Caution
Note
If you set your temperature controls to turn off cooling, power to lights and other electrical components will continue until you unplug the power cord from the wall outlet. Protecting your investment Keeping your refrigerator clean maintains appearance and prevents odor build-up. Wipe up any spills immediately and clean the freezer and fresh food compartments at least twice a year. When cleaning, take the following precautions:Care & Cleaning
Page 27
26 Care & Cleaning Tips Part What To Use Tips and Precautions Interior & Door Liners
Care & Cleaning
Page 28
27
Before You Call
Visit our web site at www.frigidaire.com 1-800-944-9044 (United States) 1-800-265-8352 (Canada)Concern
Cause
Solution
Automatic Ice Maker
Ice maker is not making any ice. Page 29
28
Before You Call
Concern
Cause
Solution
DISPENSER (Ice & Water) (Continued) Dispenser will not dispense water.Opening/Closing Of Doors/Drawers
Door(s) will not close. Page 30
29
Before You Call
Concern
Cause
Solution
Running Of Refrigerator
Compressor does not run.Opening/Closing Of Doors/Drawers.
Digital Temperature Display
Digital temper- ature displays are flashing.Water/Moisture/Frost Inside Refrigerator
Moisture col- lects on inside of refrigerator walls.Of Doors/Drawers.
Water collects on bottom side of drawer cover.Water/Moisture/Frost Outside Refrigerator
Moisture col- lects on outside of refrigerator or between doors.Of Doors/Drawers.
Page 31
30
