45 totalHow many sewing patterns can be stored on the HE-800A?
The HE-800A can store up to 90 sewing programs. It comes with 21 basic pattern shapes pre-programmed, and up to nine original sewing patterns created with the optional sewing data programming software can also be added. Each program can store a maximum of 700 stitches. (Page 4)
What are the power supply requirements for the HE-800A?
The HE-800A supports both single-phase and three-phase power supplies. Single-phase options are 110V, 220V, or 230V at 600VA, while three-phase options are 220V, 380V, or 400V. (Page 4)
What is the maximum sewing speed of the HE-800A?
The maximum sewing speed of the HE-800A is 4,000 stitches per minute. This high-speed operation is supported by a new needle zigzag mechanism that reduces the effect of vibration, ensuring stable and accurate needle zigzagging even at high speeds. (Page 4)
What type of needle does the HE-800A use?
The HE-800A uses a Schmetz Nm 134 needle. It is a 1-needle lockstitch button holer. (Page 4)
What is the buttonhole size range on the HE-800A?
The HE-800A supports a maximum sewing width of 6mm and a maximum buttonhole length of 40mm. The cutter length range is 4.0 to 32mm. (Page 4)
Can the cutter operation be deactivated on the HE-800A?
Yes, if you are not using a cutter, the cutter operation can be deactivated at the press of a key on the operation panel. The cutter vertical movement is driven by a double position solenoid and operates without slowing down the sewing machine. (Page 2)
Show 39 more questions
What cutter timing settings are available on the HE-800A?
What garment types is the HE-800A designed for?
How do I create and add custom sewing patterns to the HE-800A?
What are the basic pattern types available on the HE-800A?
What needle type does the HE-800A use?
What is the buttonhole size range and cutter length for the HE-800A?
What power supply options are available for the HE-800A?
Can the cutter operation be disabled or adjusted on the HE-800A?
How do I switch between purl stitch and whip stitch on the HE-800A?
What is the data storage method used by the HE-800A, and how can custom patterns be added?
What are the basic specifications for the HE-800A embroidery machine?
Can I add custom patterns to the HE-800A?
What is the maximum buttonhole size the HE-800A can sew?
How does the presser foot lifter work on the HE-800A?
What makes the cutter operation on the HE-800A efficient?
What is the needle bar threading feature on the HE-800A?
What cutter timing options are available on the HE-800A?
What underlays can be used with the HE-800A for buttonhole sewing?
What optional accessories are available for the HE-800A?
What types of materials is the HE-800A designed to sew?
How do I adjust the presser foot height on this machine?
Can I use a cutter with this machine, and how do I control it?
What does the sub-table do, and does it come with the machine?
Can I position the operation panel in different locations?
How many basic sewing patterns does the Brother HE-800A come with?
What threading features make this machine easier to use?
What should I do if I need to clean the home position sensor?
How do I switch between purl stitches and whip stitches?
What is the needle plate set RB option used for?
What is the tape guard winder option for?
Can I adjust the presser foot height on this machine?
How does the home position sensor work and does it require cleaning?
How do I disable the cutter if I don't want to use it?
Can I use different cutter operation timings for different buttonhole styles?
How many basic sewing patterns does the HE-800A come with?
What is the benefit of the clutchless mechanism?
What should I do if I need to change the number of stitches?
What threading features are available on the HE-800A?
What types of under lay options are available for buttonholes?
Full Manual
4 pages

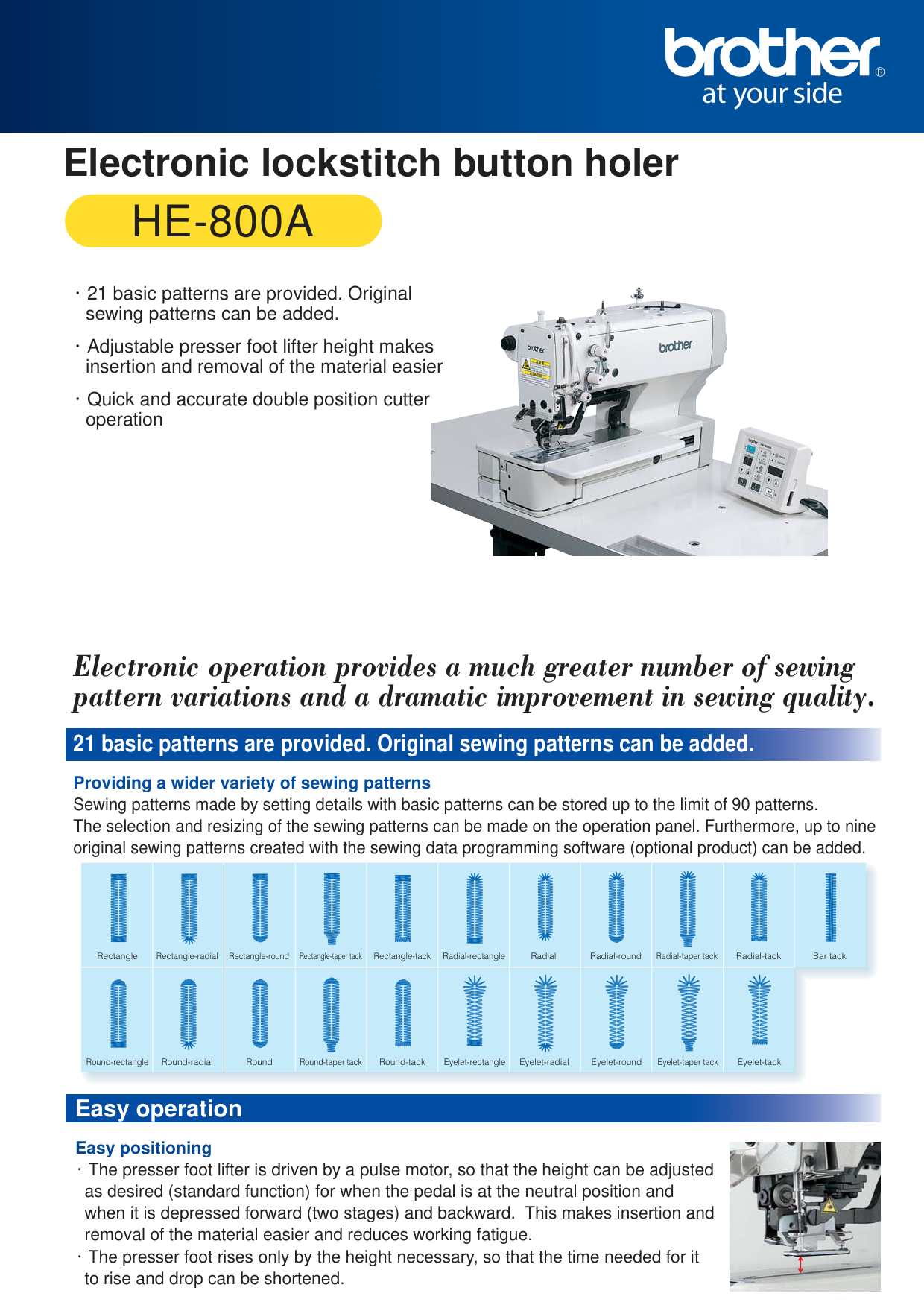

Electronic lockstitch button holer Providing a wider variety of sewing patterns Sewing patterns made by setting details with basic patterns can be stored up to the limit of 90 patterns. The selection and resizing of the sewing patterns can be made on the operation panel. Furthermore, up to nine original sewing patterns created with the sewing data programming software (optional product) can be added. 21 basic patterns are provided. Original sewing patterns can be added. Electronic operation provides a much greater number of sewing pattern variations and a dramatic improvement in sewing quality.
He-800A
･ 21 basic patterns are provided. Original sewing patterns can be added. ･ Adjustable presser foot lifter height makes insertion and removal of the material easier ･ Quick and accurate double position cutter operation Rectangle Rectangle-radial Rectangle-round Rectangle-taper tack Rectangle-tack Radial-rectangle Radial Radial-round Radial-taper tack Radial-tack Round-rectangle Round-radial Round Round-taper tack Round-tack Eyelet-rectangle Bar tack Eyelet-radial Eyelet-round Eyelet-taper tack Eyelet-tack Easy operation Easy positioning ･ The presser foot lifter is driven by a pulse motor, so that the height can be adjusted as desired (standard function) for when the pedal is at the neutral position and when it is depressed forward (two stages) and backward. This makes insertion and removal of the material easier and reduces working fatigue. ･ The presser foot rises only by the height necessary, so that the time needed for it to rise and drop can be shortened.
Double position solenoid Purl stitch Whip stitch Easy operation No need for adjustments such as replacing cutter cams when changing number of stitches The cutter vertical movements is driven by a double position solenoid. If not using a cutter, the cutter operation can be deactivated at the press of a key. The cutter operates without slowing down the sewing machine, and the cutter response time is also fast, so that cycle time is reduced and productivity is increased. Sub-table provided as standard It eases the setting of the material and reduces operator fatigue. Gives perfect sewing finishes Wide sewing range The thread take-up, rotary hook and thread path mechanisms provide ideal balance, so that attractive buttonholes can be sewn in a variety of different materials under a variety conditions. Accurate cutter operation The cutter vertical movements is driven by a double position solenoid, so that the material is cut more acurately. Clean finish with no upper thread trailing length Attractive finishes are obtained with no upper thread trailing at the sewing end. This ensures a stable and consistent high-quality sewing finish is always obtained. Better stitches at the sewing start Adoption of a bobbin presser prevents the bobbin from spinning free when the lower thread is trimmed. This makes lower thread feeding more stable and produces better stitches at the sewing start. And the lower thread holding device holds the lower thread at the sewing start to ensure that the thread end is sewn into the seam properly. Quiet operating environment Adoption of a clutchless mechanism ensures quieter operating environment and increased durability. Accurate home position detection The home position sensor incorporates a non- optical proximity sensor, so the sensor is not subject to operating errors from oil or dust, and cleaning oil and dust from the sensor are also unnecessary. Easy threading The needle bar can be moved to the right as a matter of course, and this makes threading much easier. Simple and easy-to-use operation panel There is a program memo pocket provided on the back of the panel. This lets the operator keep necessary information such as a parameter table, program notes and an error code table on hand for easy reference. The operator can select panel position whichever above or below the work table. Purl stitch / Whip stitch The upper thread tension is controlled by a solenoid, so that setting between purl stitches and whip stitches can be done simply by selecting them on the operation panel. Fine adjustments to the upper thread tension are made using a thread tension nut. The same method that operators have become used to allows the optimum thread tension to be easily obtained. Ideal for sewing vertical buttonholes A large arm pocket allows smooth material setting. Buttonhole sewing is also possible with the machine head positioned horizontally to the operator, which fully utilizes the large arm pocket.
He-800A
Mechanical button holer With under lay Without under lay Gives perfect sewing finishes Stable zigzag seams even at high speed A new needle zigzag mechanism (patent acquired) reduces the effect of vibration from upper shaft rotation on the needle bar, so that stable and accurate needle zigzagging is obtained even at high speeds. When sewing speed has been changed, a knife is not used to trim the thread. The cutter space does not change, further making sure that the finish is attractive. Adjustment of zigzag width balance is possible The left and right stitch width ratio for buttonholes can be set on the operation panel. Under lay Up to four pattern can be combined and sewn together. RectangleSaw shape
Options Needle plate set, RB The elasticity of rubber is used to make cutting more accurate by stopping the cutter from getting stuck in the material and not returning. Tape guard winder For materials which stretch extremely easily, such as all types of knitted materials, stronger buttonholes can be sewn if tape is attached to the underside of the article being sewn. Ruler This makes buttonhole positioning quicker and more accurate. Sewing data programing software This is a software package which lets you create new patterns using a personal computer. It can be used to program any patterns other than those patterns which have been pre- programed. (A P-ROM writer is required.) Specifications Peripheral equipment Lock Stitch Button holing Thread trimmer Automatic presser foot lifter
