Page 1

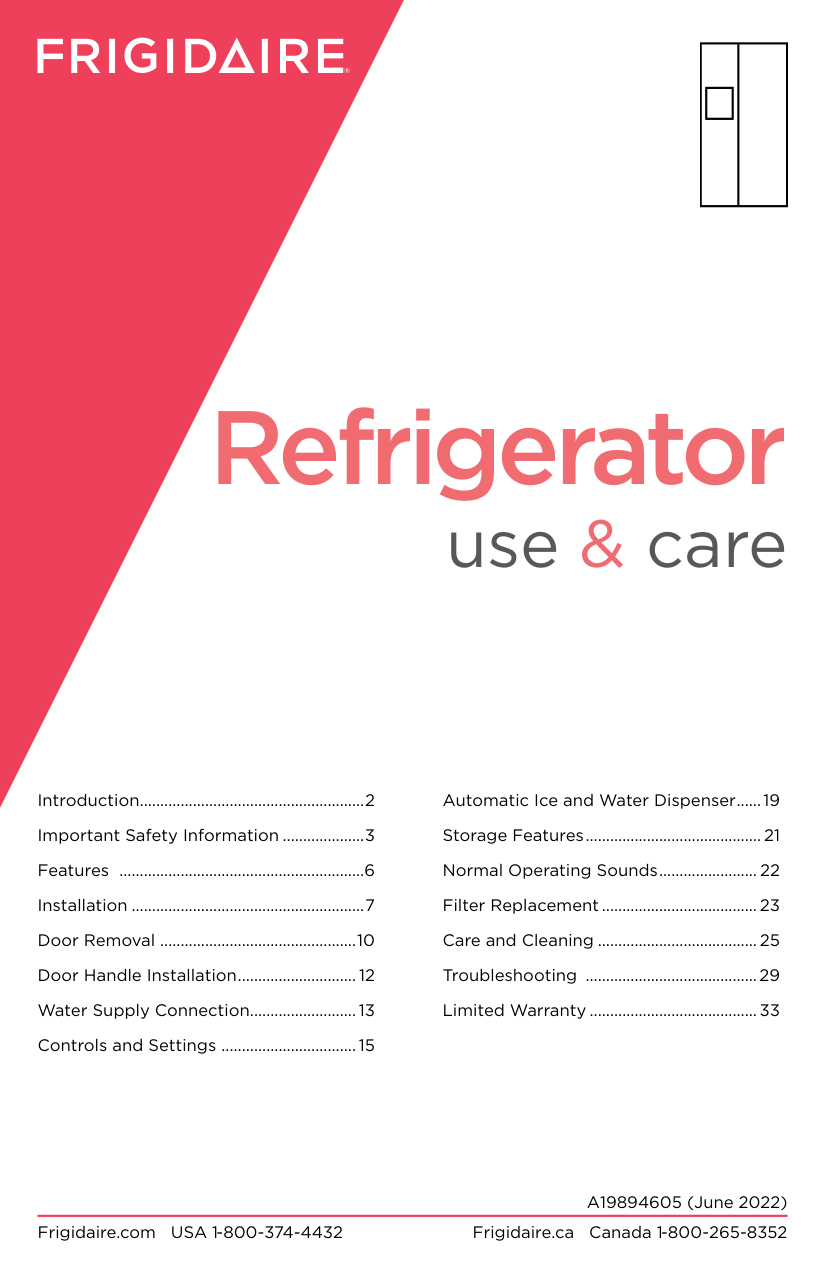

Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352 Refrigerator use & care A19894605 (June 2022) Introduction........................................................2 Important Safety Information.....................3 Features ............................................................6 Installation..........................................................7 Door Removal ................................................10 Door Handle Installation.............................. 12 Water Supply Connection........................... 13 Controls and Settings .................................. 15 Automatic Ice and Water Dispenser.......19 Storage Features............................................ 21 Normal Operating Sounds......................... 22 Filter Replacement....................................... 23 Care and Cleaning........................................ 25 Troubleshooting ...........................................29 Limited Warranty.......................................... 33
Page 2
2
Introduction
Doors Handles are secure and tight
Door seals completely to cabinet on all sides
Doors are level with each other. Leveling
Appliance is level side-to-side and tilted ¼" (6 mm) front-to-back
Toe grille is properly attached.
Cabinet is level on the floor. Electrical Power
House power turned on
Appliance is plugged in Ice Maker
House water supply connected to appliance (Warning: Potable water supply only.)
No water leaks present at all connections - recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates correctly Final Checks
Shipping material removed
Refrigerator and freezer tempera- tures set to recommended setting
Crisper humidity controls set (some models)
Registration card sent in Installation Checklist Lorem ipsum Lorem ipsumLorem i psumLorem ipsumLorem ipsumLore m ipsumLorem ipsum Lorem ipsum Lorem ipsumLorem i psumLorem ipsumLorem ipsumLore m ipsumLorem ipsum Lorem ipsum Lorem ipsumLorem Serial Number Location Welcome to our family Thank you for bringing Frigidaire into your home! We see your purchase as the beginning of a long relationship together. This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference. If something doesn’t seem right, the troubleshooting section will help you with common issues. FAQs, helpful tips and videos, cleaning products, and kitchen and home accessories are available at Frigidaire.com. We are here for you! Visit our website, chat with an agent, or call us if you need help. We may be able to help you avoid a service visit. If you do need service, we can get that started for you. Let’s make it official! Be sure to register your product. Keep your product info here so it’s easy to find. Model Number ____________________ Serial Number ____________________ Purchase Date ____________________
Page 3
3
Warning
WARNING indicates a potentially haz- ardous situation which, if not avoided, could result in death or serious injury.Important
IMPORTANT indicates installation, oper- ation or maintenance information which is important but not hazard-related.Danger
DANGER indicates an imminently haz- ardous situation which, if not avoided, will result in death or serious injury.Caution
CAUTION indicates a potentially haz- ardous situation which, if not avoided, may result in minor or moderate injury. Safety Definitions This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.Warning
Please read all instructions before using this appliance.Important Safety Information
Danger
DANGER Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost refrigera- tor. Do not puncture refrigerant tubing. DANGER Risk of fire or explosion. Flammable refrigerant used. To be re- paired only by trained service person- nel. Use only manufacturer-authorized service parts. Any repair equipment used must be designed for flammable refrigerants. Follow all manufacturer repair instructions. Do not puncture refrigerant tubing.Caution
CAUTION Risk of fire or explosion. Dispose of refrigerator properly in accordance with the applicable federal or local regulations. Flammable refrigerant used. CAUTION Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used.Warning
California Residents Only
Cancer and Reproductive Harm www.P65Warnings.ca.gov Page 4

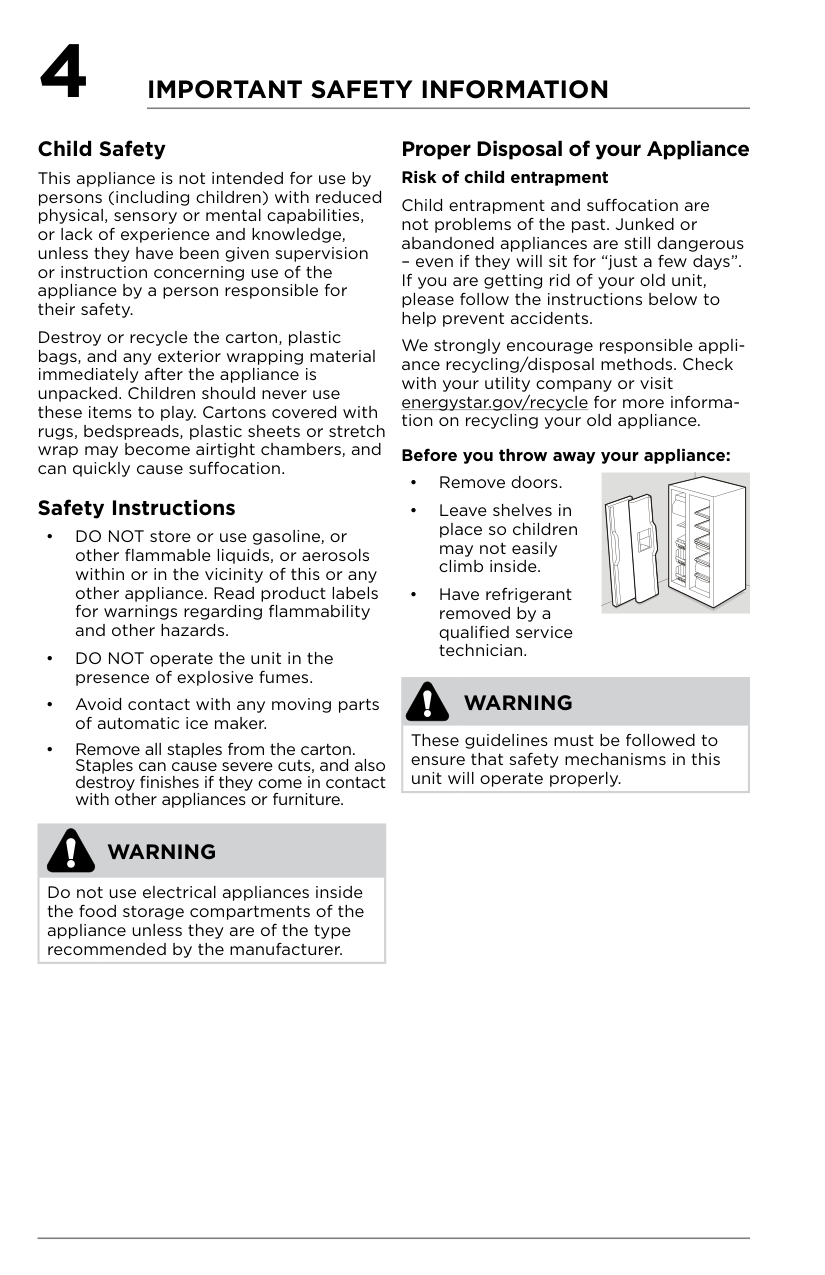

4
Important Safety Information
Warning
These guidelines must be followed to ensure that safety mechanisms in this unit will operate properly. Proper Disposal of your Appliance Risk of child entrapment Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous – even if they will sit for “just a few days”. If you are getting rid of your old unit, please follow the instructions below to help prevent accidents. We strongly encourage responsible appli- ance recycling/disposal methods. Check with your utility company or visit energystar.gov/recycle for more informa- tion on recycling your old appliance. Safety Instructions • DO NOT store or use gasoline, or other flammable liquids, or aerosols within or in the vicinity of this or any other appliance. Read product labels for warnings regarding flammability and other hazards. • DO NOT operate the unit in the presence of explosive fumes. • Avoid contact with any moving parts of automatic ice maker. • Remove all staples from the carton. Staples can cause severe cuts, and also destroy finishes if they come in contact with other appliances or furniture. Child Safety This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the appliance is unpacked. Children should never use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation. Before you throw away your appliance: • Remove doors. • Leave shelves in place so children may not easily climb inside. • Have refrigerant removed by a qualified service technician.Warning
Do not use electrical appliances inside the food storage compartments of the appliance unless they are of the type recommended by the manufacturer. Page 5

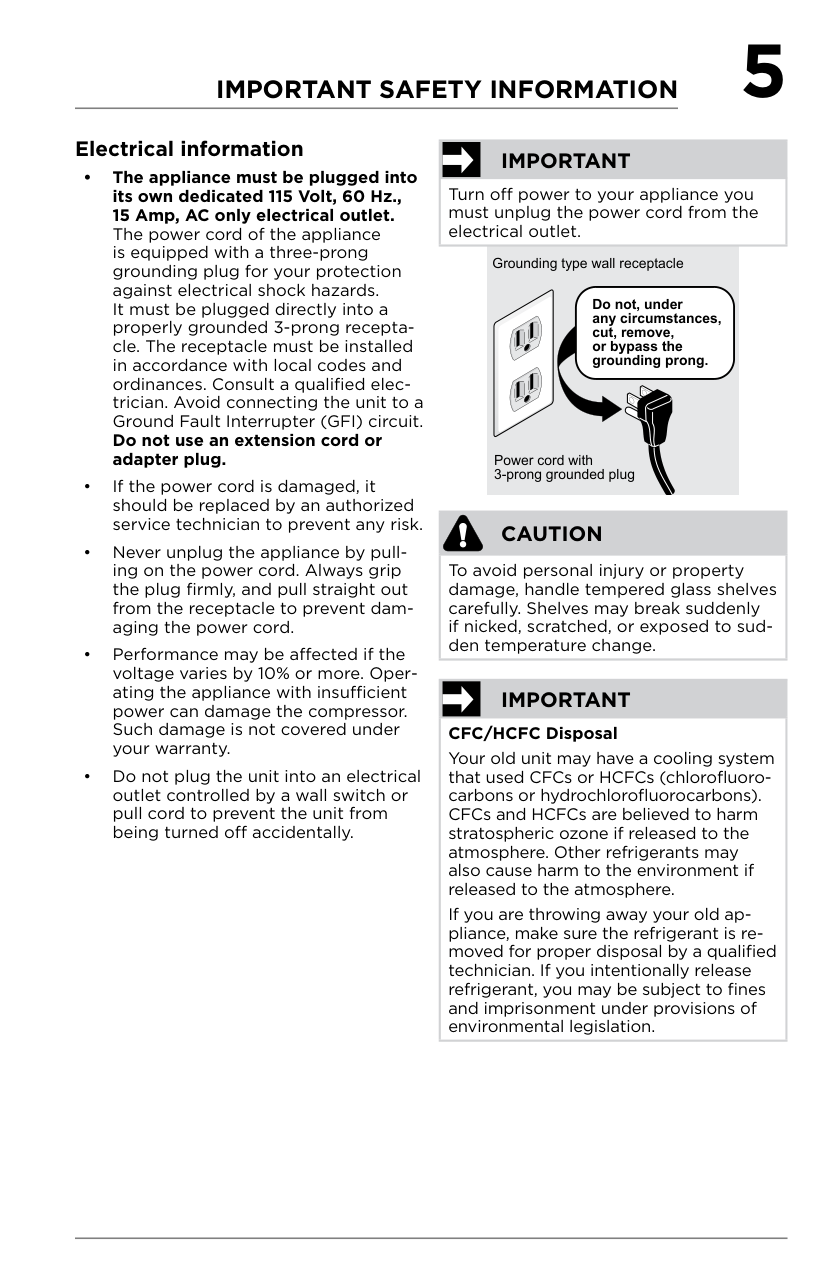

5 Electrical information • The appliance must be plugged into its own dedicated 115 Volt, 60 Hz., 15 Amp, AC only electrical outlet. The power cord of the appliance is equipped with a three-prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded 3-prong recepta- cle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualified elec- trician. Avoid connecting the unit to a Ground Fault Interrupter (GFI) circuit. Do not use an extension cord or adapter plug. • If the power cord is damaged, it should be replaced by an authorized service technician to prevent any risk. • Never unplug the appliance by pull- ing on the power cord. Always grip the plug firmly, and pull straight out from the receptacle to prevent dam- aging the power cord. • Performance may be affected if the voltage varies by 10% or more. Oper- ating the appliance with insufficient power can damage the compressor. Such damage is not covered under your warranty. • Do not plug the unit into an electrical outlet controlled by a wall switch or pull cord to prevent the unit from being turned off accidentally. Grounding type wall receptacle Power cord with 3-prong grounded plug Do not, under any circumstances, cut, remove, or bypass the grounding prong.
Important
CFC/HCFC Disposal Your old unit may have a cooling system that used CFCs or HCFCs (chlorofluoro- carbons or hydrochlorofluorocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere. If you are throwing away your old ap- pliance, make sure the refrigerant is re- moved for proper disposal by a qualified technician. If you intentionally release refrigerant, you may be subject to fines and imprisonment under provisions of environmental legislation.Important Safety Information
Caution
To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sud- den temperature change.Important
Turn off power to your appliance you must unplug the power cord from the electrical outlet. Page 6
6
A
Fixed Door BinsB
Ice MakerC
Ice ContainerD
ShelvesE
Damper/Air Filter HousingF
LED LightsG
Water FilterH
Dairy CompartmentI
Temperature Sensor/ThermistorJ
Adjustable Door BinsK
Deli Drawer (some models)L
Crisper DrawersM
Toe GrilleN
Slide-Out Basket *Features may vary according to modelL
M
N
B
C
D
E
F
G
H
I
J
K
A
F
F
F
F
Features
Important
Accessories are available for your appliance and may be purchased at Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in Canada) or from an authorized seller. Page 7
7
Installation
Note
If your unit is placed with the door hinge side against a wall, you may have to allow additional space for the handle so the door can be opened wider. This Use & Care Manual provides general operating instructions for your model. Use the unit only as instructed in this Use & Care Manual. Before starting the appli- ance, follow these important first steps. Installation Installation clearances • Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:Sides & Top ⅜"
Back
1" Location • Choose a place that is near a ground- ed electrical outlet. Do Not use an extension cord or an adapter plug. • If possible, place the unit out of direct sunlight and away from the range, dishwasher or other heat sources. • Install the appliance on a floor that is level and strong enough to support a fully loaded unit. • Consider water supply availability for models equipped with an automat- ic ice maker. If you do not hook up water to the appliance, remember to turn the ice maker off.
Caution
Do Not install the unit where the tem- perature will drop below 55°F (13°C) or rise above 110°F (43°C). The compres- sor will not be able to maintain proper temperatures inside the appliance. Do Not block the toe grille on the lower front of your unit. Sufficient air circula- tion is essential for the proper opera- tion of your appliance. Toe Grille Installation and Removal To install toe grilleWarning
This appliance is intended for use in residential household and similar interior applications such as: Page 8
8
Installation
Door Opening Position your unit to allow easy access to a counter or table when removing food. For the best use of drawers and freezer baskets, position the appliance where both doors can fully open.Note
The doors are designed to shut by themselves within a 20 degree opening. Guidelines for final positioning of your unit: • Rest all 4 corners of the cabinet firmly on the floor. • Level the cabinet at the front and rear so the front is raised ¼" (6 mm) above the rear to ensure the door will open/close and seal properly. • Align the doors with each other and level. Page 9
9
Installation
A
B
Set Screw Tornillo de fijacion Vis fixe 3/32" 3/32" Page 10
10
Door Removal
To prepare for removing the doors: Page 11
11
Door Removal
Caution
Be sure doors are set aside in a secure position where they cannot fall and cause personal injury. Door Hinge Assembly Screws Water Line Tubing Non-Adjusting Hinge (some models) Closer Pin Hinge Door Water Line Tubing Screws Hinge Assembly Adjustable Hinge (some models) To remove the freezer door:Important
To prevent wire damage, ensure the wires are rerouted through the routing clip when reassembling the hinge cover. Page 12
12
Door Handle Installation
Caution
Wear gloves and safety goggles and use extreme CAUTION when installing these handles. The rounded end of the handles may be sharp (some models).Note
Tighten and sub-flush all set screws (place the Allen set screw just below the sur- face of the end cap) of the handle end cap. Draw the end caps tight to the freezer and refrigerator doors with no gaps. To avoid scratching the metal door, keep the door open while torquing down the set screws.Important
To ensure proper installation of handles, please review these instructions and illustrations thoroughly prior to installing the handles. Handles may vary according to model Page 13
13
Water Supply Connection
Before Installing The Water Supply Line, You Will Need: • Basic Tools: adjustable wrench, flat-blade screwdriver, and PhillipsTM screwdriver • Access to a household cold water line with water pressure between 30 and 100 psi. • A water supply line made of ¼" (6.4 mm) OD, copper or stainless steel tubing. To determine the length of tubing needed, measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe. Then add approximately 7 (2.1 m), so the refrigerator can be moved out for cleaning. To Connect Water Supply Line To Ice Maker Inlet Valve• A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type shutoff valve. • Do not reuse compression fitting or use thread seal tape. • A compression nut and ferrule (sleeve) for connecting a copper water supply line to the ice maker inlet valve.
Warning
To avoid electric shock, which can cause death or severe personal injury, disconnect the unit from electrical pow- er source before connecting a water supply line to the appliance.Caution
To Avoid Property Damage:Note
Check with your local building authori- ty for recommendations on water lines and associated materials prior to in- stalling your new refrigerator. Depend- ing on your local/state building codes, Frigidaire recommends for homes with existing valves its Smart Choice® water line kit 5304490728 (with a 6Stain- less Steel Water Line) and for homes without an existing valve, Frigidaire recommends its Smart Choice® water line kit 5304490717 (with a 20copper water line with self-tapping saddle valve). Please refer to Frigidaire.com for more information.Important
Ensure your water supply line connections comply with all local plumbing codes. Page 14
14
Water Supply Connection
If you use braided flexible stainless steel tubing - The nut is already assembled on the tubing. Slide the nut onto the valve inlet and finger tighten the nut onto valve. Tighten another half turn with a wrench; DO NOT overtighten. See Figure 2.Important
After connecting the water supply, refer to Priming the Water Supply System for important information about priming an empty water supply system. Your refrigerator’s water supply system includes several tubing lines, a water filter, and a water valve. To ensure that your water dispenser works properly, completely fill this system with water when you first connect your refrigerator to the household water supply line.A
B
C
D
E
F
G
H
I
Figure 1A
Plastic Water Tubing to Ice Maker Fill TubeB
Steel ClampC
Brass Compression NutD
Ferrule (Sleeve)E
Copper Water LineF
Water Valve BracketG
Valve InletH
Water ValveI
Copper Water Line from Household Water Supply*J
Braided Flexible Stainless Steel Water LineK
6 ft. (1.8 m) Braided Flexible Stainless Steel Water Line from Household Water Supply* *Include enough tubing in the loop to allow moving the refrigerator out for cleaningA
B
J
F
G
H
K
Figure 2 Page 15
15
Controls And Settings
Sleep Mode Sleep mode is default on. When sleep mode is on, the LEDs are not illuminated on the display. Sleep mode can be changed to have the display on full time (Awake Mode). While in sleep mode pressing any key will illuminate LEDs and then go back to sleep after a short time. To turn sleep mode on/off, simultaneously press and hold Crush and for 5 seconds. A tone will confirm. Active Mode Display Sleep Mode Display Active Mode To change from sleep mode (on) to active mode (off), simultaneously press and hold Crush and for 5 seconds. The display will show the current temperature/ice maker status. A tone will confirm.Note
Your appliance may have some or all of the features listed below. Become familiar with these features and their use and care. Page 16
16
Controls And Settings
Warning
When using the cold drink timer, make sure to remove drinks from freezer compartment when alarm sounds. Carbonated drinks may explode if left in freezer for too long. 1 Freeze Boost (on/off) Activates a faster rate for freezing food in the freezer. Use this feature when loading several items into the freezer at one time. It automatically deactivates after 12 hours. 2 Cold Drink Timer Quickly chills a drink inside the freez- er compartment. To enable, touch Cold Drink Timer. A time value will appear on the freezer temp display (in minutes) and can be changed using the +/- buttons. A tone will sound when the time has been input. It ranges from 20-45 minutes in 5 minute intervals. Drinks will freeze if the temperature setting is too low or the timer setting is too long. 3 Ice Maker Press and hold for 3 seconds to turn the ice maker on/off. When the indicator is lit, the ice maker is on. When the ice maker is off, the ice maker off indicator is lit. When the ice maker is off, it will stop making ice. While off, ice dispensing can continue as long as there is ice in the bucket. When the ice maker is off and ice is dispensing, the indicator above the ice maker button and ice maker OFF will both blink. If the display is in sleep mode, you will have to wake it to confirm the ice maker is on/off. 4 The lock button can be used to lock the display preventing it from being used in certain situations. Press and hold for 3 seconds to enable/ disable. While in the locked state, no changes can be made to settings on the display. Dispensing ice and water will be disabled. The indicator will flash and an audible warning tone sounds. 5 Power Outage In the event of a power failure, the Power Outage alert will illuminate once power has been restored, and a tone will sound. Press any button to silence the tone. Display 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Page 17
17
Controls And Settings
°F/°C
To toggle between Fahrenheit (°F) and Celsius (°C), simultaneously press and hold + and - for 5 seconds on refrigerator side of display. Chill Boost Chill Boost is a faster rate for chilling food in the refrigerator compartment. Use this feature when loading several items into the refrigerator at one time. Deactivates after 6 hours. Air Filter The display shows the current status of the air filter (Good, Order, or Replace). To reset the filter status to Good, press and hold Air Filter for 3 seconds. Water Filter The display shows the current status of the water filter (Good, Order, or Replace). To reset the filter status to Good, press and hold Water Filter for 3 seconds. Toggles dispenser light On and Off. 13 14 15 16 17 Power Outage In the event of a power out- age, the Power Outage alert will illuminate once power has been restored and a tone will sound. Press any button to silence the tone. Door Open If you leave a door open for 5 minutes or more, an alarm will sound and the Door Open indicator will illuminate on the display. Turn the alarm off by closing the door or pressing any key. The control panel will return to normal operations after you close the door. Alarms 6 Adjusting Temp Illuminates when temperatures are changed on the display and will remain illuminated until the desired temperatures are reached inside the refrigerator and freezer. Press either the + or - to adjust to desired temperature setting. Freezer temp Control temperatures range from -6°F / -21°C to +4°F / -15°C. Refrigerator temp The Control temperature ranges from +33°F / +1°C to +43°F / +7°C. This unit is designed to operate at 39°F refrigerator/0°F freezer. The unit should stabilize temperatures within 24 hours of installation. Door Open Illuminates whenever the doors are open. If a door is left open for 5 minutes or more, an alarm will sound and the display will be illuminated until the doors are shut. Pressing any button will mute the alarm temporarily. Check to make sure no food is blocking the doorway. Replace Water Filter Display illuminates every 6 months or when filter needs replacing. Replace filter and then press and hold Reset Water Filter for 3 seconds to deactivate warning on display. See “Replacing the Filter” section for more information. Replace Air Filter Display illuminates every 6 months or when filter needs replacing. Replace filter and then press and hold Reset Air Filter for 3 seconds to deactivate warning on display. See “Replacing the Filter” section for more information. Water Press Water to dispense water. An indicator light will be illuminated above the active feature. Cube Press Cube to dispense cubed ice. An indicator light will illuminate above the active feature. Crush Press Crush to dispense crushed ice. An indicator light will illuminate above the active feature. 7 8 9 10 11 12 Page 18
18
Controls And Settings
Sabbath Mode The Sabbath mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community. Turn the Sabbath mode ON and OFF by simultaneously pressing and holding both the - (freezer side) and + (refrigerator side) for 5 seconds. Other than the High Temp alarm, no audible sounds will occur until you exit the Sabbath mode. The dis- play shows Sb while in Sabbath mode. Water Filter The water filter needs to be replaced when the indicator illuminates. Change the water filter every 6 months or after you have dispensed 120 gal- lons of water. To reset, press and hold the button for 3 sec- onds. A tone will then sound. Air Filter The air filter needs to be replaced when the indicator illuminates. Change the air filter every 6 months. To reset, press and hold the button for 3 sec- onds. A tone will then sound. Error Tone An alarm will sound if you try to make a selection that is not available. High Temp In the event of the internal temperature of the refriger- ator rising and staying at a temperature above the safe temp zone for a period of time, HI will display on the corresponding compartment display (refrigerator and/or freezer). An alarm will sound in addition to the display warning every 10 seconds until acknowledged. The refrigerator will automatically try to cool down to improve the condition. However, if the temperature has not cooled after some time, the warning and alarm will appear again. If the problem continues please call 1 (800) 374-4432. In the Sabbath mode, the High Temp alarm is active for health reasons. For example, if the door is left ajar the High Temp alarm is activated. The refrigerator will function normally once the door is closed, without any violation of the Sabbath/Holidays. The High Temp alarm is permitted when the cabinet temperature is outside the safe zone for 20 minutes. The alarm silences itself after 10 minutes while the High Temp icon stays lit until you exit the Sabbath mode. For further assistance, guidelines for proper usage and a complete list of models with the Sabbath feature, please visit the web at star-k.org. Alarms (continued)Note
Although you have initiated the Sab- bath mode, the ice maker will complete the cycle it had already started. The ice cube compartment will remain cold and you can make new ice cubes with standard trays.Note
While in Sabbath mode, neither the lights, dispenser, nor the control panel will work until Sabbath Mode is deactivated. The refrigerator stays in Sabbath mode after power failure recovery. You must deactivate it with the buttons on the control panel.Note
You should exit the Sabbath mode at your earliest convenience as the unit runs more efficiently out of the Sab- bath mode. Page 19
19
Automatic Ice And Water Dispenser
Priming the water supply system Ice maker operation & care After you properly install the refrigerator and it has cooled for several hours, the ice maker can produce ice within 24 hours. The ice maker will fill the ice bin from the rear. You must dispense some ice to force the ice forward in the bin. This will allow the bin to fill completely.Ice
Water
Crush Door Open High Temp Replace Water Filter Replace Air Filter Dispenser (varies by model)Caution
For proper dispenser operation, the recommended water supply pressure should fall between 30 psi and 100 psi. Excessive pressure may cause the sys- tem to malfunction. Turning the ice maker on Ice production is controlled by the ice maker's On/Off feature on the control panel. Pressing and holding the On/Off button toggles the ice maker On/Off.Note
Dispensed water is not chilled. For colder water, add ice to cup or contain- er before dispensing water.Note
The ice maker also has a built-in plastic signal arm that automatically stops ice production when the ice bin is full. Do not use this signal arm to manually stop the ice maker.Note
The water dispenser has a built-in de- vice that shuts off the water flow after 3 minutes of continuous use. To reset this shutoff device, simply release the dispenser paddle.Important
Turning off the ice maker simply dis- ables ice making. You will still be able to dispense existing ice, and you will still be able to dispense water. Page 20
20 Ice Maker/Dispenser Tips • Ice cubes stored too long may develop an odd flavor. Empty the ice container as explained in Cleaning the Ice Storage Bin. • Occasionally shake the ice container to keep ice separated. • If your refrigerator is not connected to a water supply or the water supply is turned off, turn Off the ice maker. • If you need a large quantity of ice at one time, it is best to get cubes directly from the ice container. • The following sounds are normal when the ice maker is operating:
Caution
Chemicals from a malfunctioning water softener can damage the ice maker. If the water supply to your refrigerator is softened, be sure the softener is main- tained to work properly.Caution
NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice storage bin and dispenser mechanism.Automatic Ice And Water Dispenser
AugerImportant
When removing or replacing the ice storage bin, avoid rotating the auger in the ice storage bin. If the auger is accidentally rotated, you must realign the auger by turning it in 45 degree turns (see below) until the ice storage bin fits into place with the drive mechanism If the auger is not properly aligned when replacing the ice storage bin, the refrigerator will not dis- pense ice. The freezer door also may not close properly causing warm air to leak into the freezer compartment. Page 21
21
Storage Features
Crisper Drawer Crispers Crispers allow you the flexibility to store any manner of items including fruits, veg- etables, nuts, etc. Crispers do not feature humidity controls. Deli Drawer (some models) Some models are equipped with a Deli Drawer for storing luncheon meats, spreads, cheeses and other deli items. This drawer does not have a separate temperature control. Deli Drawer Glass shelves Shelves are easily adjusted to suit individ- ual needs. Before adjusting the shelves, remove all food. Shelves are supported by side rails. See Glass Shelves in CARE AND CLEANING for proper shelf removal. Door storage Door bins and shelves are provided for convenient storage of jars, bottles, and cans. You can quickly select frequently used items. Some models have door bins that can accommodate gallon-sized plastic drink containers and economy-sized jars and containers. Some bins are adjustable for maximum storage capacity. The dairy compartment, which is warmer than the general food storage section, is intended for short term storage of cheese, spreads, or butter. Dairy Bin and Door Bin Page 22
22 Normal Operating Sounds
Understanding the Sounds you may Hear Your new, high-efficiency unit may intro- duce unfamiliar sounds. These sounds normally indicate your appliance is oper- ating correctly. Some surfaces on floors, walls, and kitchen cabinets may make these sounds more noticeable. Following is a list of major components in your unit and the sounds they can cause: A Evaporator Refrigerant through the evaporator may create a boiling or gurgling sound.B
Evaporator fan You may hear air be- ing forced through the refrigerator by the evaporator fan.C
Defrost heater During defrost cycles, water dripping onto the defrost heater may cause a hissing or sizzling sound. After defrosting, a popping sound may occur. D Condenser fan You may hear air be- ing forced through the condenser.E
Water valve Makes a buzzing sound each time it opens to fill the ice maker.F
Drain pan (not removable) You may hear water dripping into the drain pan during the defrost cycle. G Condenser May create minimal sounds from forced air.H
Motorized damper May produce in- termittent humming during operation.I
Ice chute When dispensing ice, you will hear a snapping or clicking sound when the solenoid opens and closes the ice chute.J
Ice Maker When ice has been pro- duced, you will hear ice cubes falling into the ice bin.I
E
G
H
F
J
Note
Energy efficient foam in your refrigera- tor is not a sound insulator.Note
During automatic defrost cycle, a red glow in the back wall vents of your freezer compartment is normal. Compressor Today's refrigerators are designed with a variable speed compressor to be more energy efficient than previous models. This means your compressor reacts quickly to temperature fluctuations and circulates cold air based off your use and room temperature. Page 23
23
Filter Replacement
PurePour™ Water Filter Keep safe, great-tasting water flowing with a PurePour water filter. Using a Pure- Pour water filter: • Makes Safe Water Second Nature PurePour water filters are certified to reduce contaminates* and keep great-tasting water flowing for you and your family. • Produces Purity You Can Trust Know for certain yourPurePour water filter is a protector. Counterfeits and knockoffs put your refrigerator and health at risk. Frigidaire Genuine Filters are the smarter, safer choice. • Every Drop Gives Back Partnered on sustainability efforts, the use of a PurePour water filter helps cut back on the cost and use of plastic used to produce and package bottled water *For the complete list, please see Performance DataSheet on Frigidaire.com Do not use with water that is microbiologi- cally unsafe or of unknown quality without adequate disinfection before or after the system. Use systems certified for cyst reduction on disinfected waters that may contain filterable cysts. Test & certification results: • Rated Capacity - 125 gal/453 L for PurePour and ice and water filter • Rated service flow - .50 gal/min. • Operating Temp.: Min. 33°F, Max. 100°F • Maximum Rated Pressure - 100 lbs/in.² • Recommended Minimum Operating Pressure: 30 lbs/in² Replacing your PurePour water filter It is not necessary to turn the water sup- ply off to change the filter. Be ready to wipe up any small amounts of water released during the filter replacement.Note
When you order your replacement filter, please reorder the same filter type currently in your refrigerator. The PurePour ice and water filter sys- tem is tested and certified to NSF/ANSI Standards 42, 53, 401 and CSA B483.1 for the reduction of claims specified on the performance data sheet. Visit Frigidaire.com for more information. Here are the product numbers to request when ordering:PurePour Water Filter
Part# FPPWFUO1™
Page 24
24 Filter Replacement
PureAir Ultra II™ Air Filter (some models) Some models are pre-loaded with an air filter located at the top of the fresh food compartment, next to the water filter. Replacing the Air Filter You should change your air filter every 6 months (the filter status light on the con- trol panel prompts you to replace the filter after 6 months) to opti- mize the reduction of refrigerator odors. Different foods will emit various levels of odor. To install your new PAULTRA2™ PureAir Ultra II air filter:Caution
DO NOT OPEN. Contents may irritate eyes or skin. Keep out of reach of children. FIRST AID: Contains potassium perman- ganate. In case of contact with eyes or skin, rinse immediately with water. DO NOT EAT: If swallowed, seek medical treatment immediately.PureAir Ultra II Air Filter
Part# PAULTRA2
Page 25
25
Care And Cleaning
Protecting your investment Keeping your appliance clean maintains appearance and prevents odor build-up. Wipe up any spills immediately and clean the freezer and refrigerator compart- ments at least twice a year. When clean- ing, take the following precautions: • Never use CHLORIDE or cleaners with bleach to clean stainless steel. • Do not wash any removable parts in a dishwasher. • Always unplug the electrical power cord from the wall outlet before cleaning. • Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the appliance surface. • Do not remove the serial plate. Do not use abrasive cleaners such as win- dow sprays, scouring cleansers, brushes, flammable fluids, cleaning waxes, concen- trated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior doors, gaskets or cabinet liners. Do not use paper towels, metallic scouring pads, or other abrasive cleaning materials or strong alkaline solutions.Caution
Note
If you set your temperature controls to turn off cooling, power to lights and other electrical components will contin- ue until you unplug the power cord from the wall outlet.Important
If you store or move your unit in freez- ing temperatures, be sure to completely drain the water supply system. Failure to do so could result in water leaks when you put the unit back into service. Con- tact a service representative to perform this operation. Page 26
26 Care And Cleaning
Refrigerator Glass Shelf Refrigerator: Shelves are easily adjusted to suit individual needs. Before adjusting the shelves, remove all food. Shelves are supported by side rails. To adjust, lift up on the back of the shelf and pull forward. Replace the shelf by sliding it on top of the formed rails on the side walls of the cabinet until the rear plastic hooks of the shelf lock into the rear of the cabinet liner. Glass Shelves Freezer: You can remove the glass freezer shelf for cleaning. Remove all food from the glass shelf. Rotate the front trim down to remove front trim (Figure 1).Caution
To avoid personal injury or property damage, handle the freezer glass shelves carefully. These shelves are fixed and are not to be used as sliding shelves. Remove both the rear trim and glass by pulling up on the rear tab and sliding the shelf forward (Figure 2) Figure 1Caution
To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break sudden- ly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room tem- perature before cleaning. Do not wash in the dishwasher. Figure 2Caution
Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in the dishwasher. Page 27
27
Care And Cleaning
To reassemble the freezer shelf, slide the glass and rear trim along the shelf rails while pressing the shelf downward until it is fully locked into place in the rear (Figure 3). Figure 3 Finally, rotate the front trim upward on the front edge of the glass shelf (Figure 4). Figure 4 Page 28
28 Care And Cleaning
Care & Cleaning Tips Part What To Use Tips and Precautions Interior & Door Liners Page 29
29 1-800-265-8352 (Canada) Frigidaire.ca 1-800-374-4432 (United States) Frigidaire.com
Troubleshooting
Let us help you troubleshoot your concern! This section will help you with common issues. If you need us, visit our website, chat with an agent, or call us. We may be able to help you avoid a service visit. If you do need service, we can get that started for you!Concern
Cause
Solution
Automatic Ice Maker
Ice maker is not making any ice. Page 30
30 Troubleshooting
Concern
Cause
Solution
DISPENSER (Ice & Water) (Continued) Dispenser will not dispense water.Opening/Closing Of Doors/Drawers
Door(s) will not close. Page 31
31
Troubleshooting
Concern
Cause
Solution
OPENING/CLOSING OF DOORS/DRAWERS (Continued) Drawers are dif- ficult to move.Care And Cleaning.
Running Of Refrigerator
Compressor does not run.Ing Of Doors/Drawers.
And Cleaning.
Appliance seems to run continuously.Digital Temperature Display
Digital tempera- ture displays are flashing. Page 32
32
Concern
Cause
Solution
Water/Moisture/Frost Inside Refrigerator
Moisture collects on inside of re- frigerator walls.Closing Of Doors/Drawers.
Water collects on bottom side of drawer cover.Water/Moisture/Frost Outside Refrigerator
Moisture collects on outside of refrigerator or between doors.Closing Of Doors/Drawers.
Led Lighting
LED is not working.Troubleshooting
Page 33
33
Limited Warranty
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions. Exclusions This warranty does not cover the following:Disclaimer Of Implied Warranties; Limitation Of Remedies
Customer’S Sole And Exclusive Remedy Under This Limited Warranty Shall Be
Product Repair Or Replacement As Provided Herein. Claims Based On Implied
Warranties, Including Warranties Of Merchantability Or Fitness For A Particular
Purpose, Are Limited To One Year Or The Shortest Period Allowed By Law, But Not
LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTALDamages Such As Property Damage And Incidental Expenses Resulting From Any
BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGALRights. You May Also Have Other Rights That Vary From State To State.
If You Need Service Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below. This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.Usa
1-800-374-4432 Frigidaire 10200 David Taylor Drive Charlotte, NC 28262 Canada 1.800.265.8352 Electrolux Canada Corp. 5855 Terry Fox Way Mississauga, Ontario, CanadaL5V 3E4
Page 34
Frigidaire.com 1-800-374-4432 Frigidaire.ca 1-800-265-8352 owner support accessories service Our home is your home. Visit us if you need help with any of these things: registration (See your regristration card for more information.) welcome home
